Harley 70320-56 K-Model XL XLH KH KHK Wiring Harness Kit 1956-58 USA
$139.95

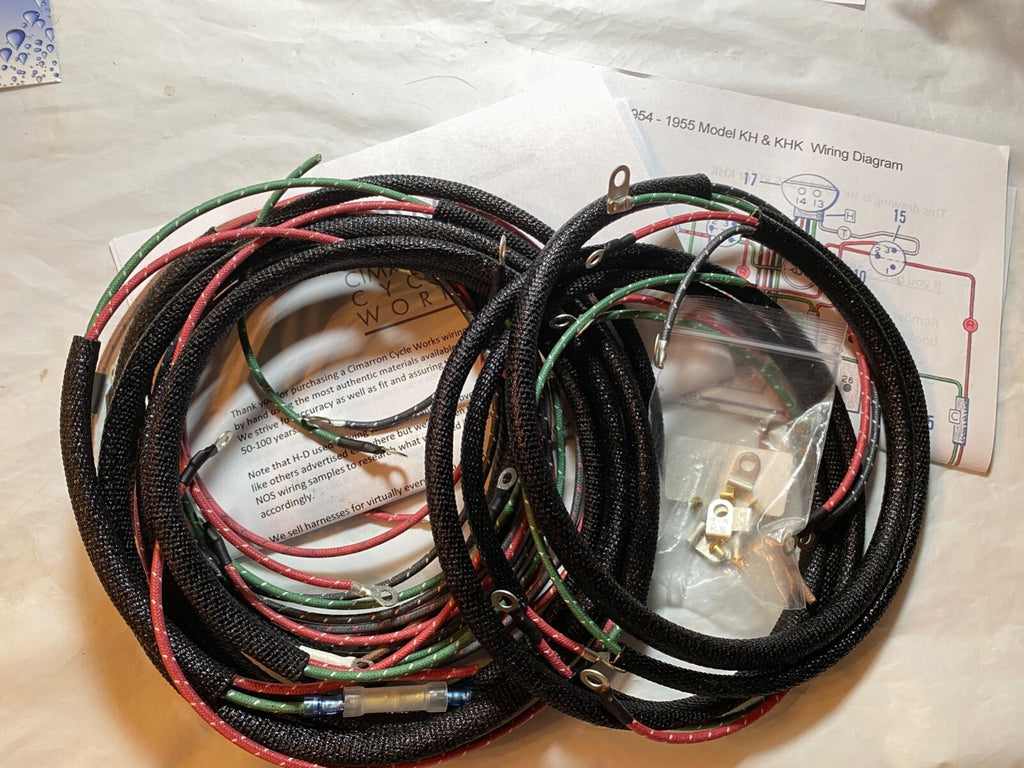

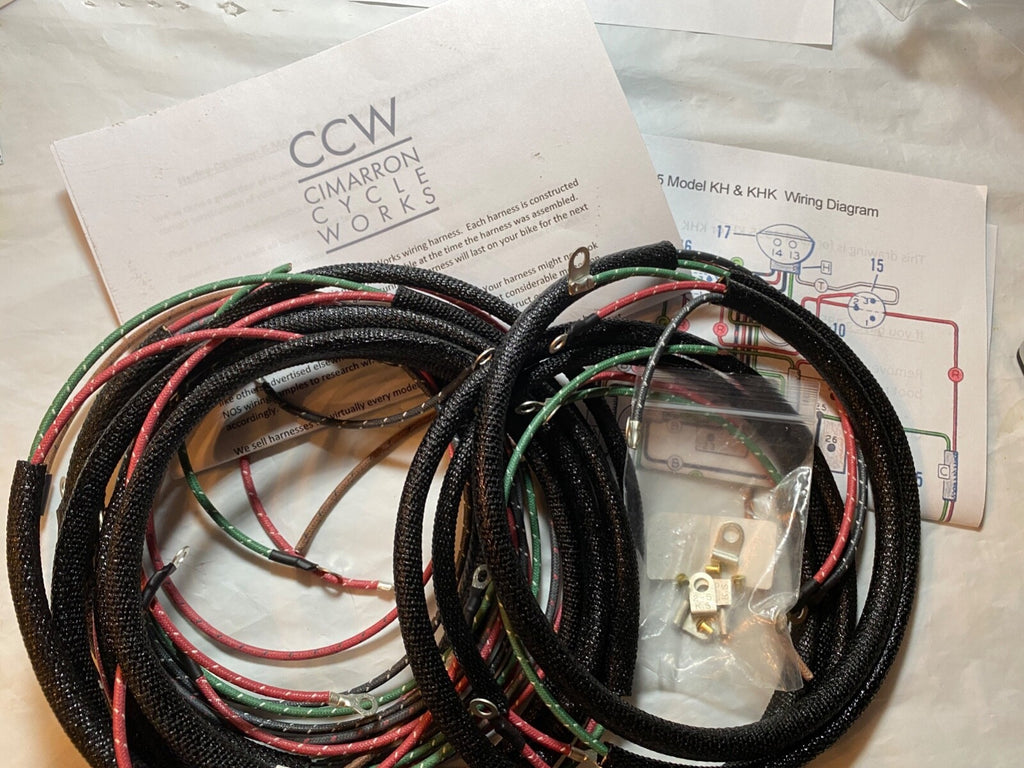

You are purchasing one new USA made reproduction wiring harness for 1956 to 1958 K, KK, KH, KHK K-model flat head sport twins as well as 1957 and 1958 XL and XLH Sportster.
This is 1956-1958 specific as it has tail lamp button contacts as well as a different oil pressure switch starting in 1957. We include two different terminals for your oil pressure switch.
The wiring in the kit will address differences from specific years. Let us know what year you are restoring and we will make certain you get the correct wiring diagram to accompany your new wiring harness.
We do sell a "premium" kit with the correct and now obsolete Tyco AMP style open barrel #10 terminals and a pre-wired headlamp block with signal lamp wires for your headlamp bucket. This kit includes the black and green signal lamp wires for the headlamp bucket. If you need a complete headlamp wiring solution please visit our listing 353601946374. We also have a kit with pre-wired tail lamp contacts, full headlamp wiring, and pre-wired horn and dimmer switches. If you can't find it in our store or cimarroncycleworks, just ask.
Manufactured with pride at our shop in beautiful Cimarron, New Mexico, USA!
We also stock wiring harness kits for 1957-1969 XL, XLH, XLCH Sportster models.
Also keep a look out for complete harness master kits we will soon offer with every wire loom clip you need plus completely wired switches and the headlamp block. They will be a good deal more expensive but will save you quite a bit of time on your complete re-wire job!
Used on the following:
- 1956 KH, KHK 55" flathead sport twin models
- 1957-1958 XL XLH OHV Sportster models
Do note that we do offer one of the largest selections of reproduction hardware and electrical parts for your 1915-1984 Harley-Davidson motorcycle. Our offerings keep growing on a weekly basis, please email if you need something you don't see in our eBay store. We are also trying to increase our offerings for K-model and early Sportster owners.
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate. Your shipping price does include insurance to the destination.
