1938 Harley 4735-38 Premium Wiring Kit Tinned & Looped Ends w/ Cotton Looms

You will not find a more accurate pre-war wiring kit than this one anywhere.

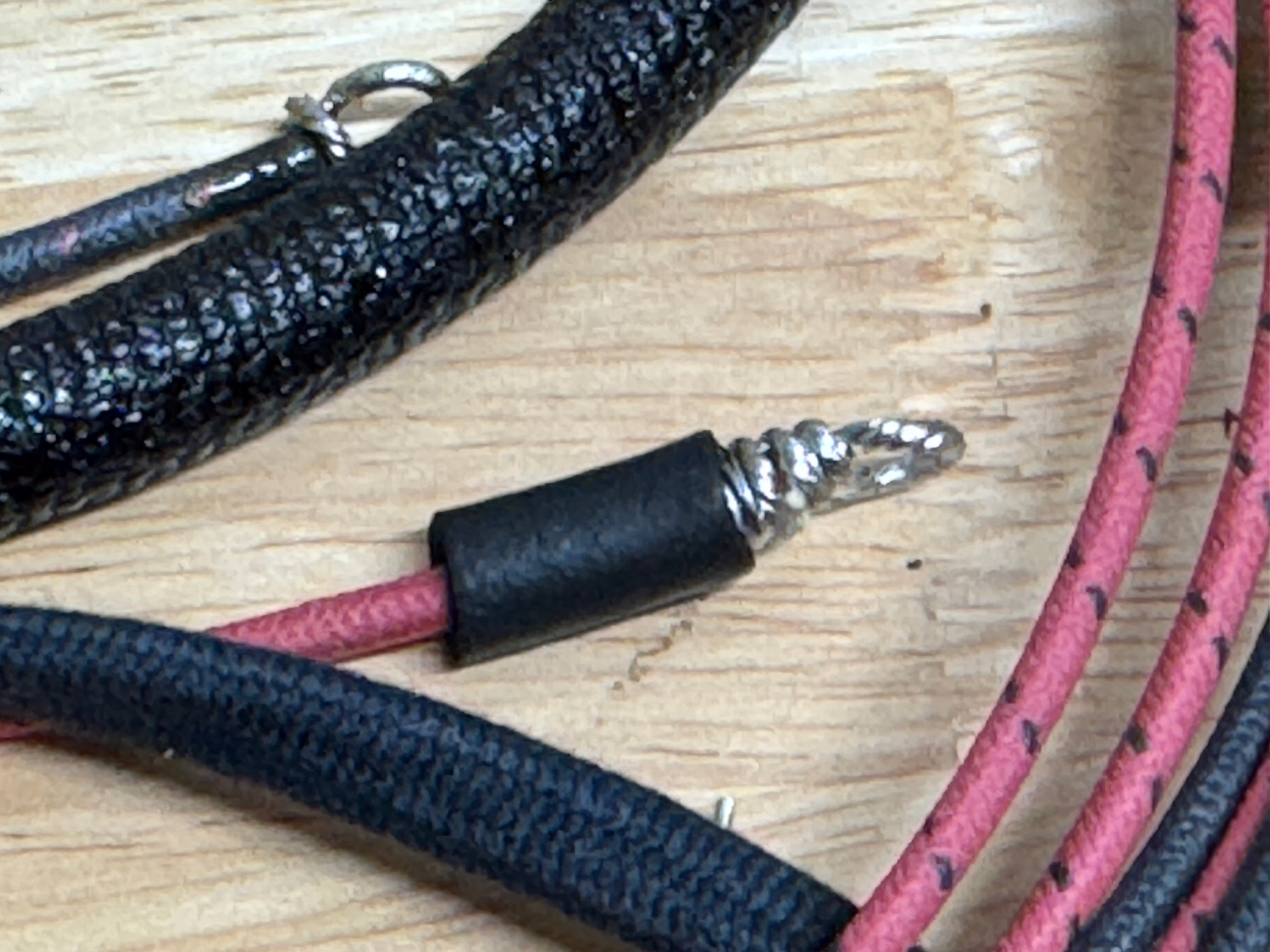

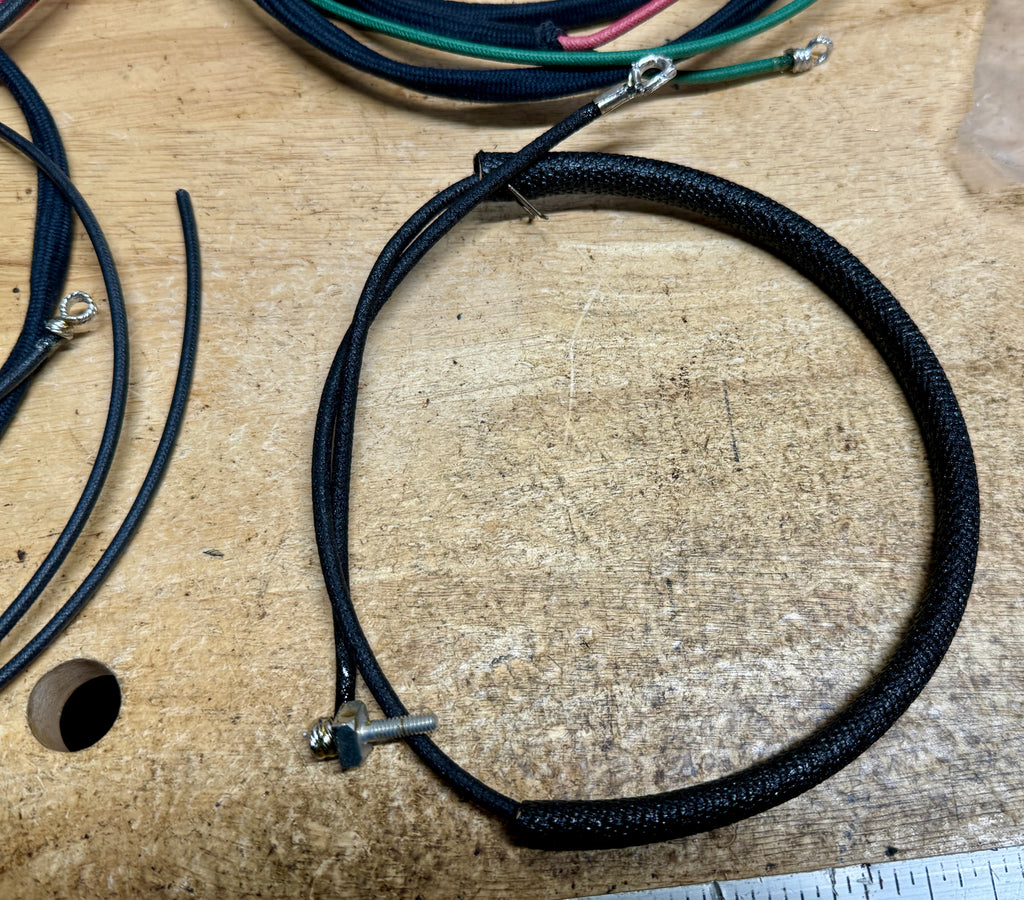

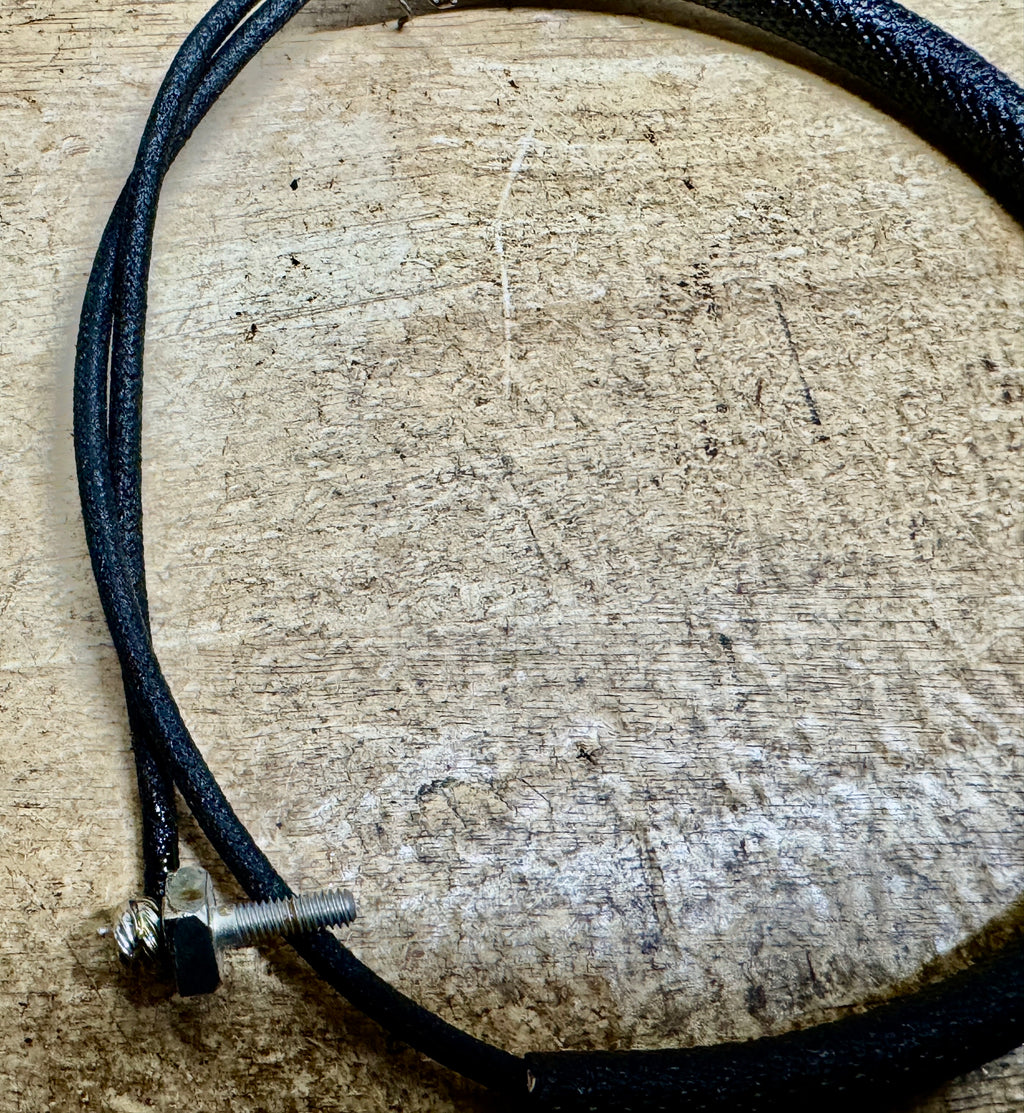

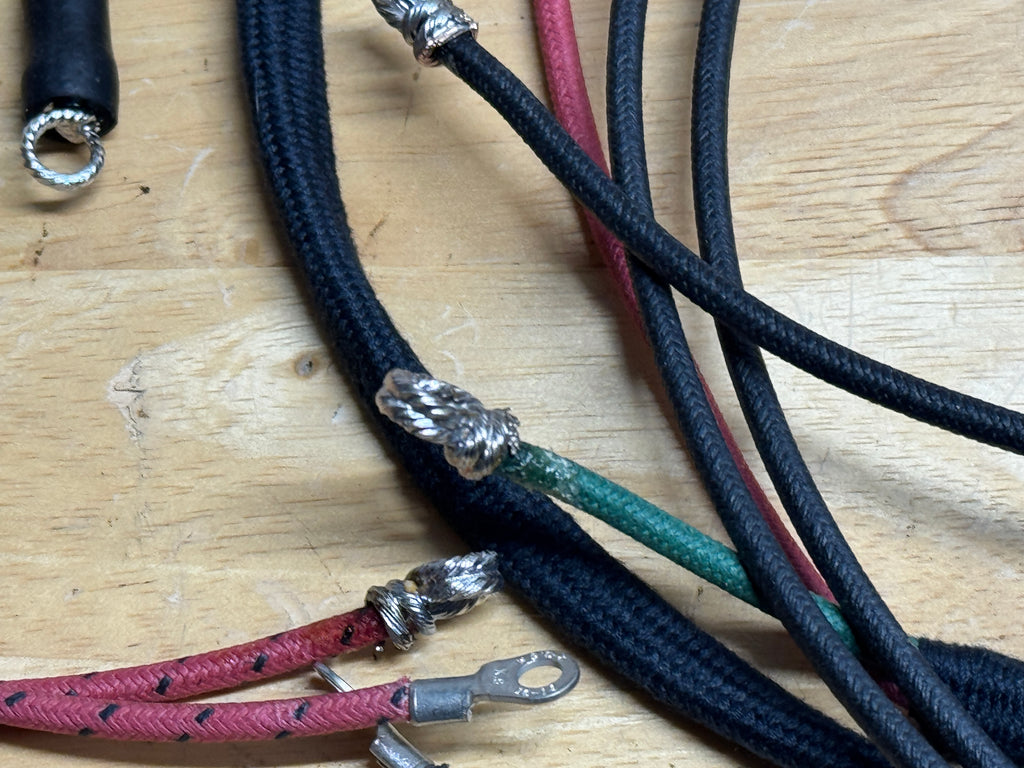

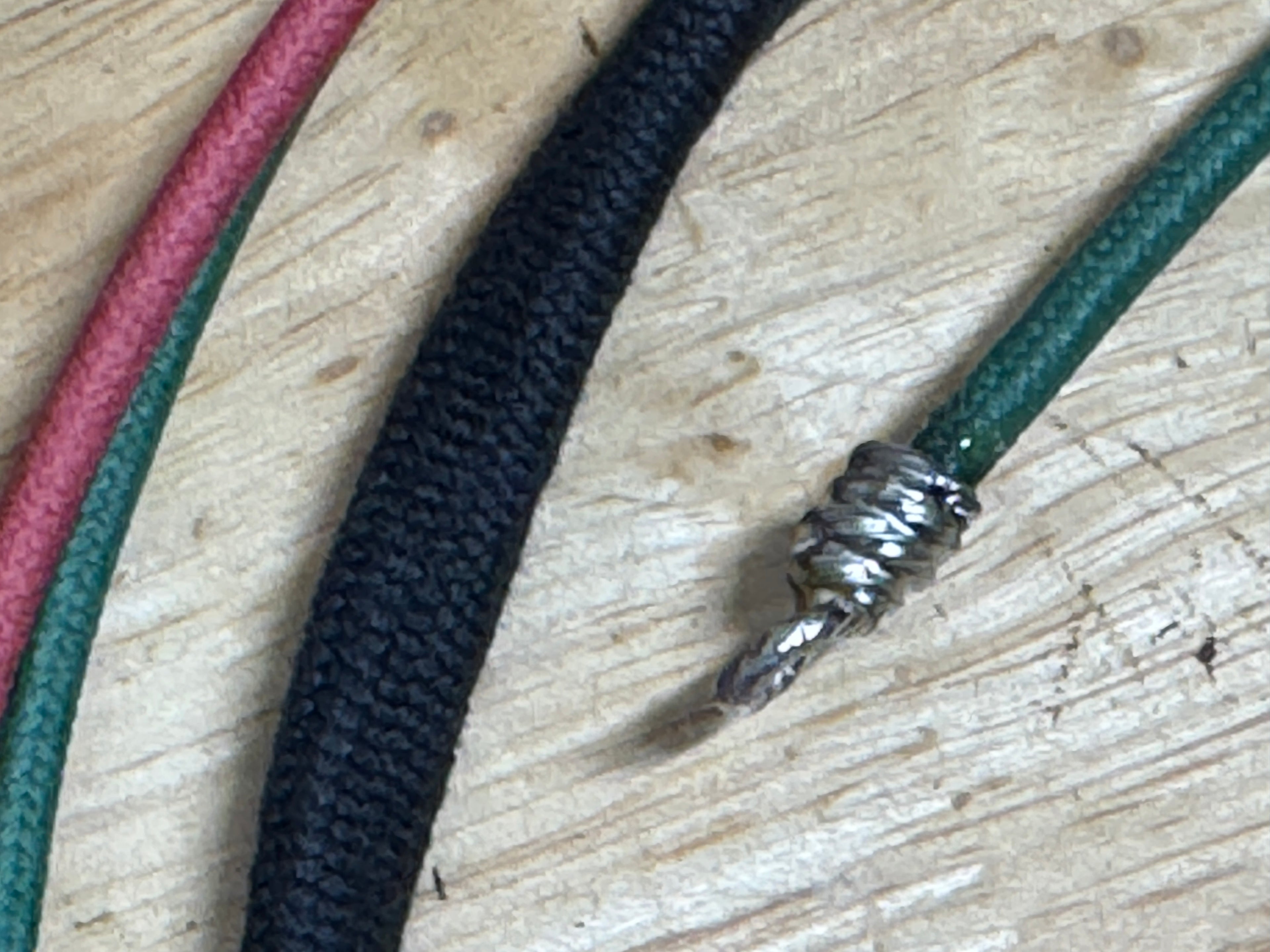

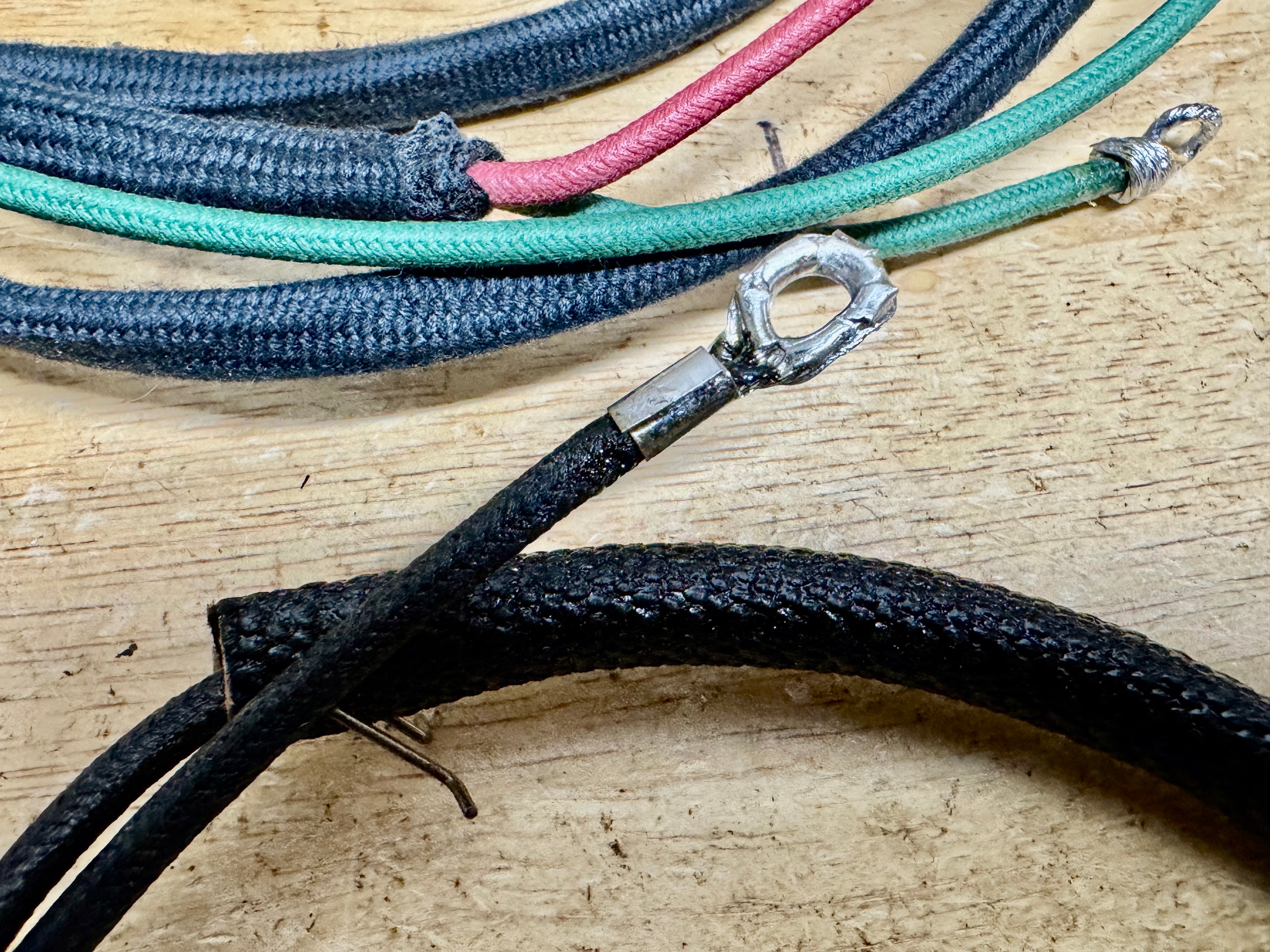

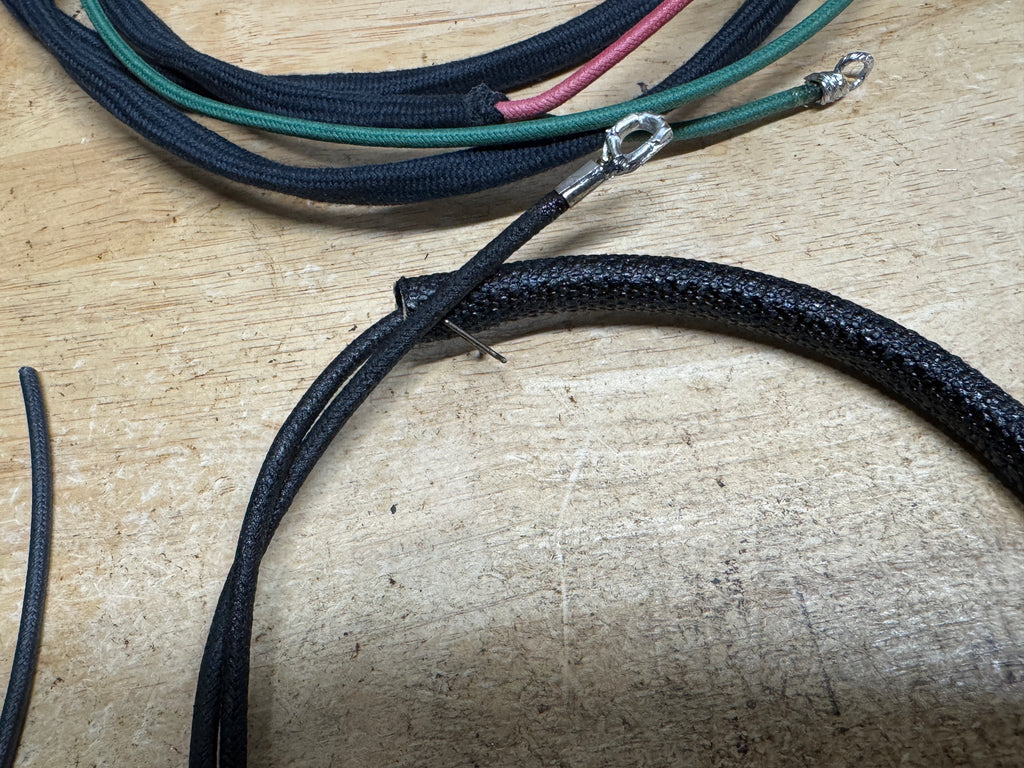

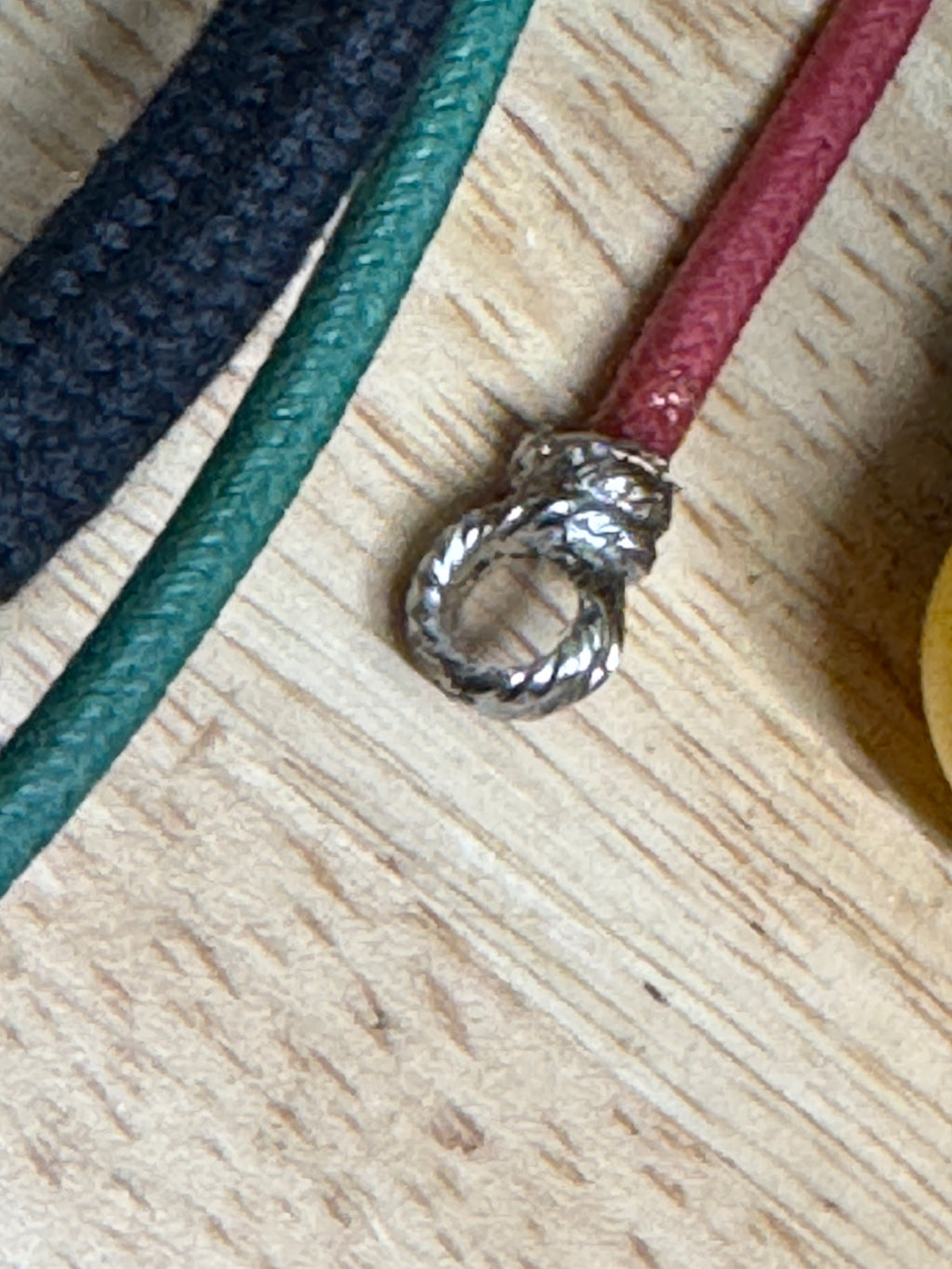

You are purchasing one new reproduction 1938 E, EL, U, UL, and WL premium wiring kit.  This kit uses correct lacquered cotton-woven color-coded wires, cotton-woven looms where appropriate and asphalt looms where appropriate.  Wire ends are twisted and tinned as original.  It also includes the one year only timer wire with a looped and tinned end and the timer terminal post is soldered in place. This kit assumes you have an original 1938-1946 dash base which has four pass through holes either side of the ignition switch.

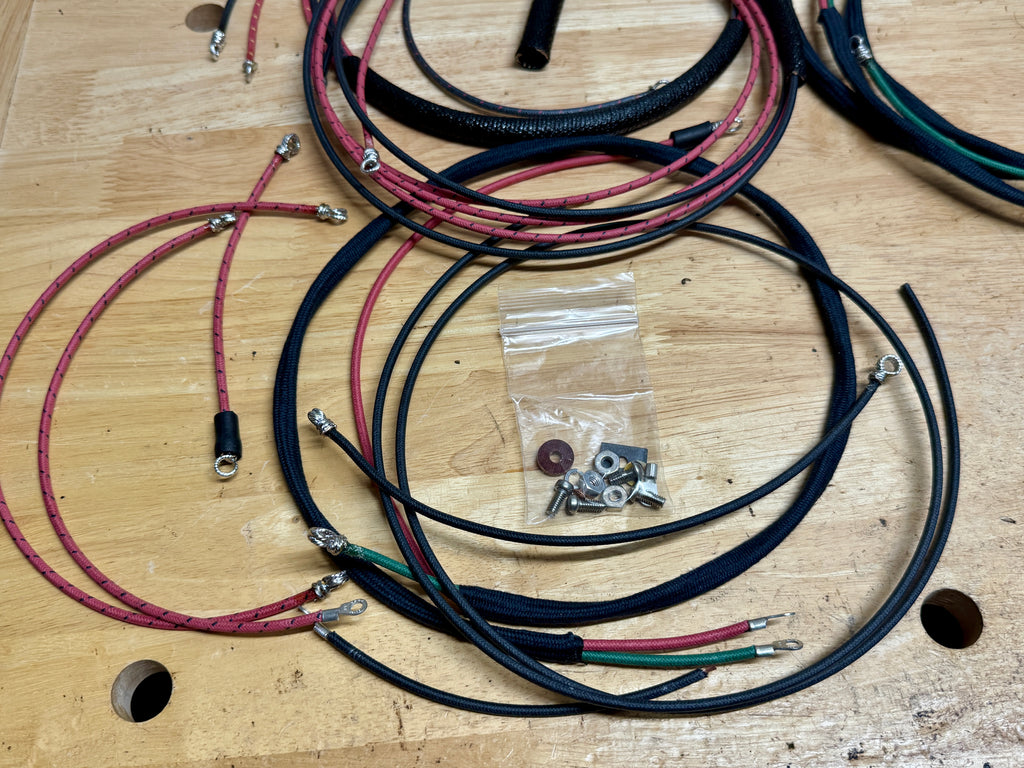

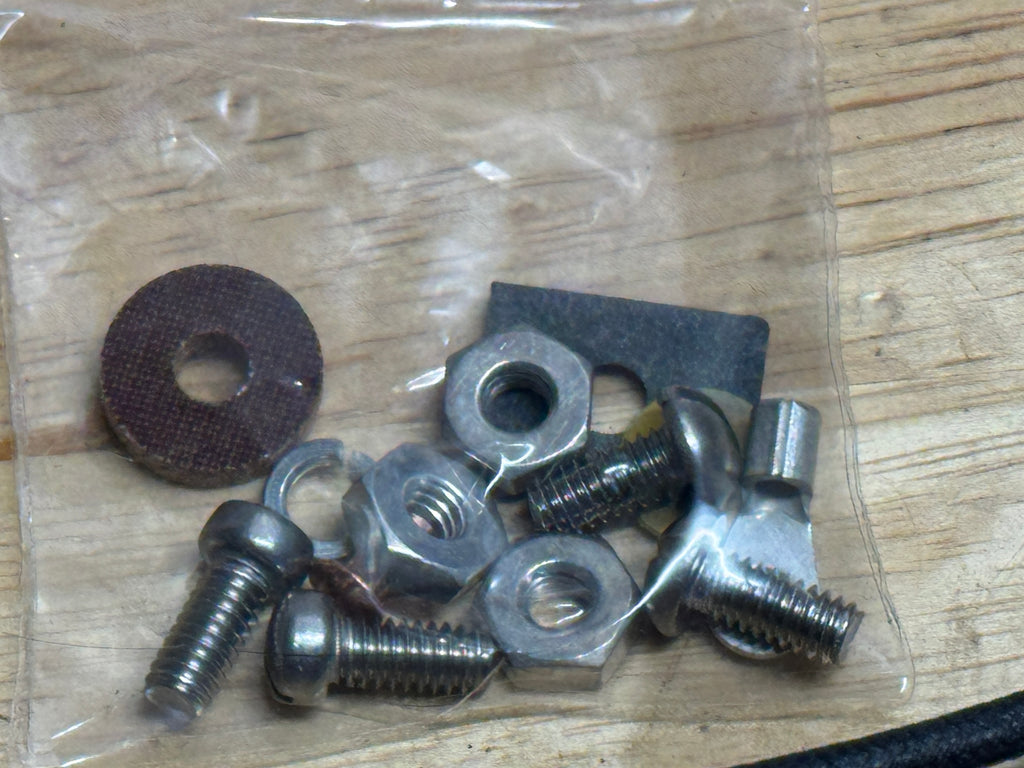

Includes the timer base stud hardware, longer 8-32 filister head screws for your coil, longer 8-32 round head screws for your relay as the tinned terminals may take more space than the later flag type terminals.

Tail and both stop lamp wires are included in the kit as well as a panel wire and front fender lamp wire.

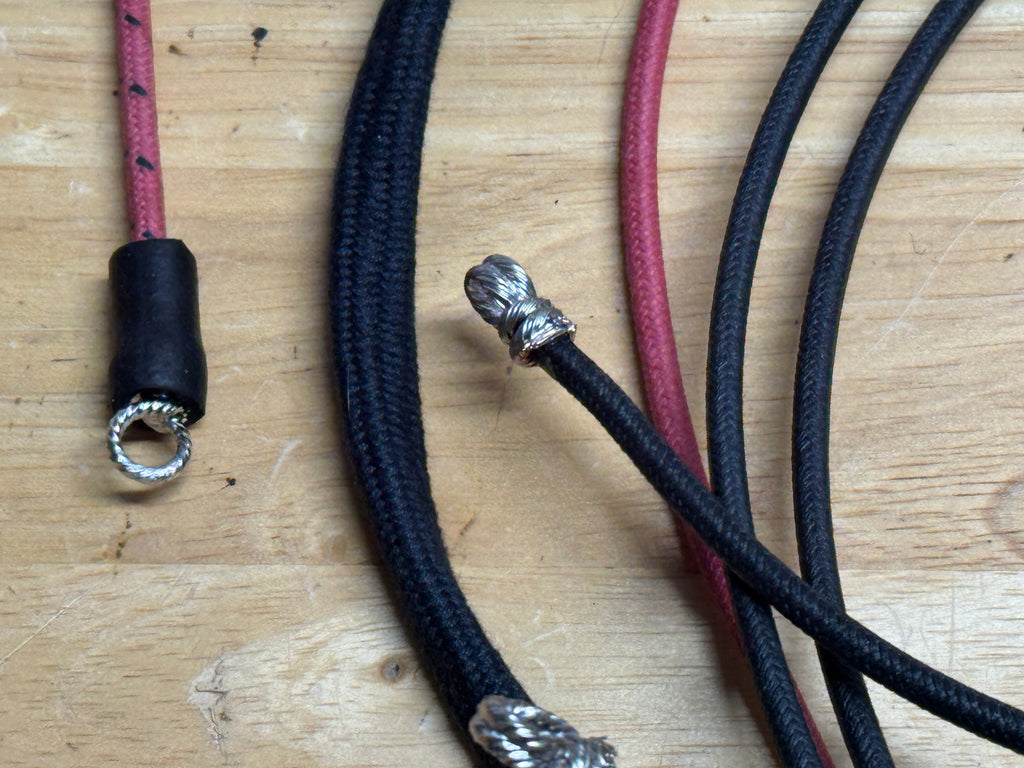

Bar wires are finished with looped ends.  You will need to fish your wires up from the bottom of the bar to the dimmer and horn switch holes.  Finished headlamp and horn wires are 26 1/2" plus to account for speedster and buckhorn bars.

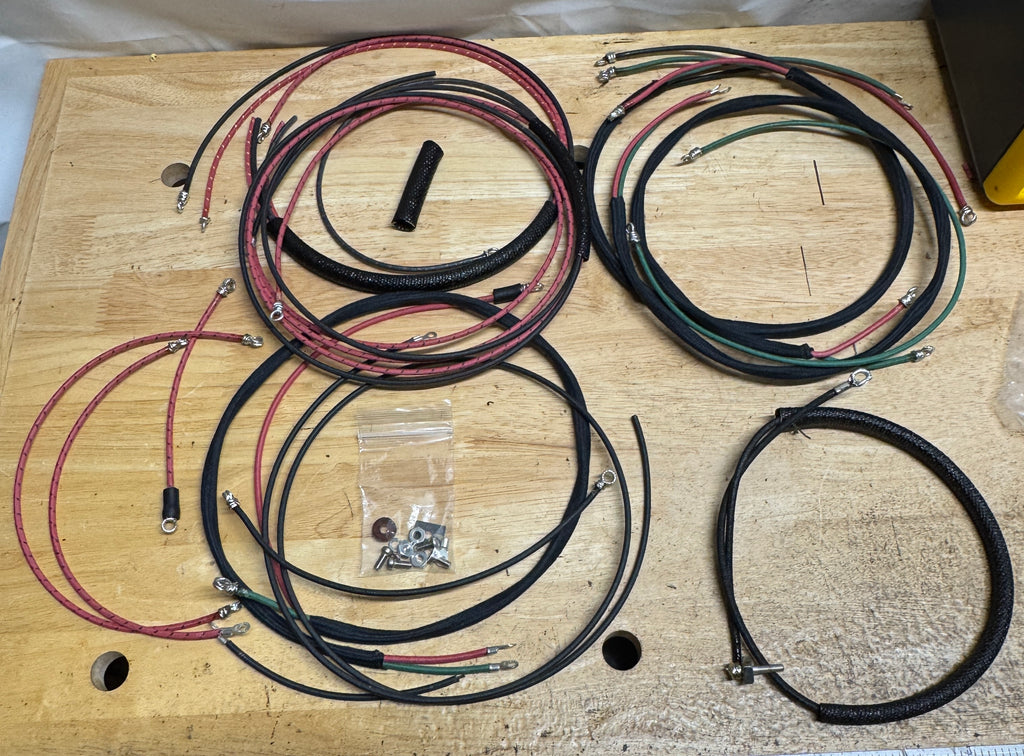

This is everything needed to wire your bike from nose to tail.

Please email us if you are purchasing for a UL, WL, or Servicar.  Servicar does cost a bit more but is provided with the correct tail lamp wiring.
