Harley Knucklehead UL WL 18" CADMIUM PLATED Star Hub Spokes OEM# 3943-36 Euro
- Product Code: 293175721015
- Availability: Out Of Stock
-
$139.95

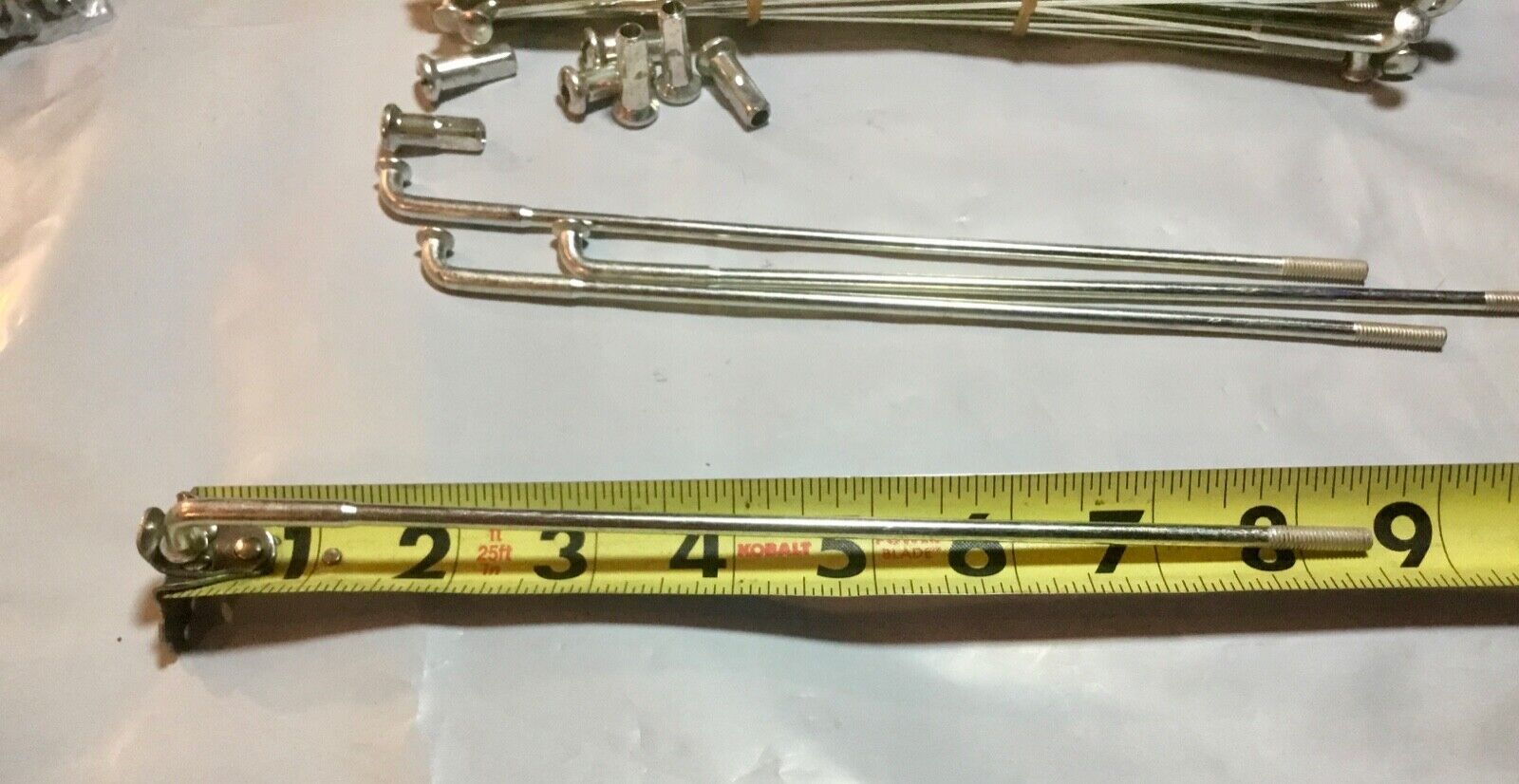

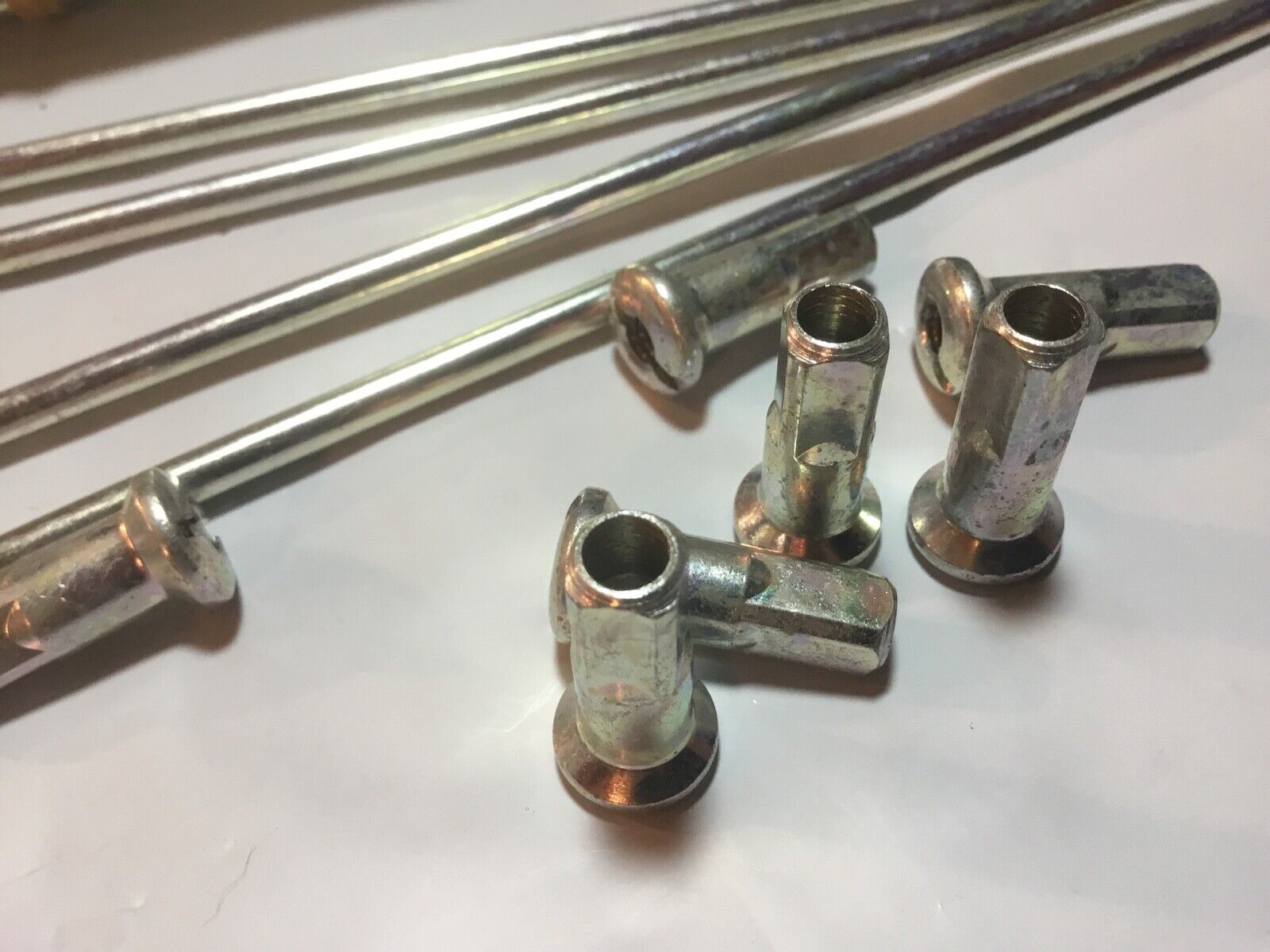

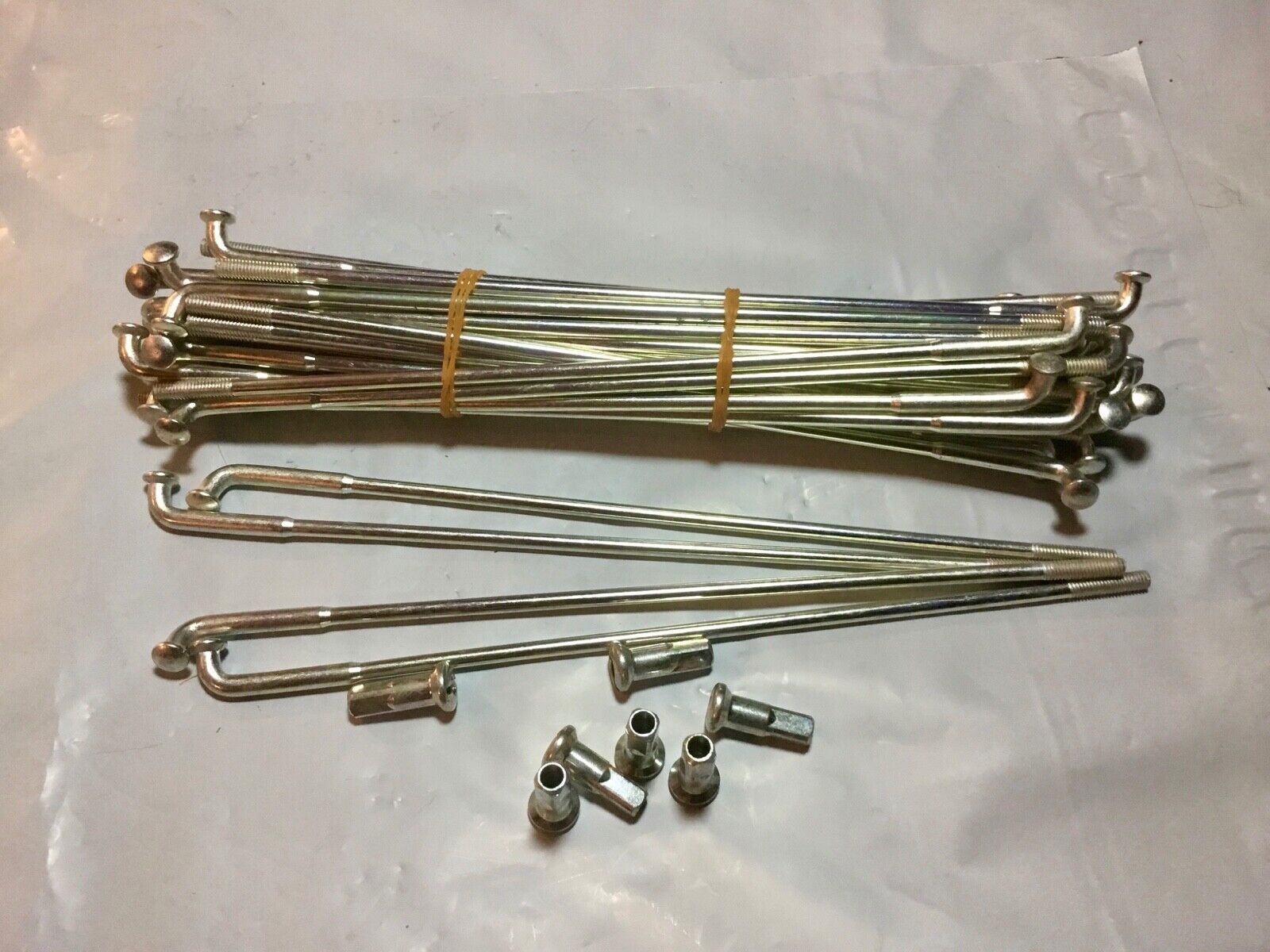

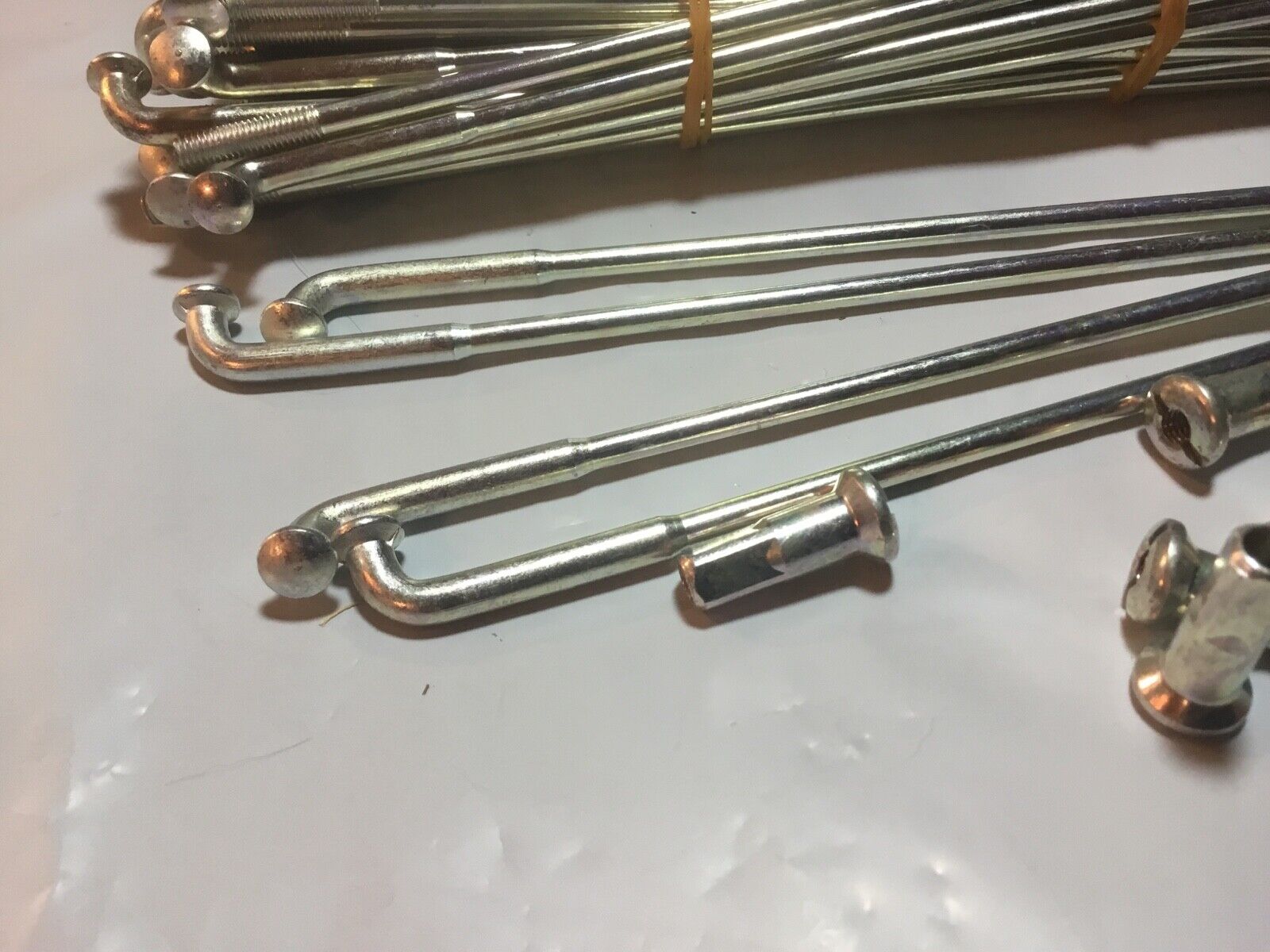

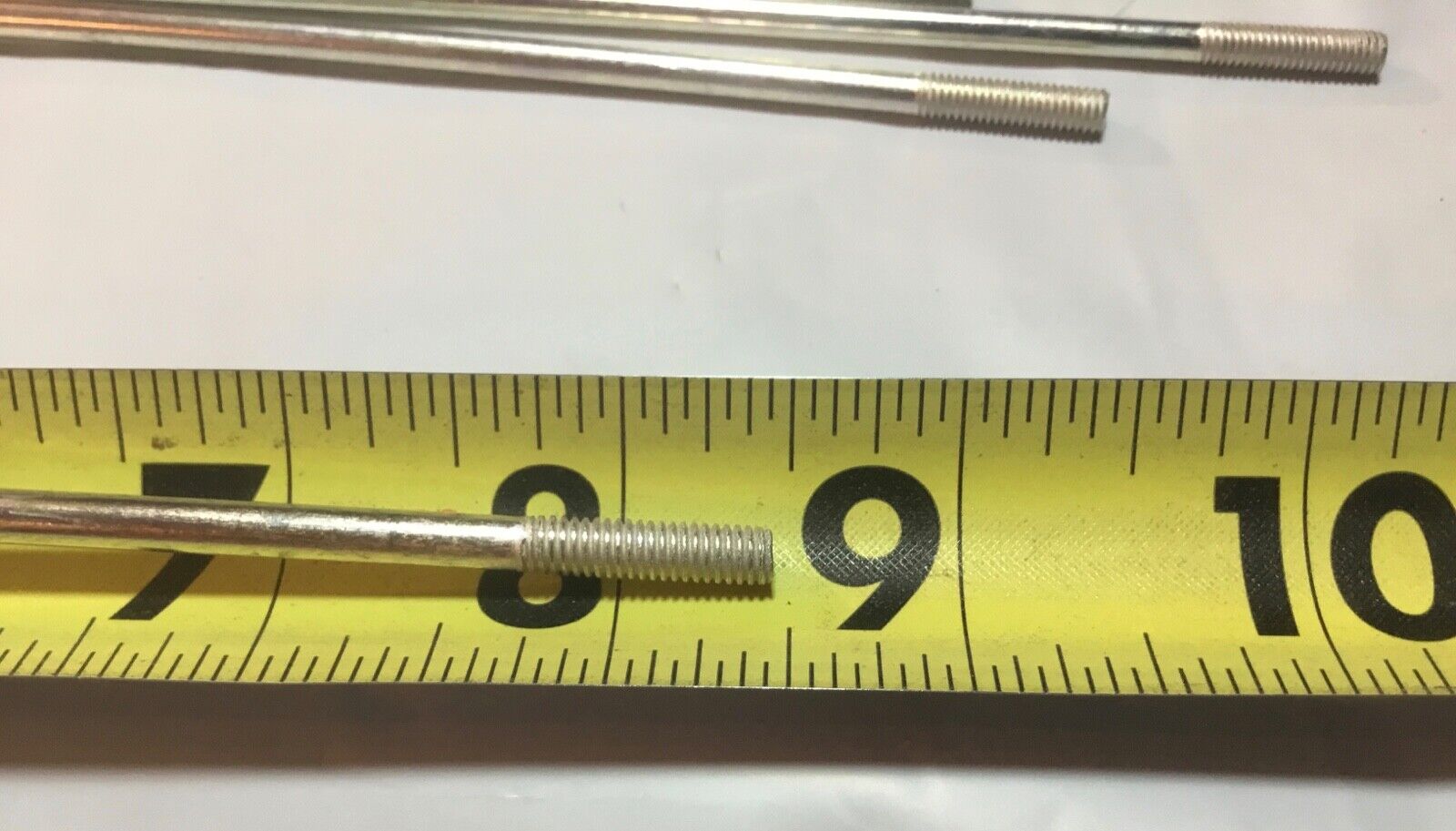

You are purchasing one set of 40 new European made reproduction cadmium plated spokes for 18" drop center rims used on 1936 Knucklehead and 1937 and up WL rear wheels, and front and rear 18" drop center wheels on all big twins from 1937-1963 (18" was still optional at least as late as 1963 and will fit up to 1966, the last year of the star hub). You get 40 spokes and 40 nipples with this purchase, enough to lace up one wheel. This is real cadmium, not zinc, and not stainless. Please check your reference material to make certain this is what you need.
We also stock this spoke in a parkerized finish as well as for 18" front wheels on DL, RL, WL, and early Servicar models and spokes for 1940 and up models with 16" drop center rims. We offer reproduction Kelsey-Hays 18" drop center wheels and star hubs, both the step type and later style hubs. The rims are available in bare steel, cad, or chrome, just email and ask about current availability.
Includes the following:
- 3943-36A (new # 43030-36) cadmium spokes
- 3947-29 (new # 43099-29) cadmium spoke nipples
We also sell fuel lines, oil lines, dash panels, etc. for 45, Knucklehead, UL, Panhead, K-Model, JD, VL, DL, RL, & Servicar. If it's for a 1915-1984 Harley, we either stock it or can get it in short order. If you don't see it there or cimarroncycleworks, just email us and ask.
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
Used on the following models, please cross-check your own reference material to make sure this is right for you:
- 1936-1947 E, EL, F, FL, ELA, ELC 61" & 74" OHV Knucklehead
- 1937-1948 U, UL, UH, ULH, ULA, UA, etc. 74" & 80" big twin flathead
- 1948-1963 EL, FL, FLH, FLE 61" & 74" OHV Panhead (star hub wheels were used through 1966, but parts books show the 18" wheel option ended after 1963)
- 1937-1952 W, WL, WLD, WLDR, WR
- 1936-1950 Servicar (18" may have been available by special order through 1950, though 16" wheels were introduced in 1940 please check your reference material)
