Harley WLA Black Out Field Relay Wiring Kit 1944-1945 USA Made
- Product Code: 296319226714
- Availability: In Stock
-
$29.95
You are purchasing one USA Made black out relay or field relay wire kit for 1942 Harley-Davidson military WLA models from 1942-1945 production. The relay this fits was introduced during the 1944 production year under the 1942 WLA contract with the US government. This wired in a secondary relay that was used to boost the field coil power from the generator when the blackout lights were being used. Otherwise the battery would drain after extended use. This kit, as with all our reproduction wiring products are manufactured with pride by hand at our shop in Cimarron, New Mexico, USA.

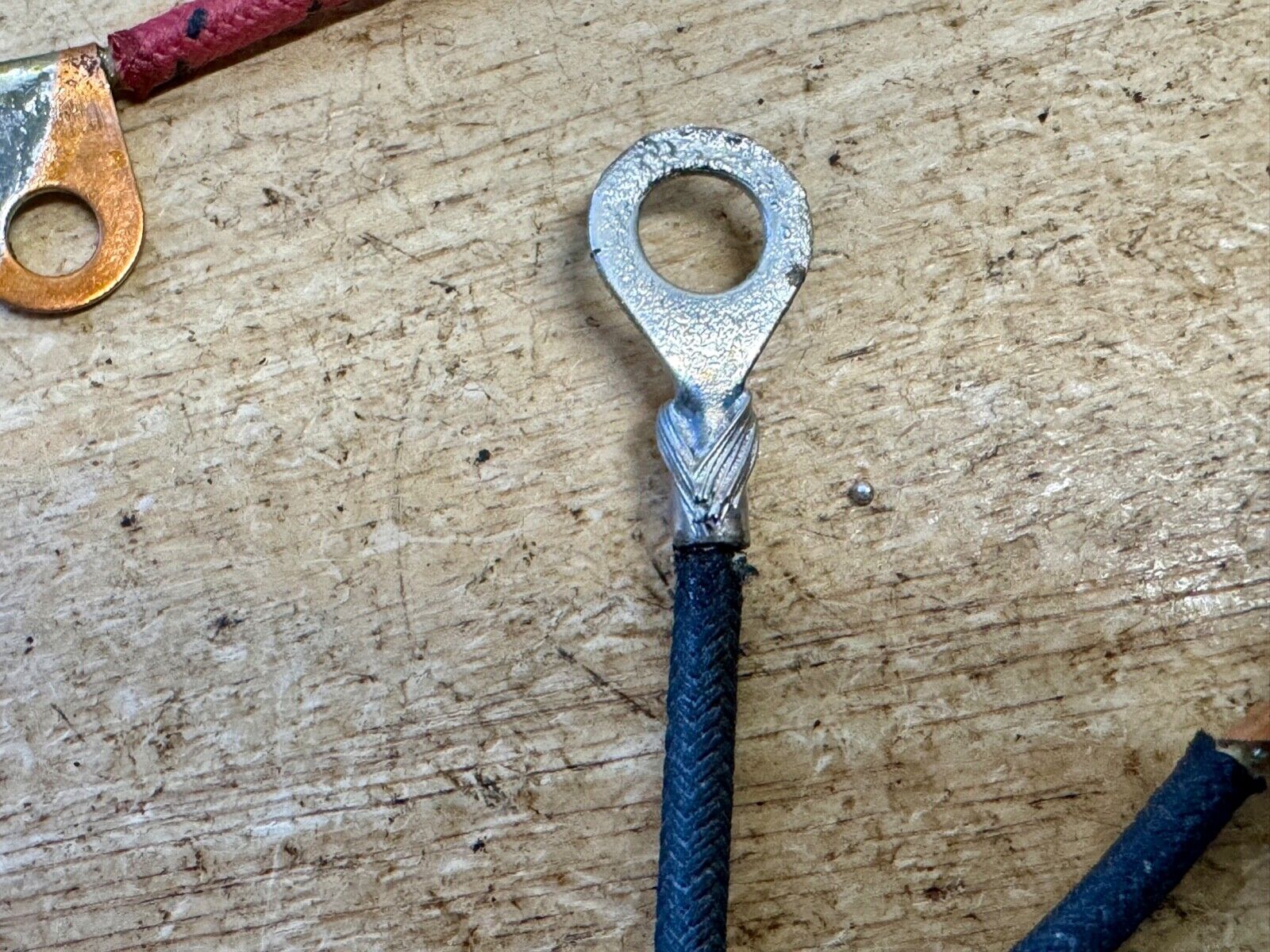

Note that the ring terminal has the wire threaded through it's barrel, wrapped around the back and soldered in place as original.
Includes a wiring instruction packet with a copy of the original wiring diagram.
We do manufacture the most correct and complete WLA wiring kit available today on another listing which includes all the radio-suppression pieces including the woven ground strap from the coil to the frame and motor and an NOS coil to timer wire. If you can't find it here or cimarroncycleworks, just email and ask.

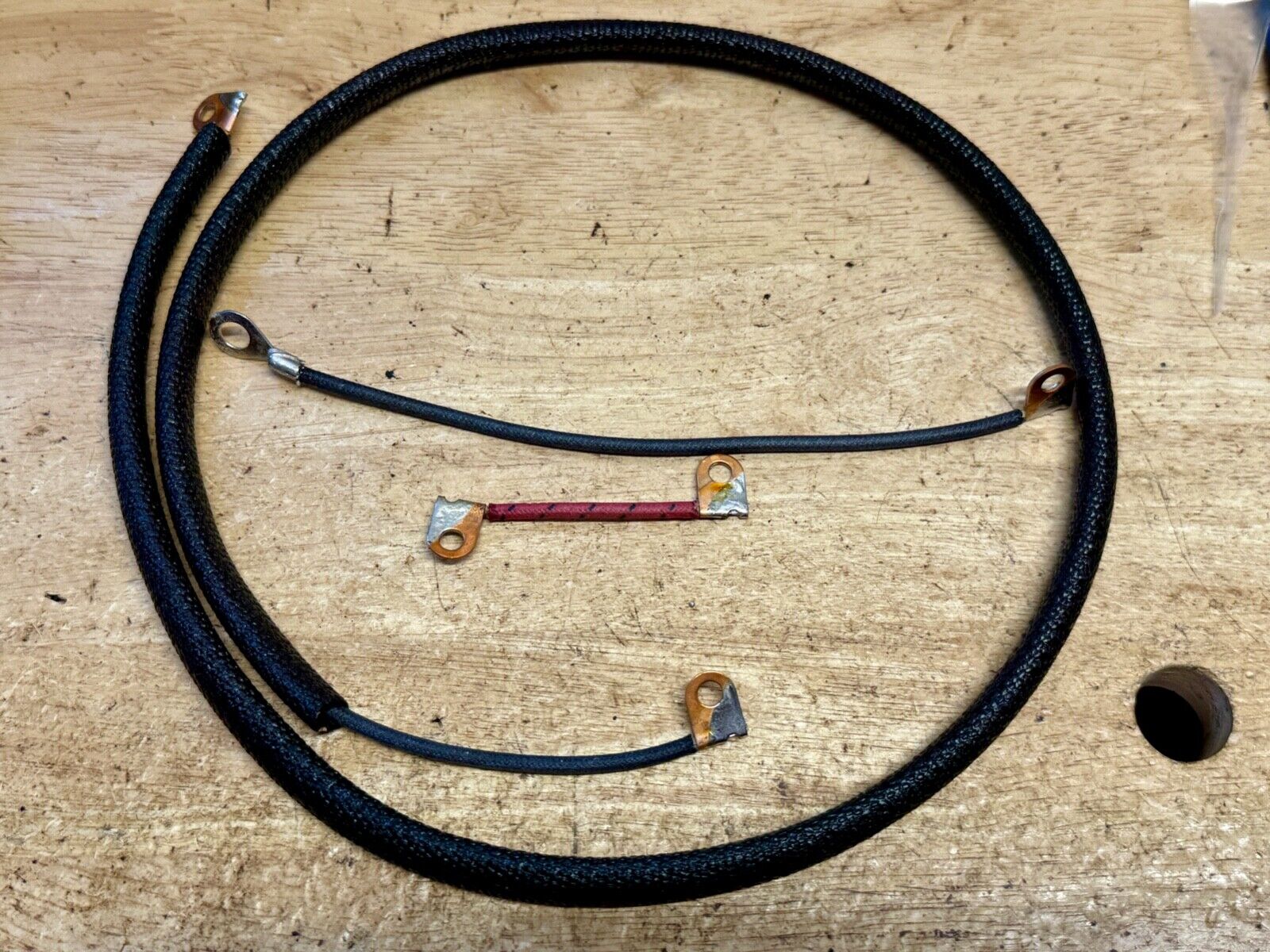

Includes the following:
-4704-44 ground wire (shorter black wire with flag terminal on one end and 1/4" ring terminal on the other
-4705-44 blackout wire (long wire in conduit)
-4706-44 black out "field switch' wire (red/black)
We also currently have listed a complete WLA NOS dash base kit with the 1946-1947 style flag terminals on another listing at the moment. If you don't see it, it's likely already sold.
Please study the photos and make sure this will work for your application.
We build accurate wiring kits for just about all 1915-1969 model Harleys, now including WLA and WLC models here at our shop in Cimarron, New Mexico.
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
Machining stamping, and plating is identical to original OEM parts.
Primarily intended for 1942-1945 (1942 contract) WLA models. Can be used on the following models, please cross-check your own reference material to make sure this is right for you:
- 1942 WLA models (standard on 1944-1945 manufactured models, may have been retrofitted to earlier ones)
Ships priority mail only insured. I am more than happy to combine this with any other items you might be considering.
