Harley VL Knucklehead Pan Servicar WLC Spring Fork Rocker Rebuild Kit 1931-48
- Product Code: 297050873390
- Availability: In Stock
-
$199.95
You are purchasing a USA Made reproduction big twin fork rocker rebuild kit as used on late 1930 to 1957 big twin, WLC, and Servicar models These are a high quality reproduction studs are properly hardened as are the bushings. The finish is parkerized and cadmium on all parts. As this kit uses the spool type fender spacer for the rear rocker stud, this kit is detail-correct for 1941-1957. We do sell a 1931-1940 kit on another listing. If you cannot find it just email and ask.

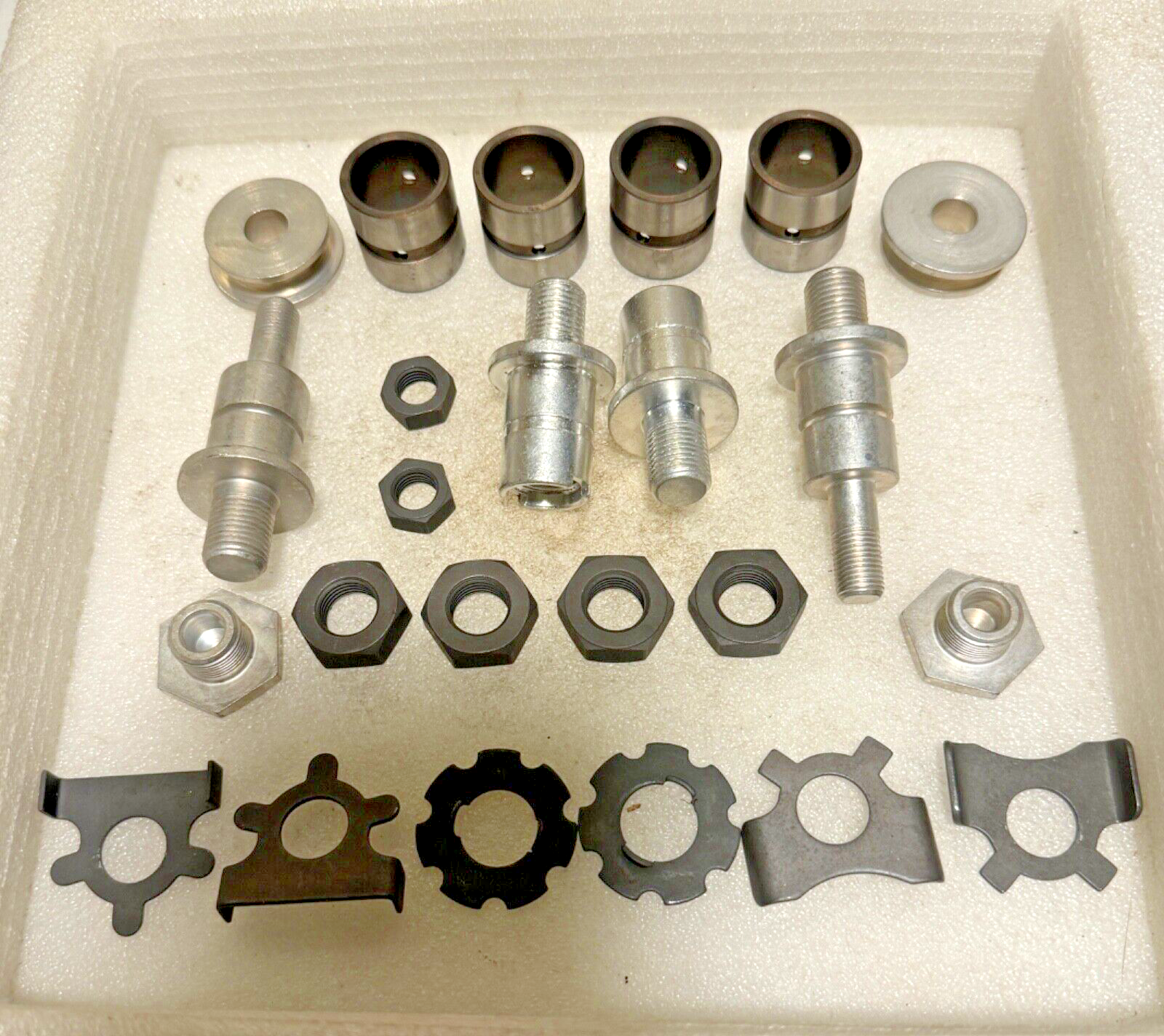

Includes the following, late part number listed after description:

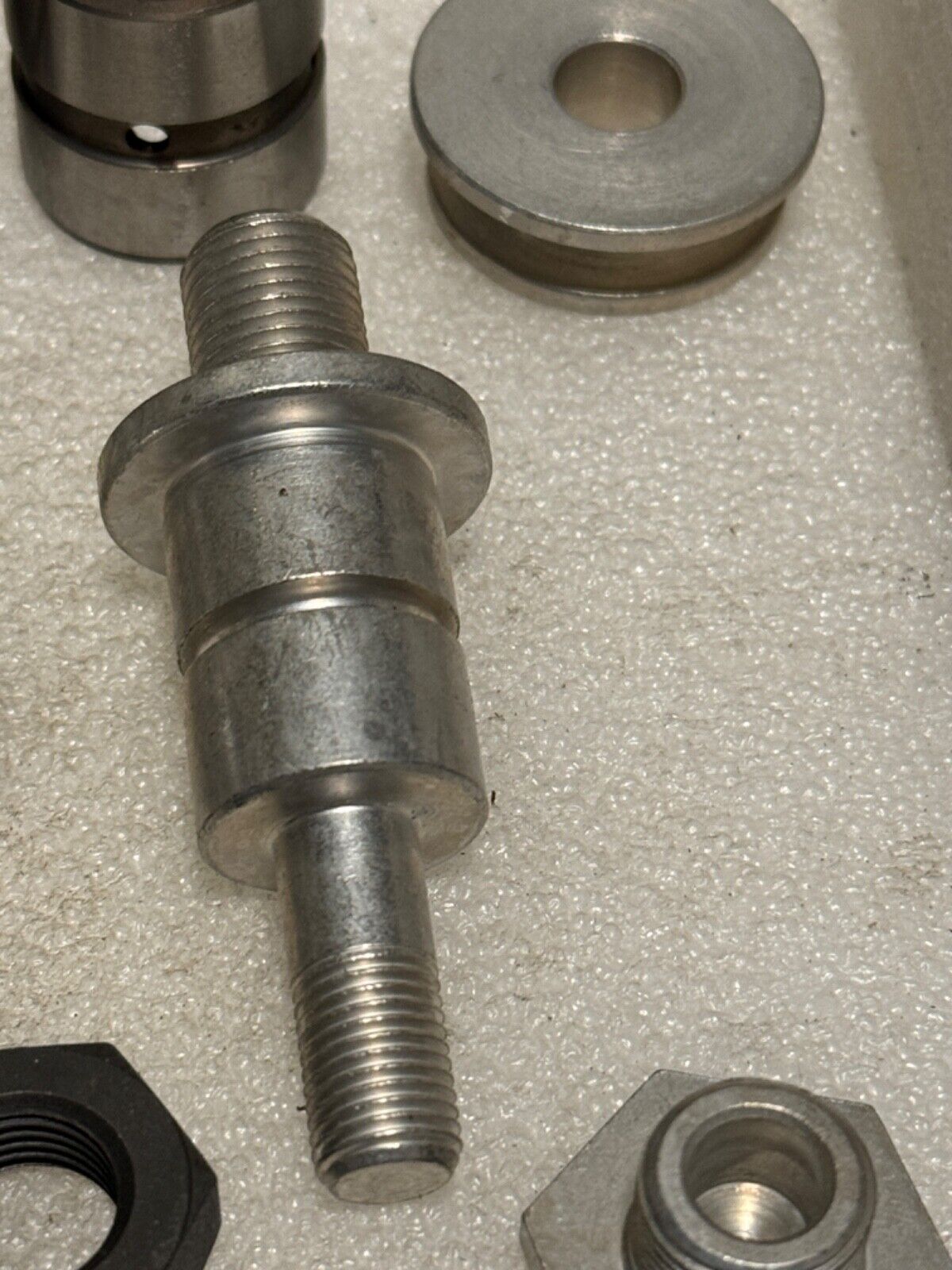

- 2639-31 Front rocker plate stud; 45673-31

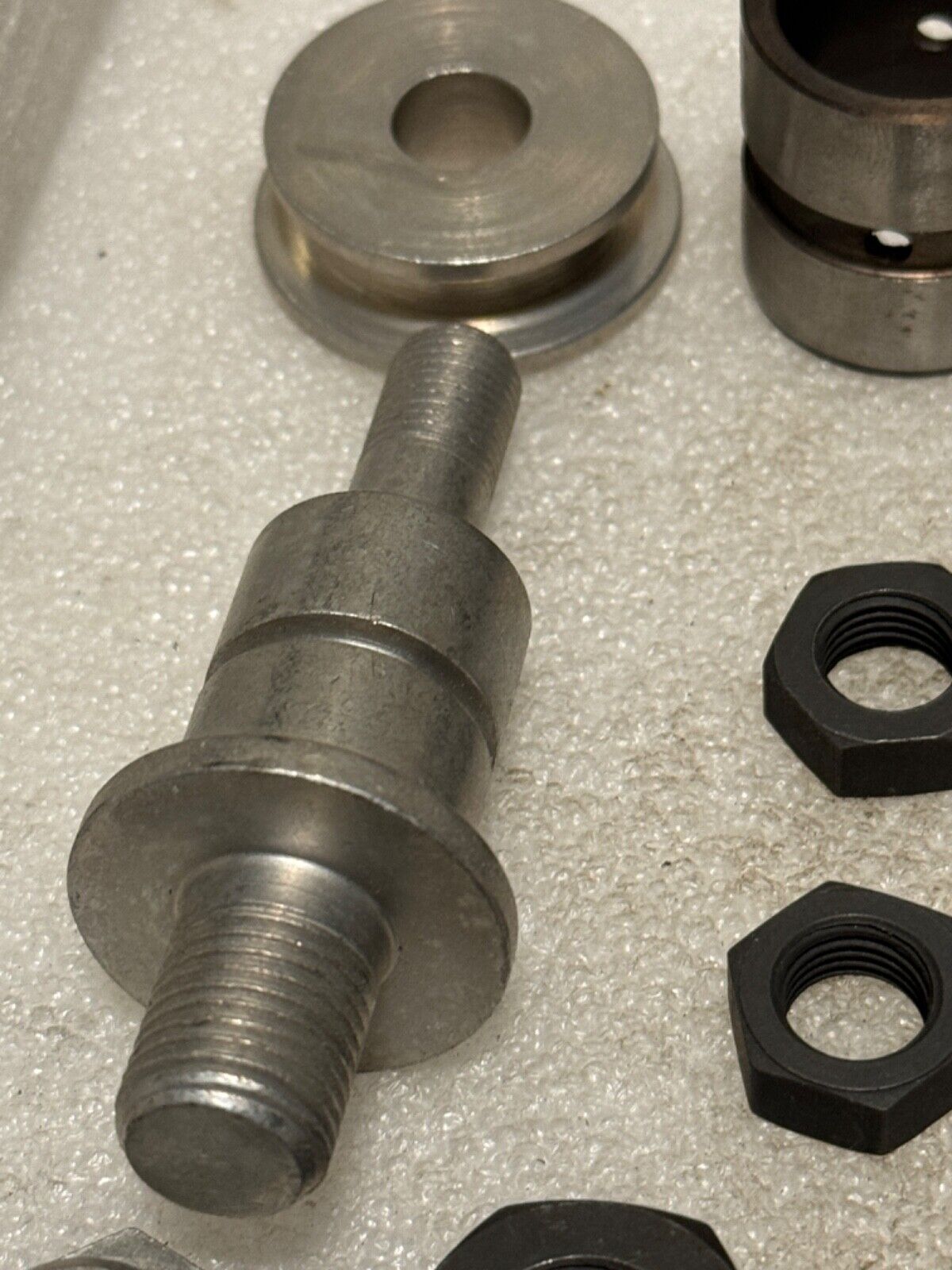

- 2640-31 Rear rocker plate stud; 45672-31
- 0129 Rocker plate stud nut; 7789

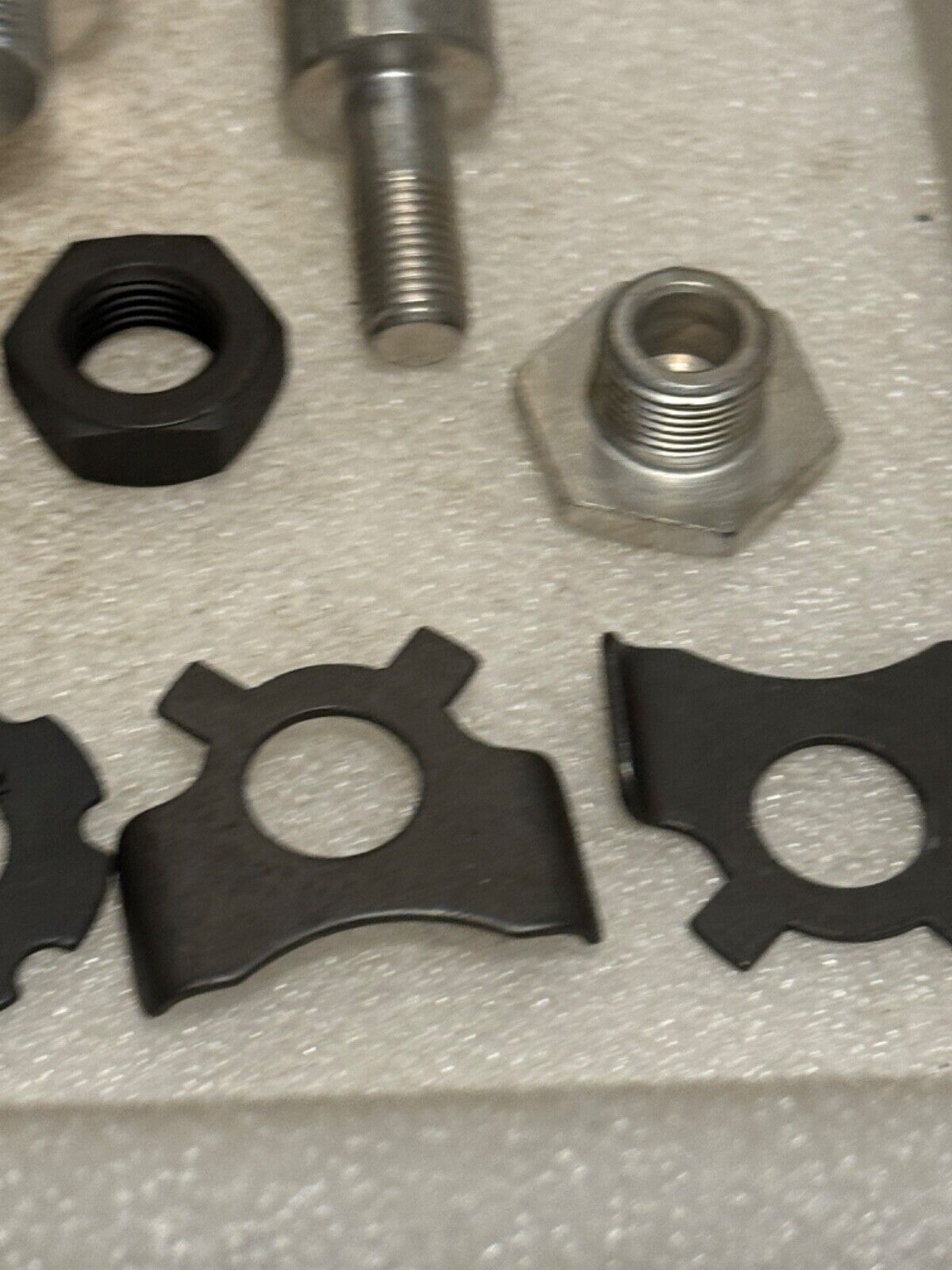

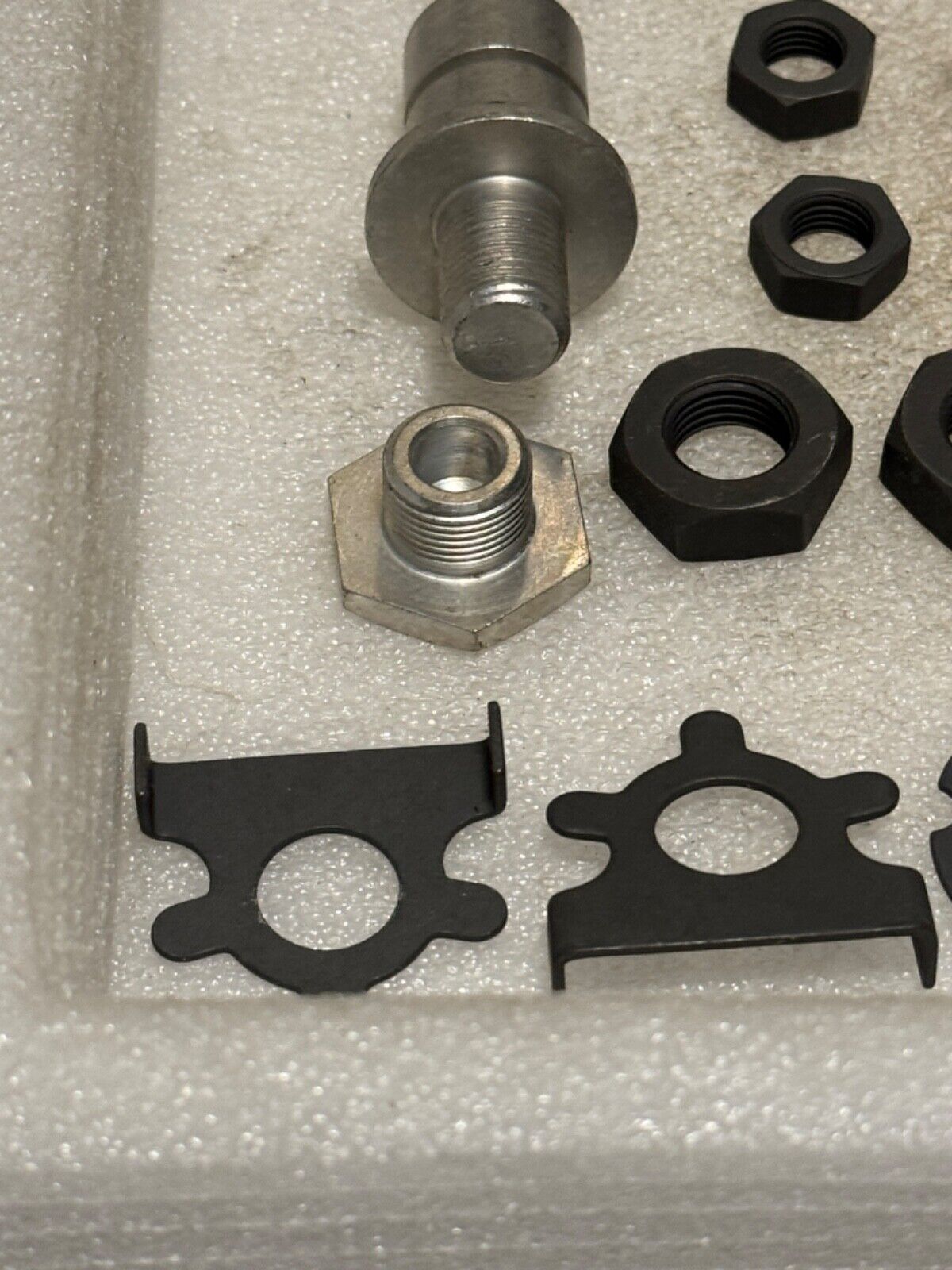

- 2642-30 Front rocker plate lock; 45680-30
- 2642-31A Rear rocker plate lock; 45681-31

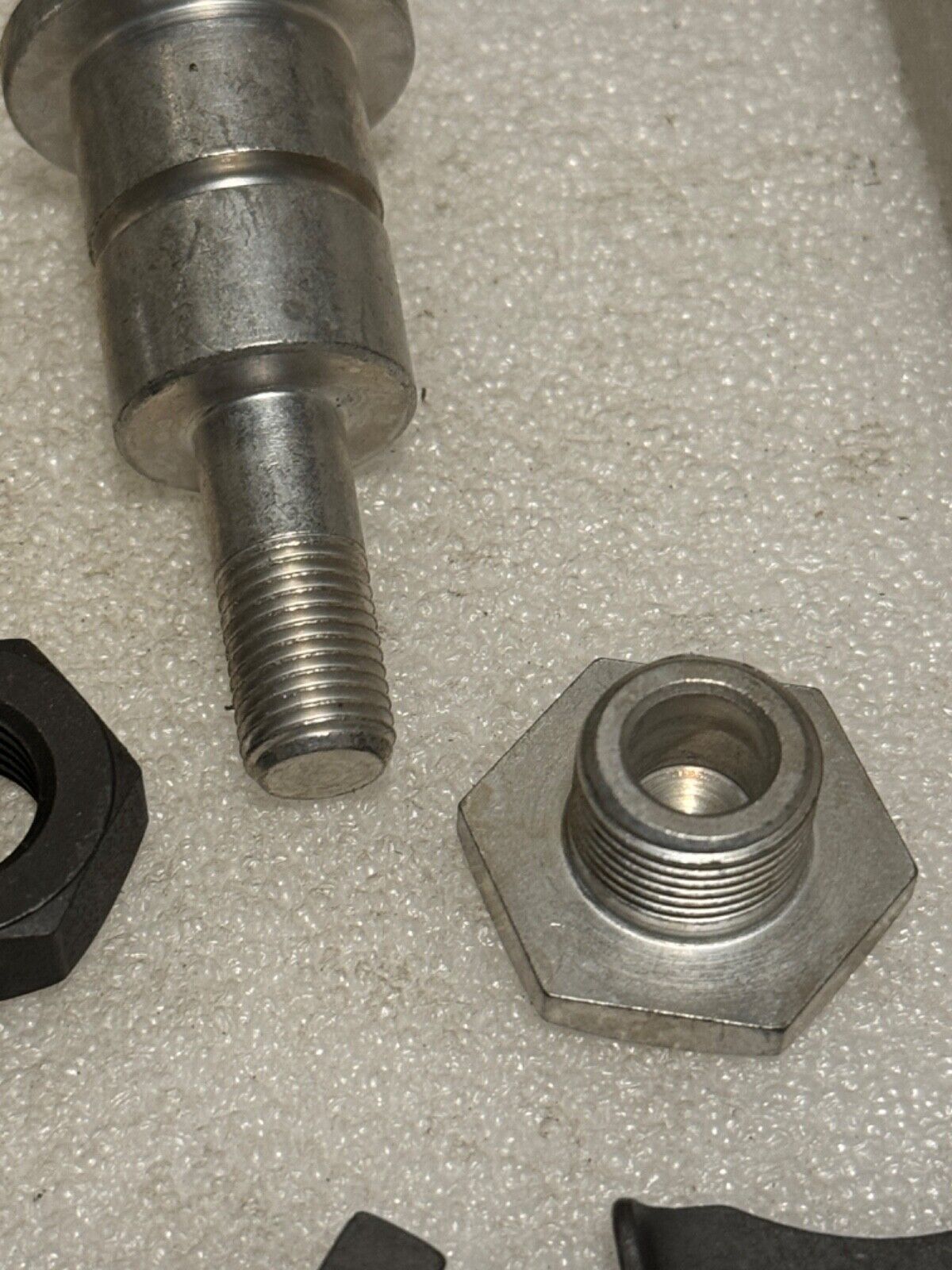

- 2643-31 Rocker plate stud nut, inside; 7908
- 2645-30 Rocker stud bushings; 45667-30

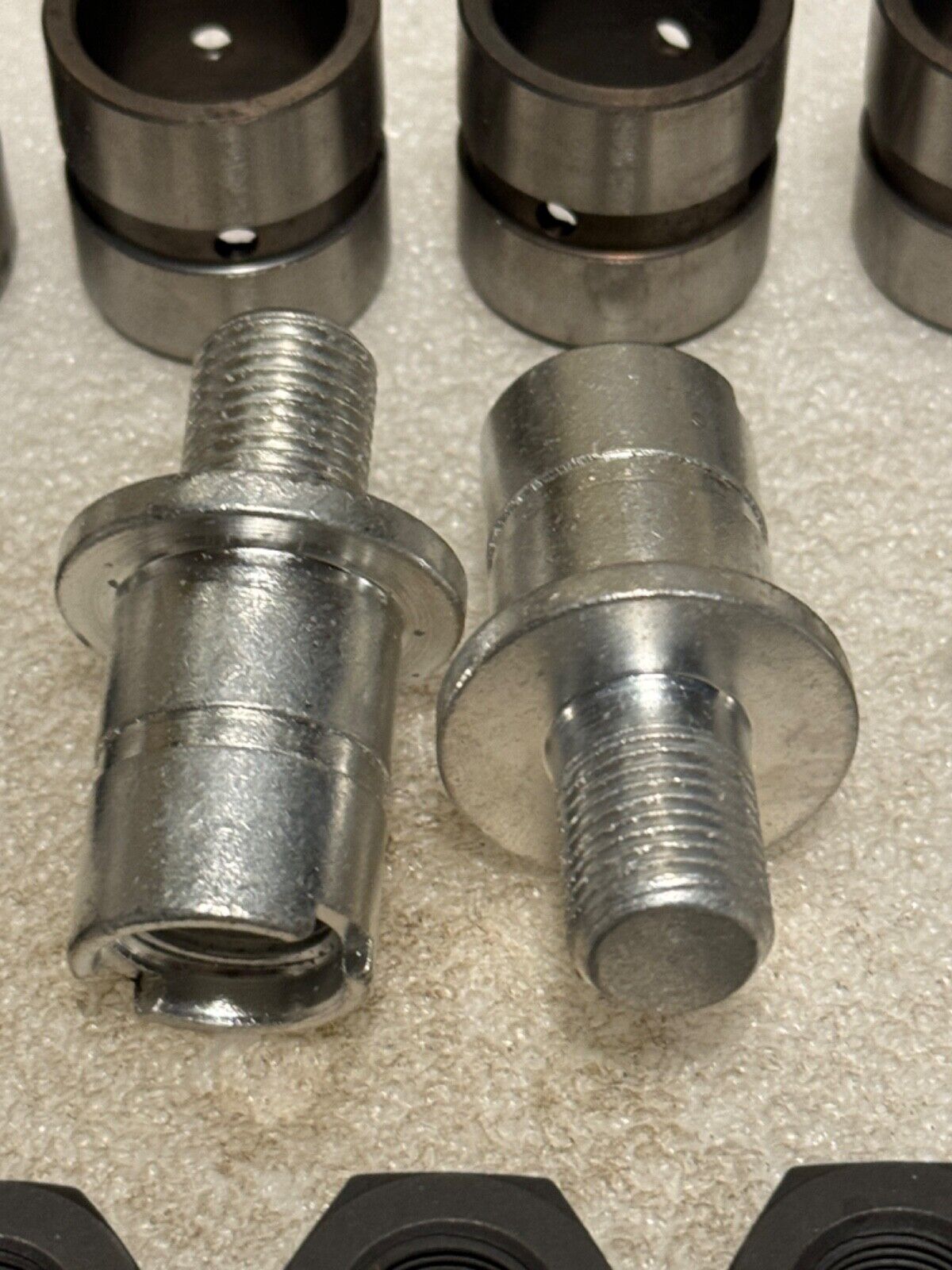

- 2646-32 Rocker stud screw; 45682-32

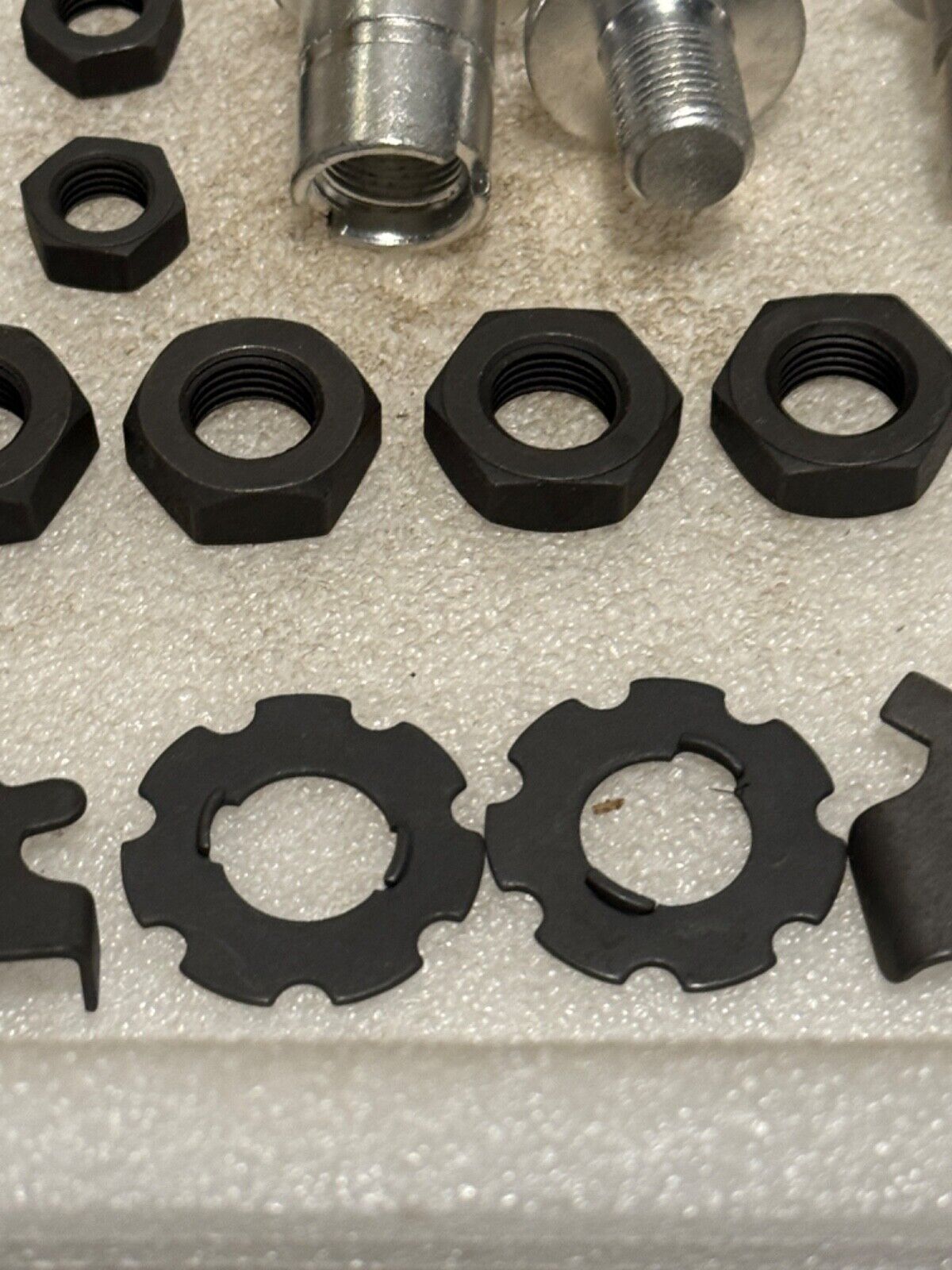

- 2647-32 Rocker stud screw lock; 45683-32

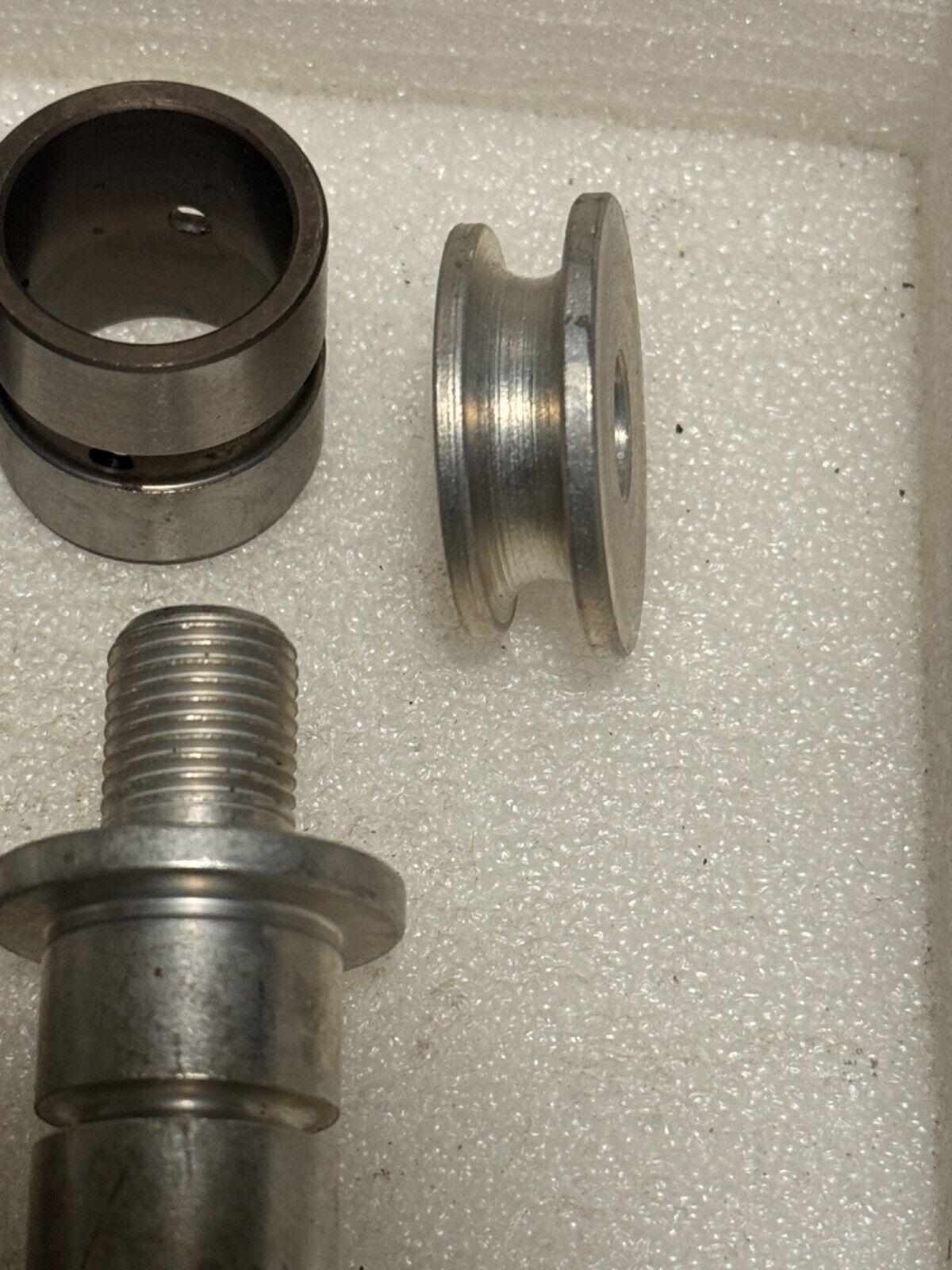

- 2644-41 Rear stud spacer (spool type, not tapered, if you need tapered, just ask, we can swap it out).
Used on the following:
- 1931-1936 V, VC, VD, VH, VE, VL, VLC, VLD, VLDD, VLE, VLH, etc. 74" & 80" big twin flathead
- 1936-1947 E, EL, ELA, ELC, F, FL 61" & 74" OHV Knucklehead
- 1937-1948 U, UL, UH, ULH, UA, ULA, USA, etc. 74" & 80" big twin flathead
- 1941-1957 G, GD, GDT, 45" Servicar
- 1942-1945 WLC 45" solo
- 1948-1949 EL, FL 61" & 74" OHV Panhead (1949 with spring fork for side car use)
We sell VL tanks, fenders, hardware kits, oil and fuel lines, hubs, rims, seats, wiring, dash panels, ammeters, etc brake parts, cables, USA made primary and rear chains. You name it, if it's a VL part we either have it or will soon. If you don't see what you need here or cimarroncycleworks, just email and ask.
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
Ships priority mail. I am more than happy to combine this with any other items you might be considering.
