Harley Tail Lamp Wire Harness Panhead WL Shovelhead 1948-69 Cloth Wires
- Product Code: 292259035773
- Availability: Out Of Stock
-
$29.95

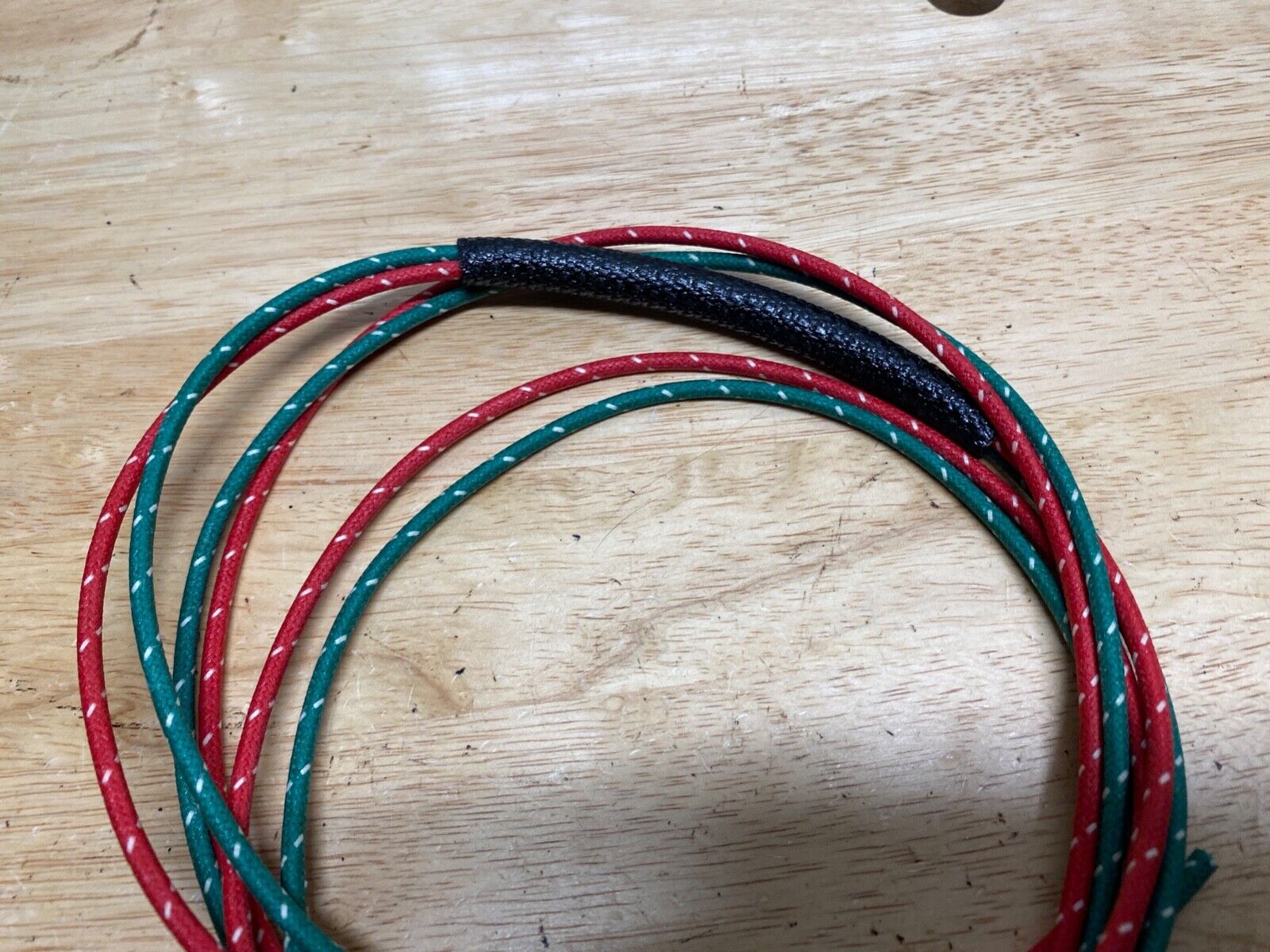

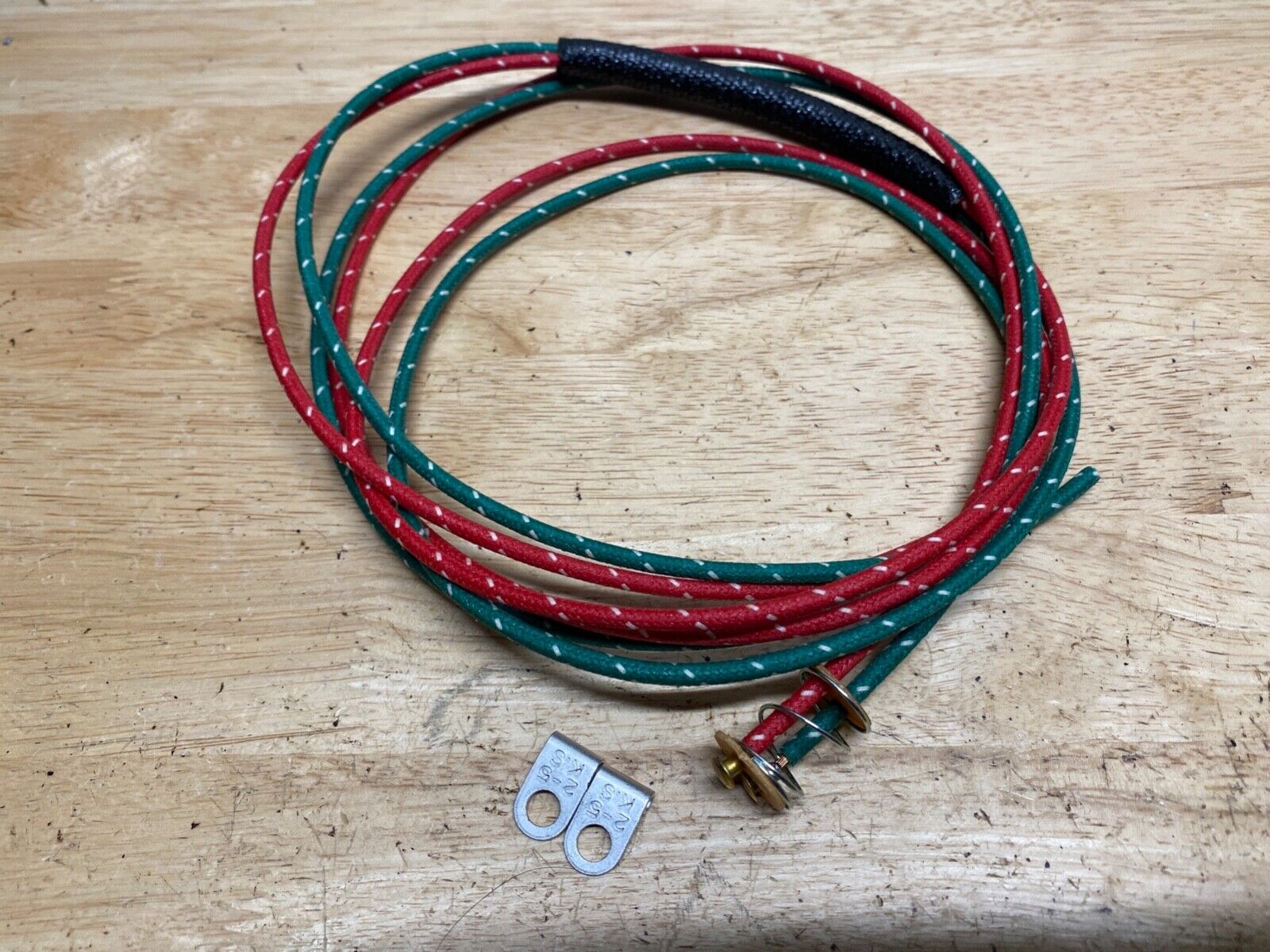

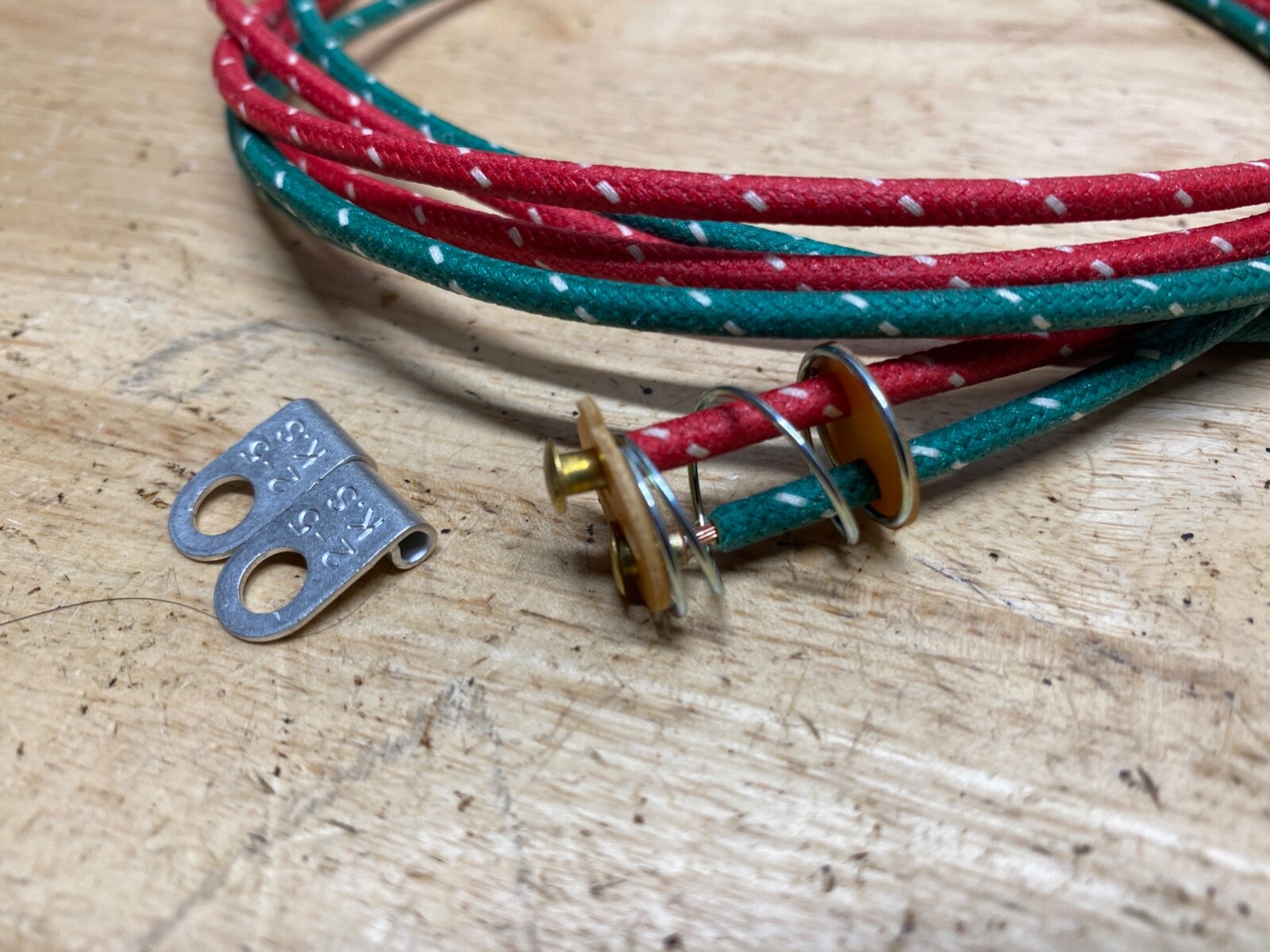

You are purchasing one tail lamp harness kit which includes a red with white tracer and green with white tracer wire, 4" conduit socket spring, Bakelite plates, soldered on terminal caps, and two flag terminals. This is for all Harley-Davidson solo model twins from 1948-1969. This will fit up to 1972, but H-D had completed their change to all vinyl covered insulated wire by 1970. Also used on 1955-1969 K-Model and Sportster models. Wires are 56" long.
H-D used red and black wires through 1947 and continued to supply those in those colors as a replacement for the original wires for a number of years, but these wires were red and green when the bikes left the factory from 1948 onward.
This is part of our "no-solder" wiring harness line offering easy to install harnesses which require a minimum of skill. In addition to these, we carry complete harnesses, brake lamp switches, head lamp harnesses, wire loom clips & clamps. All you need to do is strip the wires back where they go into the terminal box and crimp on the flag terminals. We recommend using a pair of dykes or side cutters to carefully put two parallel crimps on the terminals.
Used on the following models when equipped with either a stock tombstone style or 1955-1972 style tail lamp.
- 1948-1965 EL, FL, FLH 61" & 74" OHV Panhead Hydra-Glide, Duo-Glide, & Electra-Glide
- 1948-1952 W, WL, WLD, WLA 45" solo
- 1955-1956 K, KH, KHK 55" flathead sport twin
- 1966-1969 FL, FLH 74" OHV Shovelhead Electra-Glide
- 1948 U, UL, ULH 74" & 80" big twin flat head or side valve
Please be sure to check our store for more Knucklehead, Panhead, UL, WL, JD, Single, RL, & VL era parts such as oil lines, fuel lines, exhaust clamps, brake rods, clevises, and a full selection of plain head, machine cut bolts that are exacting duplicates of the original H-D hardware. We have fuel tank mount kits, exhaust kits, etc. Please drop us an email if you don’t see what you are looking for in our eBay store. We have literally hundreds of parts for 1915-1984 H-D we have not had time to list on eBay as of yet.
