Harley Sportster K-Model Luggage Rack Mounting Bolts Cad 1954-1969 CP-1038
- Product Code: 292330016240
- Availability: In Stock
-
$18.95

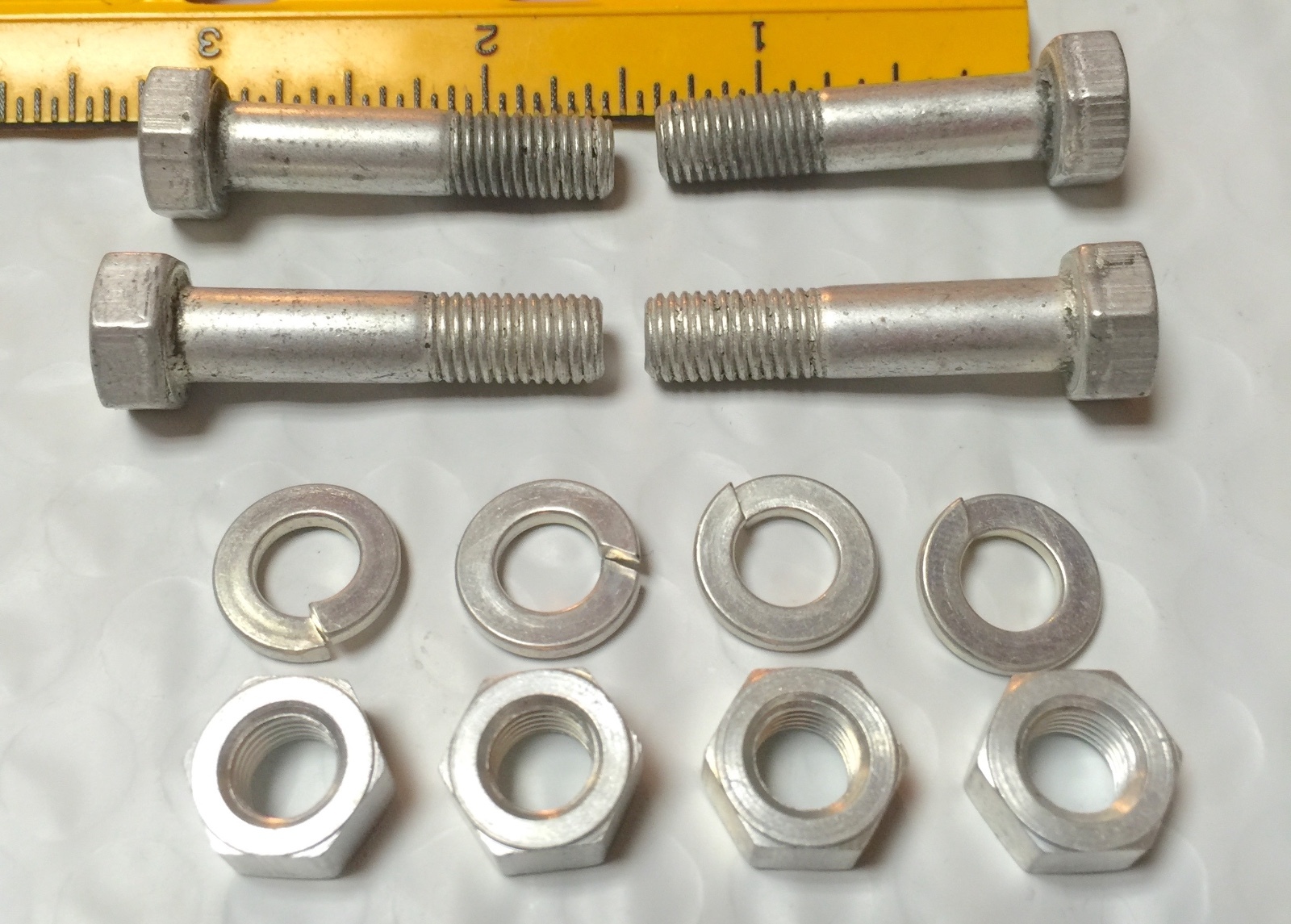

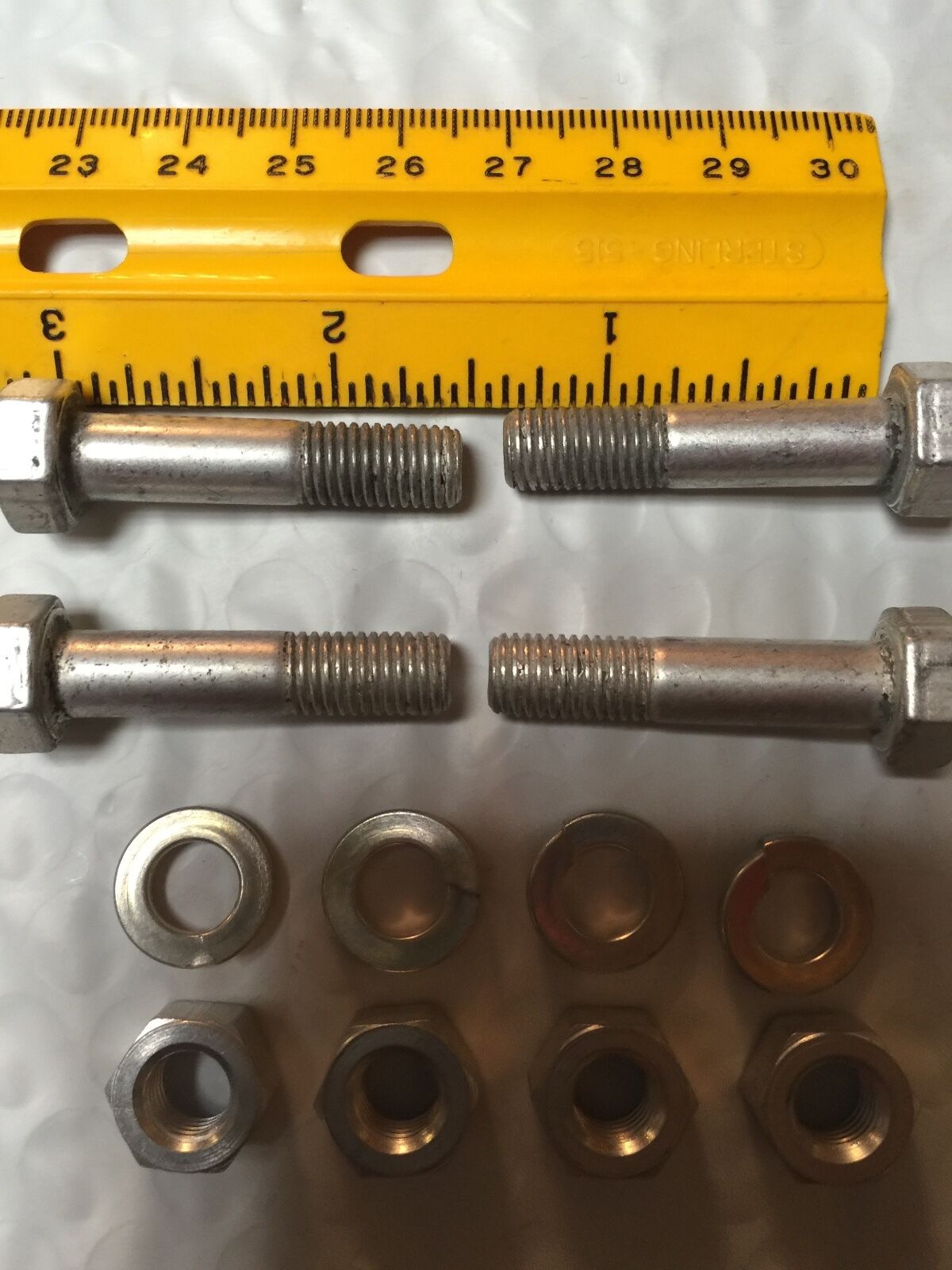

You are purchasing:
- Four ea. Chandler Products CP-1038 cold head bolts, Harley OEM# 4020, 5/16”-24 x 1 3/8”;
- Four ea. 5/16”-24 x 17/64” x 1/2” hex nut, Harley OEM# 7752;
- Four ea. 5/16” split lock washers Harley OEM# 7040.
These are all cadmium plated pieces. Used on exhaust, rear bumper mounting, and saddlebag rails on Panhead and Shovelhead, used to mount the luggage rack on ’54-'69 K-model & Sportster.
You will need internal tooth lock washers and a 5/16 x 9/16 x 1/8 flat washer to complete the mounting. The nuts and washers in this kit will be useful for other 5/16”-24 fasteners.

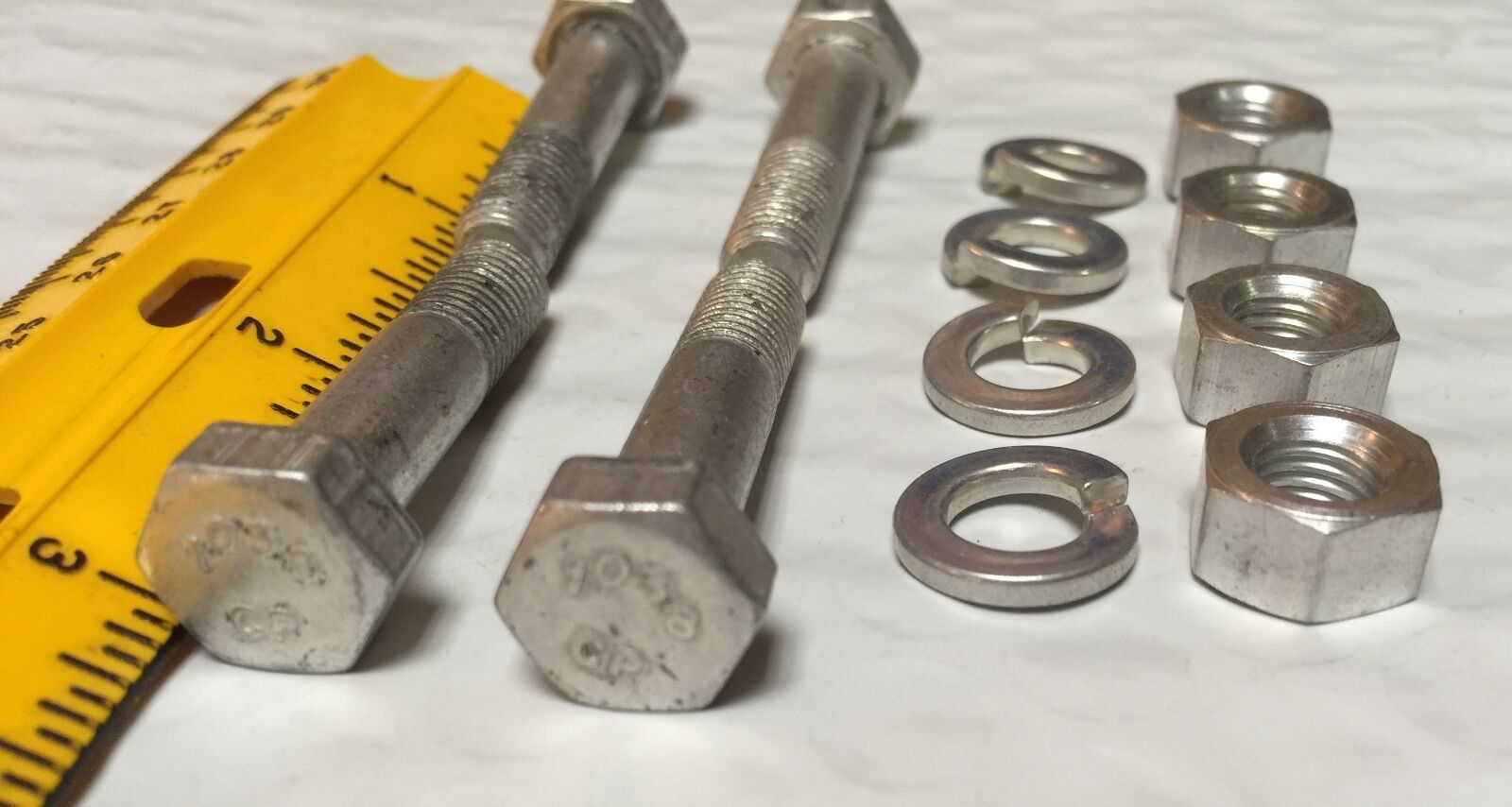

We have these in various head stamp configurations due to the use of different dies for cold-heading the bolts. Unfortunately, you cannot specify which stamping configuration you will get as I can’t specify either.
These were used various places on all models such as exhaust systems. The CP-1038 marking would make them “correct” for roughly 1949 to the mid 1960’s. Be sure to check your own reference material. Nuts and washers are USA made to the exact finish and standards H-D employed back in the day.
There seems to be some misinformation on CP bolts and "reproductions". Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. All nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them. Spacers and washers are produced just like the ones H-D did back in the day. Parkerizing is same finish as how these came from the factory in the 1950's. I've also got other hardware kits listed in my store under "pre 1980's hardware" including all sorts of pre-sorted kits containing CP-1035 and CP-1038 bolts and other unique vintage H-D fasteners to meet your restoration needs.
