Harley Saddle Bag & Guard Rail Mount Kit Shovelhead 1965-67 OEM# 90818-65

  • Product Code: 352988834031
  • Availability: In Stock
  • $49.95

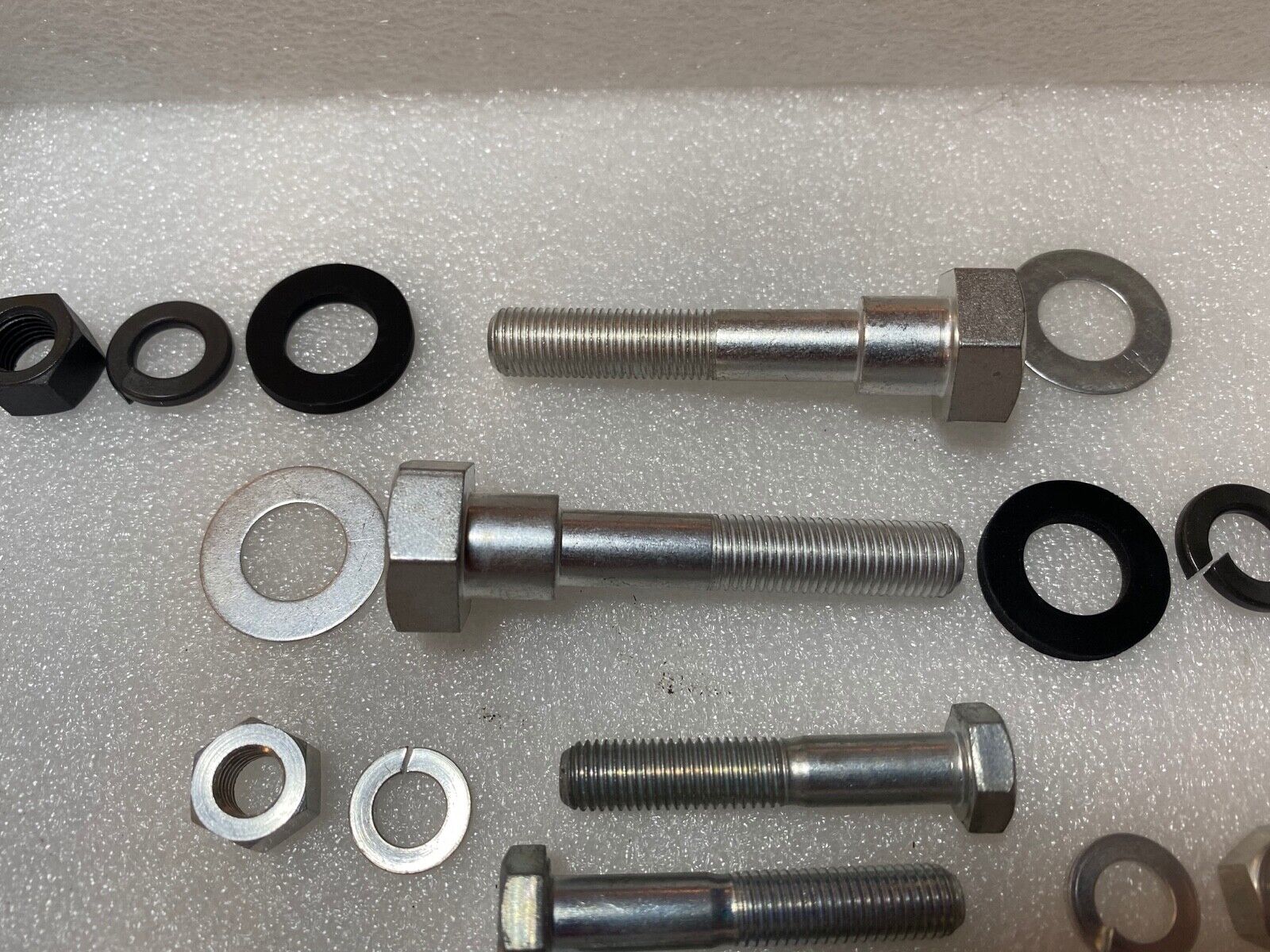

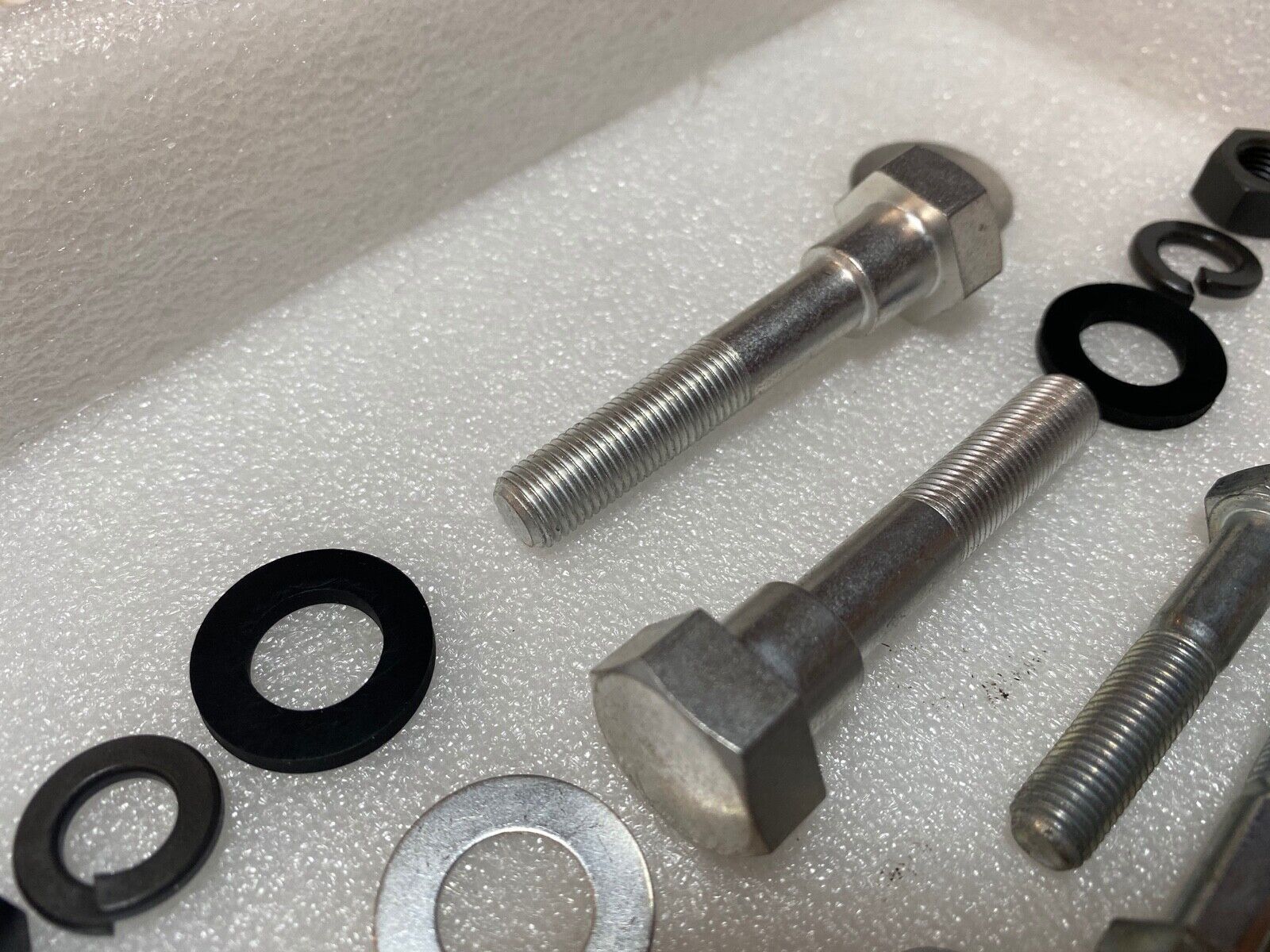

You are purchasing one new USA-Made reproduction hardware kit for mounting saddlebag carriers and saddlebag rails on FL and FLH twin models from 1965 through 1967.  I do know for a fact these rails were used as early as 1963 and would fit up to 1977 but I am not certain how the shoulder bolts with this kit will or will not line up on any model other than a '65 to '67.  H-D did list a smaller diameter bolt without the shoulder for 1963-early 1965.  The machined "shoulder" on the shank is 1/2" diameter if that helps.

This is literally all parts you need to hang your saddlebags and mount the rails. Note that the 3825 and 4042 bolts are grade marked and not CP-1038.  There's very good evidence that H-D had phased out most Chandler Products CP bolts by the late 1960's and increasingly, they were being replaced with grade marked bolts from other vendors since the late 1950's.

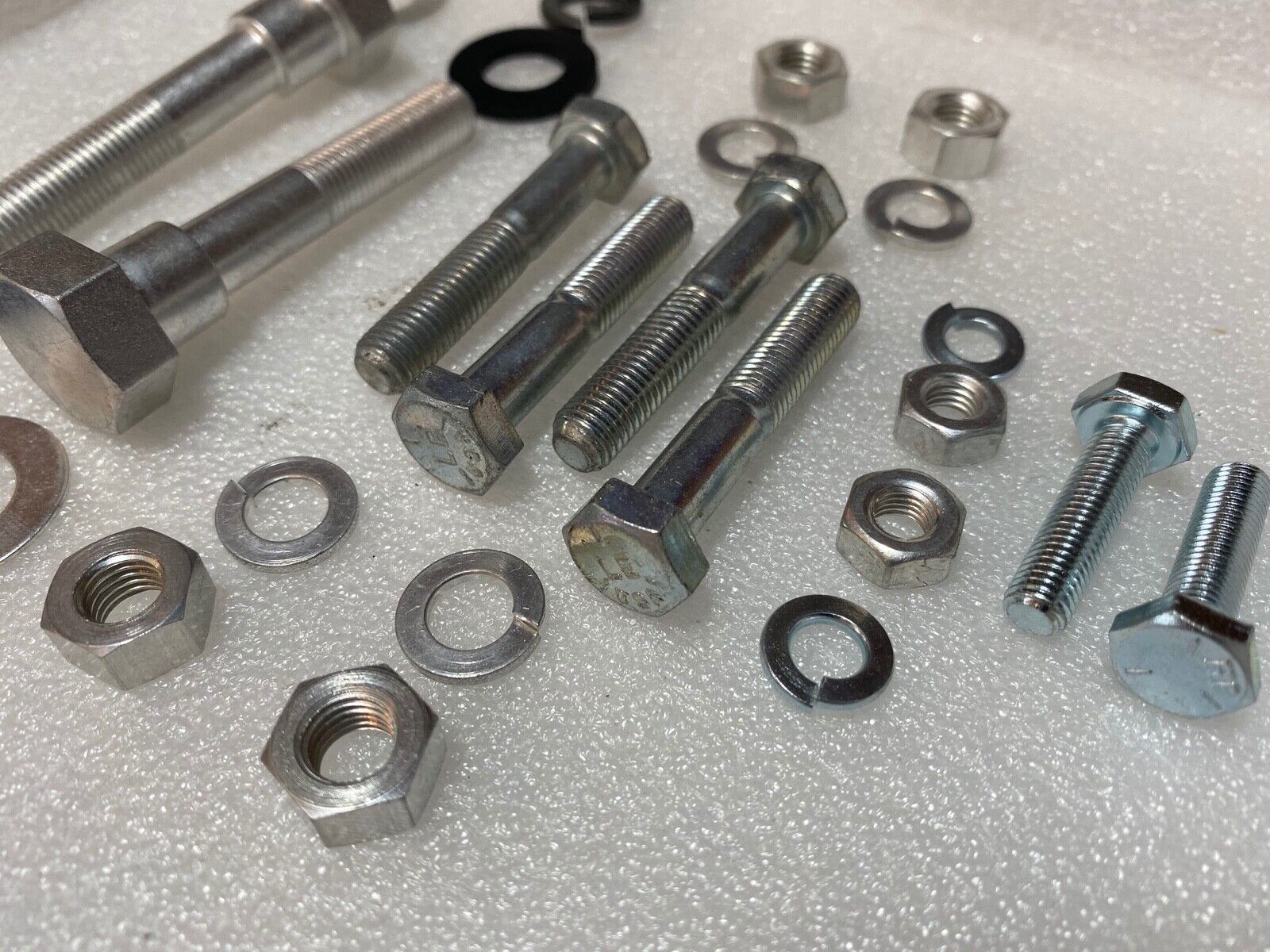

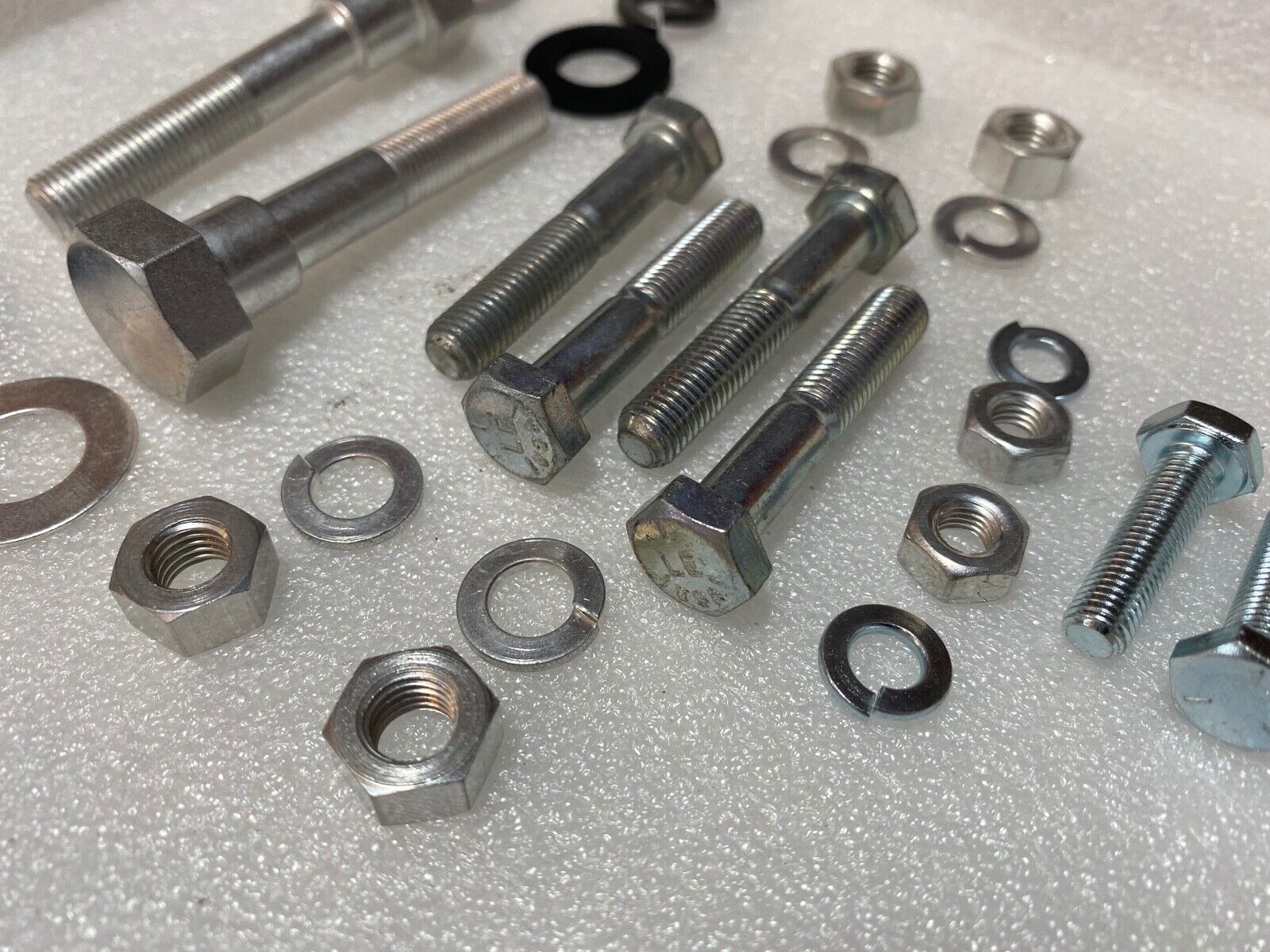

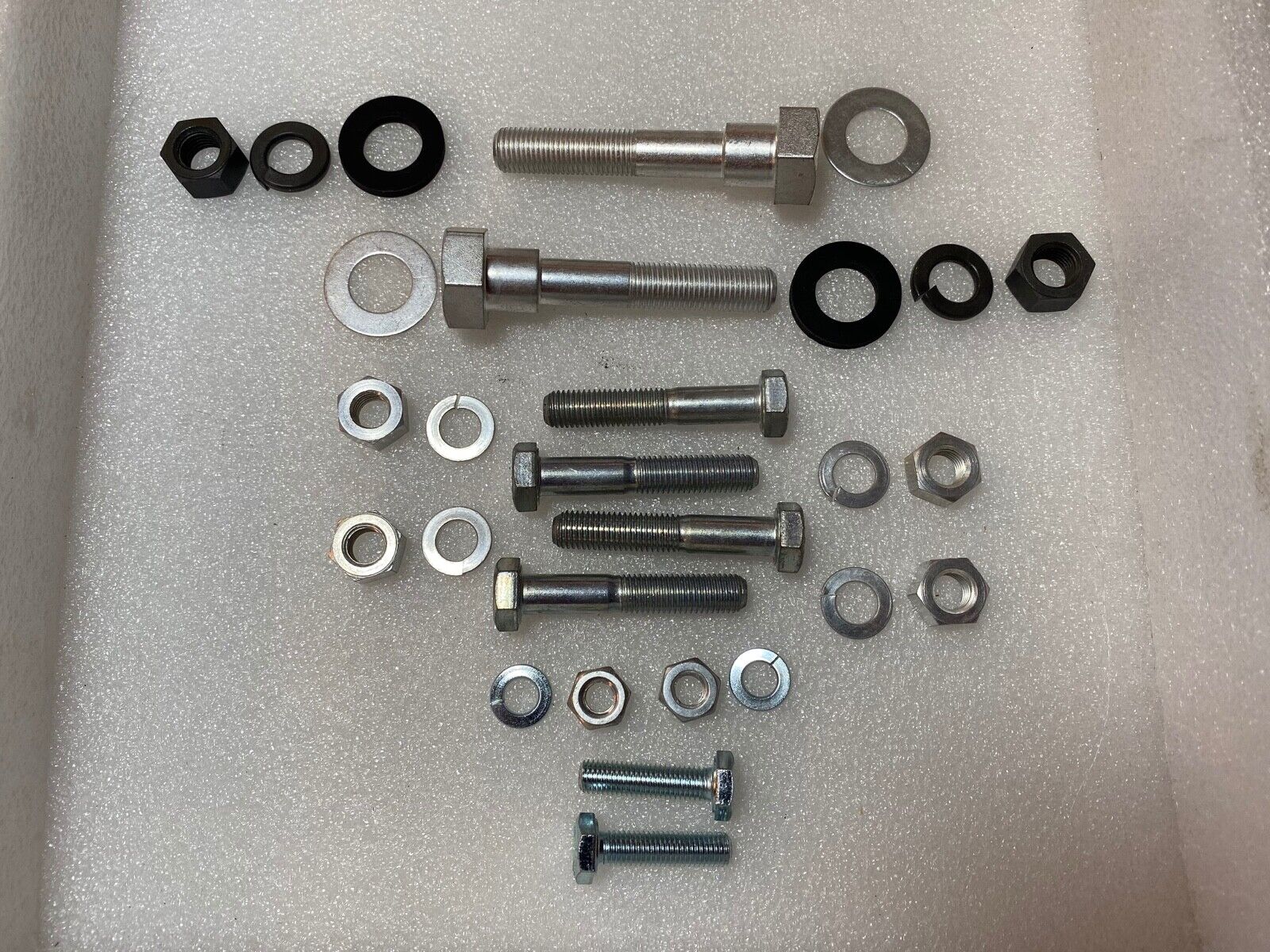

Includes the following:
  • Qty 2 90818-65 shoulder bolt
  • Qty 2 6399 rubber washers
  • Qty 2 7793 3/8"-24 hex nuts
  • Qty 2 7045 3/8" lock washers
  • Qty 2 6396W 1/2" flat washer
  • Qty 2 3825 1/4"-28 x 1" bolt
  • Qty 2 7036 1/4" lock washer
  • Qty 2 7676 1/4"-28 nut
  • Qty 4 4042 5/16"-24 x 1 13/16" bolts (to mount bag carriers)
  • Qty 4 7752 5/16"-24 hex nuts
  • Qty 4 7040 5/16" split lock washer
We probably have one of the largest on-line hardware selections anywhere today for vintage Harleys with authentic machine cut and CP-1035 and CP-1038 OEM  bolts, Filister and round head screws, special H-D fasteners like axle adjusters and filler plugs.  We also stock nearly every fuel and oil line available for 1915-1964 Harleys, wire harnesses, lighting for JD, VL, Knucklehead, and Panhead, saddles, saddlebags, engine and transmission parts.  If you don't see what you need here or cimarroncycleworks, just email and ask.

Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
  • Fits the following:
    • 1965 to 1967 FL, FLH 74" OHV Panhead & Shovelhead though the kit may work on 1963-1964 and possibly on 1968-1977 models
