Harley Premium 1948 Wiring Harness Panhead Cotton Looms Correct Terminals USA

  • Product Code: 296397018949
  • Availability: In Stock
  • $224.95

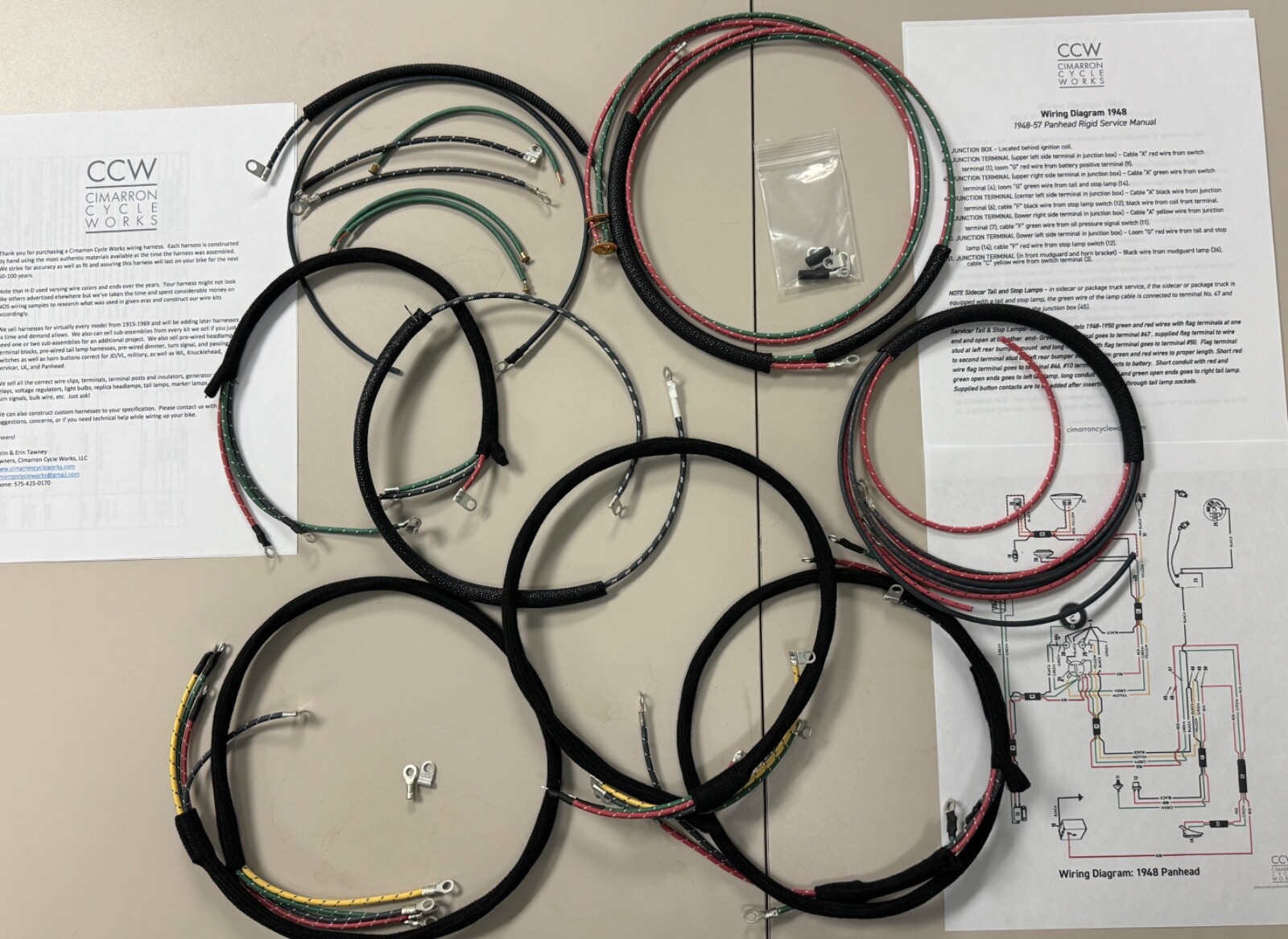

You are purchasing one new USA Made wiring harness kit for 1948 twin model Harley-Davidsons.  This is our premium kit, several years of research went into our wiring program.  We spent hours at the HD museum in Milwaukee shooting photos of the wiring details on their original bikes.  We've also spent a considerable amount of money buying NOS and good used OEM wiring samples to increase our understanding of these earlier electrical systems.  We have had several of the long-obsolete terminal ends reproduced.

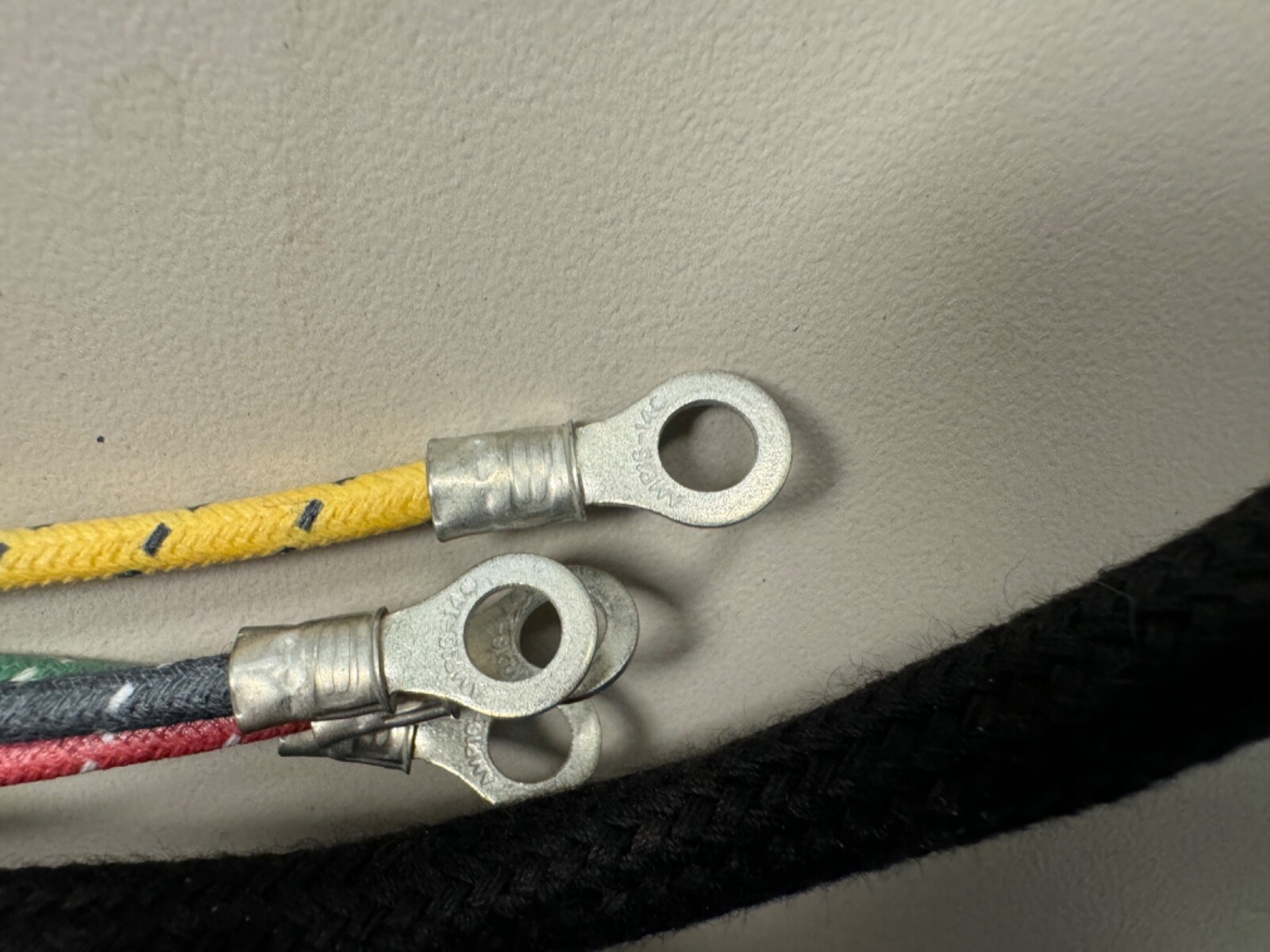

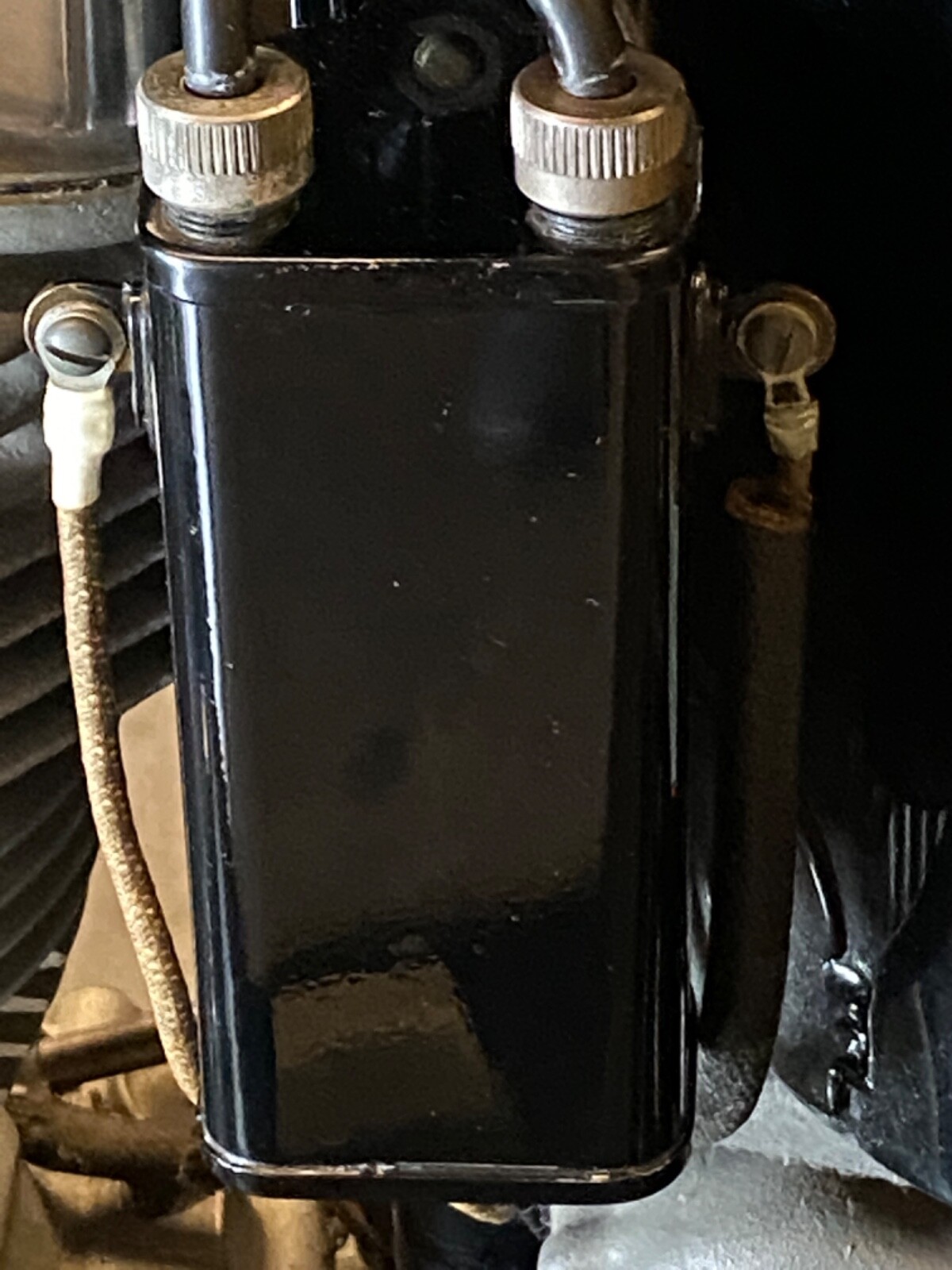

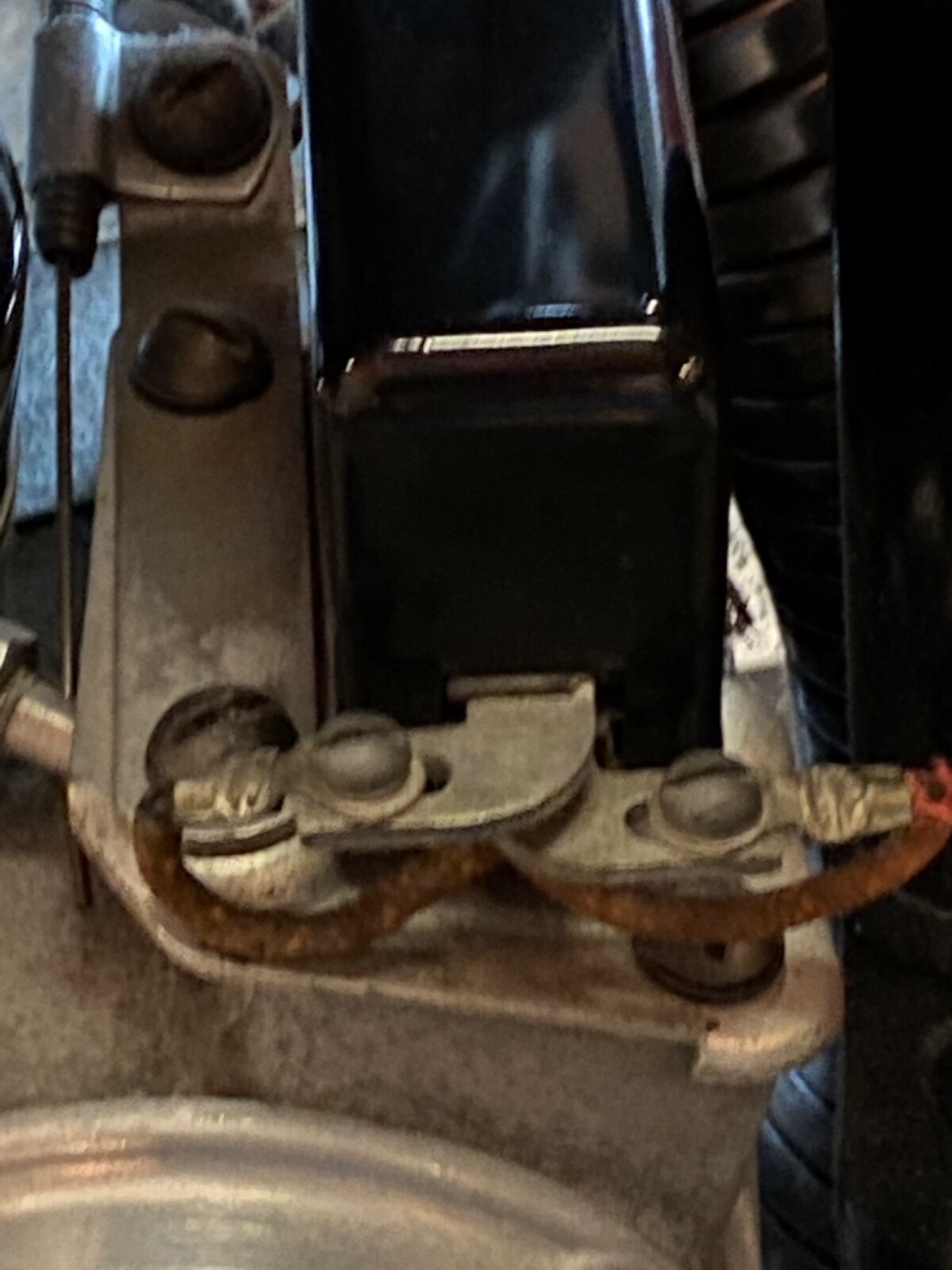

The last two photos are taken from the 1948 Panhead in the HD collection.  Our ring terminals are exactly the same as the originals.

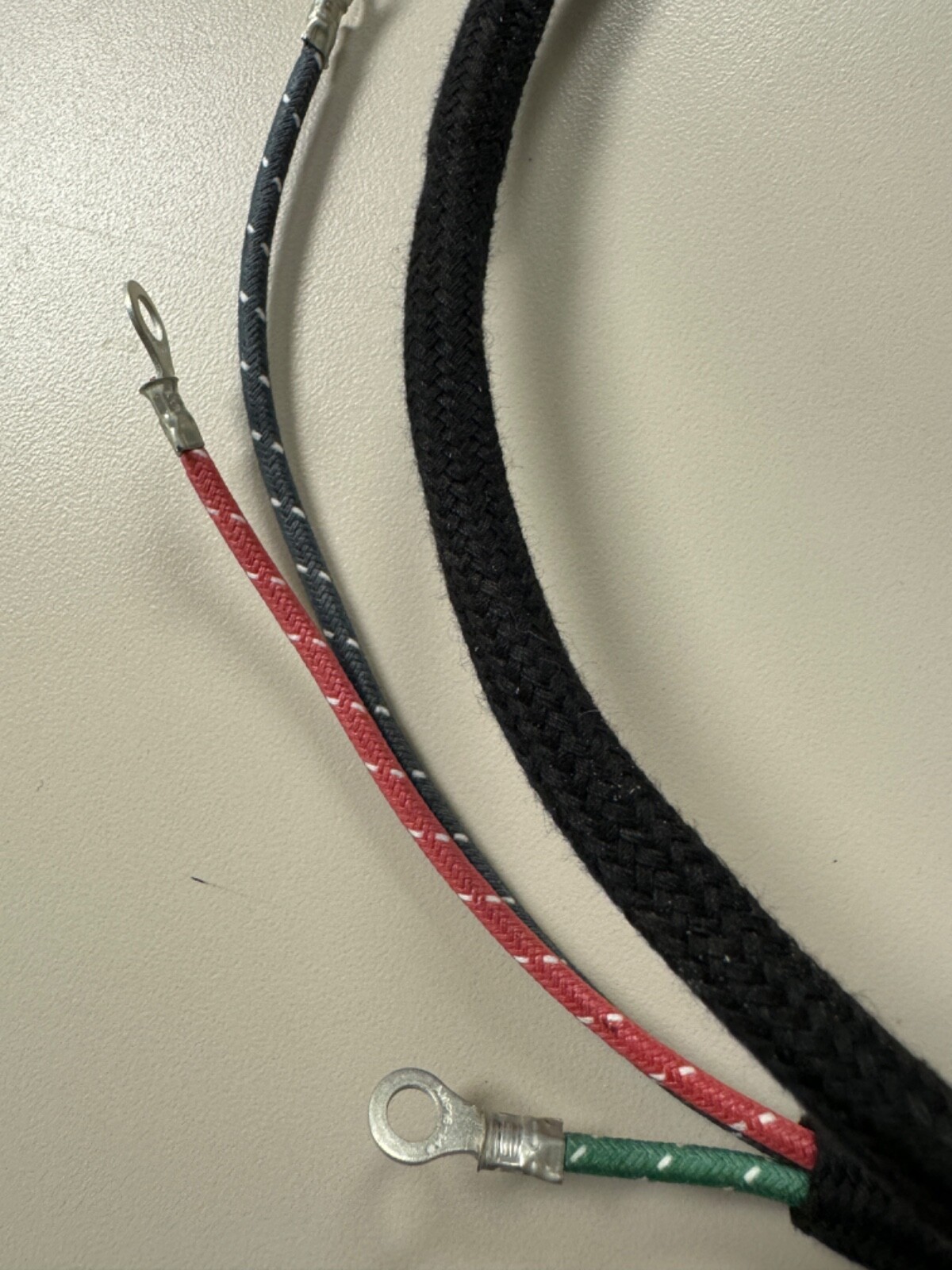

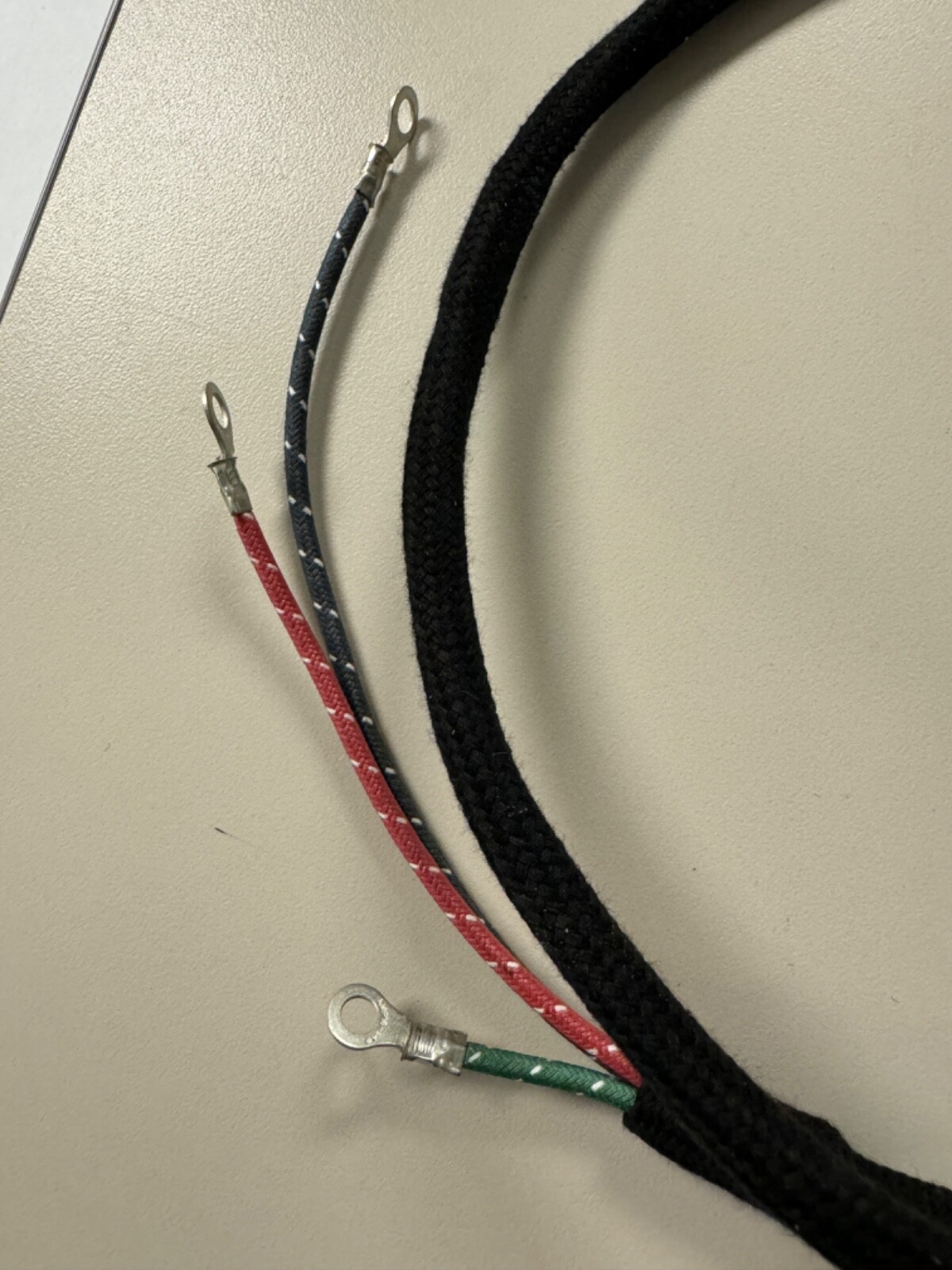

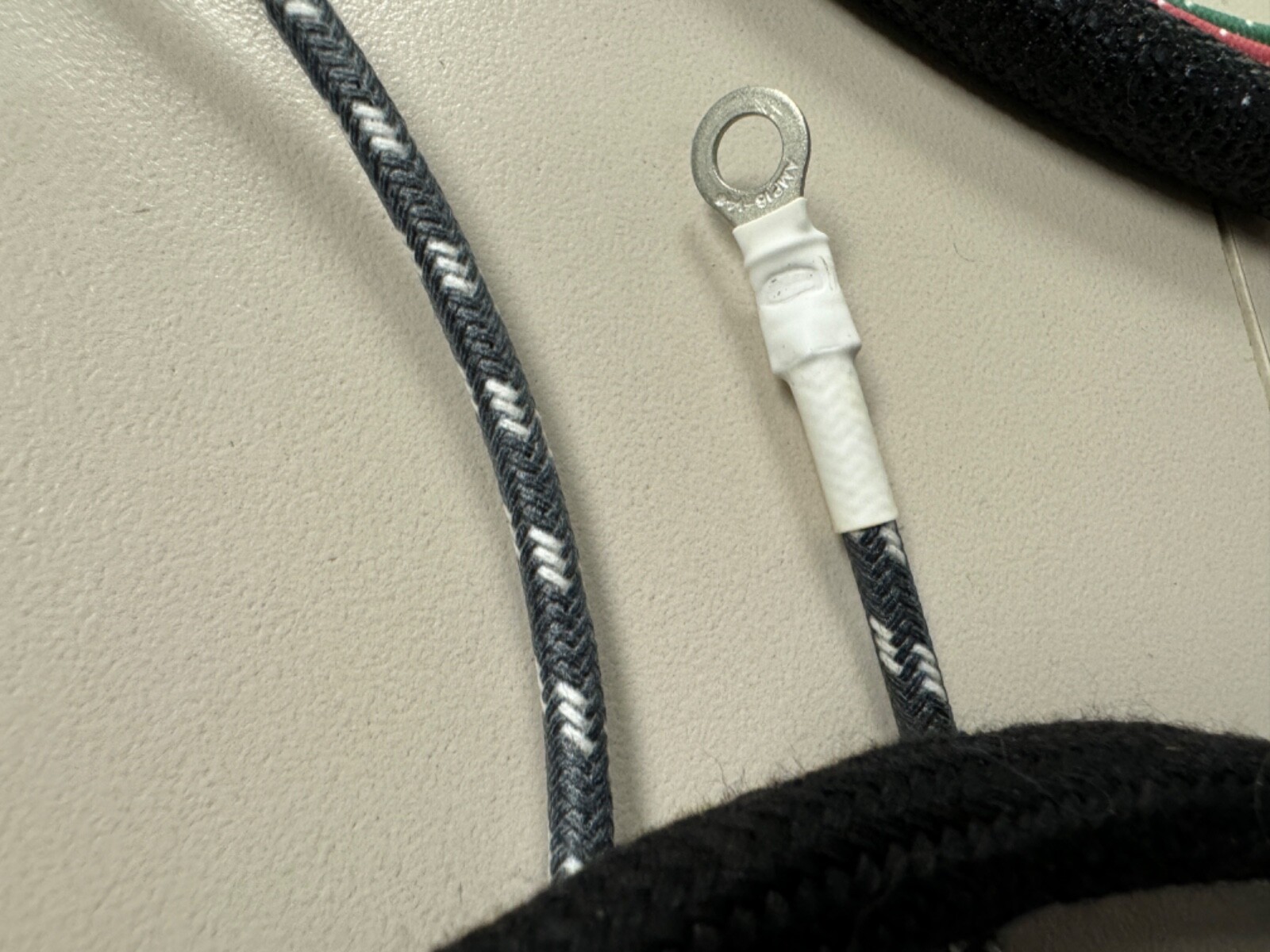

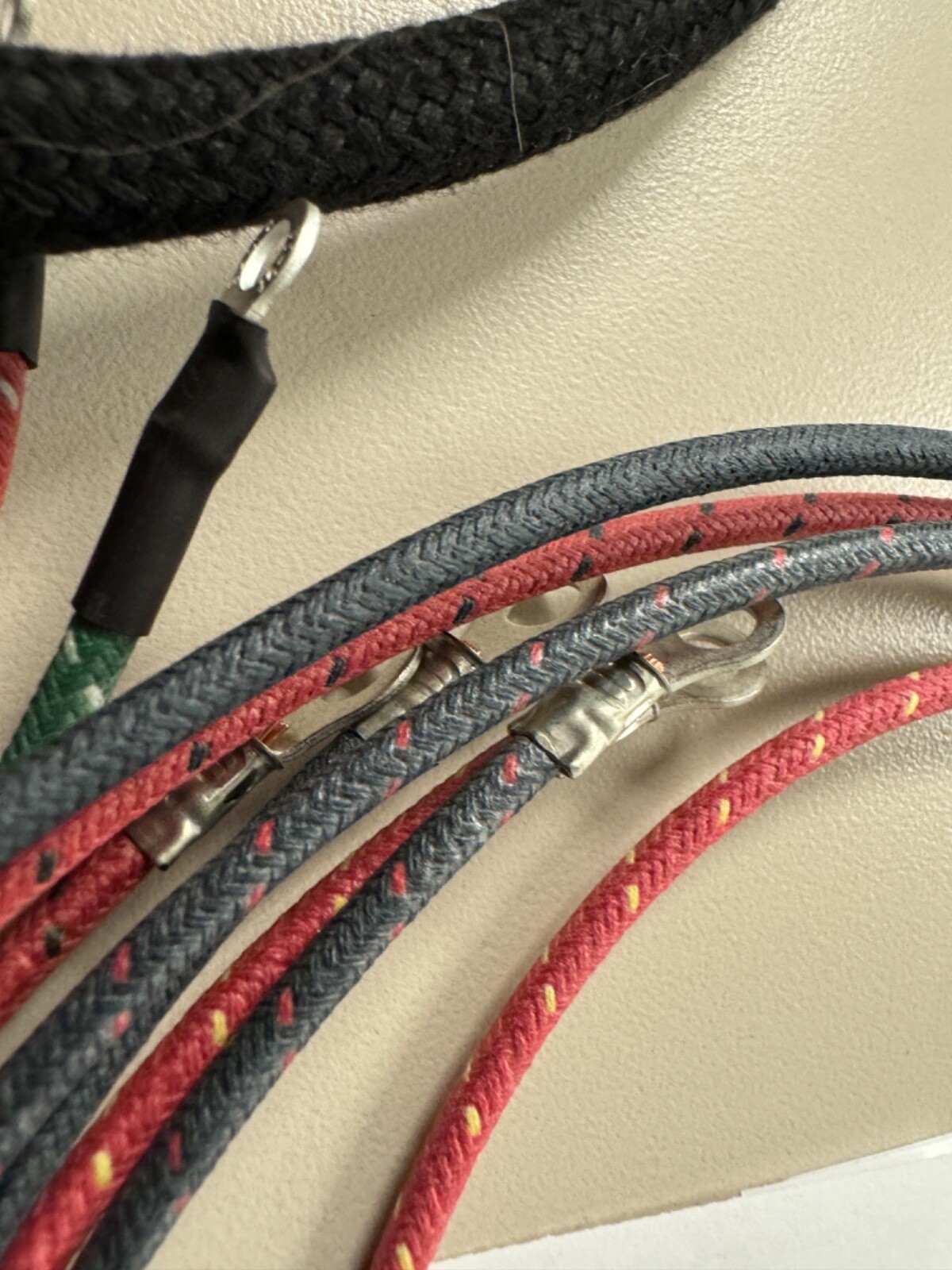

This 1948 harness represents the culmination of these efforts.  The #10 crimp terminals were used from 1948 into at least 1954.  We managed to source these long-obsolete terminals as well as the correct crimping tools for them.  The flag terminals are the correct design as well and are the same dimensionally as the originals.

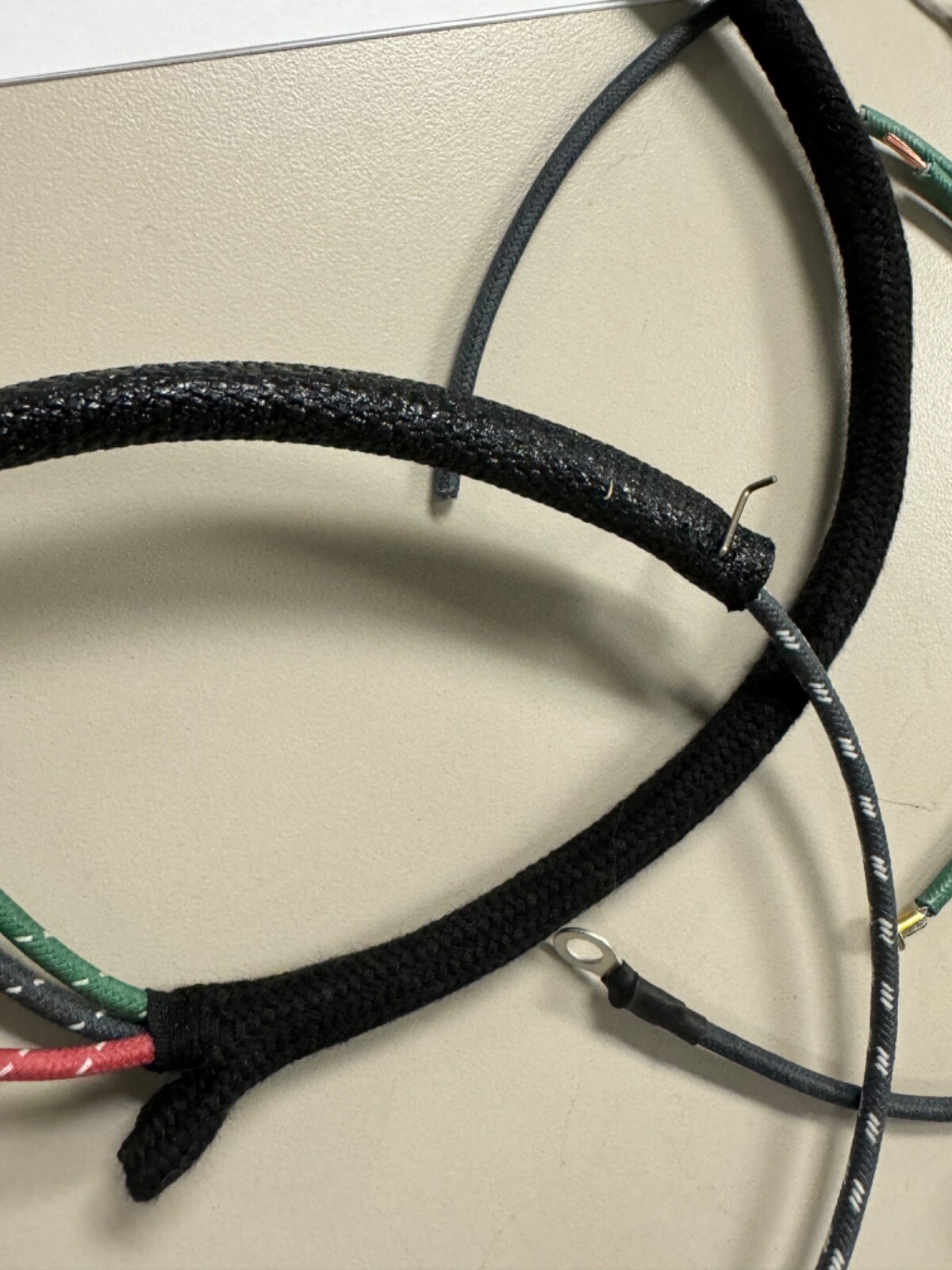

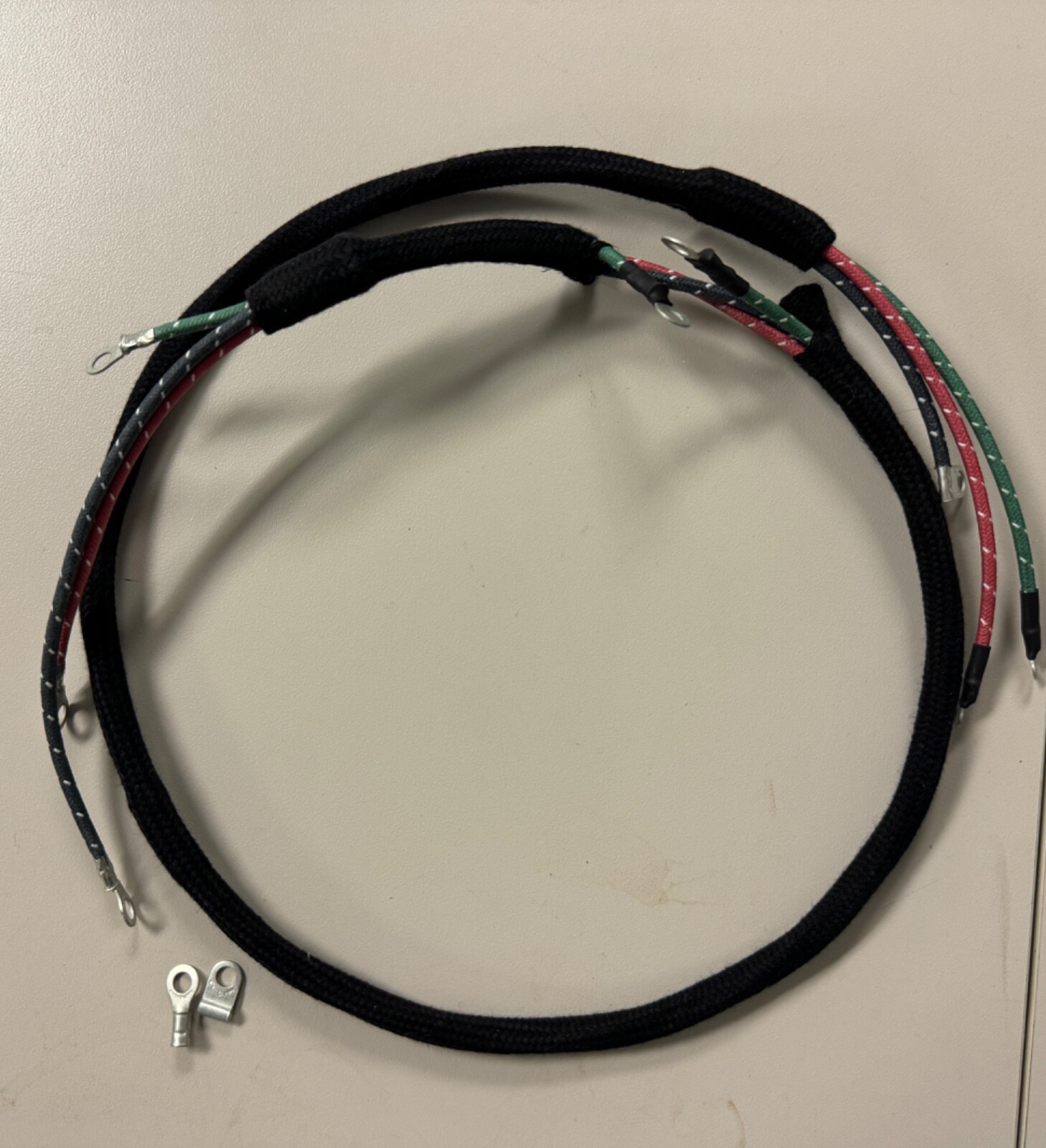

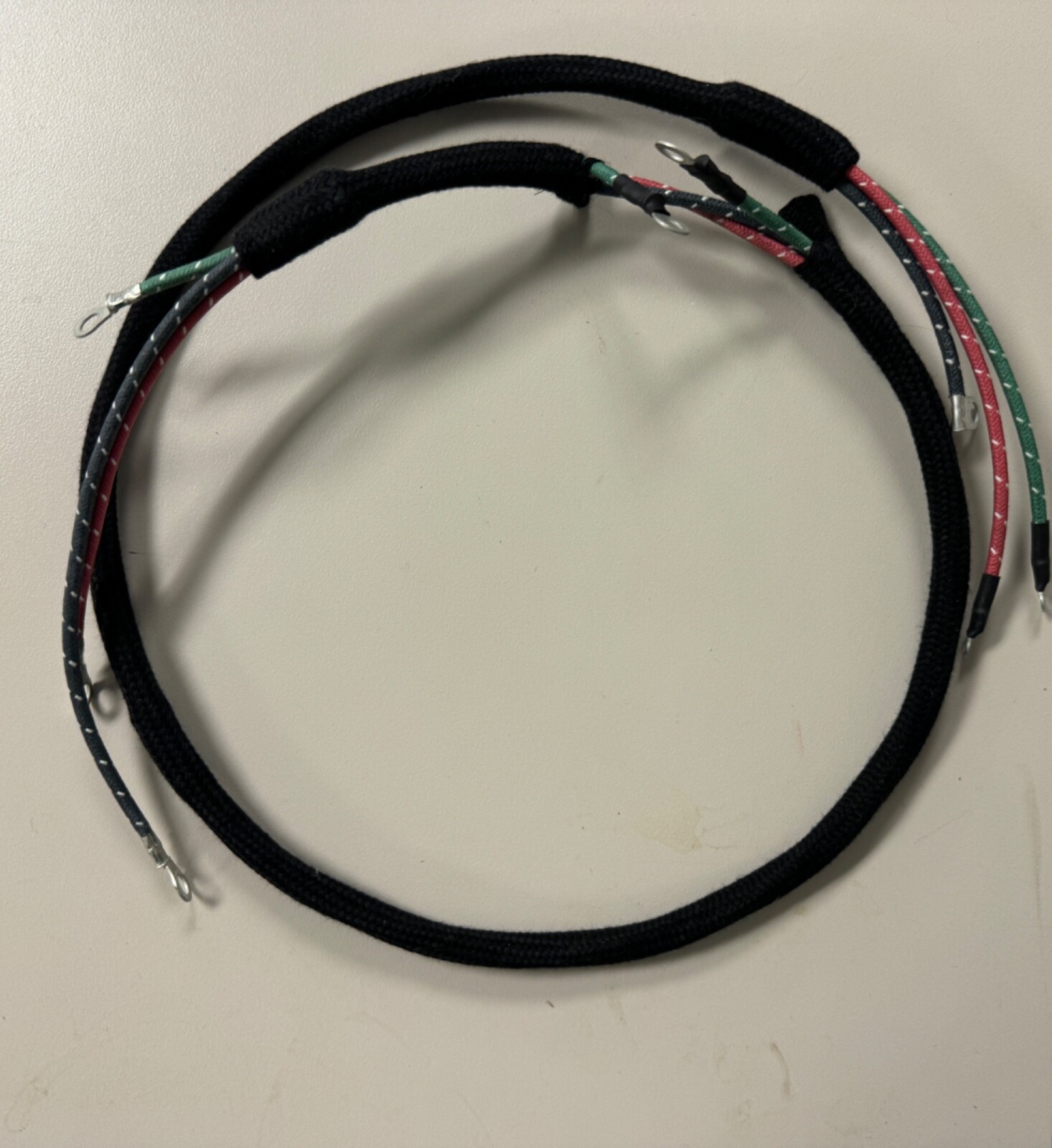

The main looms are all grouped in cotton-woven loom, asphalt loom is used where it was originally.  You would have a hard time discerning between an original harness and ours other than the oxidation on an original's colors.  The terminals are in place on the headlamp/horn harness, tail lamp contacts, spring, and spring plate have been installed already.  You will need to solder the new wires into your existing horn and dimmer switches and you will need to be able to crimp a few terminals.

This harness is correct for use with the new seat post terminal box introduced in 1948 and spring forks.

We sell another kit for 1948 UL and 1948-1952 WL models as well as premium kits for JD, DL, early singles, VL, RL, Knuckleheads, and all military model Harleys using the most authentic materials available.  Don't see what you need here or cimarroncycleworks?  Just email and ask.

Our kits are made right here at our shop in beautiful Cimarron, New Mexico, USA!

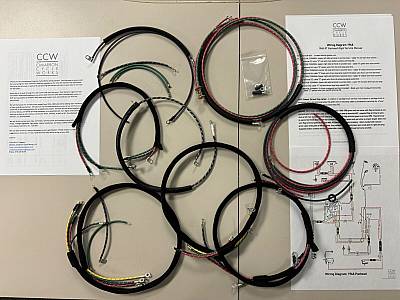

Includes everything you need to wire up your H-D from nose to tail.

We are now carrying wiring harnesses for most USA produced H-D models from 1926-1969.

Used on the following 1948 models:
  • EL & FL Panhead 61" & 74" OHV
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
