Harley Pre-Wired Cat Eye Dash Base Knucklehead UL WL 1939-45 European/USA
- Product Code: 355061858872
- Availability: In Stock
-
$599.95

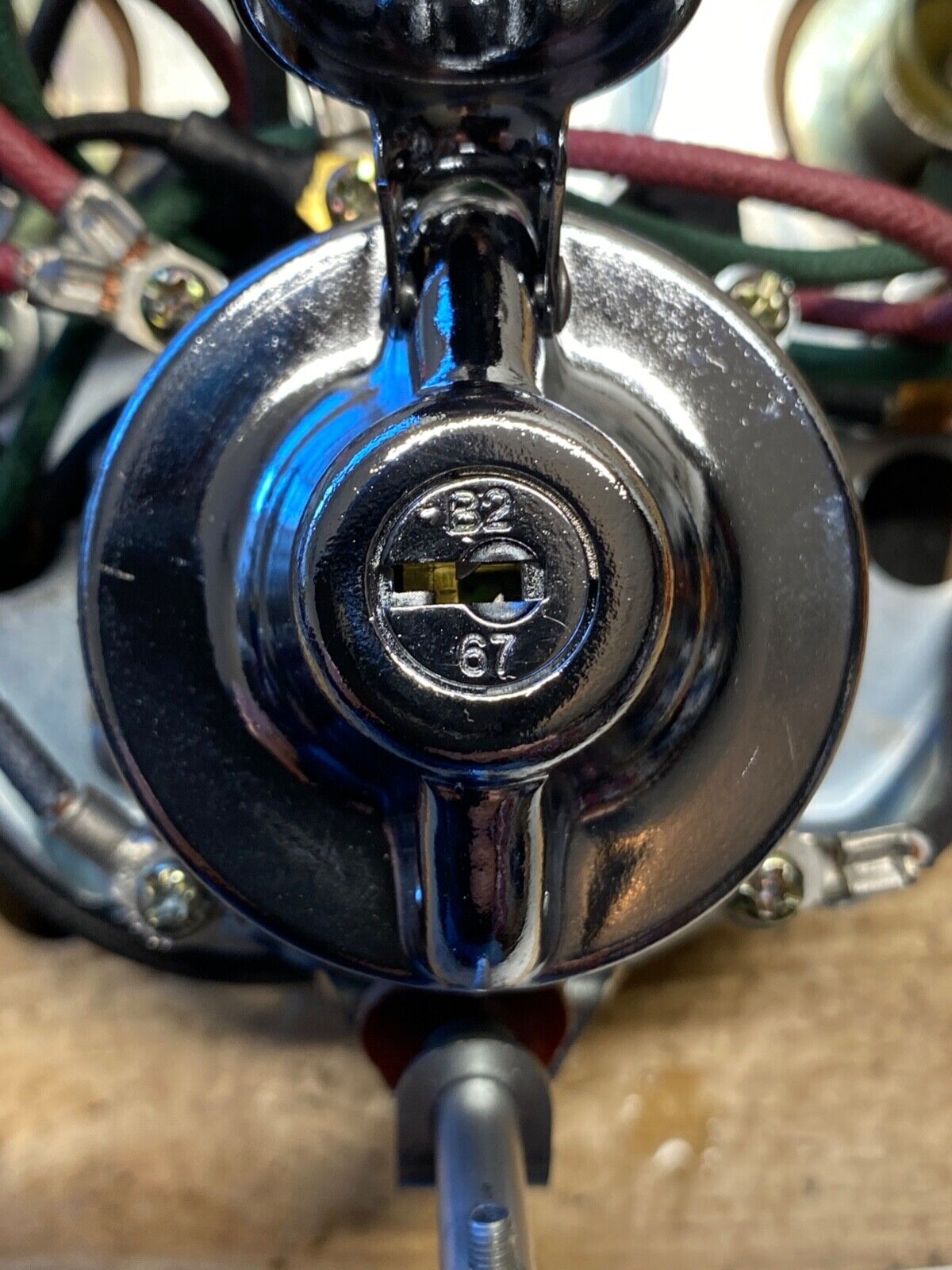

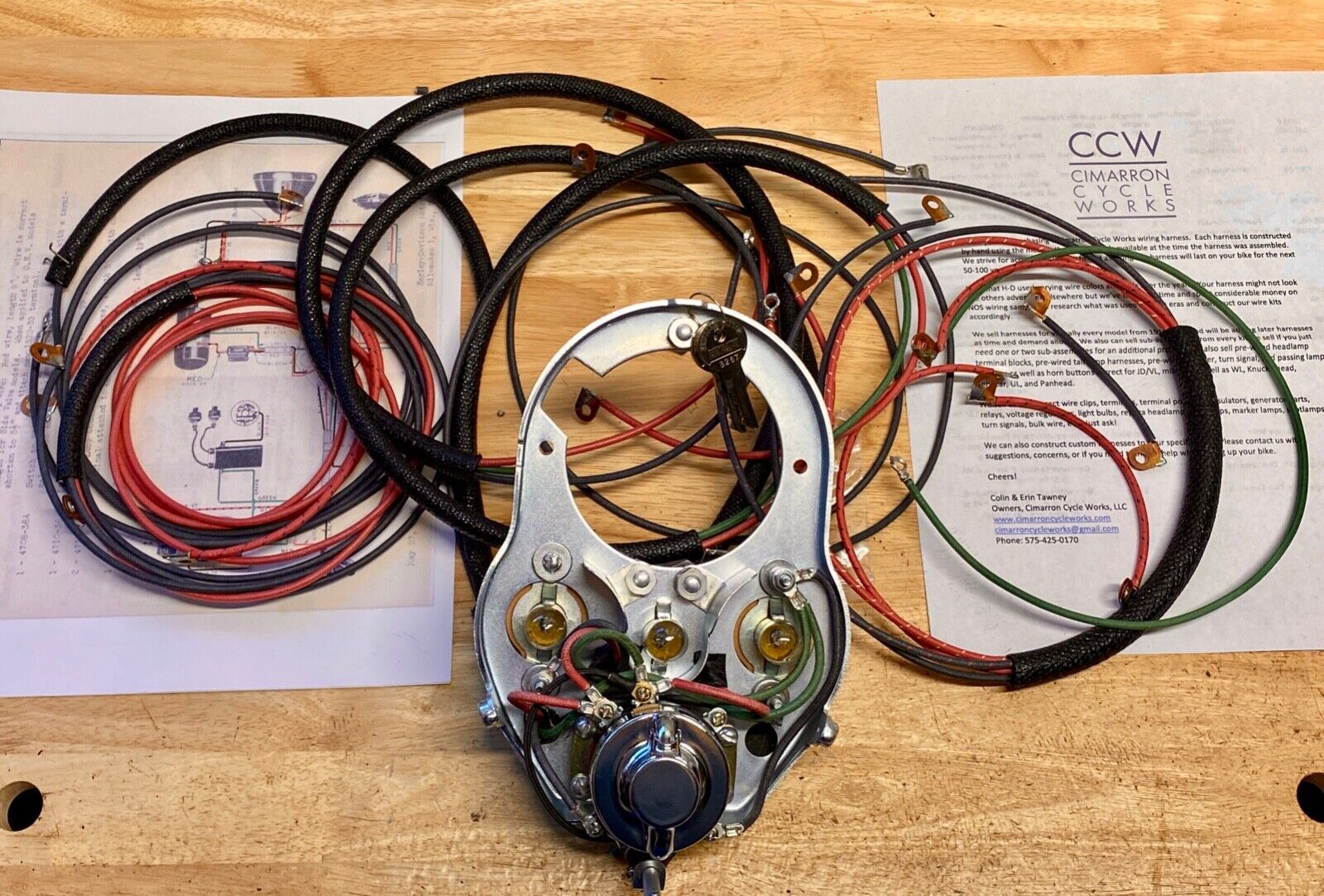

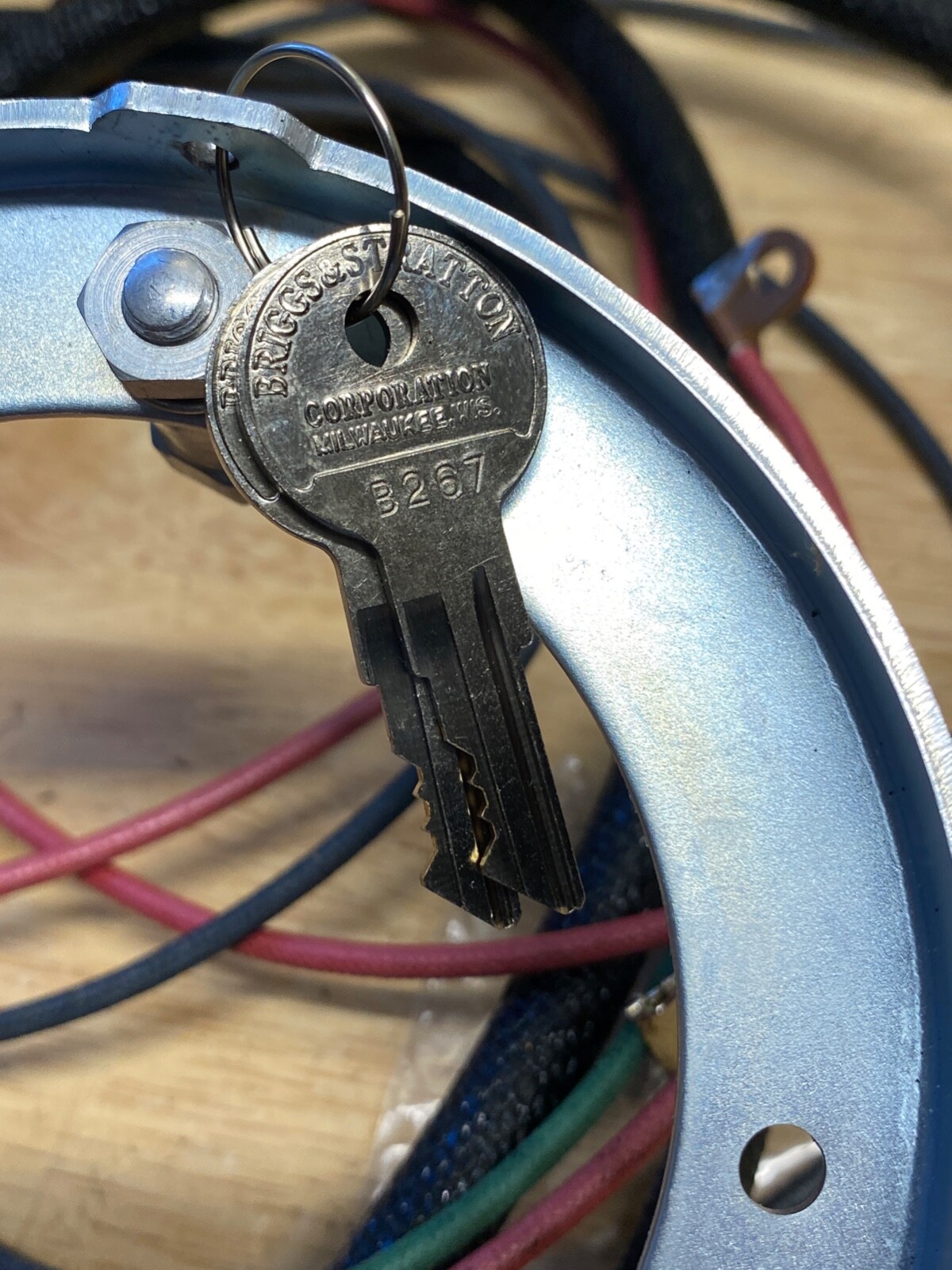

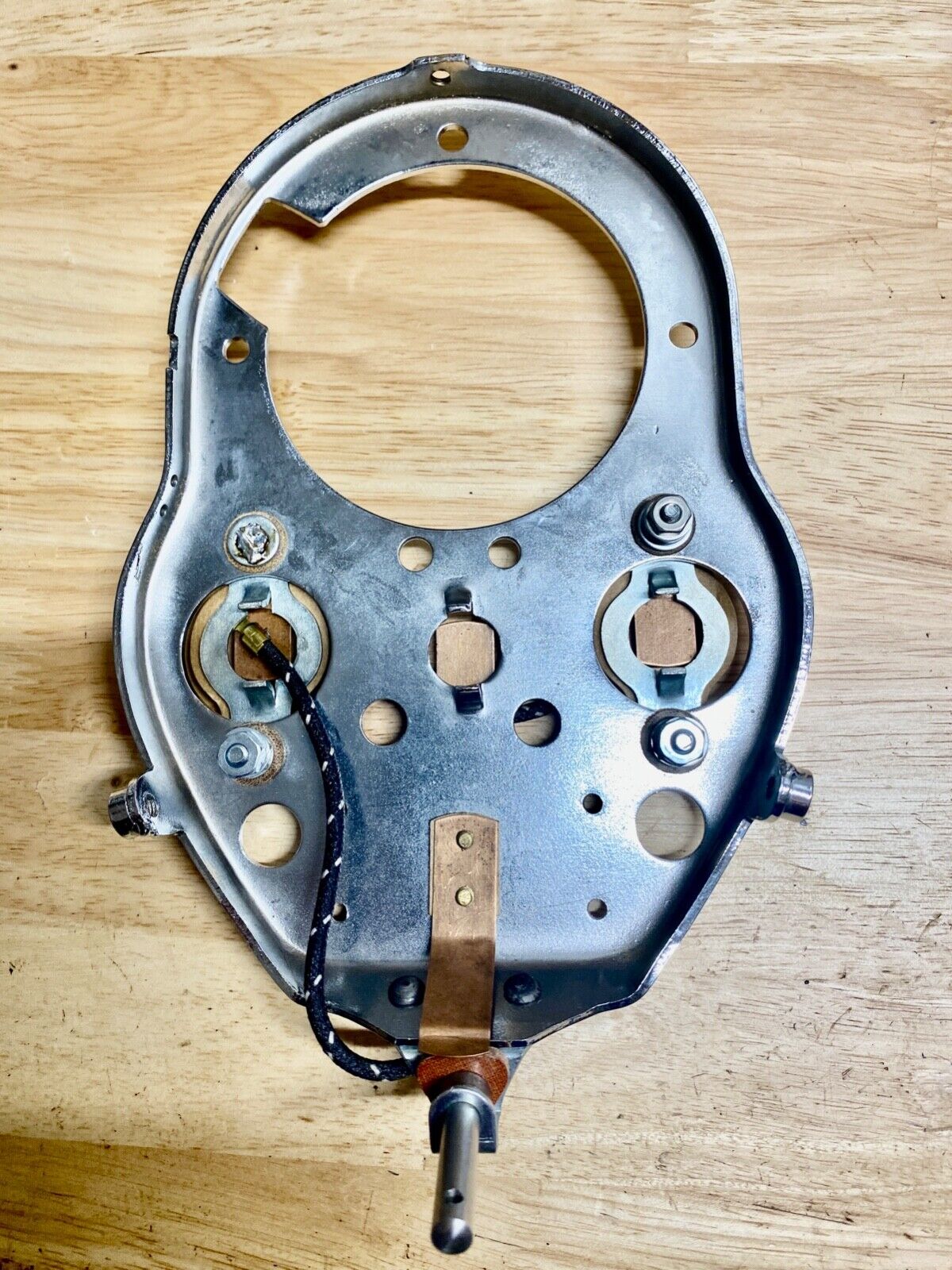

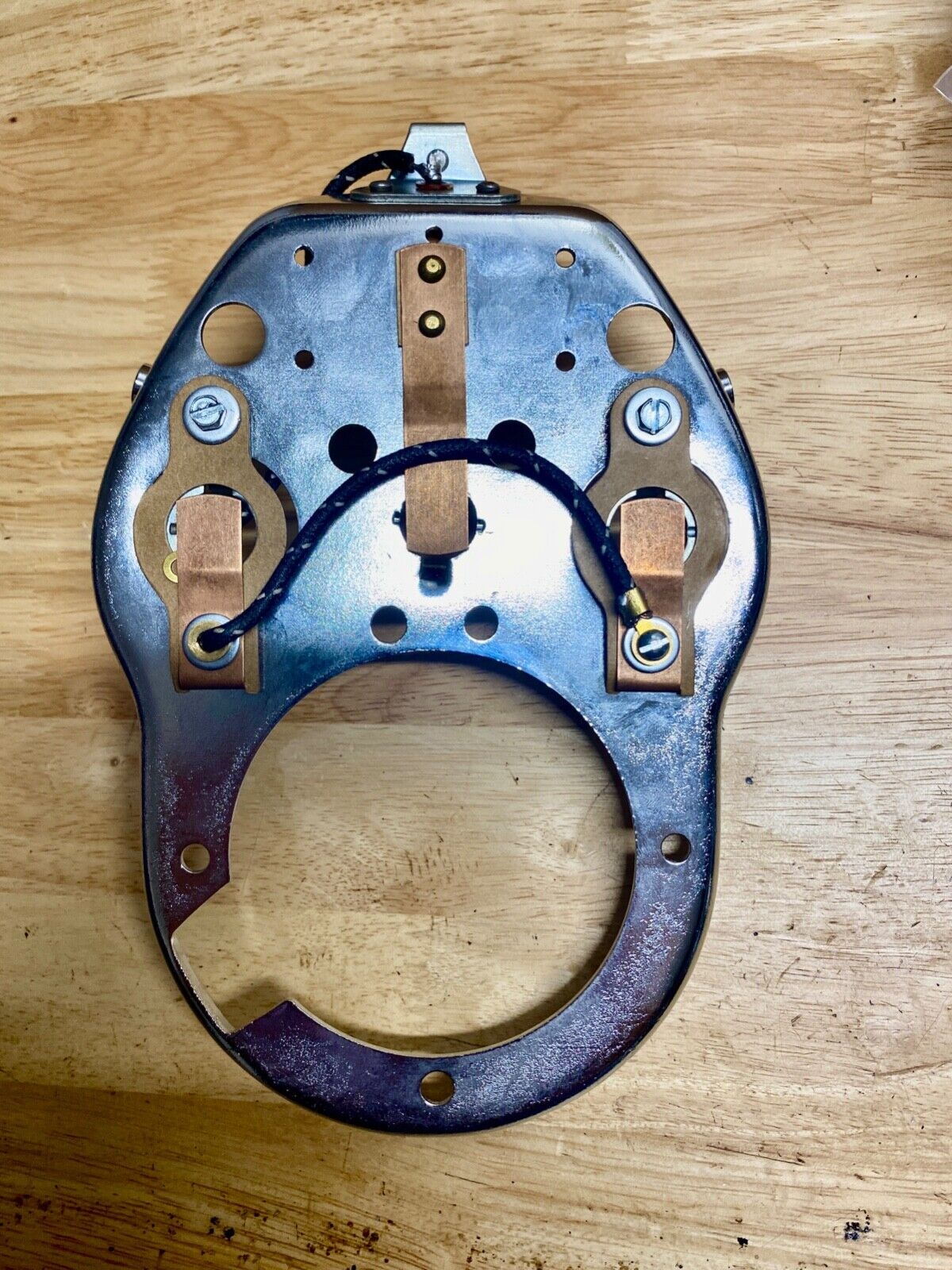

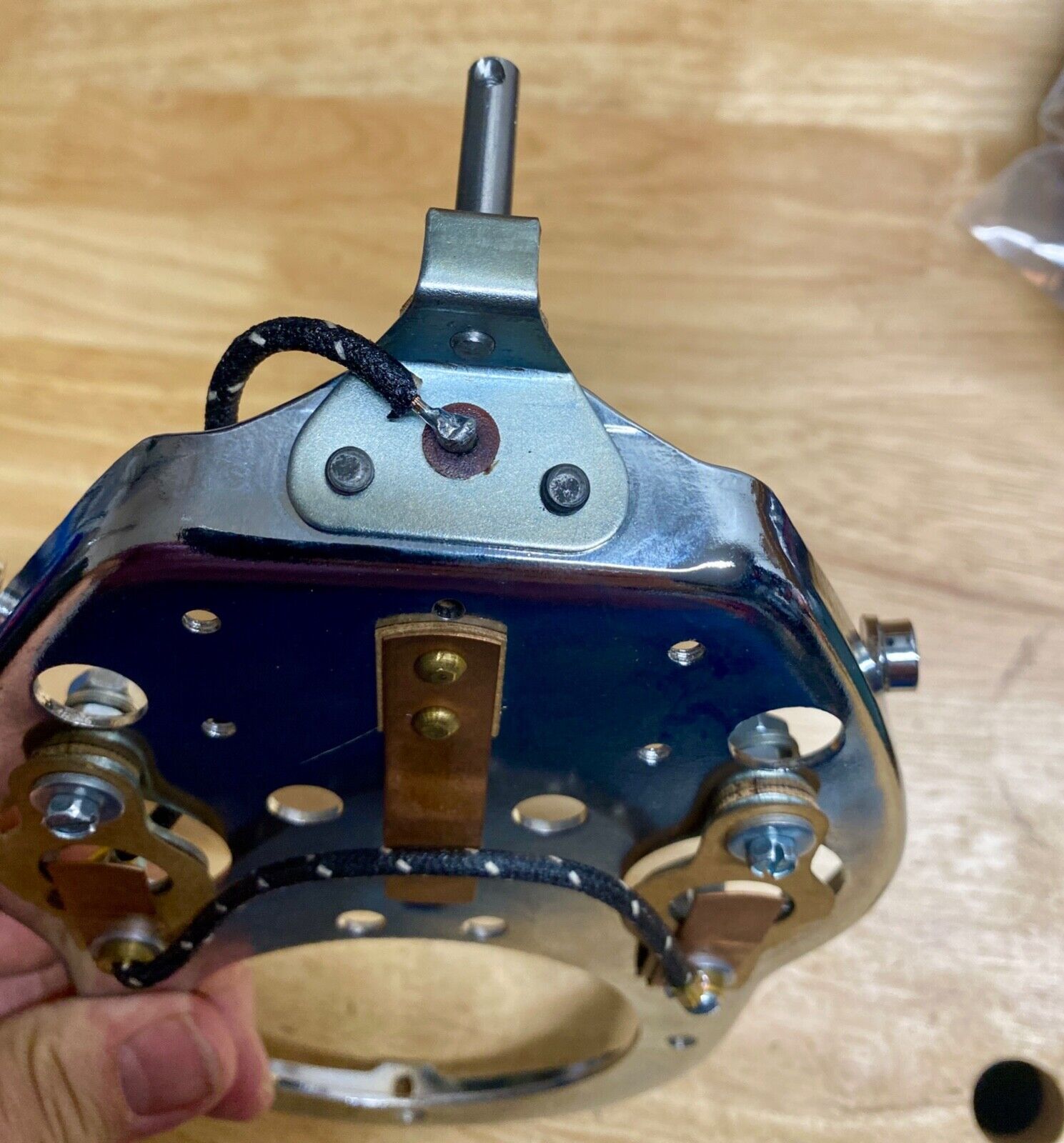

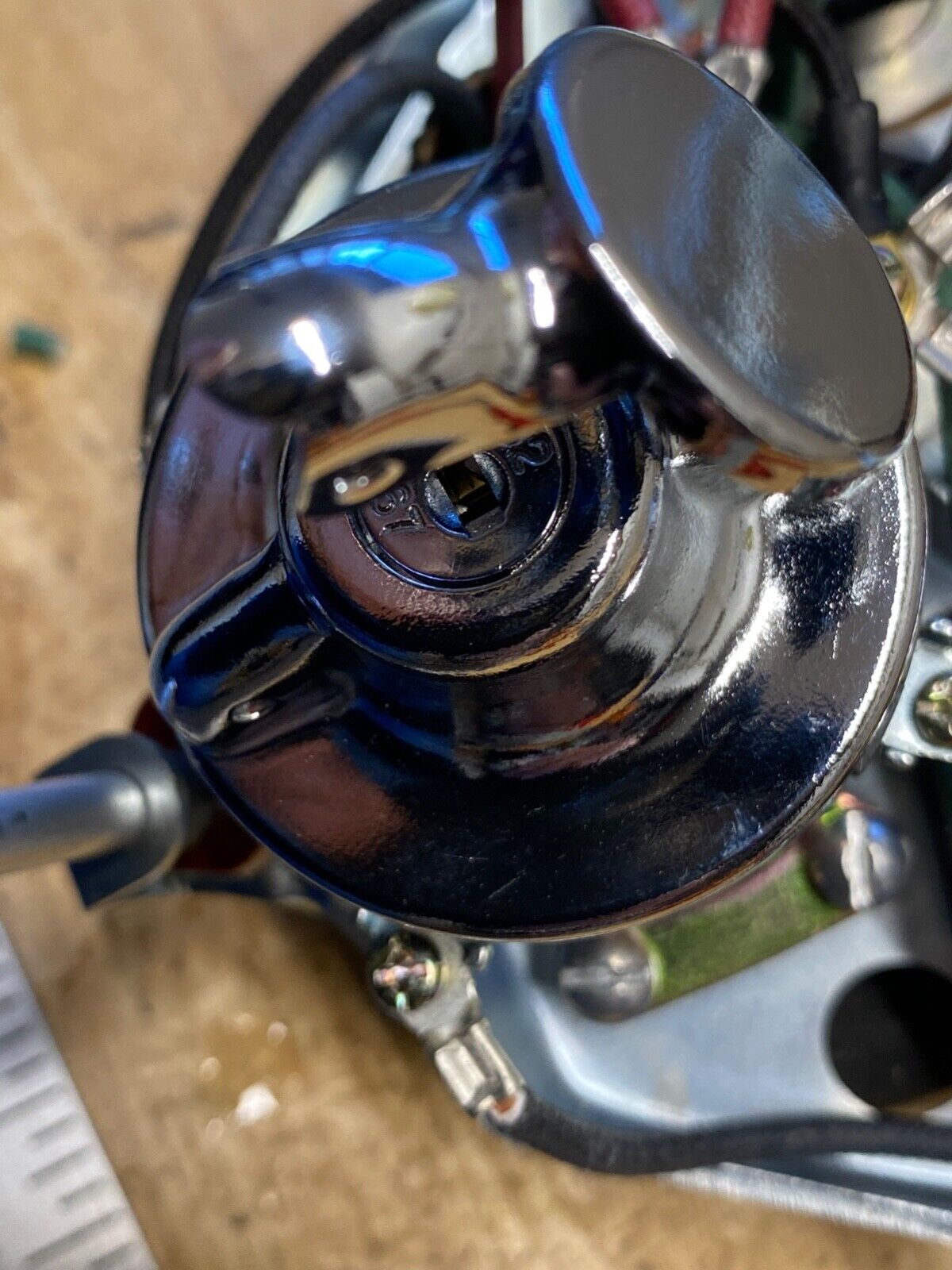

You are purchasing one European-made reproduction "Cat Eye" dash base assembly for 1939-1946 model Harley-Davidson civilian Knucklehead, U, WL, and Servicar models. This is a completely wired dash base with our high quality Briggs & Stratton reproduction switch for your restoration. The dash base comes from Europe, the harness is built at our shop in New Mexico. Includes the dash studs and lamp shields, three bulbs, Briggs & Stratton reproduction switch with keys, and all wiring nose to tail for your project.
Please specify if your bike is a Knucklehead, U, or 45" as well as your model year when you order so that you get the correct relay and battery wires. Your order will not ship until we have this information.

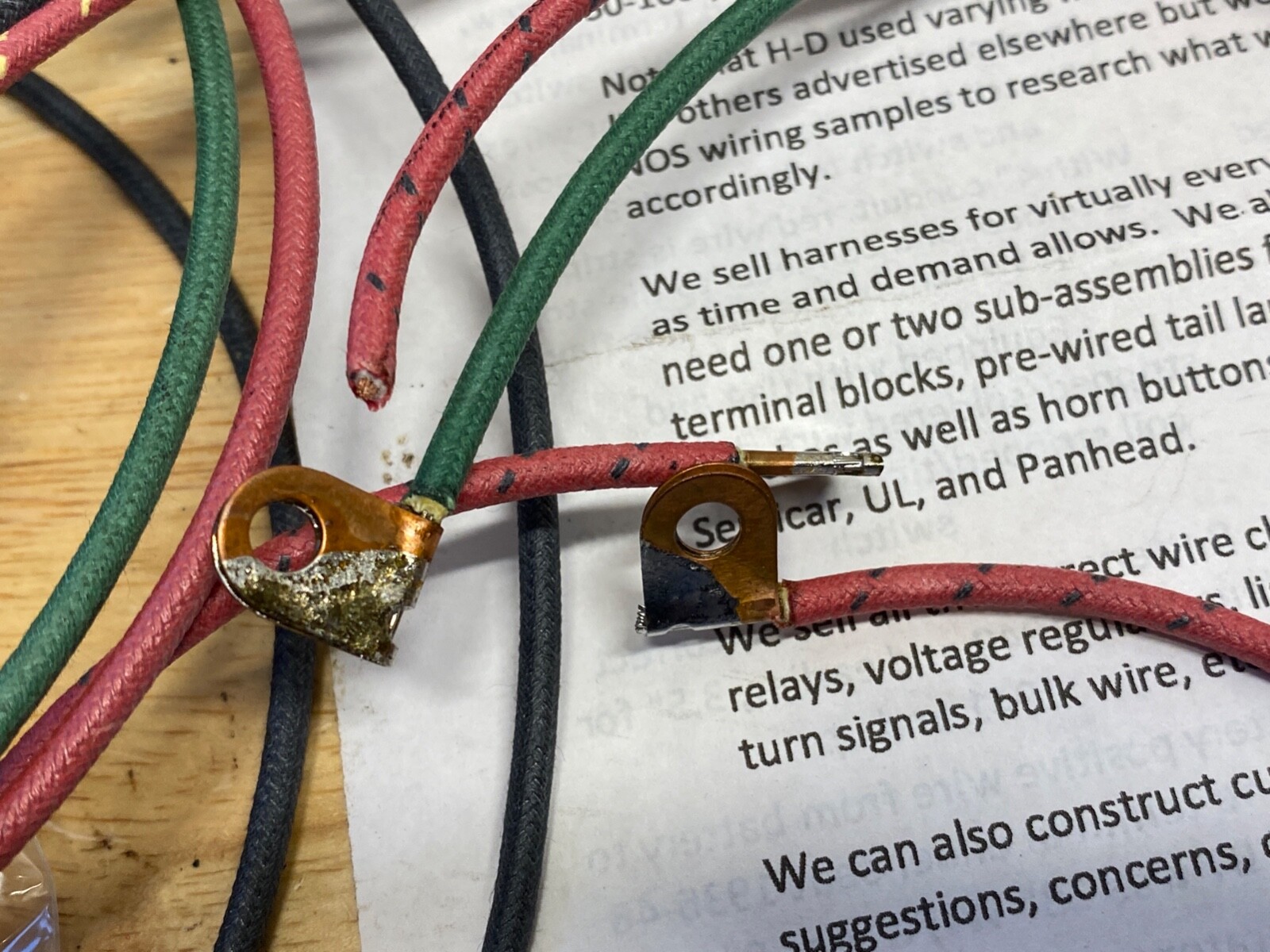

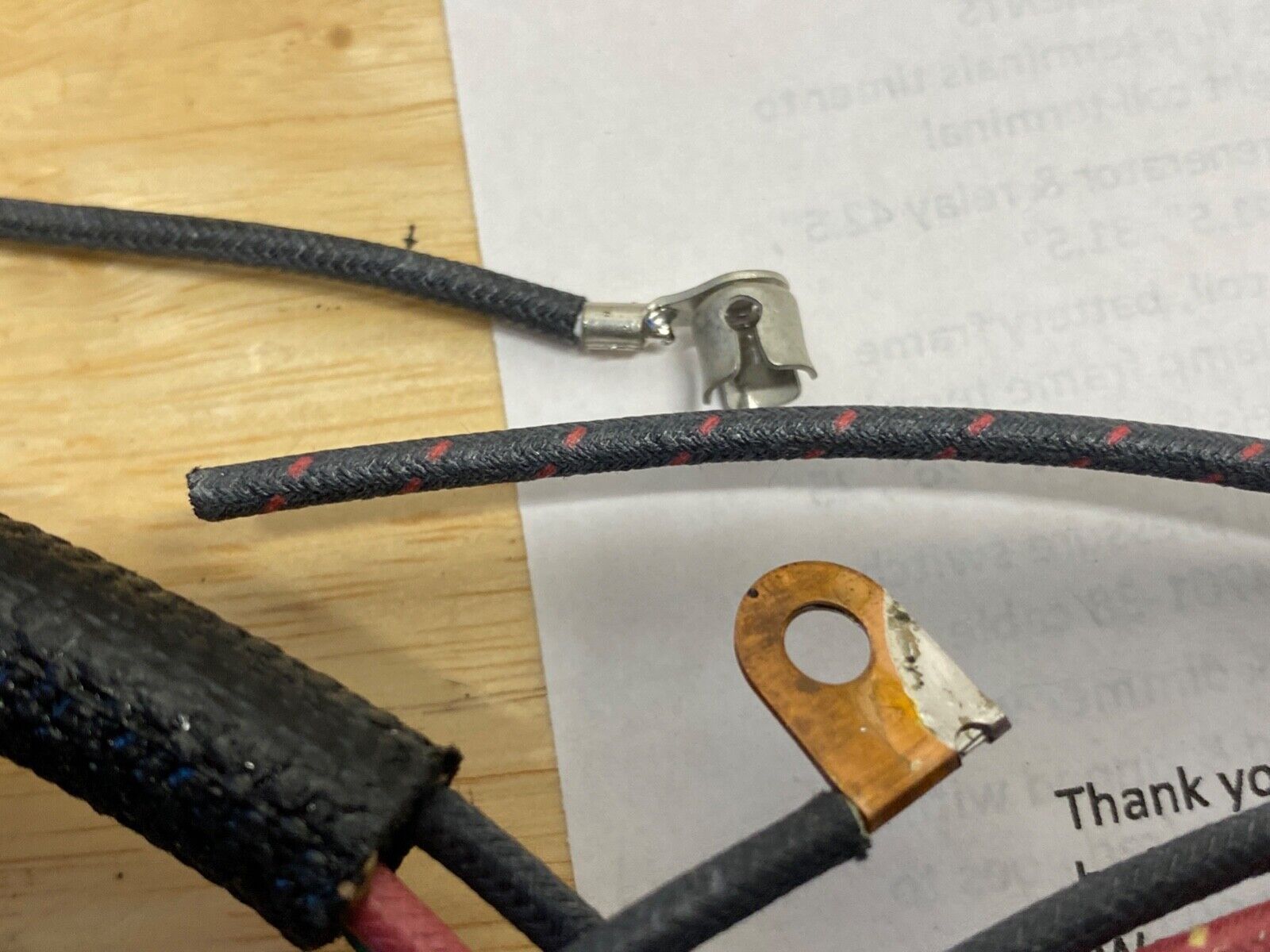

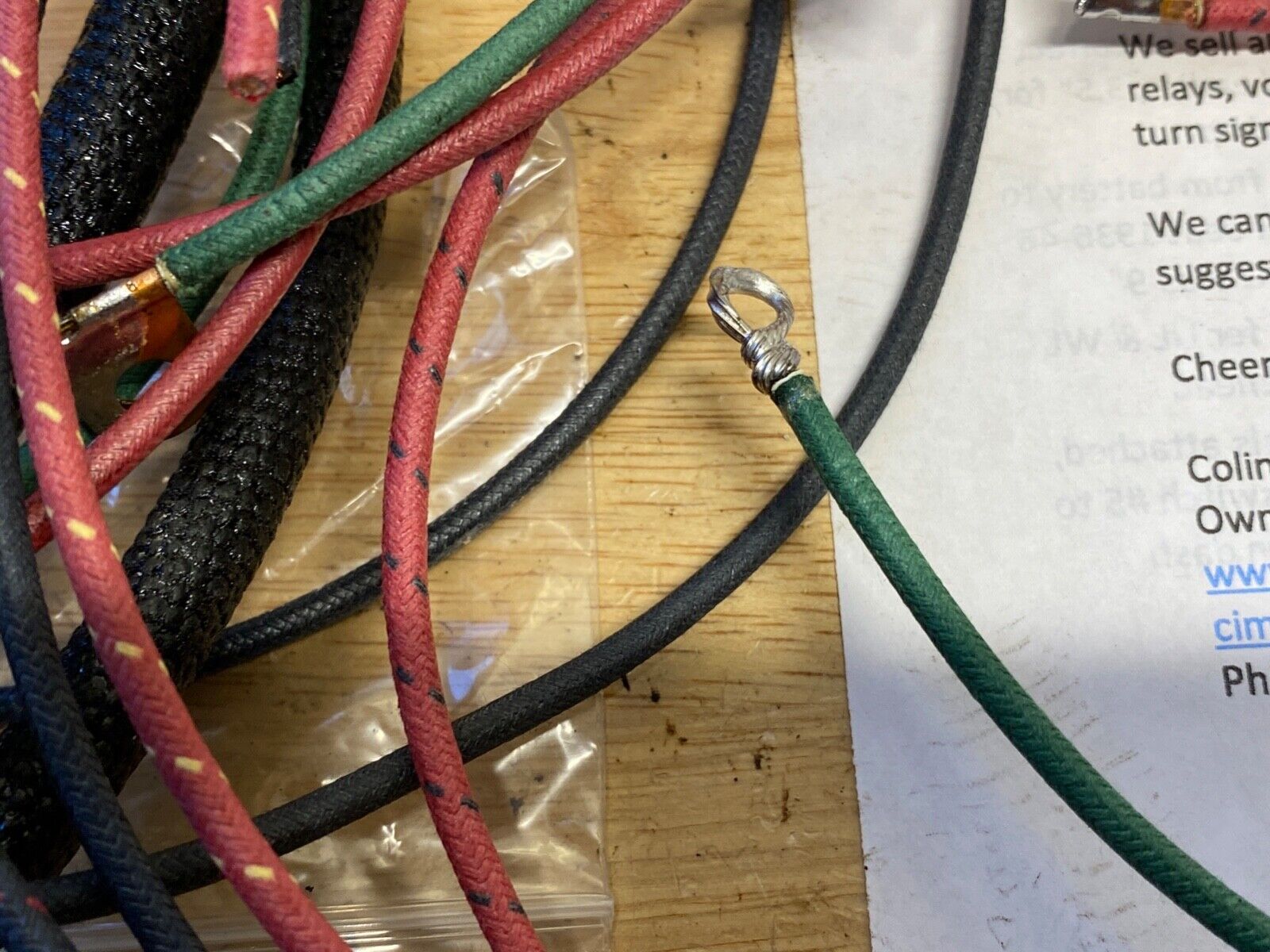

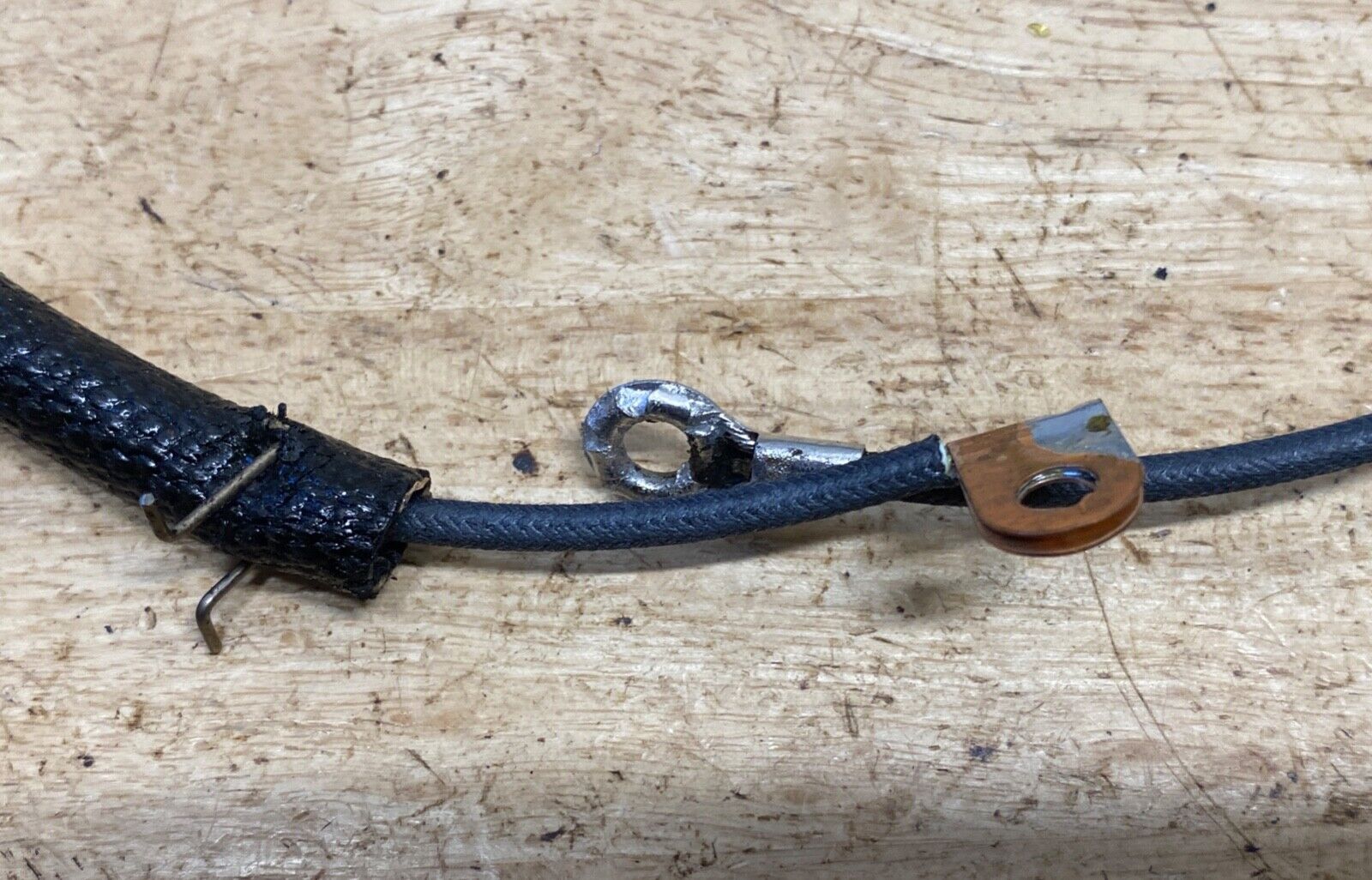

This will fit 1938 and 1946 models but due to the copper fold over flag terminals, this is considered "detail-correct" for 1939-1945. With asking prices on used bare dash bases getting up over $500 these days, this is a very good value. We also use the correct 1614-18 terminal on the upper coil wire, The brake switch and headlamp wires are correct twisted, looped, and tinned wire ends for terminals. Wires are mostly solid colors as our research shows HD used traced wires on a limited basis prior to the end of WWII.
Please study the photos and make sure this will work for your application.
We build accurate wiring kits for just about all 1915-1969 model Harleys here at our shop in Cimarron, New Mexico.
We have dash panels for JD and VL models as well as later models.
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
Machining stamping, and plating is identical to original OEM parts.
Used on the following models, please cross-check your own reference material to make sure this is right for you:
- 1939-1946 E, EL, F, FL 61" & 74" OHV Knucklehead
- 1939-1946 WL, WLD, WLA, WLC 45" solo
- 1939-1946 U, UL, ULA, USA, UH, ULH 74" & 80" side valve or flathead
- 1939-1946 G, GD, GDT Servicar
Ships priority mail only insured. I am more than happy to combine this with any other items you might be considering.
