Harley Panhead WL UL Servicar "Blue Face" Speedometer 2:1 Ratio 48-52 67004-48
- Product Code: 296018788557
- Availability: In Stock
-
$279.95

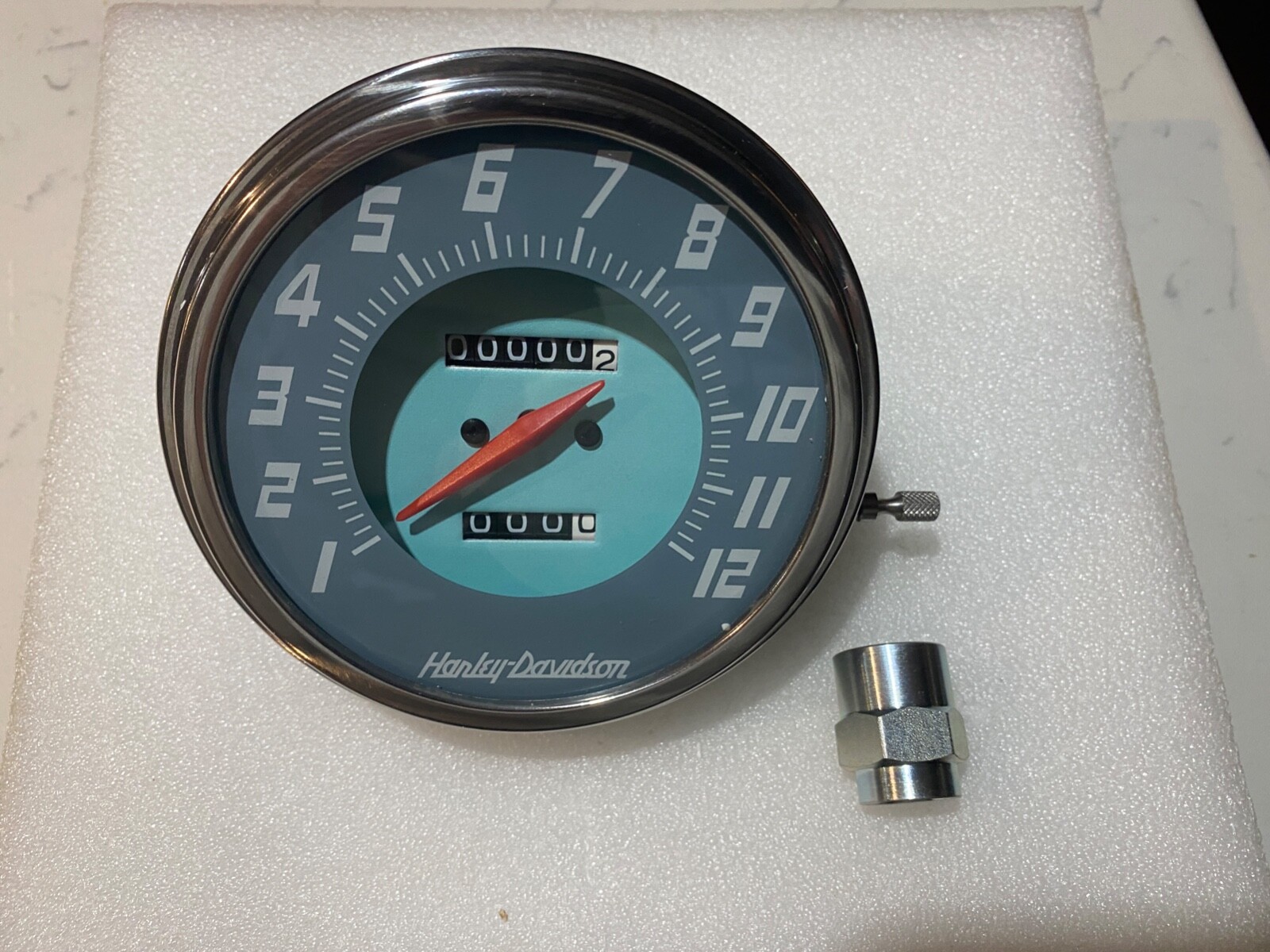

One new reproduction fat bob style 2:1 speedometer for OHV & Servicar models with fat bob tanks from 1948 to 1952. This will work on any Harley with a stock dash from 1936-1961 including WL, Servicar, Knucklehead, UL, Panhead. This comes with a knurled re-set knob and a speedometer cable adaptor so you can run your stock cable with the male end fitting. If you do not need the adapter and have a cable with a 5/8" female fitting on the speedometer end, just tell us and we can credit you $20 off your purchase. The speedo has a 5/8" male fitting so you can use the 1962 and up style cable with this.
Of course it’s reproduction, but it sure beats a Harley knock-off which has no Harley logo on your old rider or restoration until you can find or afford a perfect factory rebuild or the rare NOS one which finds it’s way to eBay every now and then.

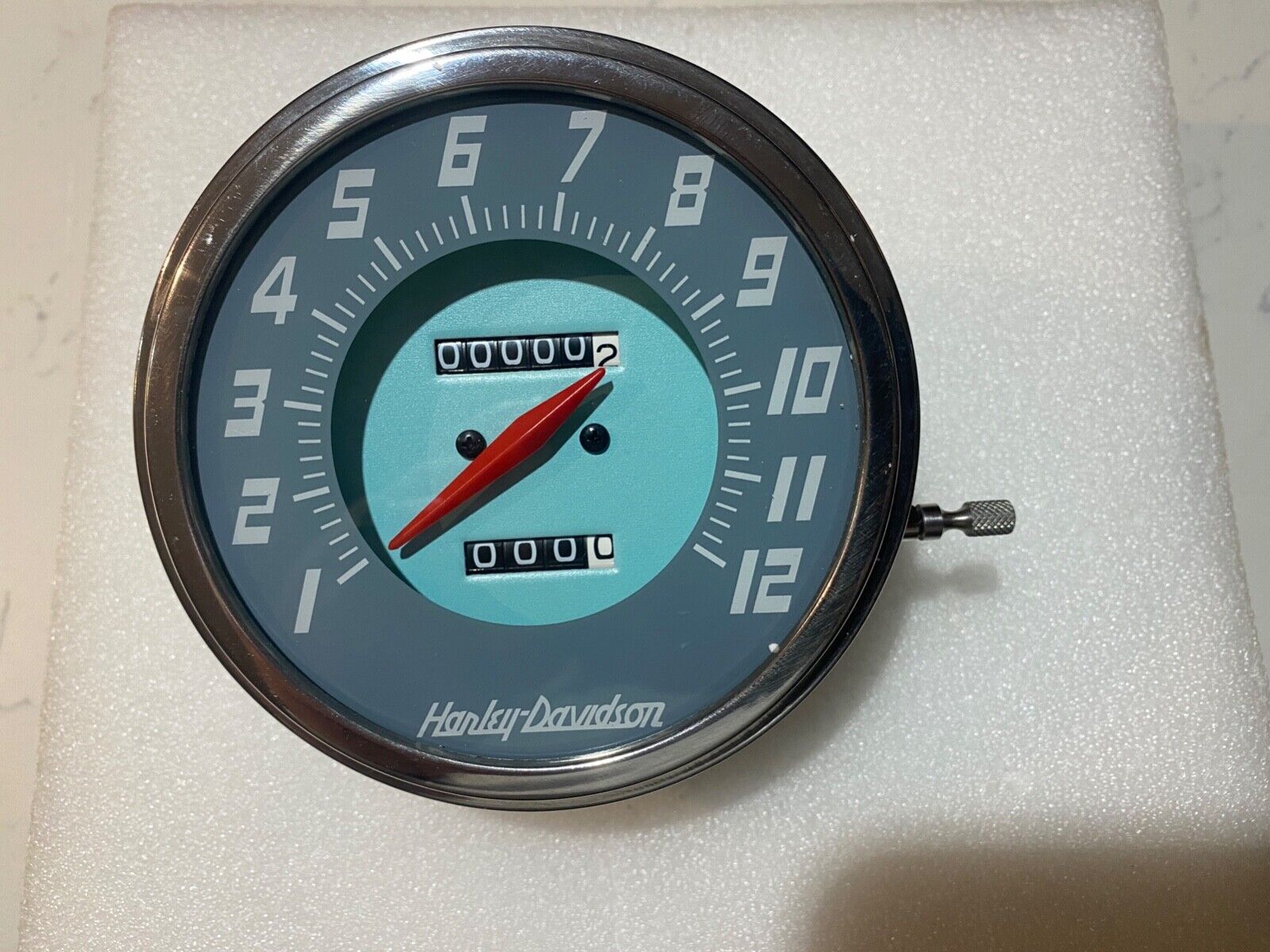

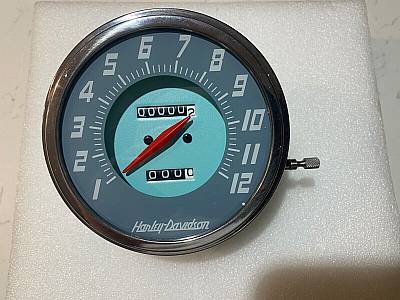

This is a pretty accurate reproduction of the original 1948-1952 speedometer, frequently referred to as the "blue" face, head as made by Stewart-Warner back in the day. We do also offer 2:1 ratio speedos with logos for 1937-1940, 1941-1946 civilian and military, 1947, 1948-1952, 1953-1955, 1956-1961, and a 1:1 ratio speedo for 1968-1970 big twin four speed models and Servicars.
.Can be used on the following when equipped with an 11 tooth speedometer drive gear in a four speed transmission or Servicar rear end:
- 1936-1947 EL FL 61" & 74" OHV Knucklehead
- 1937-1948 U, UL, ULH, etc. 74" & 80" big twin flathead
- 1937-1952 W, WL, WLA, WLD, WLC, etc. 45" solo
- 1948-1961 EL, FL, FLH Hydra-Glide & Duo-Glide with stock transmission speedometer drive
- 1937-1961 G, GE Servicar
Fits in a 4 5/8” opening if you are planning to use this for a custom project. Otherwise this fits just like a stock Harley Fat Bob speedo in your Harley.

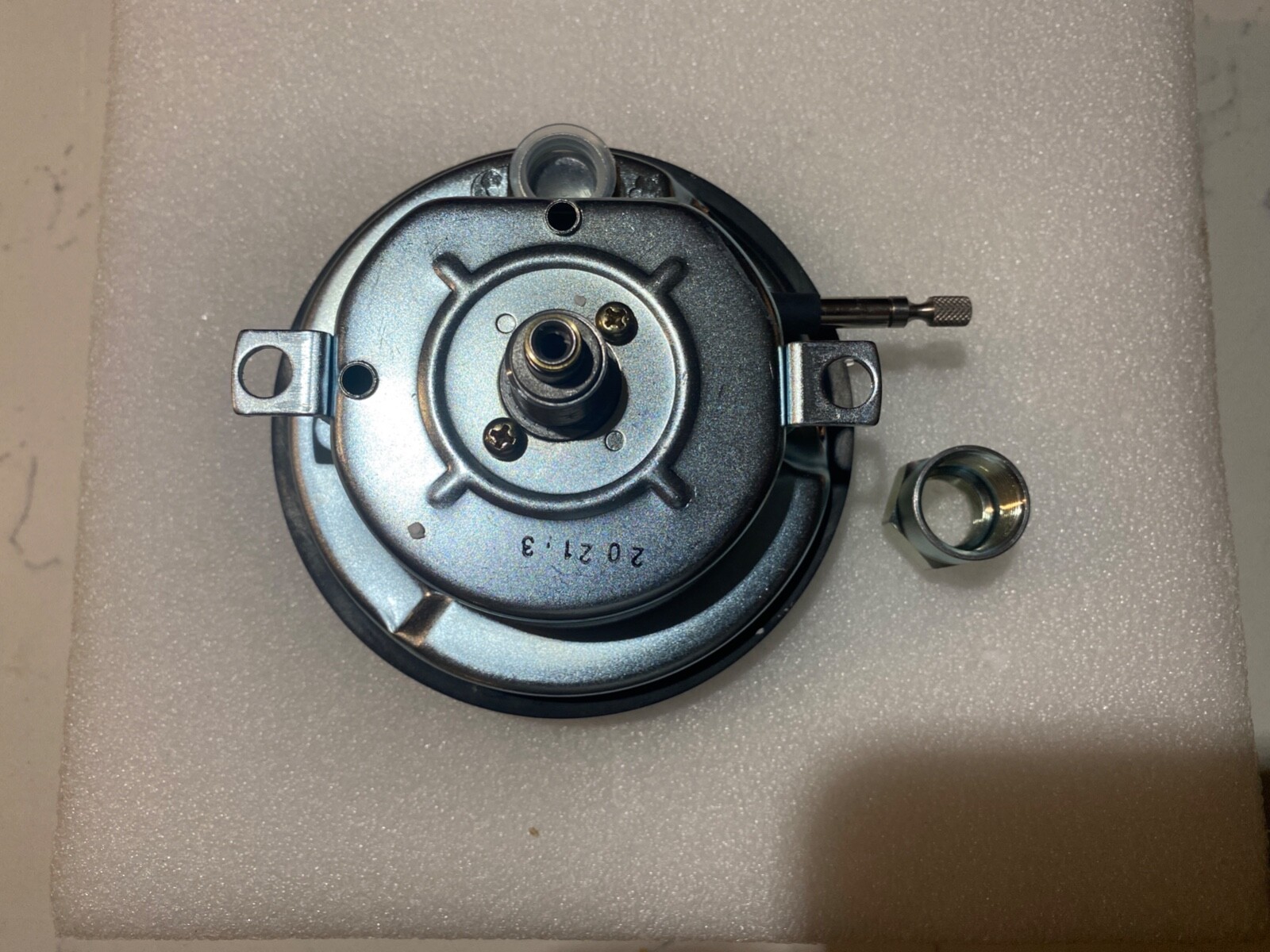

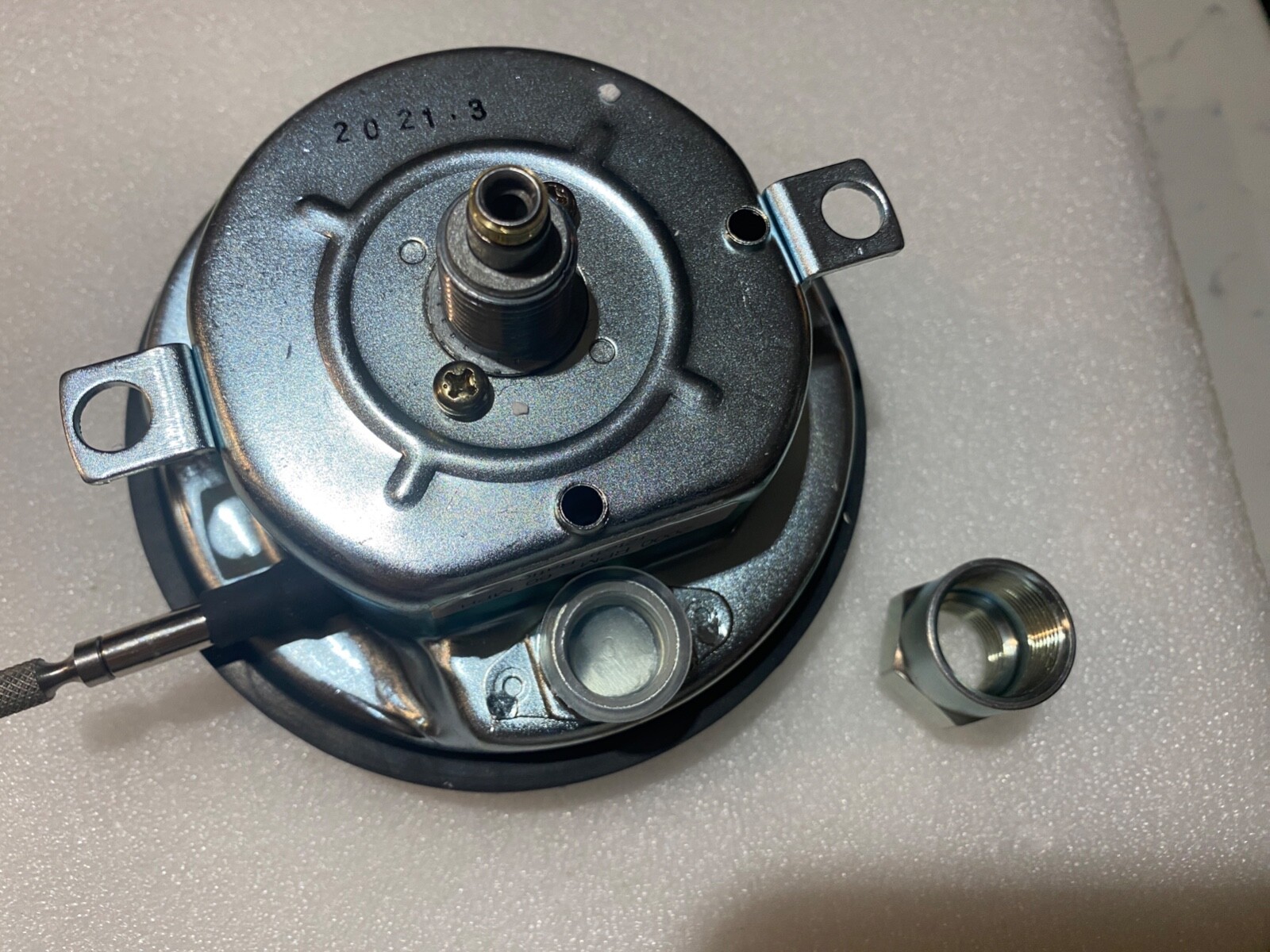

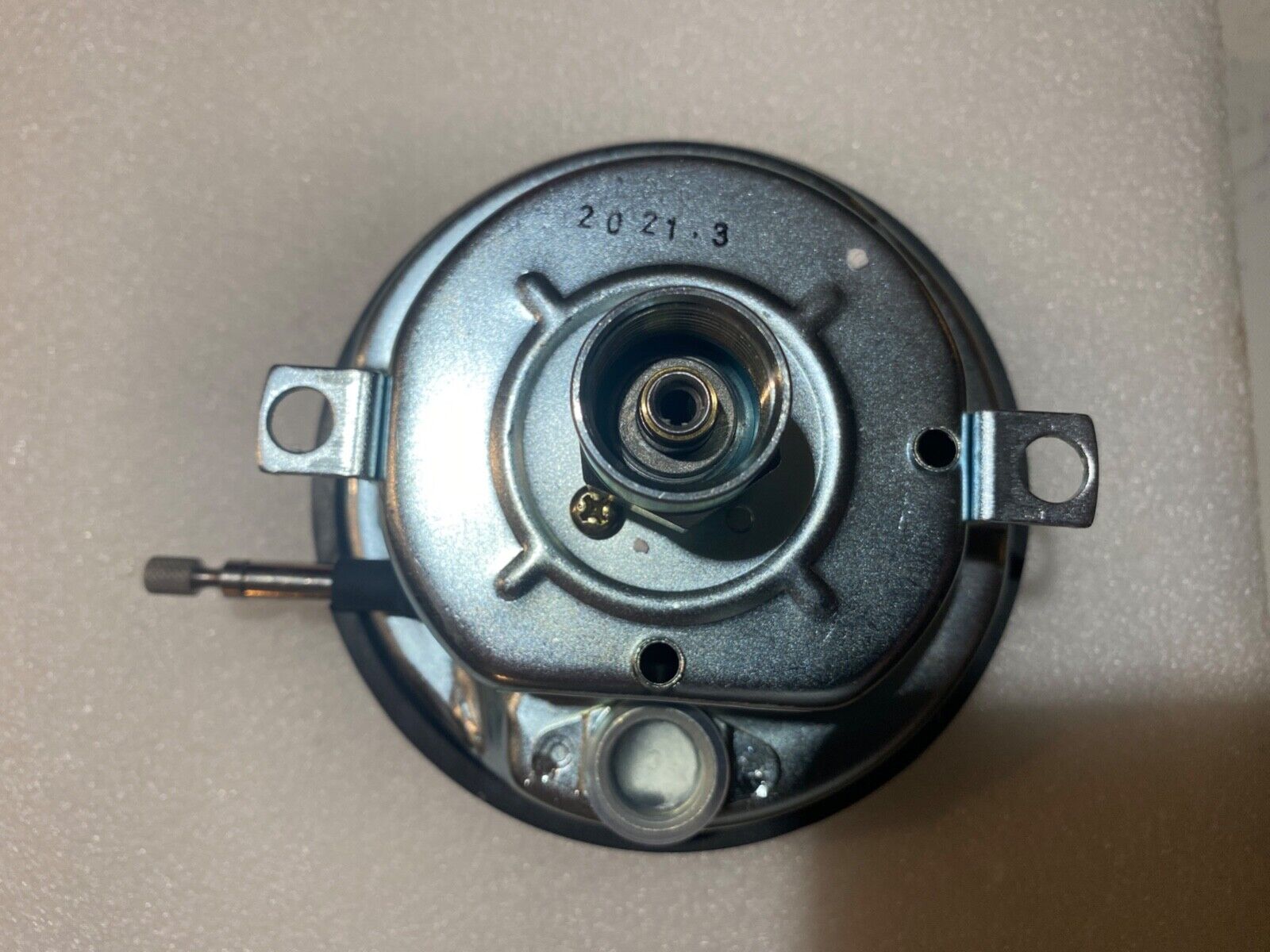

Takes speedometer cable with standard Harley transmission mount and 5/8” female connection at the head. The speedometer has a male connection on the back as shown.
We also have cad plated reproduction cables available in our store.
Most people won’t know it’s not an original face on an original Stewart-Warner at curb-side, but they sure know when you don’t have a speedo with a Harley logo on it. The logo is quite an accurate reproduction though I'm sure an AMCA judge would pick up minor differences from an OEM original if you were thinking about using on a judged bike.
Please double check what your transmission drive ratio is. I have no way of knowing if someone else may have changed out the gearing for the later 1:1 ratio.
Please note: this does NOT include any mounting hardware.
