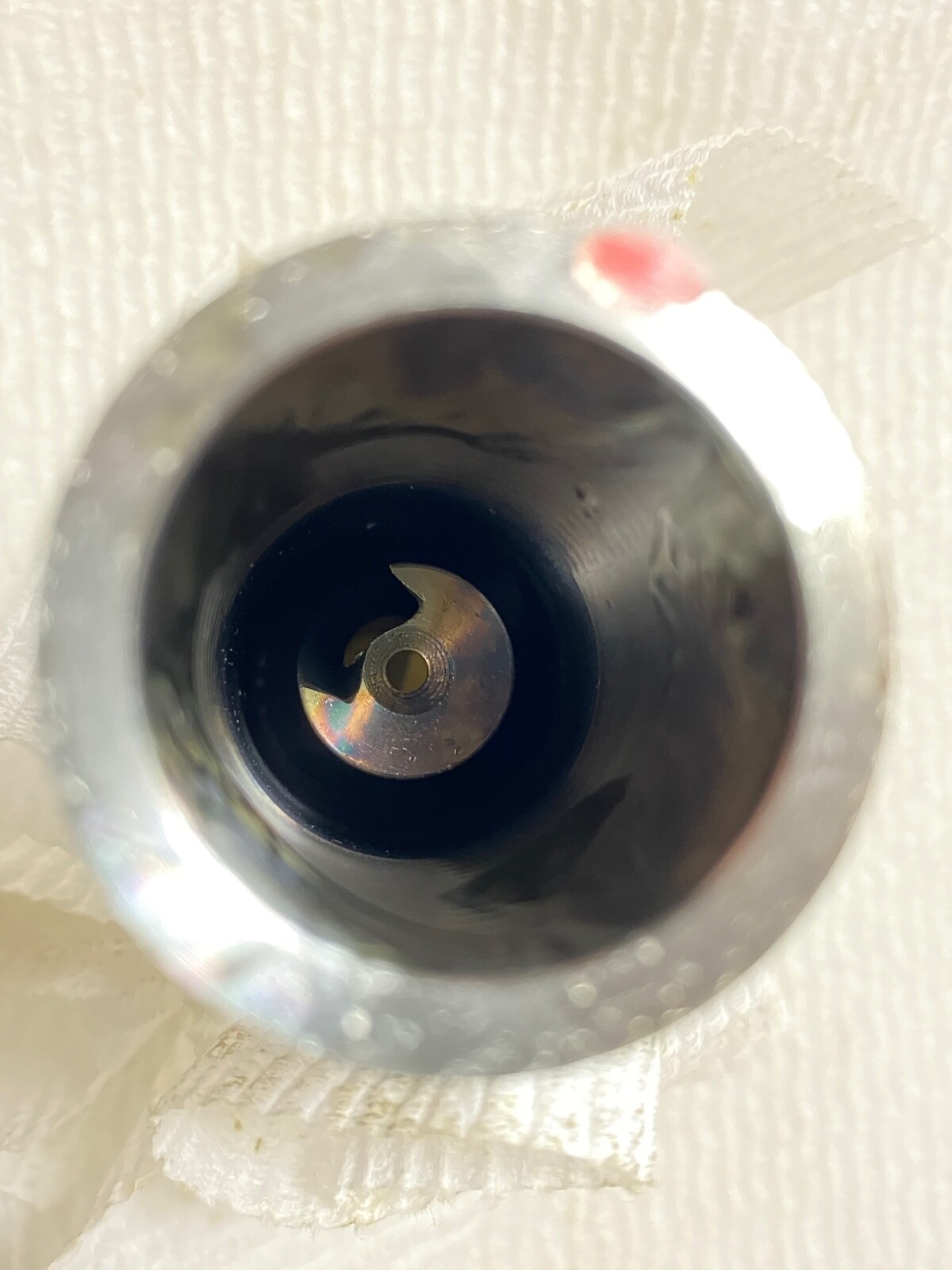

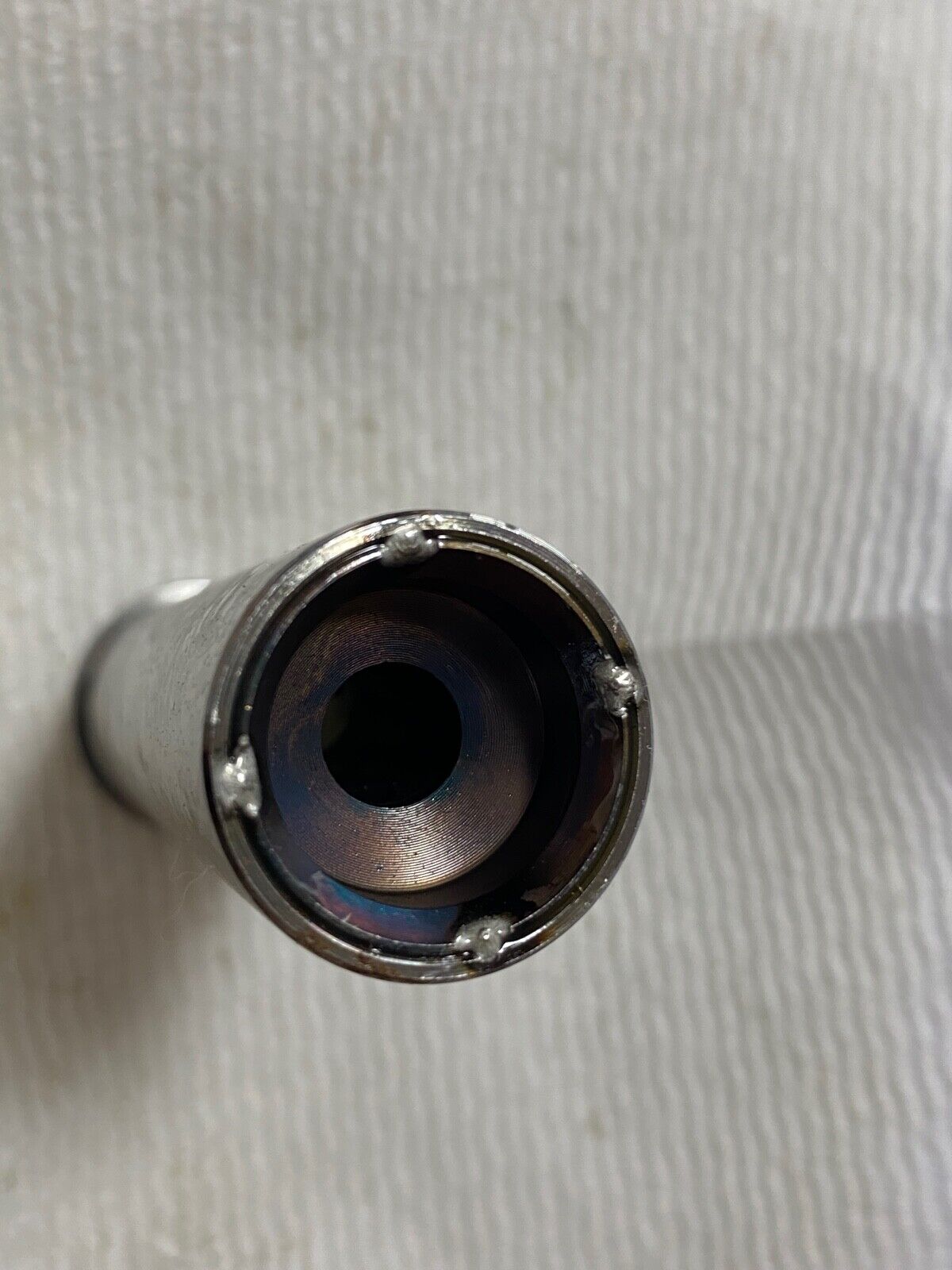

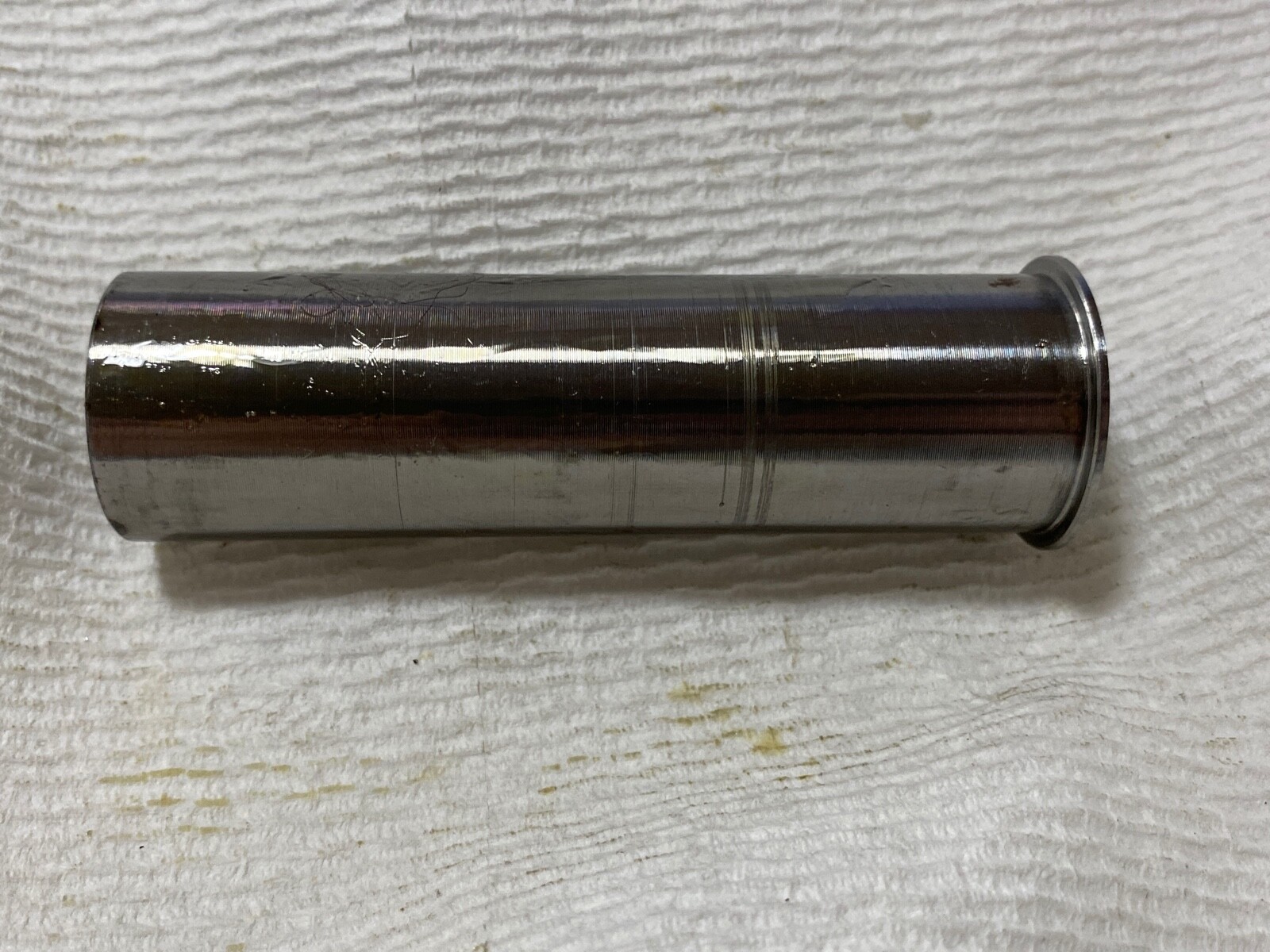

You are purchasing one reproduction push or right hand type handlebar spiral for throttle or spark control on 1949-1953 model stock production Harley-Davidson twin models including Panhead WL, Servicar (through 1957), and 1952 only K-Model. Also used on the left side for spark advance on all these bikes.
Please do double check your own reference material to make certain this is the spiral you need, the detail is very good on these. These are what are called the "right hand spirals" they are for a push style throttle would be the stock Linkert carburetors and are correct for the spark advance as well.
We do stock the "Left hand" or pull spirals which are listed in the parts catalogs are for left hand throttles favored on police bikes they can also be used as a "pull" spiral if you are running a CV or Mikuni style carburetor which uses a stranded cable rather than the piano wire for a custom set up or later stock set up and we have them on hand.

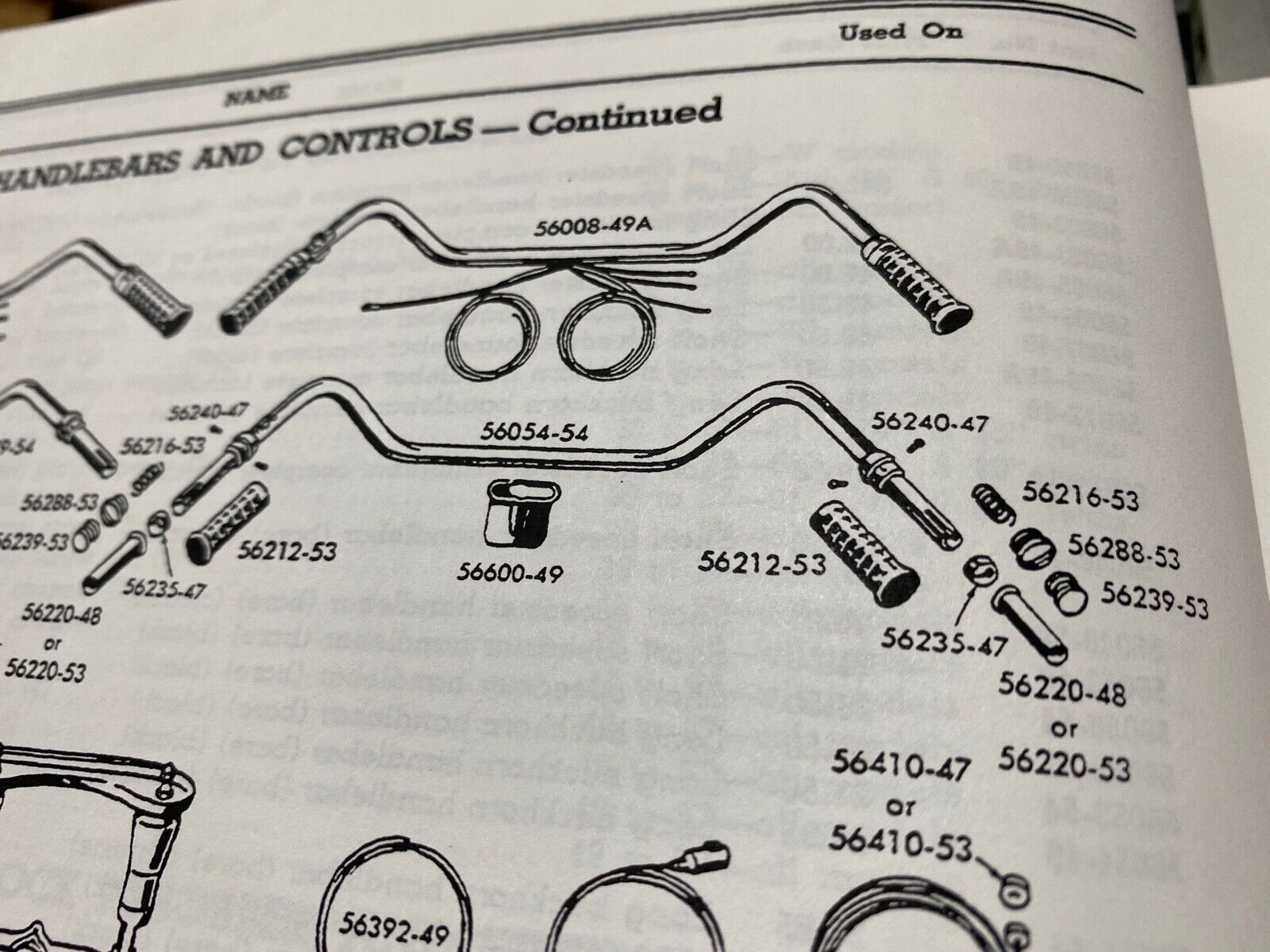

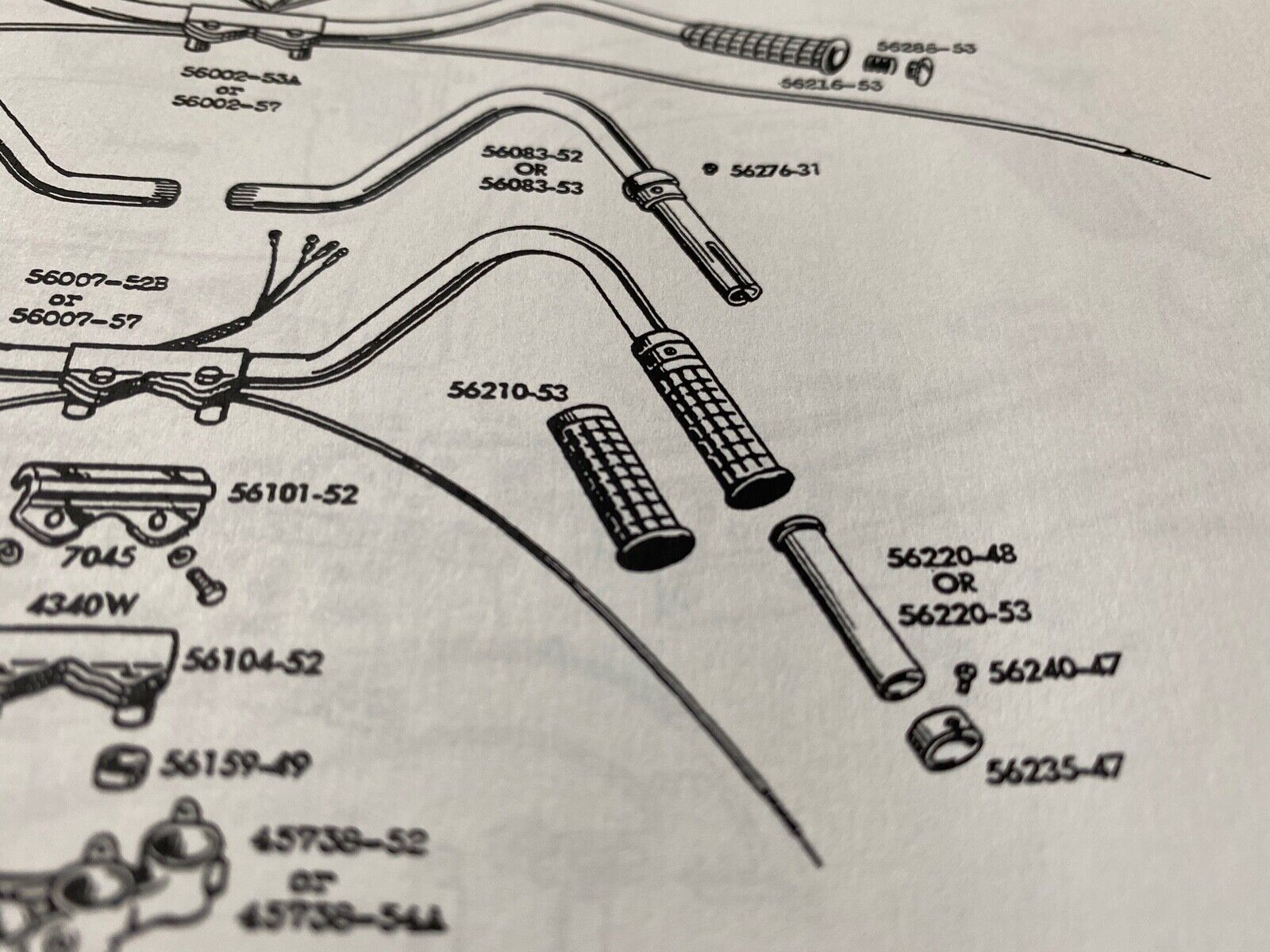

Please double check your parts book before ordering or send us an email if you are unsure if your carburetor will require a push or pull throttle spiral. OEM number for the push or left hand type is 56220-47, which we sell on another listing. These spirals only work with bars which are slotted all the way to the ends. They will not work on 1948 and earlier twin cylinder model bars nor on 1954 and later bars.
We do sell spirals and grips as kits along with cables and handlebar internals and we do sell single spirals if that is all you need. We've also got the early spirals in chrome chrome and nickel for those of you with Knuckleheads, VL, DL, and RL models. If you do not see them here or cimarroncycleworks just email us and ask.
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
We also sell the nickel plated, cloth covered, and PVC covered throttle and spark coils as well as the handlebar plungers, end screws and misc. hardware. We also offer this in kit form with the spirals, plungers, coils, end nuts, and internal hardware. If you do not see the listing just email and ask.
Used on the following:
- 1949-1953 EL, FL, FLH 61" & 74" OHV Panhead
- 1949-1957 G, GE Servicar
- 1952 K, KK, flathead 45" sport twin
- 1949-1952 W, WL, WLA 45" twin
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.
A note on shipping:
If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once. Your shipping discount will be automatically figured. Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.
We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles. We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
