Harley Panhead UL WL Servicar 1948-57 Dash Wiring Kit

  • Product Code: 353895570964
  • Availability: In Stock
  • $19.95

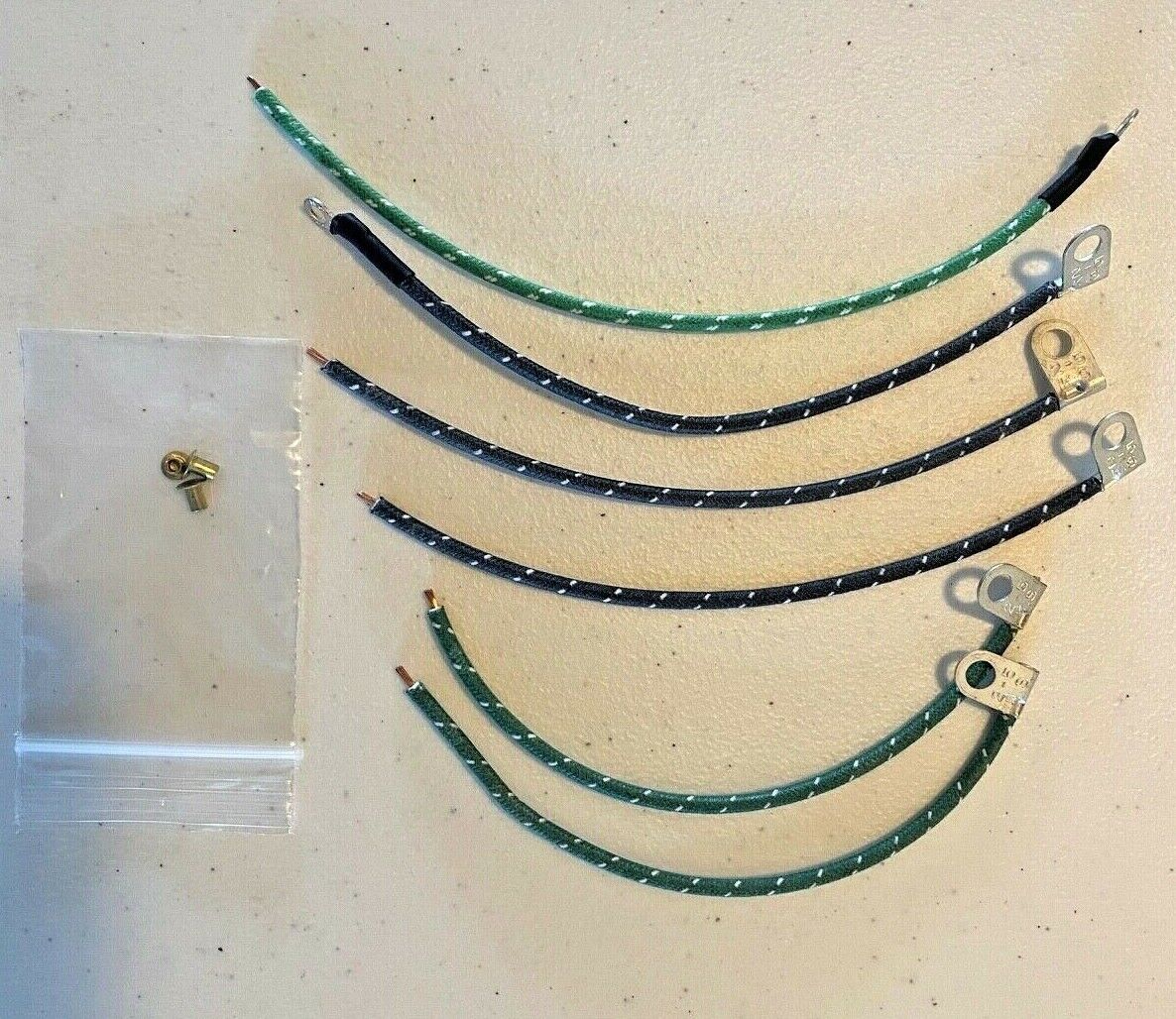

You are purchasing one new USA Made dash base wiring kit for 1948-1957 Harley-Davidson, Panhead, UL, Servicar and WL models.  Wires are single-traced with woven cotton covering over vinyl insulation.  We will include a color wiring diagram to aid you in your base restoration.

This kit includes all of your dash base wires and speedo lamp wire for the lamp sockets, these are not included in any other kits on the market.  To finish your installation, you will need to be able to solder in button lamp contact terminals in your oil pressure and generator lamp sockets.  You get the ignition wire, two green bulb contact wires, speedometer lamp wire as well as the two black wires which wire from one of the panel studs to the barrel terminals which extend out on the bottom of the lamp sockets.  You also get three brass contact terminals.  Pulling the old wires out of the barrel terminals on the lamp sockets is a somewhat delecate operation but it can be done with patience and a dental pick and some small needle nose pliers.

We stock a kit for 1947 models as well as Duo-Glide models.  We are also working on trying to source quality replacement lamp sockets.

We do sell complete wiring kits for your 1948-53, 1954, and 1955-1957 models with pre-wired switches as well as base kits with wires so you can re-wire your original switches.   If you can't find what you need here or cimarroncycleworks, just email and ask.

We also sell a complete kit for 1936-1937, 1938-1946, 1948, 1949-1953, 1954-1957, 1958-1959 Duo-Glide, K & Sportster models, Hummer Knucklehead, WL, Servicar, VL, JD, RL, single & DL.  We basically have kits for most all models from 1915-1969.

We also sell dimmer and horn switches, as well as complete wiring clip kits to finish out your installation.  We will be adding kits complete with the clips in the near future.  If you don't see them, just ask.

Located at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron New Mexico, USA!

Used on the following:
  • 1948-1957 EL, FL, FLH Panhead 61" & 74" OHV
  • 1948 UL, UH, ULH 74" & 80" big twin flathead
  • 1948-1952 W, WL, WLD 45" solo
  • 1948-1957 G Servicar
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
