Harley Panhead K-Model Servi Throttle Spark Grip Sleeve 1949-57 OEM# 56220-48
- Product Code: 352557453483
- Availability: In Stock
-
$69.95

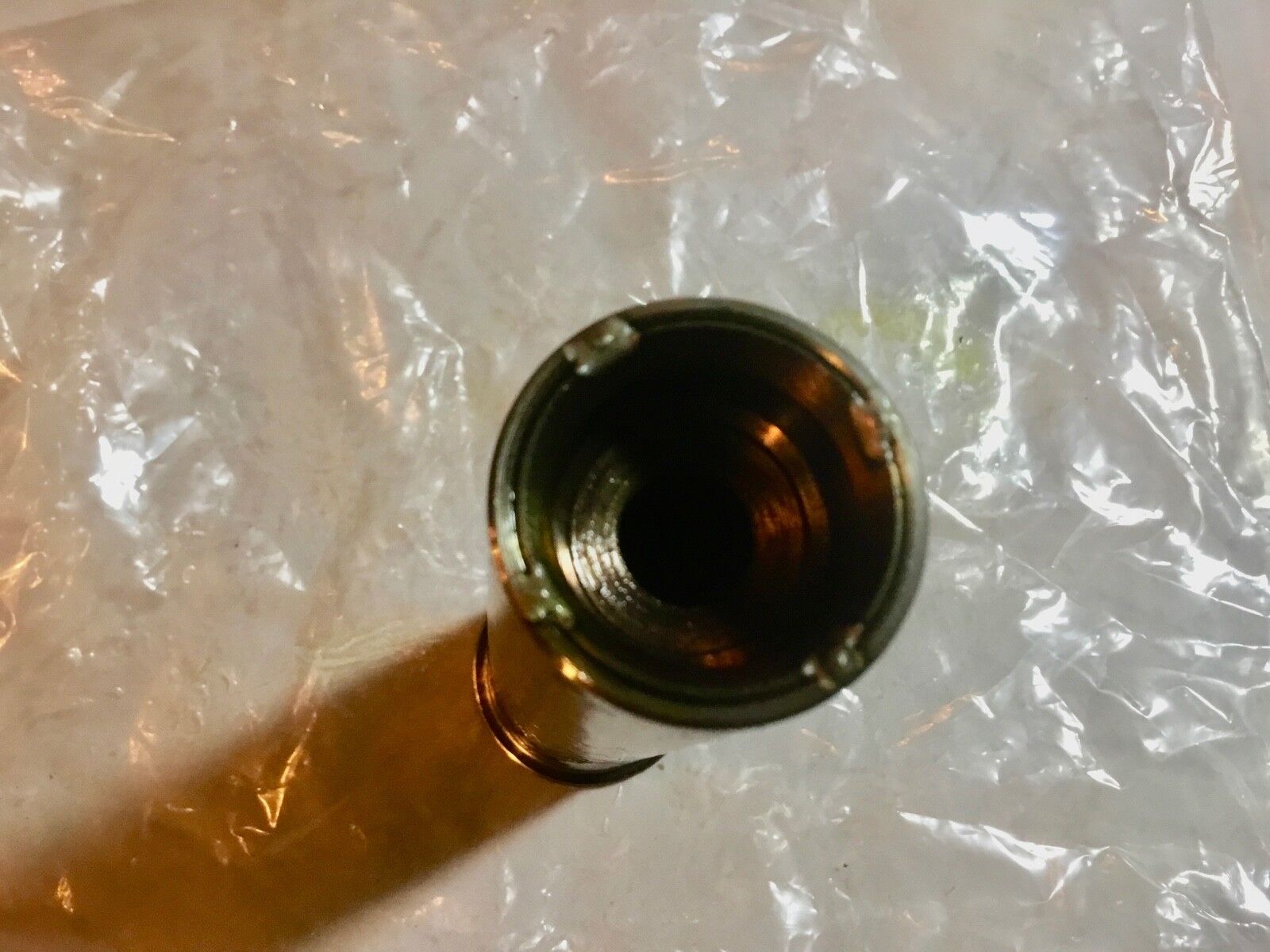

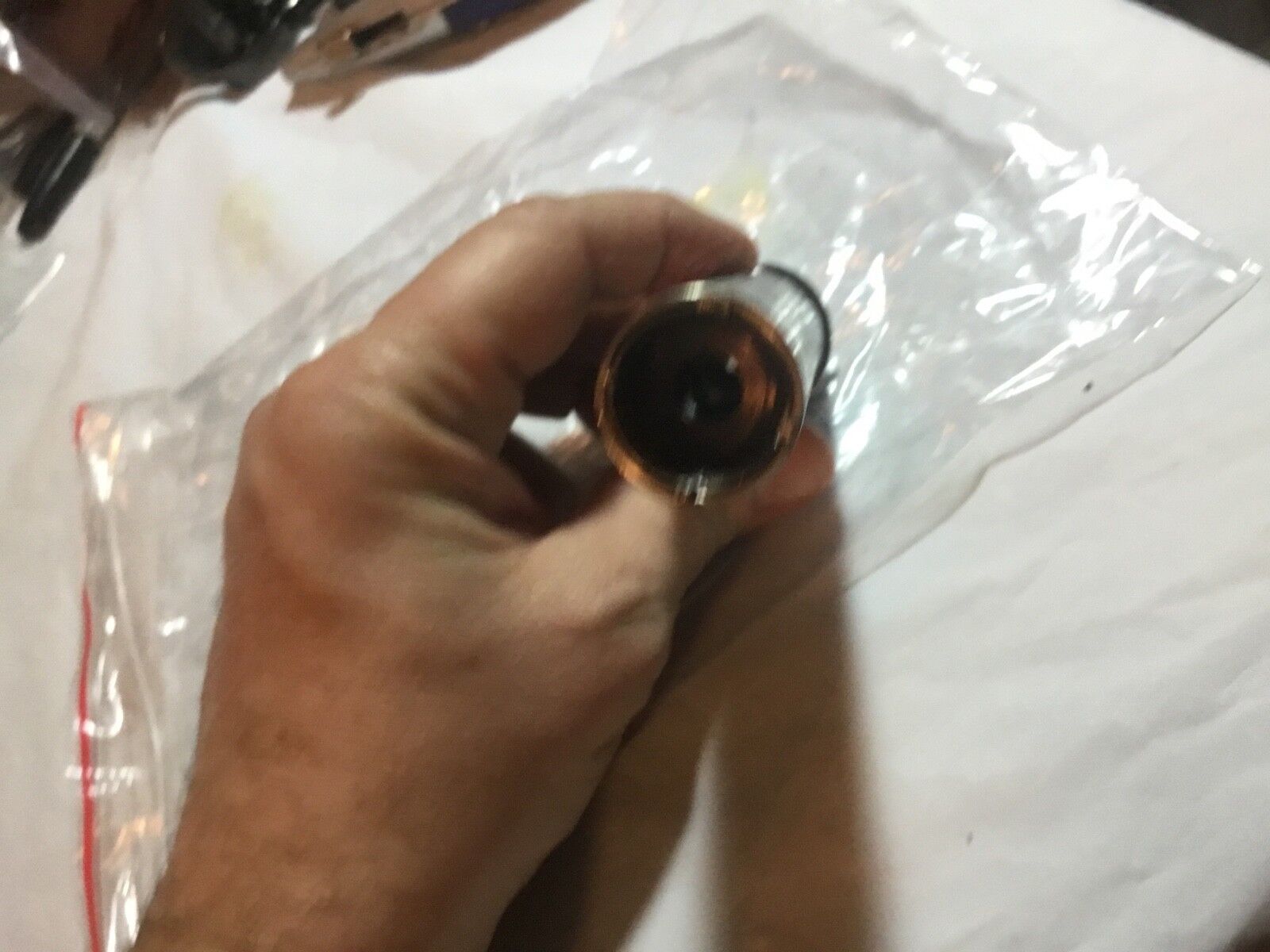

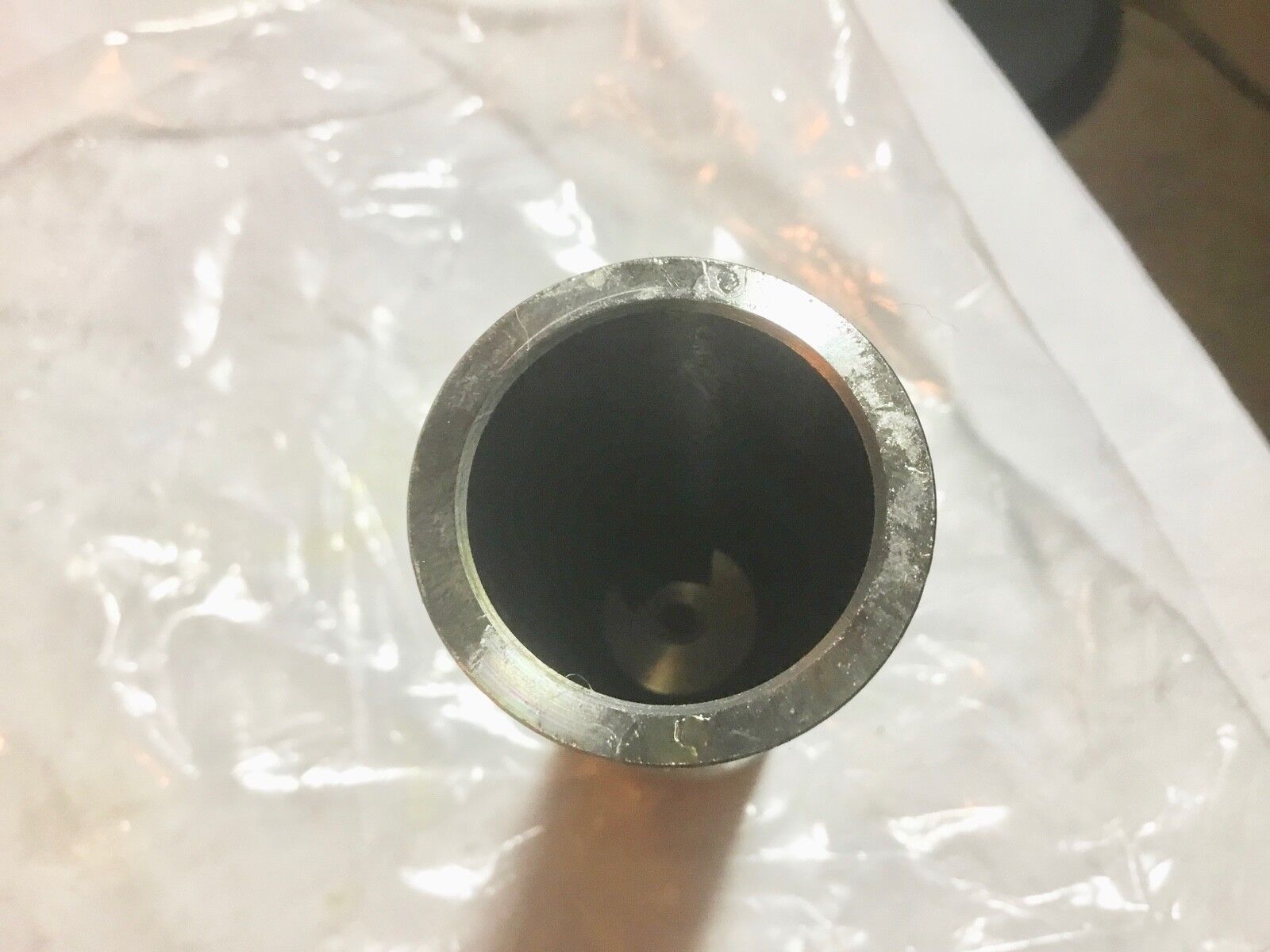

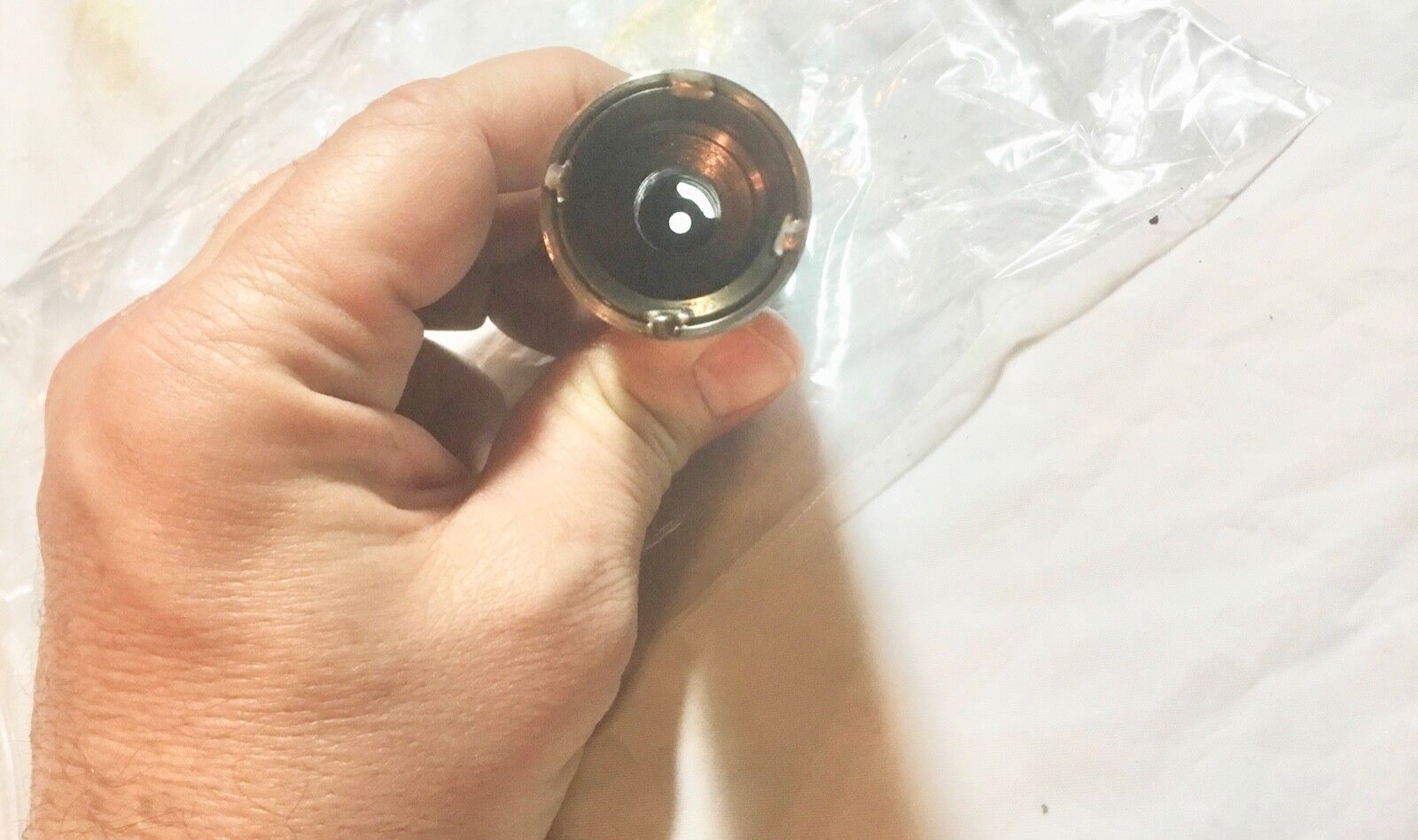

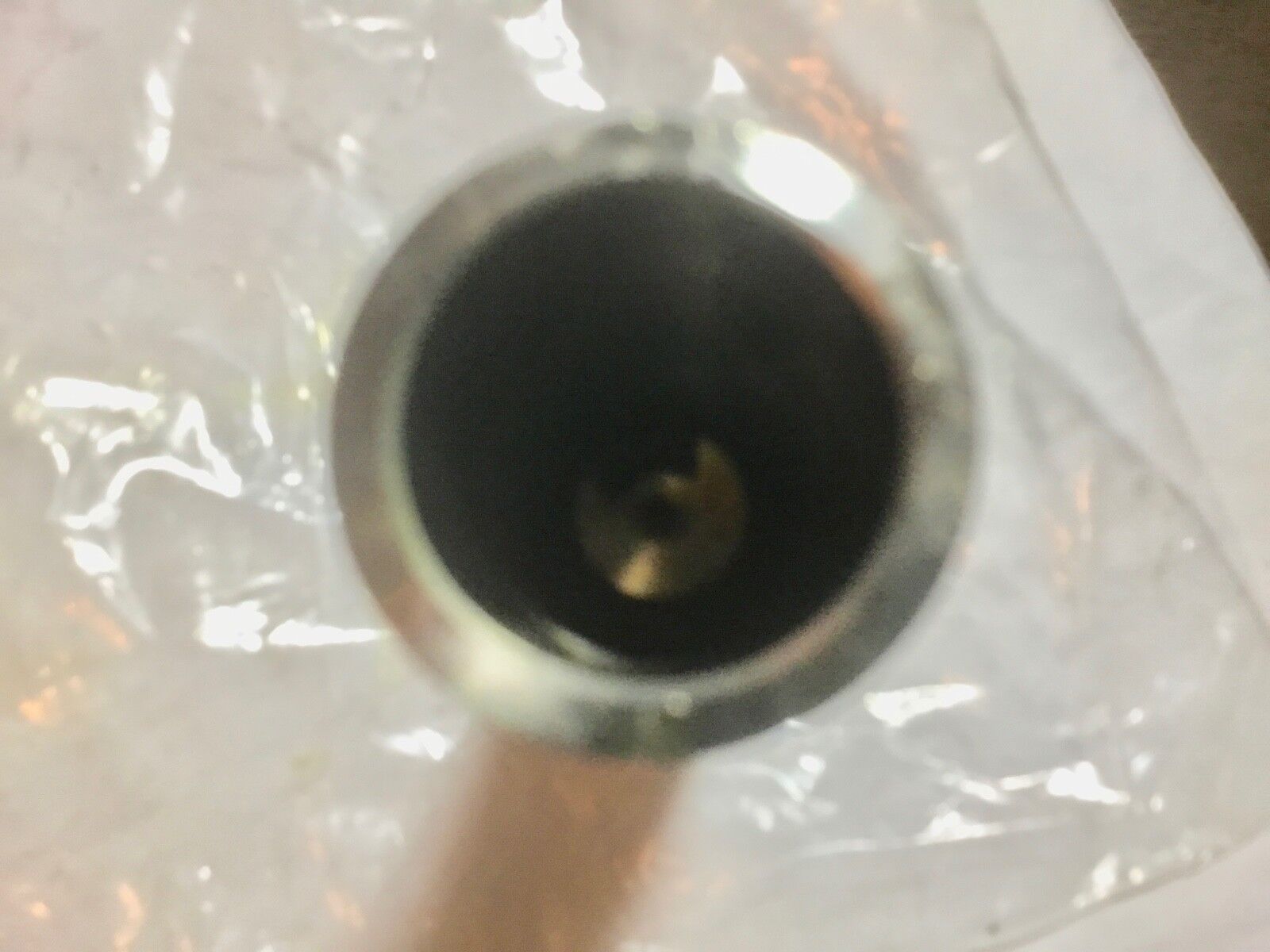

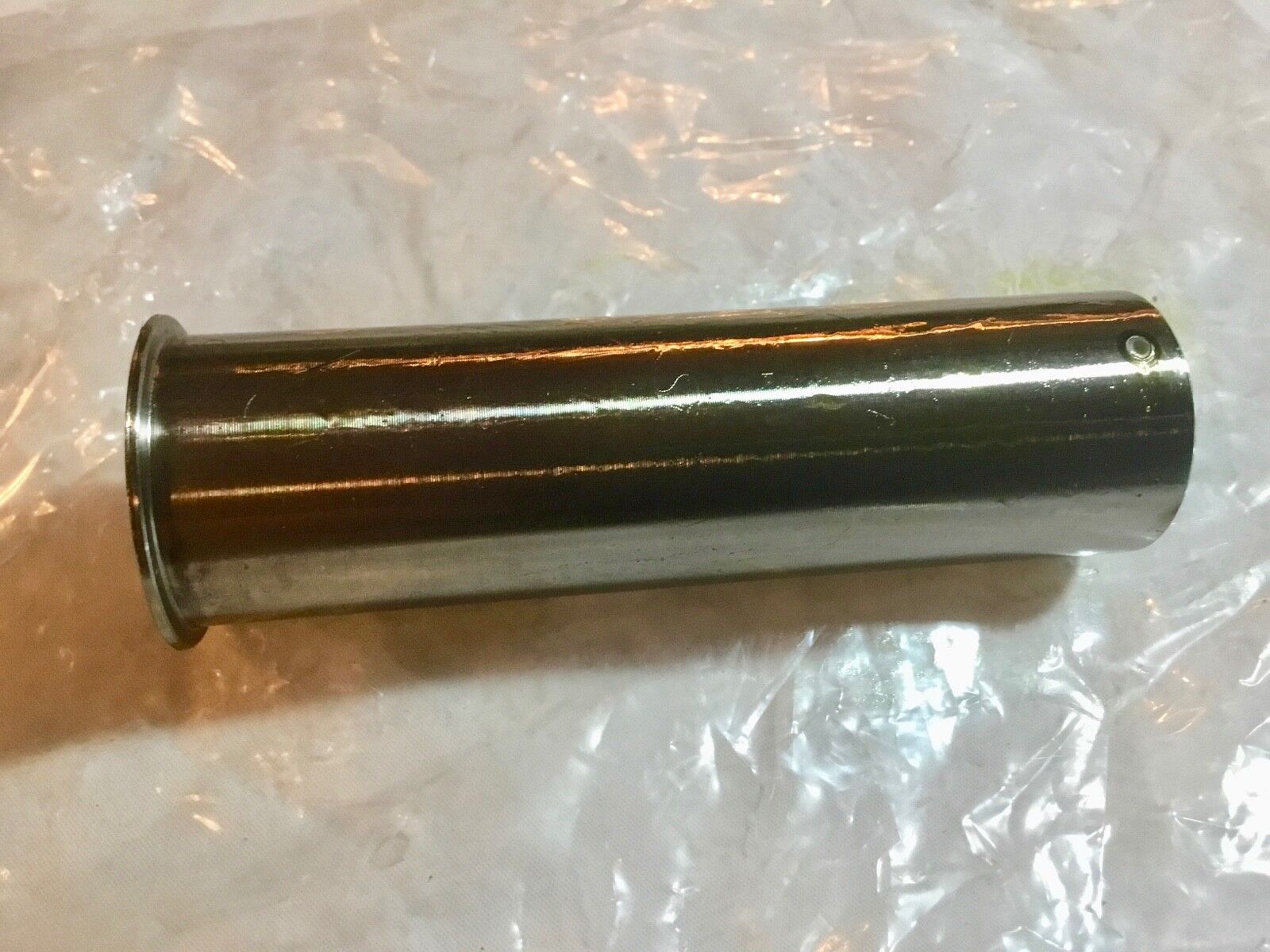

You are purchasing a nice reproduction of the 1949-1957 style handlebar grip sleeve for Panhead, K-Model, and Servicar models. Used on all twin models through 1953, then Servicar through 1957. This is a push type sleeve and is used for throttle with a stock Linkert M-Series carb and spark advance. Contrary to what some people think, the same sleeve and spiral are used left and right unless you had a left hand throttle set up like on a Servicar with RH Shift. In that case you would need the 56220-47 sleeve on the left side to get proper push action on your throttle wire. Same length, ID, and OD as the originals.
These came out on 1949 models and were used on springer handlebars through the end of springer production on the 1957 Servicar.
The 125 and 165 lightweights used the pull type for their carbs, OEM# 56220-47 so this type will not work for Hummer owners.
We sell the grip sleeve retainers for 1949-57 style sleeves on other listings and sell grips for 1909-1934, 1935-1948, 1962 and up on other listings. There are other sellers who sell excellent Harley-Davidson stamped waffle grips for these on other listings on eBay.
We sell many other parts for Panhead, Knucklehead, Sportster, Hummer & other lightweight, flathead, JD, VL, DL, RL, and single models including Solar and Motolamp headlamps, dash panels, ammeters, oil and fuel lines, and complete wiring kits. If you don't see it there or cimarroncycleworks, just email us and ask. We are starting to carry more parts for the early models and Sportsters, keep an eye on our space!
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
Used on the following models, please cross-check your own reference material to make sure this is right for you:
- 1949-1953 EL, FL 61" & 74" OHV Panhead
- 1949-1957 G, GE 45" Servicar
- 1949-1952 W, WL, WLD, WLA 45" Solo
- 1952-1953 K, KK 45" solo
