Harley Panhead CP-1038 Engine Mounting Motor Mount Kit 52-57 Restoration Correct
- Product Code: 351674987300
- Availability: In Stock
-
$63.95
Complete upper and lower engine mounting hardware kit for OHV engines used from 1952 to 1957 on rigid frame Hydra-Glide Panhead big twins. All details are restoration correct for 1952 to 1957 Panheads. With this particular kit, you also get the bonus of the Flexloc nuts and washers which affix the top motor mount or cylinder bracket to the cylinder heads.
We do offer a “generic” 1936-1957 kit which includes CP-1038 lower mount bolts and the 1948-1951 style top mount kit for those of you not concerned about the smallest details.
We also now stock motor mount kits with correct top motor mount bolt and markings for the following 1936-1969 OHV Big Twins:
- 1936 EL 61” Knucklehead (Plain head lower mount bolts and 1930-1936 top motor mount arrangement)
- 1937-1947 EL & FL 61” & 74” Knucklehead (Plain head lower mount bolts)
- 1948-1951 EL & FL 61” & 74” Panhead (CP-1038 lower mount bolts)
- 1952-1957 EL, FL, FLH 61” & 74” Panhead (CP-1038 lower mount bolts)
- 1958-1969 FL, FLH 74” Panhead & Shovelhead (CP-1038 lower mount bolts)

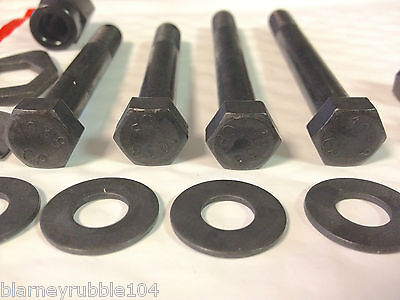

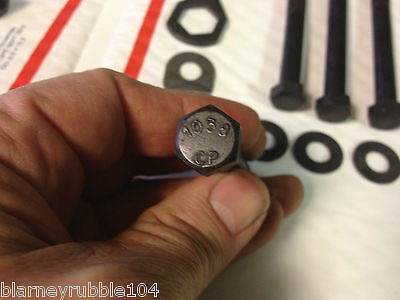

There seems to be some misinformation on CP bolts and "reproductions". Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. Top mount bolt and all nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them. Spacers and washers are produced just like the ones H-D did back in the day. Parkerizing is same finish as how these came from the factory in the 1950's. I've also got other hardware kits listed in my store under "pre 1980's hardware" including a CP-1038 gas tank and oil tank mounting kit which would go great with this.
Used on the following:
- 1936 to 1947 Knucklehead E, EL, F, FL, ELA, ELC OHV 61 & 74"
- 1948 to 1957 Panhead EL, FL, FLH OHV 61 & 74"

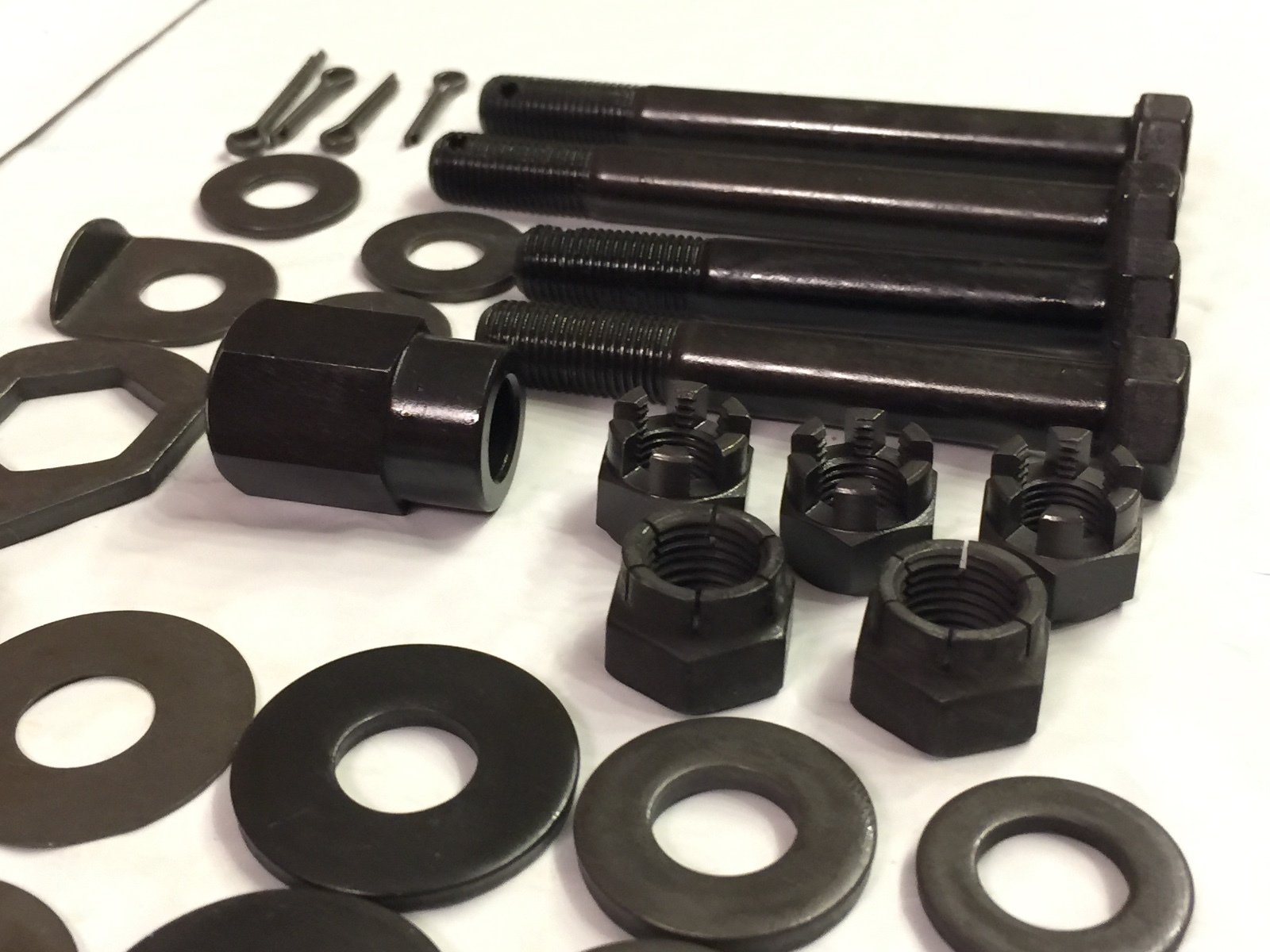

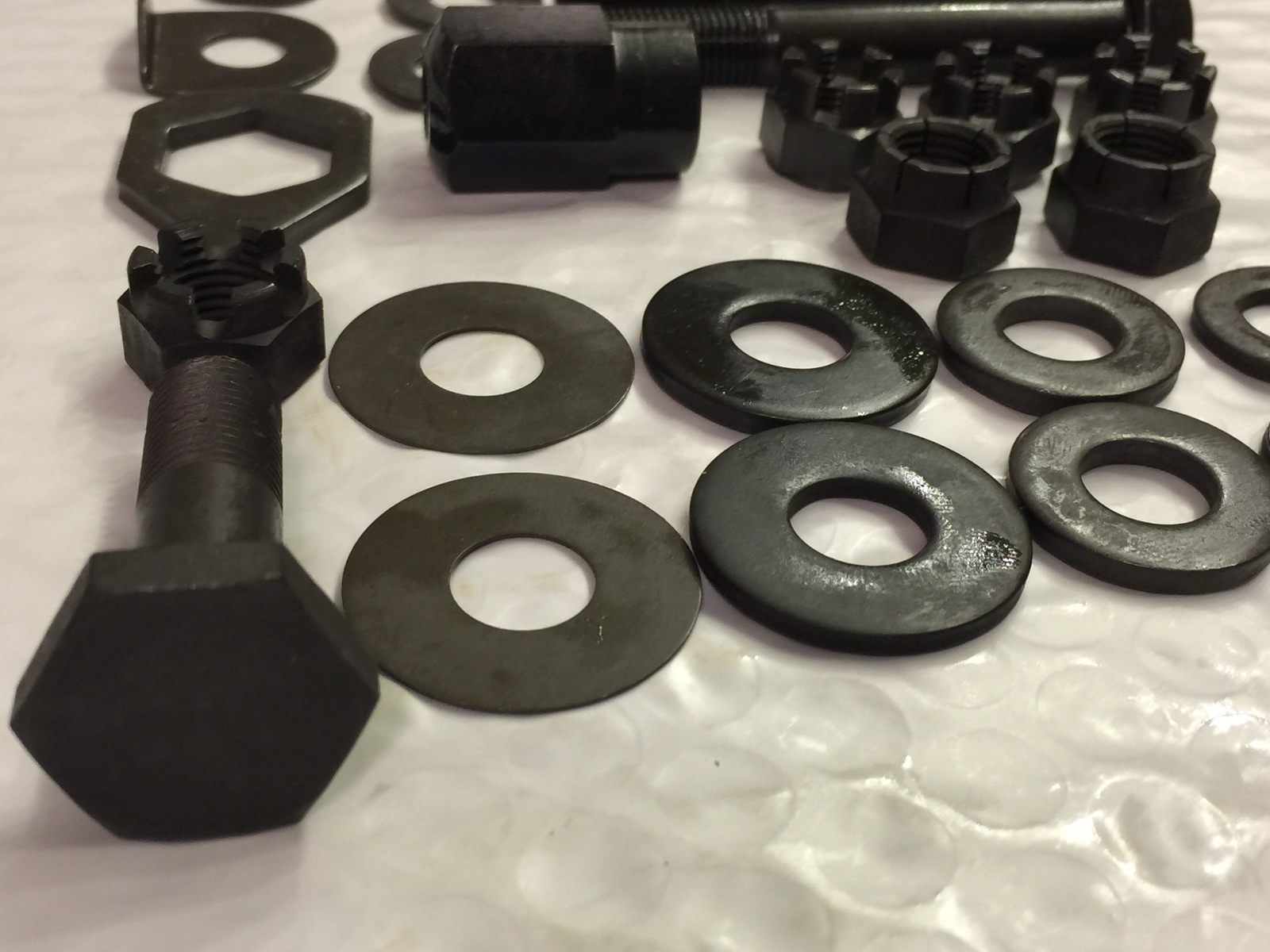

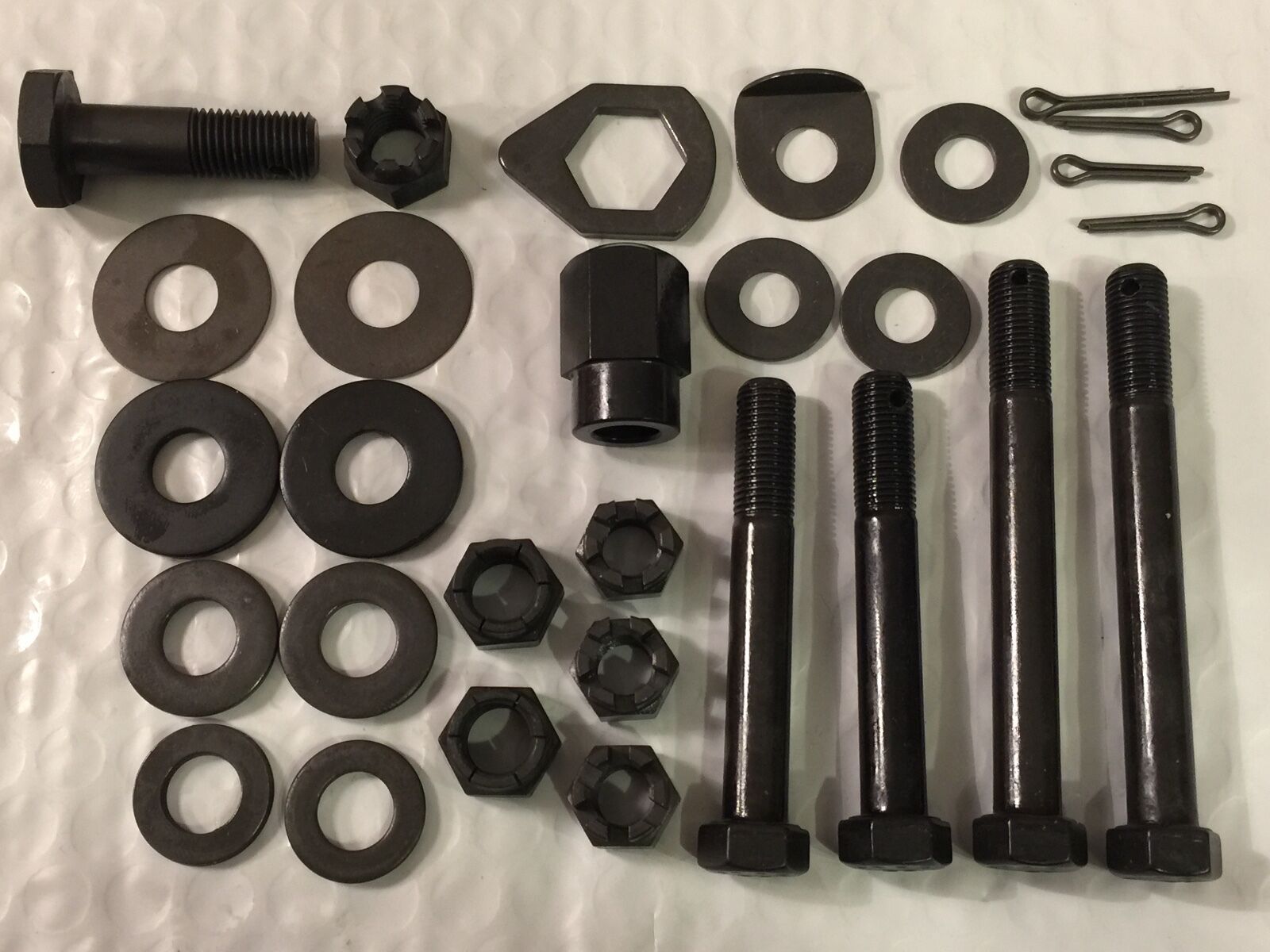

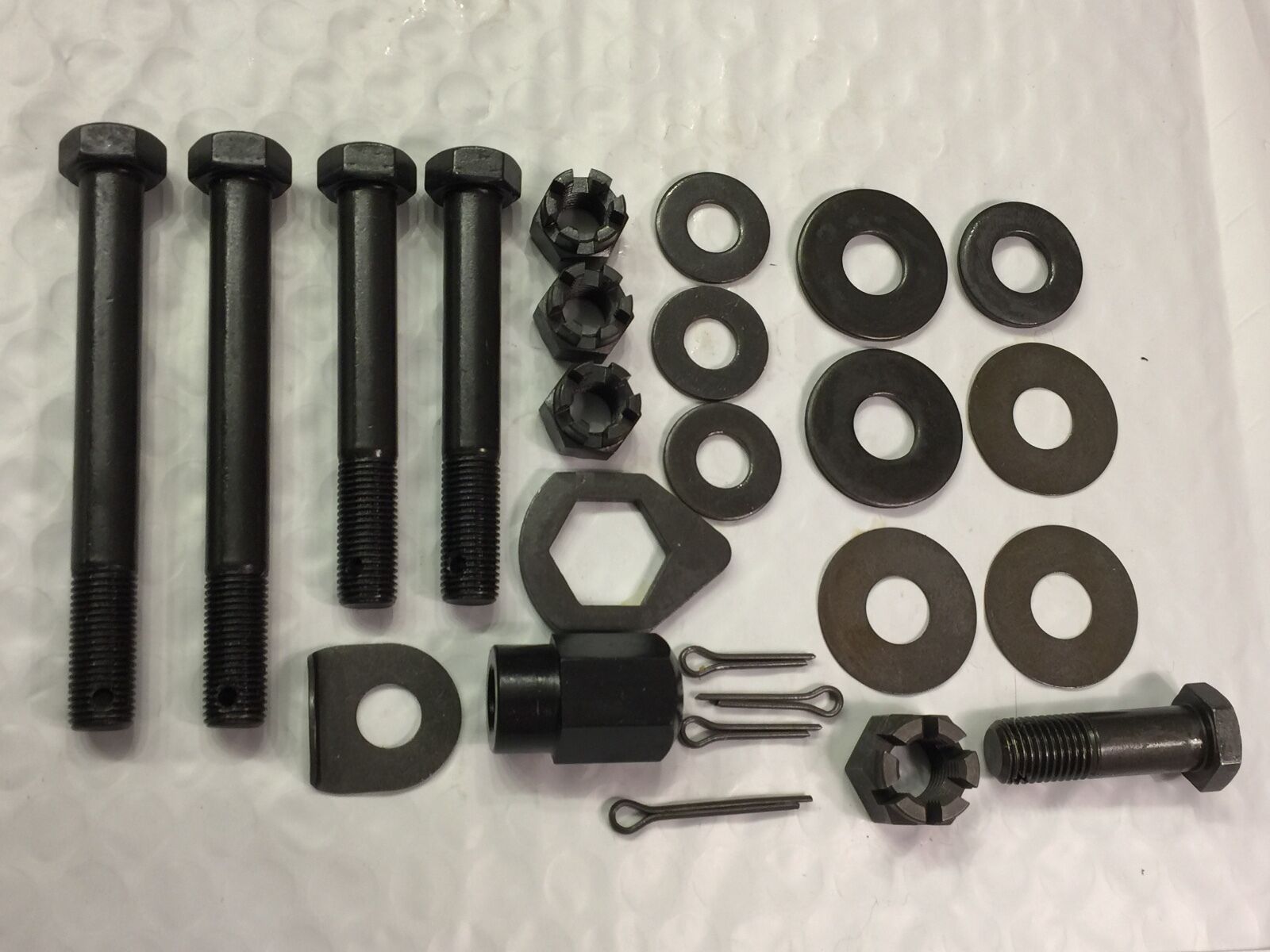

Includes the following parts by OEM part number:
- 24791-36, front bolt with drilled tip for cotter key (qty 2);
- 24794-36, rear bolt (qty 2),

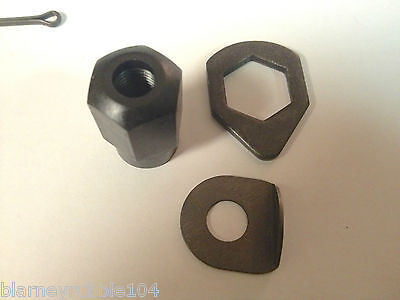

- 24797-36, special nut for right front mount bolt with plate (qty 1)
- 24800-36 special lock washer (qty 1)
- 7809, 3/8-24 castellated hex head nut (qty 3)
- 528, cotter key (qty 3)
- 6395, flat washer (qty 3)
- 16865-52, top mount bolt (qty 1)
- 7867, top mount castellated nut (qty 1)
- 534, cotter pin, top mount bolt (qty 1)
- 6521, flat washer thin (qty 2)
- 6522, flat washer thick (qty 2)
- 6516, flat washer (qty 2)
- 7825, flexlock nut (qty 2)
