Harley Panhead Buddy Seat Peg Hinge & Footboard Bolts 1941-64 OEM 52650-41 Cad

Harley Panhead Buddy Seat Peg Hinge & Footboard Bolts 194164 OEM 5265041 Cad
  • Product Code: 352203622027
  • Availability: Out Of Stock

  • $27.95


0 reviews / Write a review

Excellent USA made reproduction of buddy seat peg mount bracket and footboard hinge bolts.  This was used on big twin models from 1941 through 1964.  You get the front footboard hinge bolts, nuts and washers, as well as the rear hinge bolt that is long enough to attach the peg bracket and includes the two clevis pins pin washers, and cotter pins.  The cad plating is beautiful on these and these are made just like the originals.  We do sell these in a parkerized finish on another listing in our store as well.  Just use the OEM# 52650-41 to find it.

If you need the set of four short hinge bolts, we have those for 1914-1939 and 1940-1981 (in cad or parkerized).  We also have just the buddy seat hinge pins and bolts as well, We’ve also got some NOS hinge pins I’ll be listing soon.

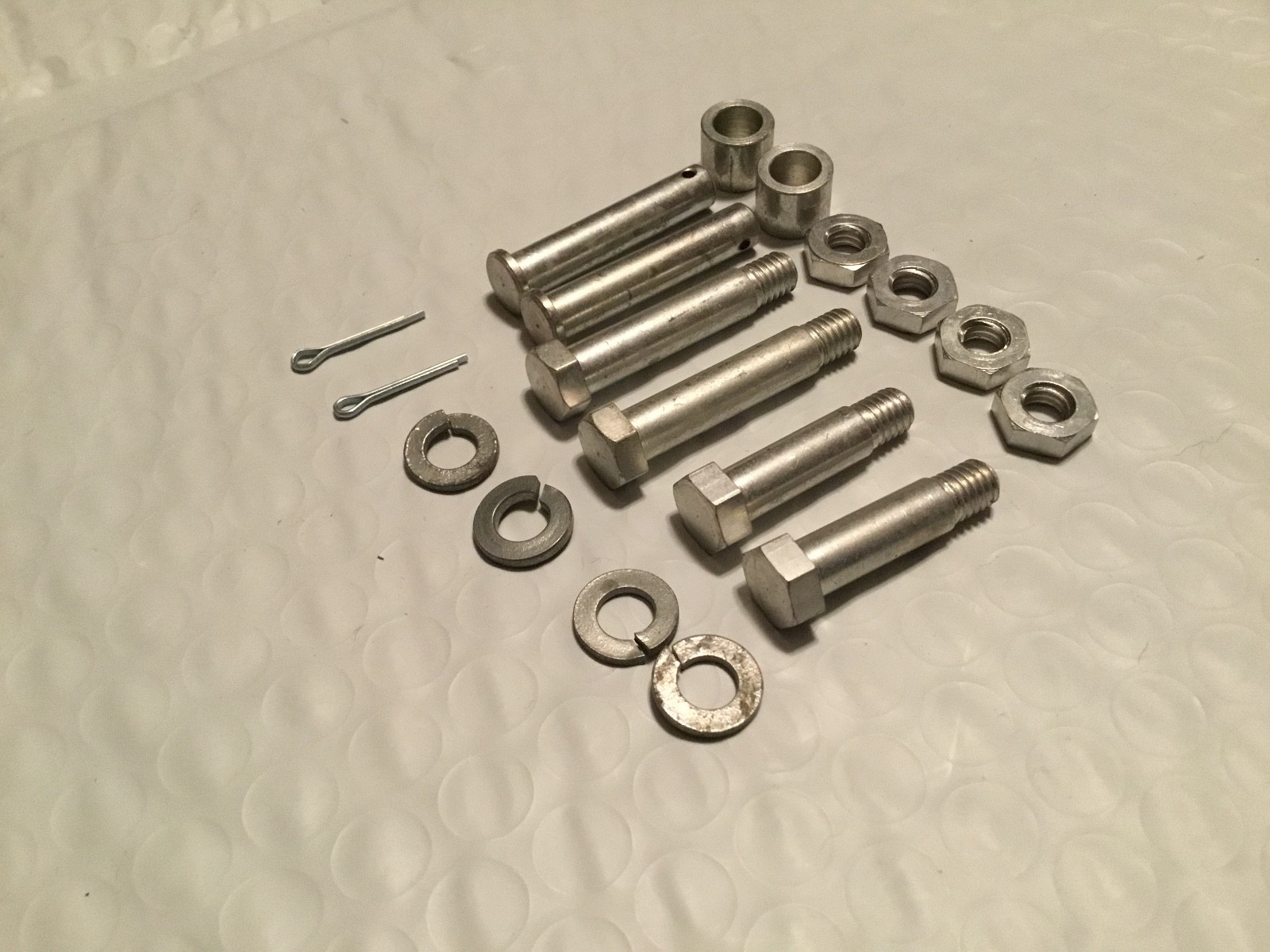

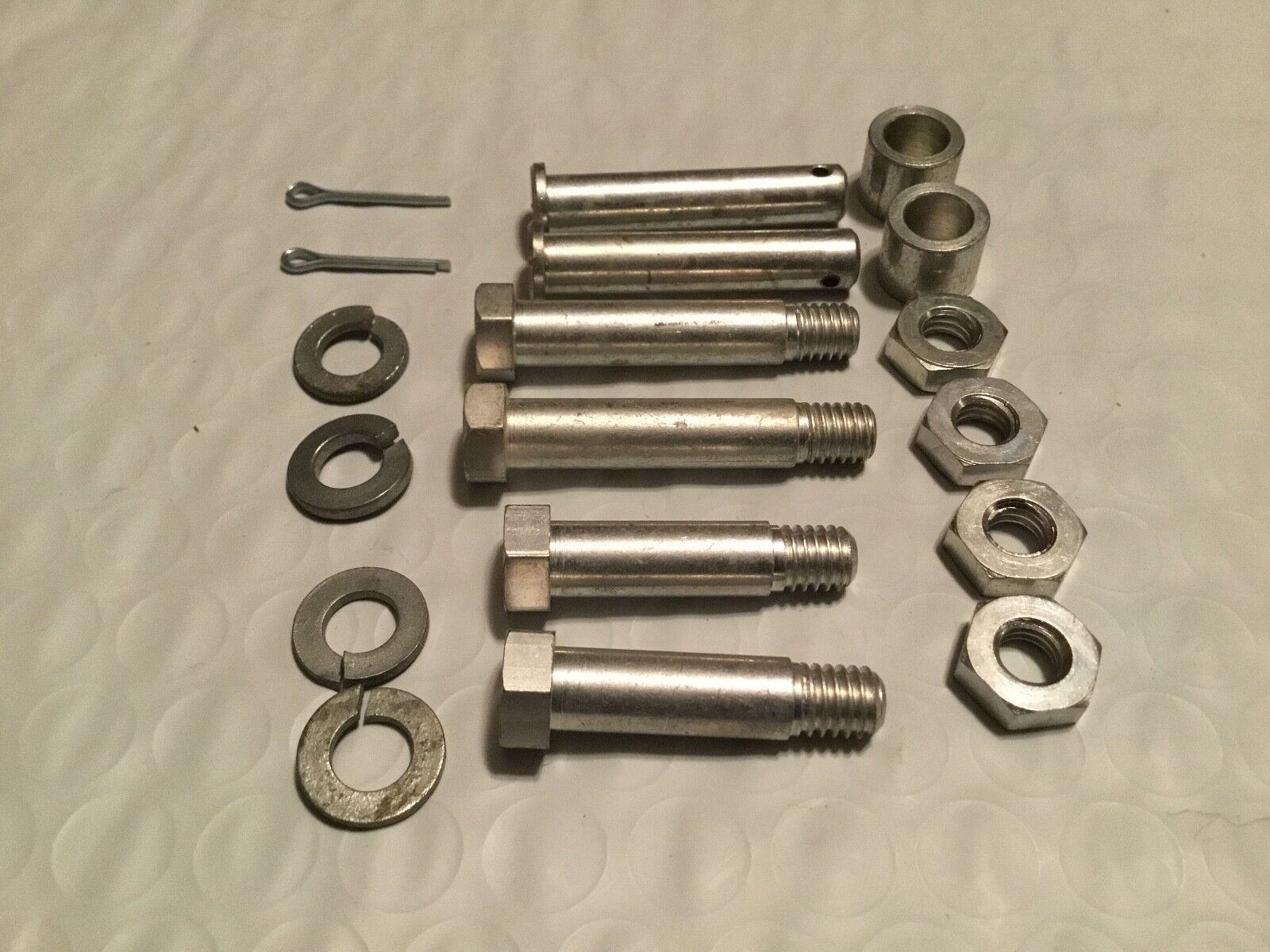

You get the following with your purchase:

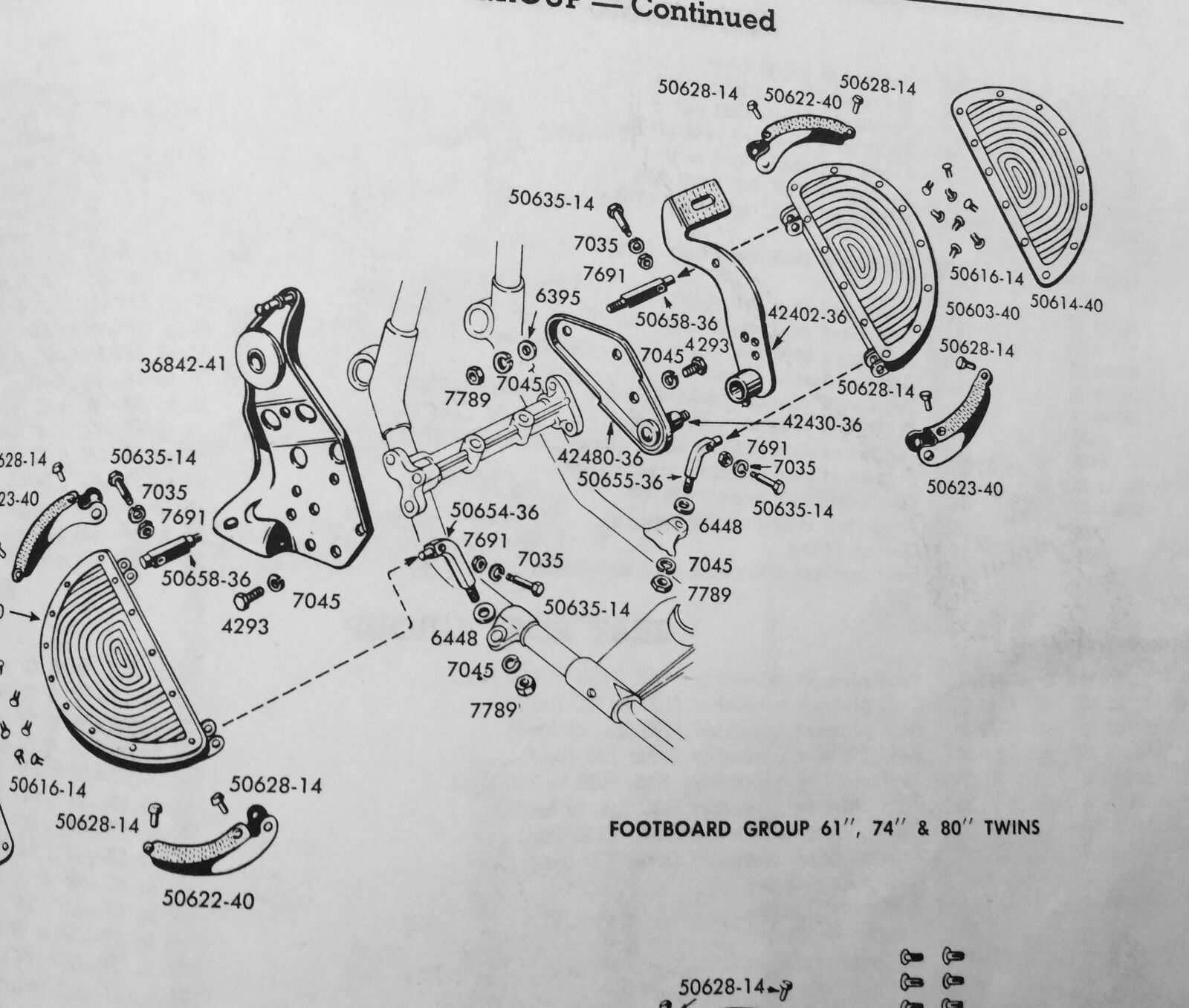

  • 50635-14 (early 2954-14) machined hex head bolts x 2
  • 7035 split lock washers 1/4” x 4
  • 7691 1/4”-24 NS nut x 4

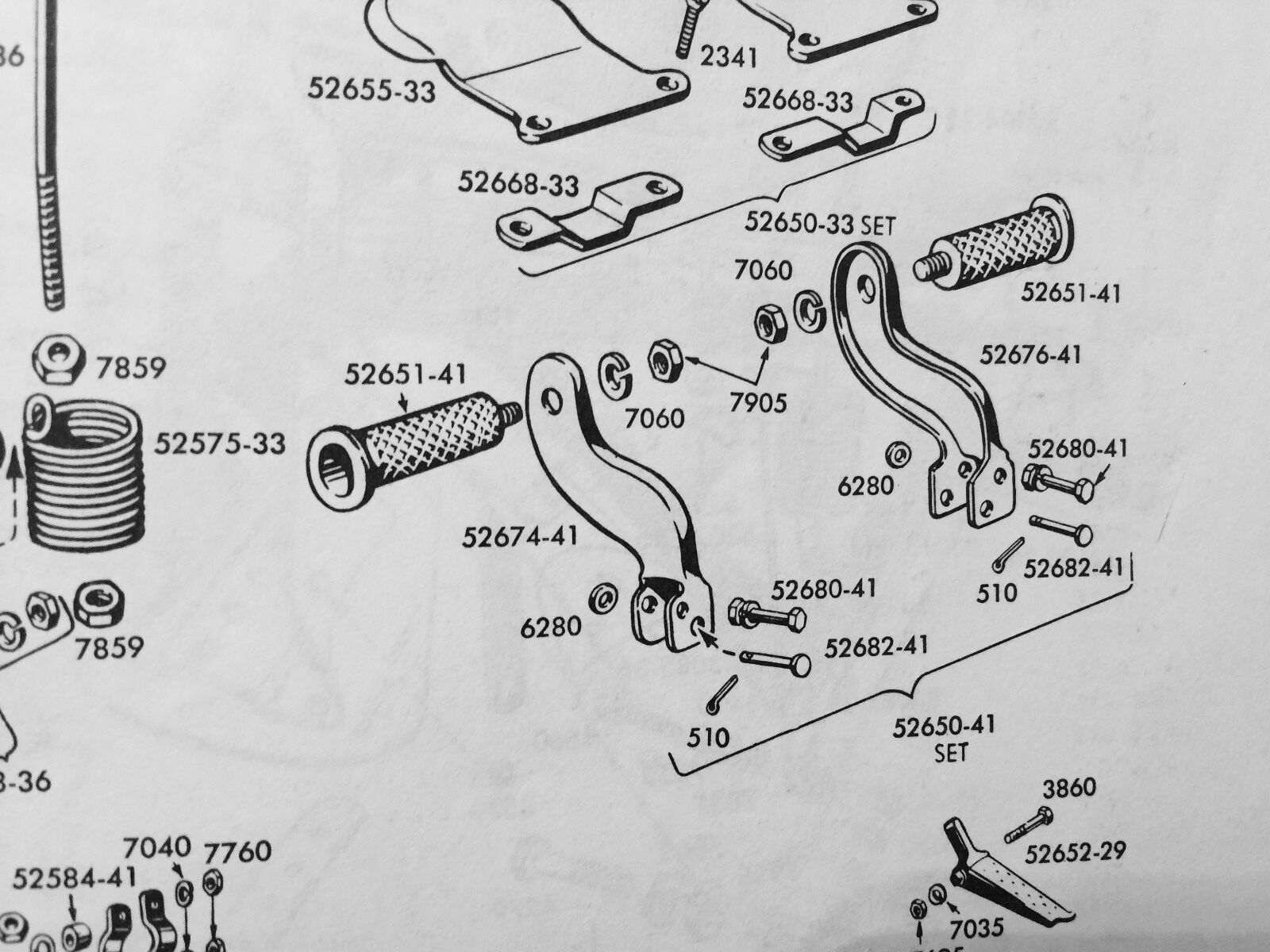

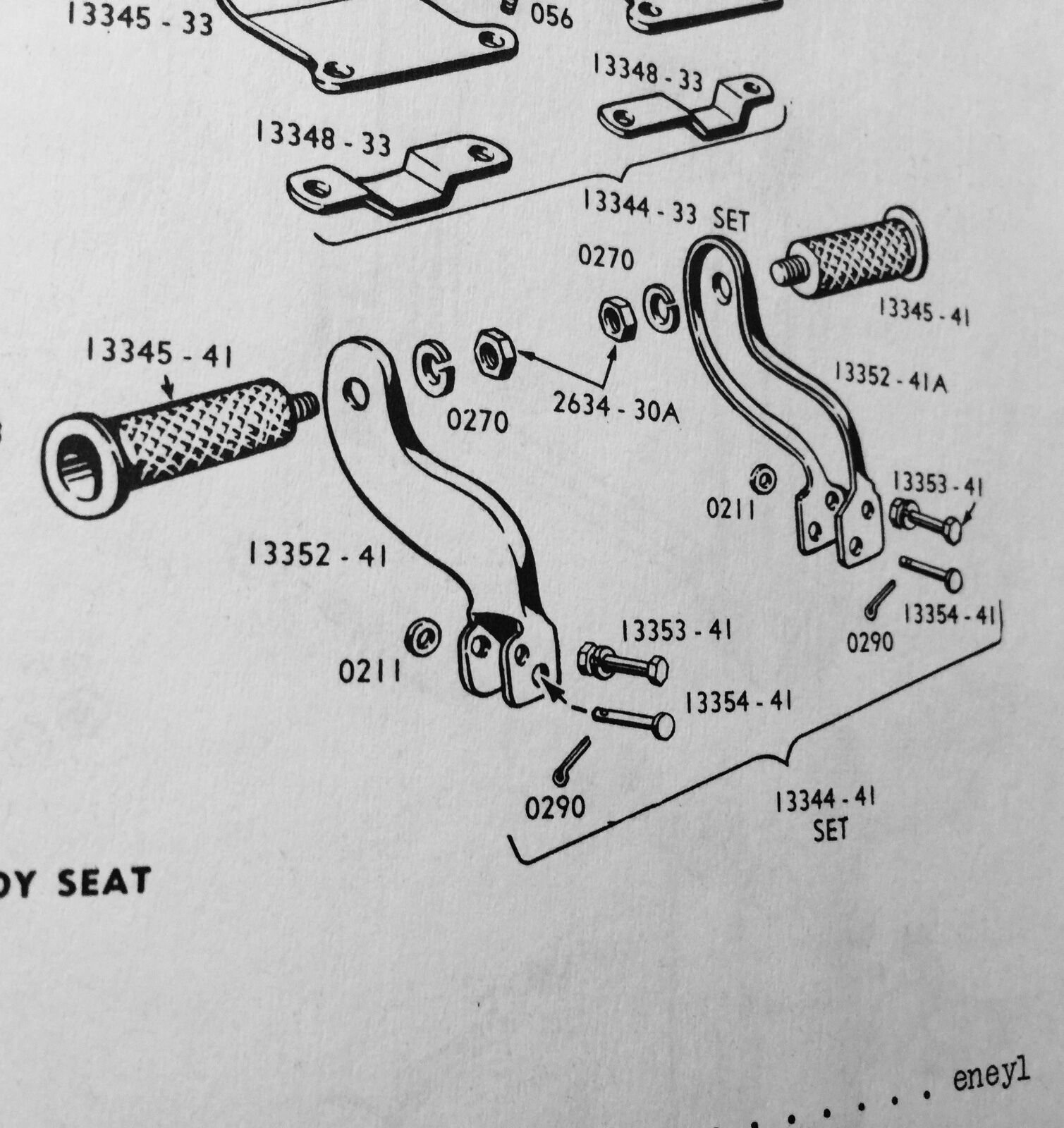

  • 52682-41 (early 13354-41) buddy seat footrest bracket pin x 2
  • 52680-41 (early 13353-41) buddy seat footrest bracket bolt x 2
  • 6280 (early 0211) buddy seat footrest bracket pin washer x 2
  • 510 (early 0290) cotter pin x 2
Used on the following models:
  • 1940-1947 E, EL, ELC, ELA, FL 61” & 74” OHV Knucklehead
  • 1940-1948 U, UL, UA, UH, ULH 74” & 80” big twin flathead
  • 1948-1964 EL, FL, FLH 61” & 74” OHV Panhead Hydra-Glide, Duo-Glide, & Electra-Glide
Please see our eBay store for hundreds of quality hardware and detail items for your vintage Harley-Davidson rider or project from 1915 to 1984, including accurate clips & clamps, CP-1038 & 1035 bolts, plain head bolts, and correctly machined screws & nuts.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
