Harley Panhead 1954 Wiring Harness W/ Wired Lamp Harnesses & Switches USA

  • Product Code: 353833765054
  • Availability: In Stock
  • $229.95

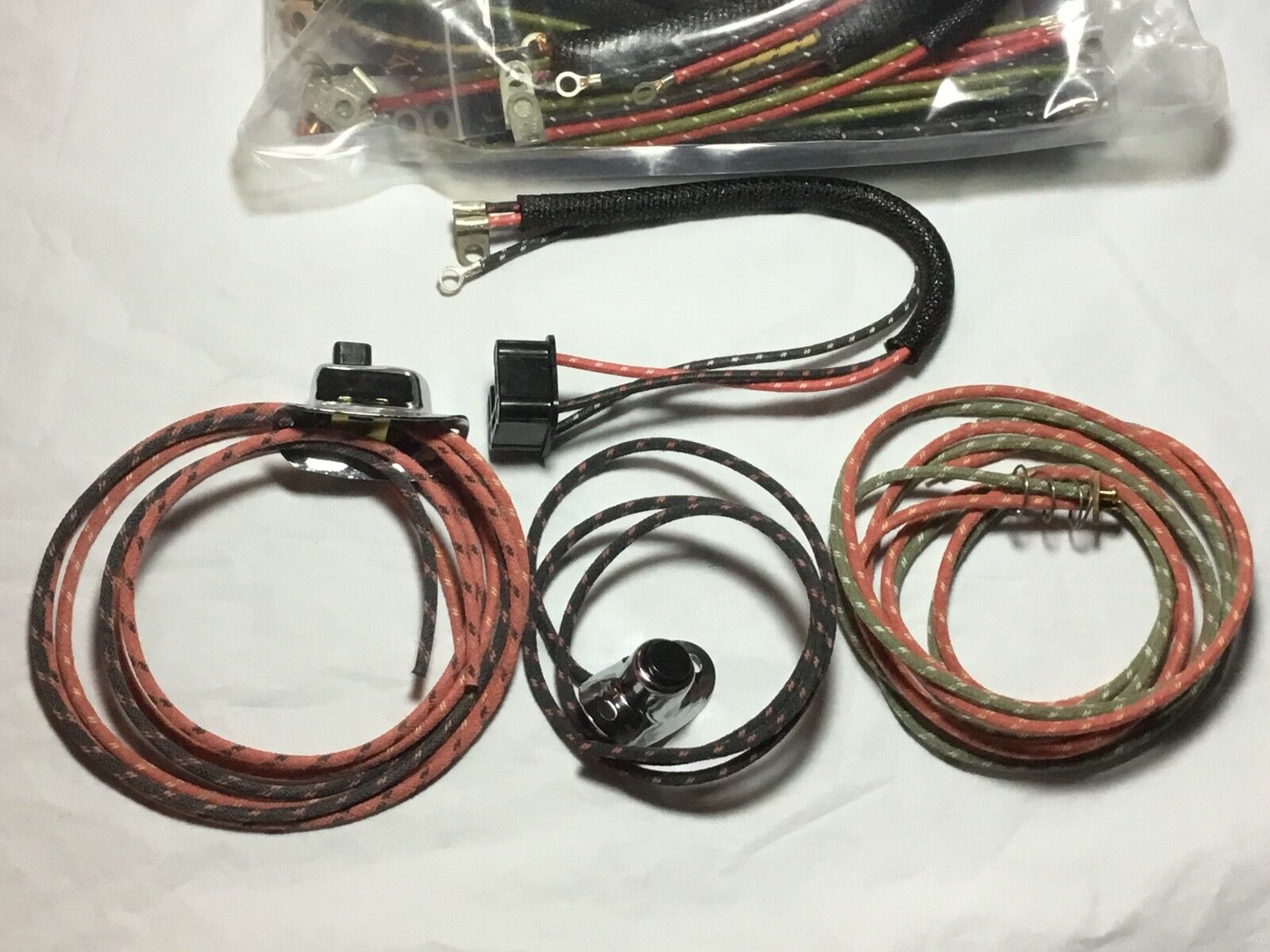

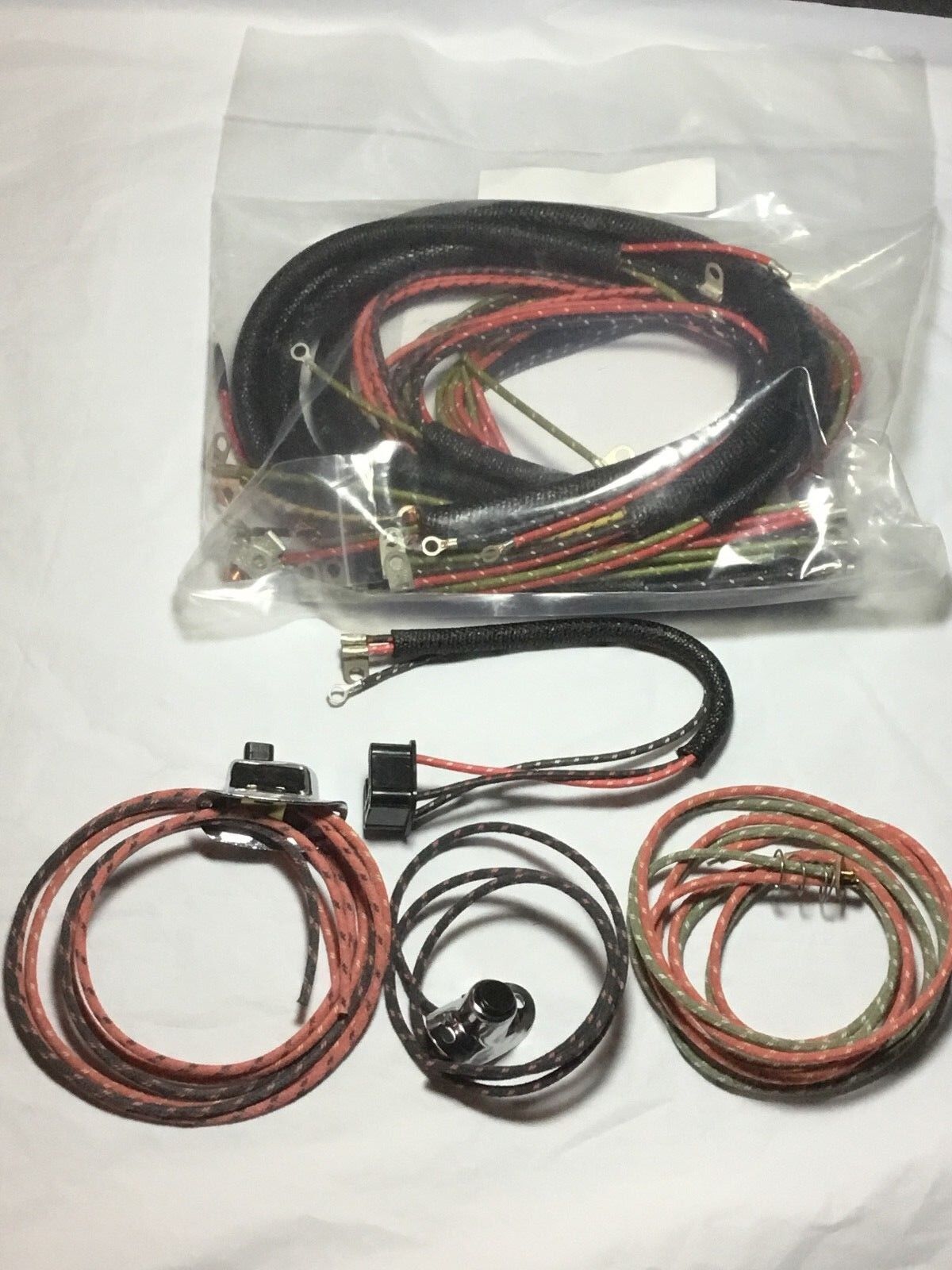

You are purchasing one new USA Made wiring harness kit for 1954 Harley-Davidson Panhead Hydra-Glide which includes a pre-wired dimmer switch, single wire horn button, pre-wired headlamp block, and prewired tail lamp wires with the spring and bakelite plates as shown.  You will only need to crimp on some terminal ends to complete your wiring job.  We can also put together a wiring clip kit to complete your wiring job, just tell us the year you are working on if you don't see the clip kit in our store or cimarroncycleworks.

This will take the soldering work out of installing your new harness if you are not confident in your soldering skills in re-wiring your switches.  This harness is correct for use with the new seat post terminal box introduced in 1948 and the terminal plate under the tin on the Hydra-Glide front end and the single wire horn button is used with the Delco 16 horns which ground through their mount to the frame as well as the Jubilee horn in 1954 only.  Starting in 1955, H-D used a two wire horn button on the big twin.  We sell a kit for that as well.

We do sell a wiring kit for you 1948 Panhead owners which is all the correct wires for the spring forks which you would also use if you have one of the rare 1949 springer Panheads.  This is everything you need from nose to tail to wire your bike.  We also sell a complete kit for 1949-1953, 1955-1957, 1958, 1959-1960, 1961-1964 Duo-Glide, K & Sportster models, Hummer Knucklehead, WL, Servicar, VL, JD, RL, & DL.

We also sell the harness by itself, the dimmer and horn switches, as well as complete wiring clip kits to finish out your installation.  We will be adding kits complete with the clips in the near future.  If you don't see them, just ask.

Used on the following:
  • 1954 FL, FLE Panhead 74" OHV
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
