Harley Knucklehead WLA Rear Fender Brace Carriage Bolt Kit #3743-23 1941-57

  • Product Code: 352209121156
  • Availability: In Stock
  • $14.95


You are buying a big twin rear fender brace bracket mounting kit for 1941 to 1957 rigid frame twin Harleys, includes Knucklehead, Panhead, UL, WL WLA, WLC models. Includes all pieces shown. Please consult your own parts or service manual for proper reference.  As the bolt heads are domed carriage head bolts, this kit is correct for your 1941-1957 twin.  Flat head machined bolts were used from 1923-1940 and we have those available on another listing.  These bolts are machined identical to the process H-D used in their screw shop back in the 1920's to 1940’s.

We do have the same fastener kit available with flat head bolts on another listing in our store as well as complete rear fender mount kits including correct 1936-1940 Knucklehead and UL and 45" solo and 1941-1957 big twin and 45" fear fender mount kits with CP-1038 & CP-1035 hardware.

All USA made parts.

Used on the following:
  • 1941-1952 W, WL, WLA, WLC, WLD 45" solo twin
  • 1941-1947 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead
  • 1941-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead
  • 1948-1957 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

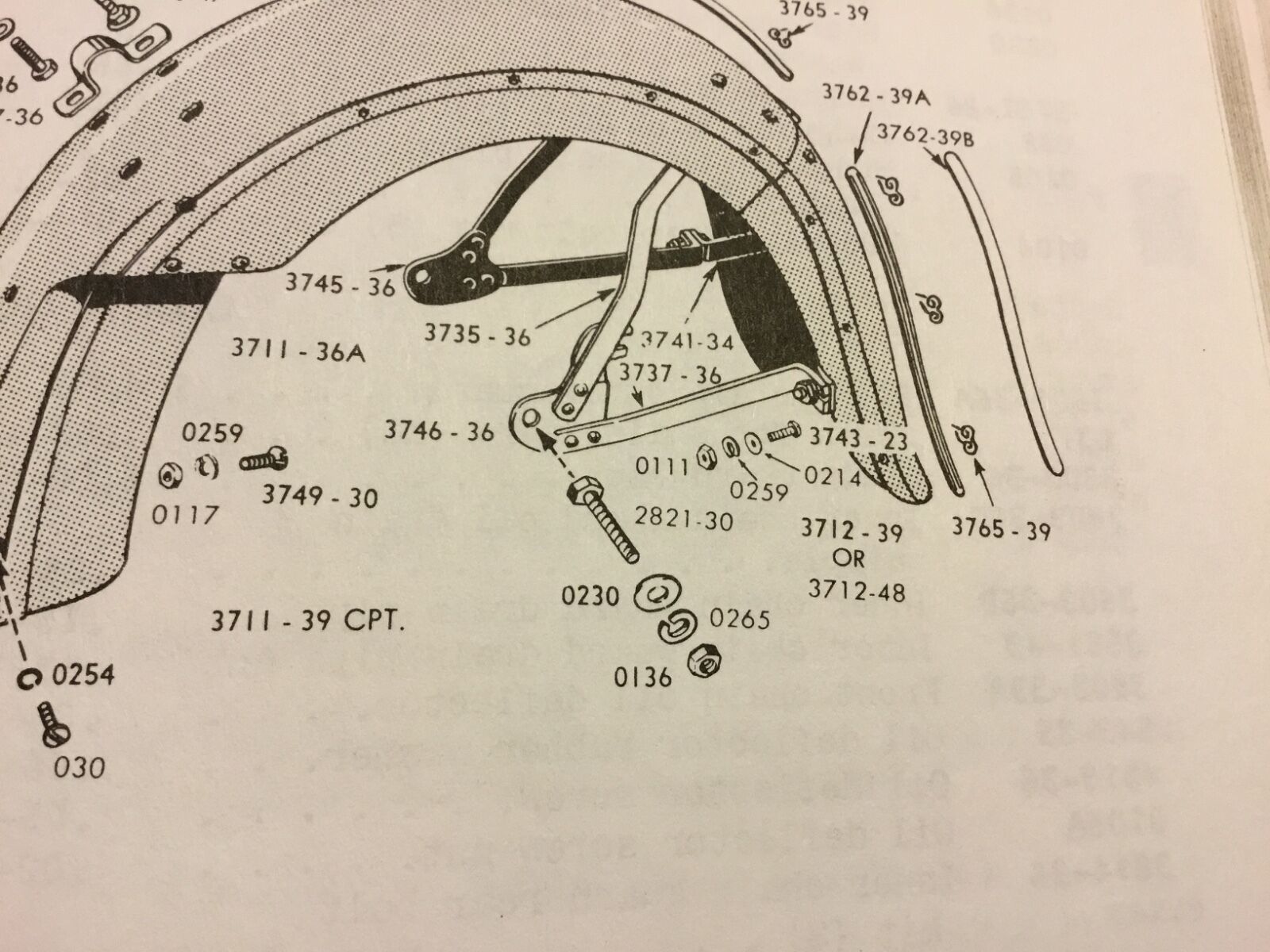

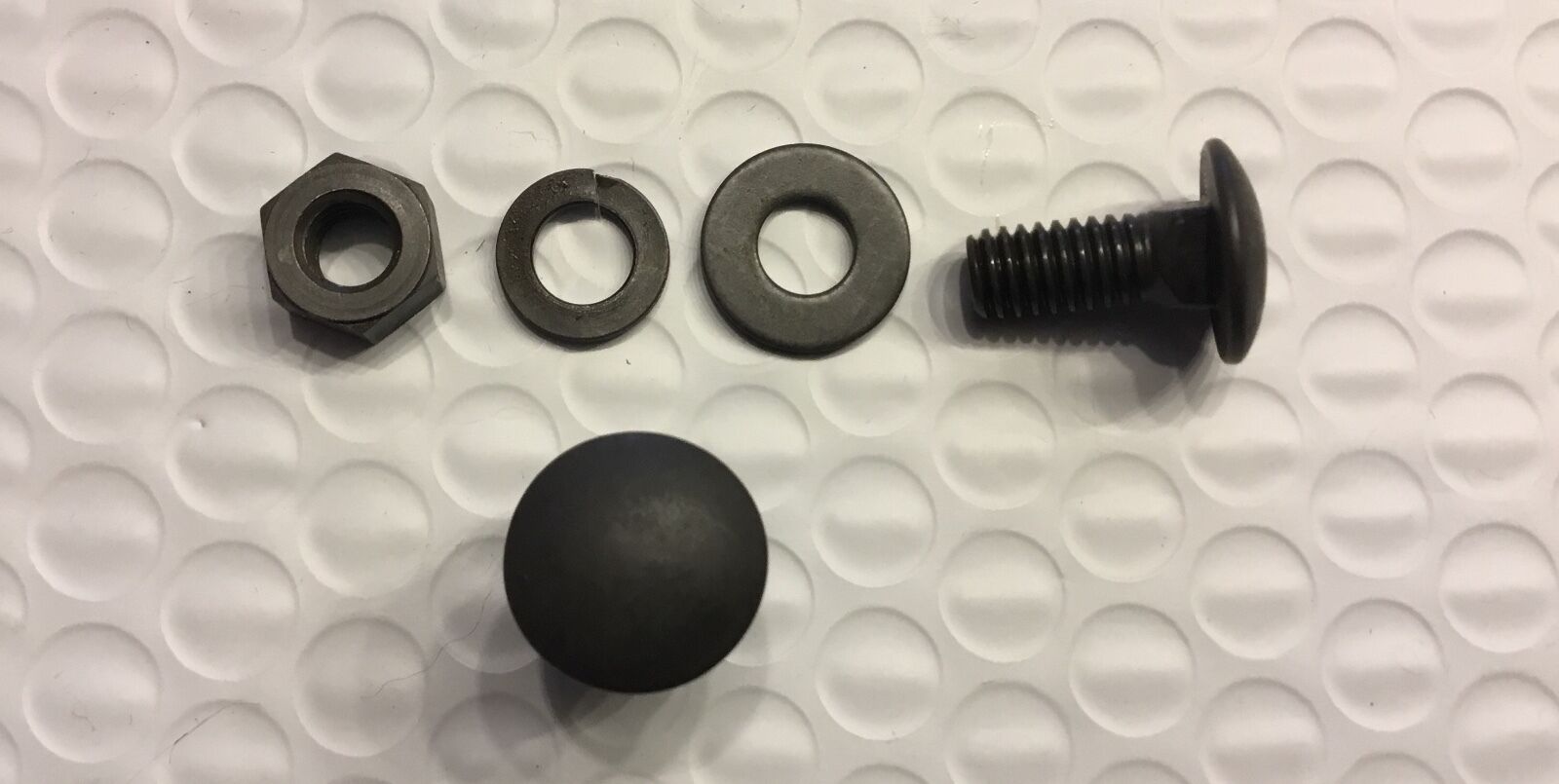

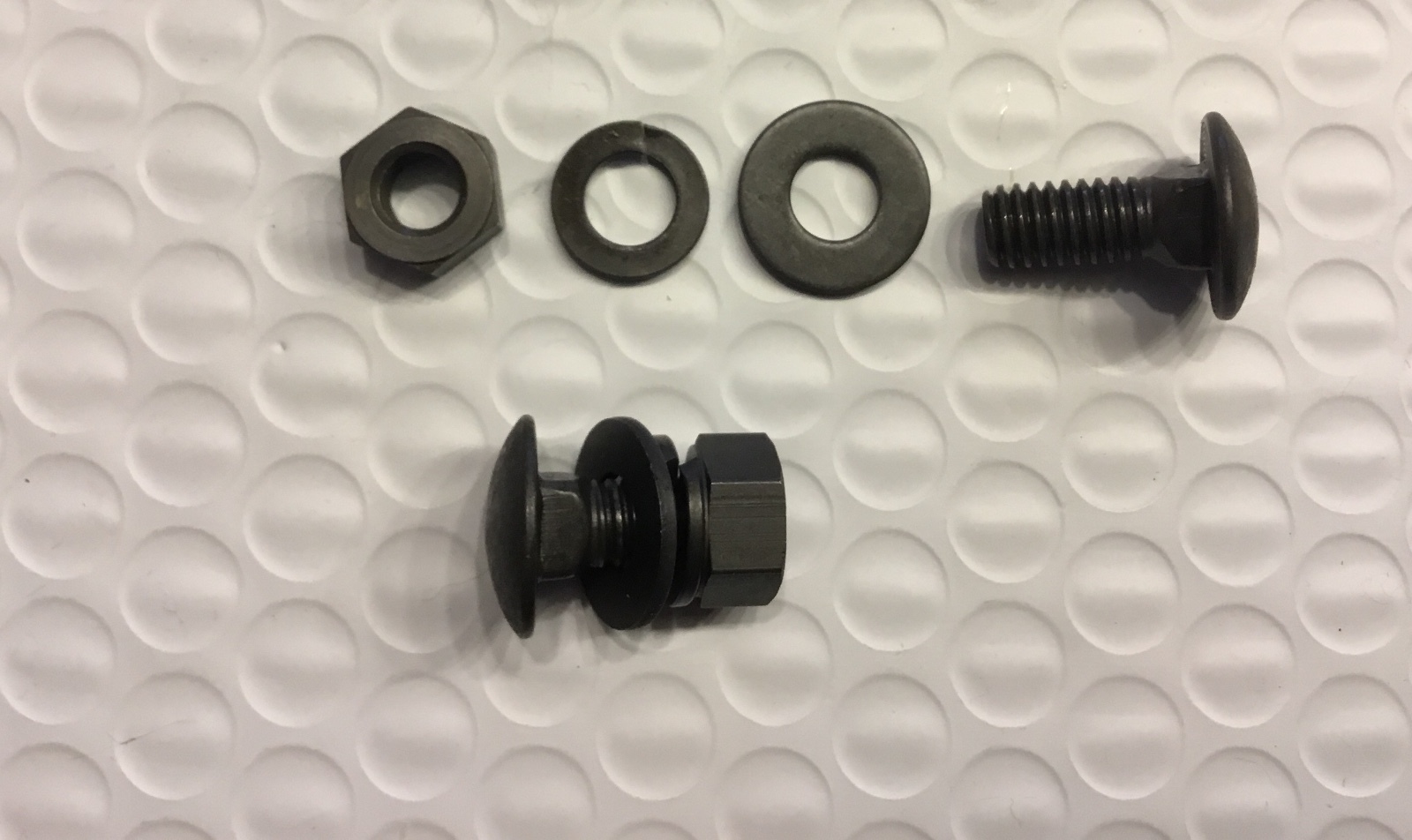

You get the following in this kit:
  • 2 ea. 3743-23, (5425 late OEM#)Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
  • 2 ea. 0111, (7748 late OEM#) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
  • 2 ea. 0214, (6320 late OEM#) Brace bracket flat washer 5/16” x 11/16” x 1/16”
  • 2 ea. 0259, (7040 late OEM#) 5/16” split lock washer, 5/16” x 9/16”
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
