Harley Knucklehead VL Rear Fender Brace Bolt Kit #3743-23 1923-40 Flat Head
- Product Code: 292330013561
- Availability: Out Of Stock
-
$18.95

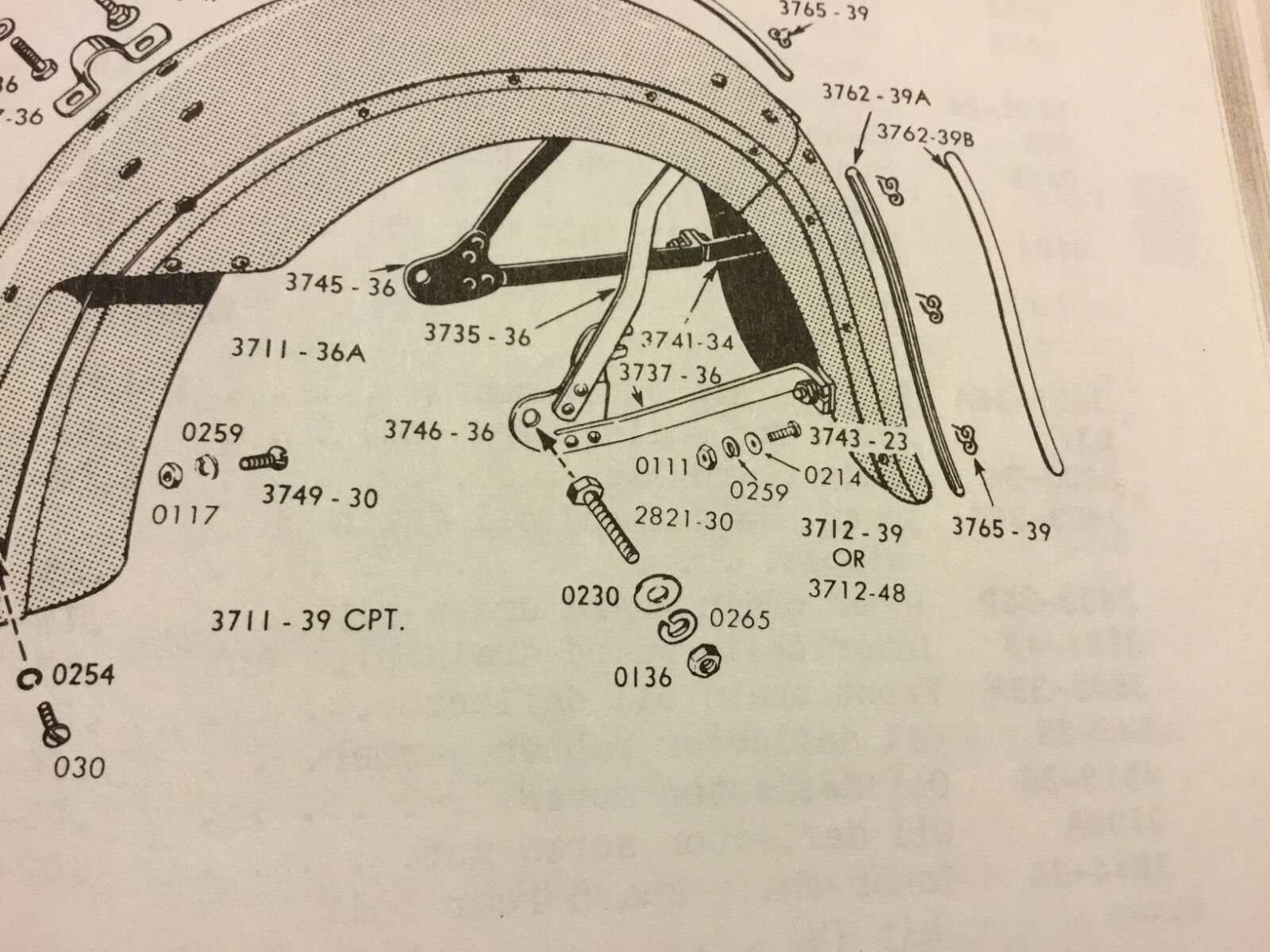

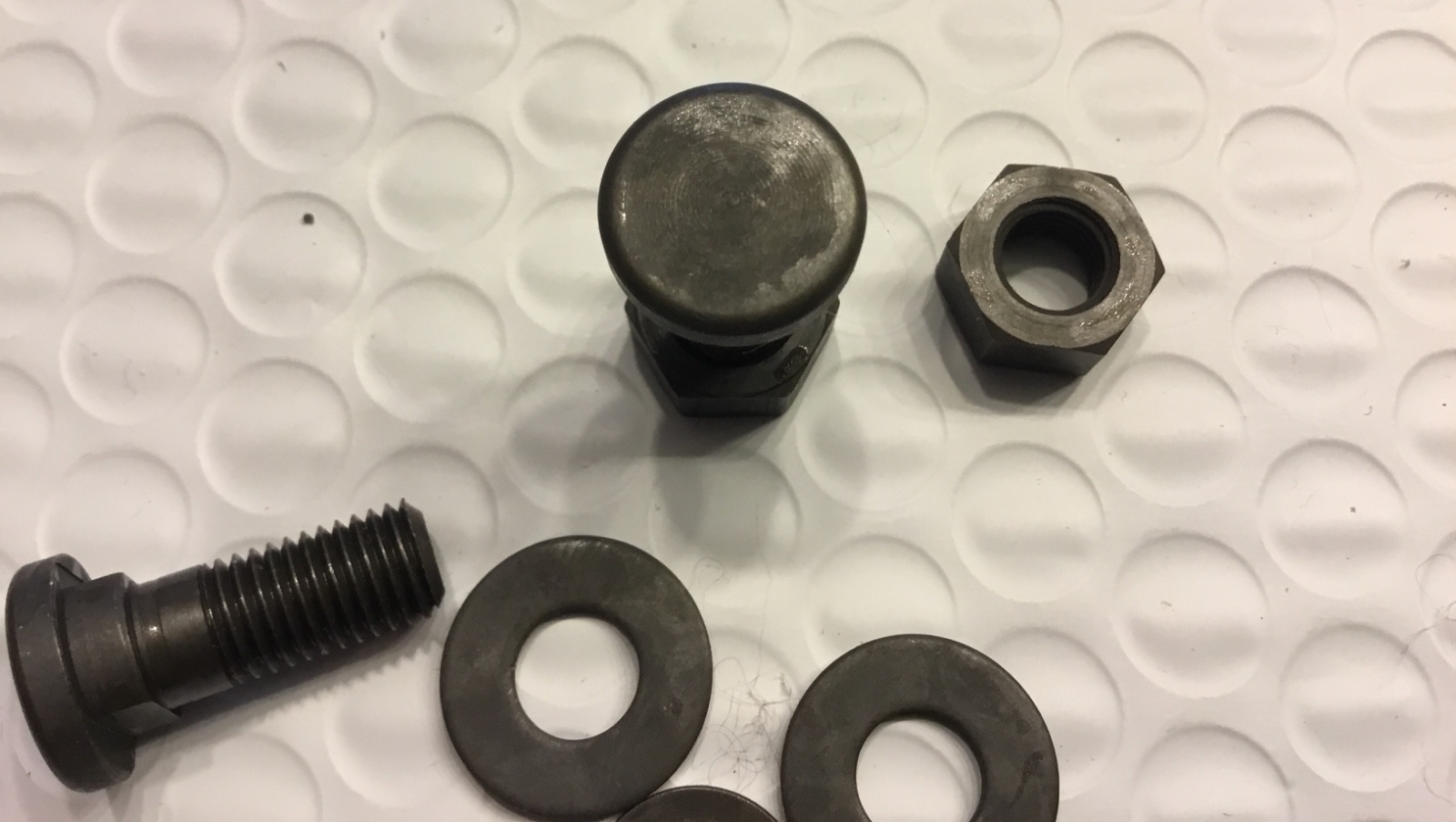

You are buying a big twin rear fender brace bracket mounting kit for 1923 to 1940 rigid frame twin Harleys, includes Knucklehead, VL, JD, WL, RL, DL, and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference. As the bolt heads are plain flat head machined, and not domed, this kit is correct for your 1923 to 1940 twin. Domed carriage bolts were used from 1941-1957. These bolts are machined identical to the process H-D used in their screw shop back in the 1920's to 1940’s.
We do have the same fastener kit available with dome head carriage bolts on another listing in our store as well as complete rear fender mount kits including correct 1936-1940 Knucklehead and UL and 45" solo.
All USA made parts.
Used on the following:
- 1923-1929 J, JD, JDH 61" & 74" twin
- 1929-1936 R, D, RL, DL 45" solo 45" twin
- 1930-1936 VL, VLD, VLH 74" & 80" flathead big twin
- 1937-1940 W, WL, WLD 45" solo twin
- 1936-1940 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead
- 1937-1940 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead
- 1948-1957 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

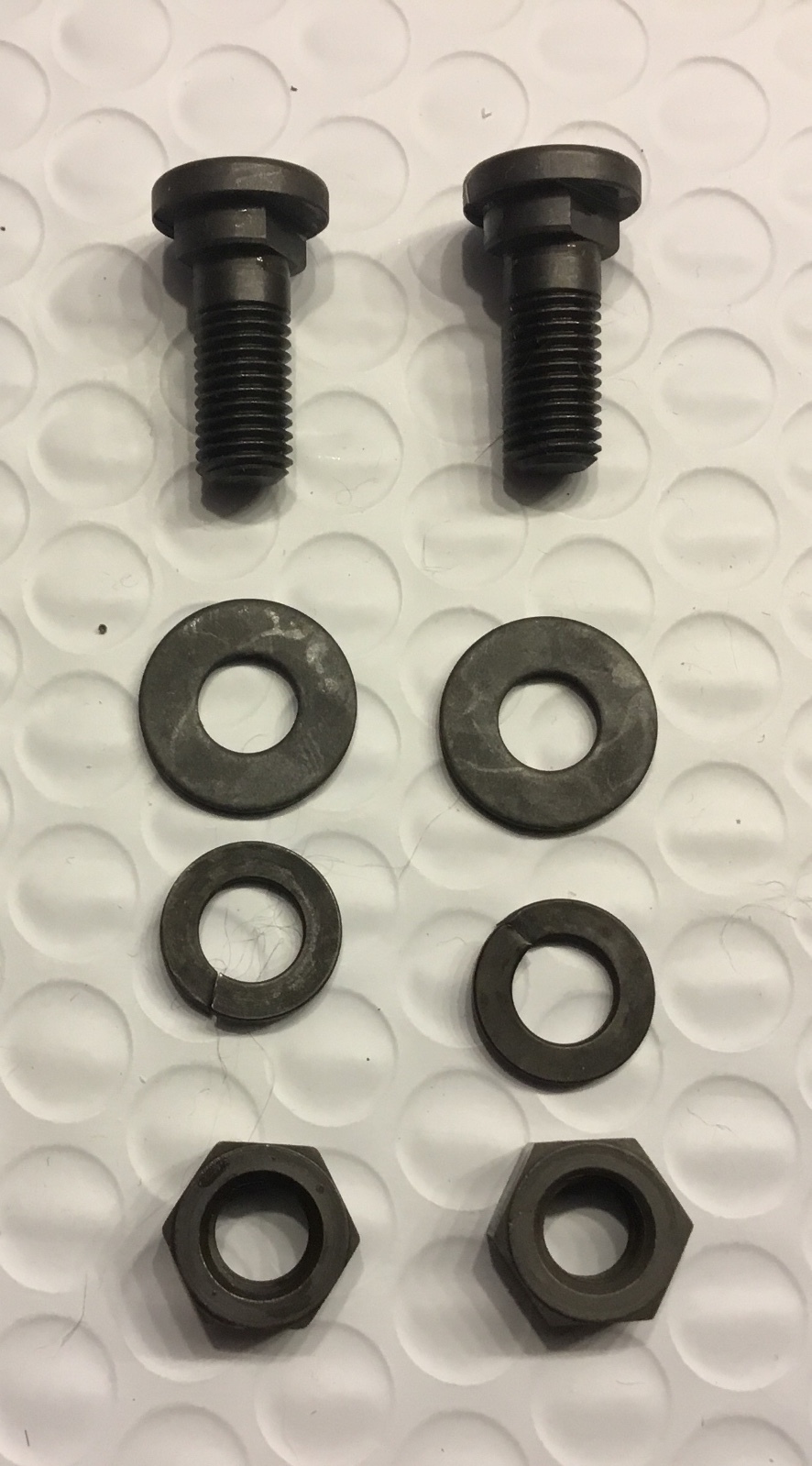

You get the following in this kit:
- 2 ea. 3743-23, Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 0111, Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 2 ea. 0214, Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 2 ea. 0259, 5/16” split lock washer, 5/16” x 9/16”
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
