Harley Knucklehead UL WL Open Barrel Eyelet Timer Wire Terminals 39-47 #1614-18
- Product Code: 295422149491
- Availability: In Stock
-
$19.95

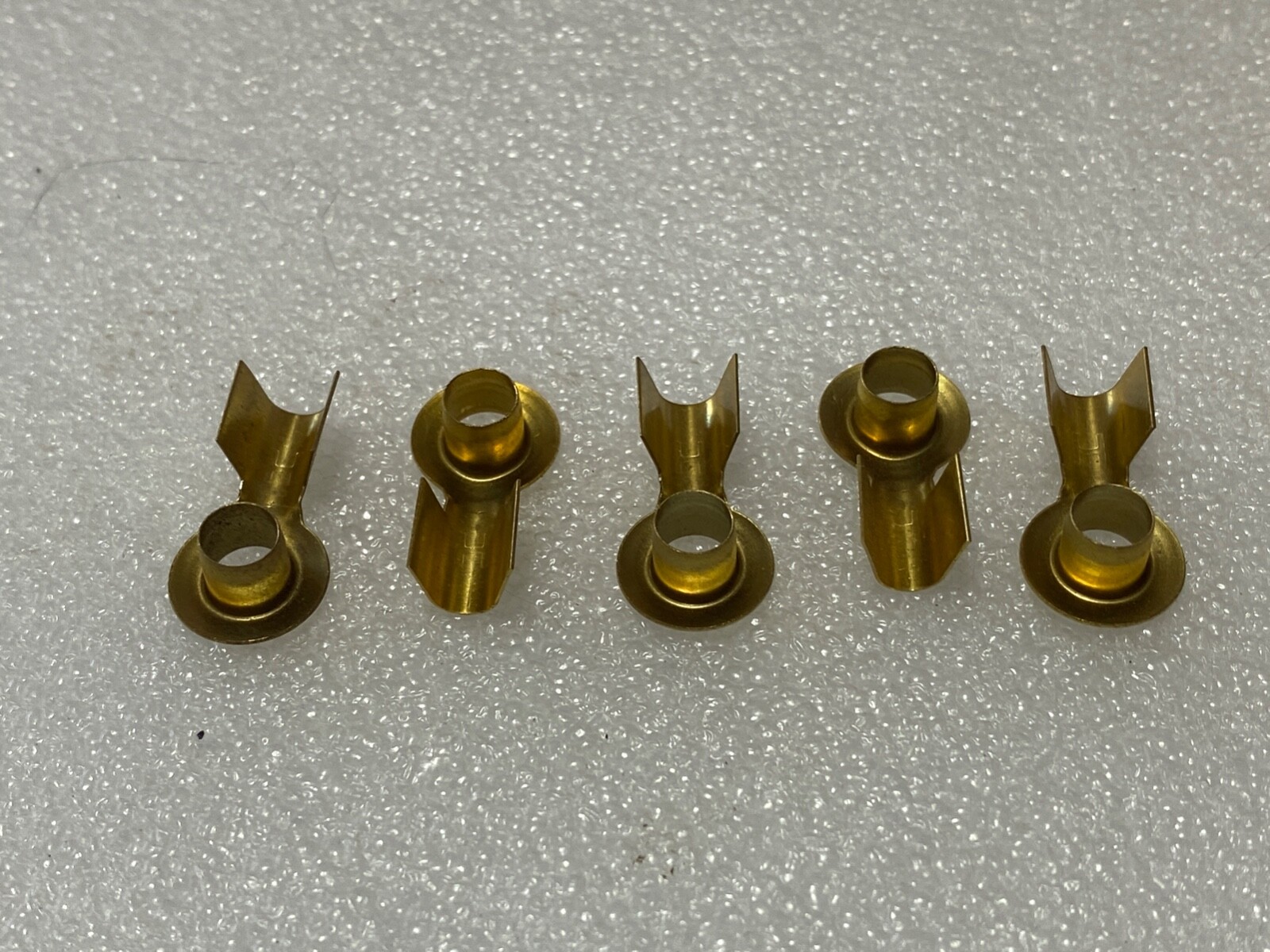

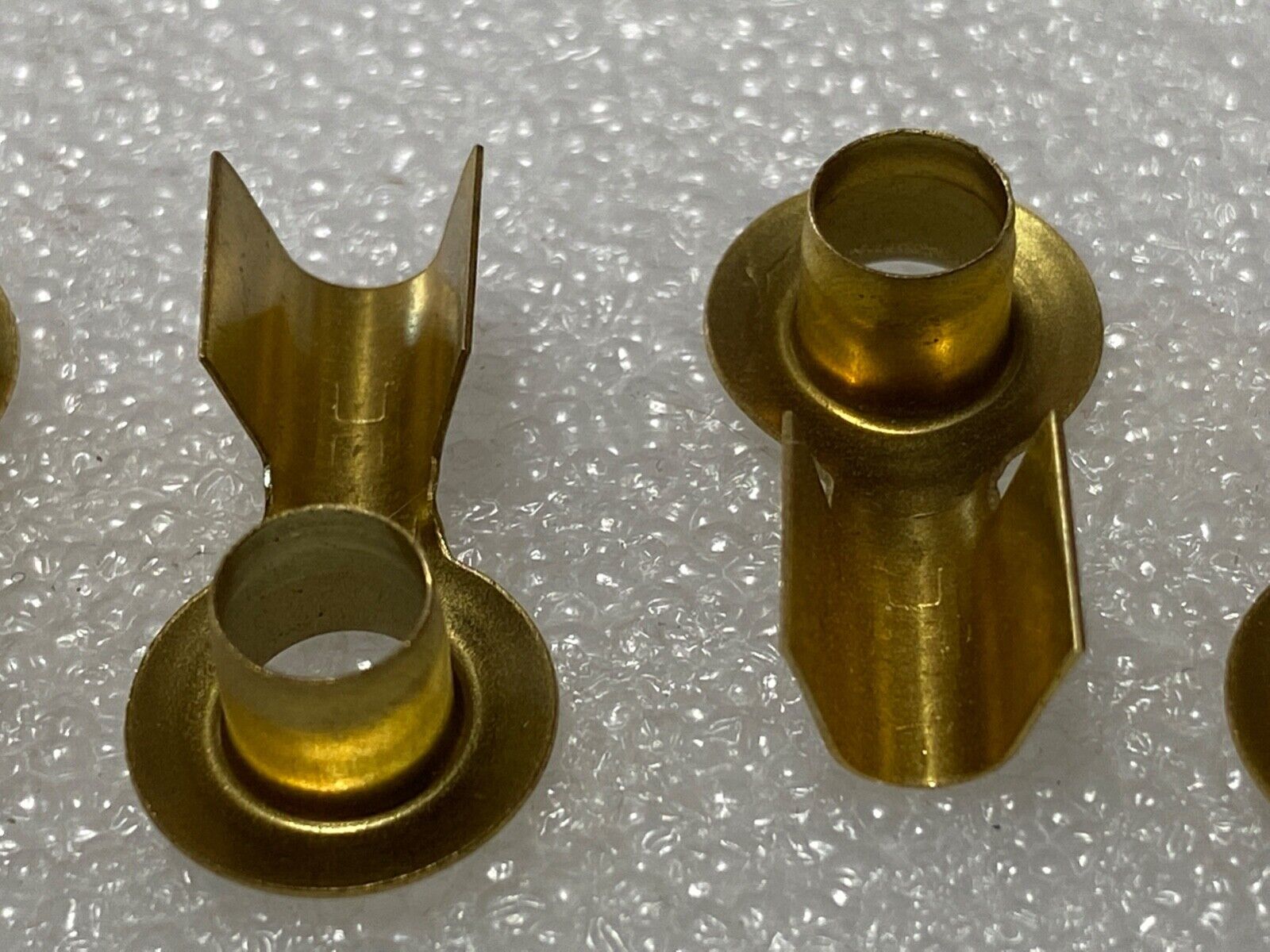

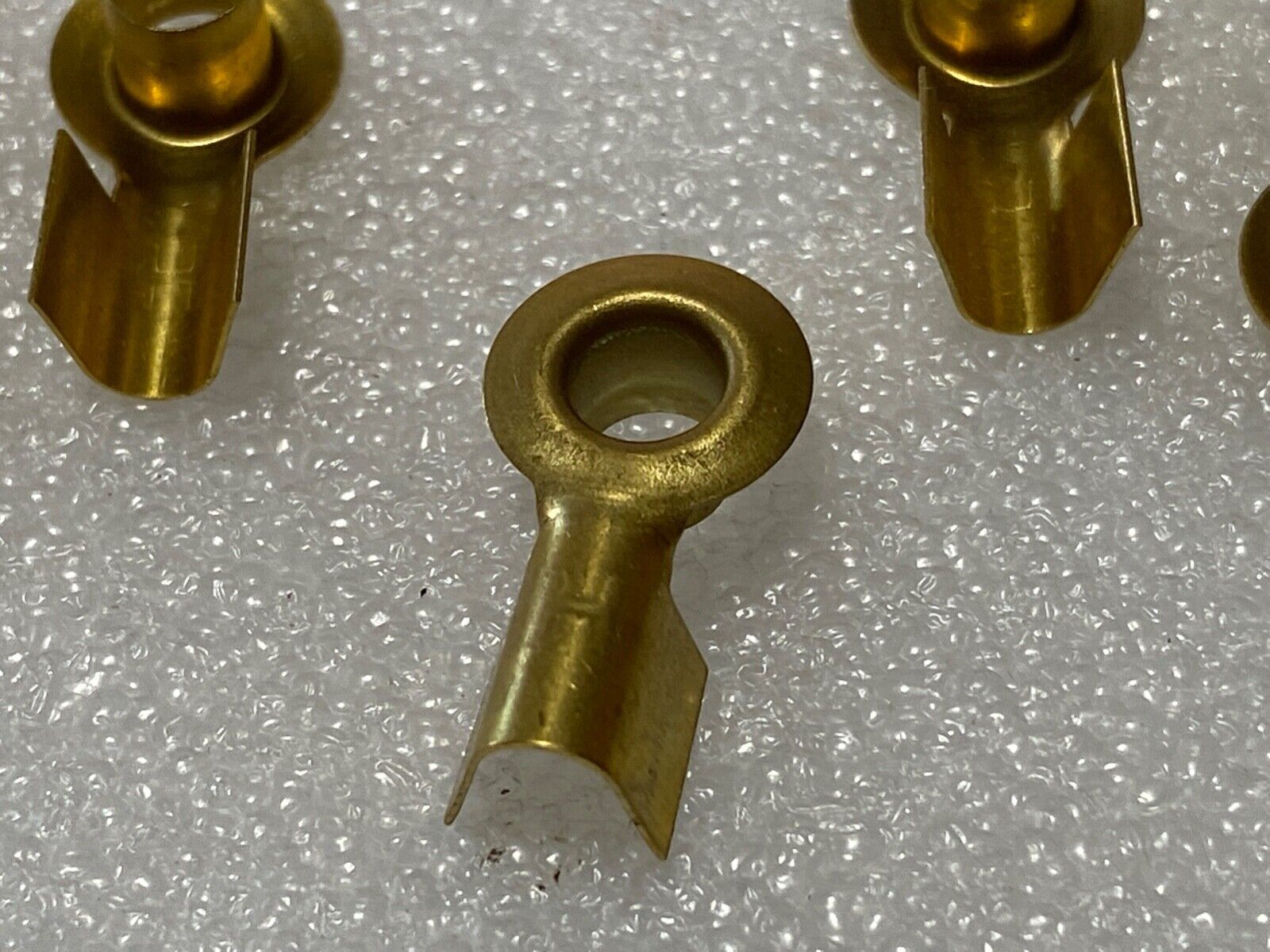

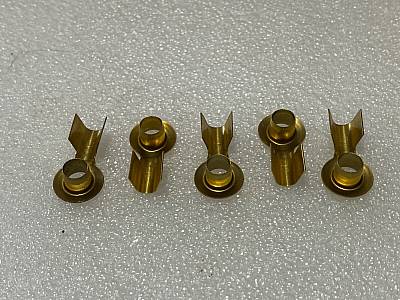

Excellent reproductions of 1614-18 open barrel #10 eyelet terminals. You are purchasing five (5) of these terminals with each purchase. These were used as main harness and sub-assembly terminals on 1918-1936 model singles and twins and were used as the coil terminal on timer wires from 1939-1947. These have always been difficult to obtain. Please check in with us about our premium wiring harness kits which use these terminals as well as the copper flag ones. If you don't see them in our eBay store, just email.

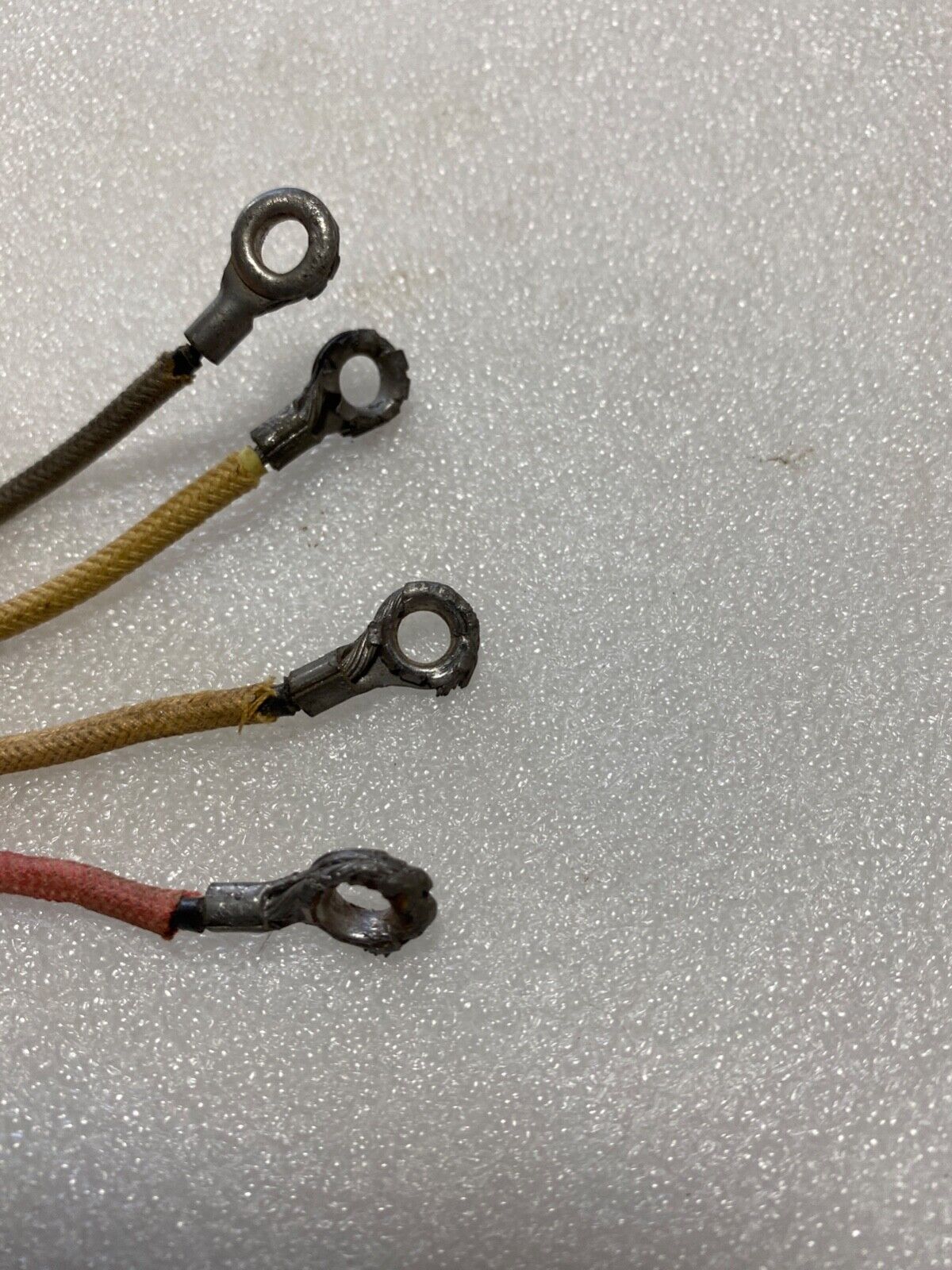

Use of these terminals requires a rivet press or punch and a solder pot or soldering iron. You strip approximately 1 1/4" of insulation from your wire, wrap wire around the eyelet, clamp the lower terminal over the bare wire and insulation, punch down the eyelet over the bare wire, and then solder the wire to terminal joint. These are not meant for a solder-less connection and requires some skill to use properly.
We now manufacture and stock premium wire harness kits for 1929 JD, 1929 DL (NOT the same as JD) 1930 DL, 1931-36 DL/RL, 1931-1934 Single, 1936-1937, 1938, 1939-1940, 1941-1945, 1946, and 1947 twin models.
Be sure to check all of our other wiring products such as pre-wired headlamp and tail lamp harnesses, dimmer switches, turn signal switches and early and late style horn switches.
This is an AMCA restoration quality part and it will function just like the original.
Used on the following models:
- 1918-1929 J, JD, JDH, etc. 61" & 74" IOE
- 1926-1934 A, B, C Single
- 1929-1936 DL, RL 45" solo
- 1930-1936 VL, VLD, VLH, etc. 74" & 80" big twin flathead
- 1932-1936 G, Servicar
- 1939-1947 All twin models, coil terminal on timer wire
We carry a full line of hard to find detail correct hardware, fuel lines, oil lines, electrical terminals, headlamps, tail lamps, etc.
