Harley Knucklehead UL Rigid Rear Fender Mounting Hardware Kit 1941-42 Plain Head
- Product Code: 291740643341
- Availability: In Stock
-
$49.95

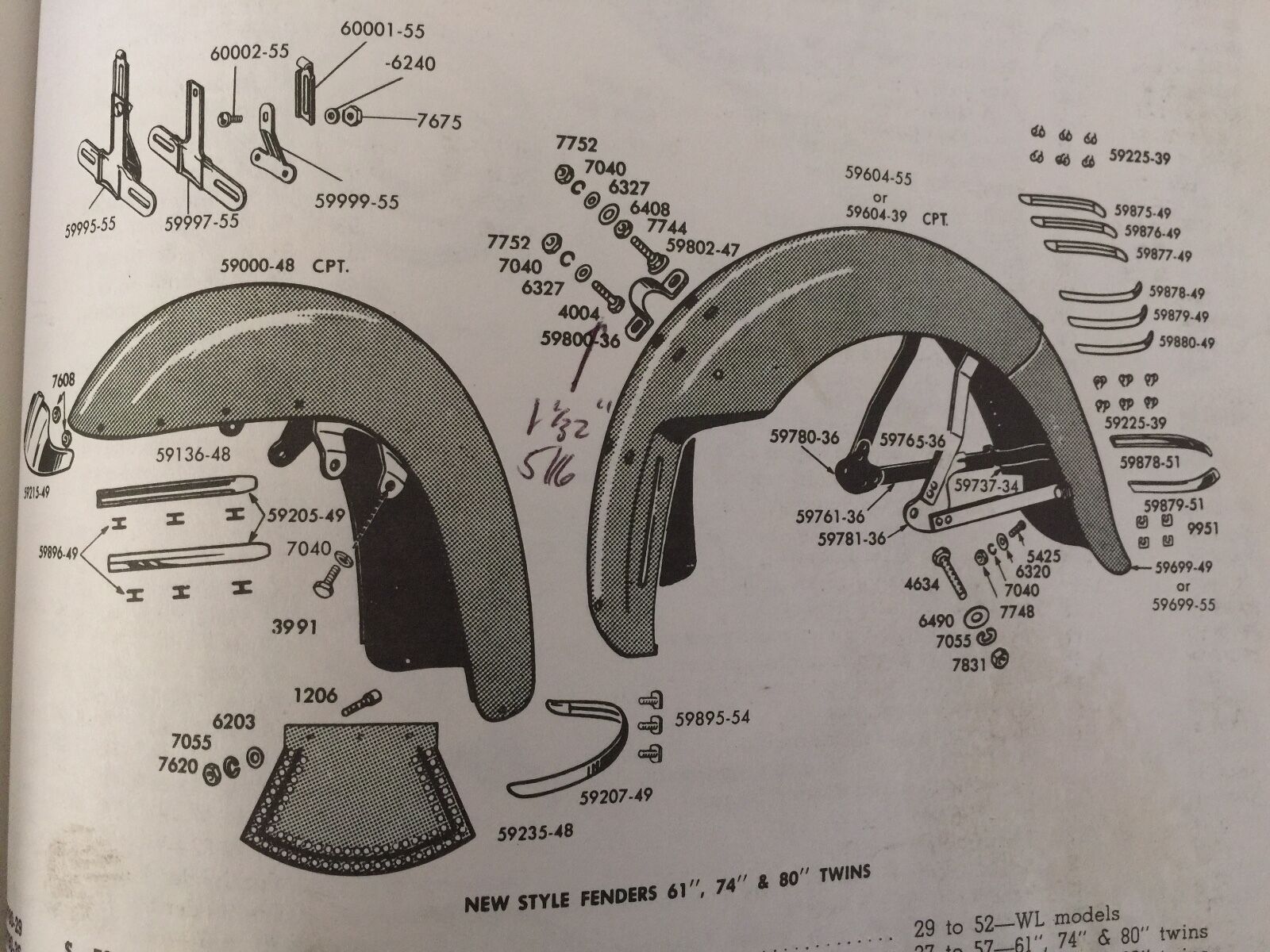

You are buying a big twin rear fender mounting kit which is detail-correct for 1941 to 1943 rigid frame Harleys, includes Knucklehead, and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference. As the bolt heads are plain head machined, and the rear hinged section bolts are truss head carriage bolts rather than machined flat and the hex bolts are not cold-headed CP Chandler Products bolts, this kit is correct for your 1941 to 1942 or early 1943 Knucklehead or UL. These bolts are machined identical to the process H-D used in their screw shop back in the 1930’s and 1940’s.
The point at which the change over to CP bolts happened is subject to debate, but it is known that H-D turned over the production of their common fasteners to other vendors during WWII and bolts were made by Chandler products.
We do have the same fastener kit available with the rear fender frame clamps on another listing in our store as well as a 1936-1940 version and a 1942-1948 version with all CP-1035 hex bolts, and yet another kit with CP-1038 bolts for 1949-1957 Panheads.
All USA made parts.
Used on the following:
- 1936-1947 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead (“Correct” for 1941 to late 1942 or early 1943)
- 1937-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead (“Correct” for 1941 to late 1942 or early 1943)
- 1948-1957 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

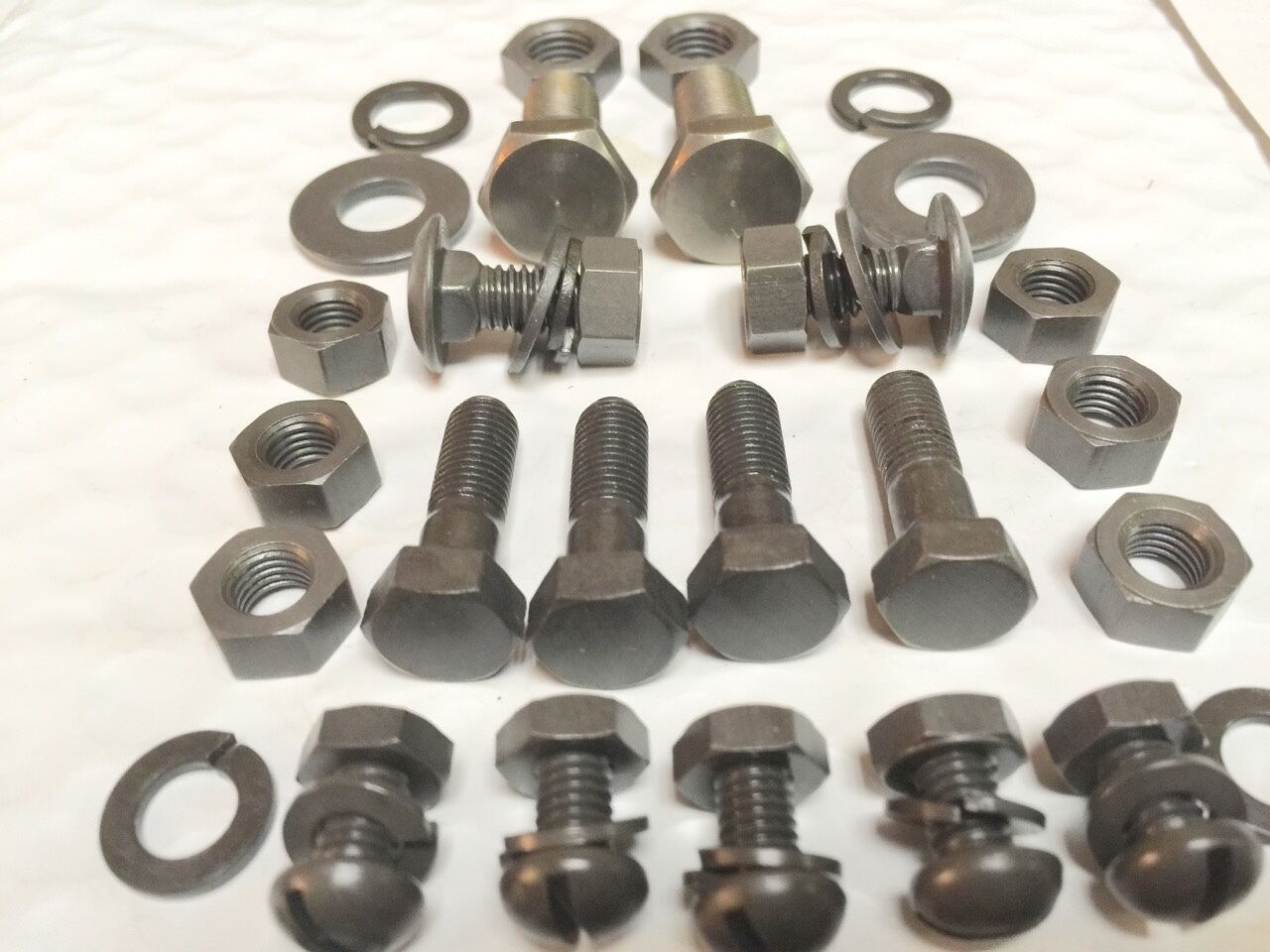

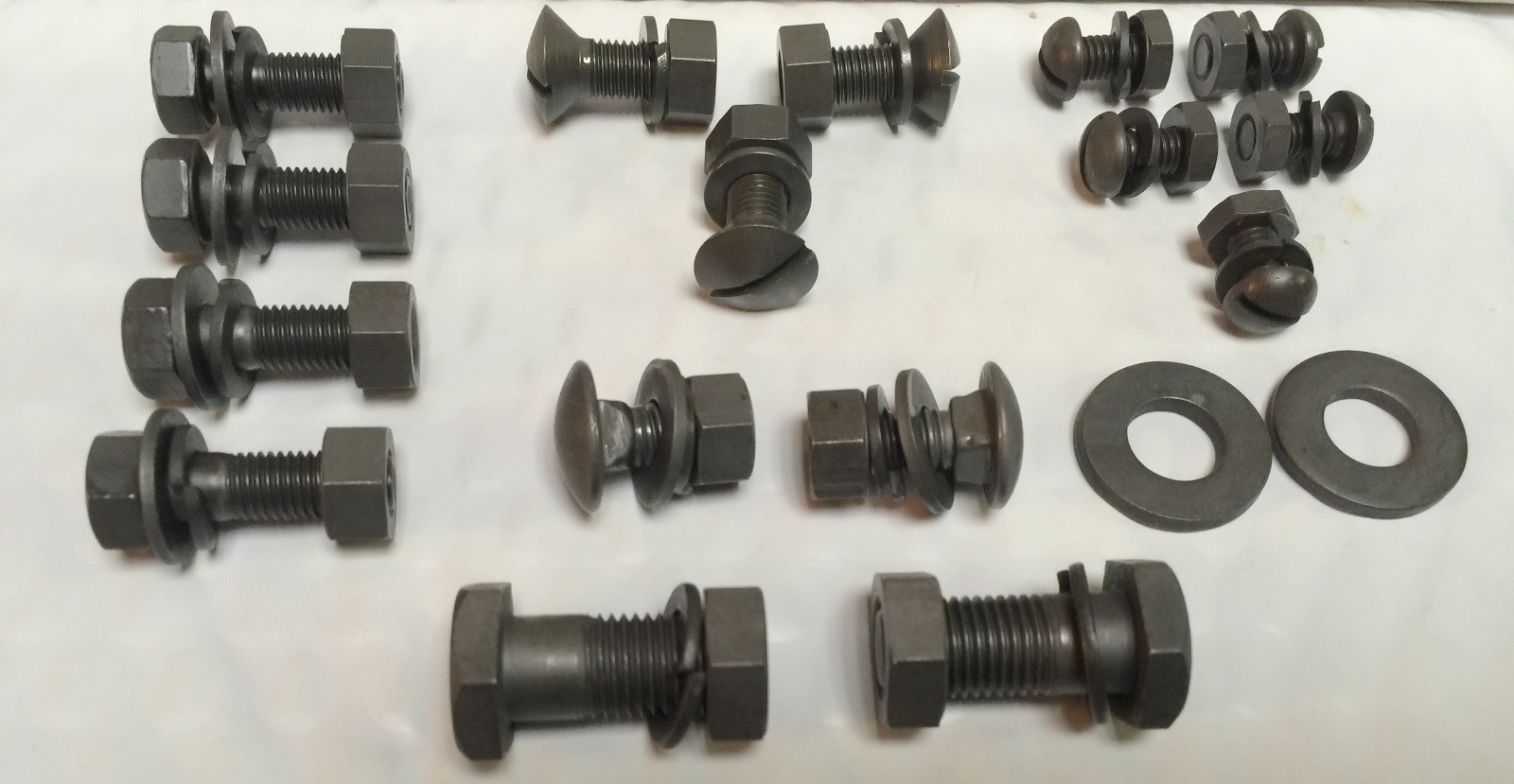

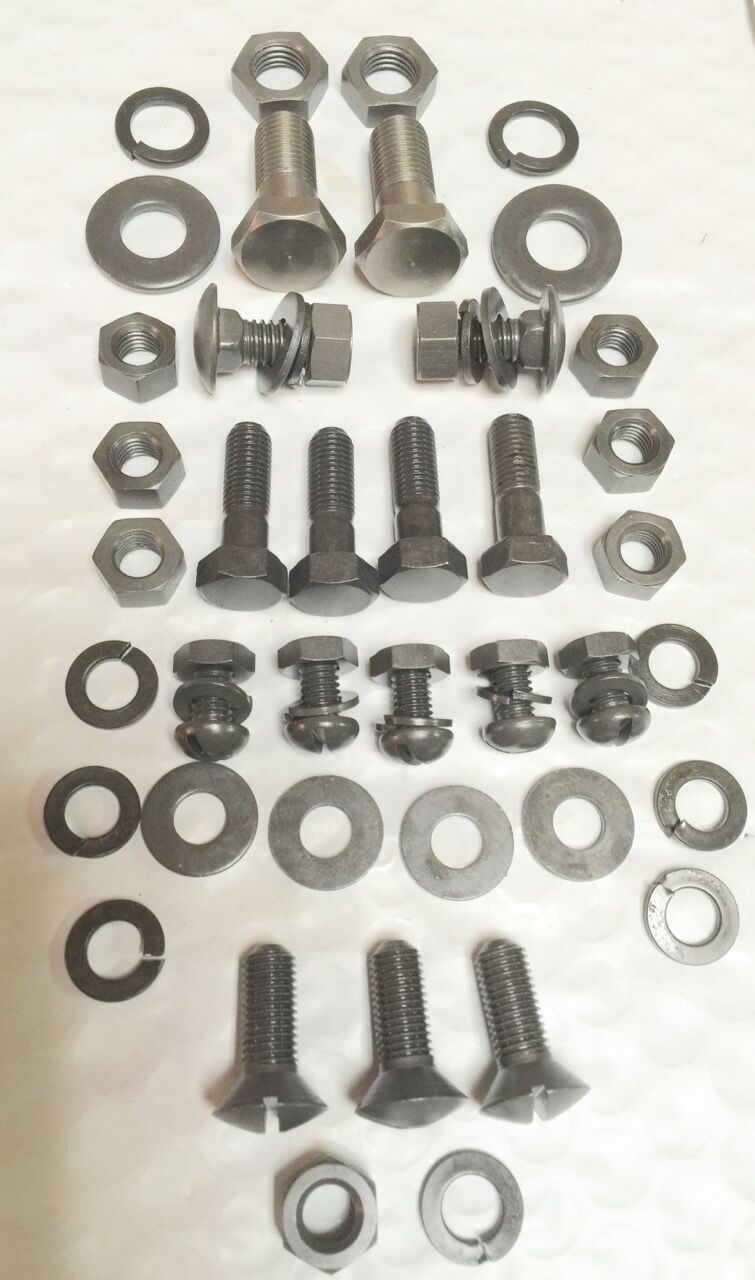

You get the following in this kit:
- 2 ea. 2821-30, Rear fender brace bolt, 7/16”-20 N.F. x 1 5/16"
- 2 ea. 0136, Rear fender brace nut, 7/16”-20 N.F. x 1/4” x 5/8"
- 2 ea. 0230, Rear fender brace flat washer 7/16” x 15/16” x 1/8"
- 2 ea. 0265, Rear fender brace split lock washer, 7/16” x 11/16” x 1/16"

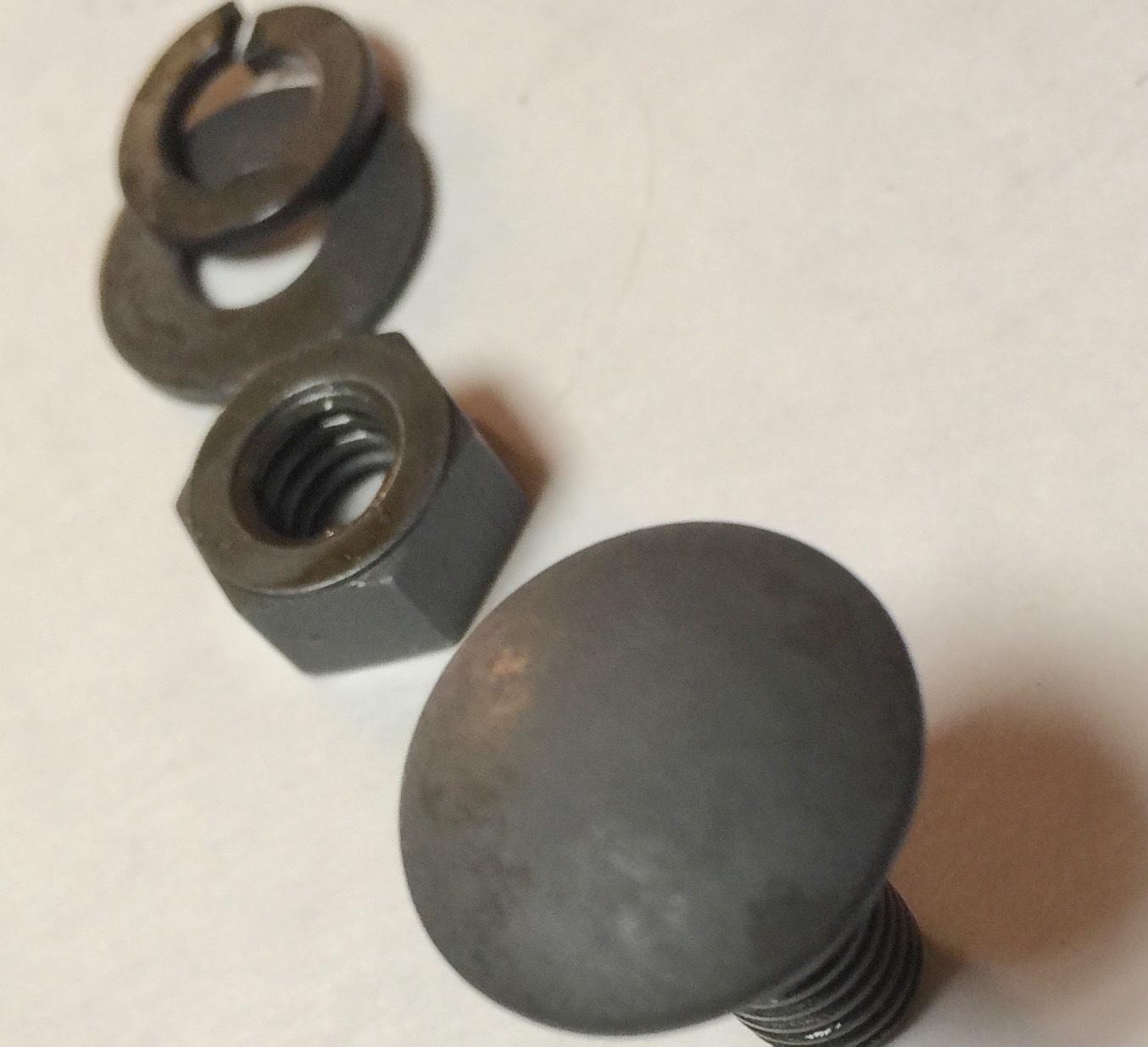

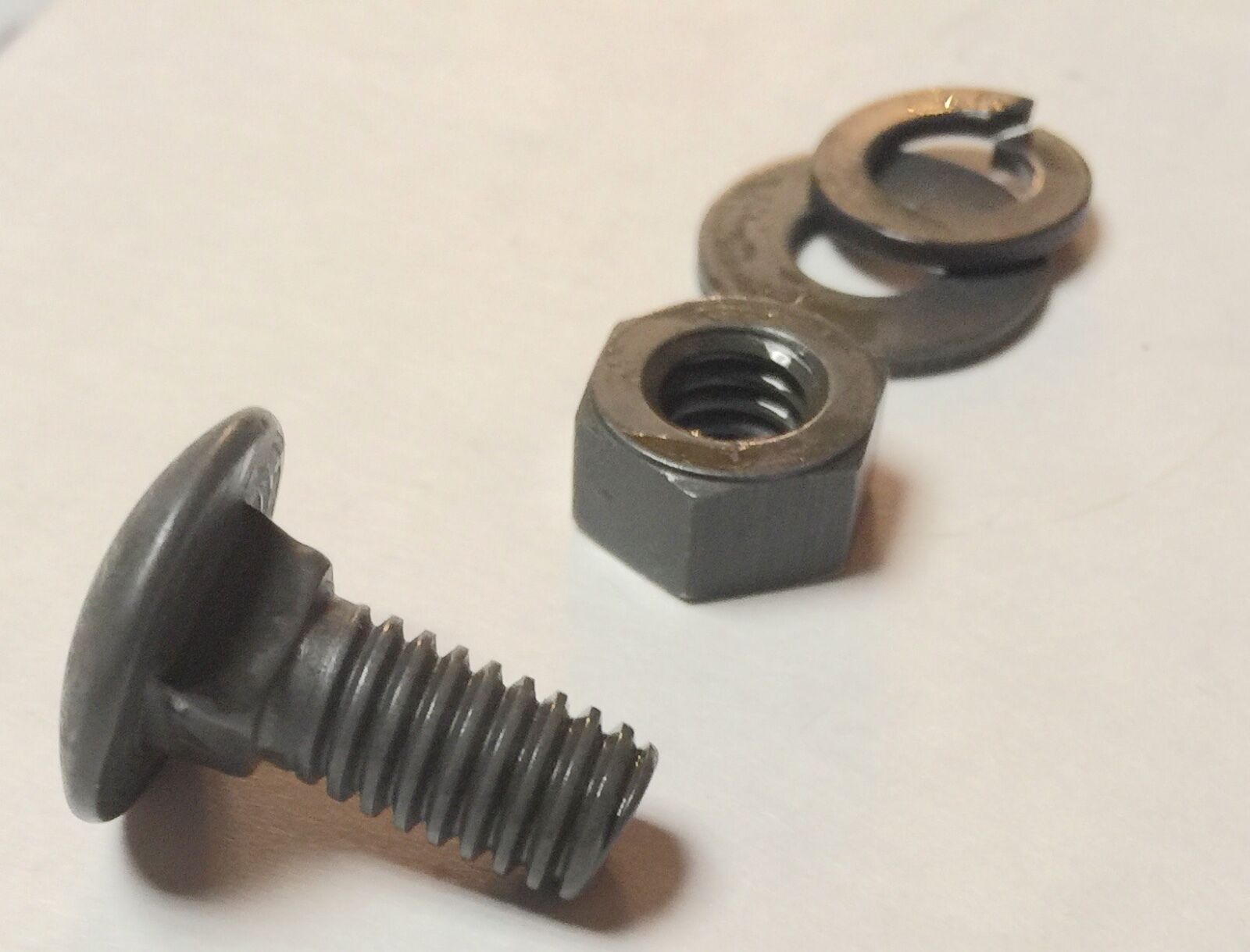

- 2 ea. 3743-23, Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 0111, Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 2 ea. 0214, Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 9 ea. 0259, 5/16” split lock washer, 5/16” x 9/16” x 1/16"
- 4 ea. 3748-36, Fender frame clamp bolts, 5/16”-24 N.F. x 1 1/32"
- 4 ea. 0215, Fender clamp flat washers 25/64” x 1” x 1/8"

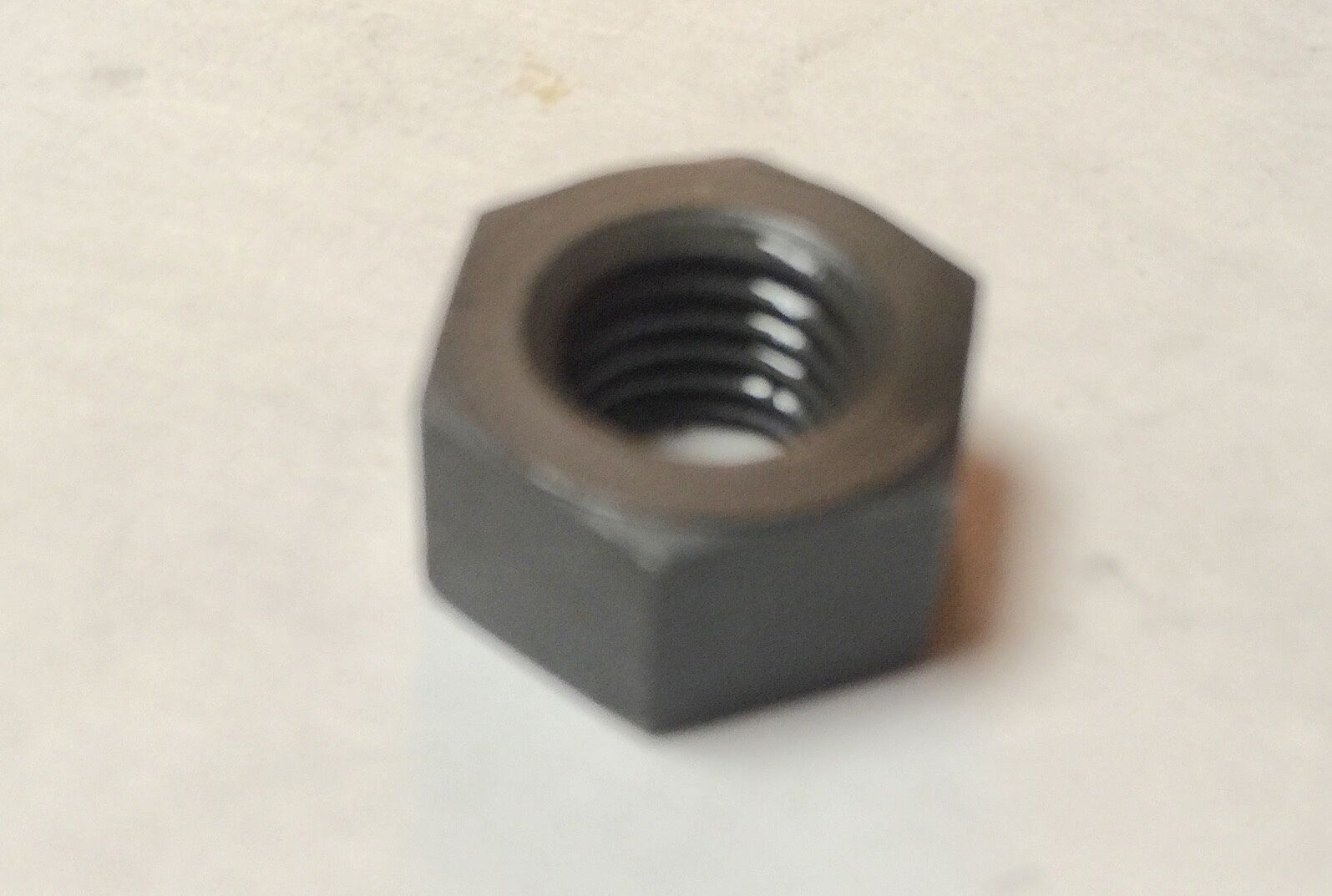

- 7 ea. 0117, Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

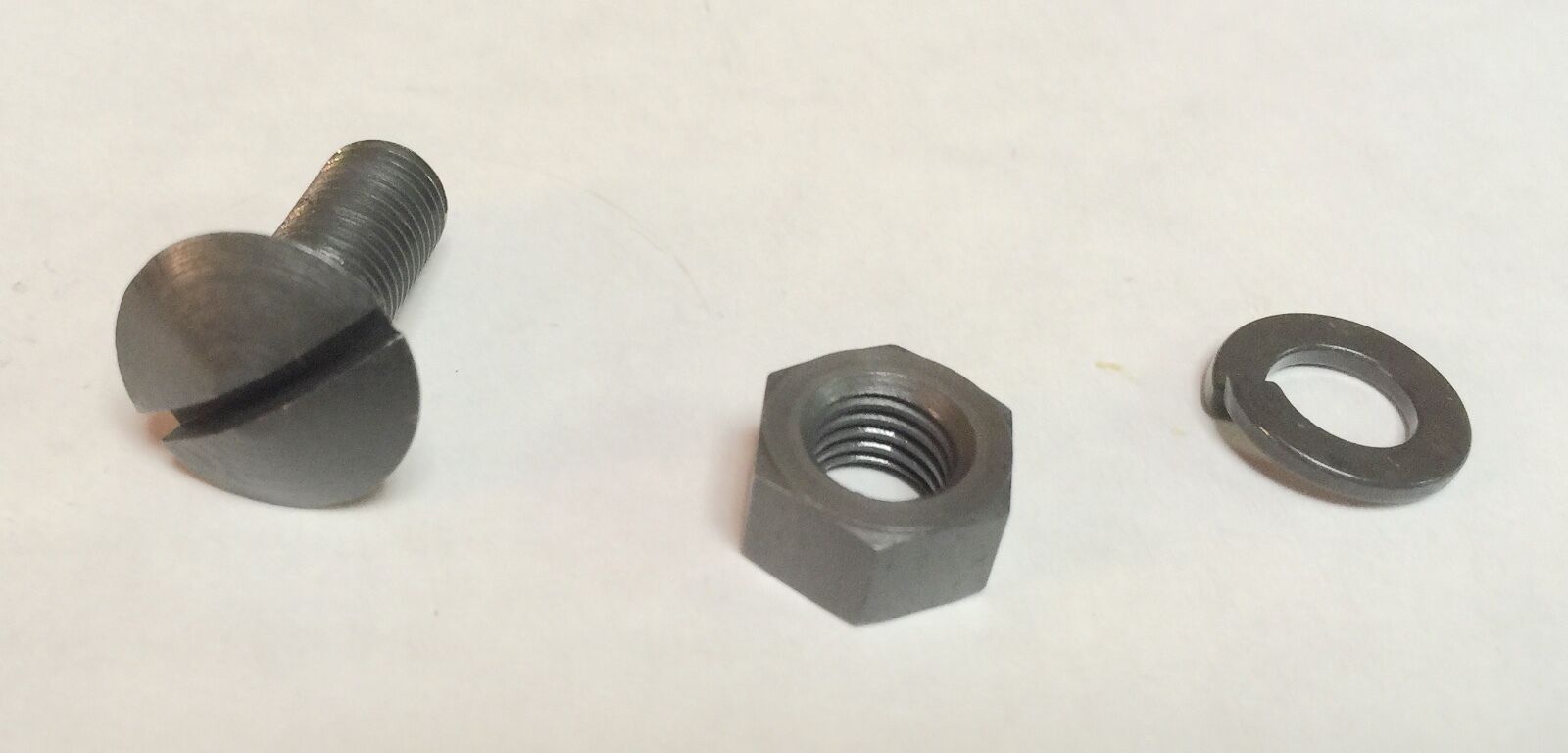

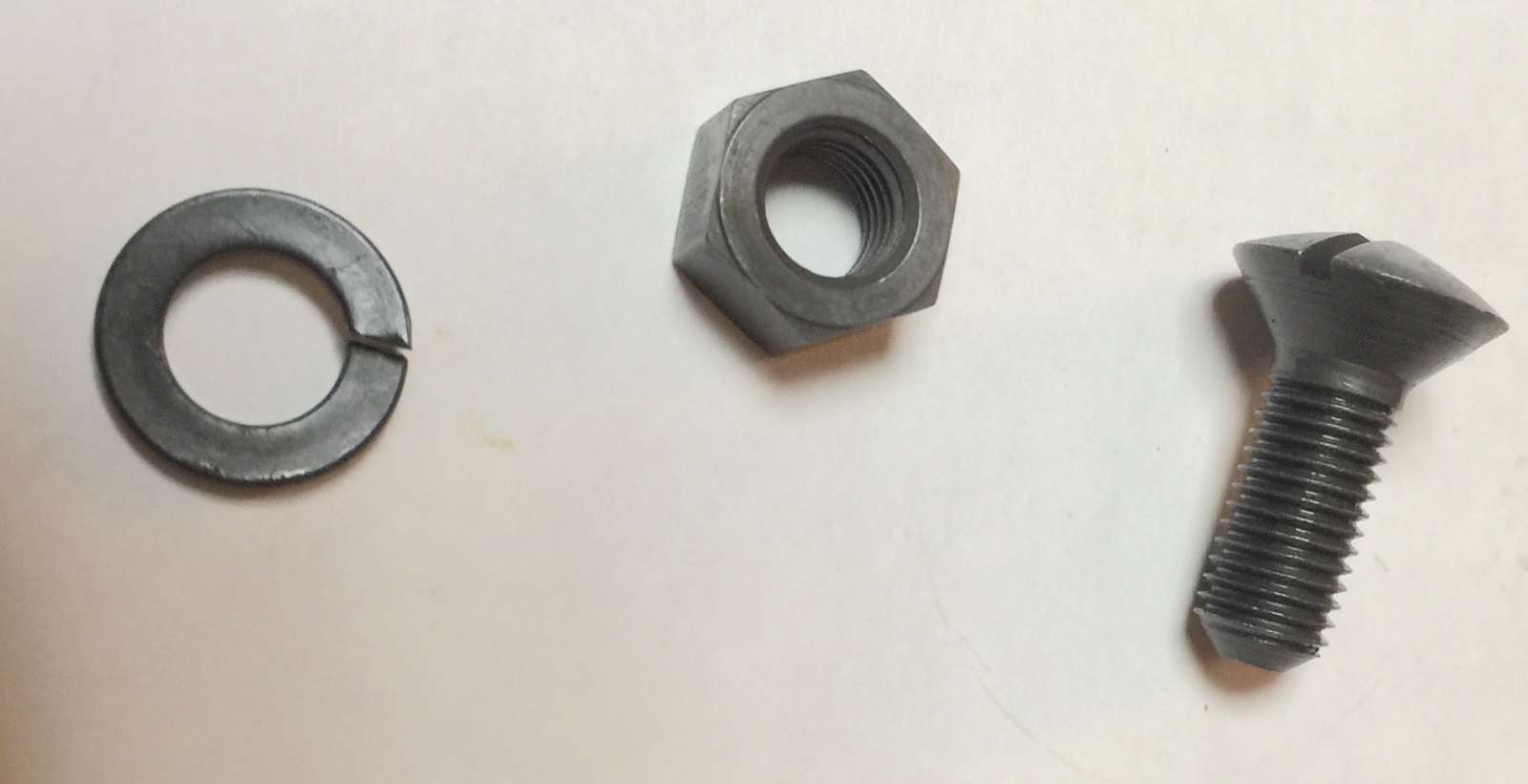

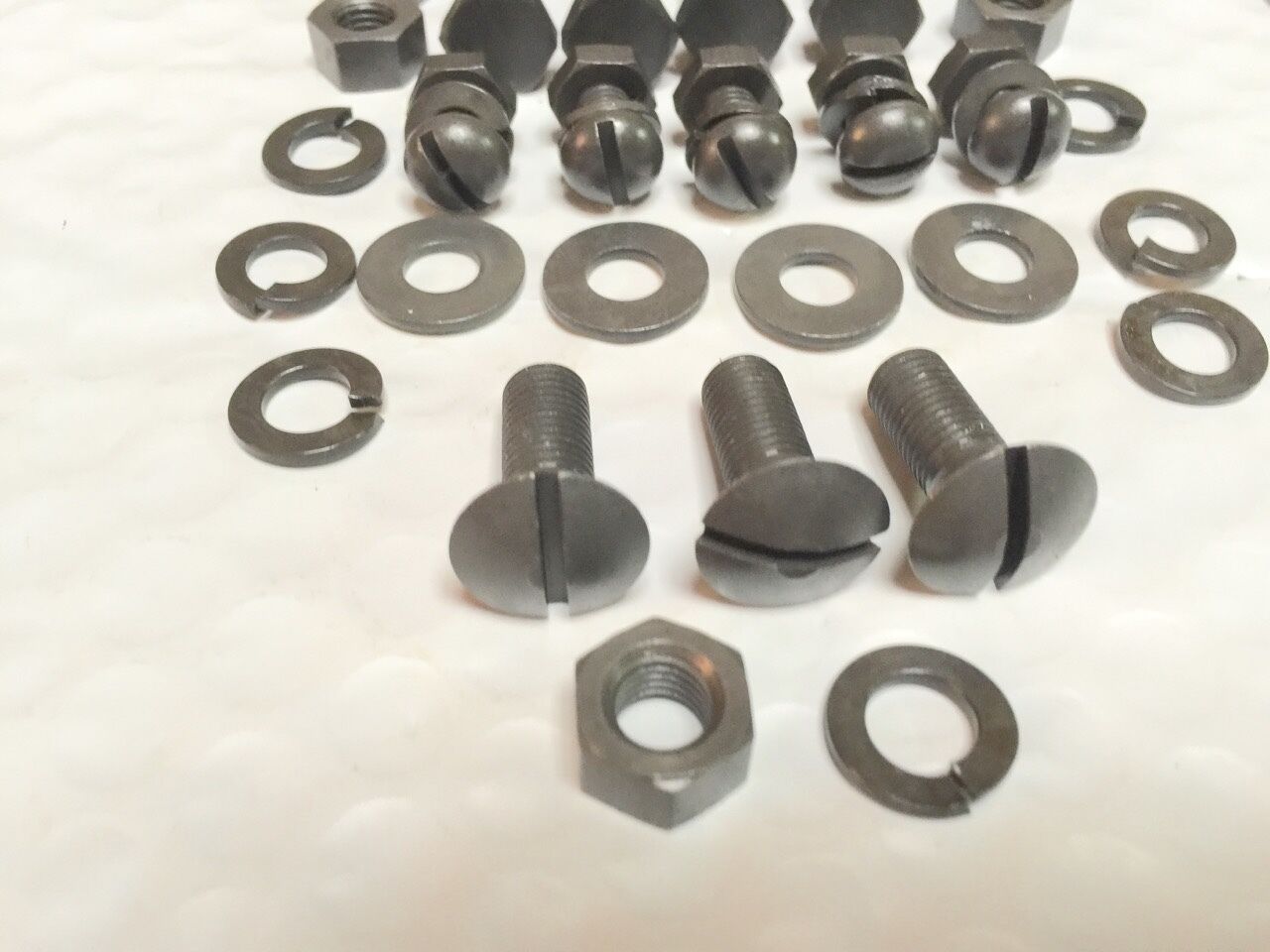

- 3 ea. 3749-30, Countersunk lower front fender mount screws (one mounts to frame two to rear oil tank bracket) 5/16”-24 N.F. x 27/32” Oval head countersunk screw
- 5 ea. 051, Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head
- 5 ea. 0256, Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 0108, Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
