Harley Knucklehead UL Rigid Rear Fender Mount Mounting Kit 1936-40 USA***

Harley Knucklehead UL Rigid Rear Fender Mount Mounting Kit 193640 USA***
  • Product Code: 292330006728
  • Availability: In Stock

  • $62.95


0 reviews / Write a review

You are buying a USA Made big twin rear fender mounting kit which is 100% detail correct for 1936 to 1940 rigid frame Harleys, includes Knucklehead, and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference.  As the bolt heads are plain head machined, and not cold-headed CP Chandler Products bolts, this kit is correct for your 1936 to 1942 or 1943 Knucklehead or UL.  What makes this 1936-1940- specific are the 3743-23 rear brace bolts.  Note they are not round head carriage bolts, they are machined flat top bolts which was correct for 1923-1940.  These bolts are machined identical to the process H-D used in their screw shop back in the 1930’s and 1940’s.

Also note, unlike other kits being sold on eBay, these have the correct 9/16" bolt head 1 1/32"

 The point at which the change over to CP bolts happened is subject to debate, but it is known that H-D turned over the production of their common fasteners to other vendors during WWII and bolts were made by Chandler products.

We do have the same fastener kit available with the rear fender frame clamps on another listing in our store.

All USA made parts.

Detail correct for the following:
  • 1936-1940 E, EL, 61” OHV Knucklehead
  • 1937-1940 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead

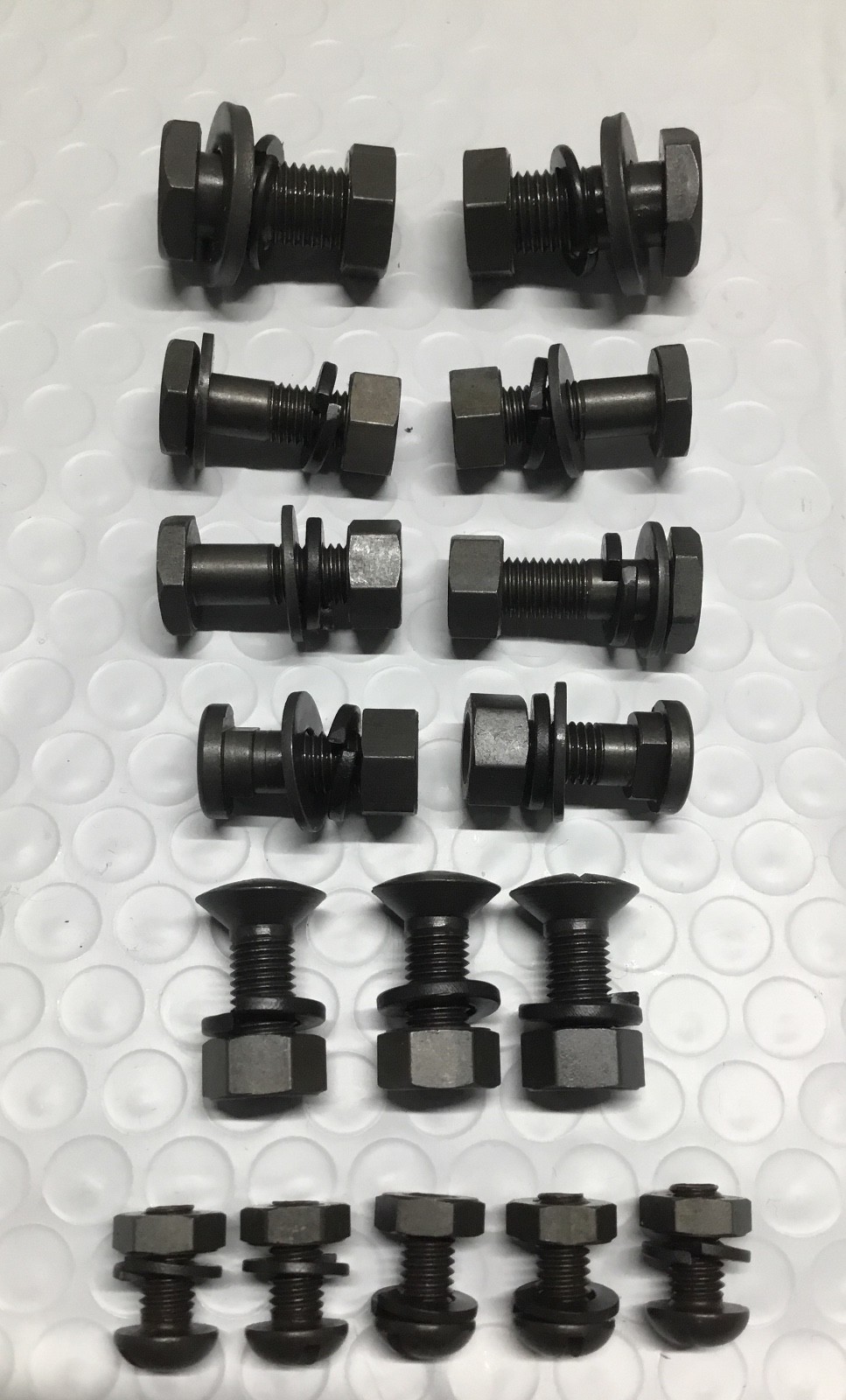

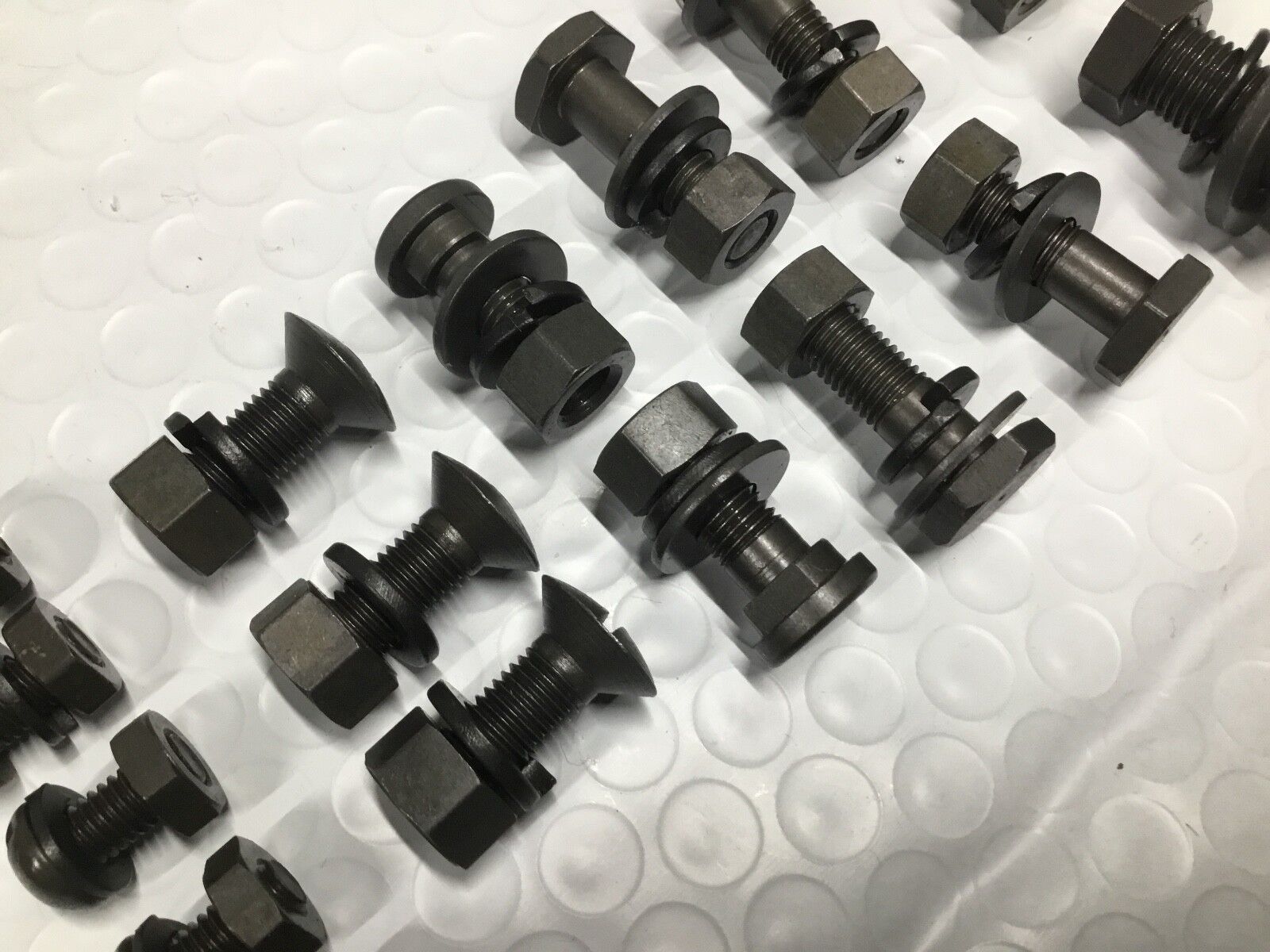

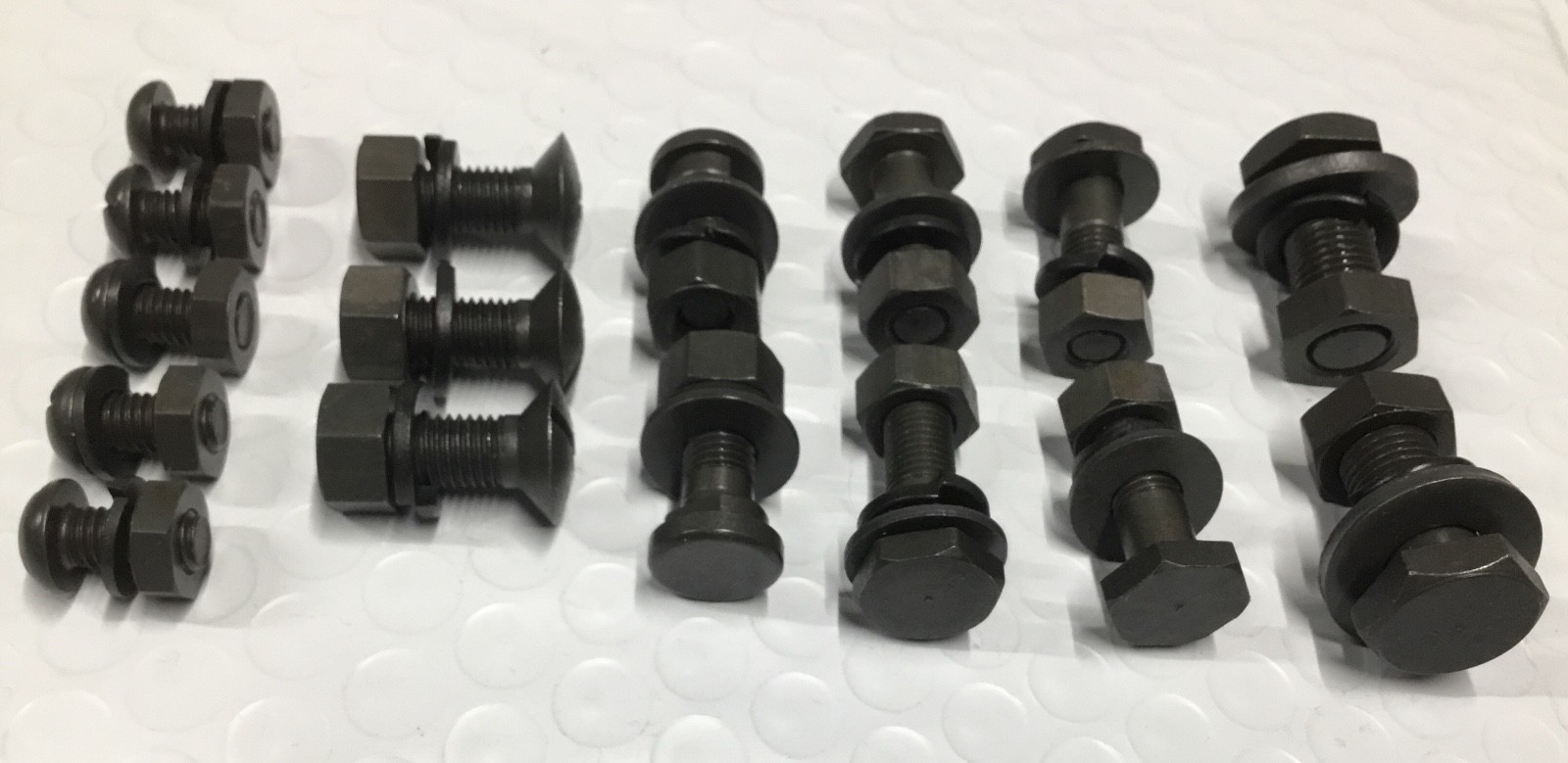

You get the following in this kit:
  • 2 ea. 2821-30, Rear fender brace bolt, 7/16”-20 N.F. x 1 5/16"

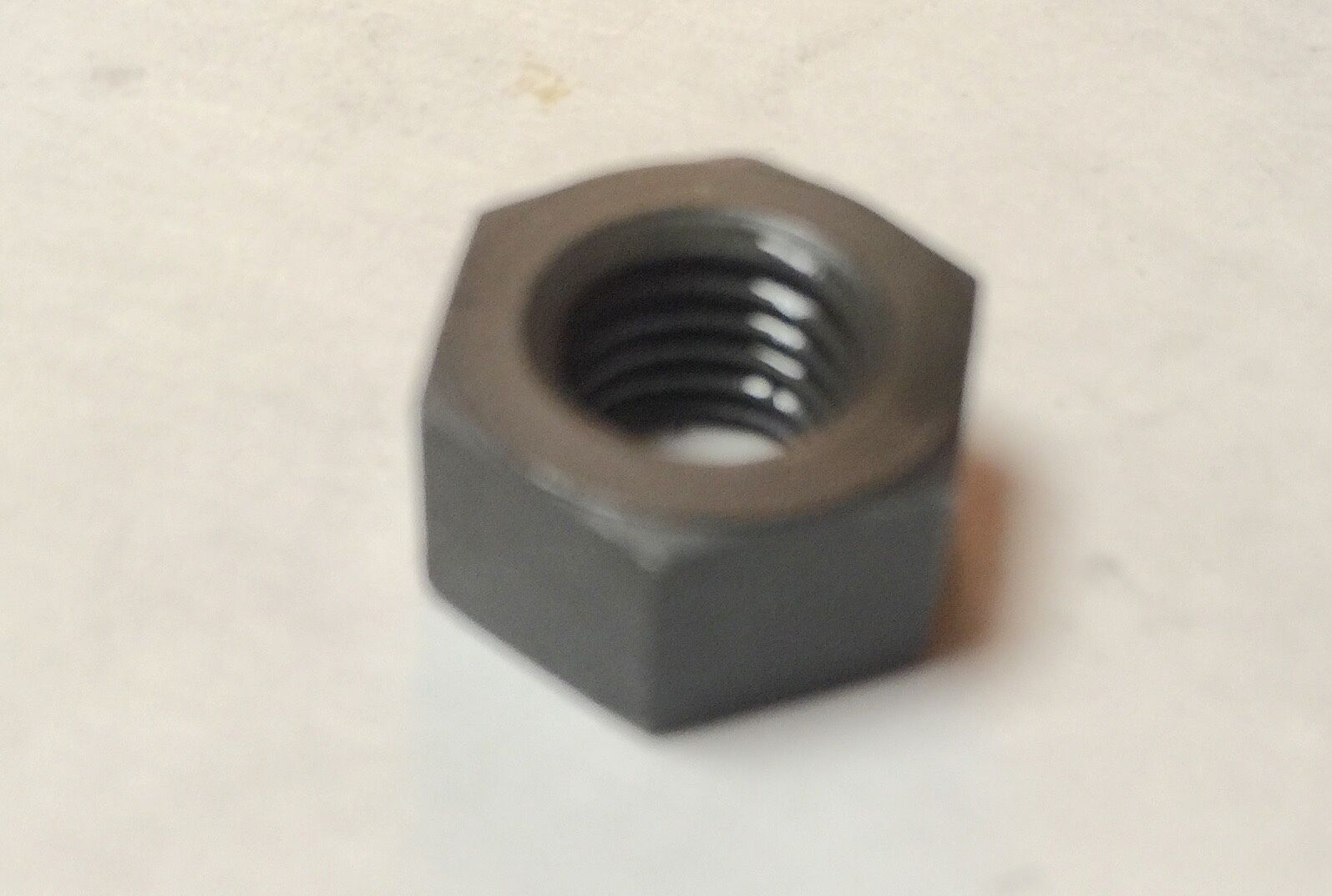

  • 2 ea. 0136, Rear fender brace nut, 7/16”-20 N.F. x 1/4” x 5/8"
  • 2 ea. 0230, Rear fender brace flat washer 7/16” x 15/16” x 1/8"
  • 2 ea. 0265, Rear fender brace split lock washer, 7/16” x 11/16” x 1/16"

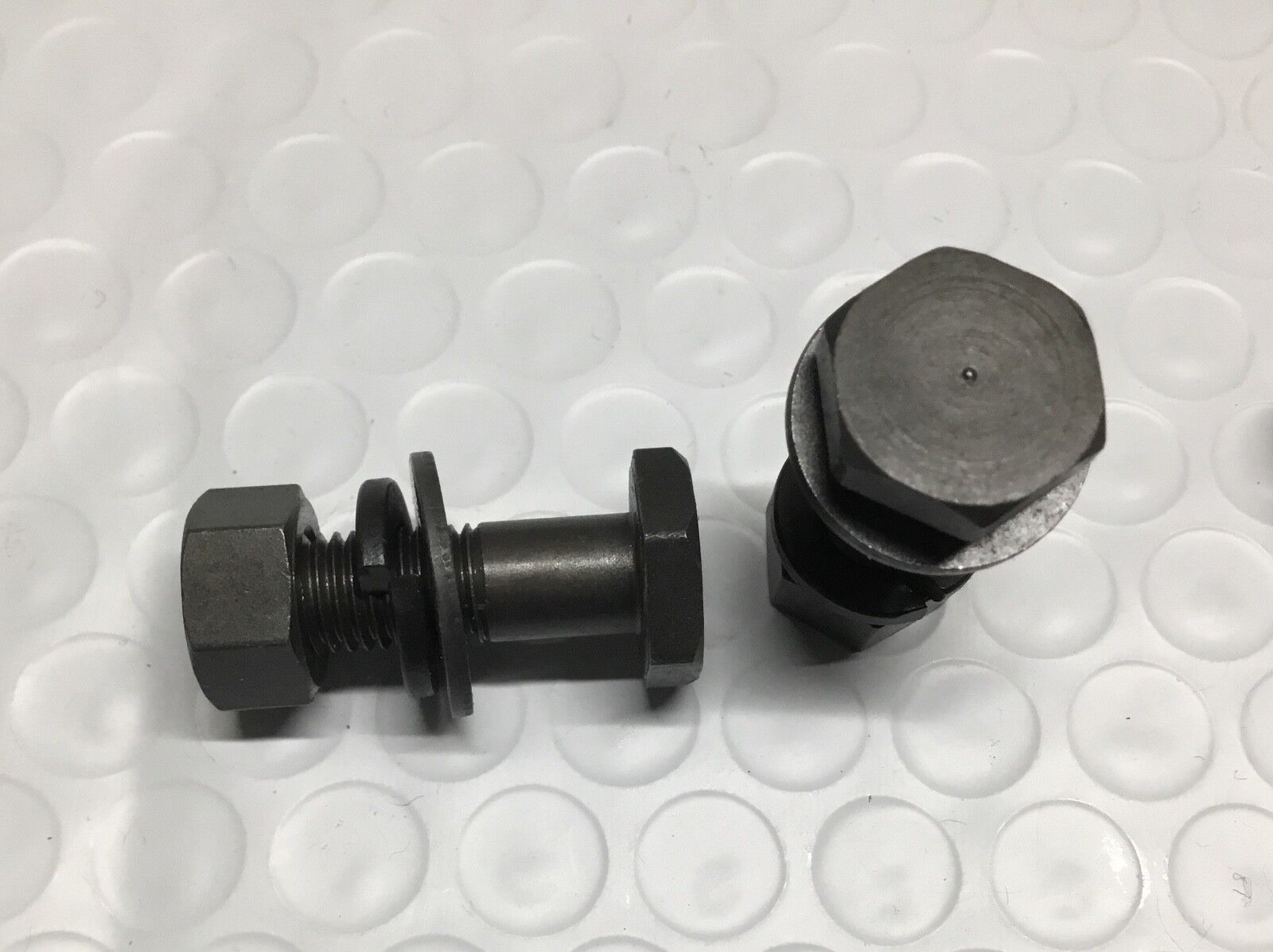

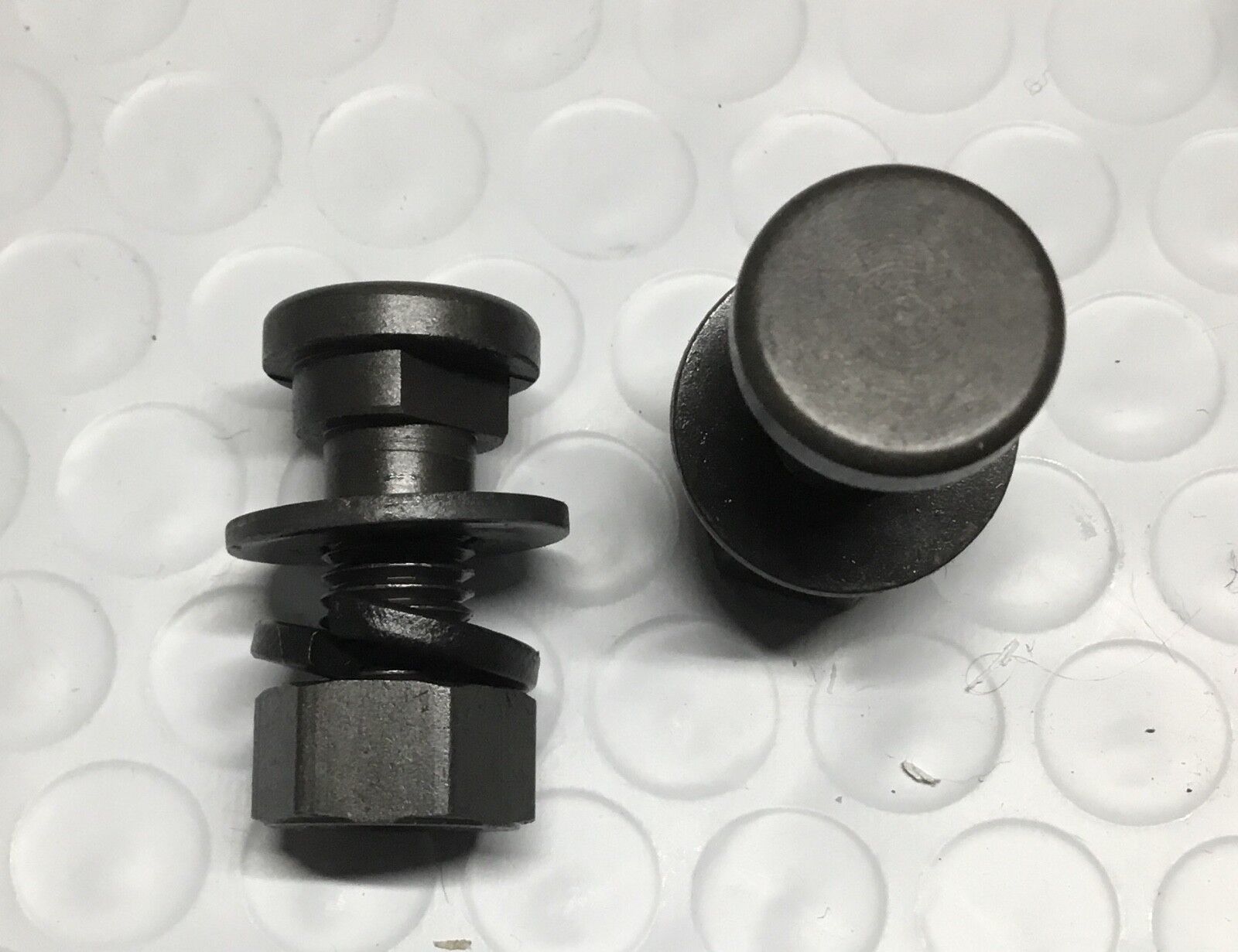

  • 2 ea. 3743-23, Brace bracket bolt 5/16”-24 N.F. x 3/4” flat top round machined bolt
  • 2 ea. 0117, Brace bracket nut, 5/16”-24 N.F. x 17/64 x 1/2"
  • 2 ea. 0214, Brace bracket flat washer 5/16” x 11/16” x 1/16”
  • 9 ea. 0259, 5/16” split lock washer, 5/16” x 9/16” x 1/16"
  • 4 ea. 3748-36, Fender frame clamp bolts, 5/16”-24 N.F. x 1 1/32"
  • 4 ea. 0215, Fender clamp flat washers 25/64” x 1” x 1/8"
  • 7 ea. 0117, Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

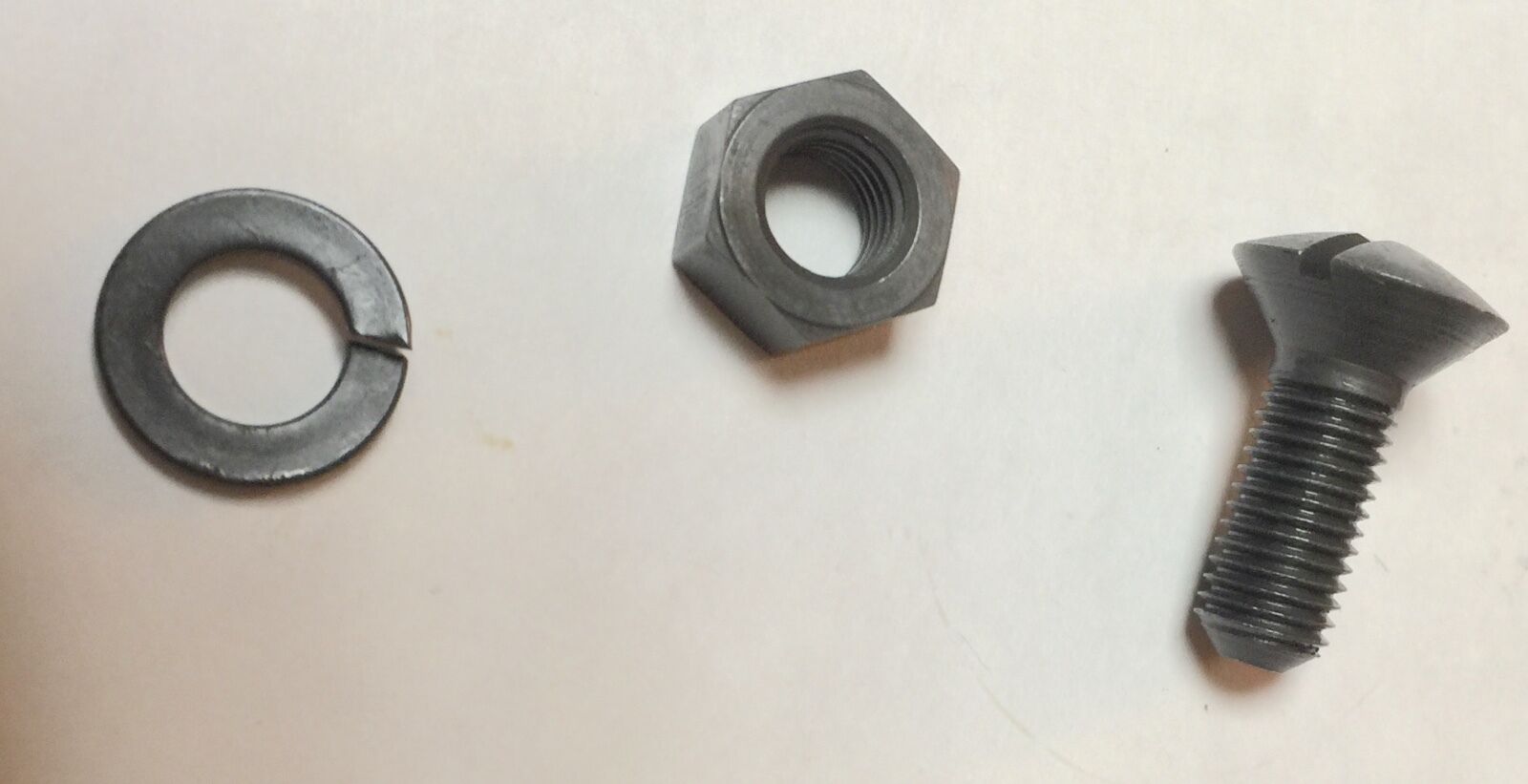

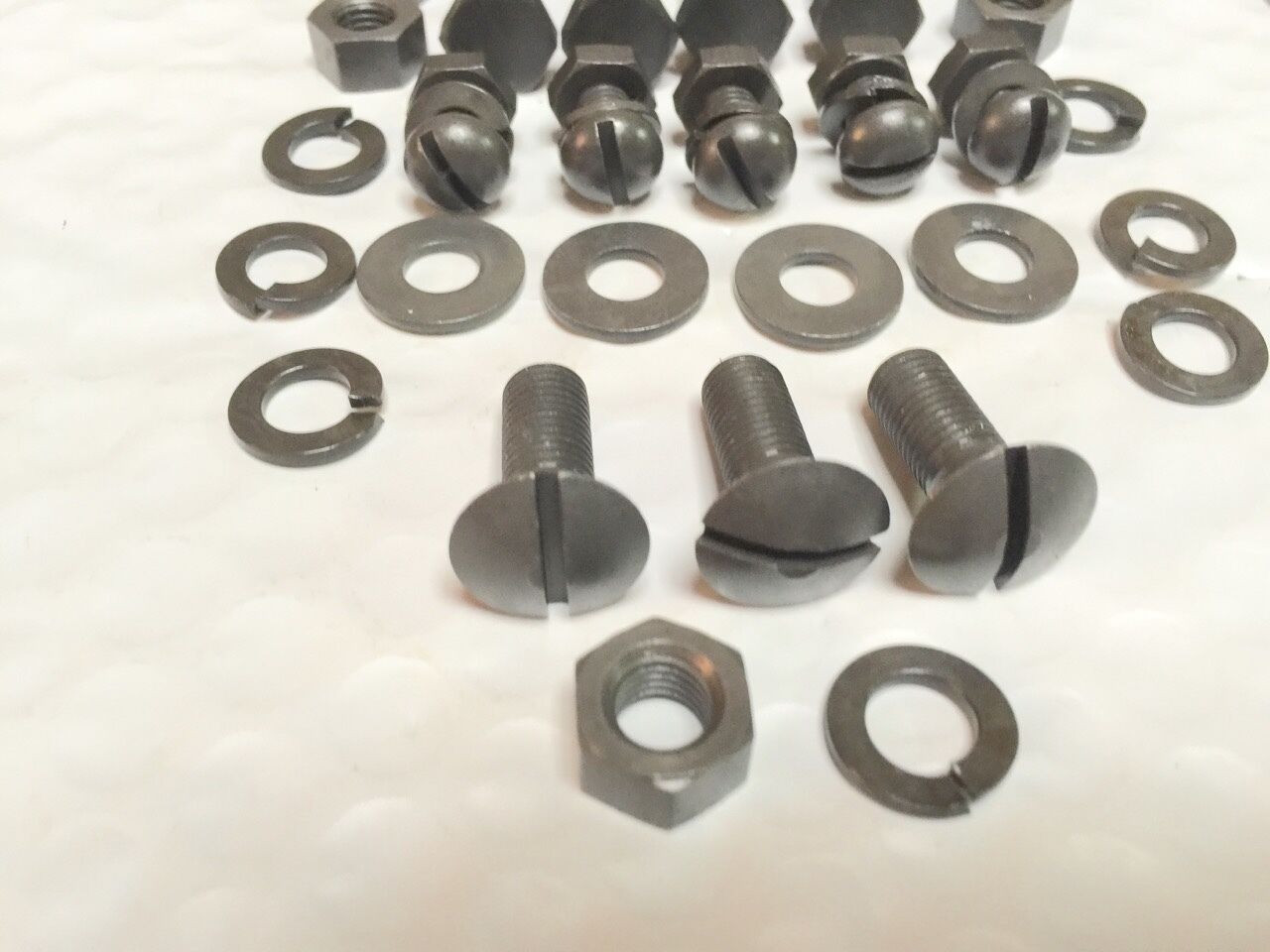

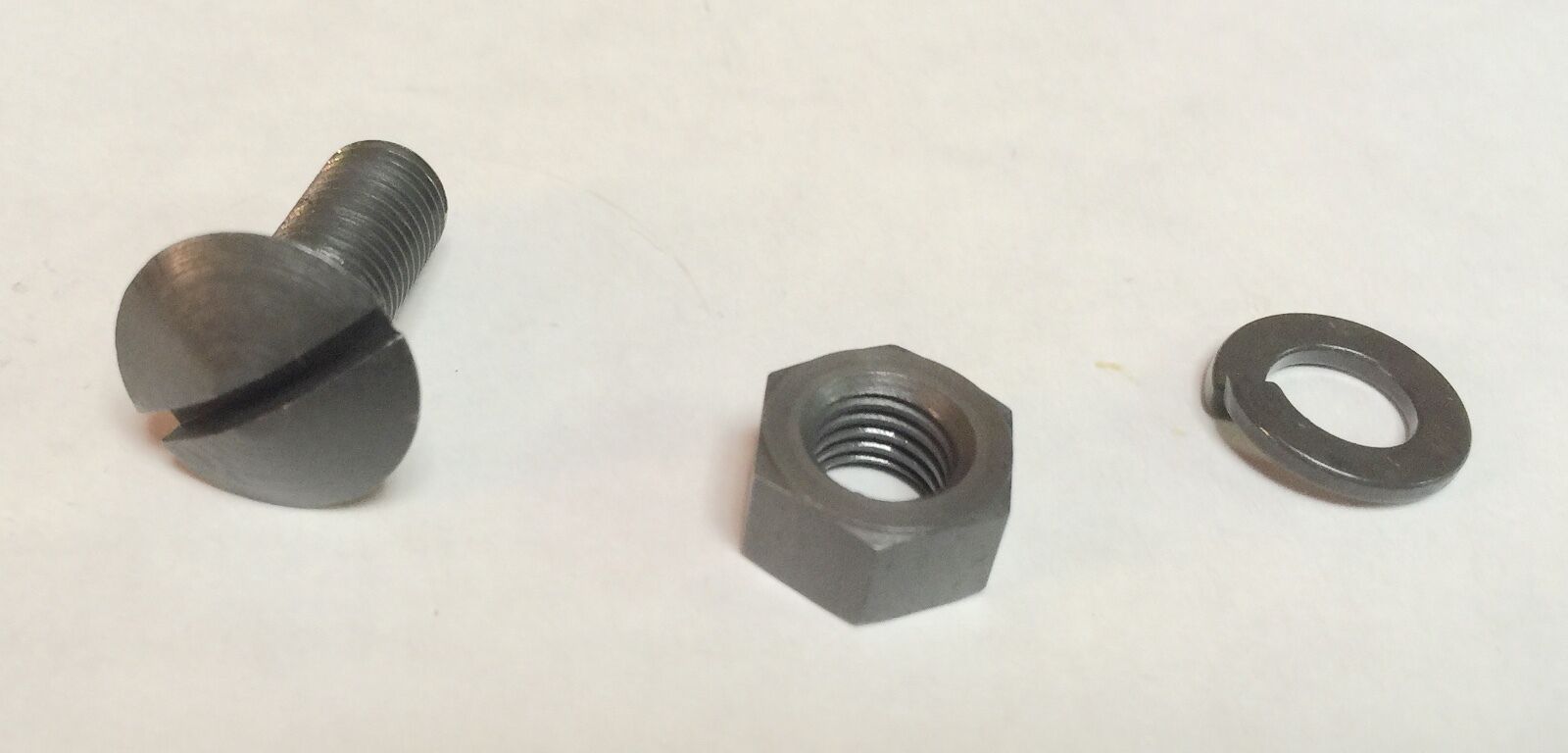

  • 3 ea. 3749-30, Countersunk lower front fender mount screws (one mounts to frame two to rear oil tank bracket) 5/16”-24 N.F. x 27/32” Oval head countersunk screw
  • 5 ea. 051, Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head
  • 5 ea. 0256, Split lock washer, 1/4” x 1/2” x 1/16"
  • 5 ea. 0108, Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
