Harley Knucklehead UL Rear Fender Mounting Kit W/ Brackets 36-40 USA
- Product Code: 351710639326
- Availability: In Stock
-
$86.95

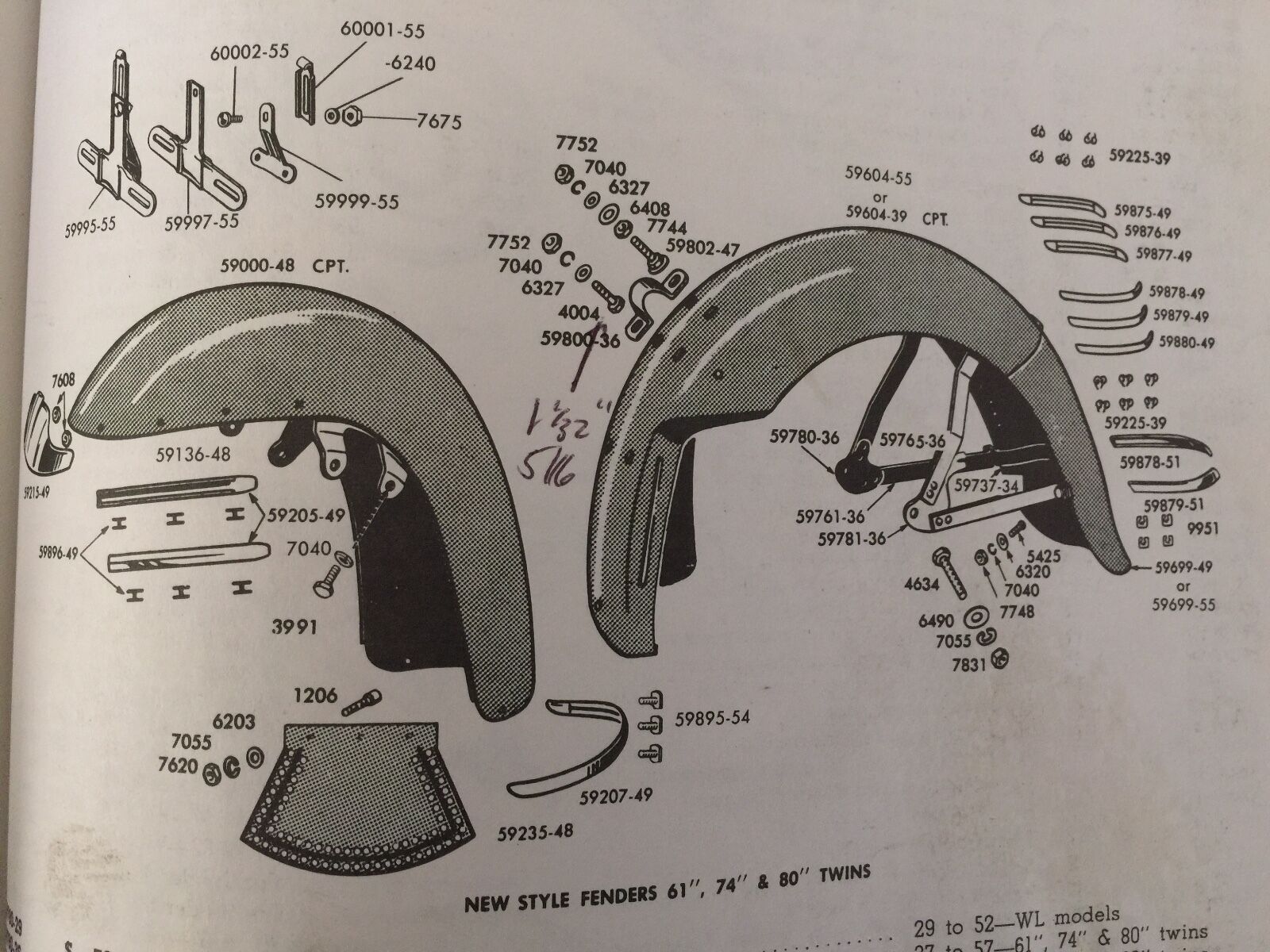

You are buying a big twin rear fender mounting kit including the 59800-36 (early# 3747-36) rear fender frame brackets for 1936 to 1940 rigid frame Harleys, includes Knucklehead and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference.
This kit includes all plain head machine cut parkerized bolts including the correct 1 1/32" long 5/16"-24 bolts with 9/16" heads and flat head rear flap bolts which were used from 1923-1940. From 1941 and up is when the round head carriage bolts first appeared, they don't belong on your 1936-40 model H-D!
This kit includes the 1 1/8” deep rear mount straps used from 1936 through 1954. We also sell rear fender mount kits for 1941 & 1942, CP-1035 bolt kits for 1943-1948, 1948-1957 rigid models as well as later swing arm models to 1981.
The brackets are restoration quality with the correct bends and off-sets to the saddle mounts.
All USA made parts.
Used on the following:
- 1936-1947 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead (Plain head bolts are correct for 1936 to some point in 1942 or 1943)
- 1937-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead (Plain head bolts are correct for 1937 to some point in 1942 or 1943)
- 1948-1954 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

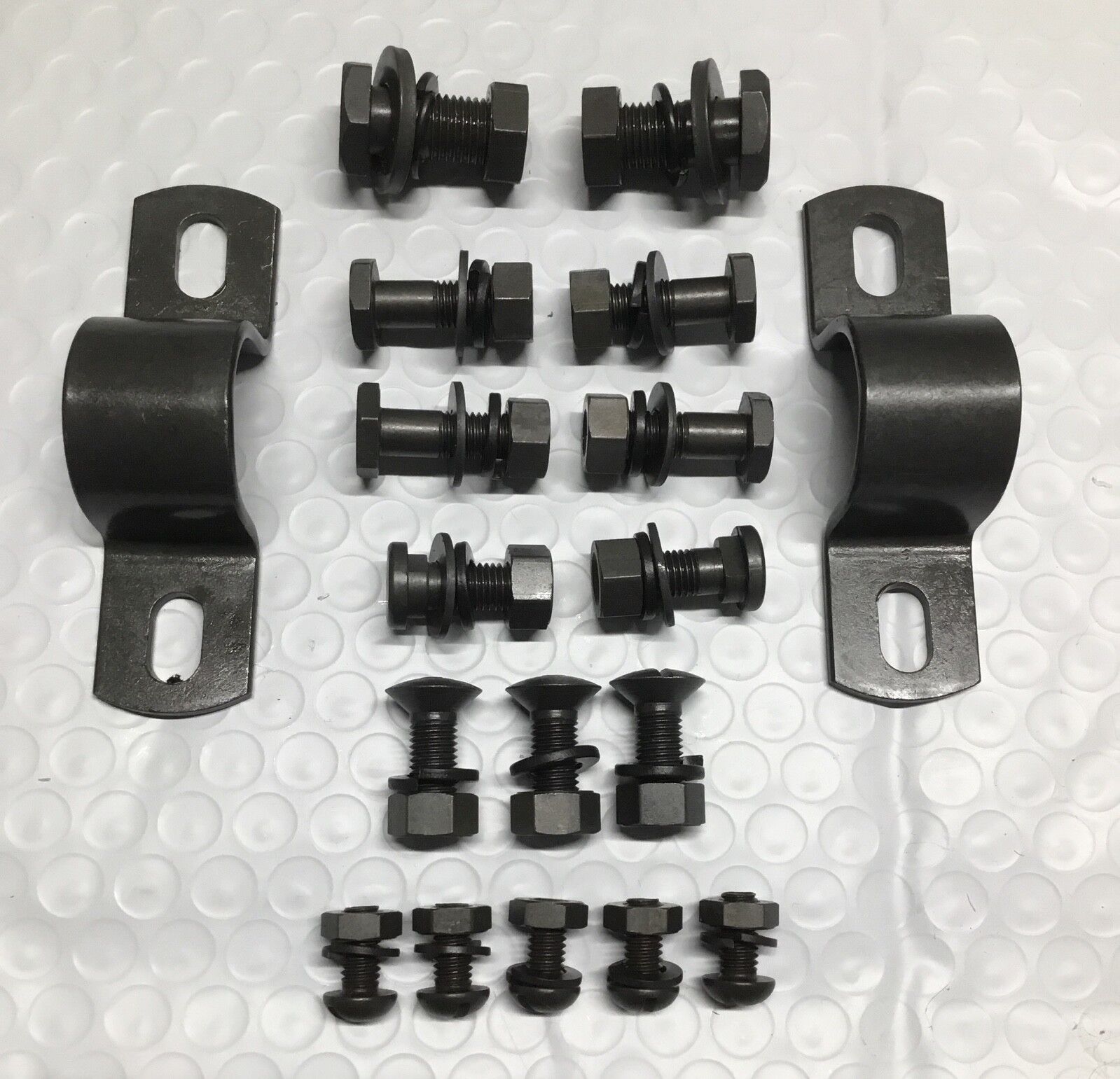

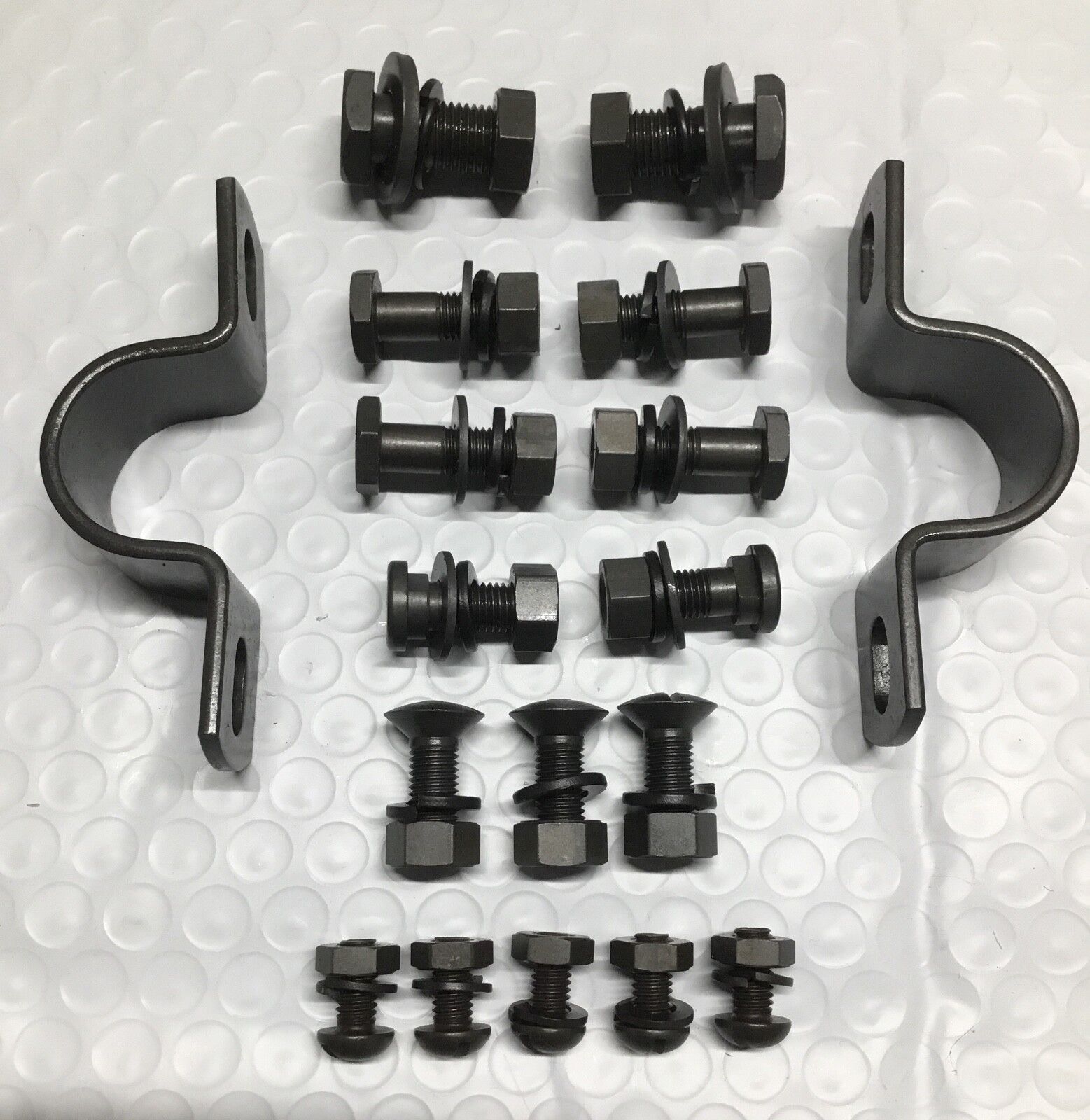

You get the following in this kit:

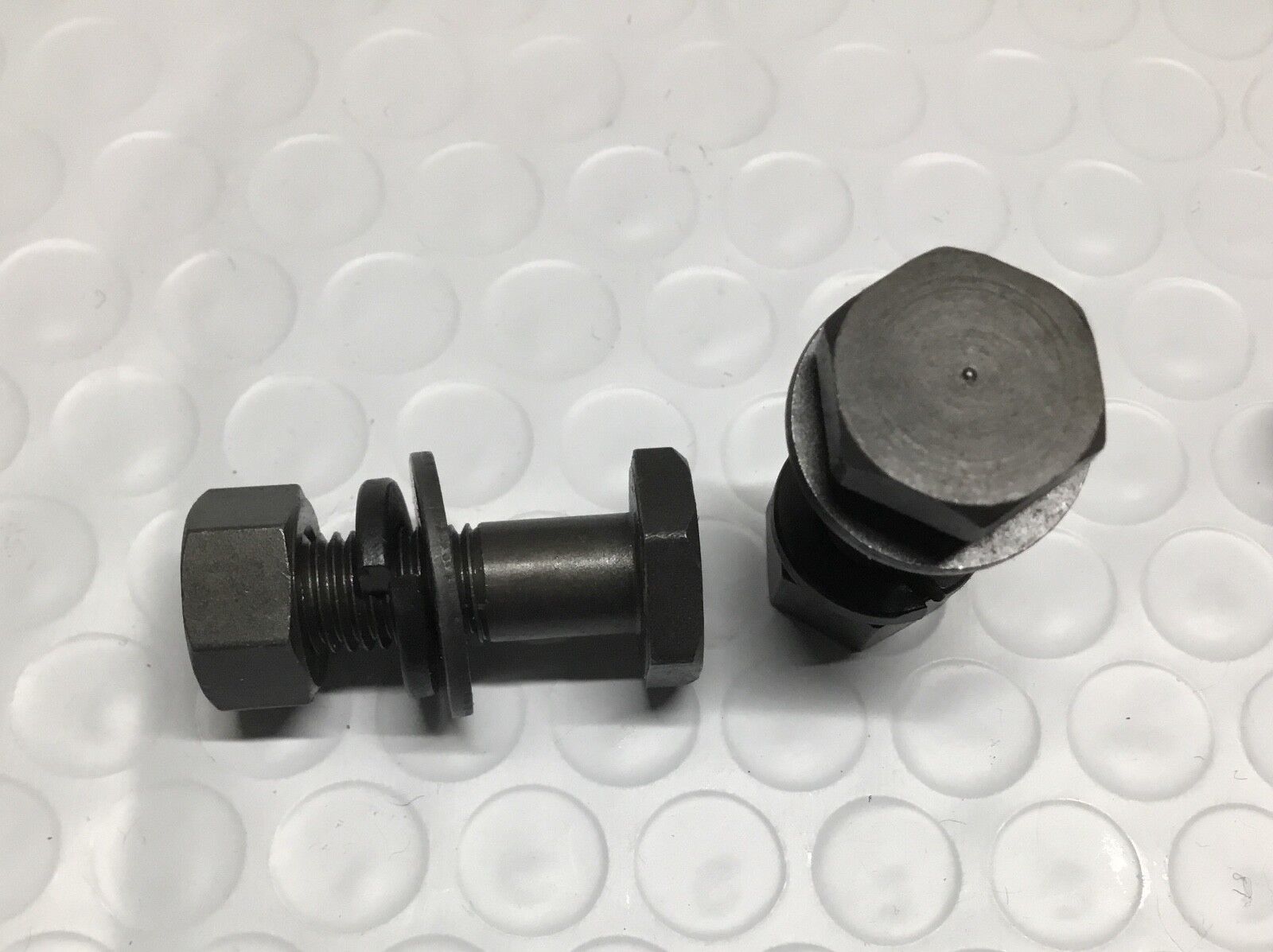

- 2 ea. 2821-30, Rear fender brace bolt, 7/16”-20 N.F. x 1 5/16"
- 2 ea. 0136, Rear fender brace nut, 7/16”-20 N.F. x 1/4” x 5/8"
- 2 ea. 0230, Rear fender brace flat washer 7/16” x 15/16” x 1/8"
- 2 ea. 0265, Rear fender brace split lock washer, 7/16” x 11/16” x 1/16"

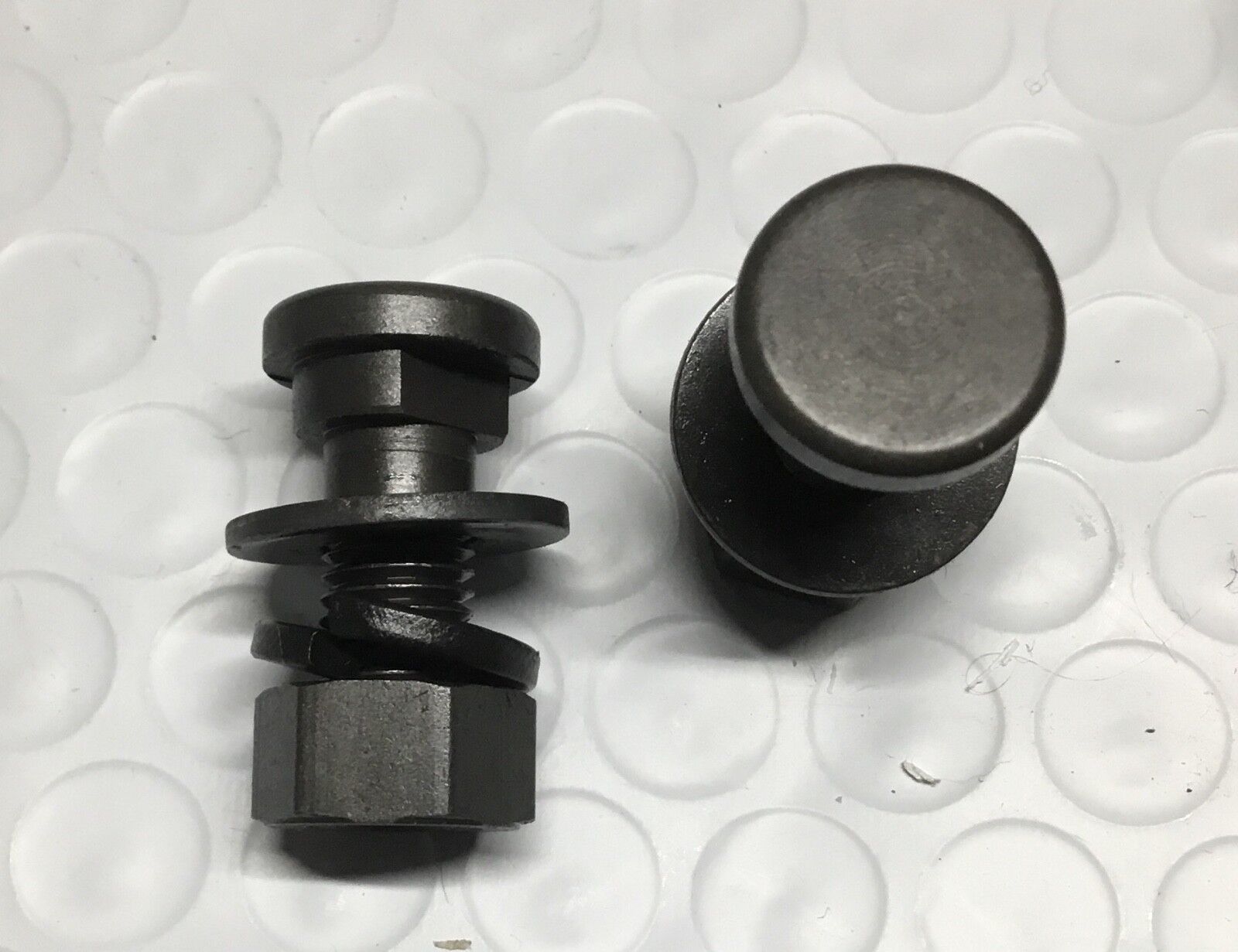

- 2 ea. 3743-23, Brace bracket flat head bolt 5/16”-18 N.C. x 3/4” flat head bolt
- 2 ea. 0111, Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 2 ea. 0214, Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 2 ea. 3747-36, Rear fender frame mount brackets
- 9 ea. 0259, 5/16” split lock washer, 5/16” x 9/16” x 1/16"
- 4 ea. 3748-36, Fender frame clamp bolts, 5/16”-24 N.F. x 1 1/32"
- 4 ea. 0215, Fender clamp flat washers 25/64” x 1” x 1/8"

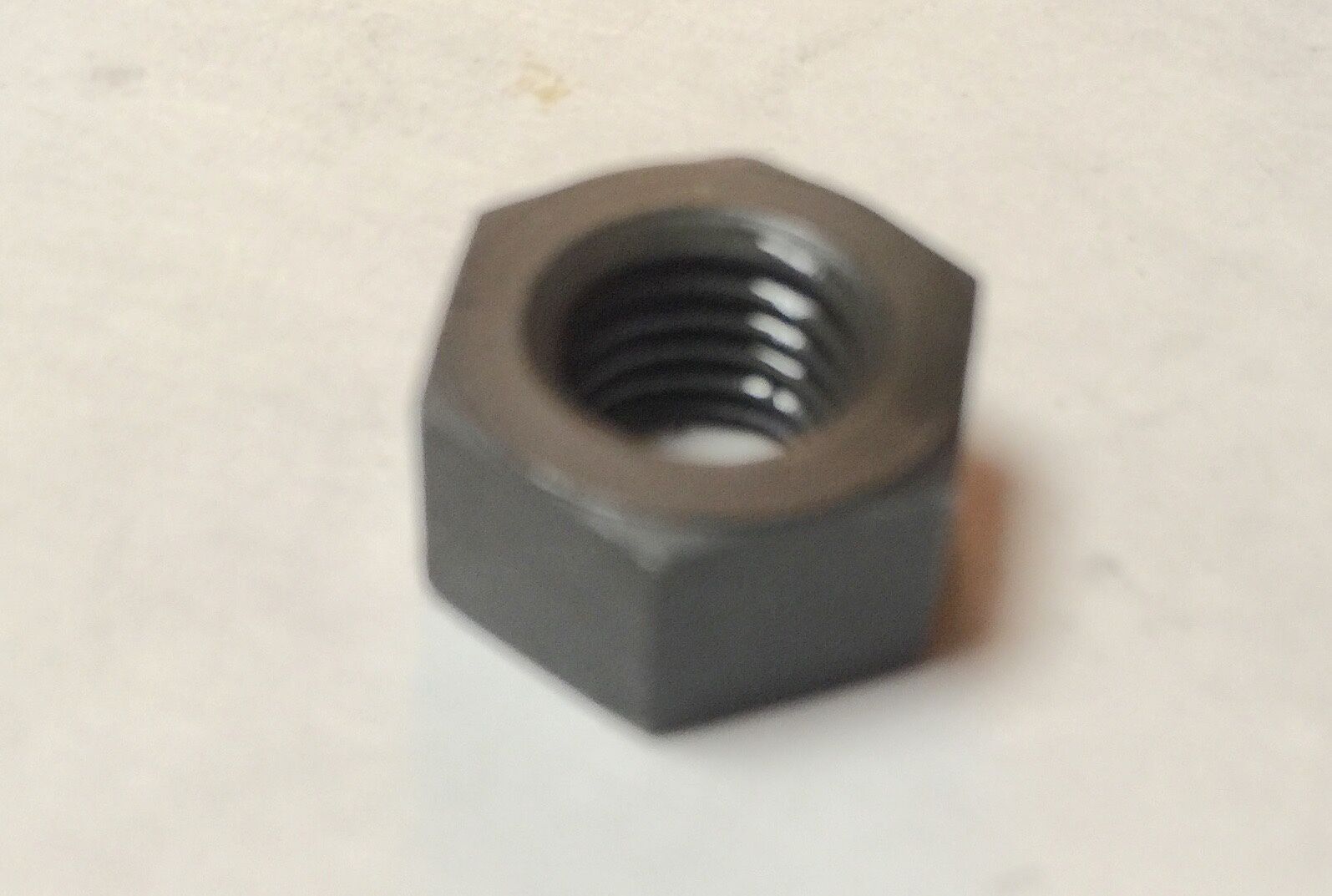

- 7 ea. 0117, Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

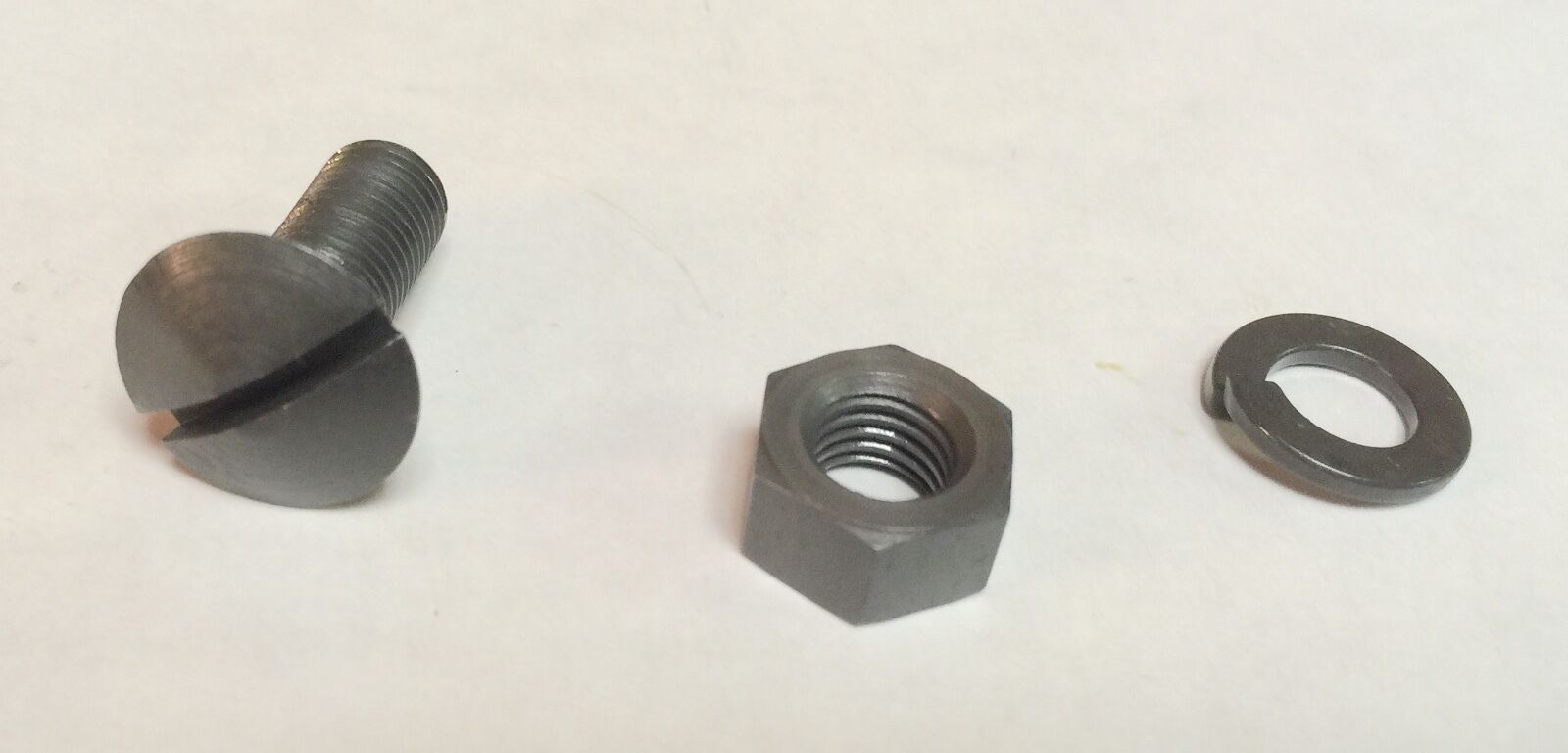

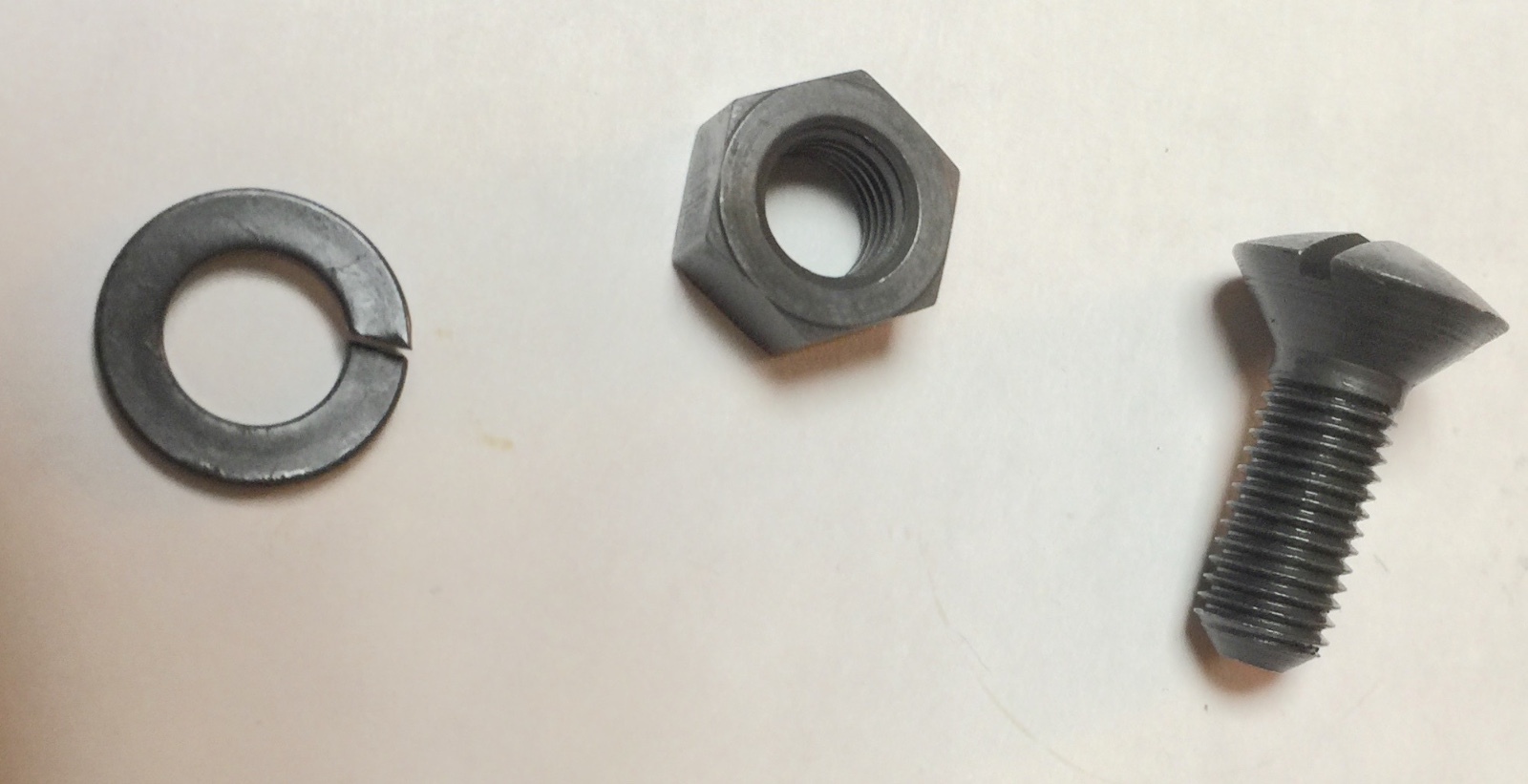

- 3 ea. 3749-30, Countersunk lower front fender mount screws (one mounts to frame two to rear oil tank bracket) 5/16”-24 N.F. x 27/32” Oval head countersunk screw
- 5 ea. 051, Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head
- 5 ea. 0256, Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 0108, Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
