Harley Knucklehead UL Panhead Rear Fender Mounting Kit W/ Brackets 42-48 CP-1035
- Product Code: 292000684769
- Availability: In Stock
-
$86.95

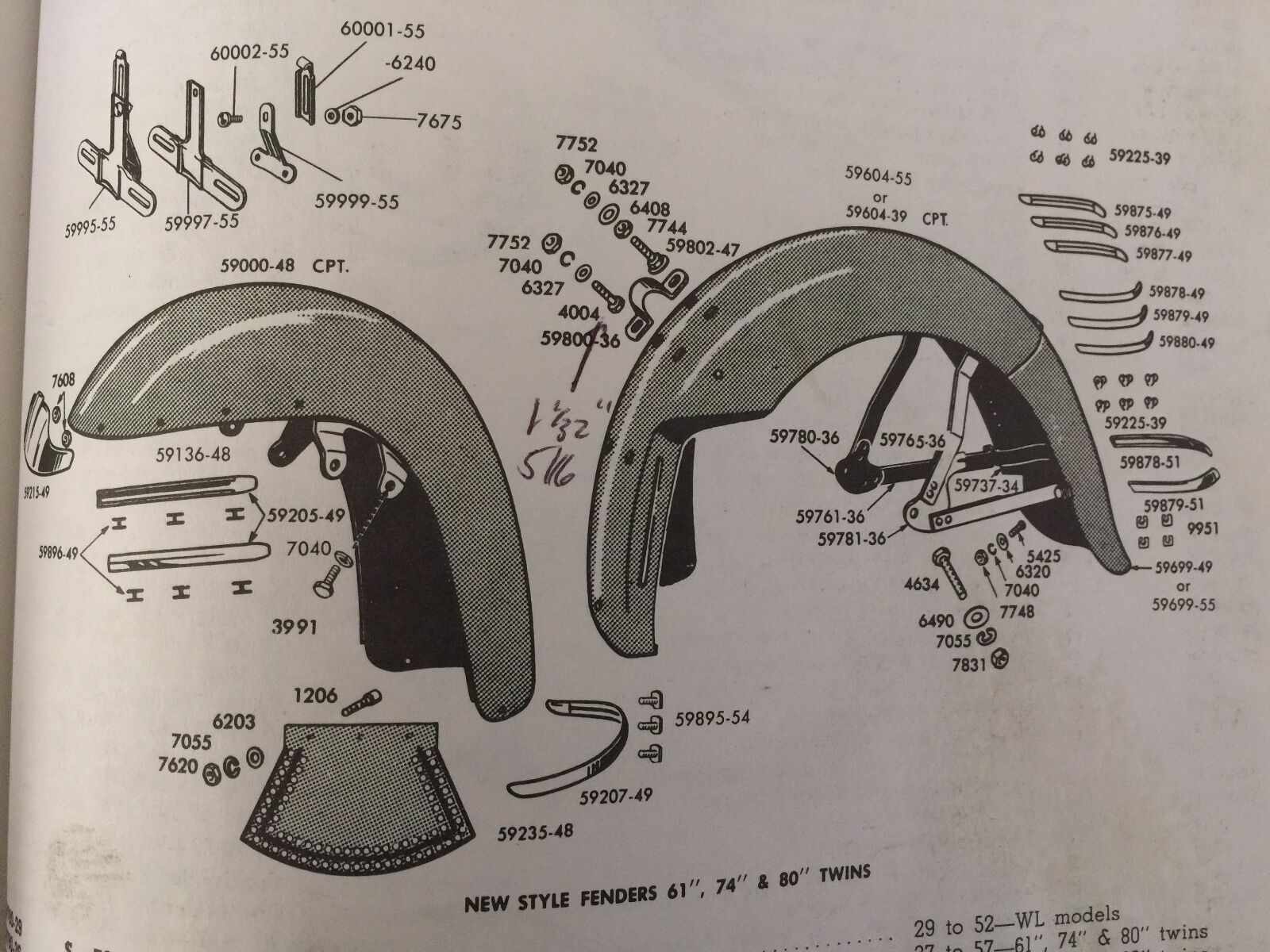

You are buying a big twin rear fender mounting kit including the 59800-36 (early# 3747-36) rear fender frame brackets for 1936 to 1954 rigid frame Harleys, includes Knucklehead, Panhead, and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference.

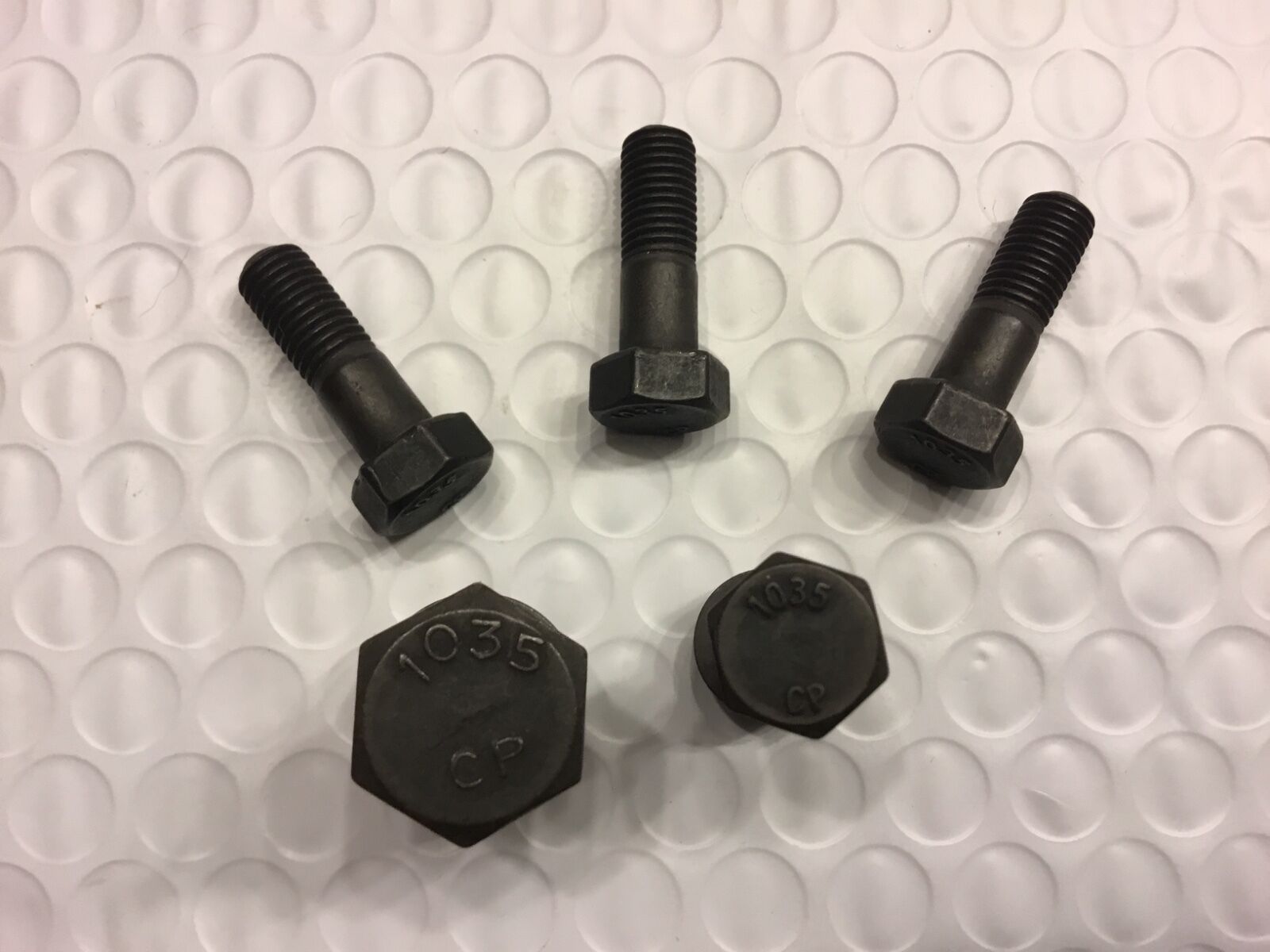

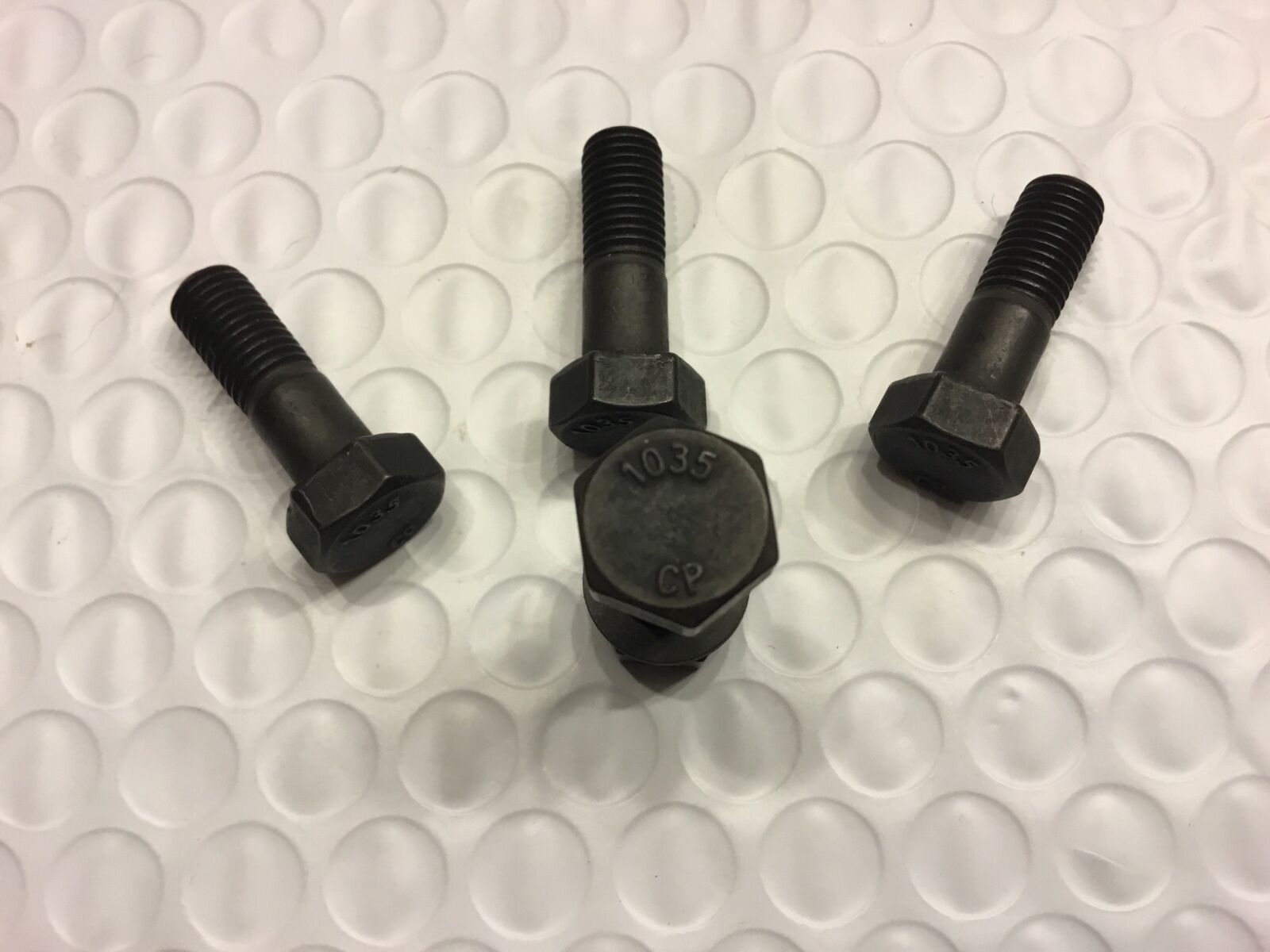

All hex head bolts in this have cold stamped CP-1035 head which makes this detail-correct for rougly late 1942 to 1947 or 1948 though it's entirely possible you would see a mix of CP-1035 and CP-1038 bolts into the early 1950's though common wisdom or urban legend says 5/16" bolts from 1949 forward were CP-1038.
This kit includes the 1 1/8” deep rear mount straps used from 1936 through 1954. If you are building a ’55 to ’57, the straight leg Panhead frame used the 1 1/4” deep straps or brackets which we have on another listing just like this and just by themselves. Some custom frames also use the deeper brackets.
The brackets are restoration quality with the correct bends and off-sets to the saddle mounts.
Please check our store for many more hard to find hardware kits for your Knucklehead. We are offering more and more kits with CP-1035 bolts on a weekly basis.
All USA made parts.
Can be used on all 1936-1957 rigid frame Harley-Davidson twins but is detail-correct for the following:
- 1942-1947 E, EL, ELA, ELC, F, FL 61” & 74” OHV Knucklehead
- 1942-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead
- 1948 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

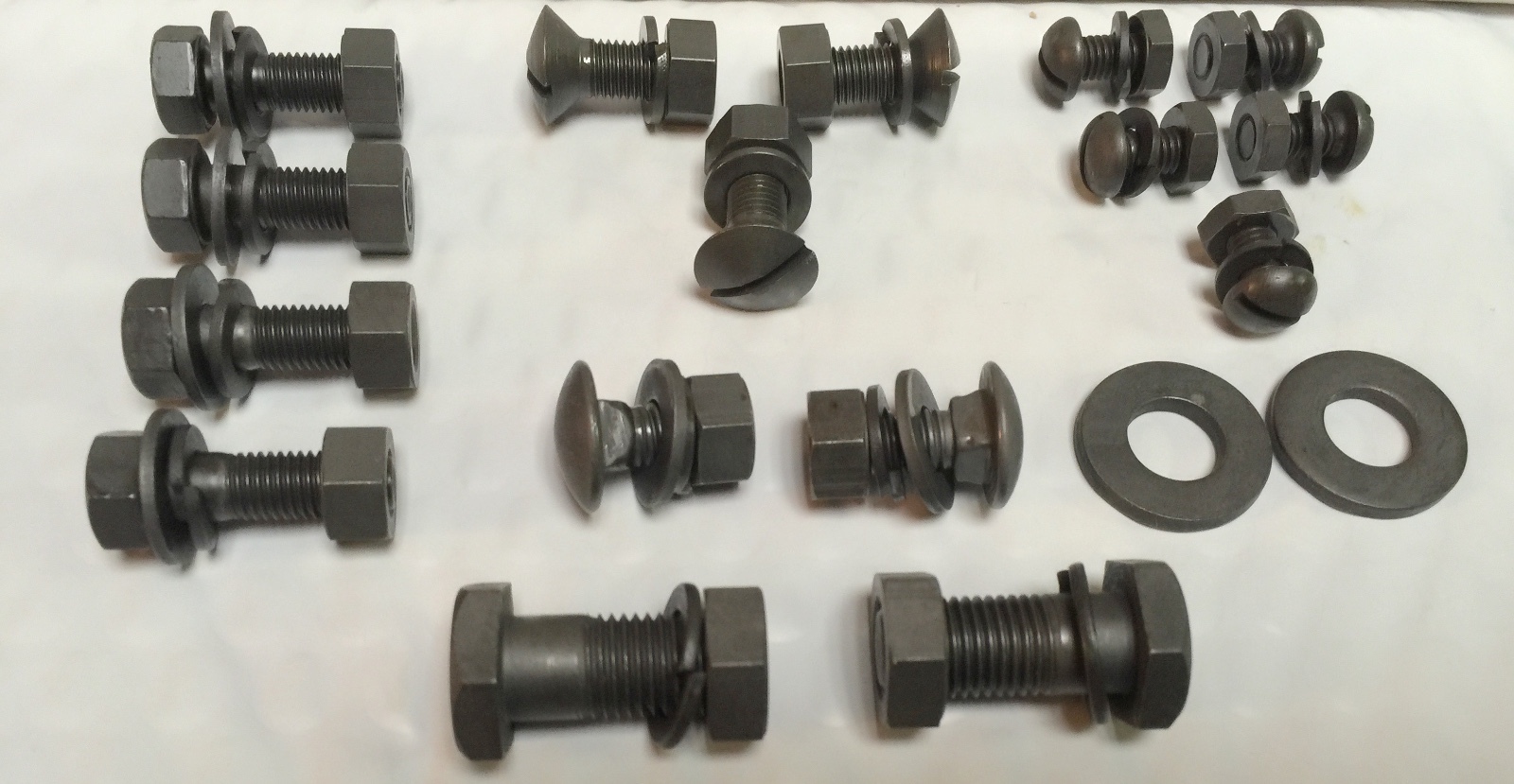

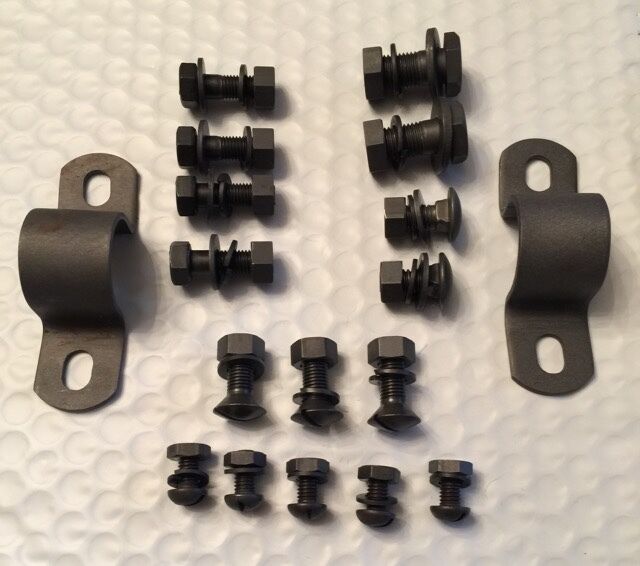

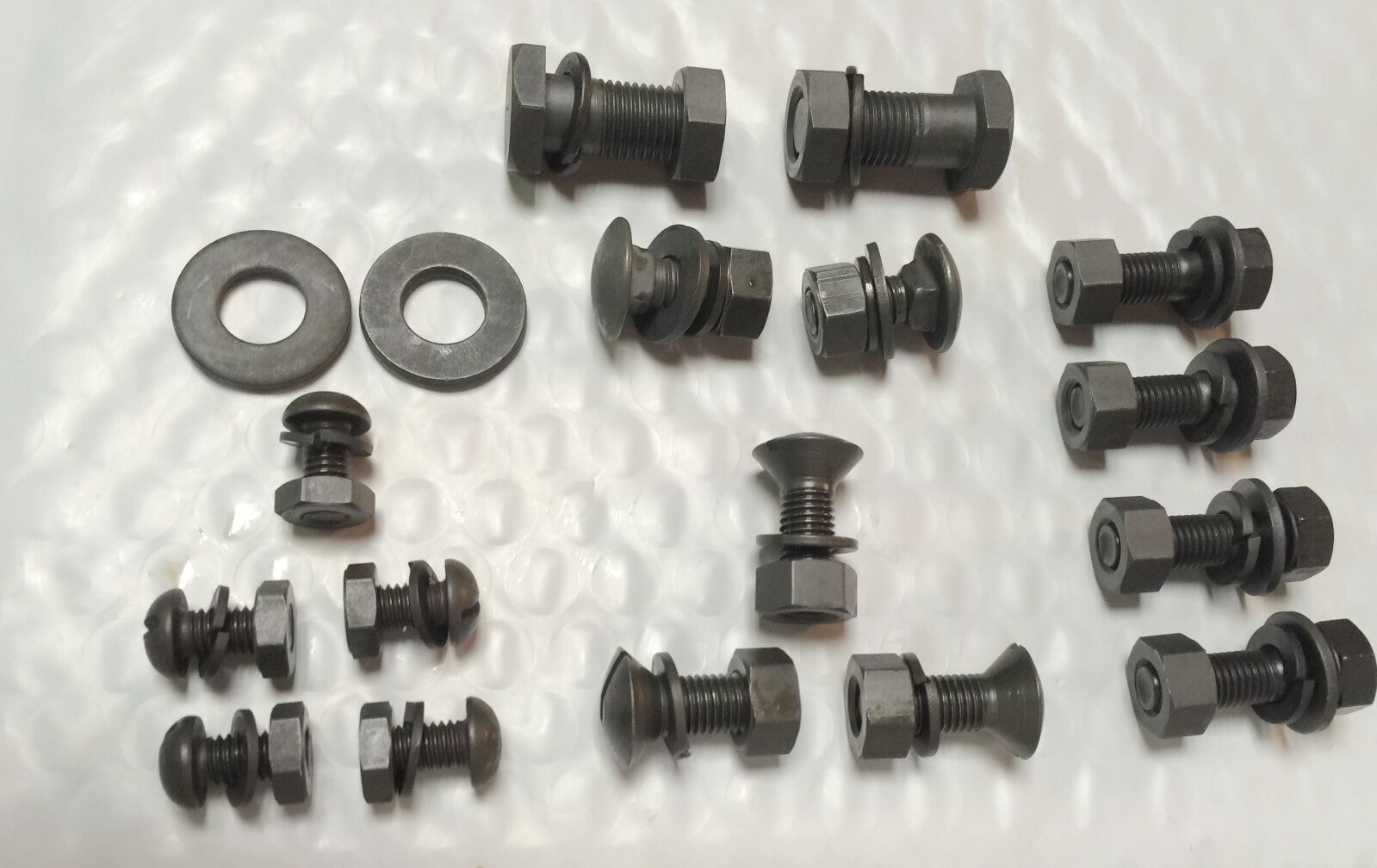

You get the following in this kit:
- 2 ea. 2821-30 (late 4634) Rear fender brace bolt, 7/16”-20 N.F. x 1 5/16” (stamped CP-1035)

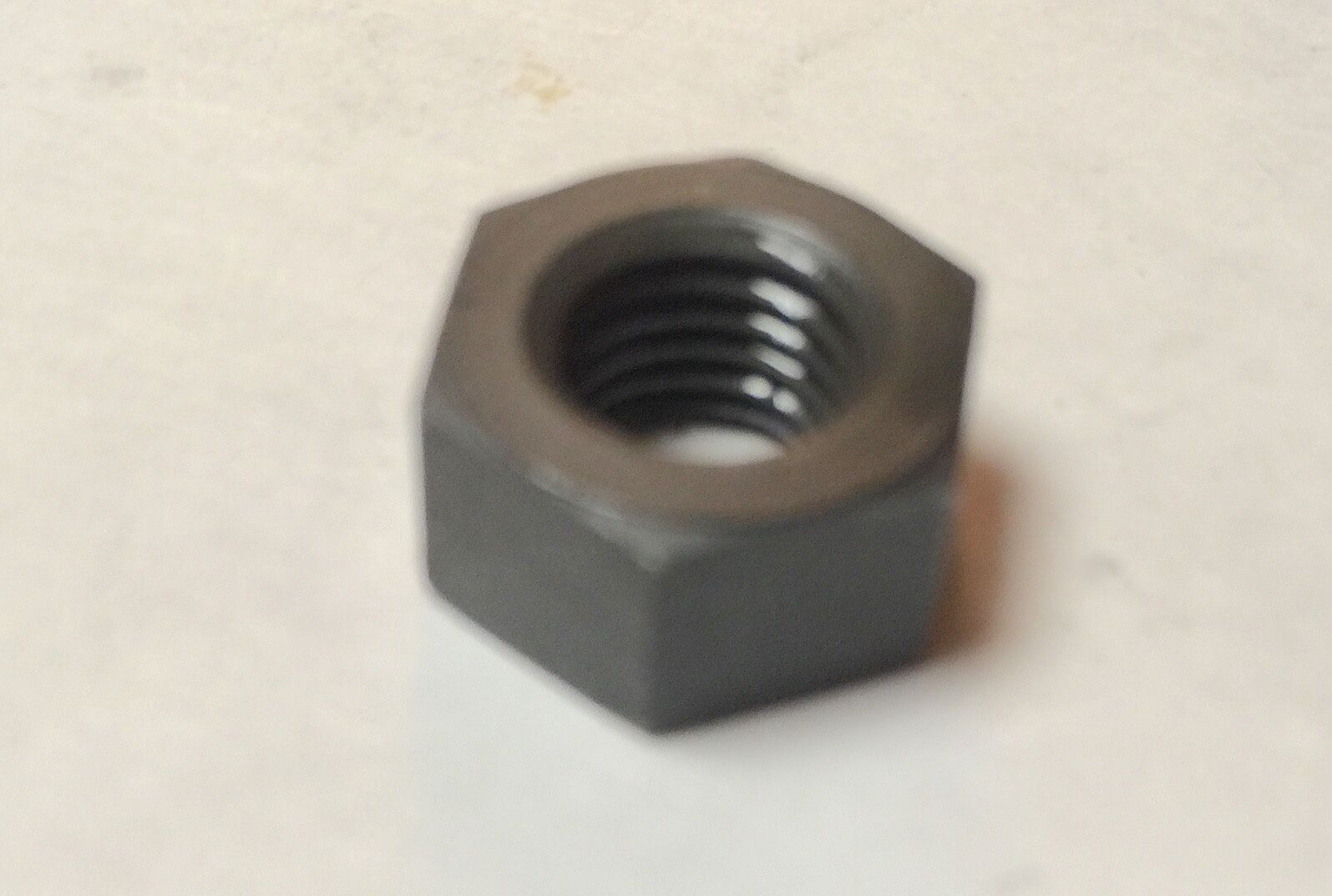

- 2 ea. 0136 (late 7836) Rear fender brace nut, 7/16”-20 N.F. x 1/4” x 5/8"
- 2 ea. 0230 (Late 6490)Rear fender brace flat washer 7/16” x 15/16” x 1/8"
- 2 ea. 0265 (Late 7055), Rear fender brace split lock washer, 7/16” x 11/16” x 1/16"

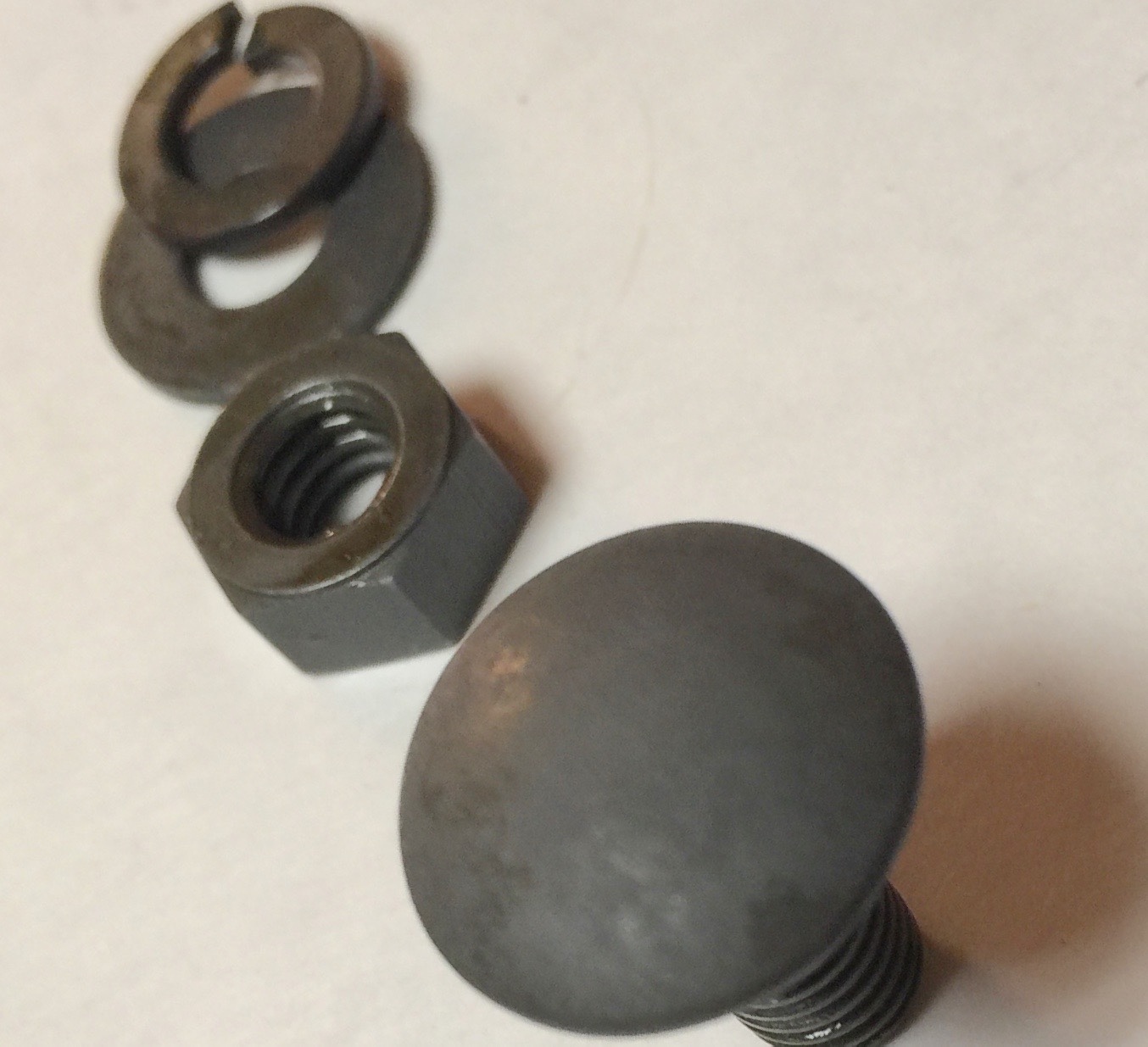

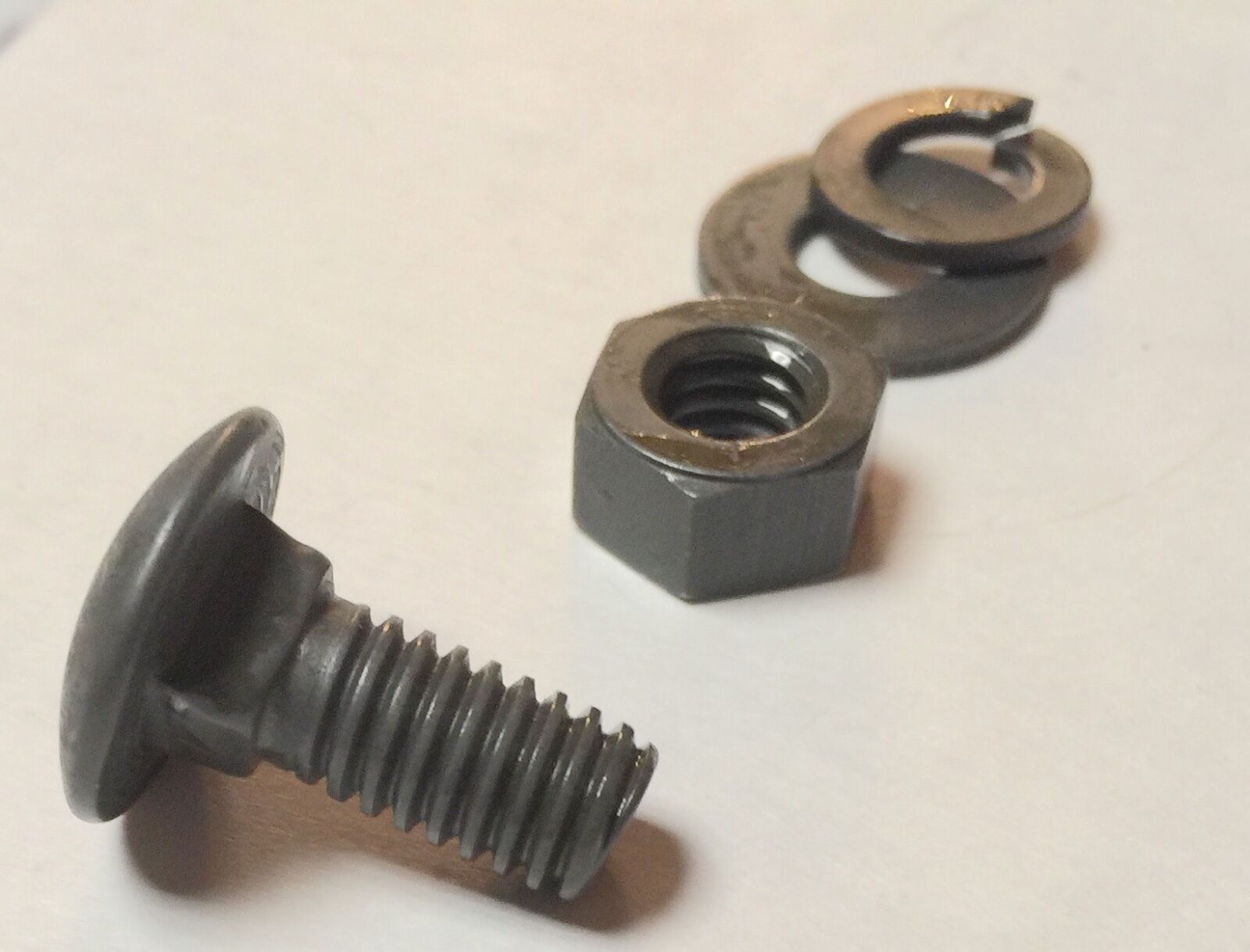

- 2 ea. 3743-23 (Late 5425)Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 0111 (Late 7748) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 2 ea. 0214 (late 6320)Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 2 ea. 3747-36 (Late# 59800-36) Rear fender frame mount brackets
- 9 ea. 0259 (late 7040), 5/16” split lock washer, 5/16” x 9/16” x 1/16"
- 4 ea. 066 (late 4000), Fender frame clamp bolts, stamped CP-1035, 5/16”-24 N.F. x 1
- 4 ea. 0215 (Late 6408), Fender clamp flat washers 25/64” x 1” x 1/8"
- 7 ea. 0117 (Late 7752), Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

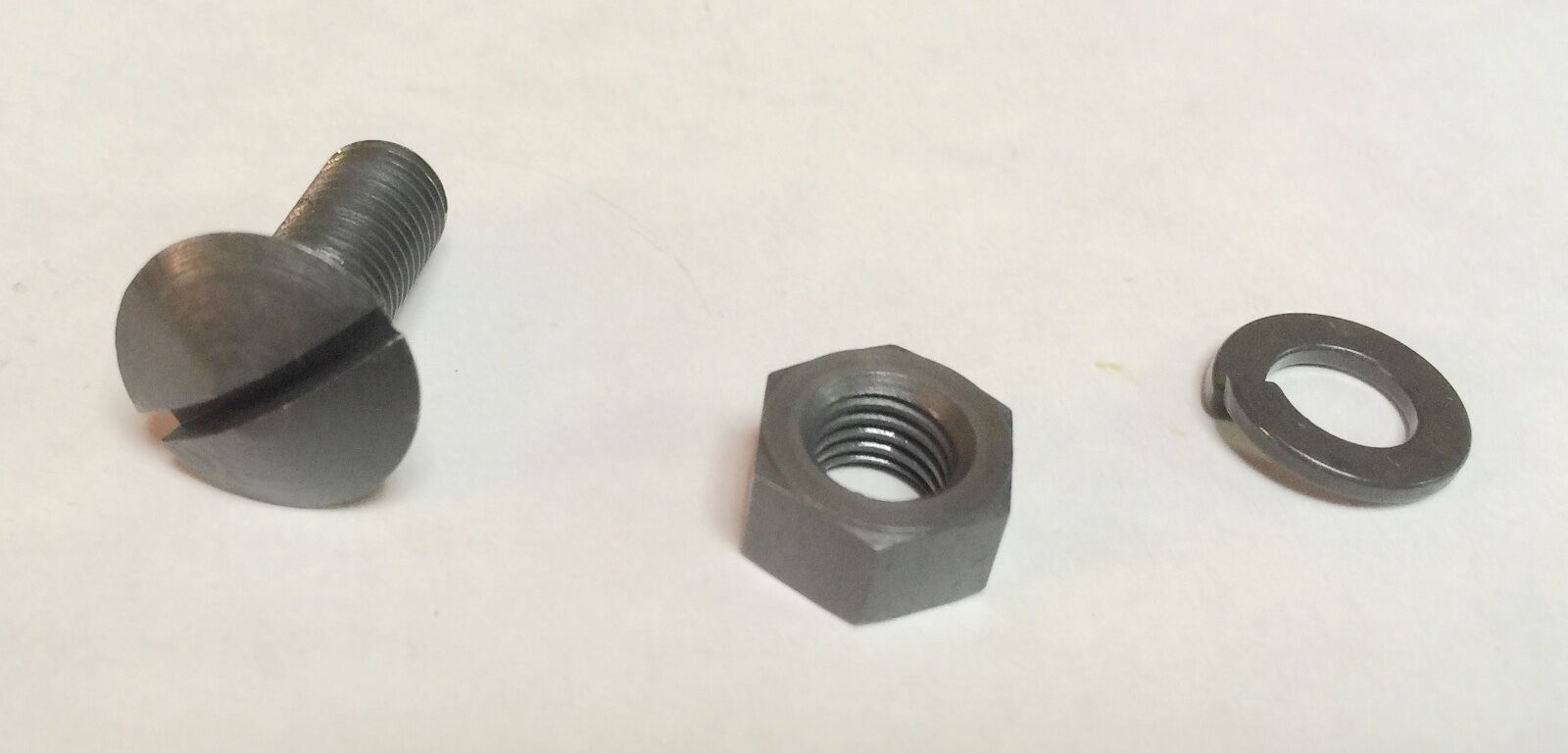

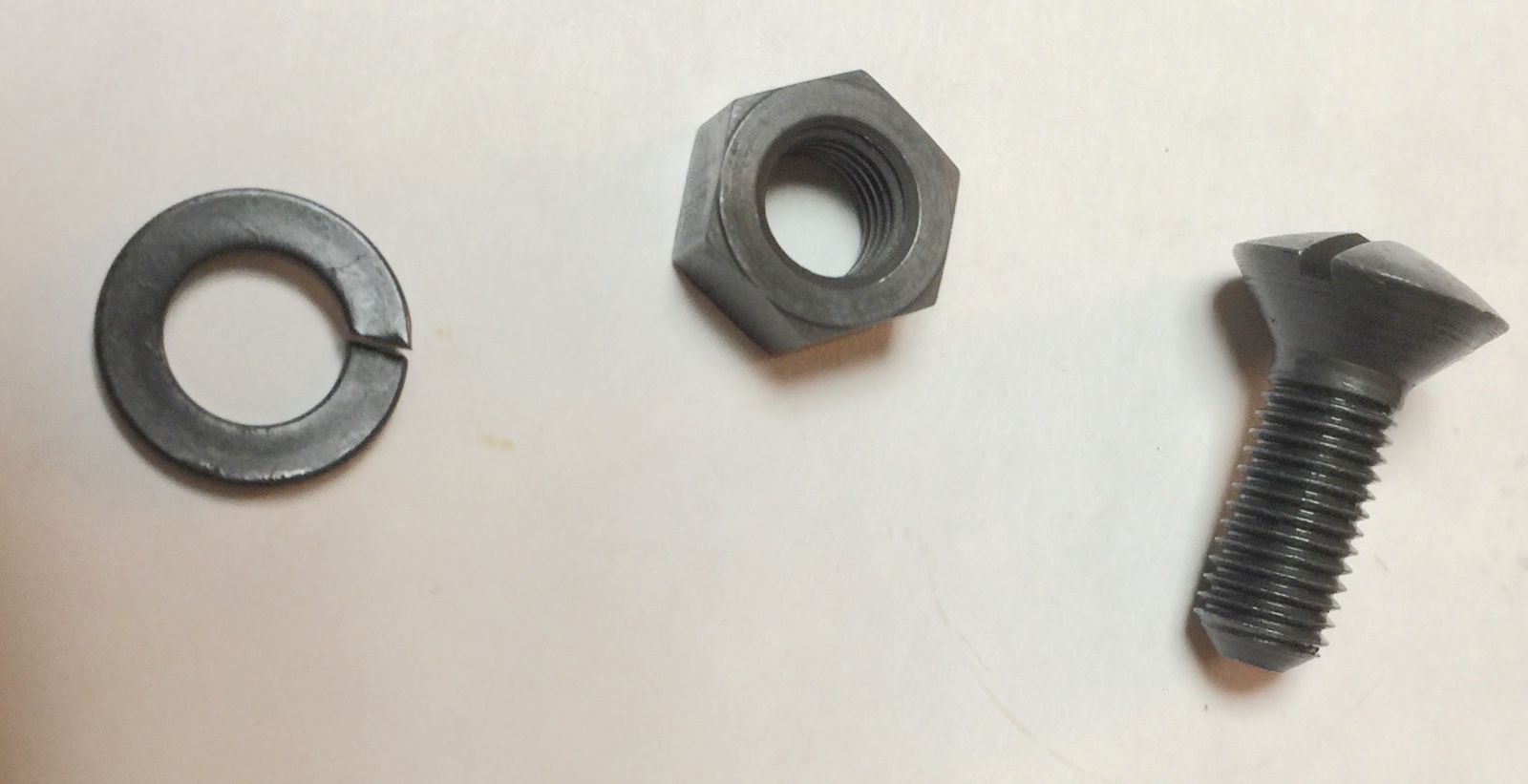

- 3 ea. 3749-30 (late 2404), Countersunk lower front fender mount screws (one mounts to frame two to rear oil tank bracket) 5/16”-24 N.F. x 27/32” Oval head countersunk screw
- 5 ea. 051 (Late 2762), Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head
- 5 ea. 0256 (late 7035), Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 0108 (late 7691) Nut, 1/4”-24 N.S. x 5/32” x 7/16"
