Harley Knucklehead Panhead WL UL Dash Mount Gentlemen's Choke Lever Kit 14200-46

Harley Knucklehead Panhead WL UL Dash Mount Gentlemens Choke Lever Kit 1420046
  • Product Code: 292979591658
  • Availability: In Stock

  • $139.95


0 reviews / Write a review

You are purchasing a reproduction "Gentleman's Choke" kit for 1939-1965 Harley-Davidson models using Linkert M-Series carburetors. This was used on 1947 and up models utilizing the center screw and stud alignment on the two light dash and can be used all the way up to the 1965 Panhead Electra-Glide.

This can also be used on 1939-1946 models with a cat eye dash but does require drilling holes in the dash and dash base and there are mounting templates included in the kit for earlier installations.  The kit contains all necessary parts for either style dash installation as well as point-by-point directions on how to install it on either style dash.

You may be able to install with other brands of carbs or on K-models using a fork mount plate of your own design with some modification but I have no idea what all carbs it may or may not work with.  I can only vouch for this working on OHV, big twin side valve, and 45 solo and Servicar models equipped with Linkert M-Series carbs.

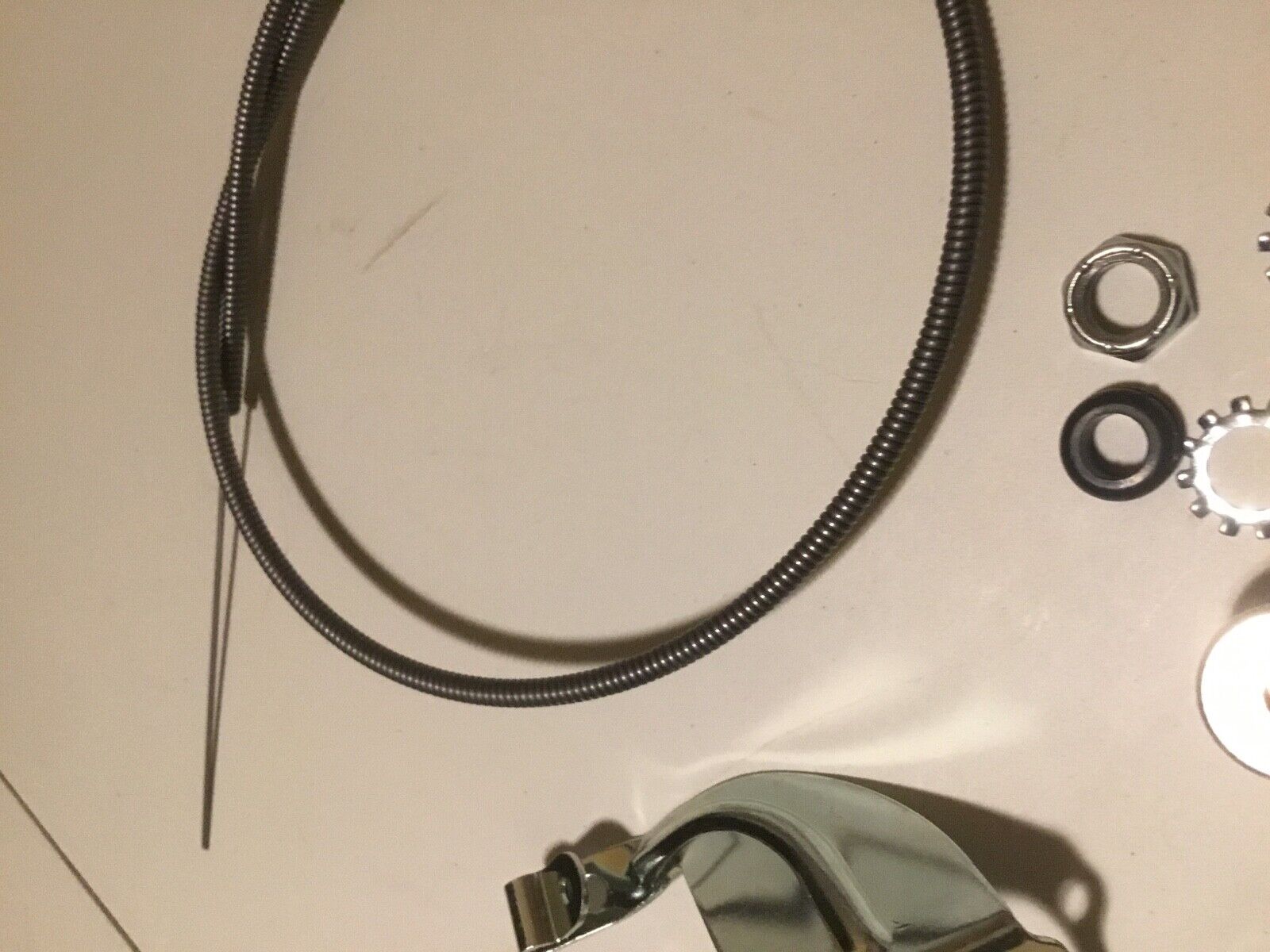

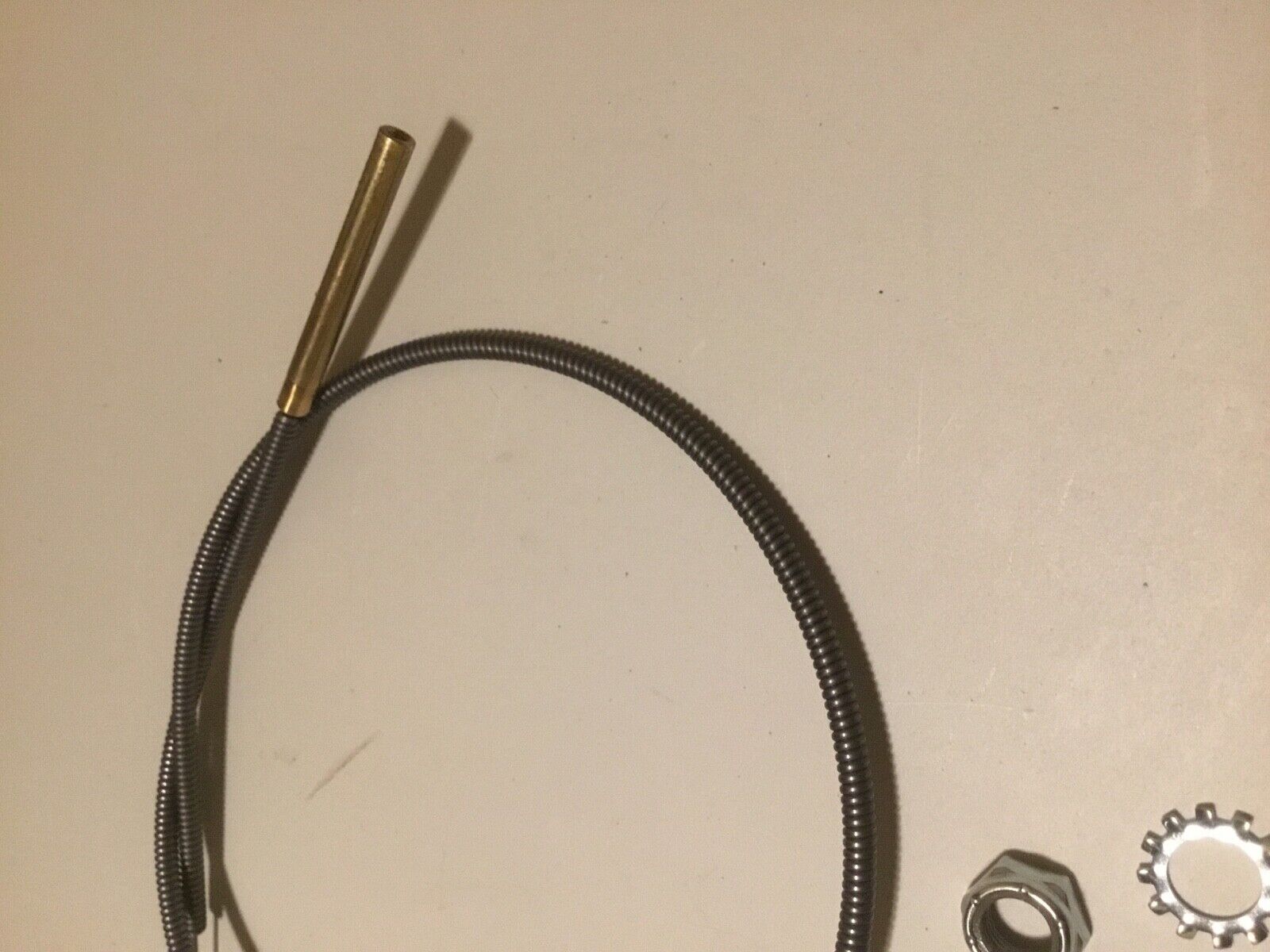

Cable is 24 inches long to work with 45 models and will need to be trimmed down for OHV or BTSV models which is no major deal.

PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

International buyers- your shipping rate includes insurance on your purchase.

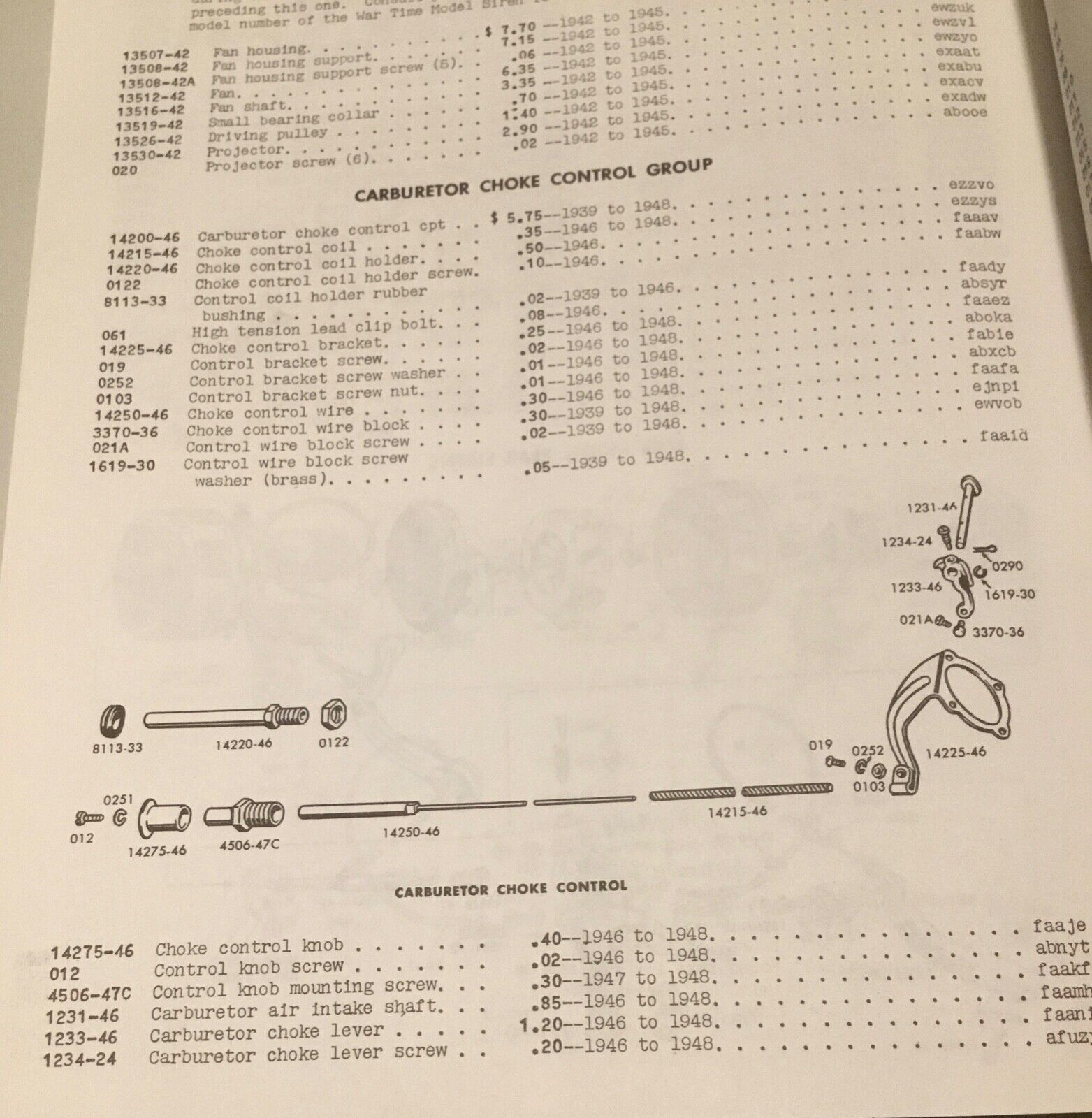

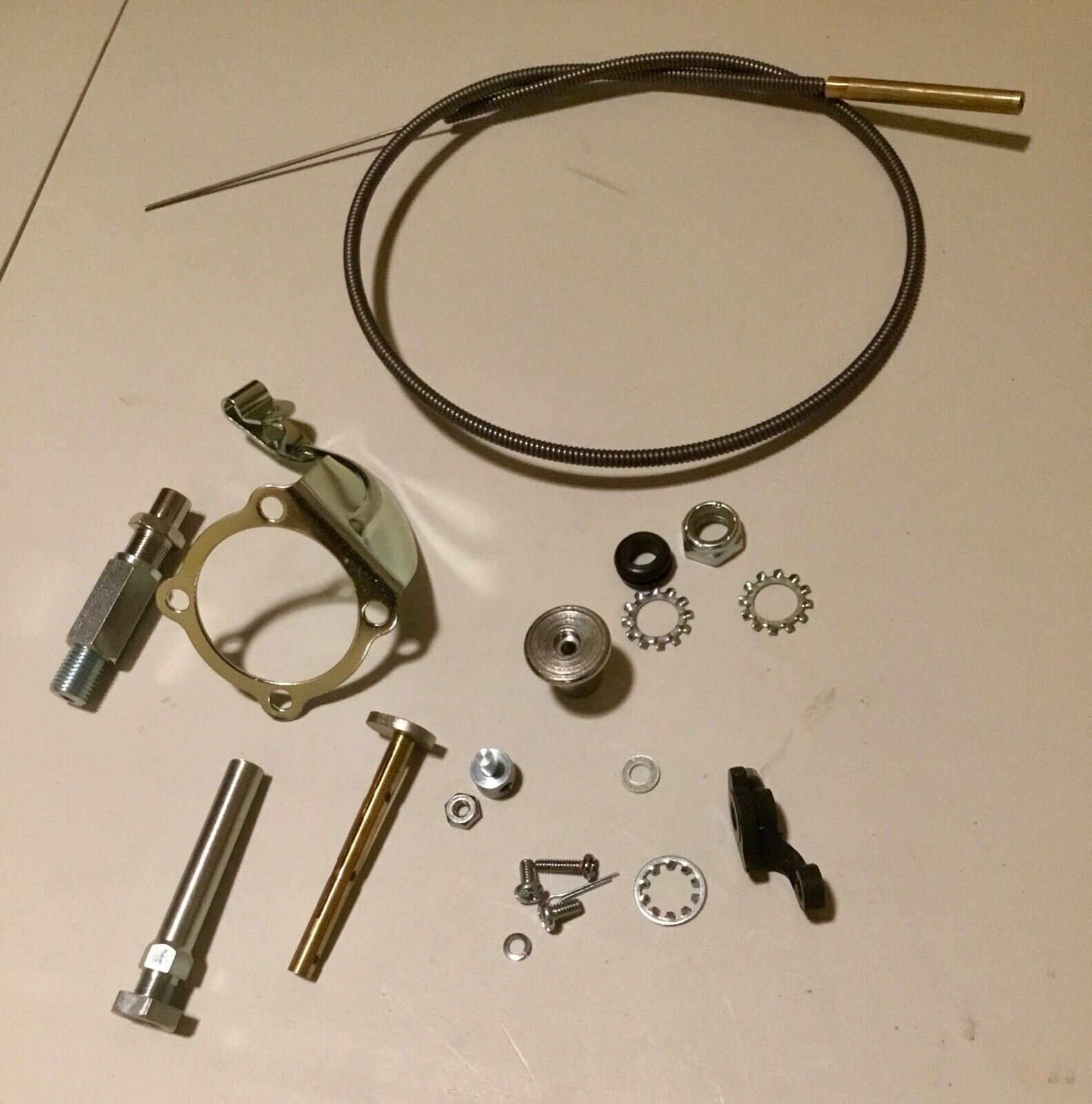

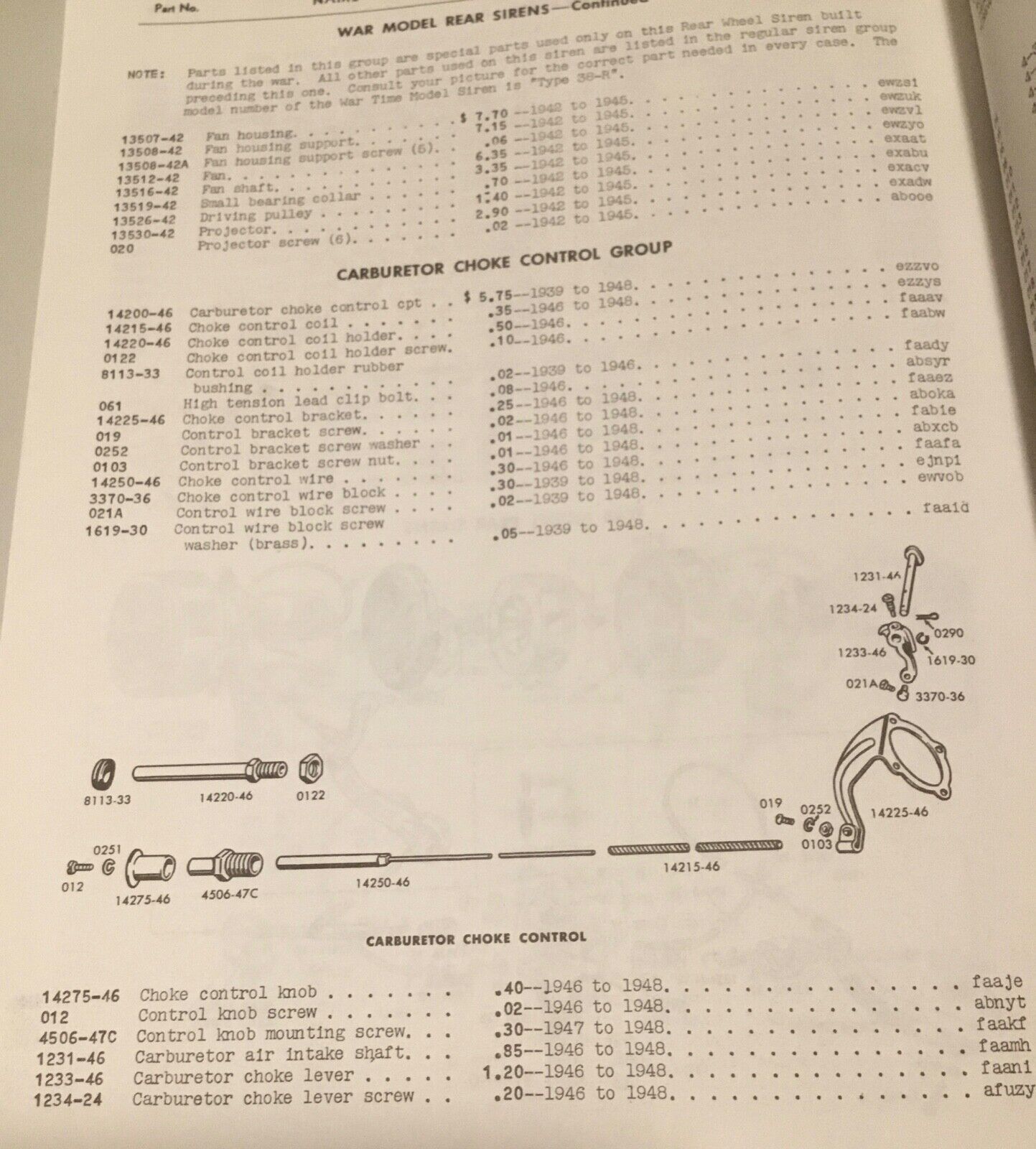

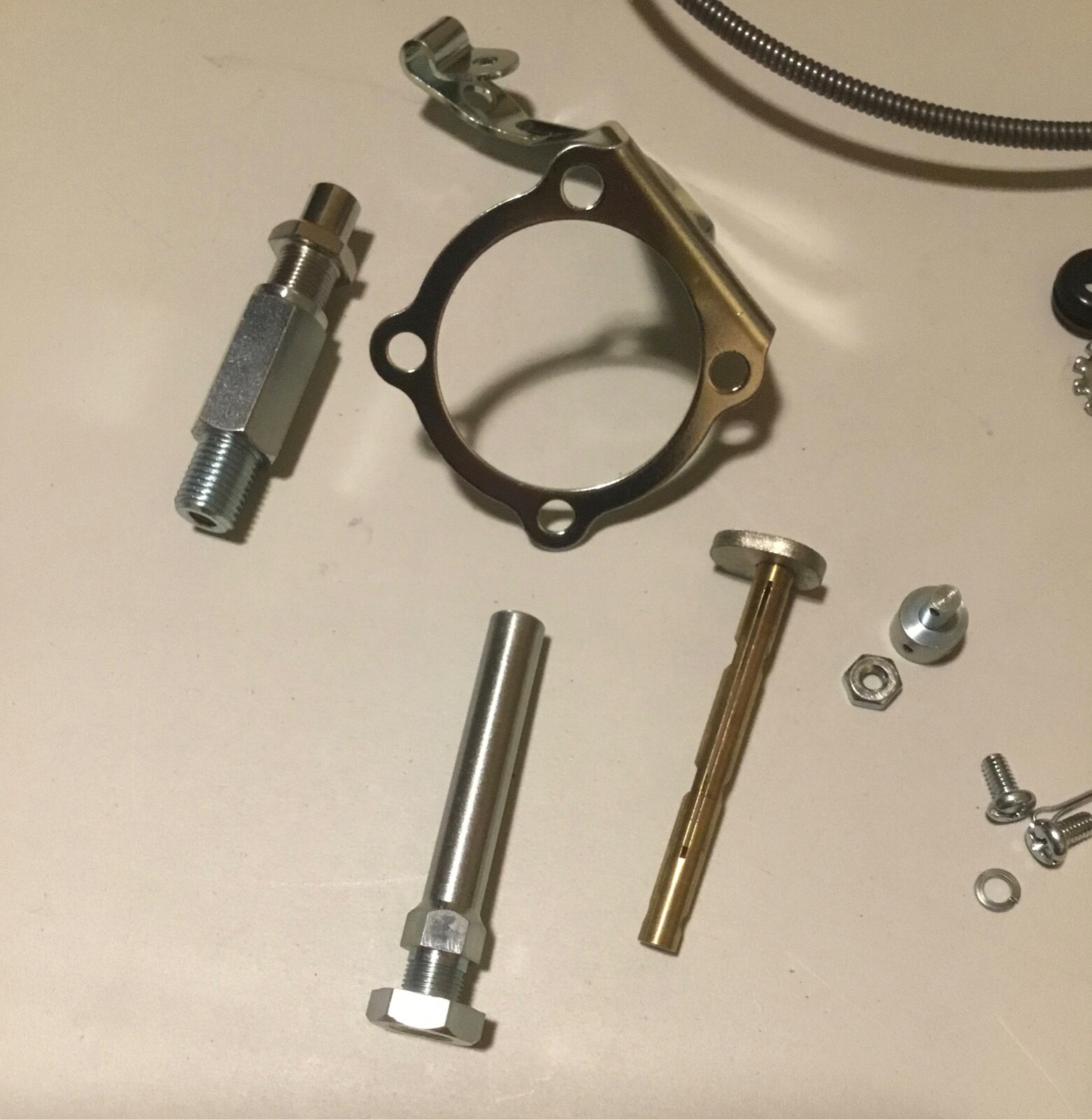

Kit includes all the following pieces, the parts guide photo shown is from a 1948 catalog, the compatibility does go all the way to 1952 on WL, 1958 on Servicar, and 1965 on Panheads:
  • 14215-46 Cable
  • 14220-46 Coil holder
  • 0122 Coil holder screw
  • 8113-33 Coil holder rubber bushing
  • 061 High tension lead clip bolt (not included in this kit nor shown in the parts catalog referenced, would be used on 1946-earlier, we do sell this bolt it's a 5/16-24 x 1/2" bolt)
  • 14225-46 Control bracket
  • 019 Screw
  • 0252 Washer
  • 0103 Nut
  • 14250-46 Control wire
  • 3370-36 Control wire block
  • 021A Control wire screw
  • 1619-30 Control wire block screw washer
  • 14275-46 Choke knob
  • 012 Knob screw
  • 4506-47C Control knob mounting screw
  • 1231-46 Choke shaft

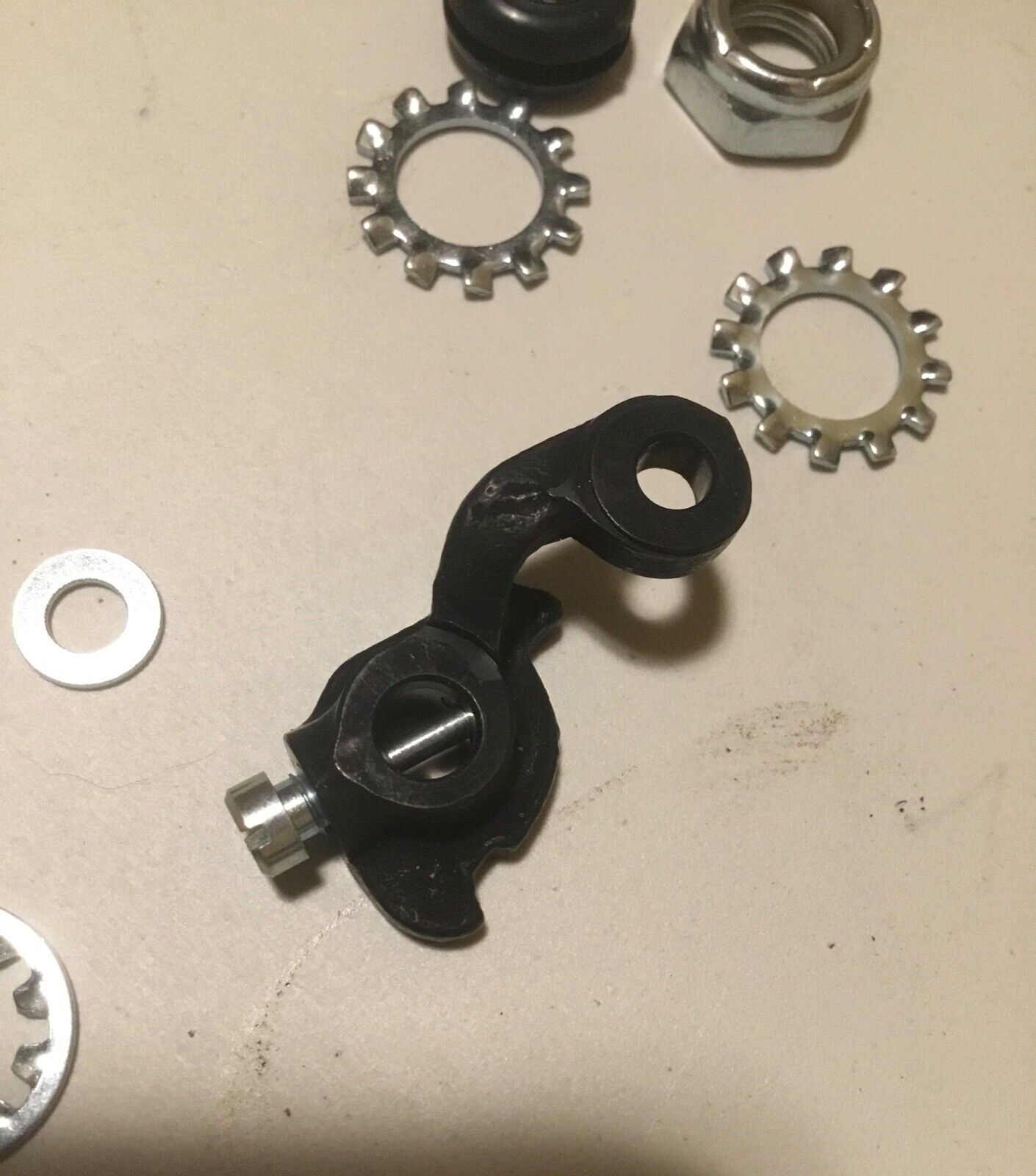

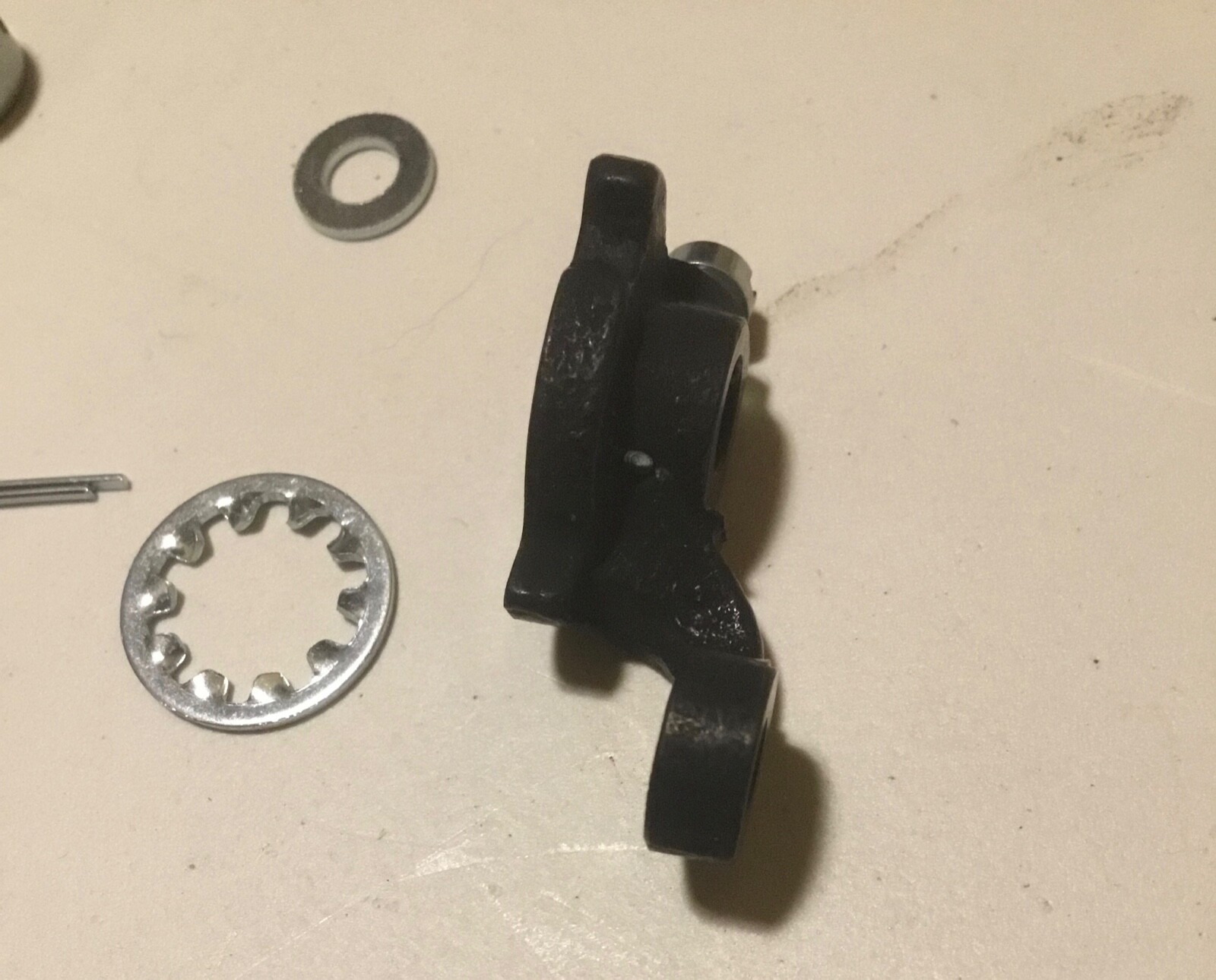

  • 1233-46 Choke lever
  • 1234-24 Choke lever screw
Used on the following:
  • 1939-1947 EL & FL Knucklehead 61" & 74" OHV
  • 1939-1948 U, UL, UH, ULH big twin flathead 74" & 80"
  • 1939-1952 W, WL, Servicar 45"
  • 1939-1958 G, GE, GD, 45" Servicar
  • 1948-1965 EL, FL, FLE, FLH 61" & 74" OHV Panhead
