Harley Knucklehead Panhead Rear Fender Mounting Kit W/ Brackets 36-54 CP-1038
- Product Code: 291694822431
- Availability: In Stock
-
$86.95

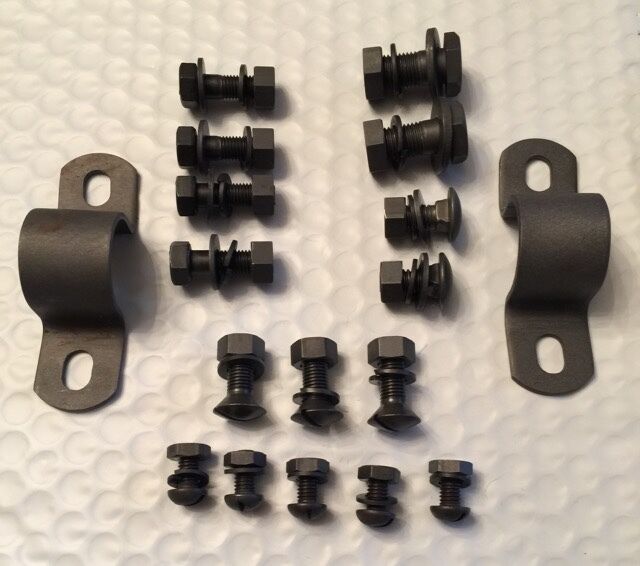

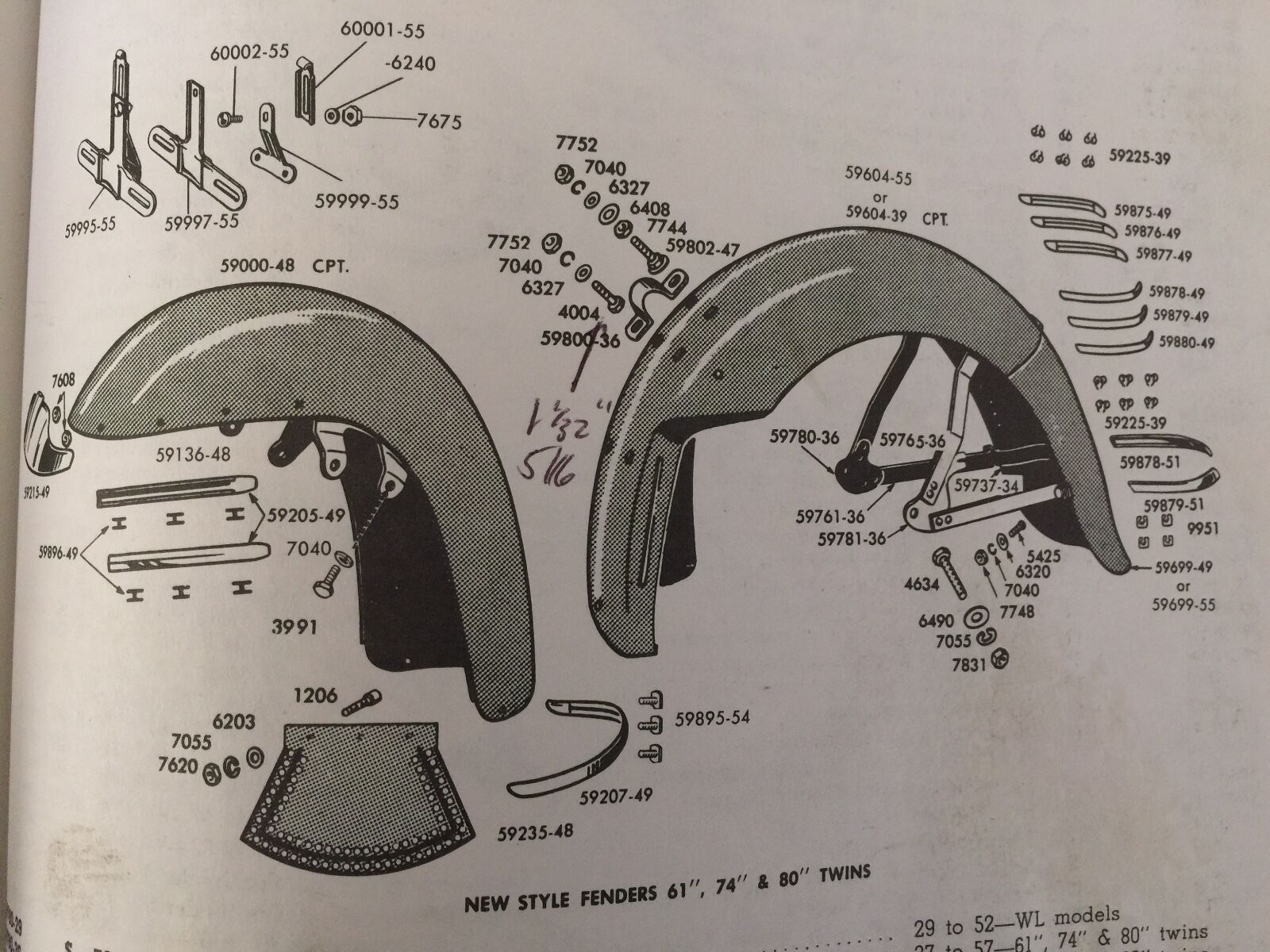

You are buying a big twin rear fender mounting kit including the 59800-36 (early# 3747-36) rear fender frame brackets for 1936 to 1954 rigid frame Harleys, includes Knucklehead, Panhead, and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference.
This kit includes the 1 1/8” deep rear mount straps used from 1936 through 1954. If you are building a ’55 to ’57, the straight leg Panhead frame used the 1 1/4” deep straps or brackets which we have on another listing just like this and just by themselves. Some custom frames also use the deeper brackets.
As this kit uses CP-1038 and CP-1035 bolts, this would be considered “correct” bolt details for 1942 or 1943 to 1957.
The brackets are restoration quality with the correct bends and off-sets to the saddle mounts.
All USA made parts.
Used on the following:
- 1936-1947 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead
- 1937-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead
- 1948-1954 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

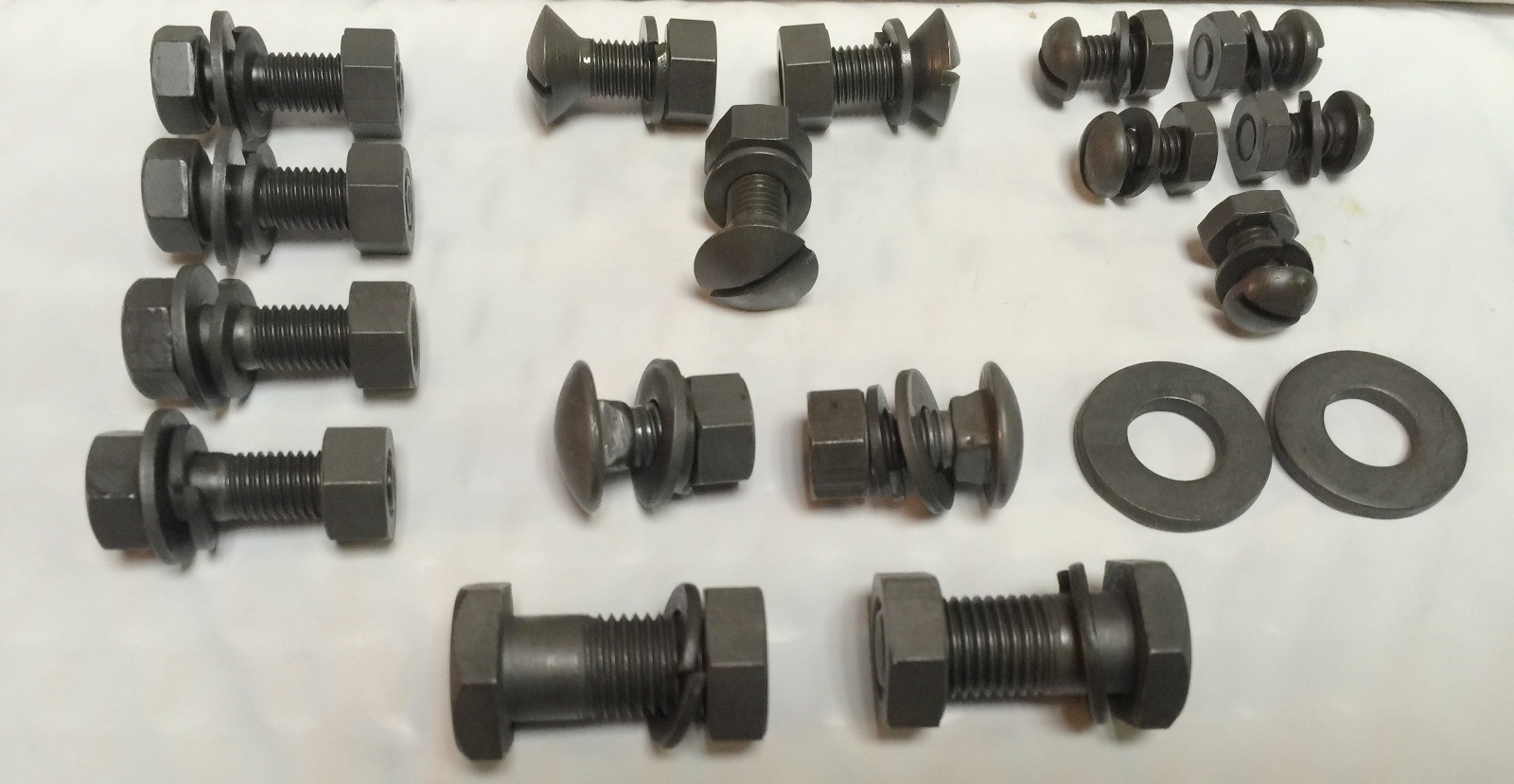

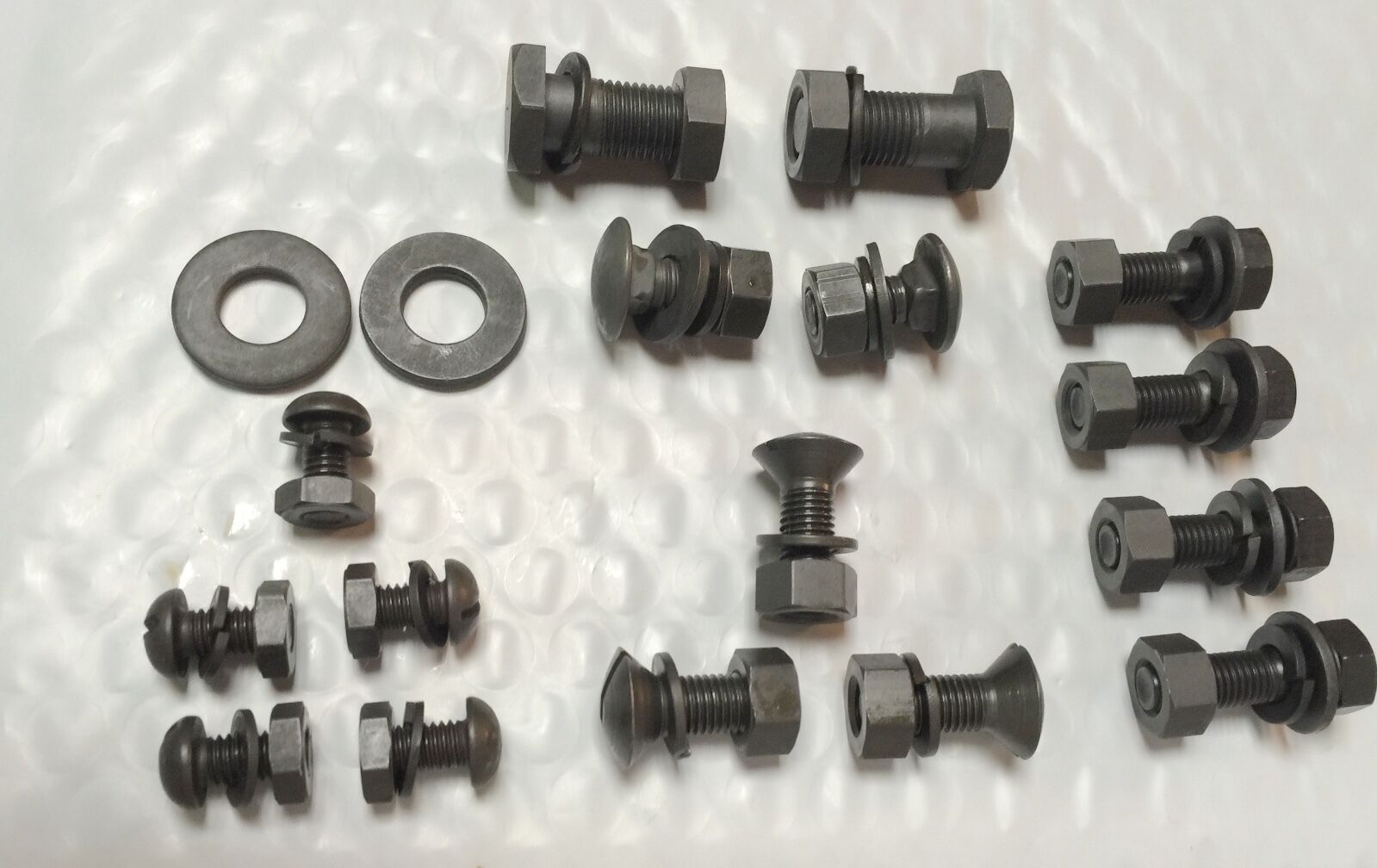

You get the following in this kit:
- 2 ea. 4634, Rear fender brace bolt, 7/16”-20 N.F. x 1 5/16” (stamped CP-1035 or plain head, specify if that matters to you)

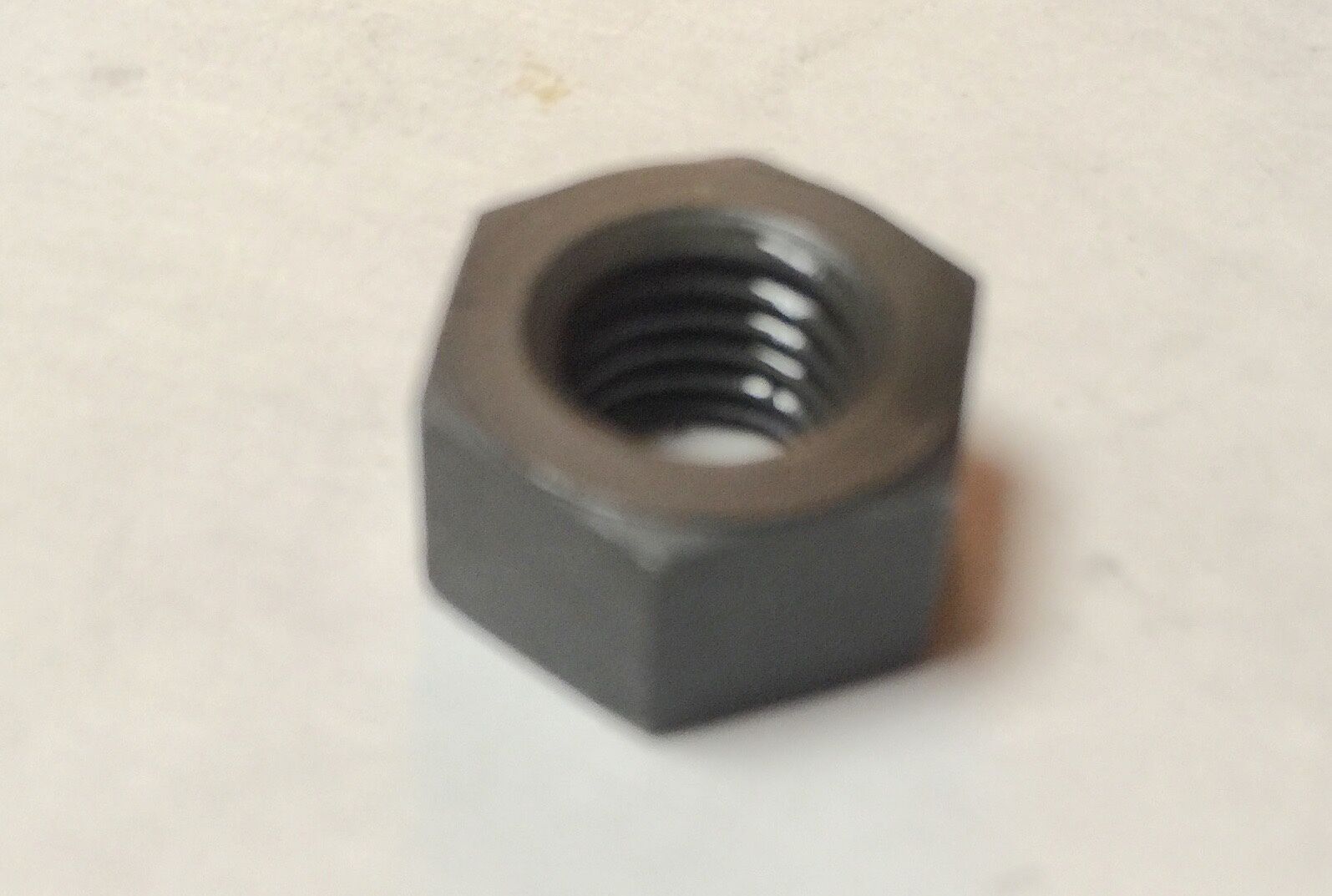

- 2 ea. 7831, Rear fender brace nut, 7/16”-20 N.F. x 1/4” x 5/8"
- 2 ea. 6490, Rear fender brace flat washer 7/16” x 15/16” x 1/8"
- 2 ea. 7055, Rear fender brace split lock washer, 7/16” x 11/16” x 1/16"

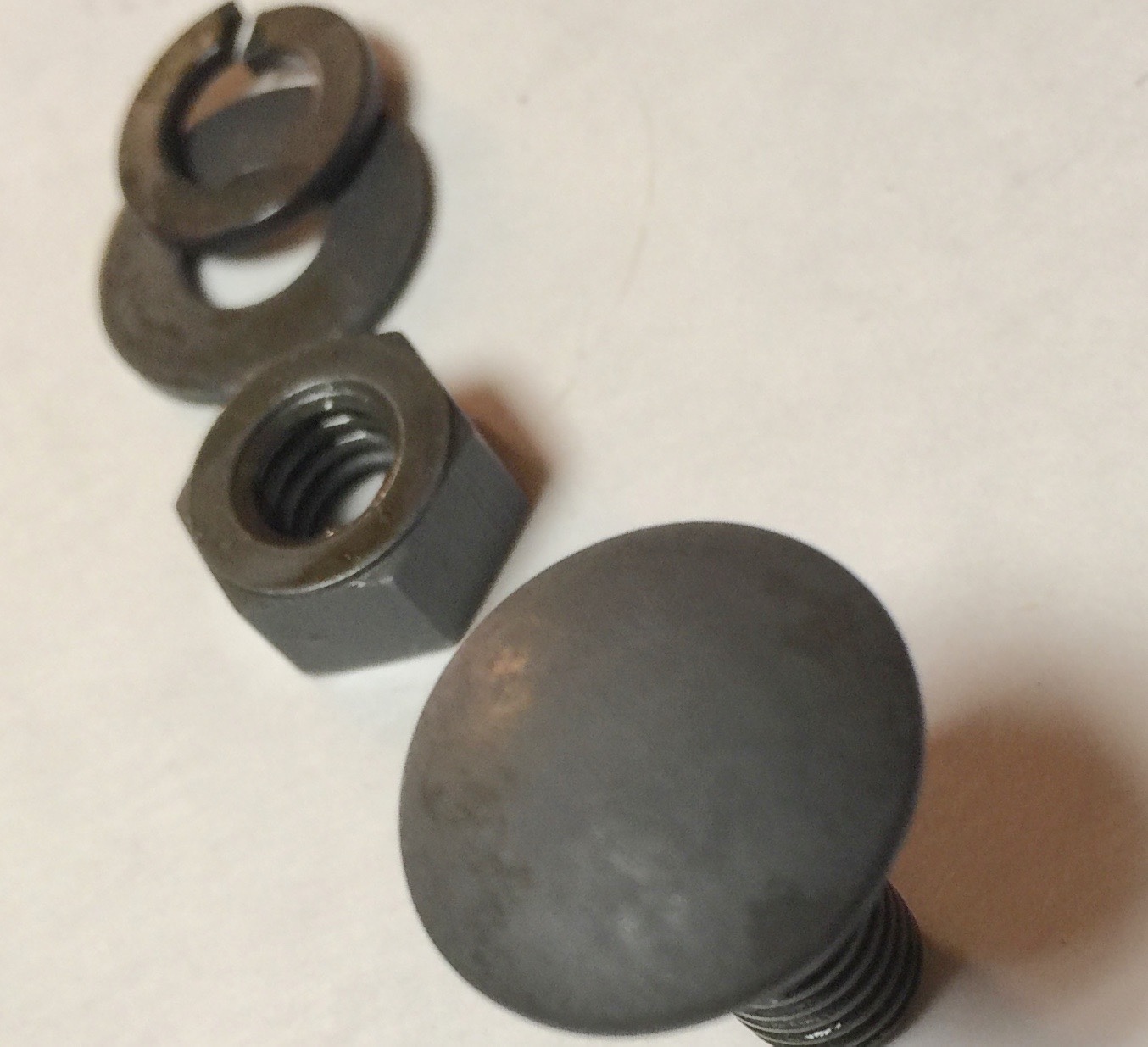

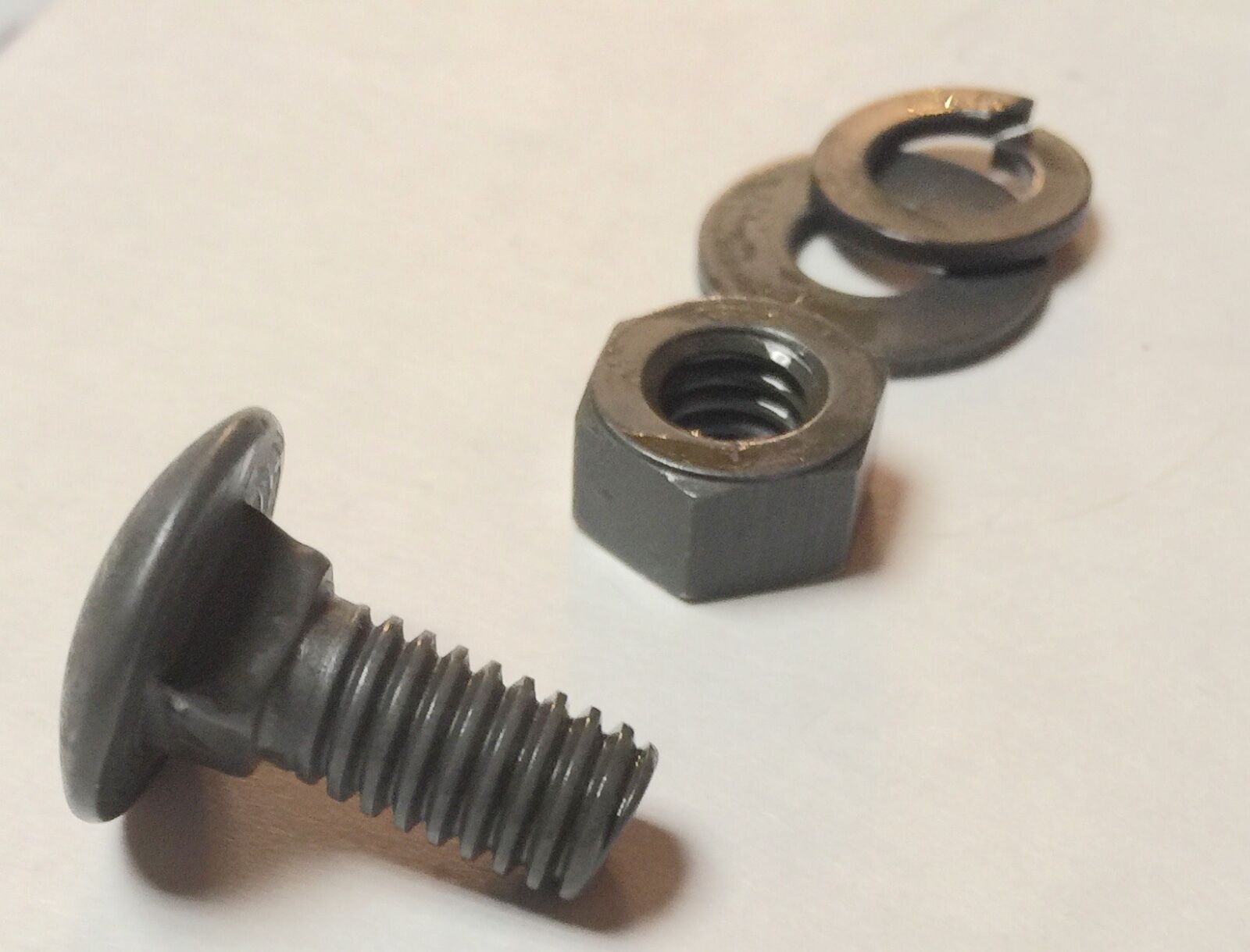

- 2 ea. 5425, Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 7748, Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 2 ea. 6320, Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 2 ea. 59800-36, Rear fender frame mount brackets
- 9 ea. 7040, 5/16” split lock washer, 5/16” x 9/16” x 1/16"

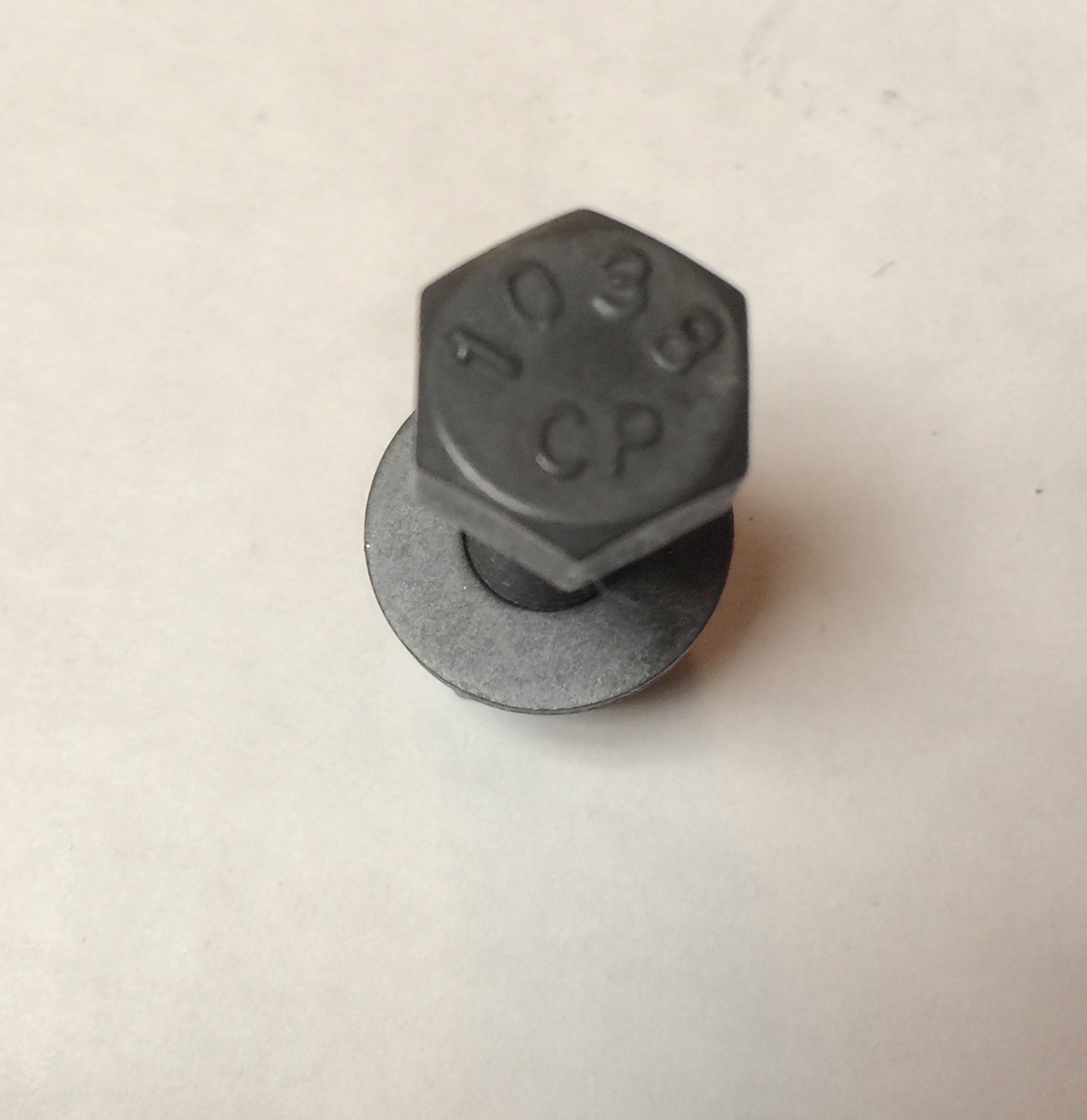

- 4 ea. 4004, Fender frame clamp bolts, stamped CP-1038, 5/16”-24 N.F. x 1 1/32"
- 4 ea. 6408, Fender clamp flat washers 25/64” x 1” x 1/8"
- 7 ea. 7752, Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

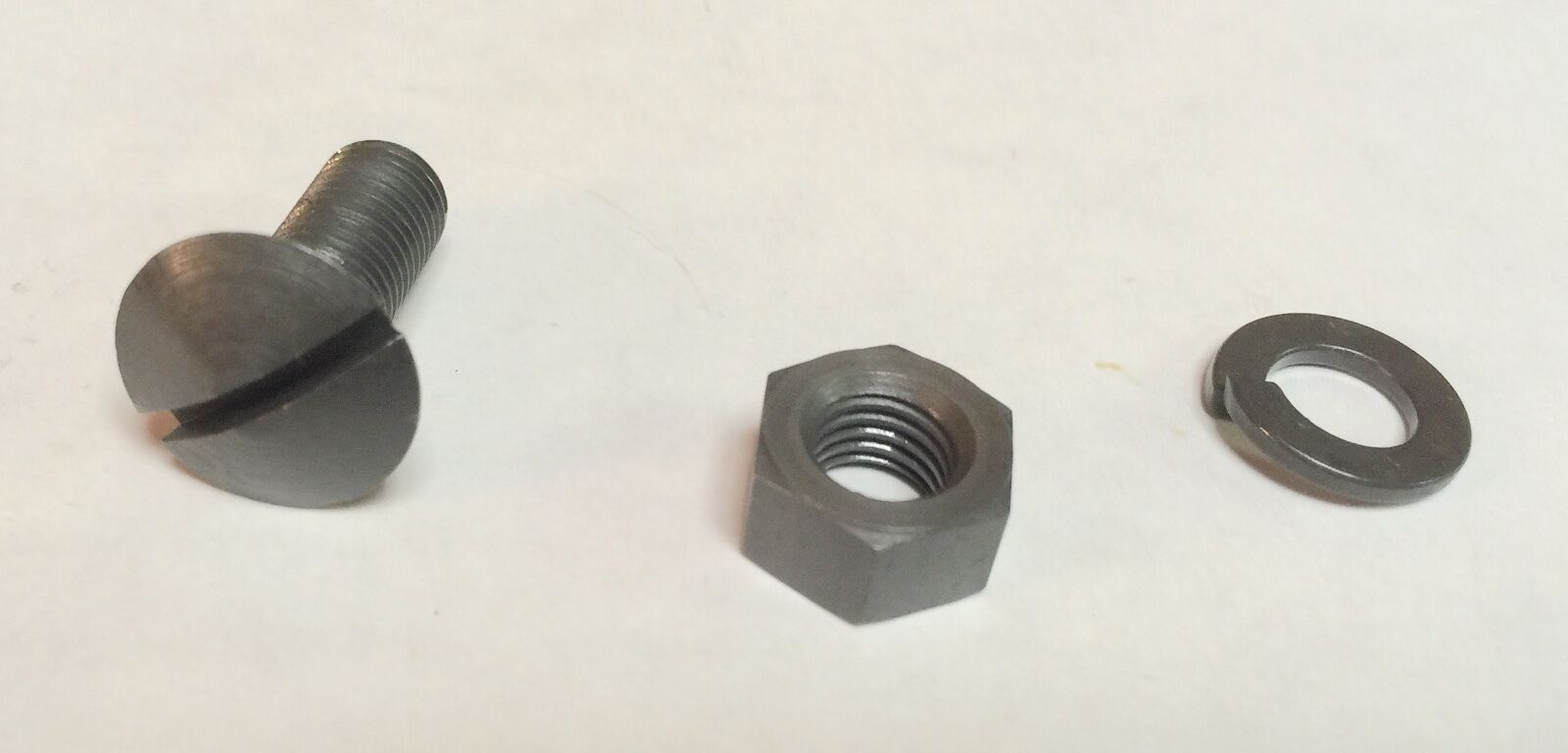

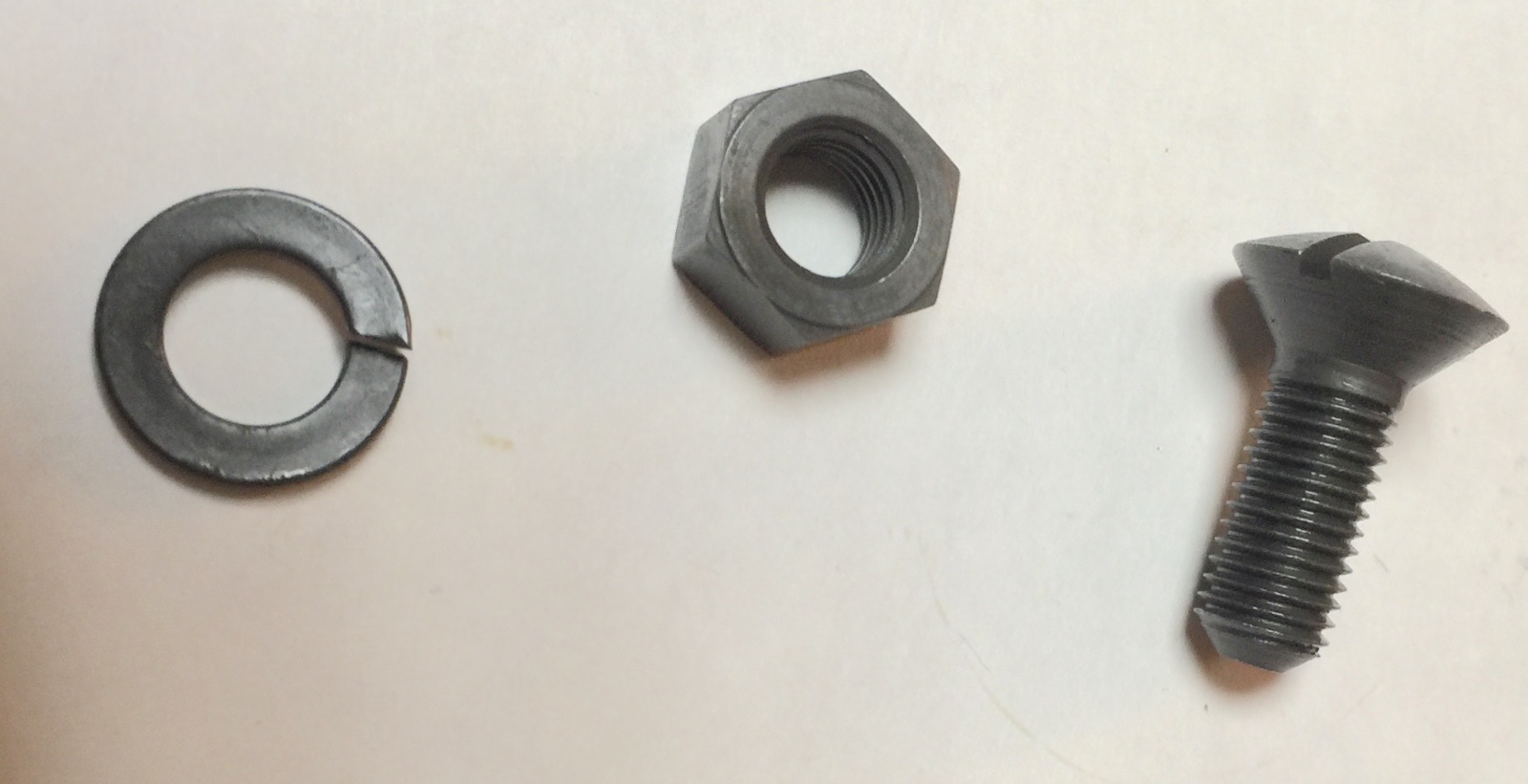

- 3 ea. 2404, Countersunk lower front fender mount screws (one mounts to frame two to rear oil tank bracket) 5/16”-24 N.F. x 27/32” Oval head countersunk screw
- 5 ea. 2762, Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head
- 5 ea. 7035, Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 7691, Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
