Harley Knucklehead Panhead Rear Brake Plate Mount Kit 36-57 Rigid Plain Head

  • Product Code: 351703397360
  • Availability: In Stock
  • $12.95


You are buying a rear brake plate foot pedal mounting kit for 1936 to 1957 rigid frame big twin Harleys.  Includes: Knucklehead, Panhead, and UL models. Includes all pieces shown to mount your rear brake plate to the right frame mount and all pieces needed to mount your foot brake lever bracket. Please consult your own parts or service manual for proper reference.  These are plain head, machine cut bolts and would be considered correct from 1936 to 1942 or 1943 when CP-1035 were fully phased in.  Some people think that CP-1035 did not show up on big twin H-D until 1946 or 1947.  Parkerizing would be considered “correct” from ’36-57 on these parts.

There seems to be some misinformation on CP bolts and "reproductions".  Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies.  Nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them.  Spacers and washers are produced just like the ones H-D did back in the day.  Parkerizing and cad plating is same finish as how these came from the factory in the 1950's.  I've also got quite a bit of other hardware kits listed in my store under "pre 1980's hardware".

All USA made parts.

Used on the following:
  • 1936-1947 E, EL, ELA, F, FL 61” & 74” OHV Knucklehead (Considered “correct” for 1936 to 1942 or 1943)
  • 1937-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead (Considered “correct” for 1937 to 1942 or 1943)
  • 1948-1957 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide

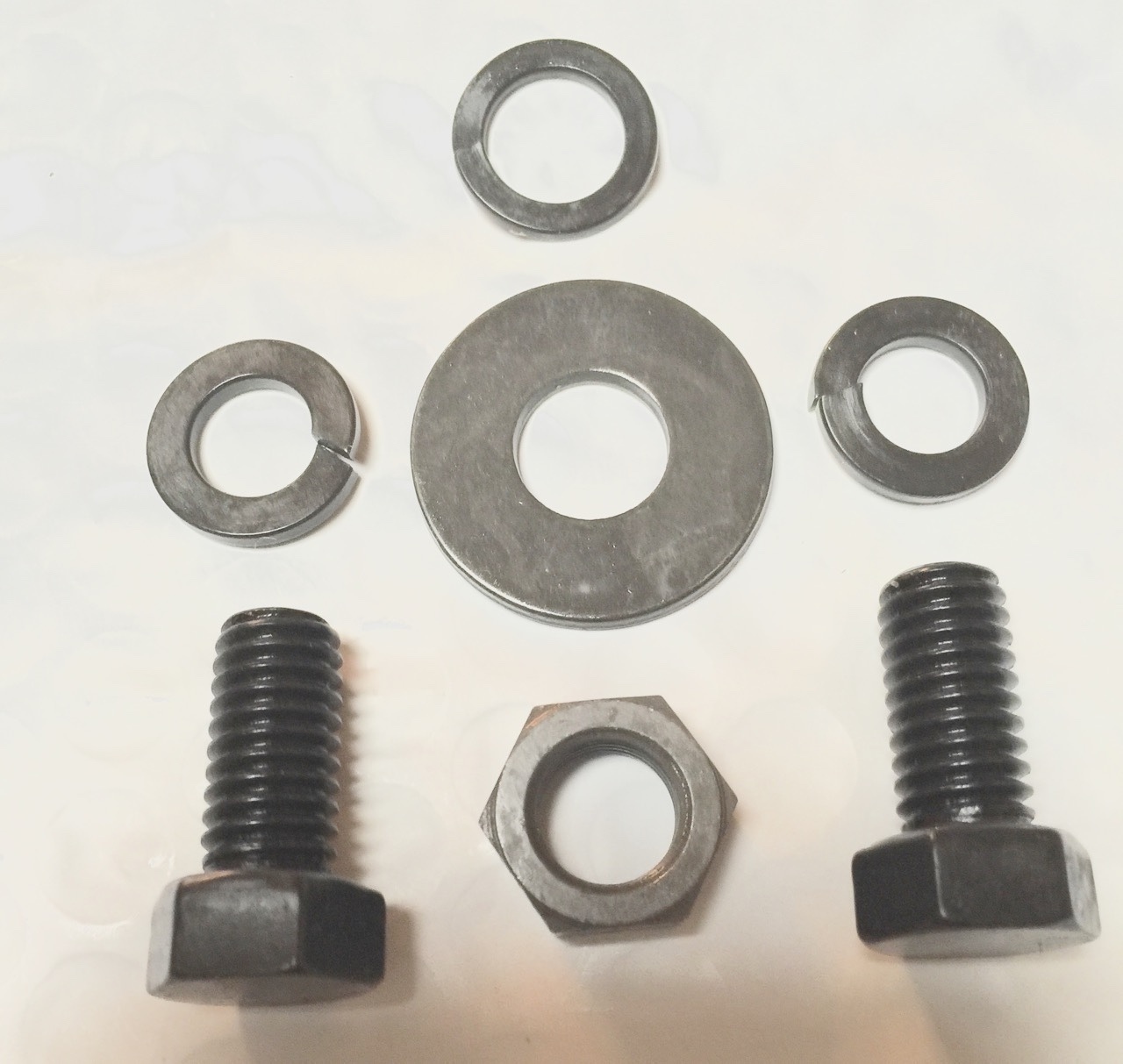

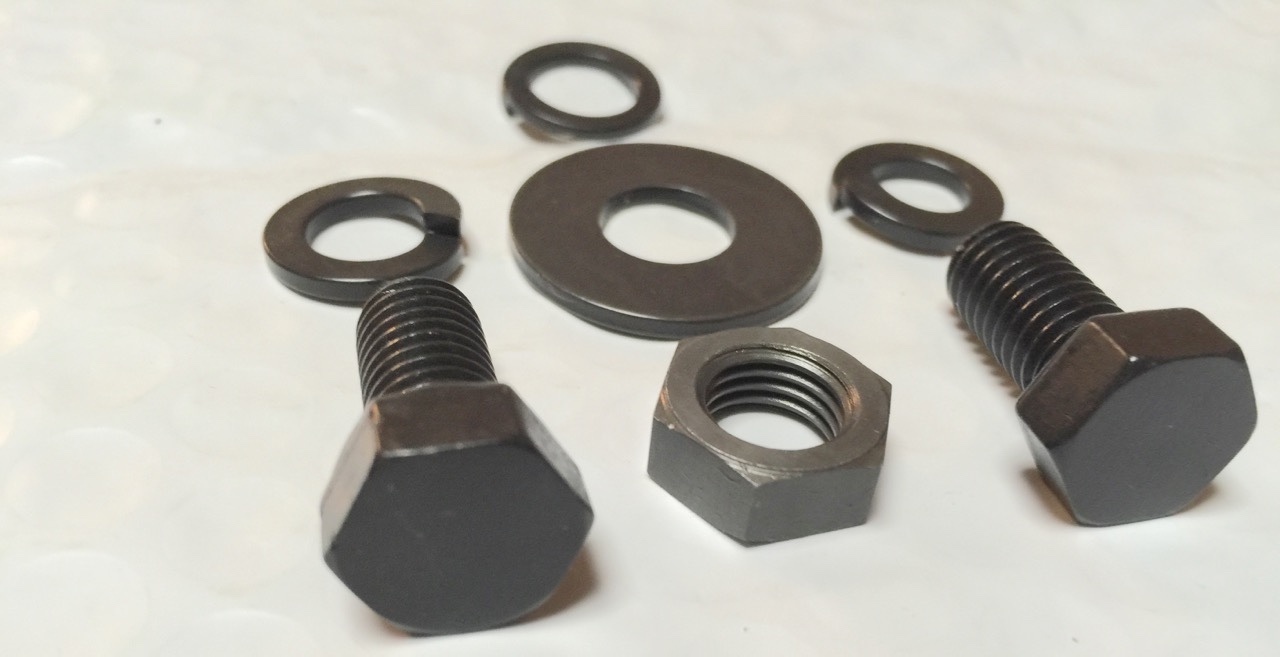

You get the following in this kit:
  • 2 ea. 4293 (old# 070), Bolts, 3/8”-16 x 7/8” x 9/16”
  • 2 ea. 7045, 3/8” split lock washer
  • 1 ea. 7831, Nut, 7/16-20 x 1/4” x 5/8”
  • 1 ea. 7055, 7/16” split lock washer
  • 1 ea. 6520, 29/64” x 1 1/8” x 3/32” Flat washer,
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.

PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

Please understand sellers on eBay do not set the shipping rates.  Please also understand that sellers are charged a final value fee on the amount of shipping you are charged over and above the fees they pay on the sale and the Paypal transaction.  In addition to that, sellers have the expense of labels, shipping materials, padded mailers, etc.  I do charge a handling fee on some items, but I also offer several shipping options whenever possible to give you more affordable shipping choices.  If you ever think the shipping fee charged is too high, please let me know before leaving a low rating on shipping charges.  It’s rare that I receive such feedback, but I work hard to keep my customers happy.  I’d rather know if someone is unhappy before they leave a low rating.  That’s the only way I can solve a problem.  I don’t ever want a customer to go away unhappy!

We are aware eBay’s shipping calculator is not working correctly on combining shipping for some of our listings.  If the shipping amount eBay is trying to charge you seems high, please contact us immediately or simply click “request total from seller” and we will promptly manually calculate your shipping.  We always combine shipping on multiple item orders and will find the least expensive method which falls in line with how quickly you need your items.  Thank you!
