Harley Knucklehead Panhead 16" Raw Steel Star Hub Spokes OEM 43032-40 40-72
- Product Code: 296804328540
- Availability: In Stock
-
$99.95

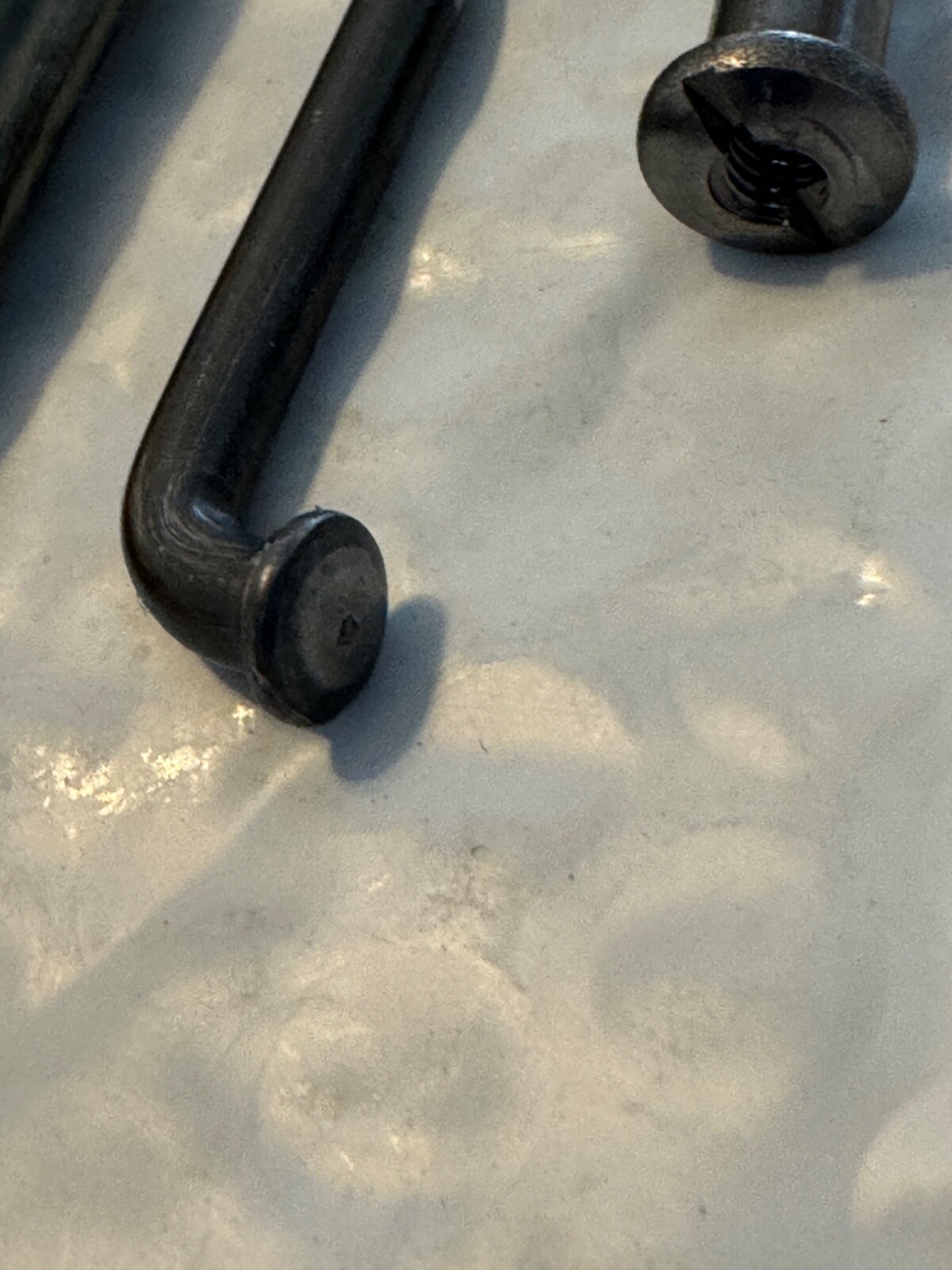

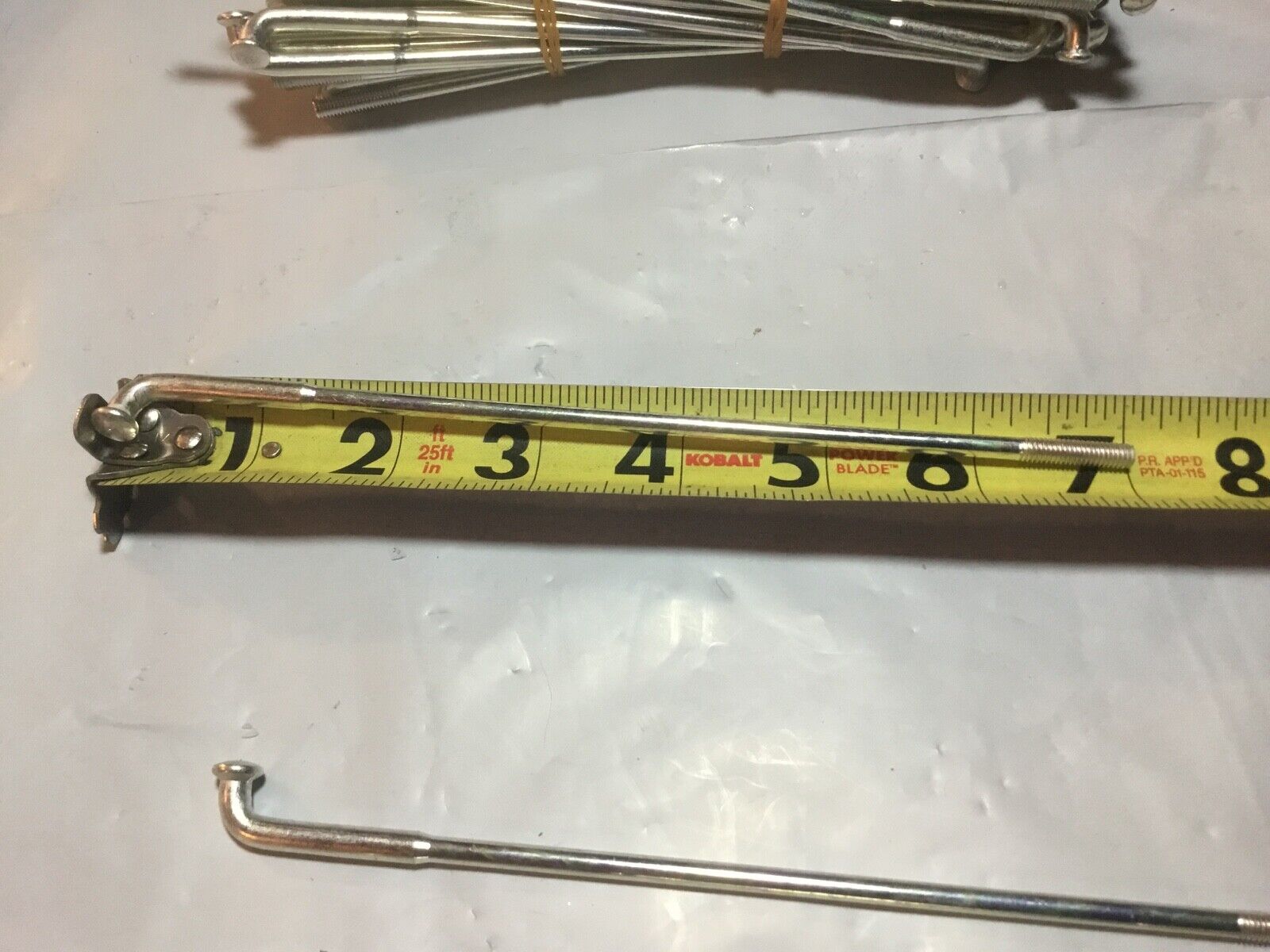

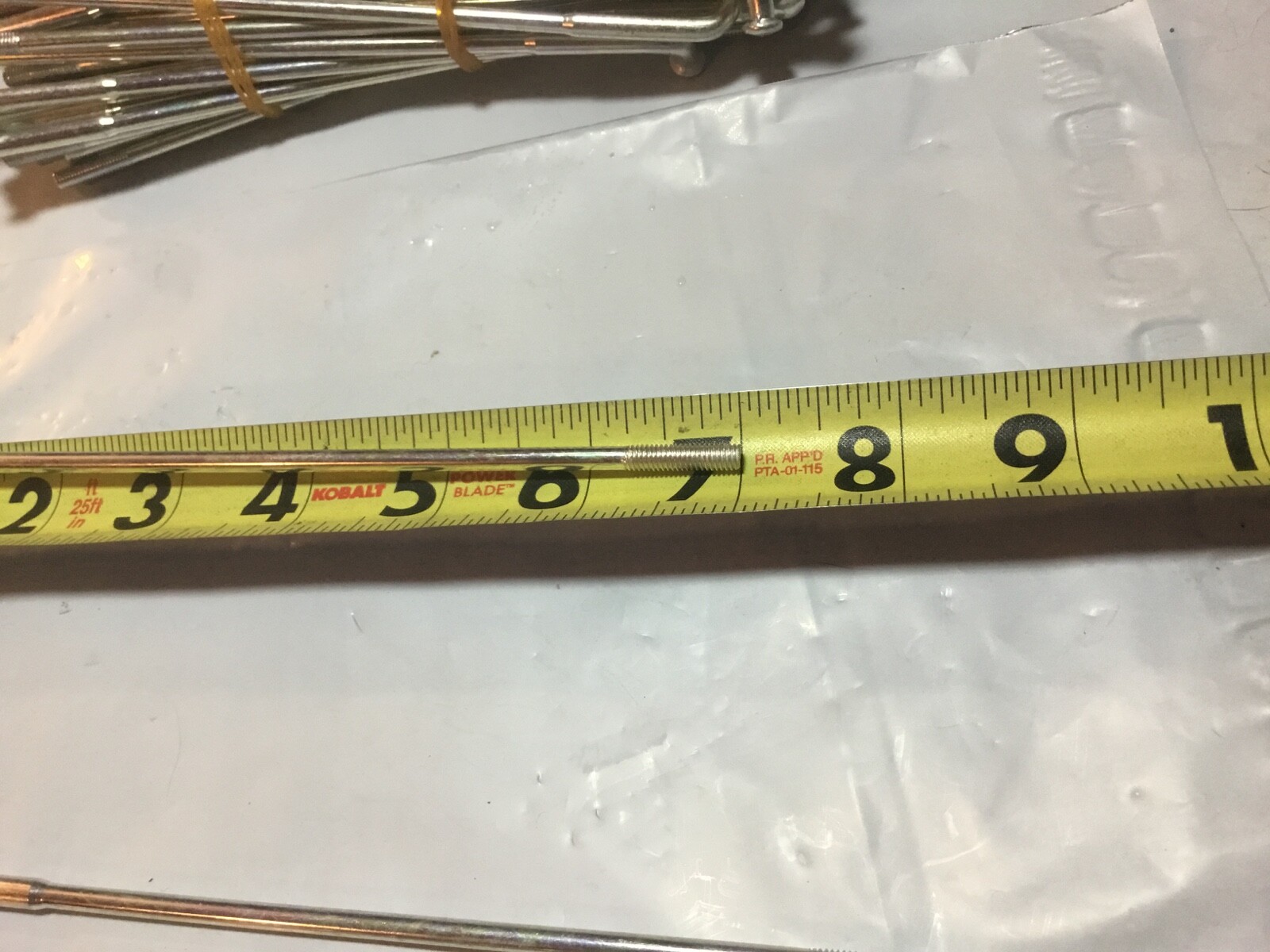

You are purchasing one set of 40 new USA reproduction raw steel non-plated spokes for 16" drop center rims used from 1940 to 1972 big twin and 45 solo and Servicar models using 16" drop center rims. According to my research material, these were used up through 1972 on big twins, possibly 1973 on Servicar front wheels. It appears there was a "metric" spoke with a -40B part number introduced in 1973 according to one of my later catalogs. Please double check your own reference material to make sure this is the correct spoke for you.

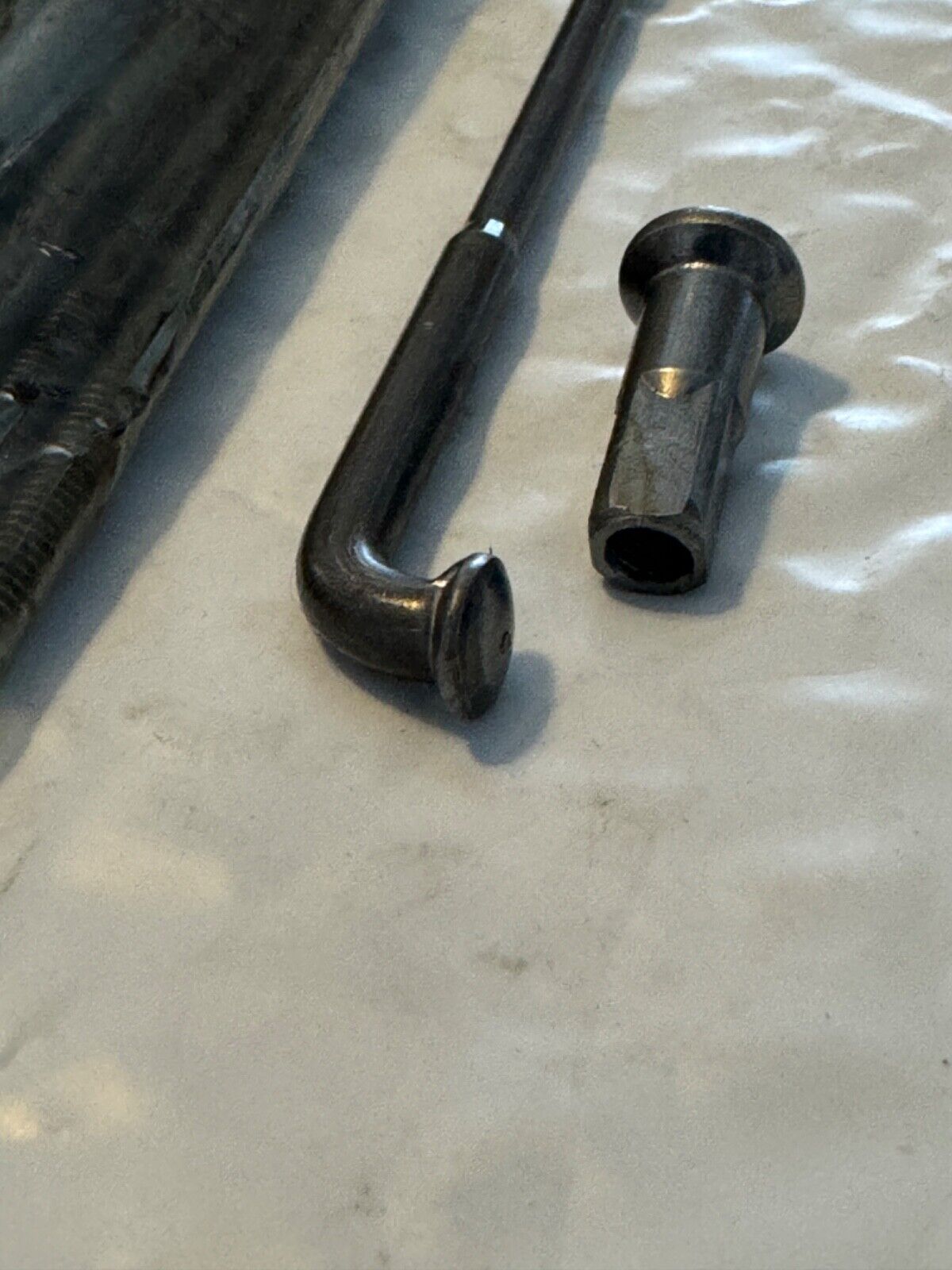

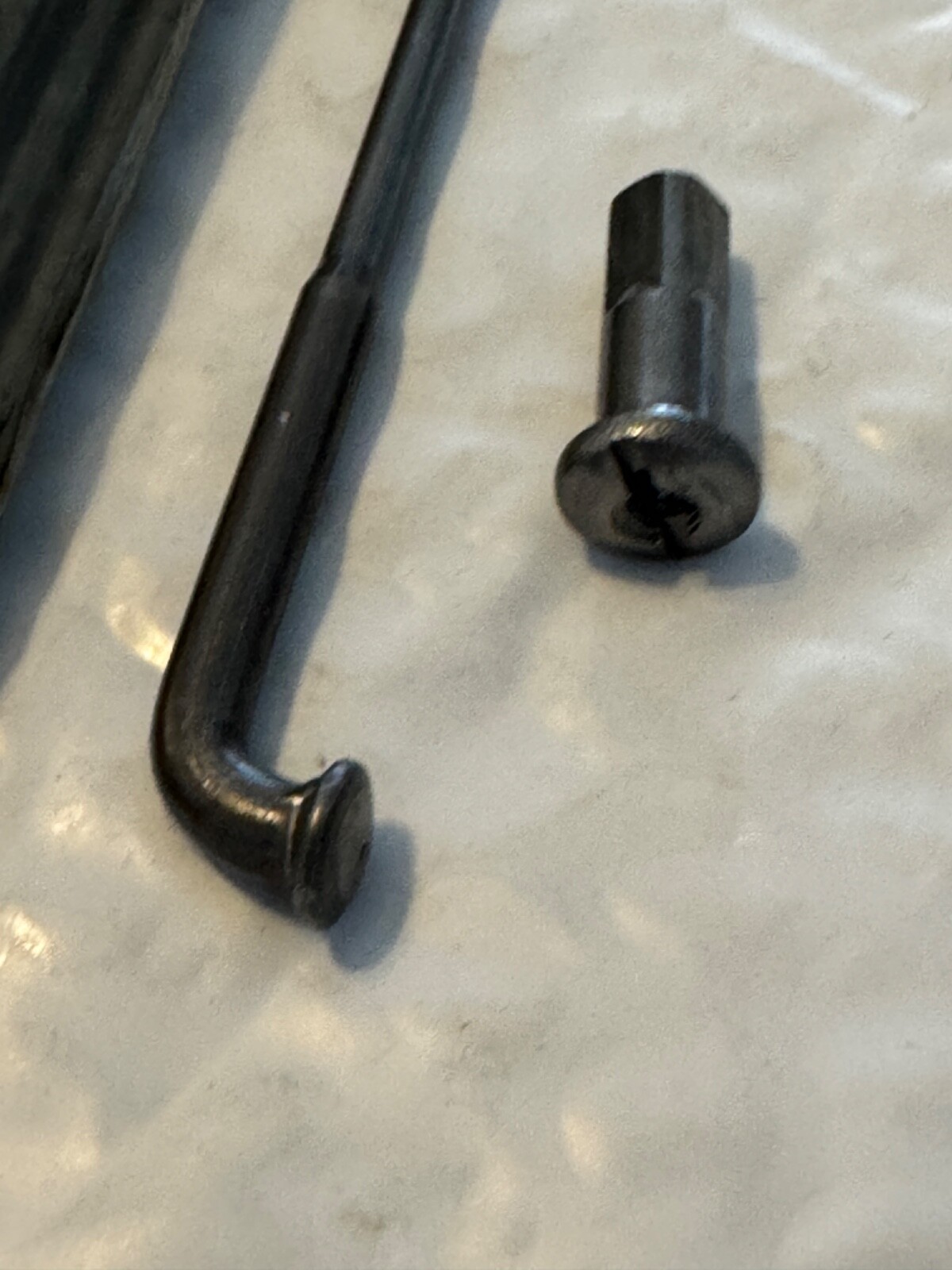

Note: Nipples measure .2835 on the shank, this may require you to over-drill your holes in your wheel or may not. Please measure prior to ordering if you are not comfortable with that possibility.

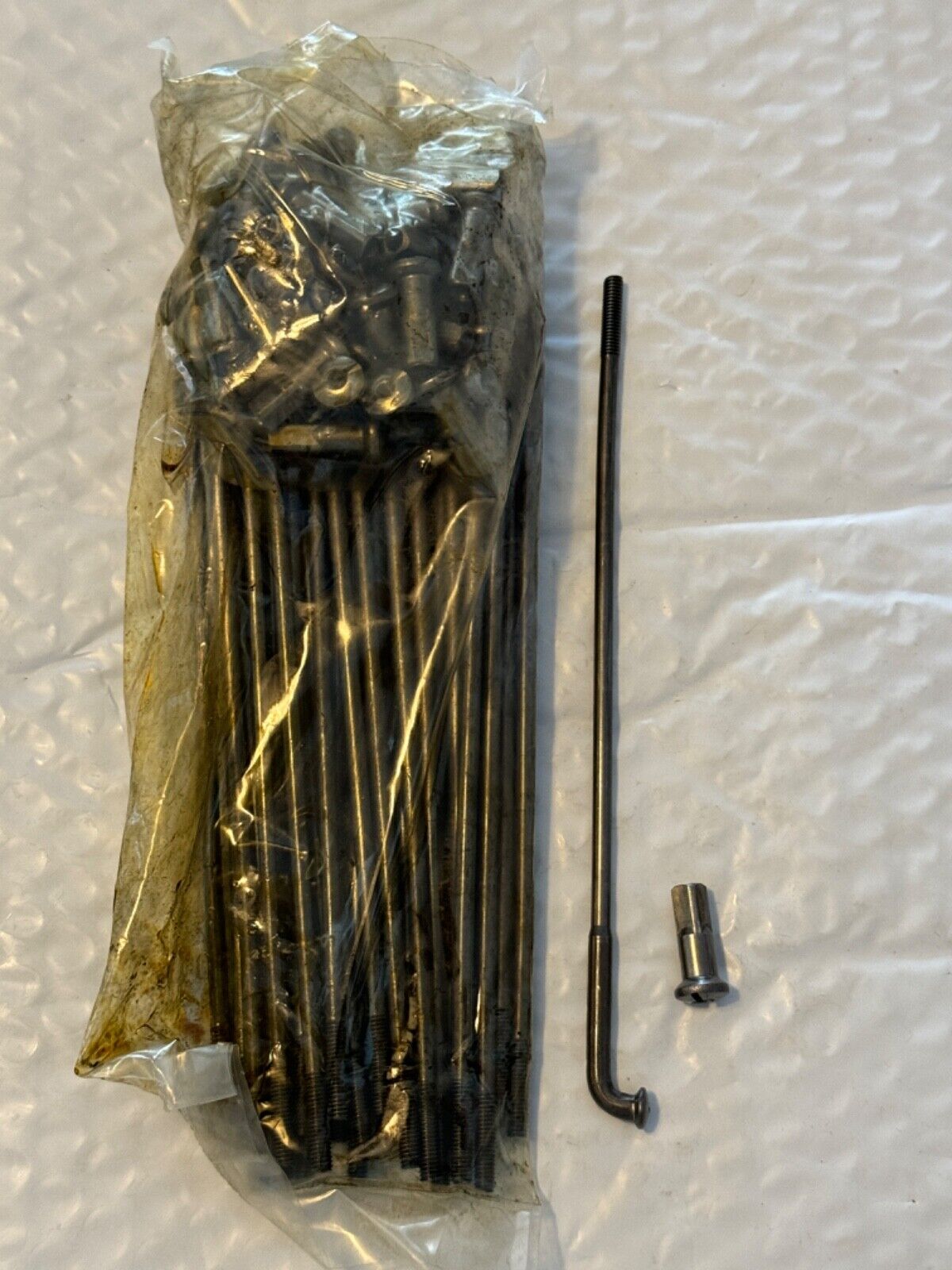

You get 40 spokes and 40 nipples with this purchase, enough to lace up one wheel. Please check your reference material to make certain this is what you need. The threads are "rolled" threads as original and are 6-8 gauge. However, I never recommend trying to intermingle OEM and reproduction regardless of whatever claim is made about the threads on these.
We also stock this spoke in a cadmium or parkerized finish as well as for 18" front and rear wheels on DL, RL, WL, and early Servicar models and spokes for 1940 and up models with 16" drop center rims. We offer reproduction Kelsey-Hays 18" drop center wheels and star hubs, both the step type and later style hubs. The rims are available in bare steel, cad, or chrome, just email and ask about current availability.
Includes the following:
- 3943-40 (new # 43032-40) raw steel spokes- 40 each
- 3947-29 (new # 43099-29) raw steel spoke nipples- 40 each
We also sell fuel lines, oil lines, dash panels, etc. for 45, Knucklehead, UL, Panhead, K-Model, JD, VL, DL, RL, & Servicar. If it's for a 1915-1984 Harley, we either stock it or can get it in short order. If you don't see it there or cimarroncycleworks, just email us and ask.
Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
Used on the following models, please cross-check your own reference material to make sure this is right for you:
- 1940-1947 E, EL, F, FL, ELA, ELC 61" & 74" OHV Knucklehead
- 1940-1948 U, UL, UH, ULH, ULA, UA, etc. 74" & 80" big twin flathead
- 1948-1963 EL, FL, FLH, FLE 61" & 74" OHV Panhead (star hub wheels were used through 1966, but parts books show the 18" wheel option ended after 1963)
- 1940-1952 W, WL, WLD, WLDR, WR
- 1940-1950 Servicar rear wheels, 1940-1972 or 1973 Servicar front wheels- please check your reference material before ordering
- 1966-1972 FL, FLH 74" Shovelhead
- 1971-1972 FX 74" Shovelhead rear wheel
