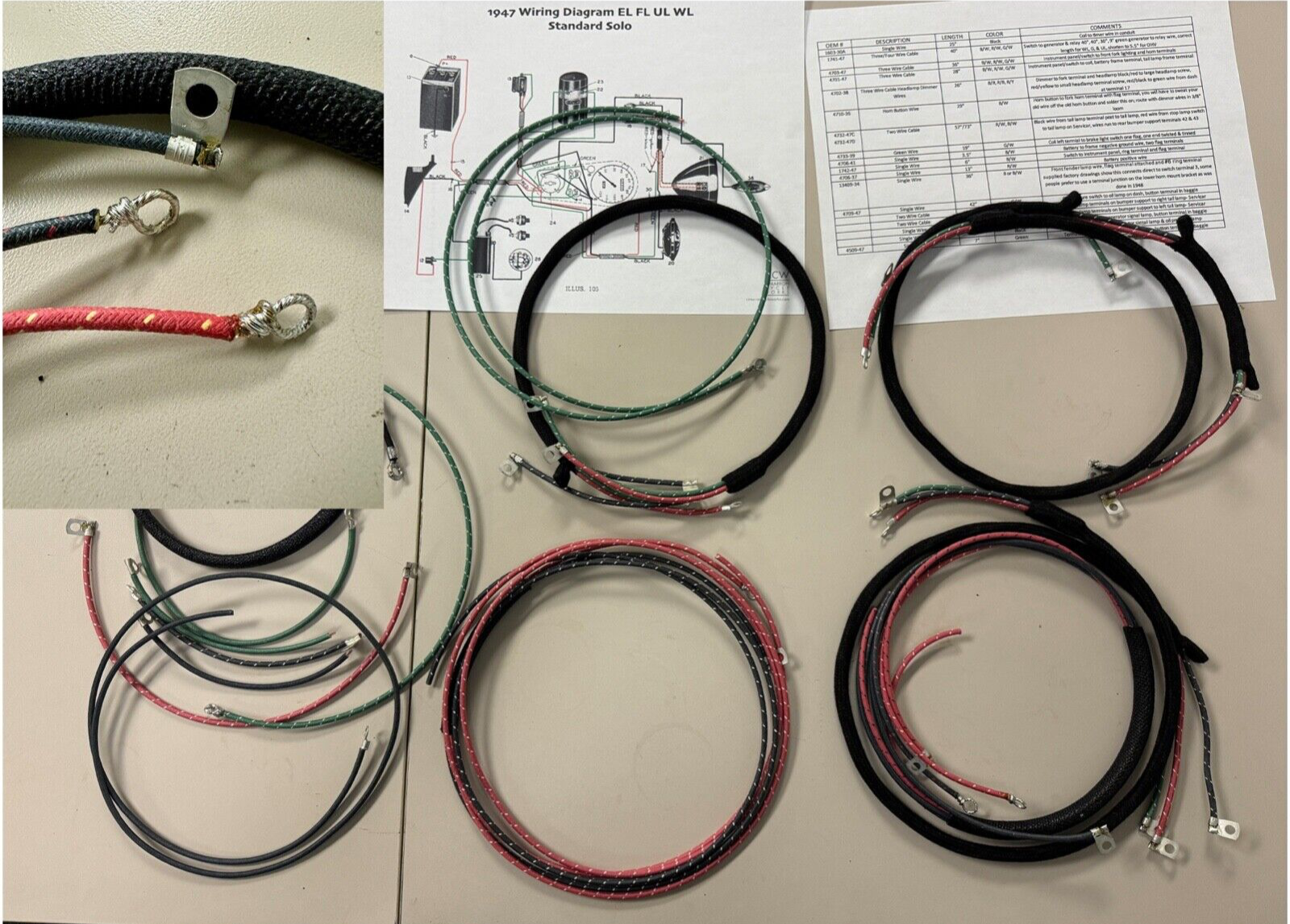

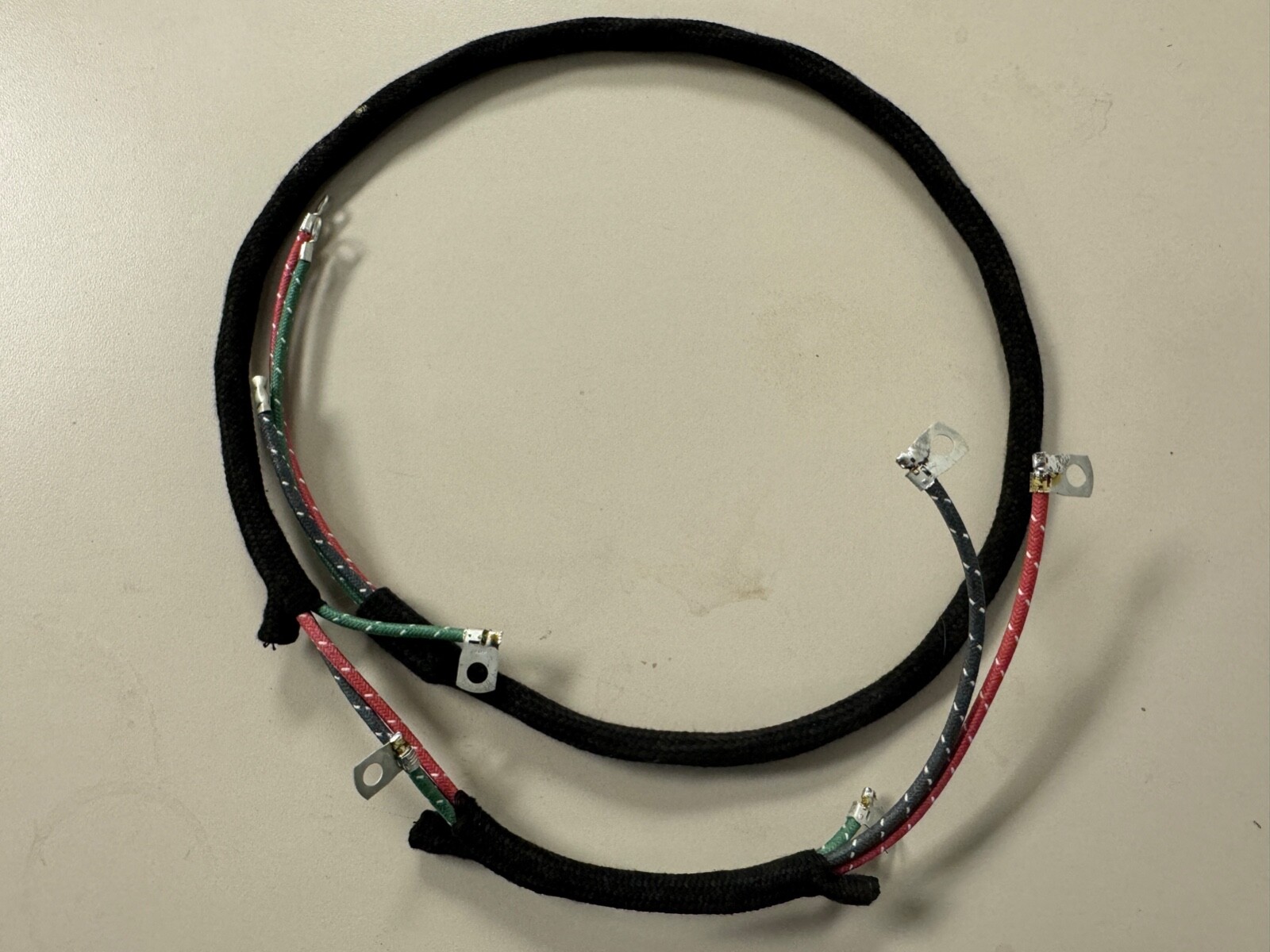

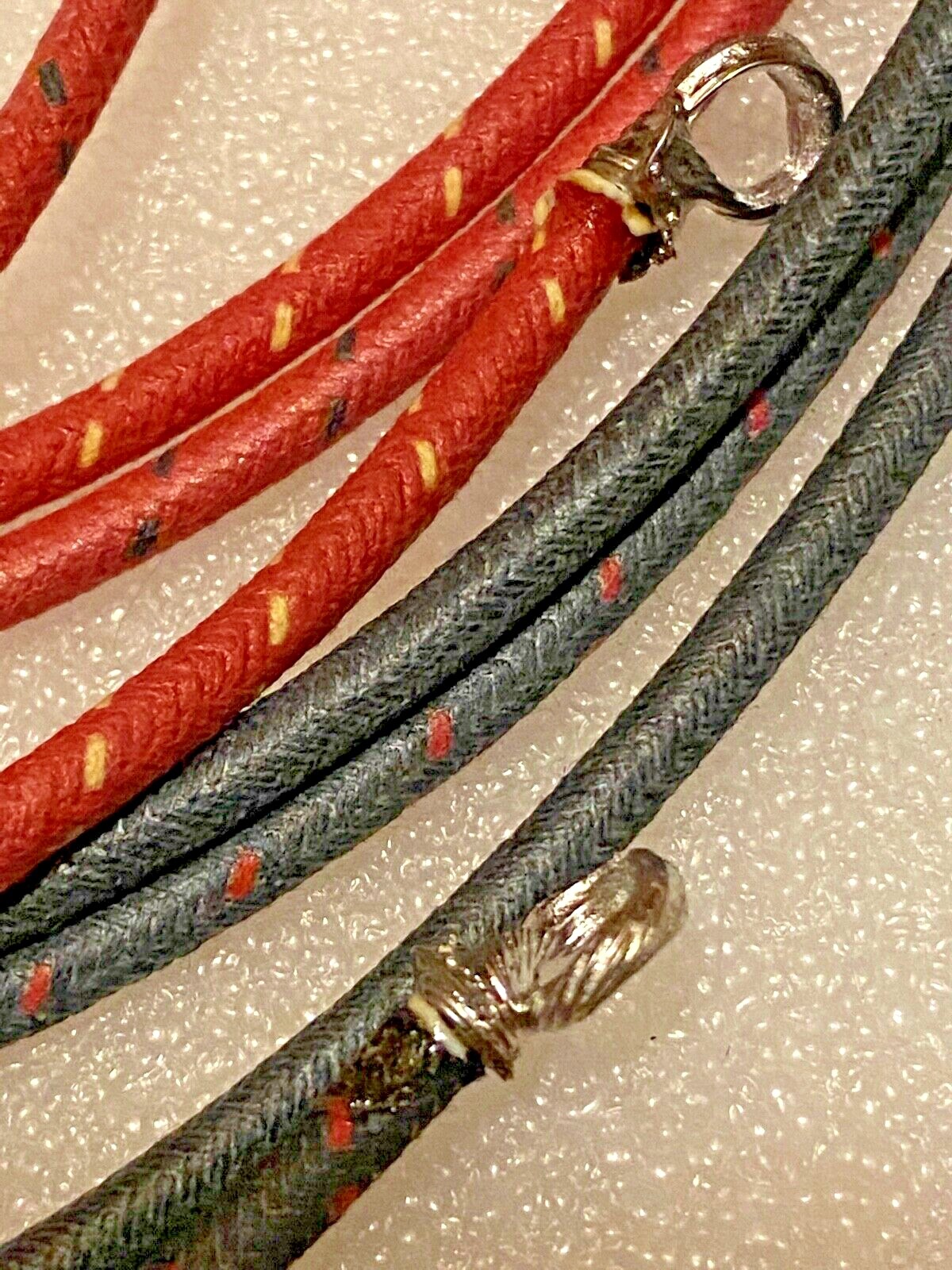

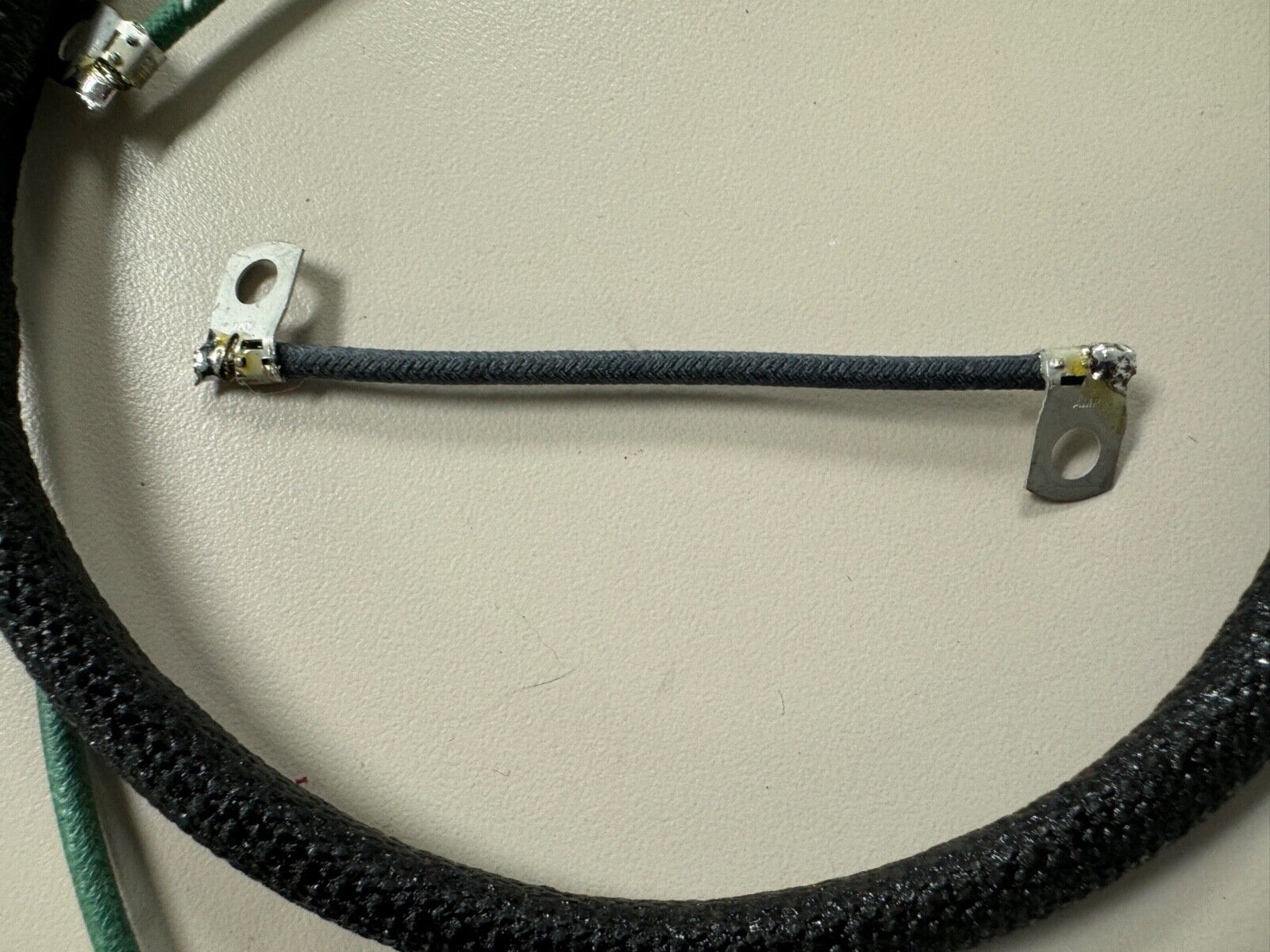

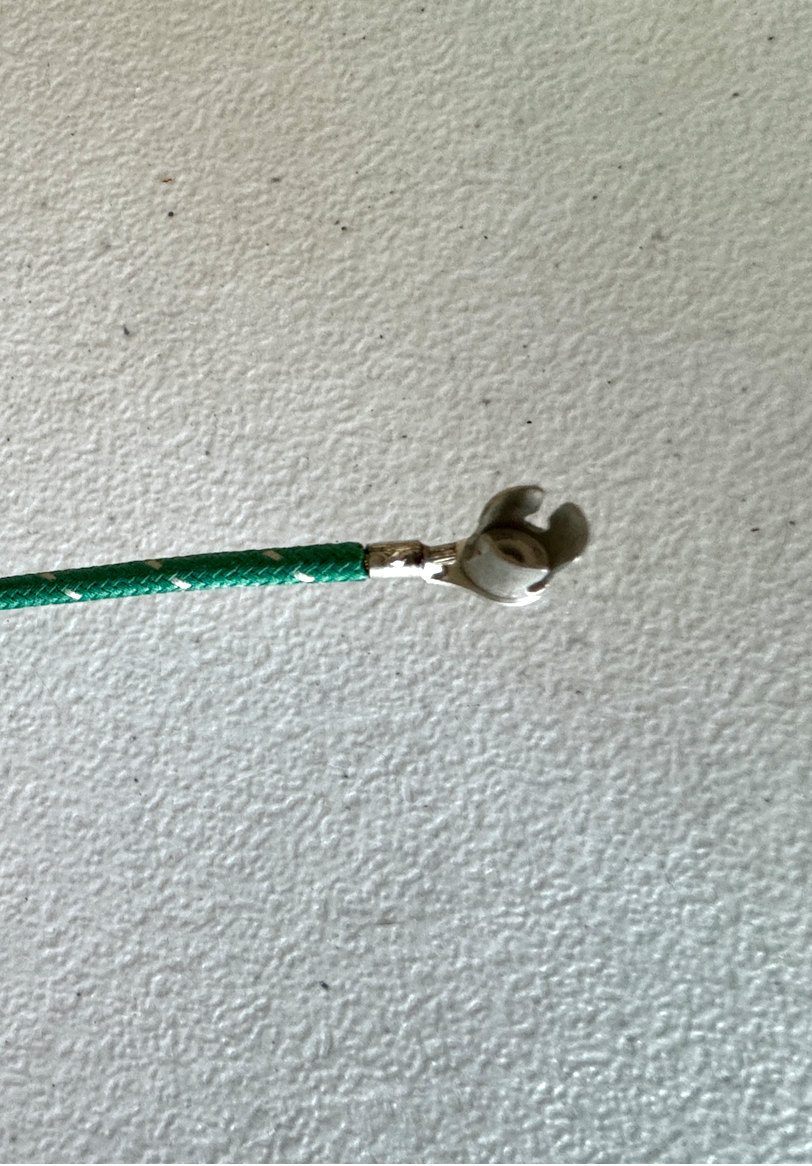

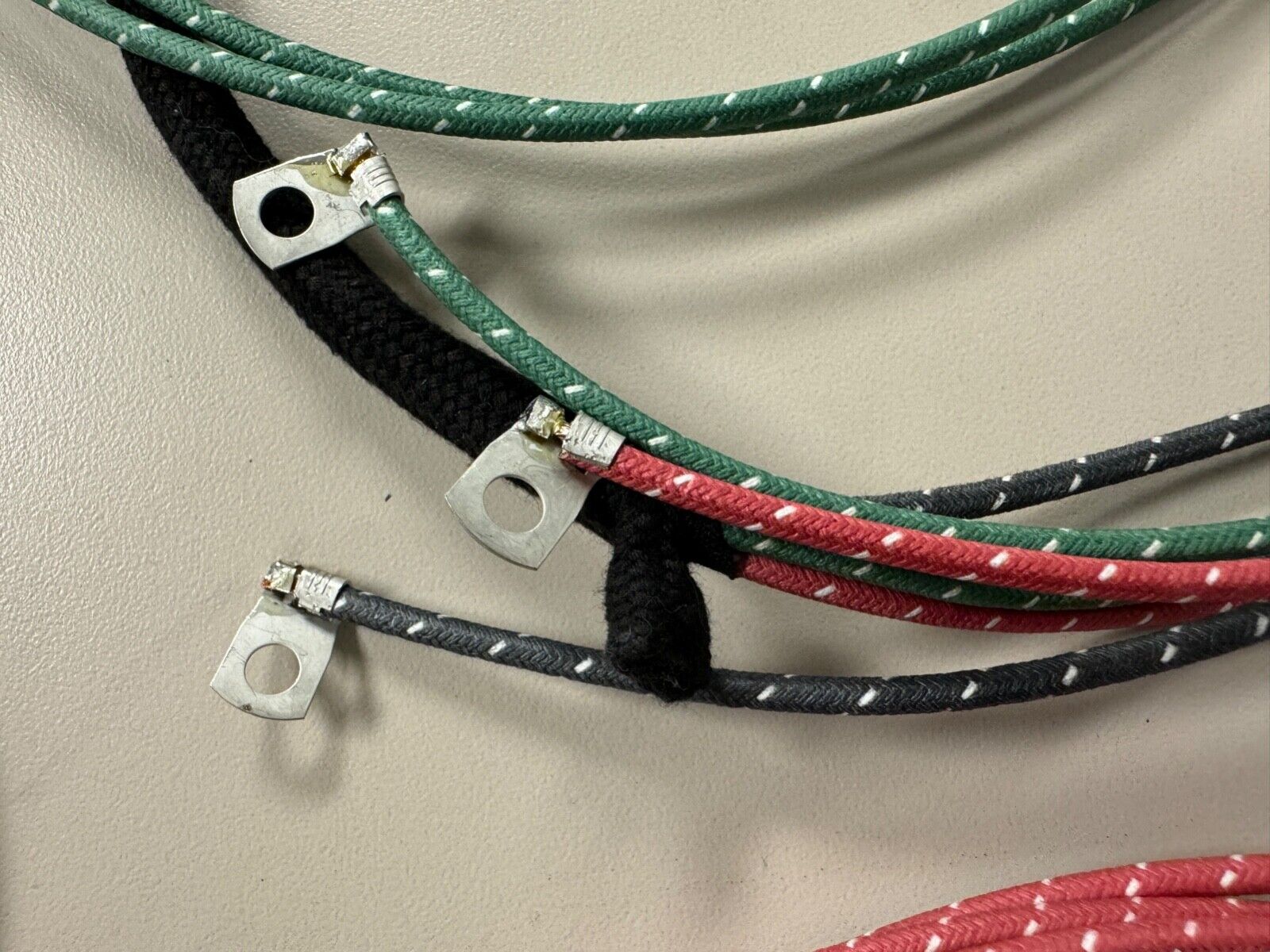

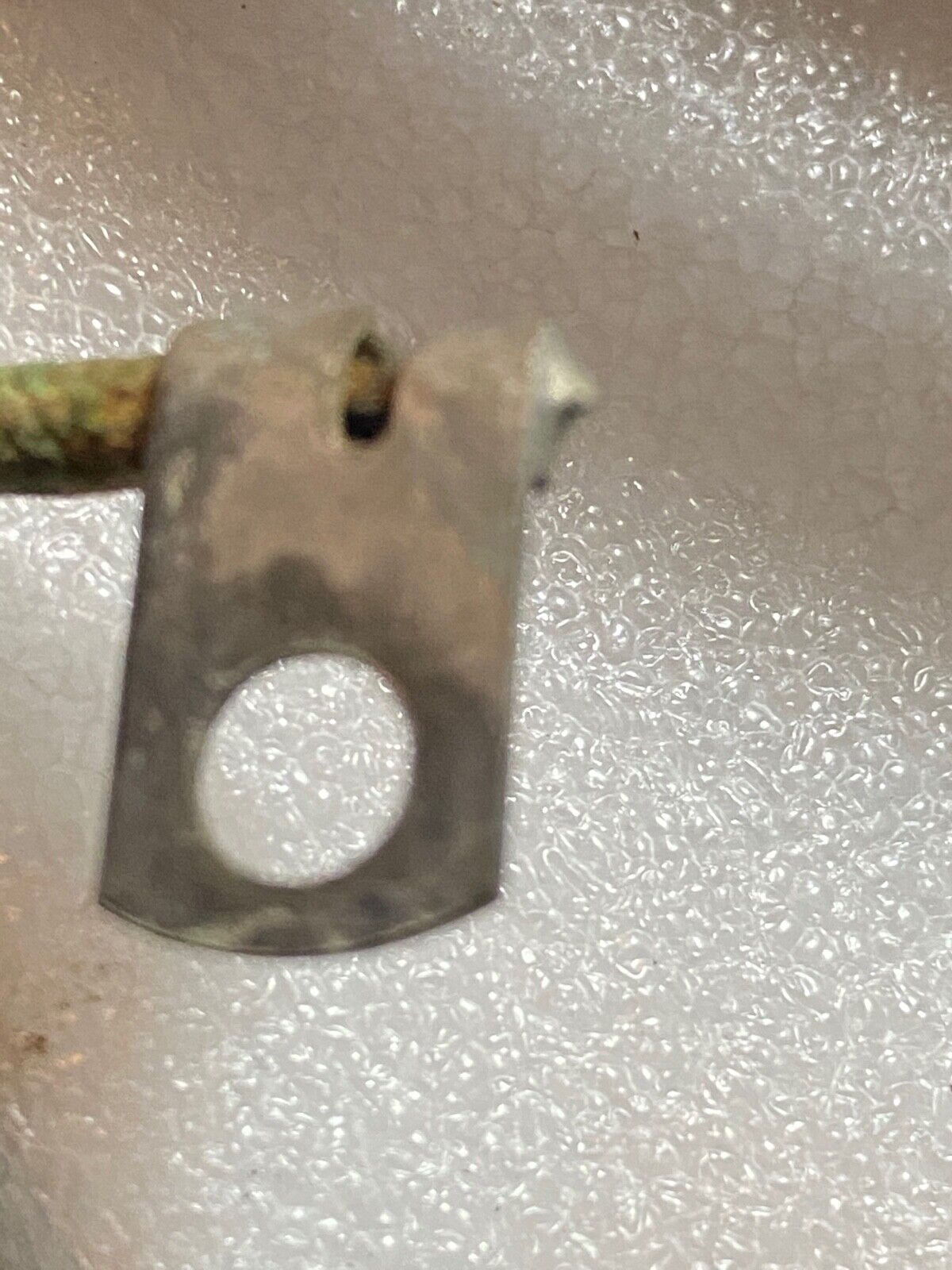

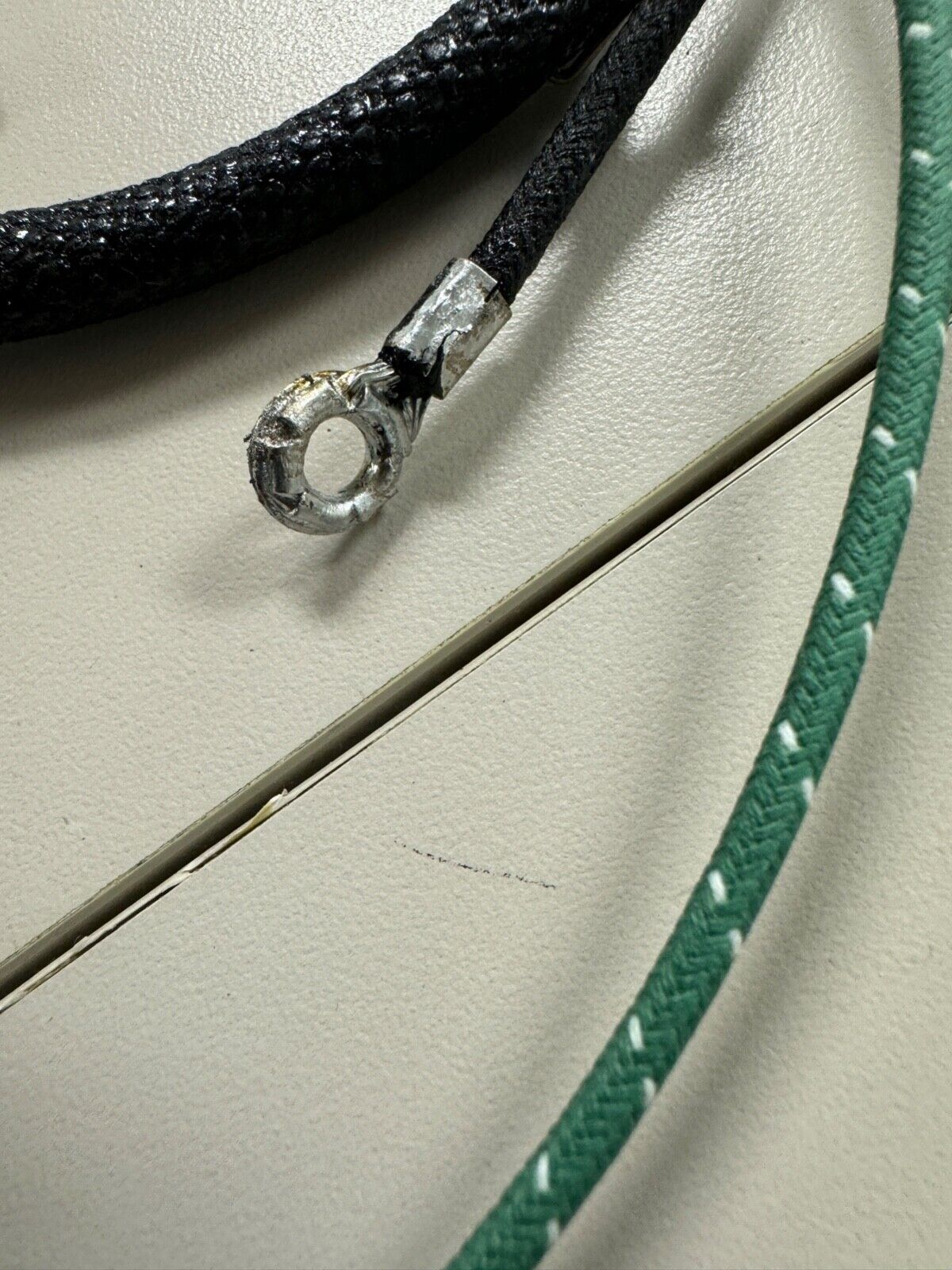

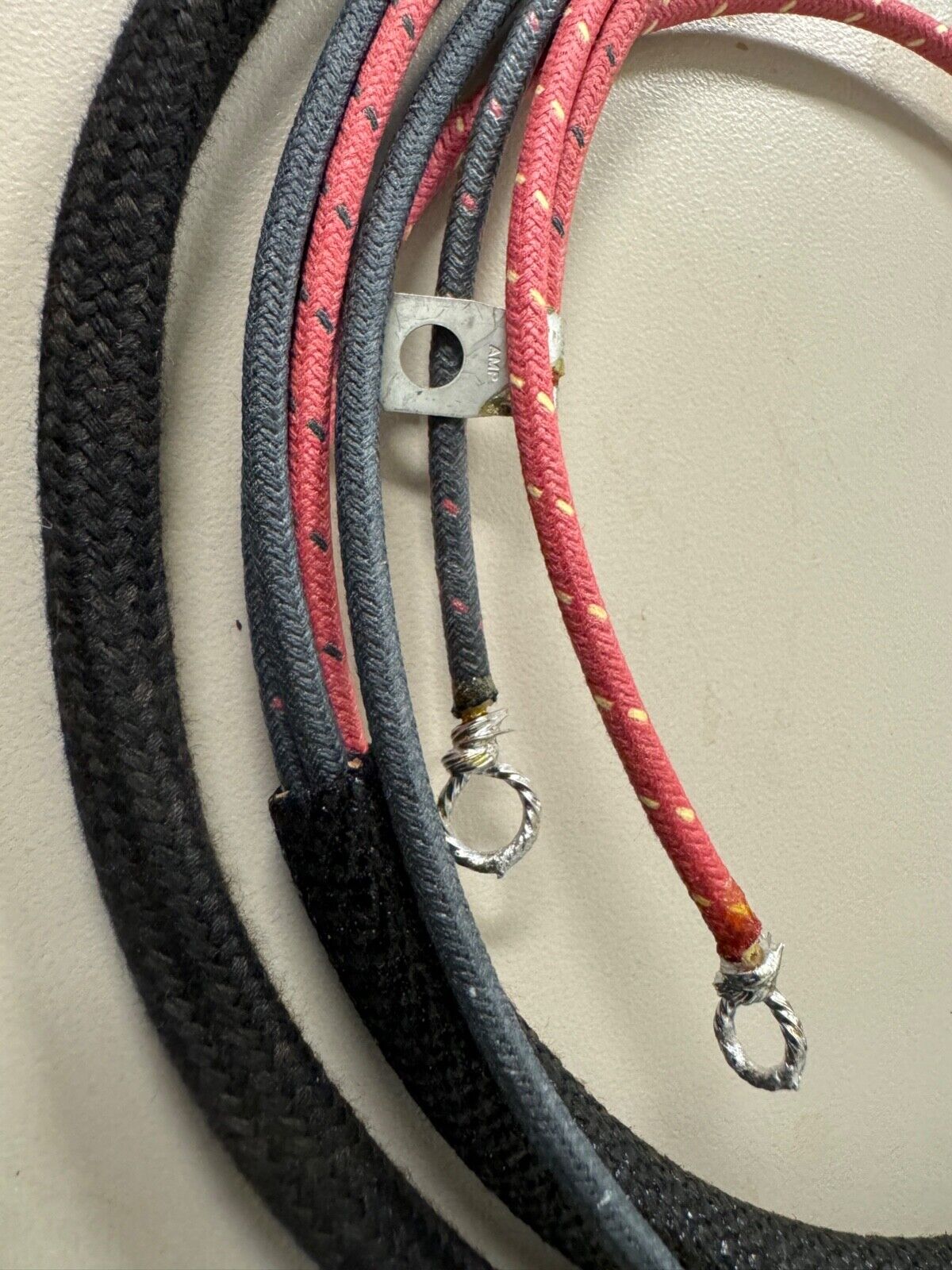

You are purchasing one new USA Made wiring harness kit for 1947 Harley-Davidson, Knucklehead models. This is our "premium" kit. It has correct open-barrel flag terminals as well as correct twisted and sweated open wire ends on the headlamp terminals and stop lamp switch terminals as well as a soldered on oil pressure cap or cup terminal. No one else has this correct of a flag terminal for 1946 and 1947 originals are shown in photos 6 & 7. The fork, coil/battery, and generator relay harnesses are encased in woven cotton loom material, wires are single traced or solid, and tail lamp wires are the correct red/white and black/white wires for 1947. We also include all of your dash wiring with our premium kits.
Do note this kit also includes all of your dash base wires and speedo lamp wire for the lamp sockets, these are not included in any other kits on the market. To finish your installation, you will need to be able to solder in button lamp contact terminals in your tail & stop lamp, as well as your dash base. Your horn and dimmer wire ends are already tinned in place so you will fish your bar wires up from the bottom of the bar to the switch holes. You will need to sweat out your old dimmer and horn button wires and solder these in.
This is available for UL and WL models as well. We offer premium kits for 1929-1955 with cotton woven looms, correctly-finished terminal ends for each era. All are made by hand one at a time in our own shop.
We do sell a less-detailed kit for about $60 less and we do sell a kit complete with pre-wired switches as well as a 1947-only Servicar kit. If you can't find what you need here or cimarroncycleworks, just email and ask.
We also sell a complete kit for 1936-1937, 1938-1946, 1948, 1949-1953, 1954-1957, 1958-1959 Duo-Glide, K & Sportster models, Hummer Knucklehead, WL, Servicar, VL, JD, RL, single & DL.
We also sell dimmer and horn switches, as well as complete wiring clip kits to finish out your installation. We will be adding kits complete with the clips in the near future. If you don't see them, just ask.
Manufactured by hand at and ships from Cimarron Cycle Works, LLC in beautiful Cimarron New Mexico, USA!
Used on the following:
- 1947 EL, FL Knucklehead 61" & 74" OHV
- 1947 UL, UH, ULH 74" & 80" big twin flathead
- 1947 W, WL, WLD 45" solo
- 1947 G Servicar base harness, does not include tail lamp wires for Servicar
