Harley JD VL DL RL Knuckle Chrome Spiral Repair Sleeve 1916-48 OEM# 3312-16

Harley JD VL DL RL Knuckle Chrome Spiral Repair Sleeve 191648 OEM# 331216
  • Product Code: 353335798913
  • Availability: Out Of Stock

  • $19.95


0 reviews / Write a review

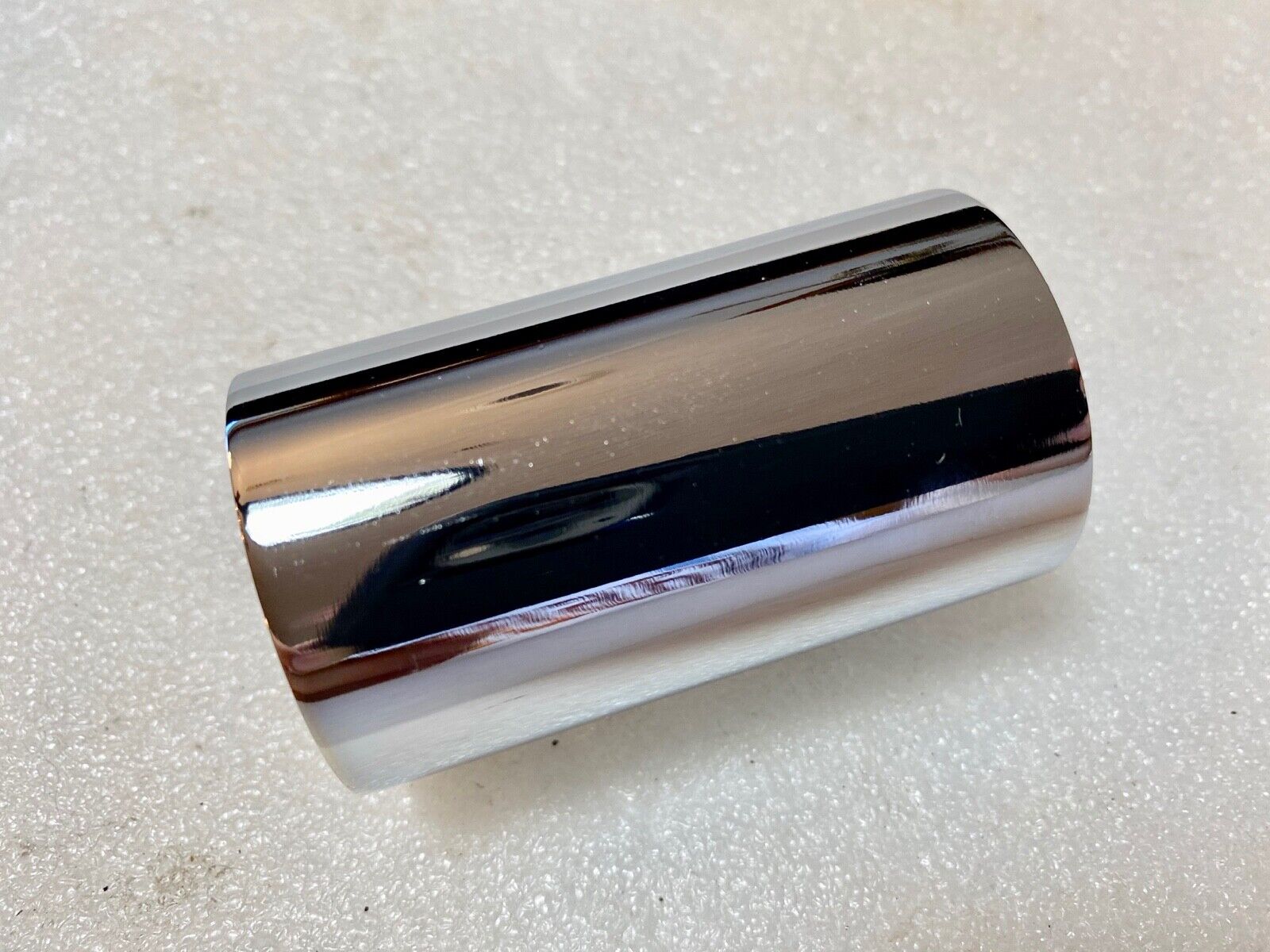

You are purchasing one European reproduction chrome plated handlebar spiral beauty sleeve for throttle and spark control spirals on all 1916-1934 model stock production Harley-Davidson motorcycles including twins, singles, and the Sport Twin.

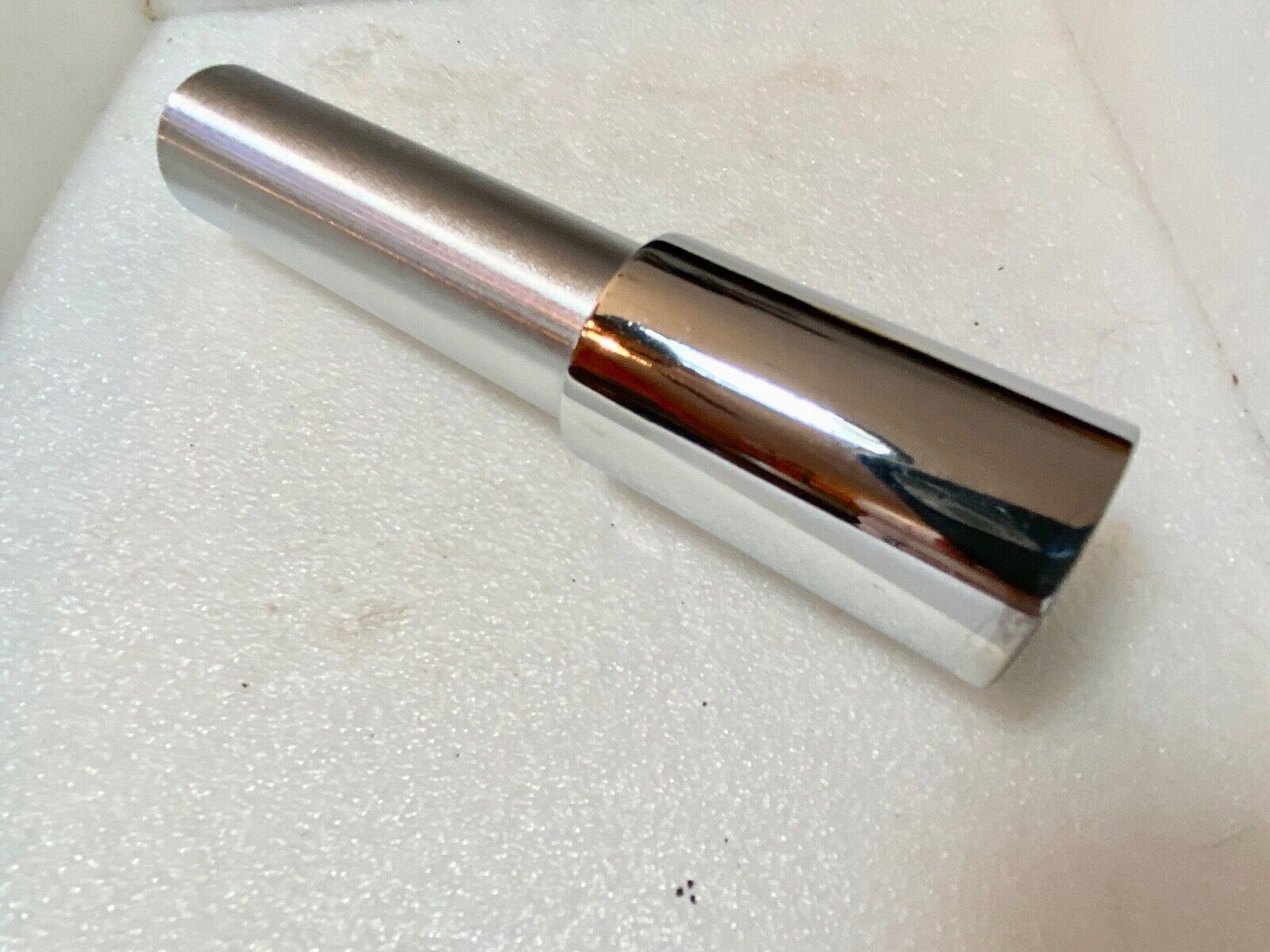

This listing is for ONE sleeve ring, you are not buying a spiral, photo 5 is to illustrate what part this goes on.

A chrome finish is thought to be correct from around 1930 onward.  We sell nickel spirals and nickel repair sleeves for your JD or single on other listings as well as the chrome and nickel late and early styles in pairs and even sell a pull throttle spiral for custom carb installations.

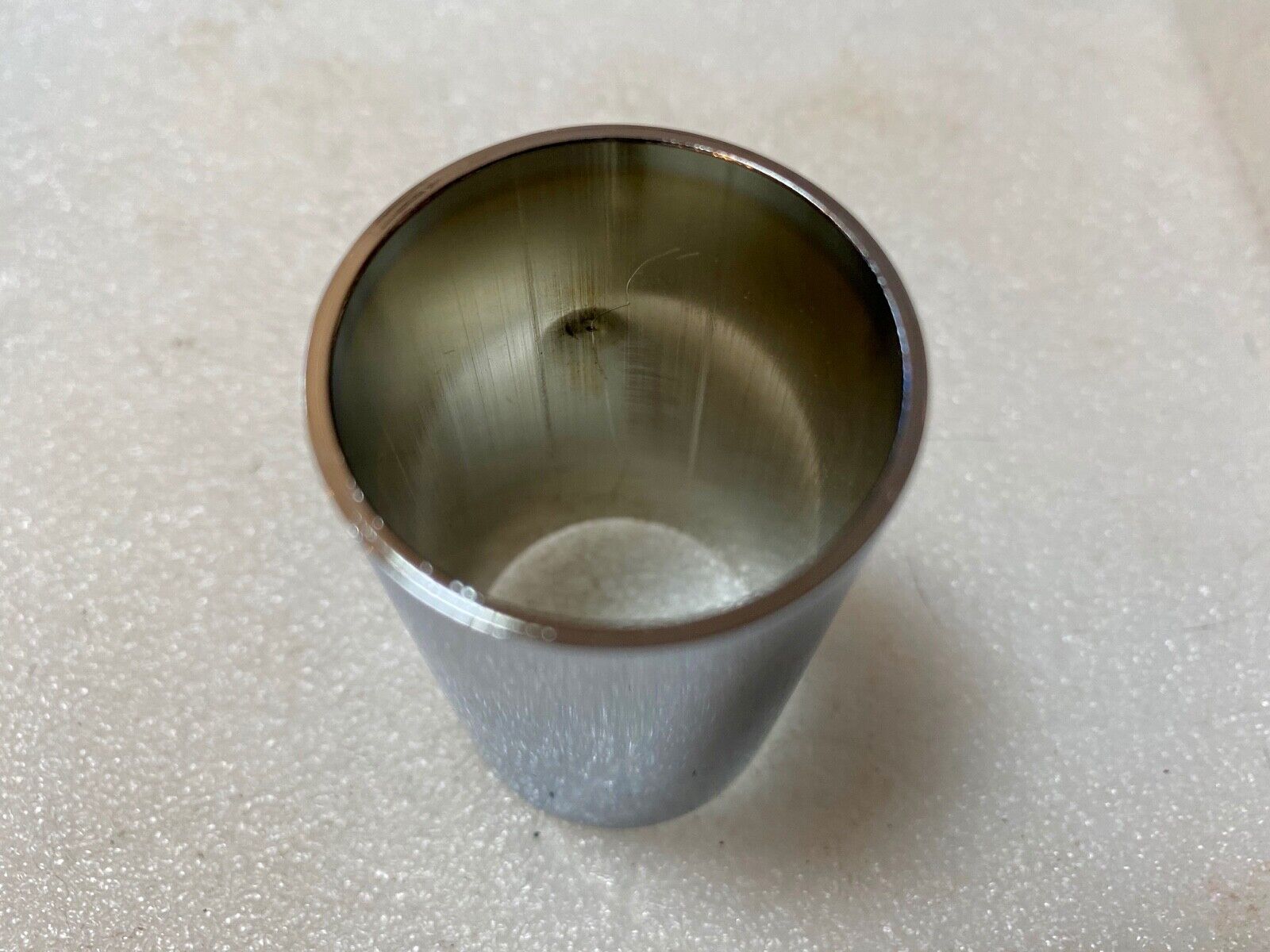

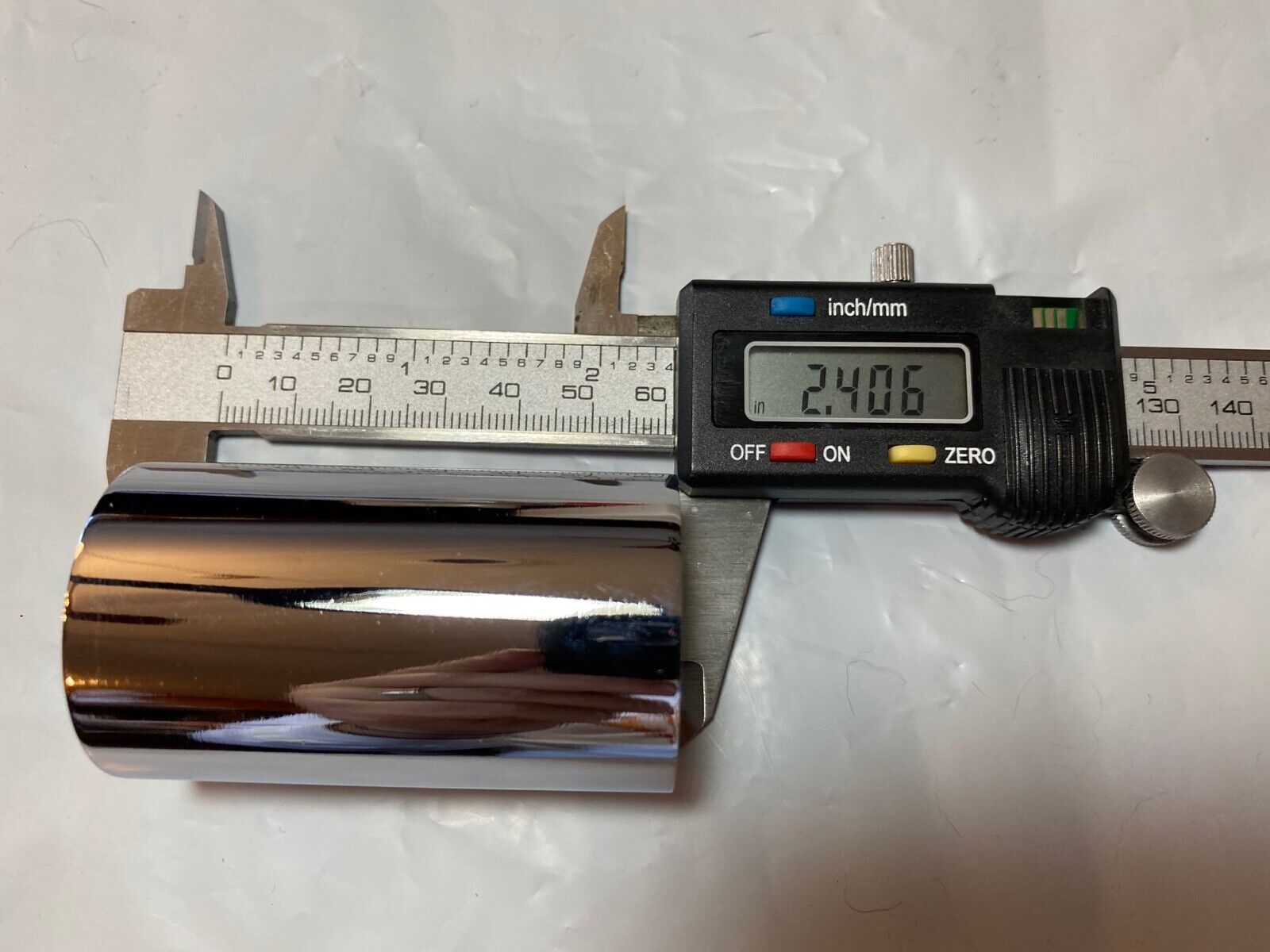

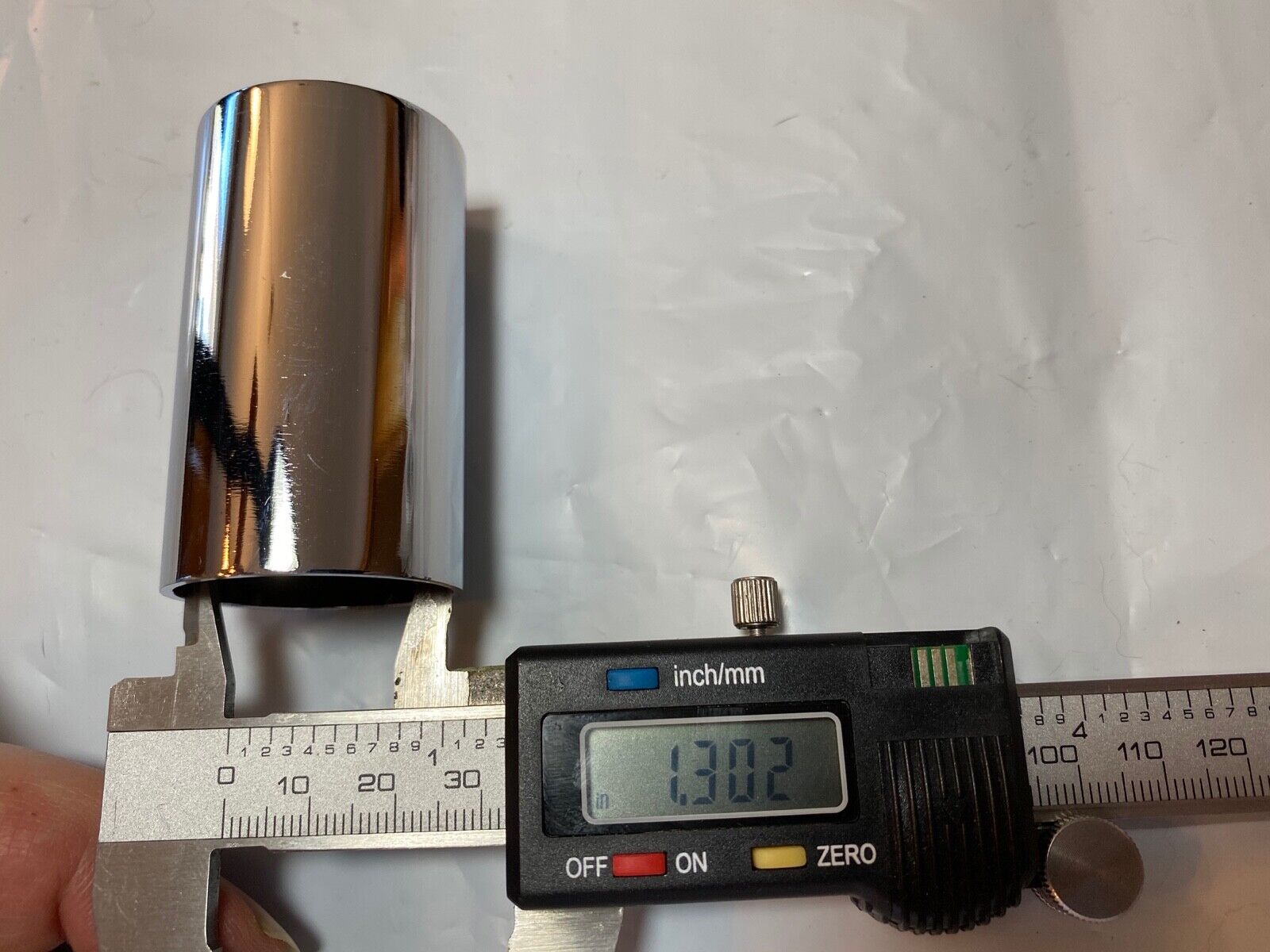

2.406" long 1.302" ID.  These are a press fit over your old spiral and can be a tricky operation to do this.  You can use a Dremel tool or small die grinder to slit the old sleeve along the pin groove for removal, then warm up this sleeve while your spiral is in the freezer and it should all go together with minimal coaxing.

We also sell the nickel plated spirals, throttle and spark coils as well as the handlebar plungers, end screws and misc. hardware.  We also offer this in kit form with the spirals, plungers, coils, end nuts, and internal hardware.  If you do not see the listing just email and ask.

Used on the following where you want a chrome finish (Nickel is considered correct 1930-earlier):
  • 1916-1929 J, JD, F, 61" & 74" F-Head Twin
  • 1926-1934 A, B, C, AA, BA Single Cylinder
  • 1929-1936 D, DL, R, RL, RLD 45" Twin Solo
  • 1930-1936 V, VC, VL, VLD 74" Flat Head or Side Valve Big Twin
  • 1932-1948 Servicar
  • 1936-1948 E, EL, F, FL 61" & 74" OHV Knucklehead & Panhead
  • 1937-1948 W, WL, WLD, WR, WRTT, etc. 45" solo
  • 1937-1948 U, UL, UH, ULH, UA, etc. 74" & 80" big twin flat head
