Harley Guide S-H2 Spot Lamp Repair Rebuild Kit Knucklehead, UL, Panhead
- Product Code: 351619135462
- Availability: In Stock
-
$43.95

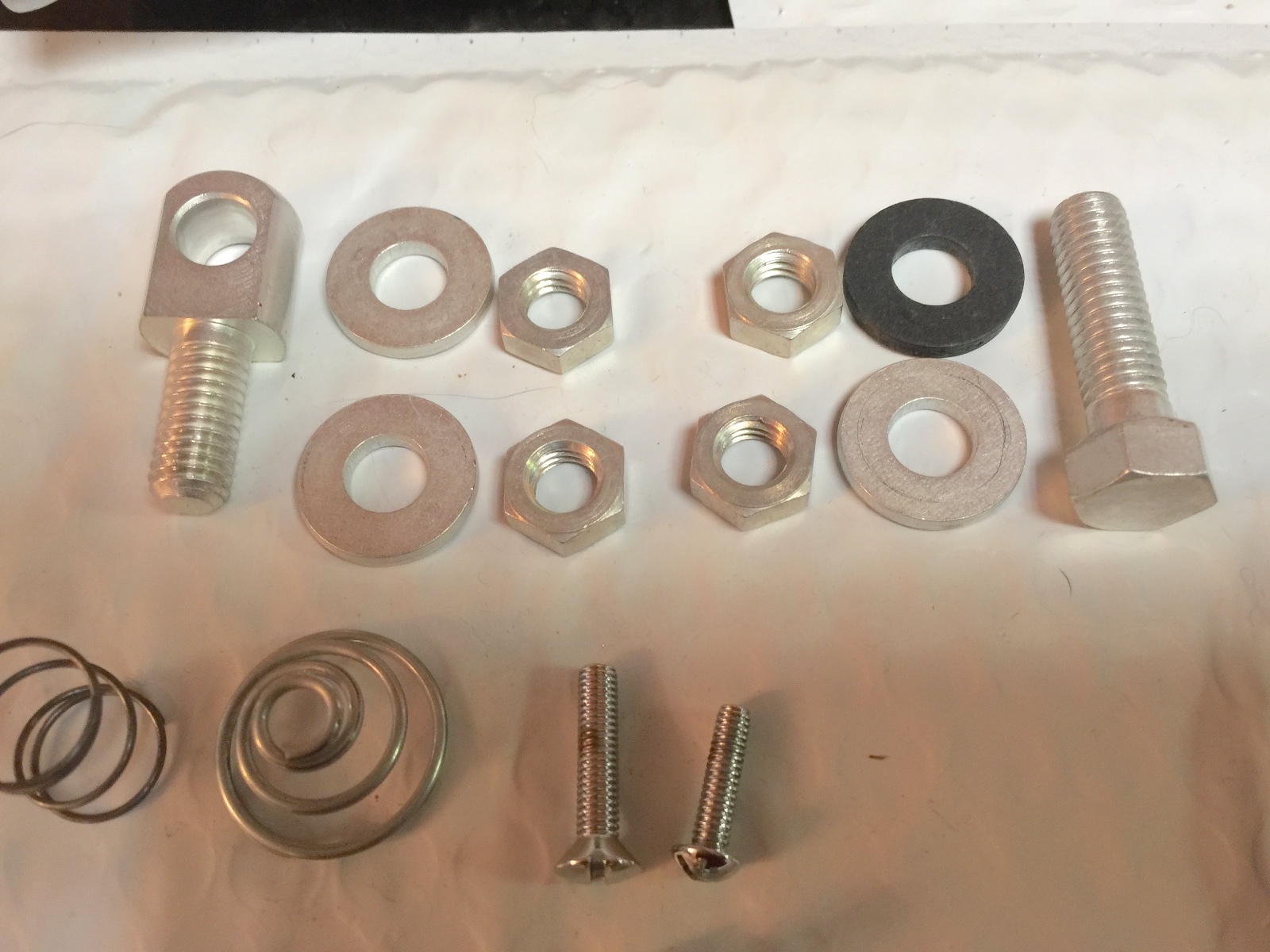

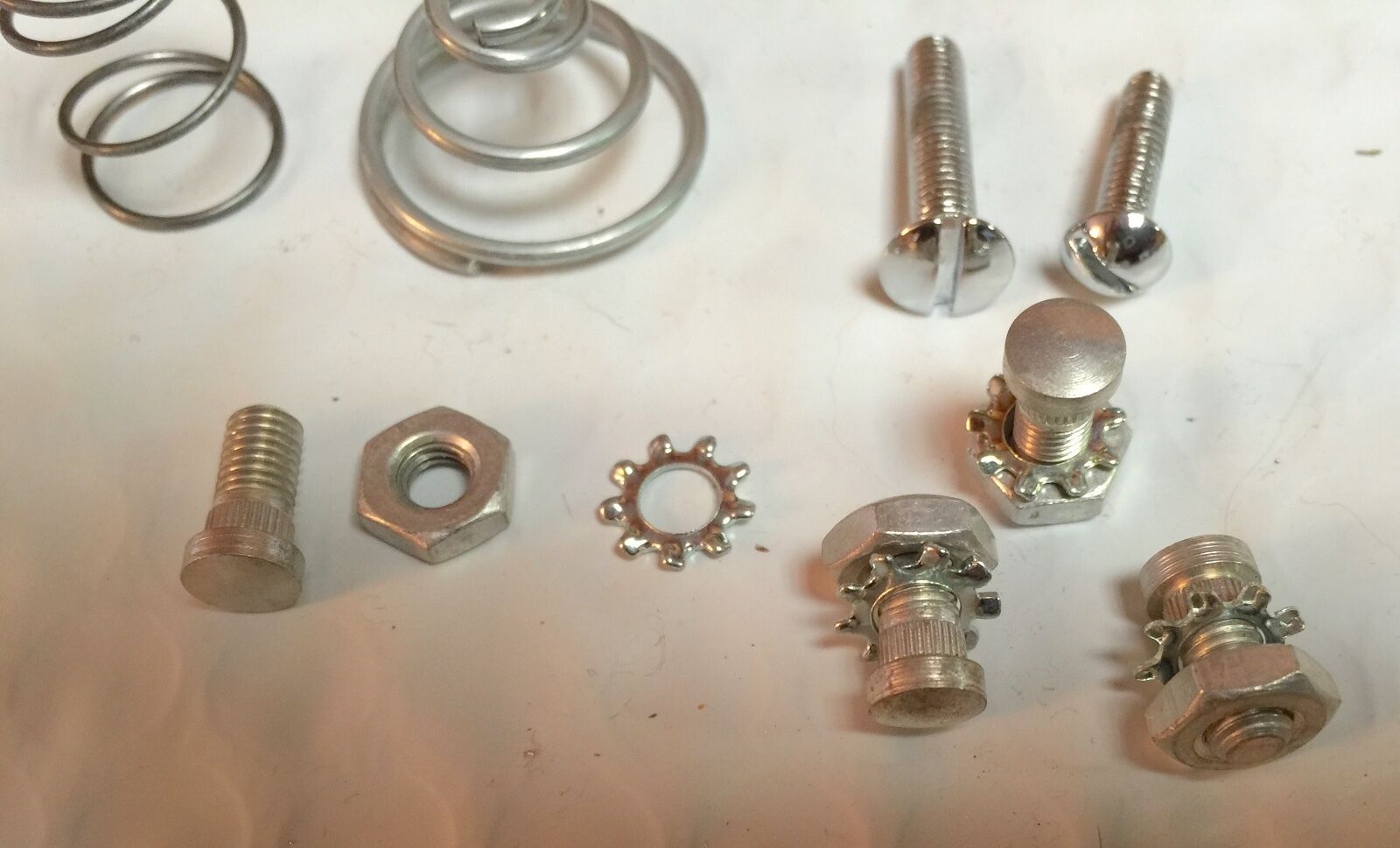

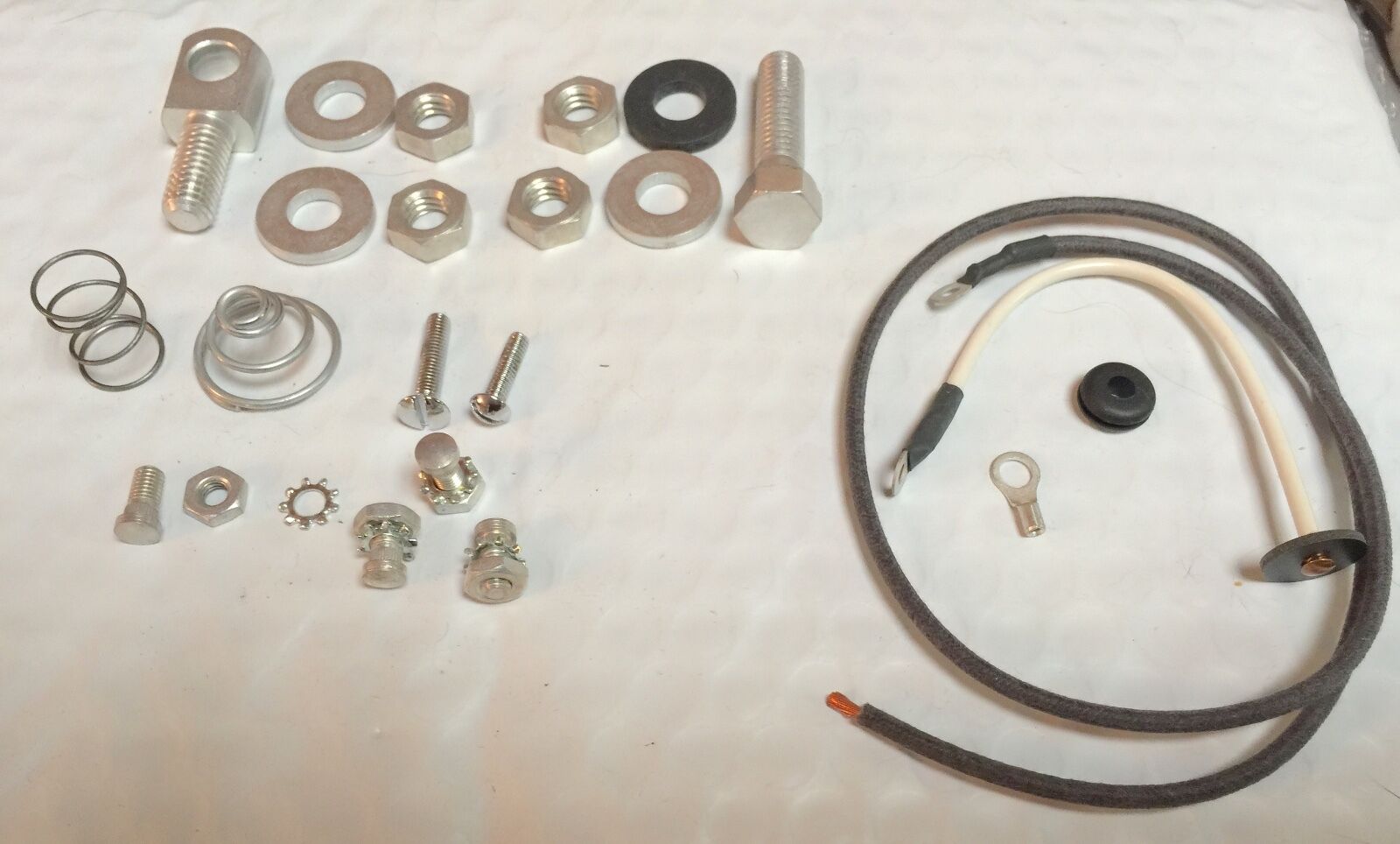

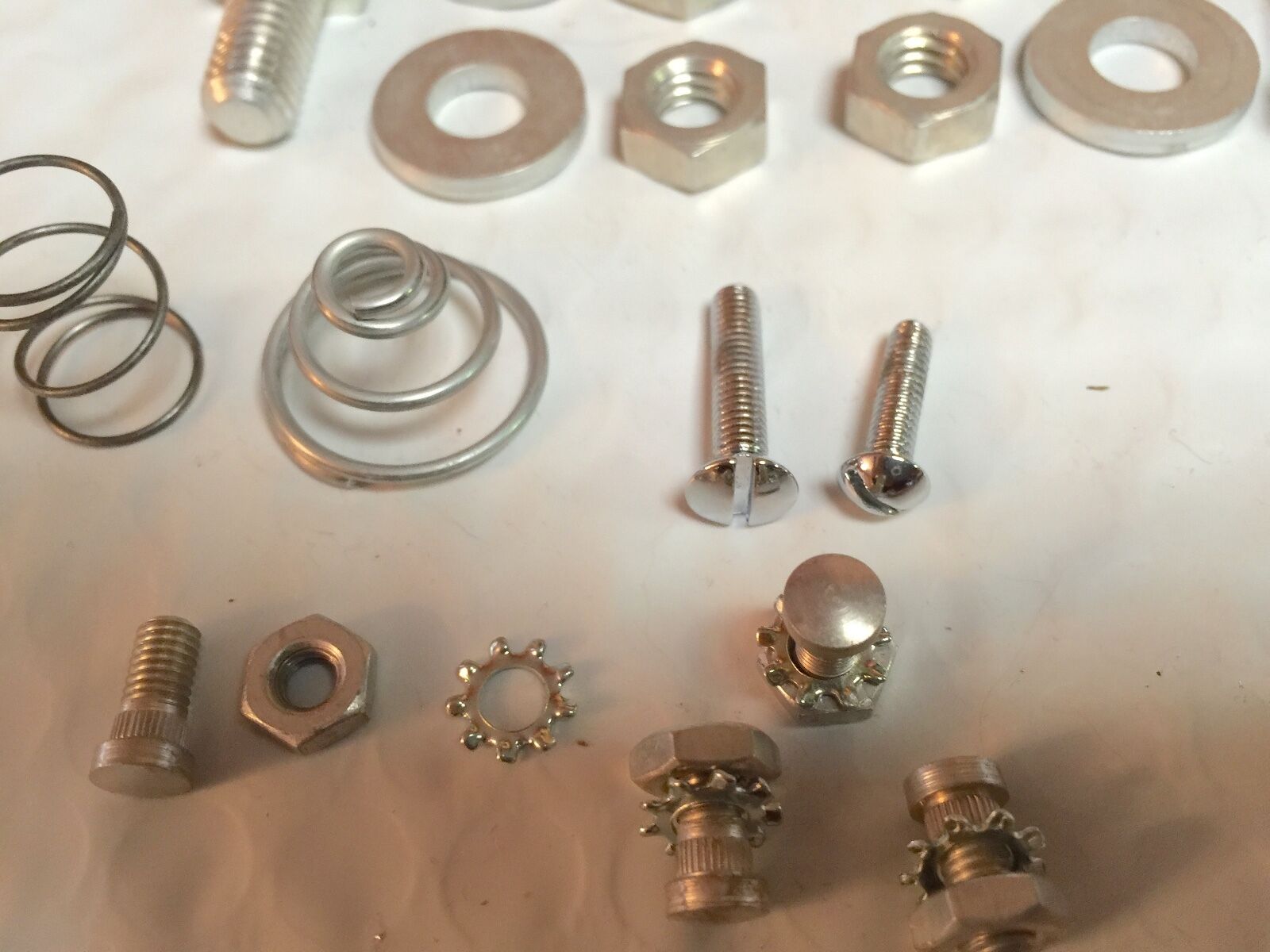

You are purchasing one Guide S-H2 spot lamp or spot light repair kit for the style of spot lamps used from 1938 to 1963 on Harley-Davidson motorcycles. You get everything shown in the photos, cad plating is perfect on the cad plated parts and chrome is perfect on the door and focus screws.
The small bolts with the round heads and serrations are to replace your rivets if you take the bases or stanchions off the buckets to have the bucket and stanchions re-plated.

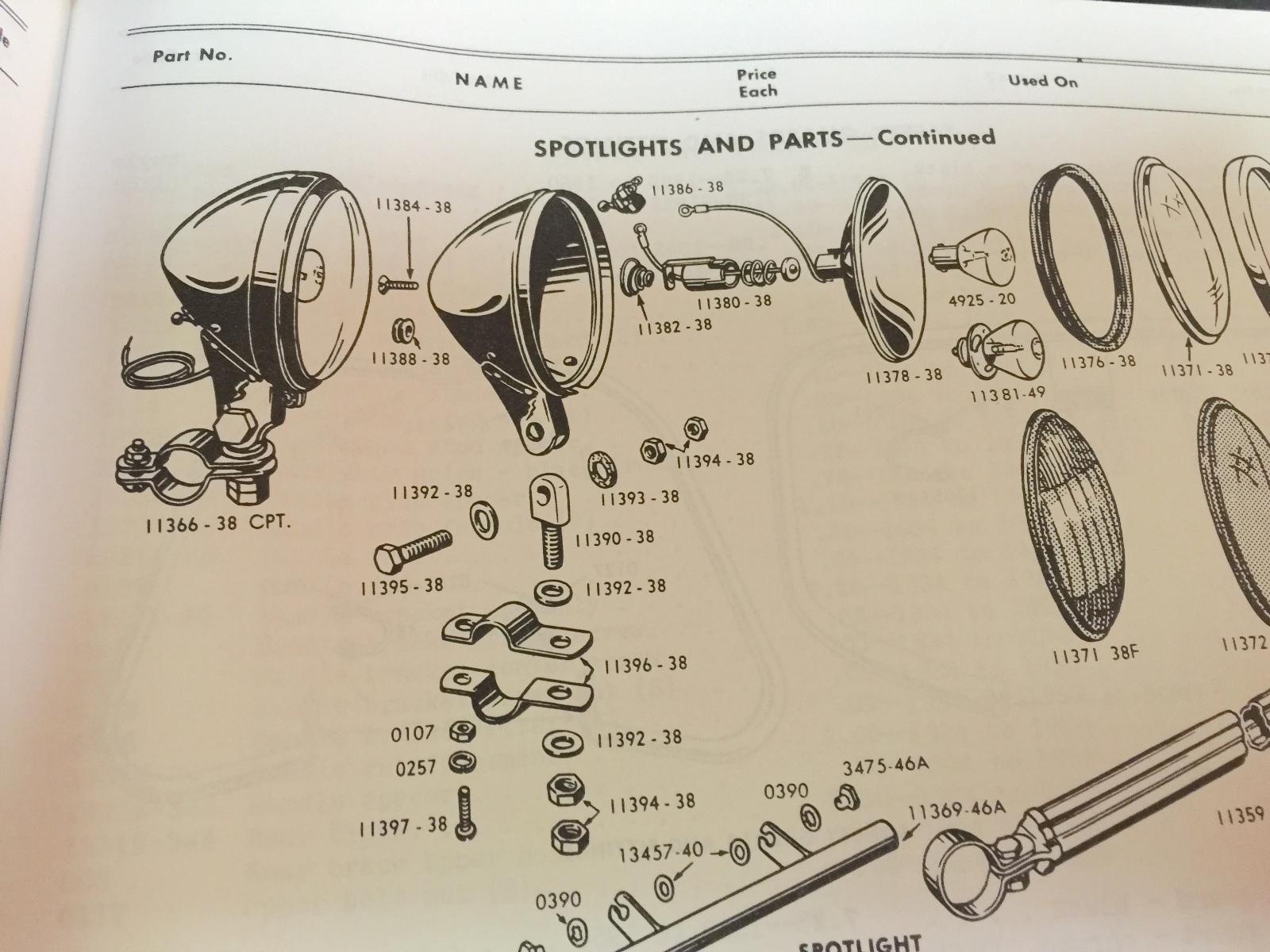

You get the following parts by OEM old/new part number:
- 11375-38/68672-38 door or bezel screw
- 11380-38/68679-38 bulb tension spring only, not the bulb socket
- 11382-38/68683-38 focus spring
- 11384-38/68684-38 focus screw
- 11388-38/68689-38 rubber grommet
- 11390-38/68692-38 swivel
- 11392-38/68693-38 swivel steel washer (qty. 3)
- 11393-38/68694-38 swivel fibre washer
- 11394-38/68695-38 swivel nut (qty. 4)
- 11395-38/68696-38 swivel bolt
- Rivet replacement bolts with nuts and washers, cad plated (qty. 4 of ea.)
- Short white bulb wire
- Black cloth wire
Used on the following:
- 1948-1963 EL, FL, FLH 61” & 74” OHV Panhead Hydra-Glide & Duo-Glide
- 1952-1956 K, KK, KH, KHK K-Model
- 1957-1963 Sportster XL XLH model
- 1938-1963 G Servicar
- 1938-1947 EL, FL Knucklehead
- 1938-1948 U, UL, UH, ULH
- 1938-1952 W, WL, WLD 45” solo
Do note that we do sell reproduction chrome restoration-quality Guide Hydra-Glide headlamps, spot lamps, and marker lamps in our eBay store.
