Harley Guide S-H2 Spot Lamp Bracket Rivet Repair Kit Knucklehead WL 1938-48 USA

Harley Guide SH2 Spot Lamp Bracket Rivet Repair Kit Knucklehead WL 193848 USA
  • Product Code: 353349451584
  • Availability: In Stock

  • $59.95


0 reviews / Write a review

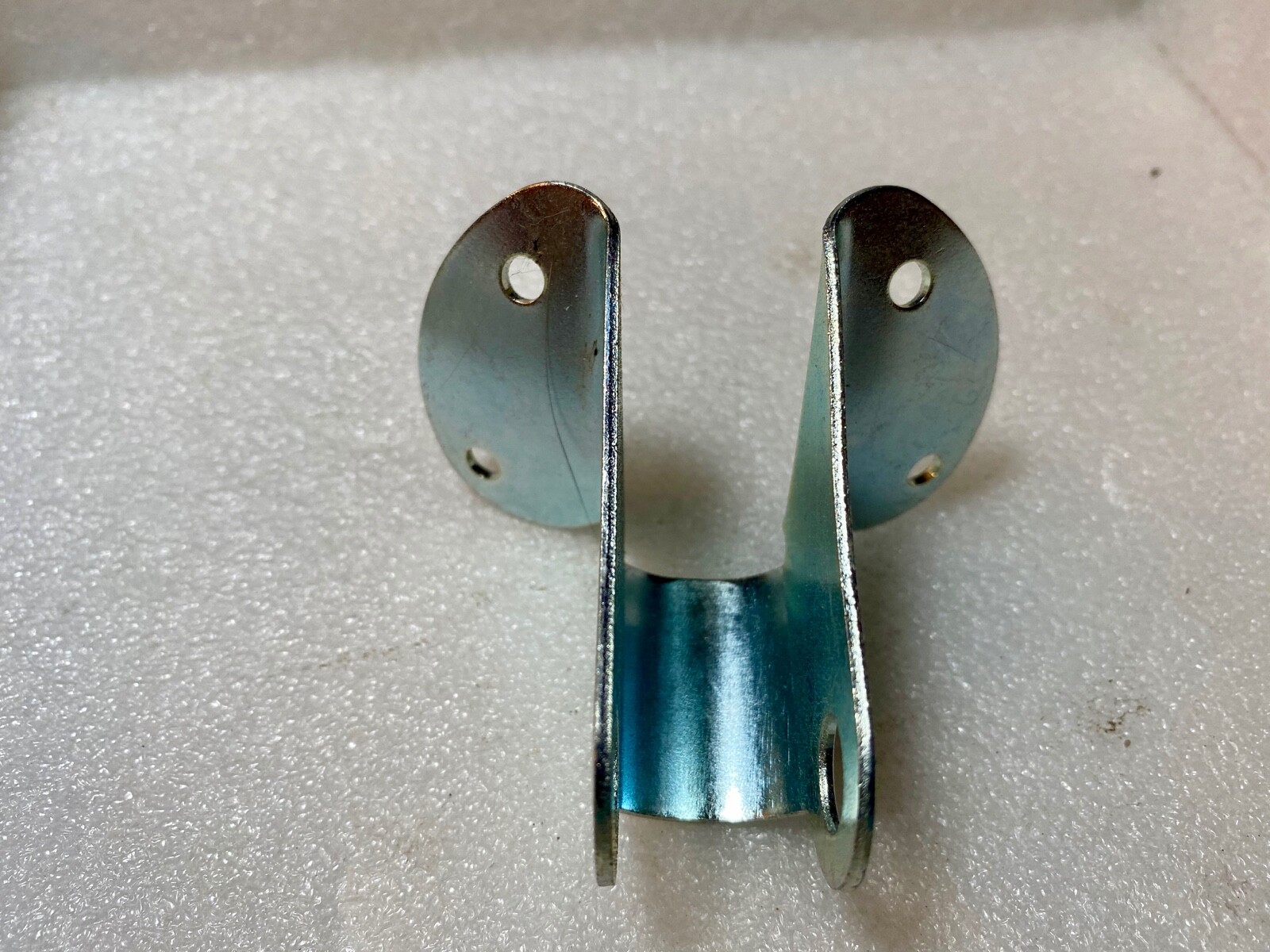

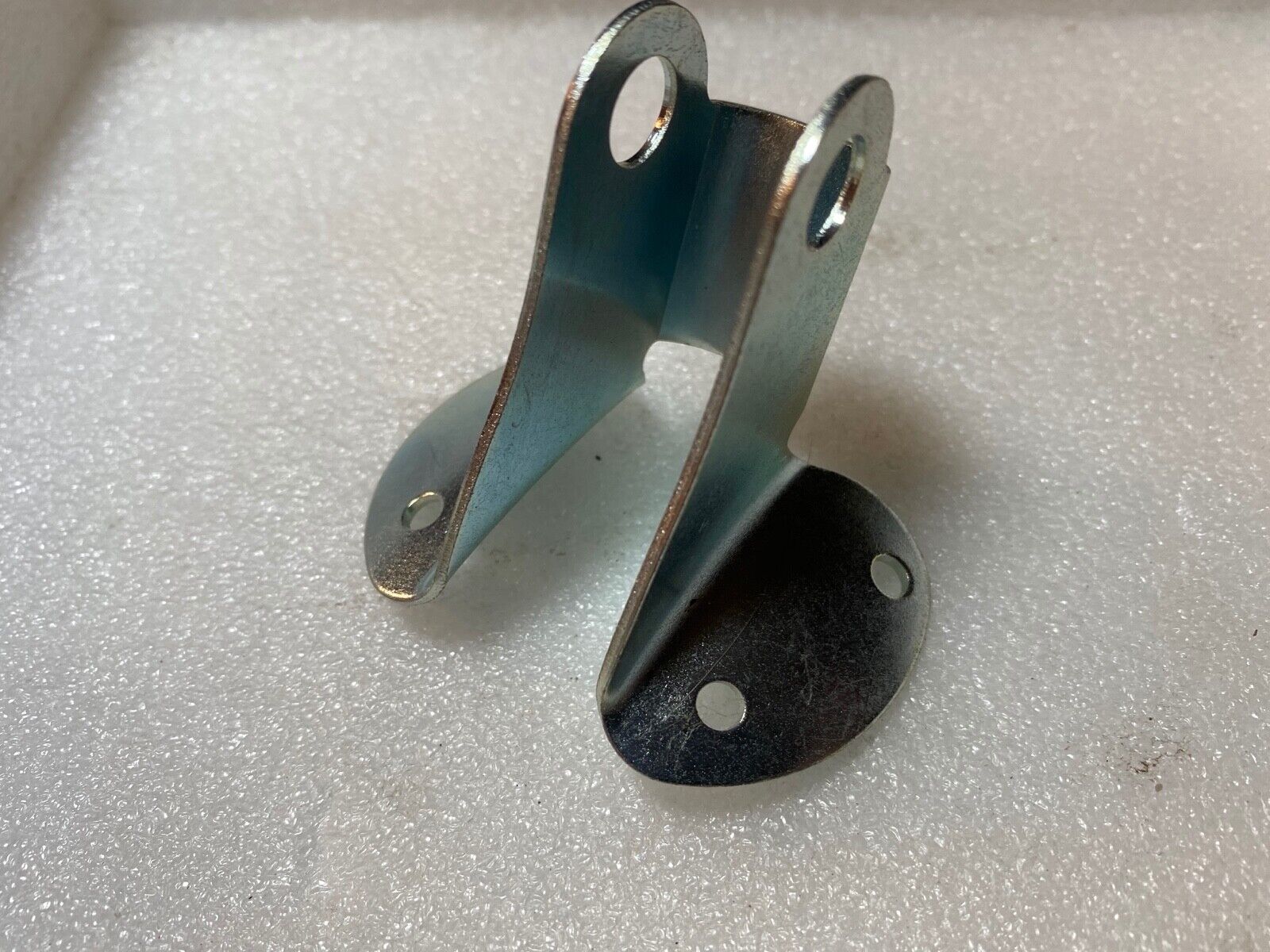

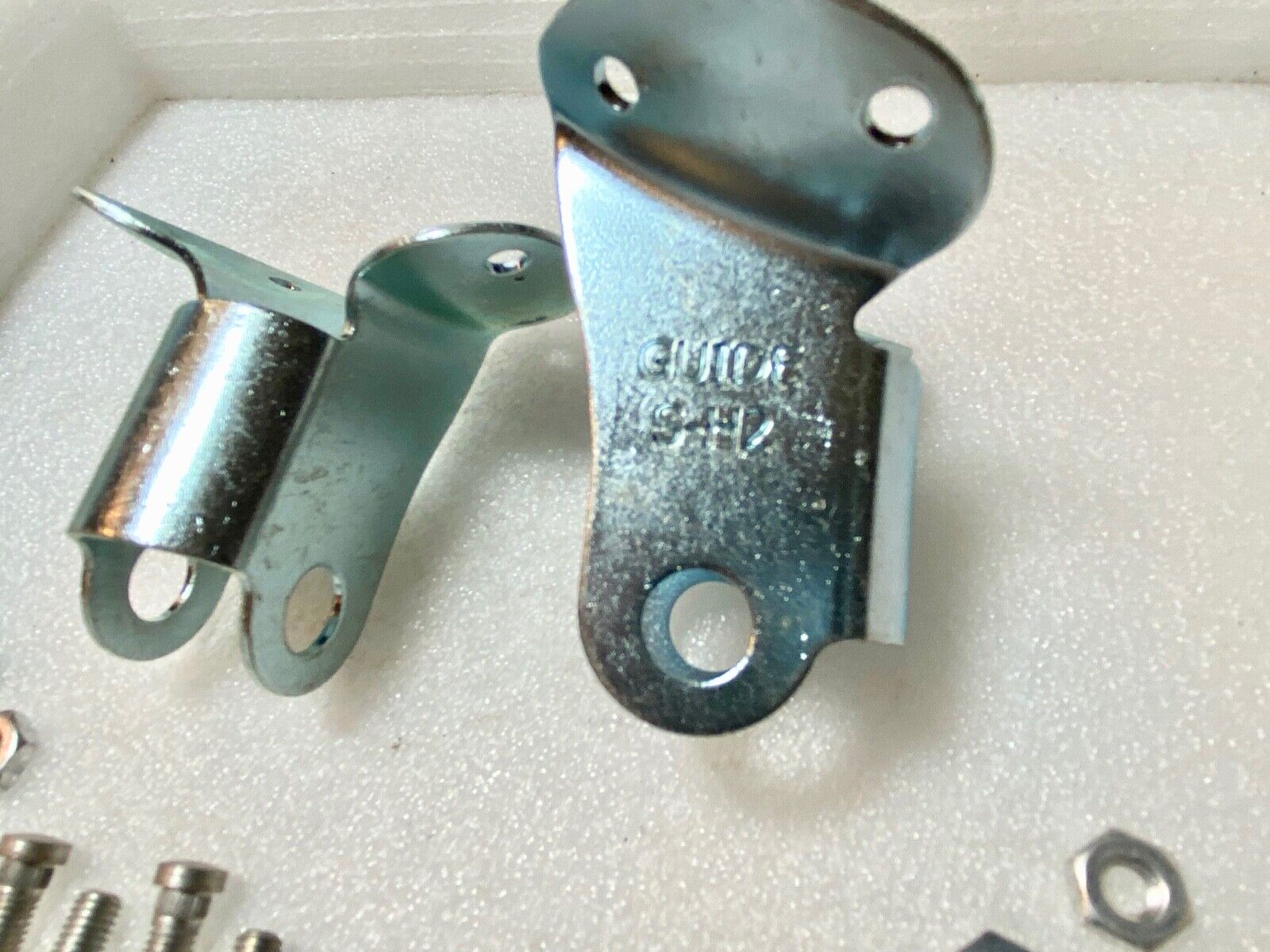

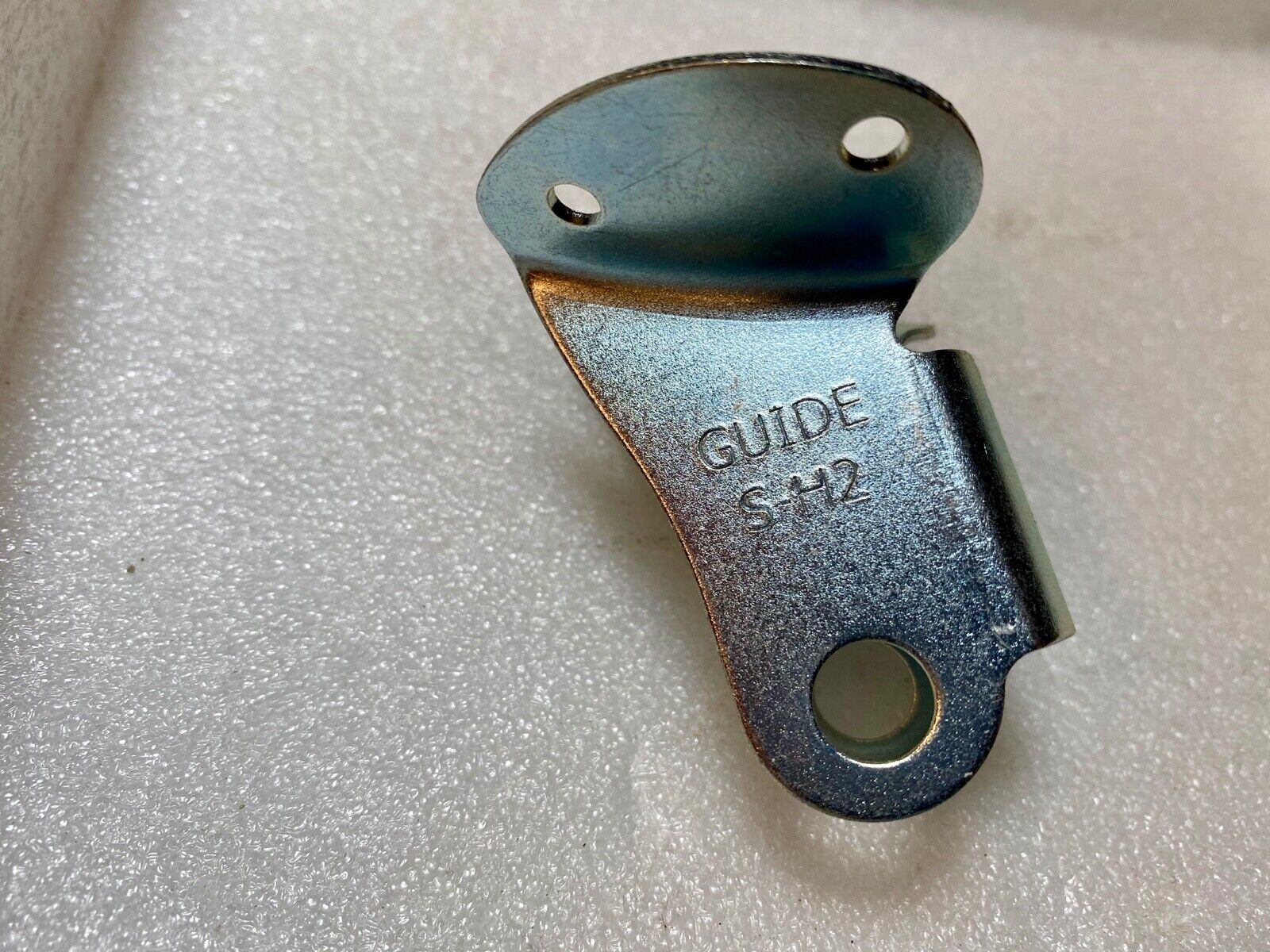

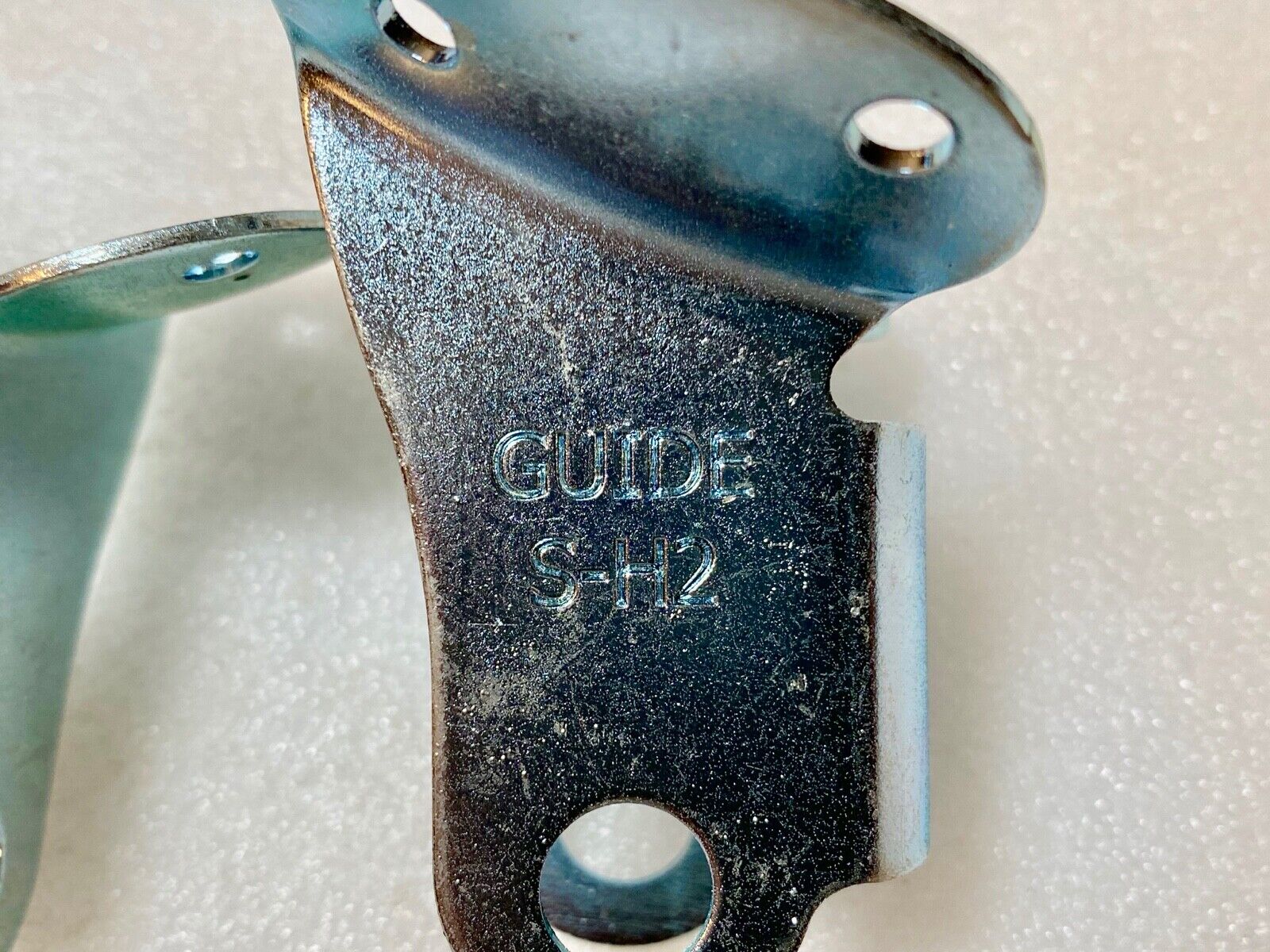

You are purchasing one USA made kit containing two reproduction Guide S-H2 spot lamp brackets or stanchions and eight replacement "rivets" as used on Harley-Davidson springer models with Guide spot lamps  from 1938-1957.  This is the long or tall type stanchion, they changed to the short one in 1949 for the Hydra-Glide.  These are stamped in the USA like the originals and it has the "GUIDE S-H2" stamping as original.

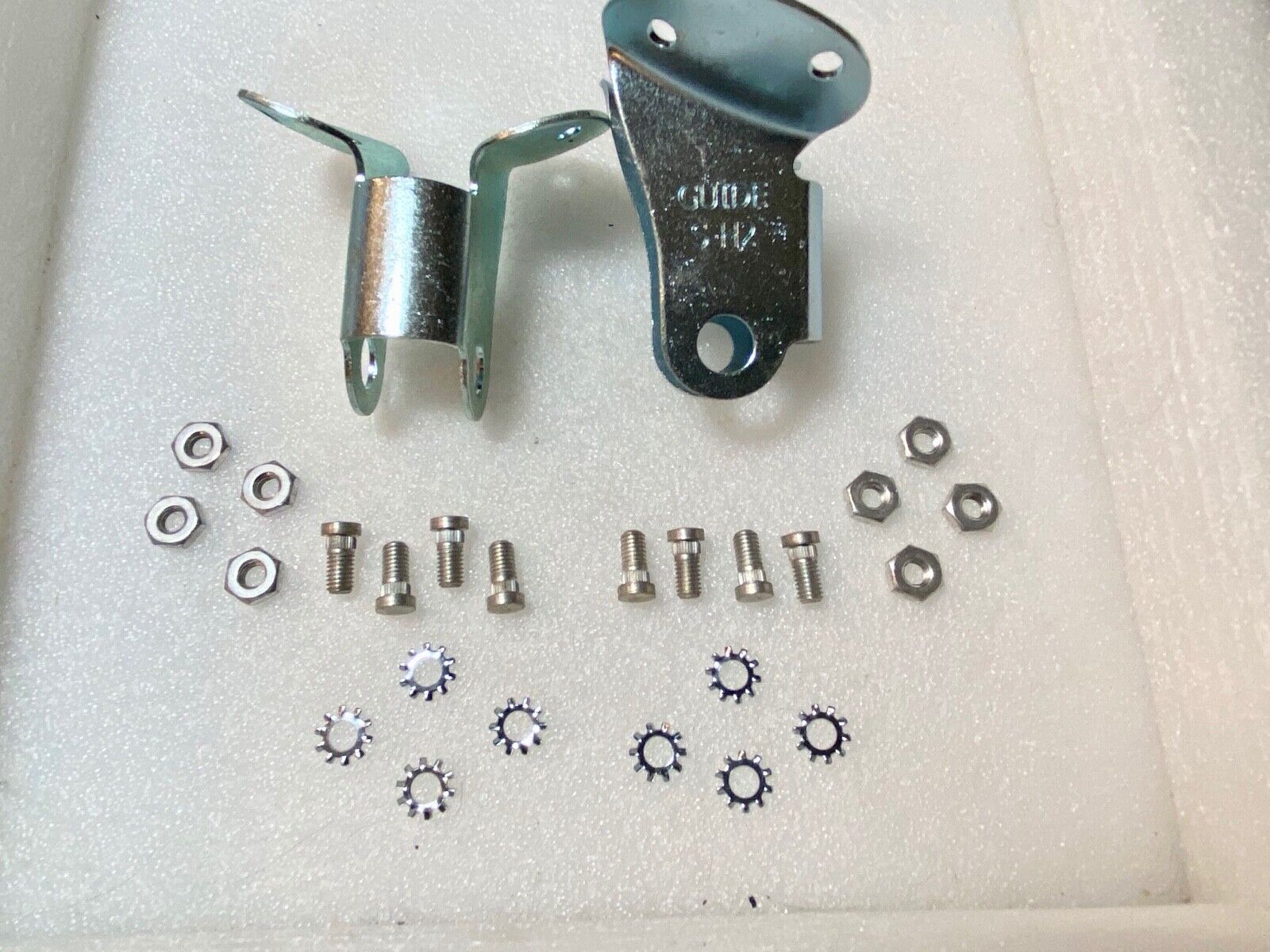

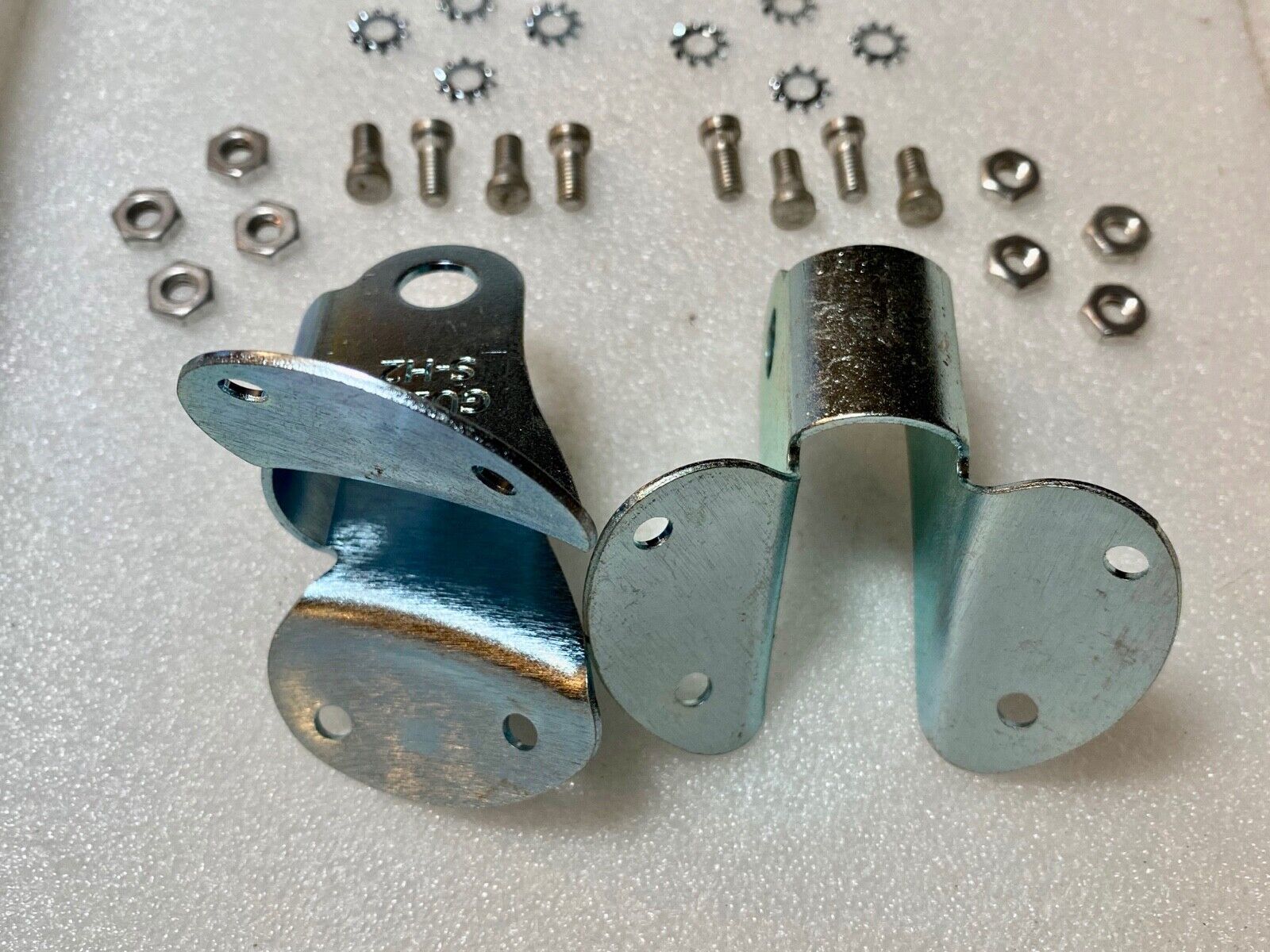

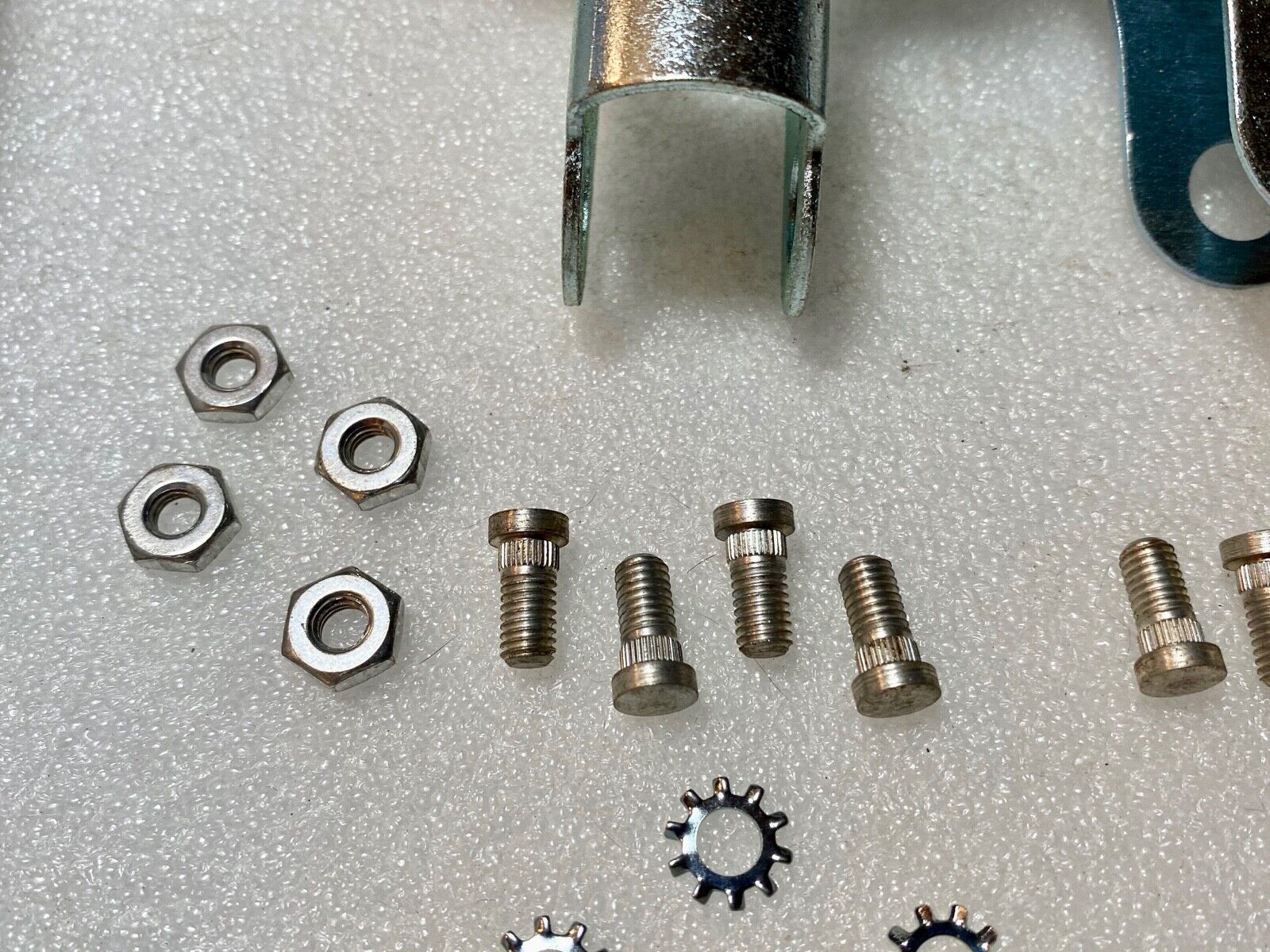

The rivets are essentially a screw with no hex or screw head, they are splined just under the head and threaded.  The splines keep the rivet from spinning when you tighten down the nuts.  You will get (8) eight nuts and (8) eight star washers, two (2) brackets, and eight (8) rivets.  Rivets are cad plated, brackets are zinc plated.

We also sell a complete spotlamp set with focus screws as well as kits including everything you need to mount them, hardware, mount bars, etc.

This style spotlamp was used on the following
  • 1936-1947 EL, FL, ELA, ELC 61" & 74" OHV Knucklehead
  • 1937-1948 U, UL, UH, ULH, UA, ULA, USA, etc. 74" & 80" big twin flathead
  • 1937-1952 W, WL, WLA, WLC, WLD 45" solo
  • 1937-1957 G Servicar
  • 1948-1949 EL & FL 61" & 74" OHV Panhead Hydra-Glide. (1949 spring fork-equipped panheads for side-car and package truck duty)
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

To take advantage of our shipping promotions and combined shipping discounts, please add all your items to your eBay shopping cart then go to check out.  Your shipping will be automatically calculated and free shipping promotions will be automatically applied.  If you remember something else you need, no worries, just buy it, we will combine shipping and send appropriate shipping refunds to your PayPal account.

A note on our parts:

We work with a small group of select vendors and craftsmen to provide you with the most accurate appearing and fitting parts for your 1915-1984 Harley-Davidson.  We try to stock hard-to-find hardware, oil & fuel lines, electrical, exhaust, suspension, brake, engine, & transmission parts.  We are constantly adding new listings to eBay but we have hundreds of items we've not had time to list yet.  If there is something you need which you do not see, just let us know.
