Harley Guide S-H2 Premium Deluxe Spot Lamp Kit Knucklehead UL WL Servi 1946-57

  • Product Code: 295541548824
  • Availability: Out Of Stock
  • $399.95

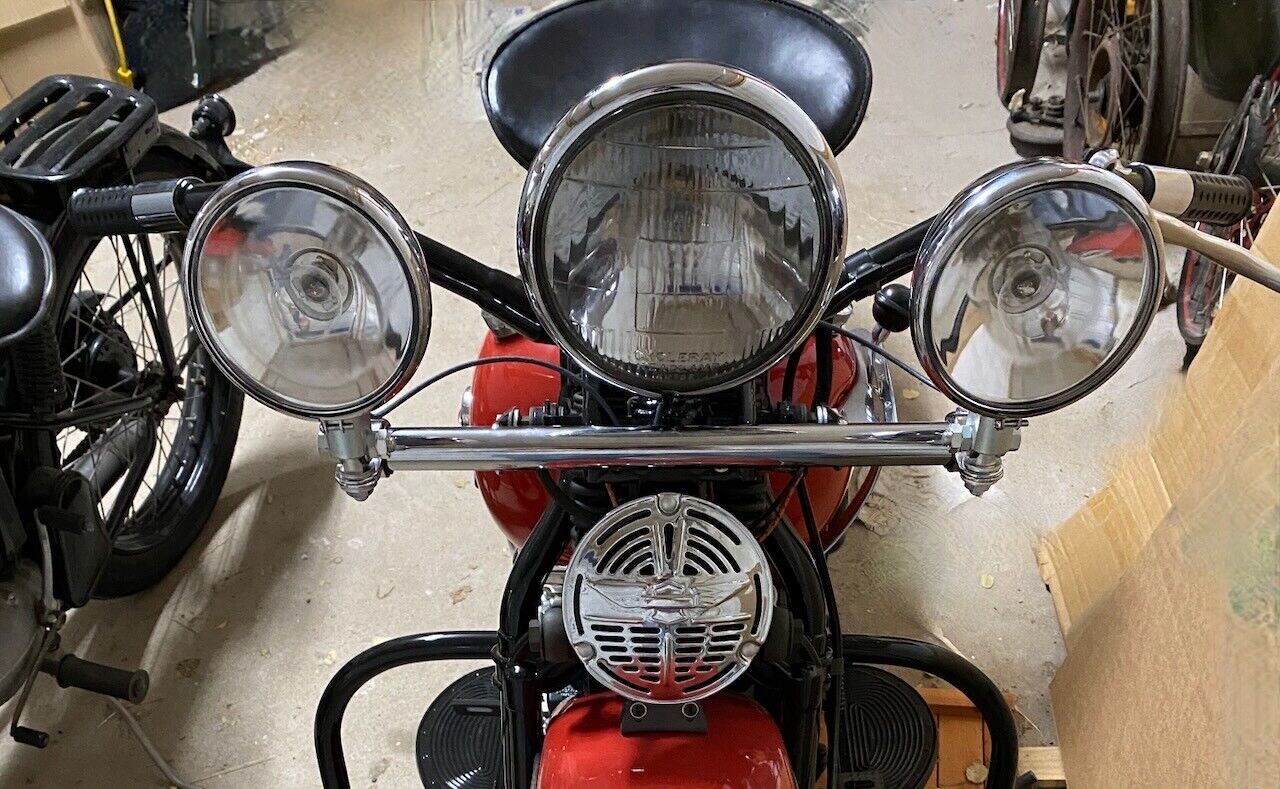

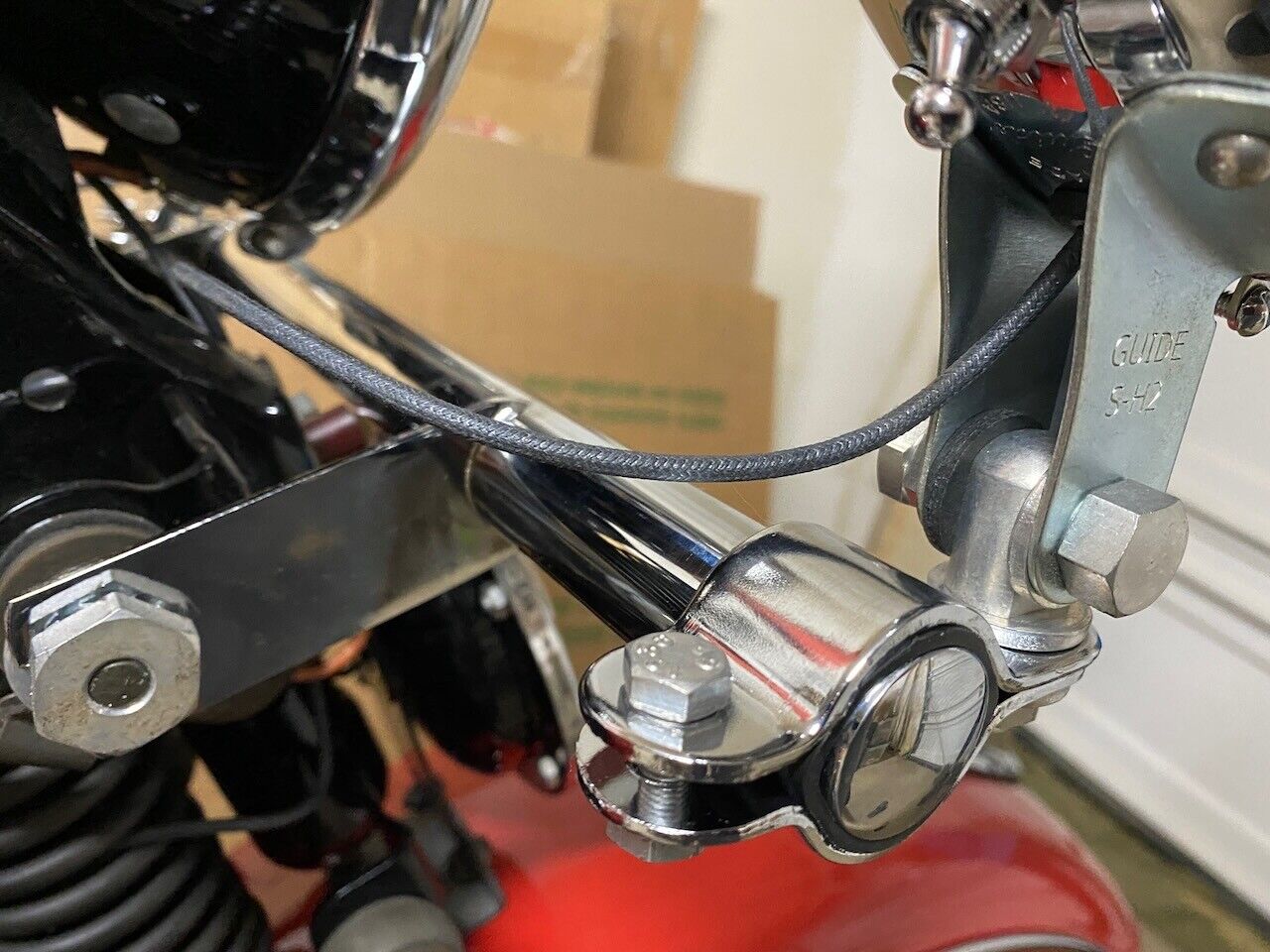

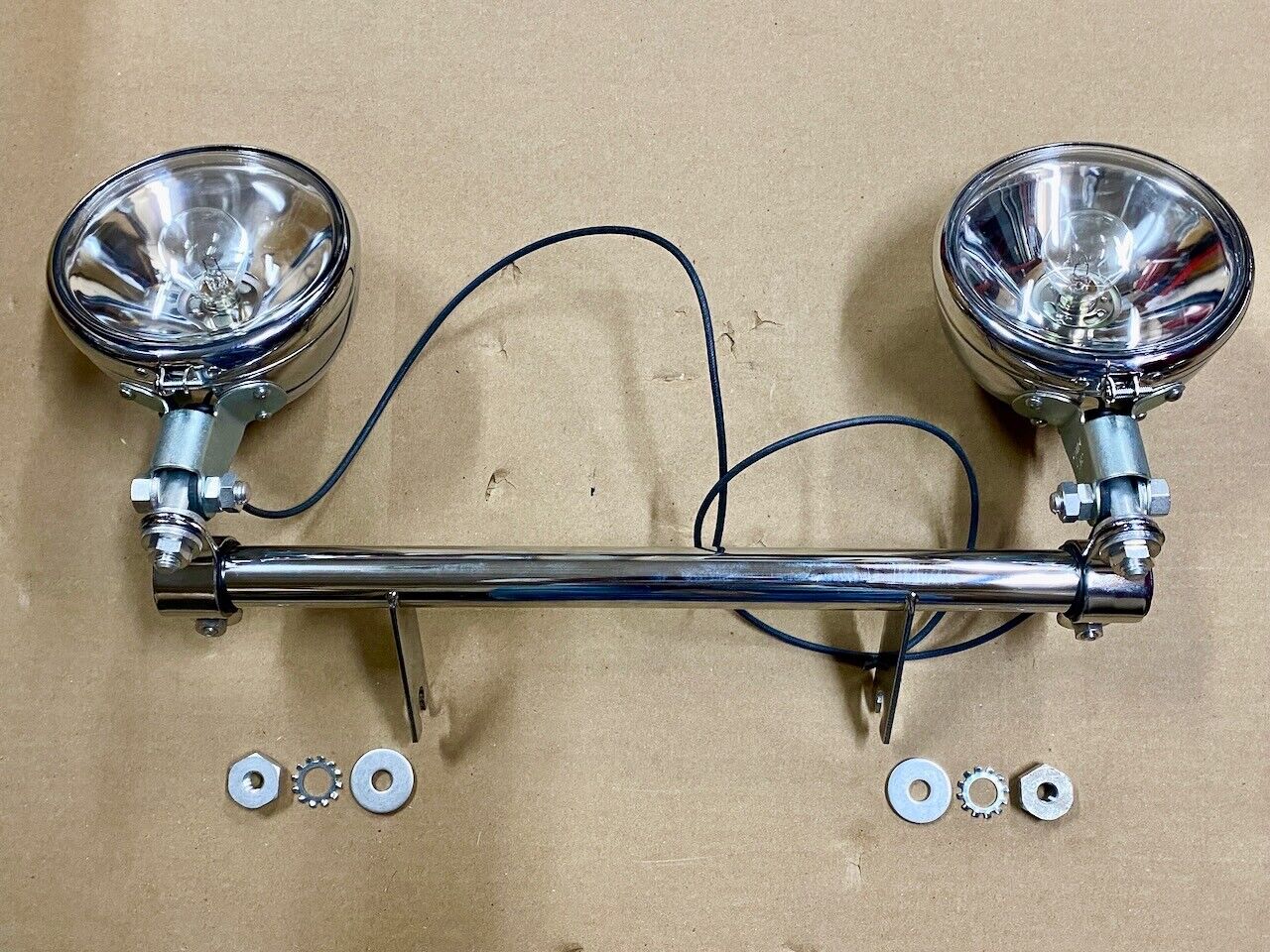

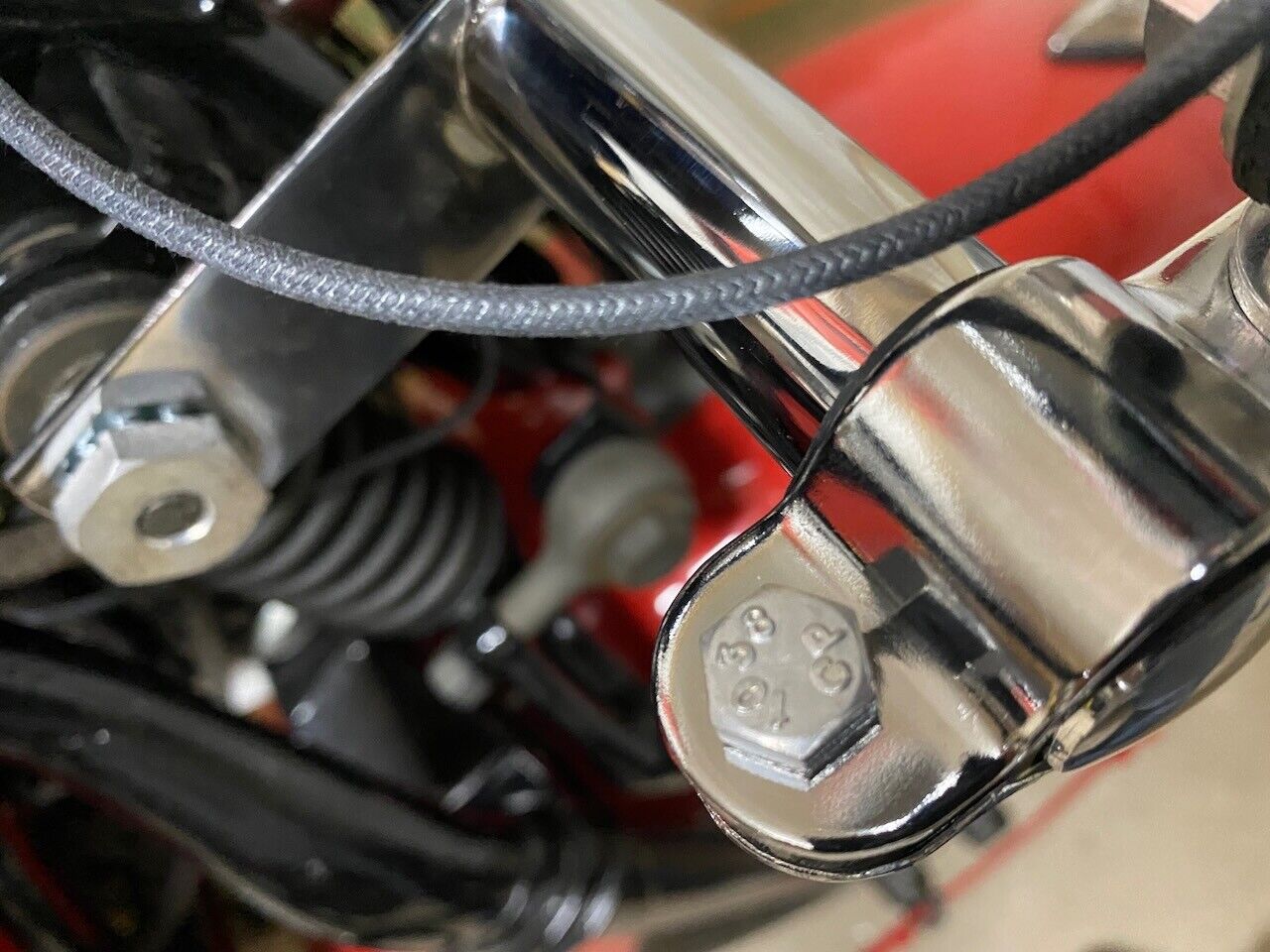

You are purchasing our premium deluxe reproduction Guide S-H2 spot lamp kit as used on Harley-Davidson springer models from 1946-1957.  This is for use with shock-equipped spring fork models.  Includes everything shown.  All hardware is a spot-on reproduction for the originals.  We did embellish the kit slightly by adding a couple of CP-1038 clamp bolts.  If you prefer the original round head clamp screws, we can swap that out.

This will fit earlier models retrofitted with a hydraulic shock on the spring fork.

Bulbs are single filament 6V and just as original are NOT sealed beams.  You can purchase 12V bulbs for these in our store, if you cannot find them, just email us.

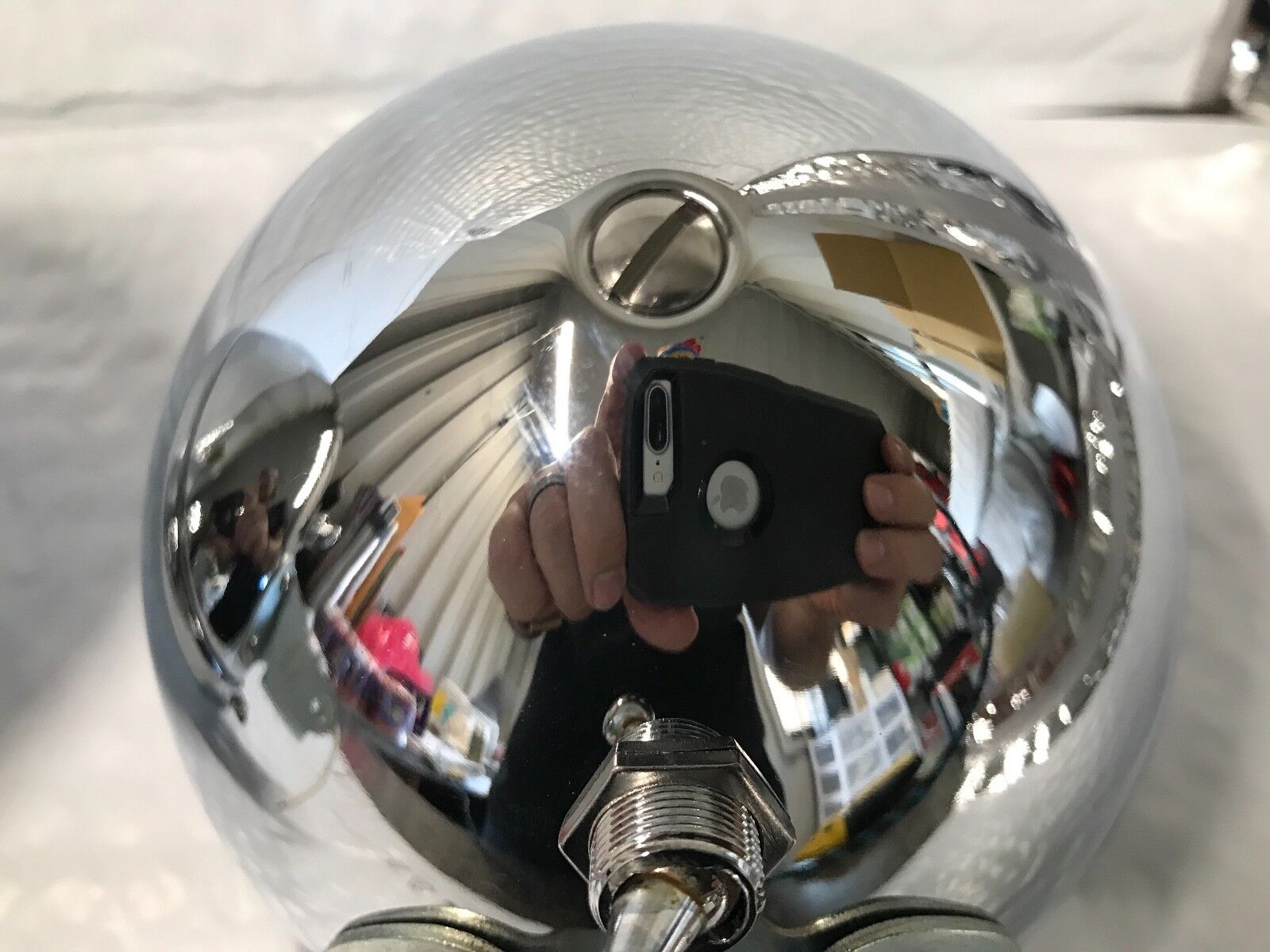

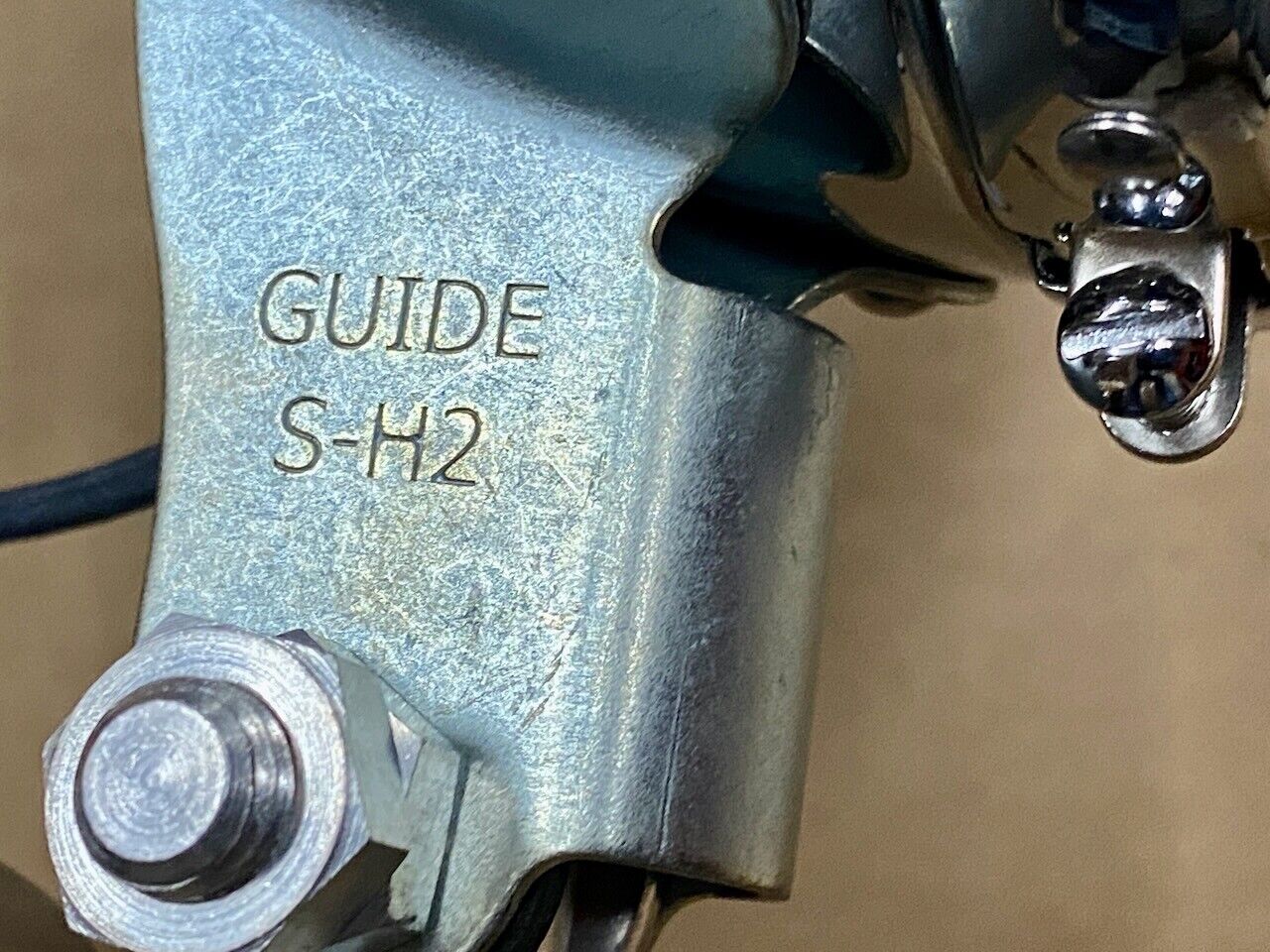

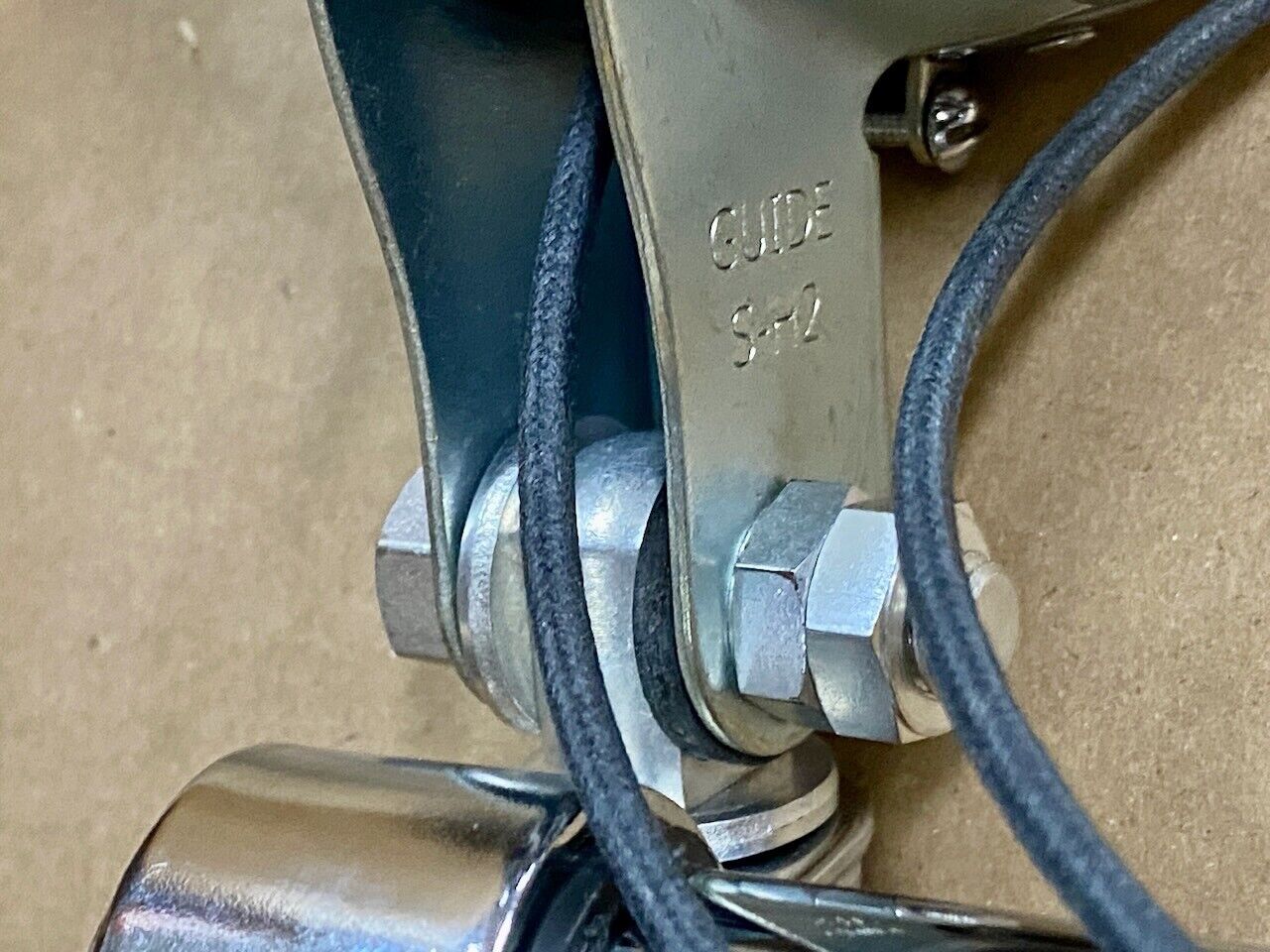

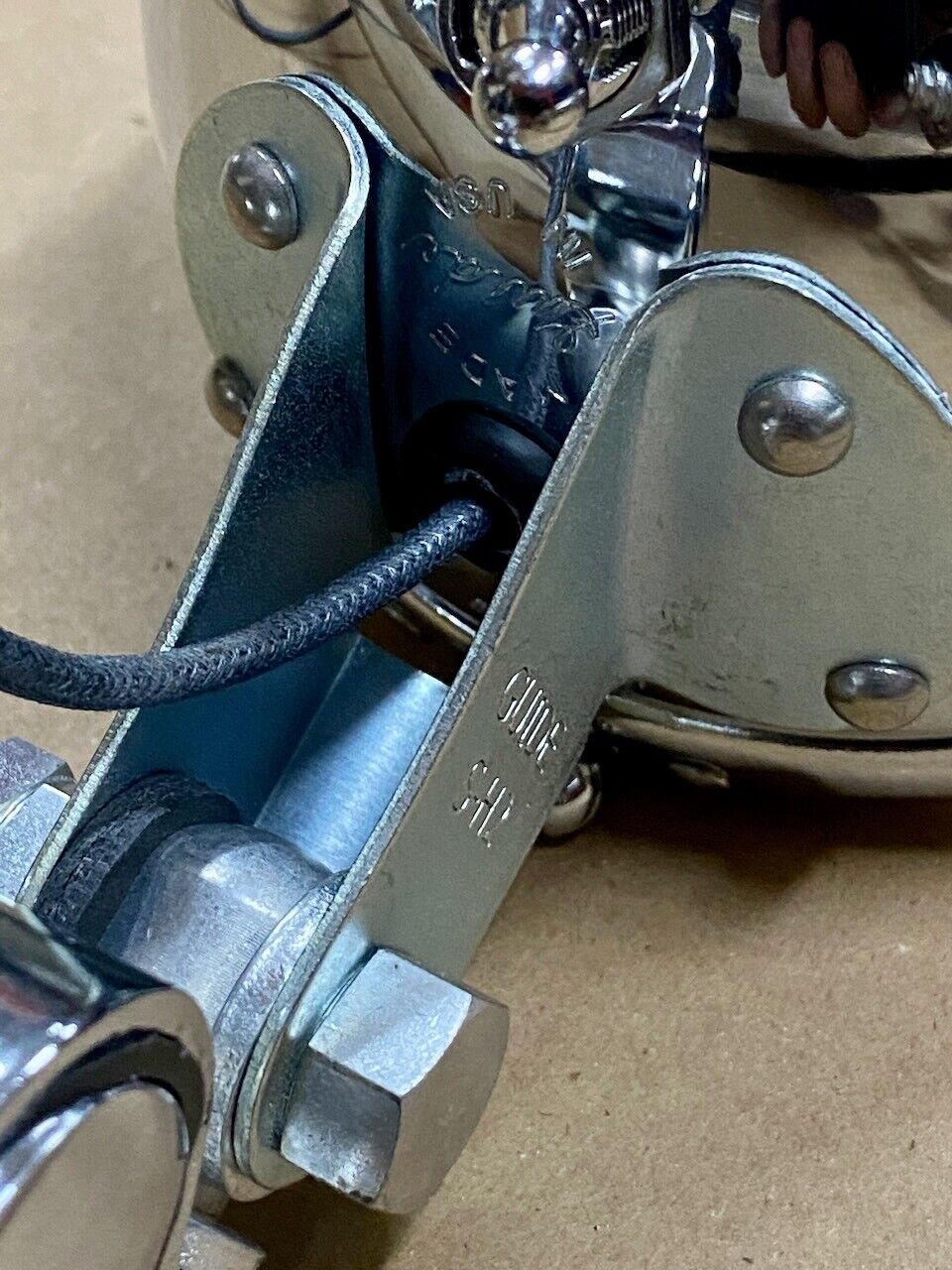

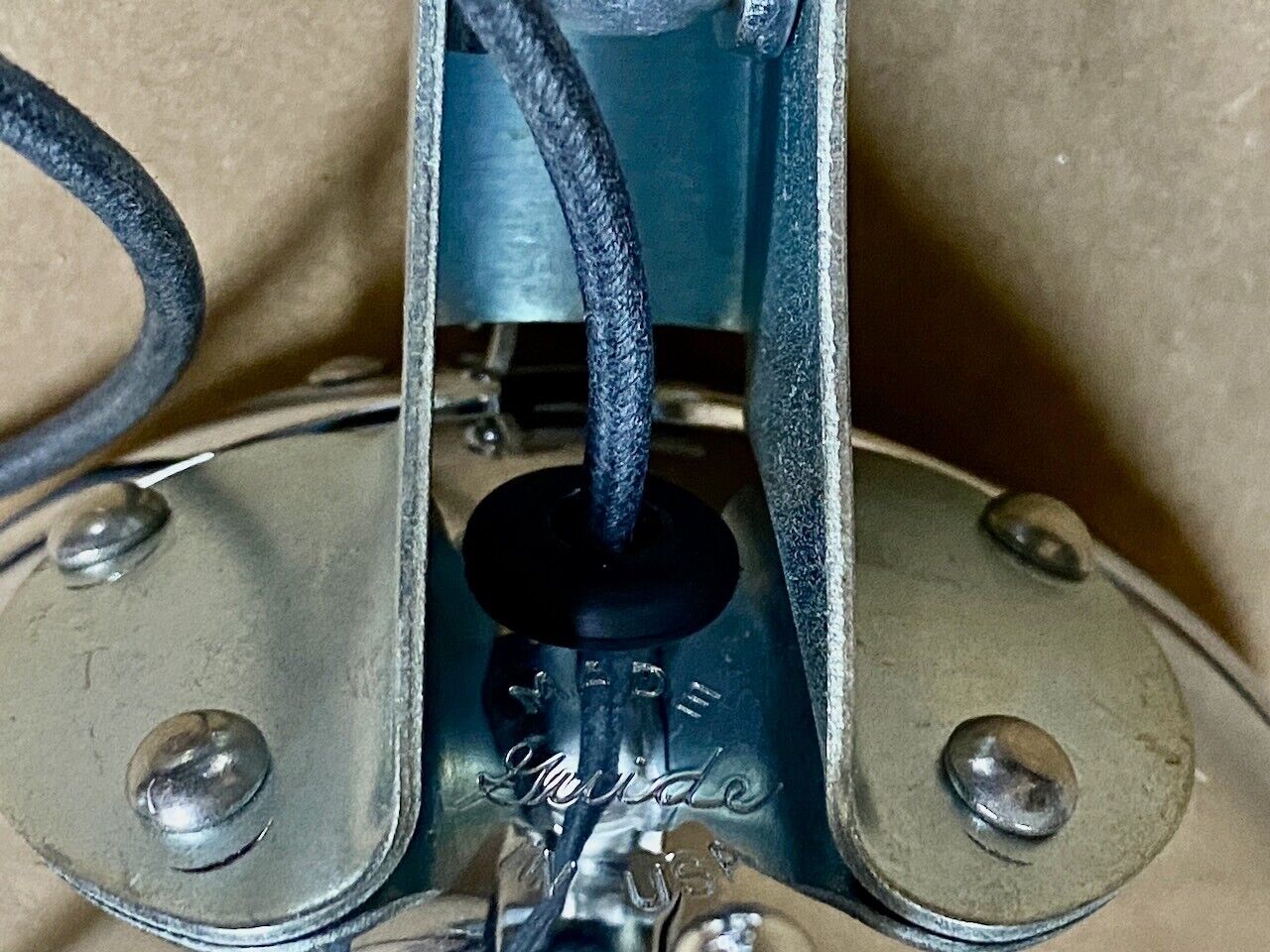

These have the focus screws in the back as original and have "GUIDE S-H2" stamped on the stanchions and "Guide Made In USA" stamped underneath the shell.  This is by far the best reproduction we have seen of these.  Do note, these are pre-focused bulbs and the focus screw on the back is for detail only, not to adjust the beam of the lamp.

We also sell all the individual components on other listings in our store.  We have another kit for 1936-1945 model with a reproduction Buco spotlamp bar on another listing, beehive tail lamps, Cycle-Ray, Solar, and Motolamp headlamps, Guide bullet lamps, Delco-16 horns, etc. We also are building the most detailed wiring kits available today for most all H-D models from 1916-1969.

There may be minor details an AMCA judge could pick out, but I am not certain what those would be.

Used on the following
  • 1946-1947 EL, FL, ELA, ELC 61" & 74" OHV Knucklehead
  • 1946-1948 U, UL, UH, ULH, UA, ULA, USA, etc. 74" & 80" big twin flathead
  • 1946-1952 W, WL, WLA, WLC, WLD, WRTT 45" solo
  • 1946-1957 G Servicar
  • 1948-1949 EL & FL 61" & 74" OHV Panhead Hydra-Glide. (1949 spring fork-equipped panheads for side-car and package truck duty)
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

To take advantage of our shipping promotions and combined shipping discounts, please add all your items to your eBay shopping cart then go to check out.  Your shipping will be automatically calculated and free shipping promotions will be automatically applied.  If you remember something else you need, no worries, just buy it, we will combine shipping and send appropriate shipping refunds to your PayPal account.

A note on our parts:

We work with a small group of select vendors and craftsmen to provide you with the most accurate appearing and fitting parts for your 1915-1984 Harley-Davidson.  We try to stock hard-to-find hardware, oil & fuel lines, electrical, exhaust, suspension, brake, engine, & transmission parts.  We are constantly adding new listings to eBay but we have hundreds of items we've not had time to list yet.  If there is something you need which you do not see, just let us know.
