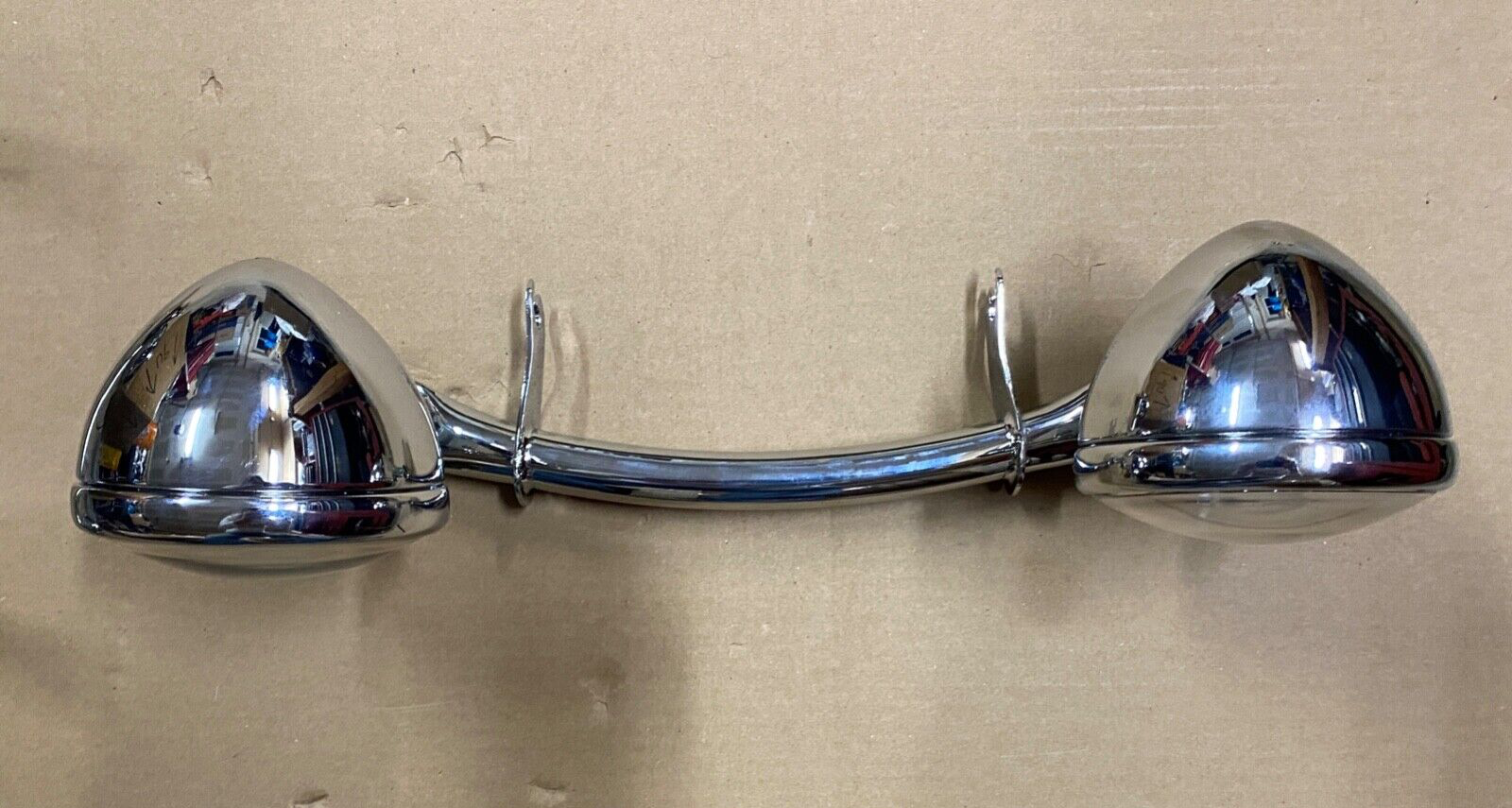

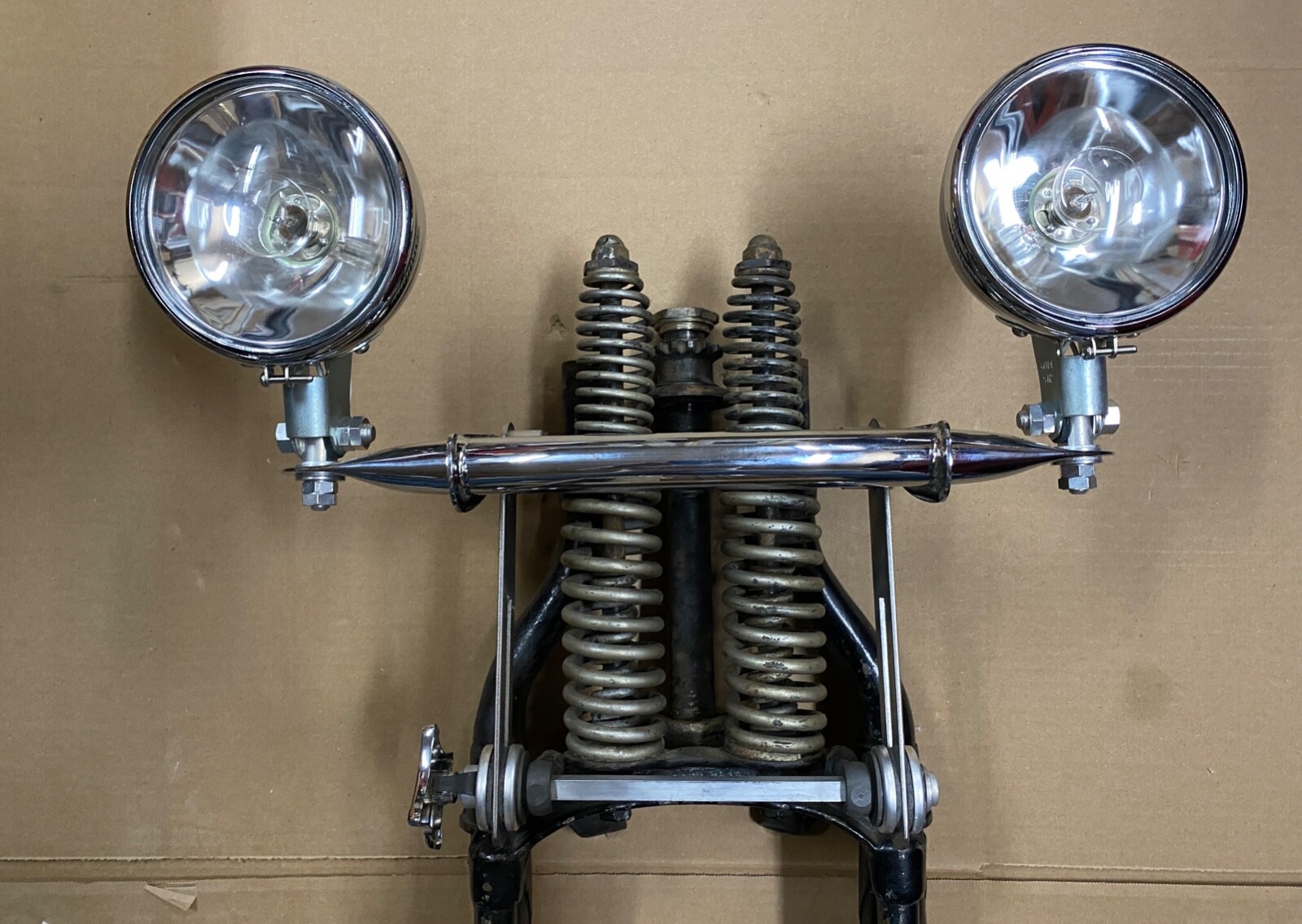

You are purchasing our premium deluxe reproduction Guide S-H2 spot lamp kit as used on Harley-Davidson big twin springer models from 1936-1945 and 45 models from 1940 and up when equipped with a ride control. The bar is a reproduction of a Buco accessory from back in the day. Includes everything shown. All hardware is a spot-on reproduction for the originals.
This may fit later models retrofitted with a hydraulic shock on the spring fork. For certain this will fit 1940-1945 WL and Servicar models with ride controls, we are not sure if this style bar will fit I-beam forks.

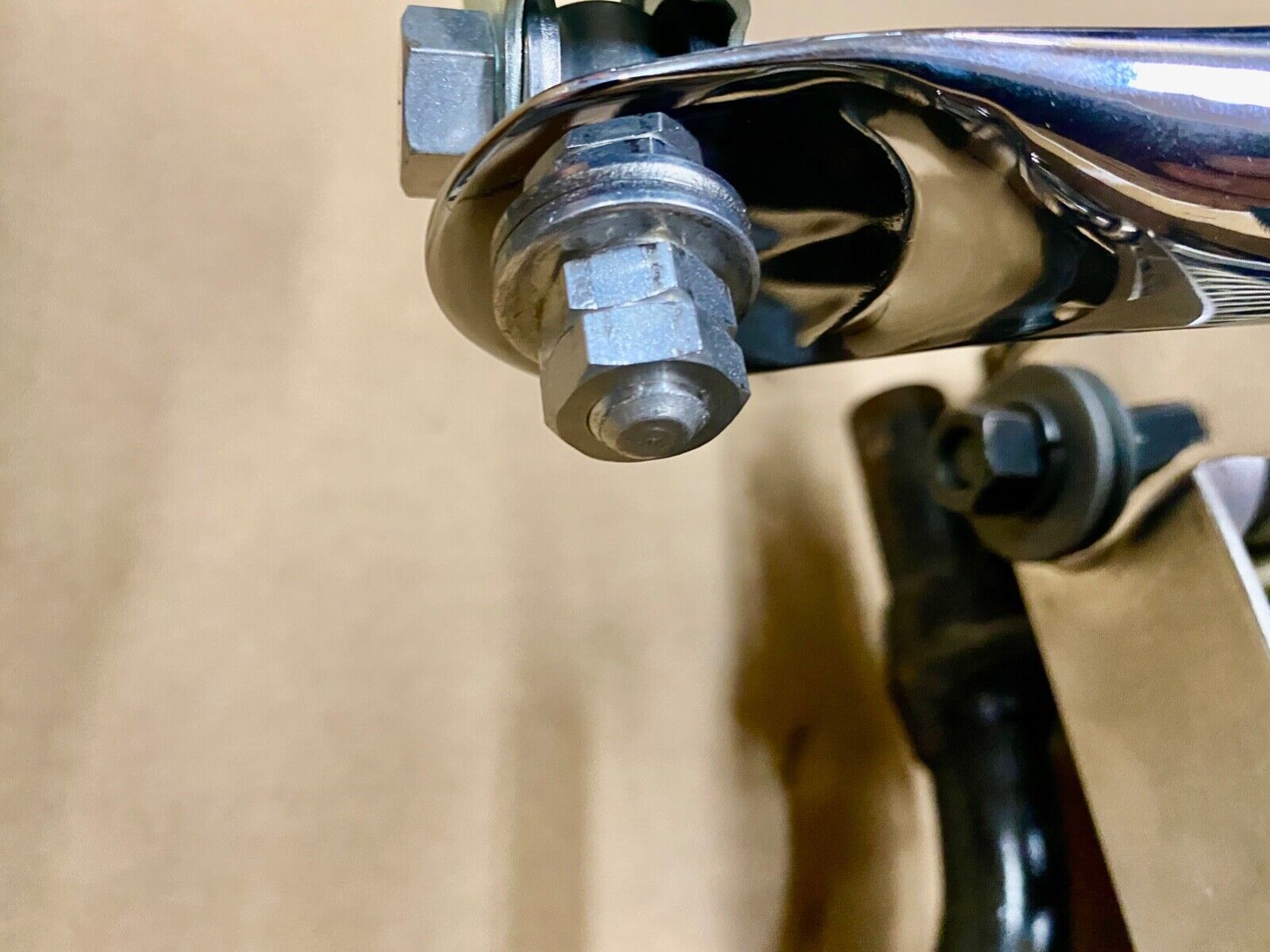

This will arrive disassembled, we will include detailed instructions for assembly. Bars usually requite a little adjustment upon fitting up. You will use your existing ride control nuts with this kit to mount the bar. Bulbs are single filament 6V and just as original are NOT sealed beams. You can purchase 12V bulbs for these in our store, if you cannot find them, just email us.

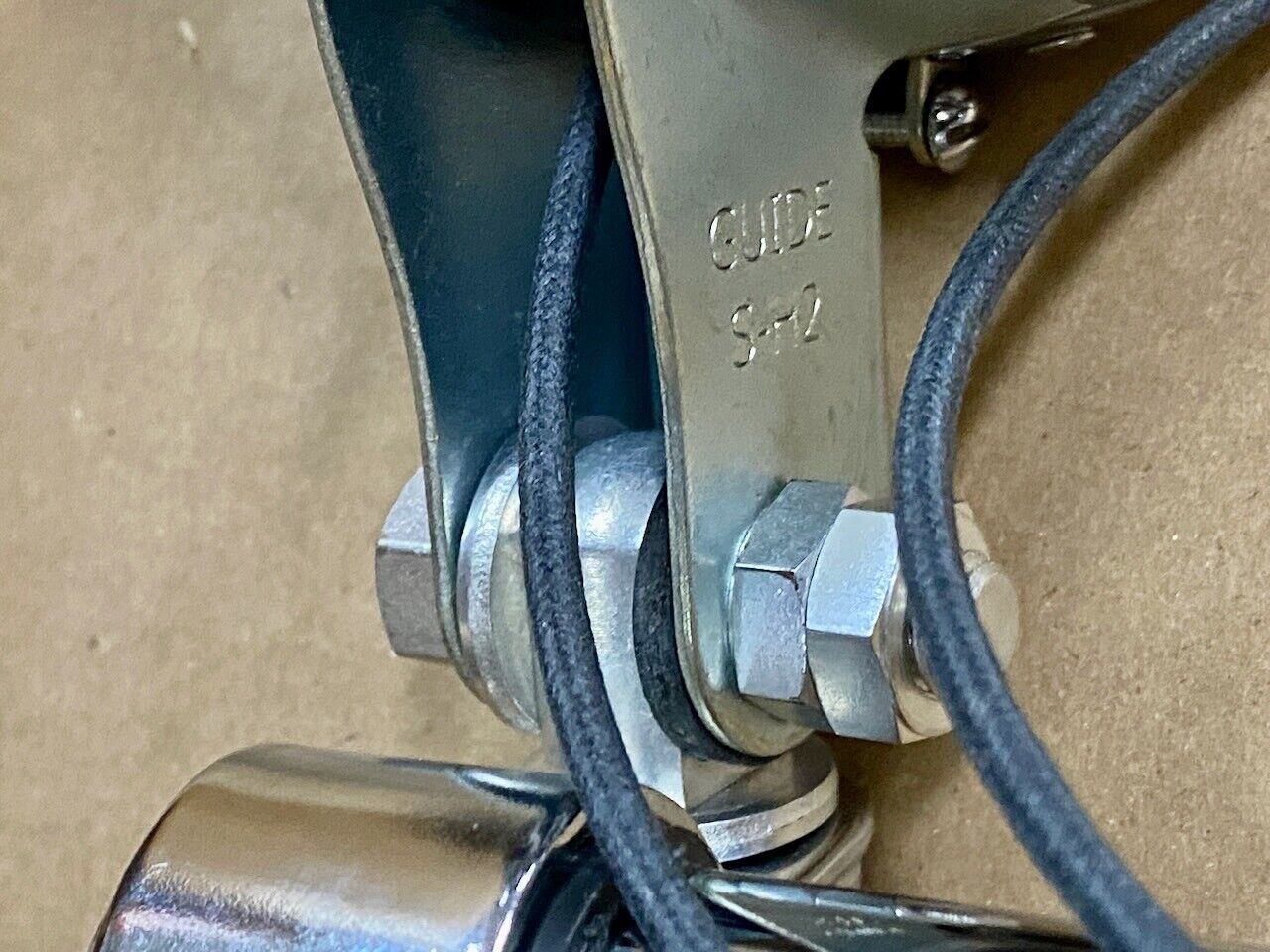

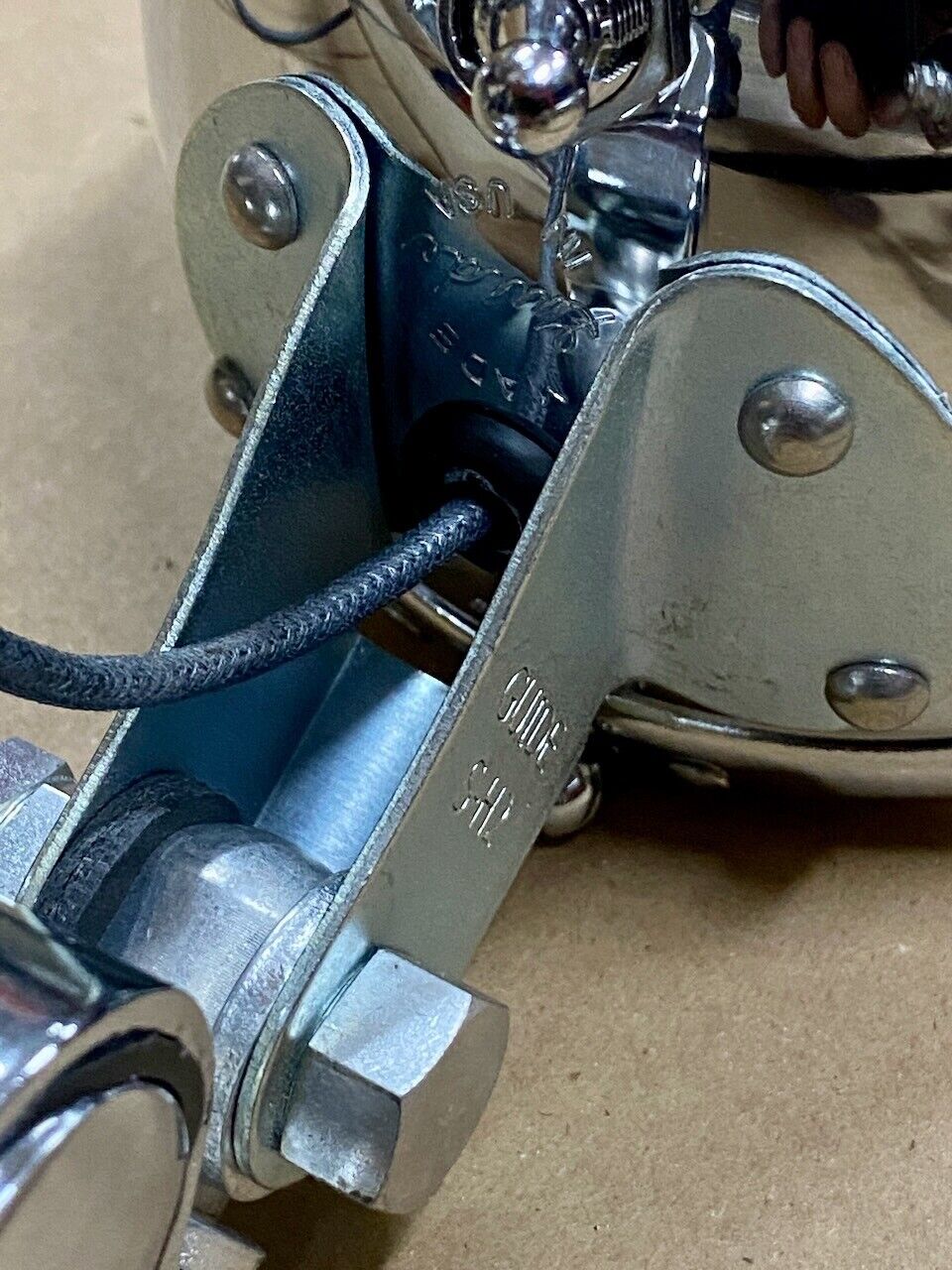

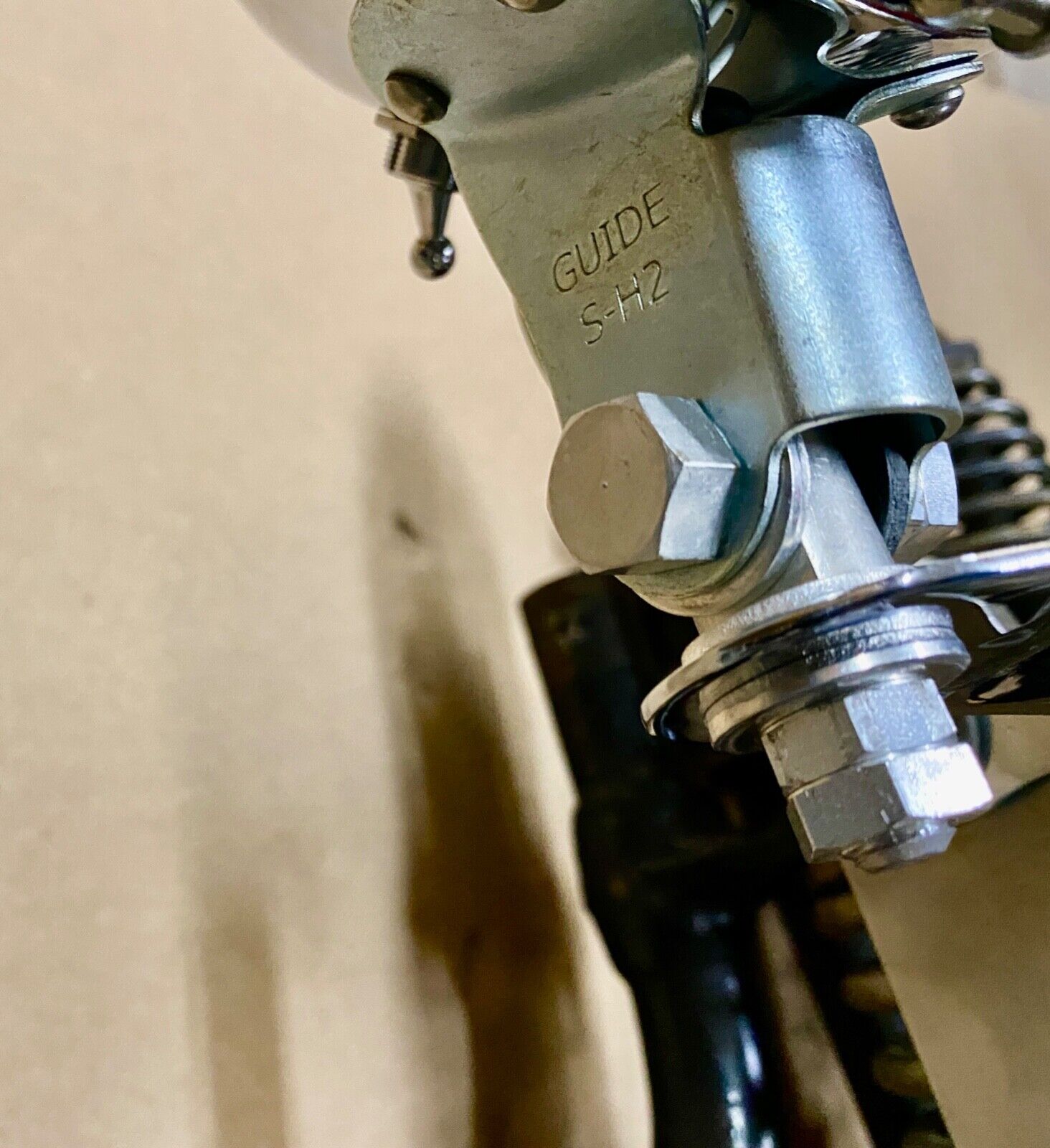

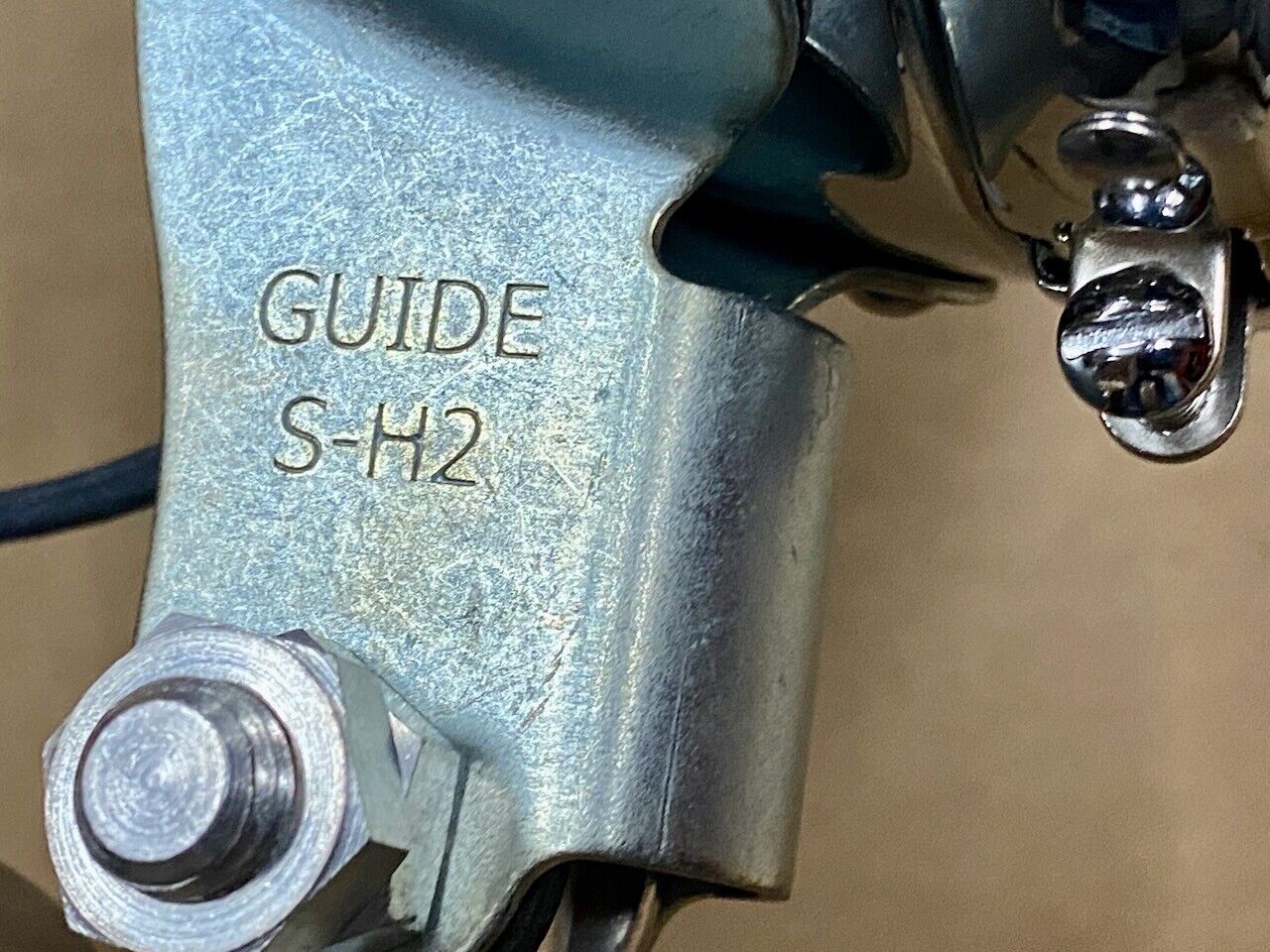

These have the focus screws in the back as original and have "GUIDE S-H2" stamped on the stanchions and "Guide Made In USA" stamped underneath the shell. This is by far the best reproduction we have seen of these. Do note, these are pre-focused bulbs and the focus screw on the back is for detail only, not to adjust the beam of the lamp.
We also sell all the individual components on other listings in our store. We have another kit for 1936-1945 model with a reproduction Buco spotlamp bar on another listing, beehive tail lamps, Cycle-Ray, Solar, and Motolamp headlamps, Guide bullet lamps, Delco-16 horns, etc. We also are building the most detailed wiring kits available today for most all H-D models from 1916-1969.
There may be minor details an AMCA judge could pick out, but I am not certain what those would be.
Used on the following
- 1936-1945 EL, FL, ELA, ELC 61" & 74" OHV Knucklehead
- 1947-1945 U, UL, UH, ULH, UA, ULA, USA, etc. 74" & 80" big twin flathead
- 1940-1945 W, WL, WLA, WLC, WLD, WRTT 45" solo
- 1940-1945 G Servicar
