Harley Gas Fuel Tank Top Mounting Kit JD VL Oversize Park 1918-36 OEM# 3532-18
- Product Code: 293814709800
- Availability: In Stock
-
$42.95
USA-Made fuel or gas tank top mounting hardware kit consisting of Parkerized hex head screws, & spring washers for 1918 to 1936 JD, VL, Single, DL, and RL models. Bolts and spring washers are parkerized for a custom detail on JD, VL, Single, and RL models. Nickel should have been used up through 1932 or 1934, cadmium after that.
Spring washers are formed as original and the bolts are 1/4”-28 bolts to replace stripped threads. You will need to over-tap your screw bungs in the top of the frame with a 1/4"-28 tap prior to using.
Even though the paper washers were not produced until 1934, they are included to help protect the paint on your tanks. We do sell these with a nickel and cad finish as well. For certain, 1937-1973 WL and Servicar did use cadmium plated bolts during their production run. WL and G models from 1937 and up use two screws each and used parkerized during WW-II. We do have listings for those quantities in our store.
Again this kit is for oversize screws, not standard 7/32"-32. We have those on other listings in Parkerized, nickel, and cadmium and we also stock replacement top frame bungs in the original 7/32"-32 thread..
All pieces are USA made using the same process Harley used when they operated their own screw and nut equipment. Screws, nuts, and washers are produced just like the ones H-D did back in the day. I've also got other hardware kits listed in my store under "pre 1980's hardware" for JD, VL, Single, and pre-1937 45 solo and Servicar.
We have oil lines, fuel lines, shift and clutch linkages, brake linkages, throttle and spark control coils, etc. for your JD, VL or early single.
We also offer many plain head, CP-1035 and CP-1038 bolts and bolt kits for later model restorations. I do have some NOS plain head hardware I’m finally getting around to listing.
Used on the following:
- 1918-1929 JD (uses 6 of each)
- 1926-1934 A, B, C Single (uses 5 of each)
- 1929-1936 DL, RL 45" Solo (uses 5 of each)
- 1932-1936 G Servicar (uses 5 of each)
- 1930-1936 VL (Uses 5 of each)

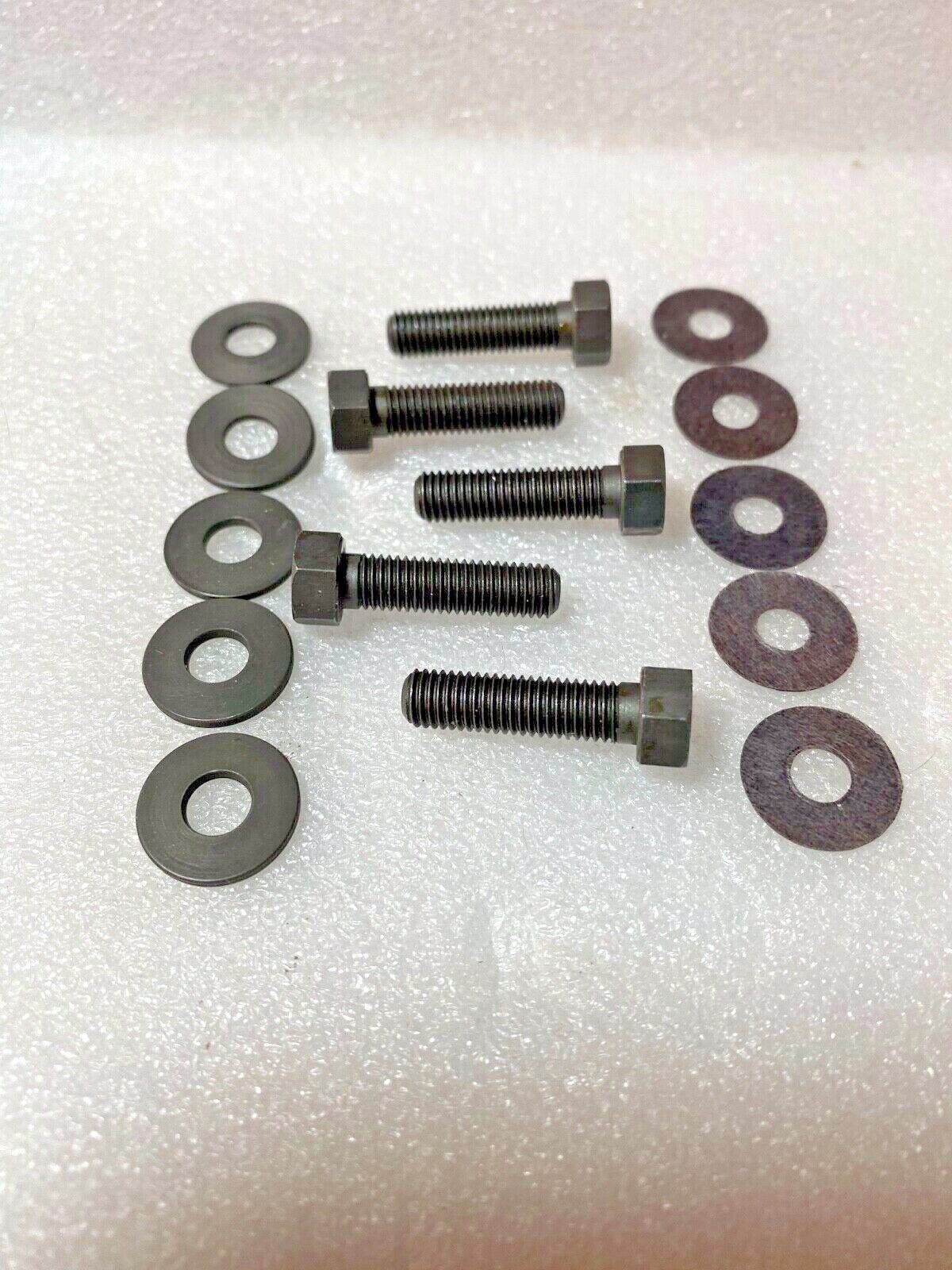

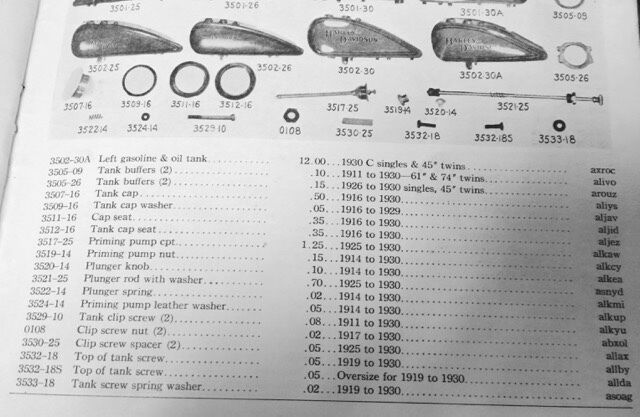

Includes the following parts by OEM part number:
- 3532-18 Screw, 7/32”-32, Parkerized (6)
- 3533-18 Spring washer, Parkerized (6)
- 3534-34 Paper washer (6)
