Harley Flanders Bar Kit Knucklehead VL WL WR Panhead UL Bobber Hill Climber TROG

  • Product Code: 355148106785
  • Availability: In Stock
  • $379.95

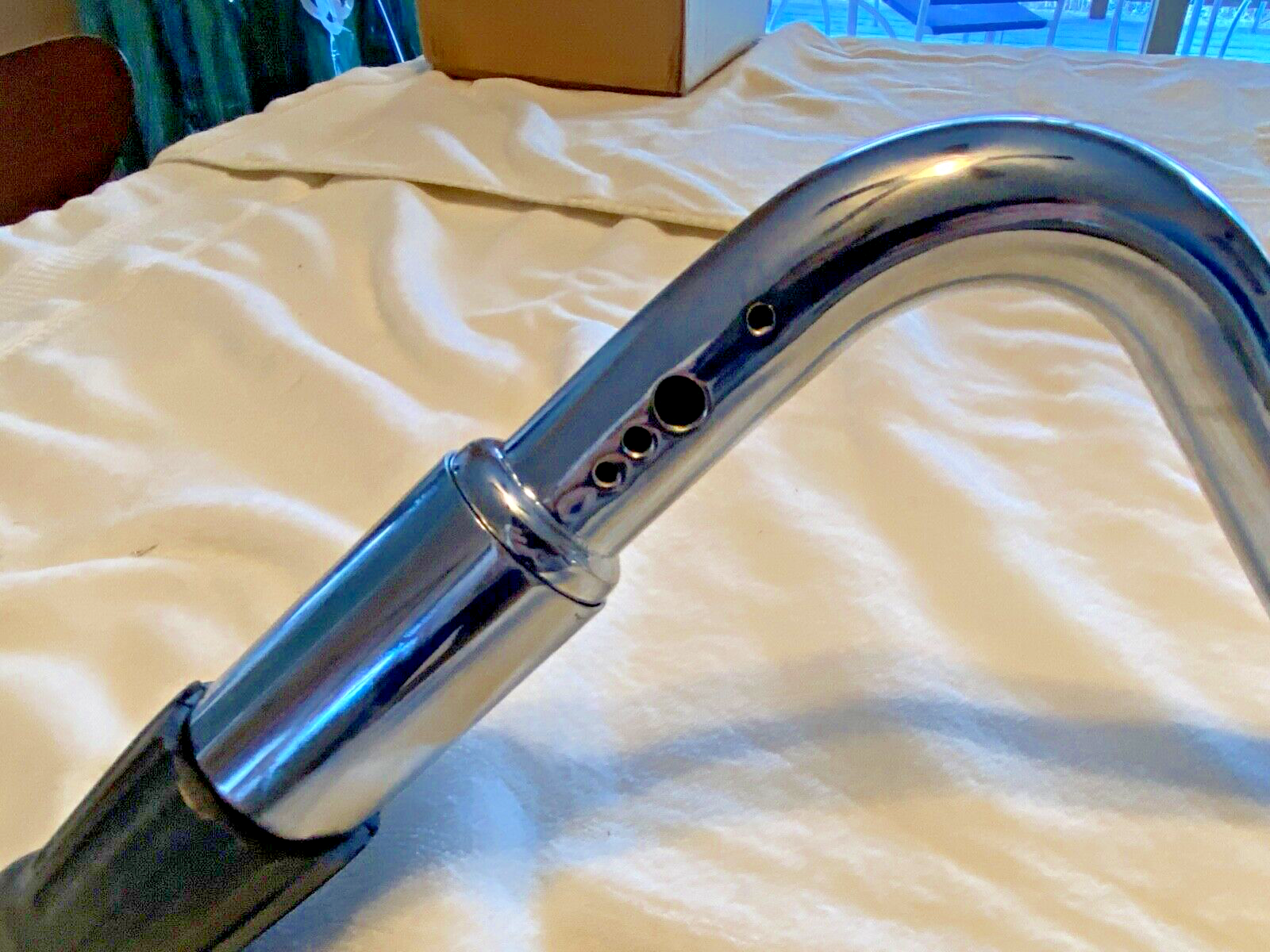

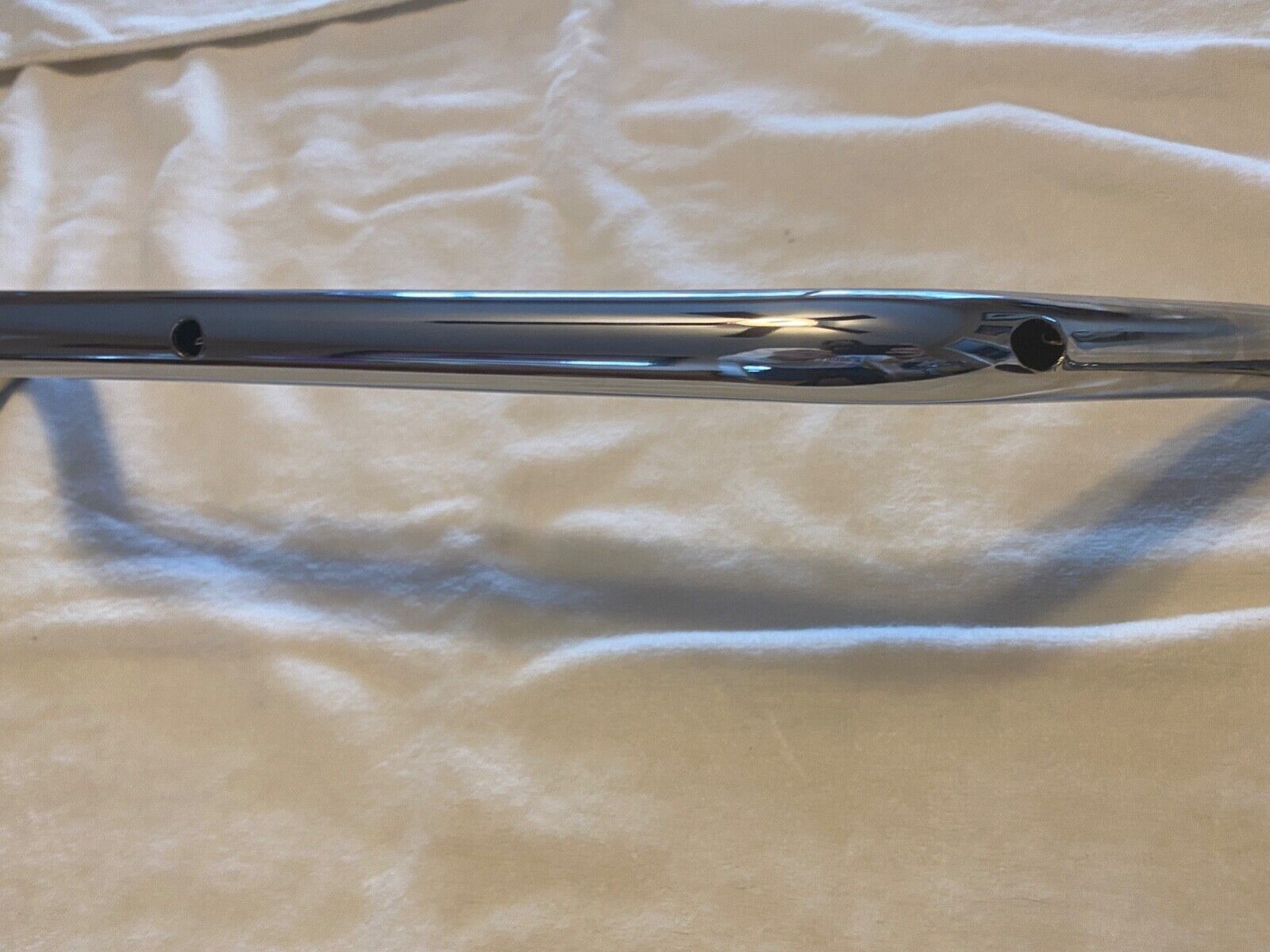

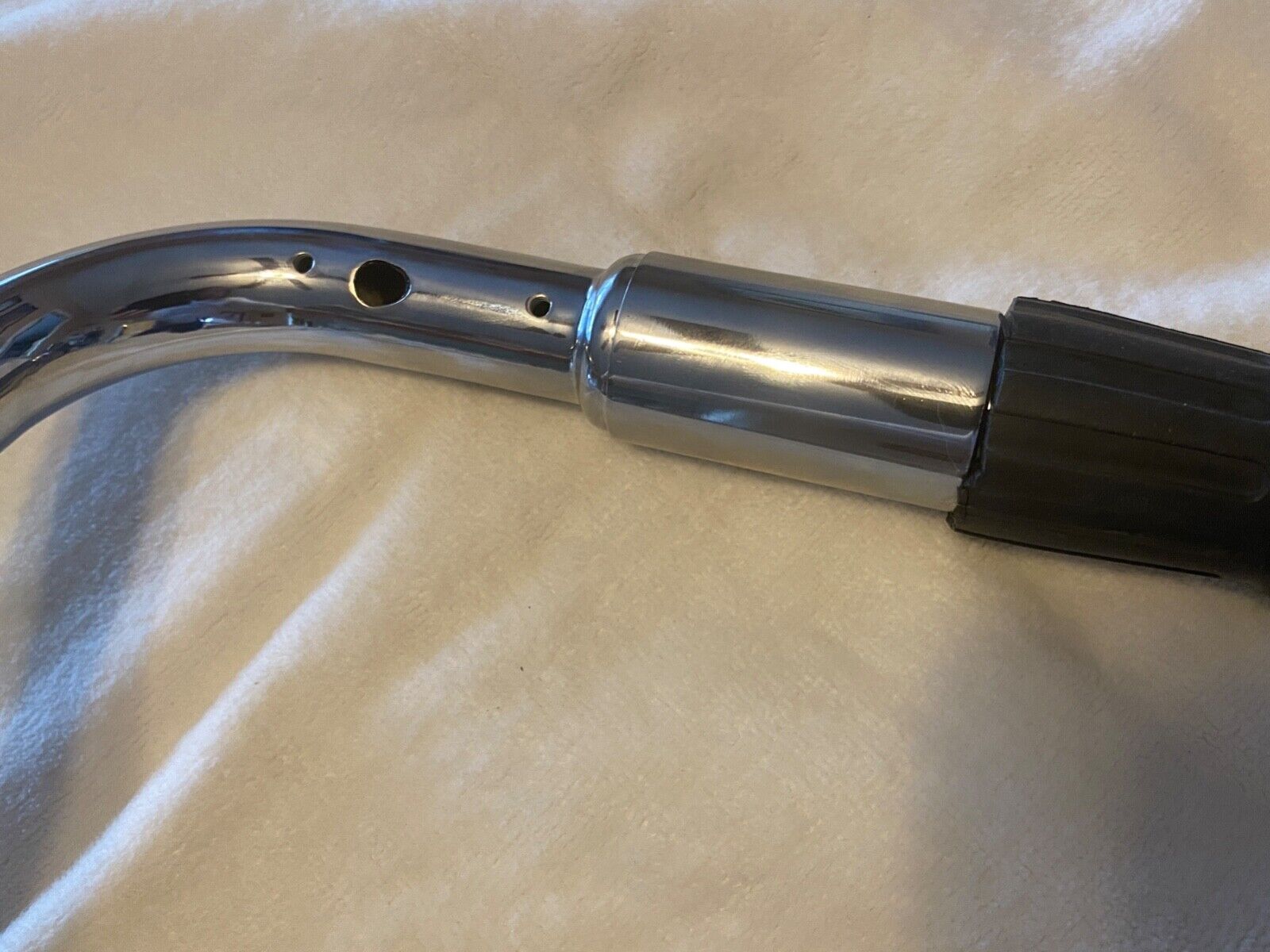

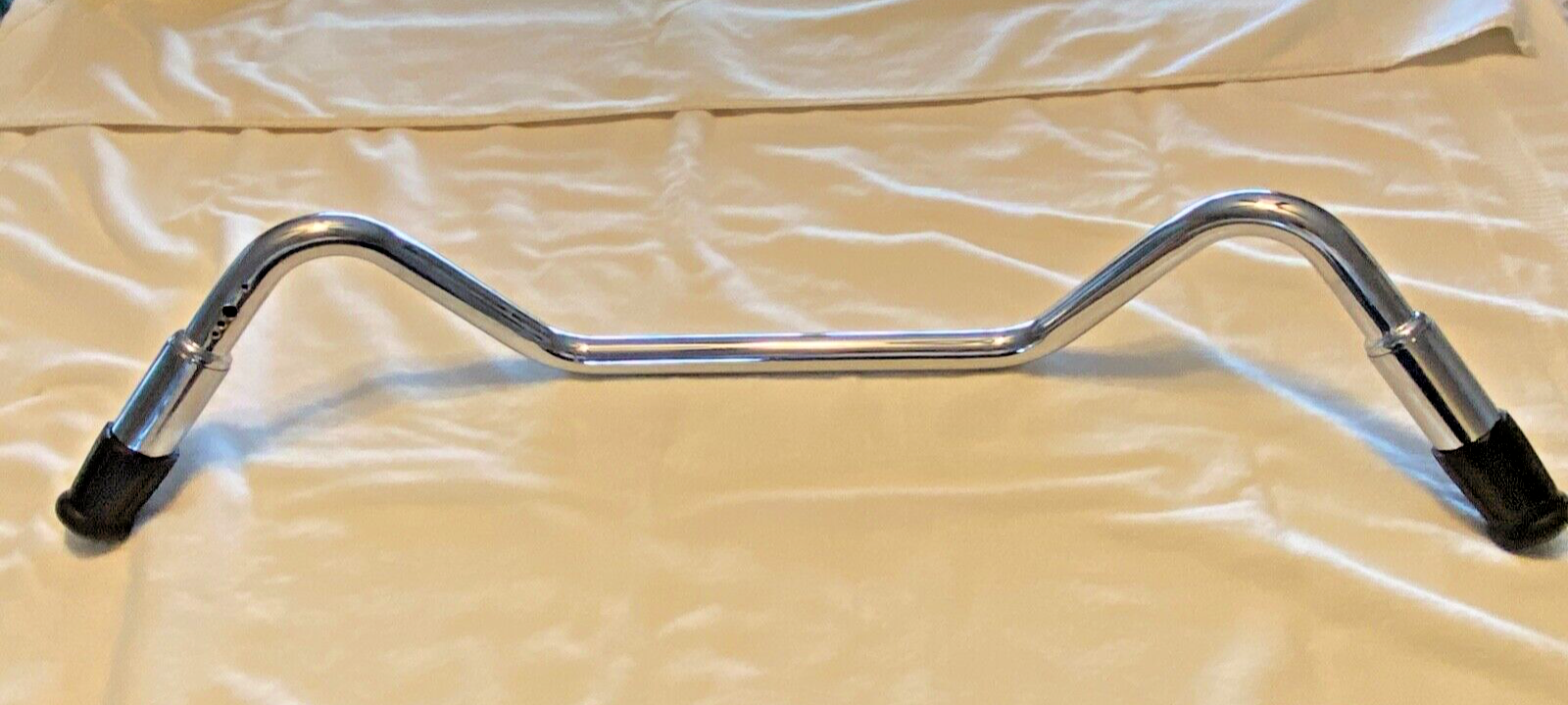

You are purchasing a Flanders handlebar kit for spring fork and Hydra-Glide front end Harley-Davidson models from 1930 or so until 1959.  Works with Flanders risers or standard Hydtra-Glide risers as used 1949-1959.  Can be adapted to any bike.  These bars utilize internal throttle and spark control and are drilled for horn and headlamp harnesses.  Bars are reproduction and quite well machined.

One spiral is a push spiral, the other is a pull so you are set if you are planning to use a piano wire carb like a Linkert or a stranded cable carb like an S & S or Mikuni. If you go with a pull throttle, your timer will operate as usual. If you go with a push spiral, your timer spiral will work in reverse which is no issue, just remember which way is advance.

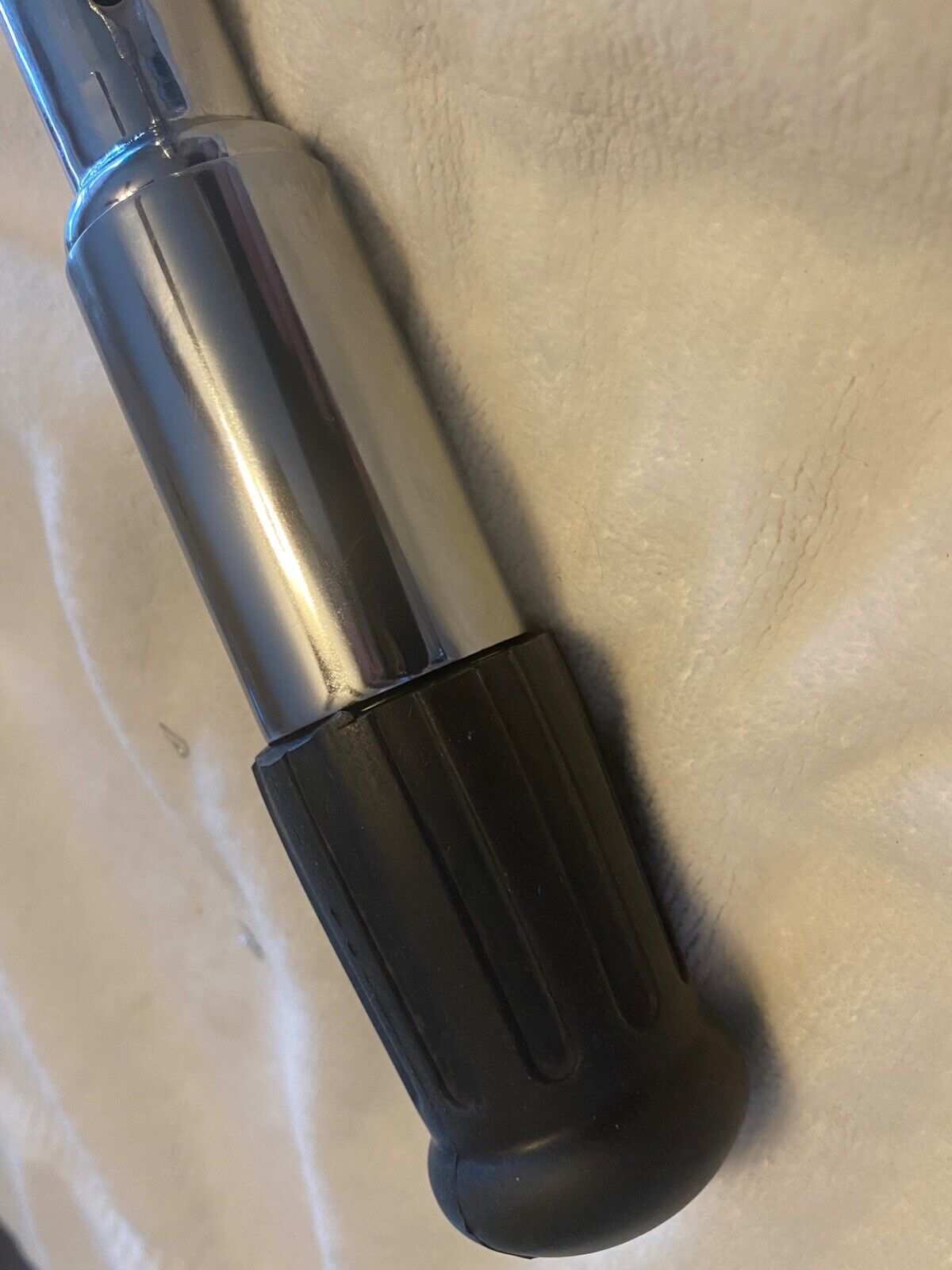

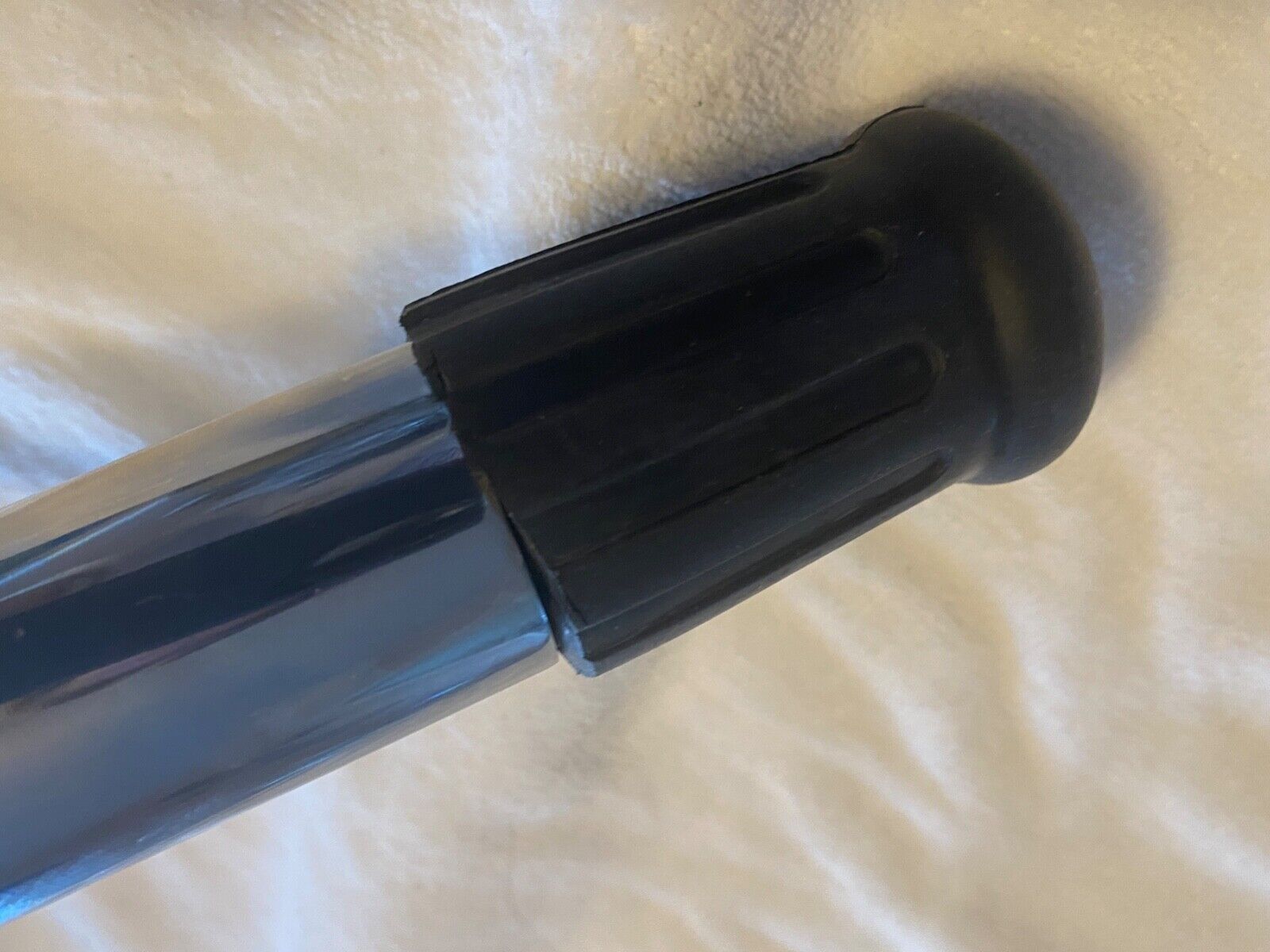

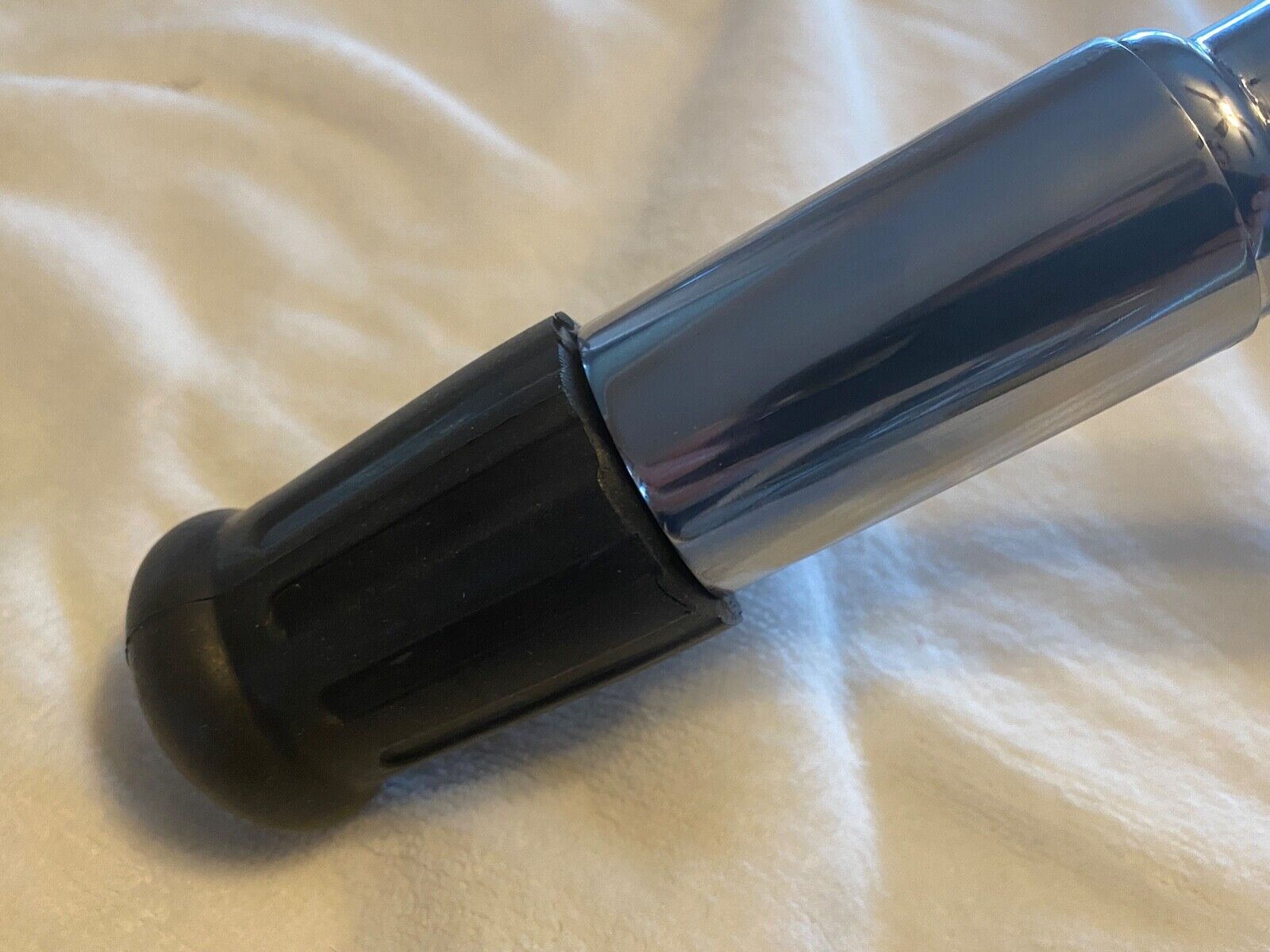

This kit includes two short "Hellings" style spirals, two springer style grips, and handlebar end plugs.  This kit DOES NOT include the plungers or cables.  This uses standard throttle and spark internals for 1931-1948 springer models. .

We sell brake switch kits, complete premium wiring harness kits (made in house at CCW), reproduction Cycle-Ray headlamps, tail lamps, dash bases and covers, sheet metal, driveline parts, and we offer a huge hardware selection of correct CP and plain head bolts, screws, wire clips, etc.

Fits the following models but detail-correct for 1942-1946 only:

  • 1936-1947 E, EL, F, FL 61" & 74" OHV Knucklehead
  • 1937-1952 WL, WR, WRTT, WLD etc. 45" solo flat head
  • 1932-1959 G, GD, GDT 45" Servicar
  • 1937-1946 U, UL, ULH, UH, etc. 74" & 80" big twin flathead
  • 1948-1959 EL, FL, FLE, FLH 61" & 74" OHV Panhead
Please check my eBay store for plain head machined CP-1035 and CP-1038 hardware, parkerized clamps & clips, speedometer drives, decals, more Linkert parts, fuel lines, oil lines, tank emblems, and other odds and ends for your vintage Harley project.


If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small and select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.
