Harley FL FLH Service Manual 58 to 65 Panhead Electra Duo-Glide Wiring Diagrams

  • Product Code: 352209127040
  • Availability: Out Of Stock
  • $39.95

You are purchasing one new reprint of the Harley-Davidson factory service manual for 1959 to 1965 Duo-Glide and Electra-Glide Panhead FL, & FLH models.  Most anything about the 1959 Duo-Glide will be relevant to the 1958 models, this is simply what the cover says the date range is.

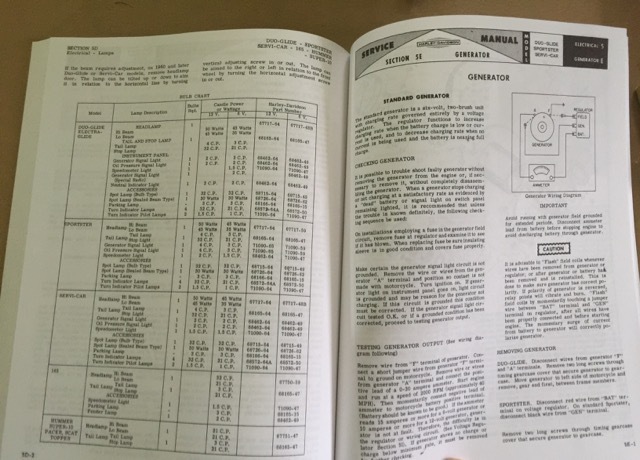

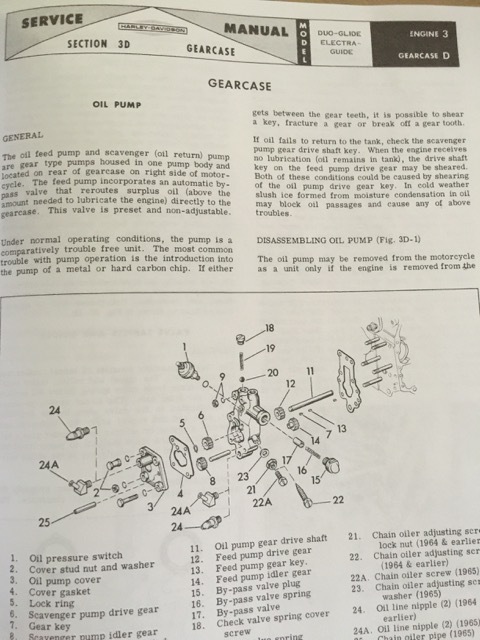

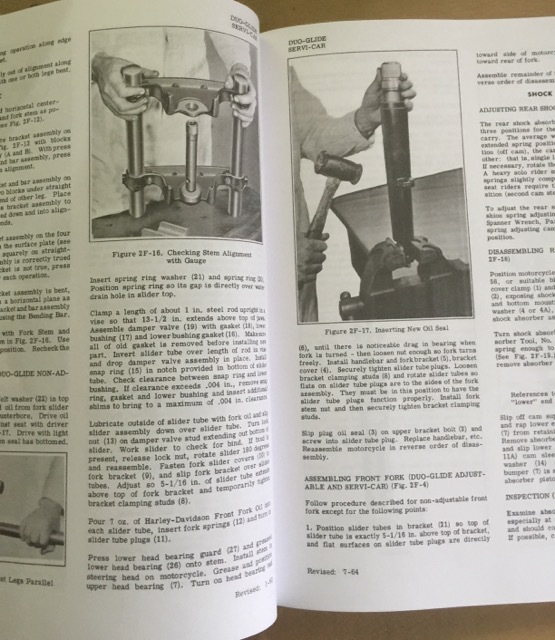

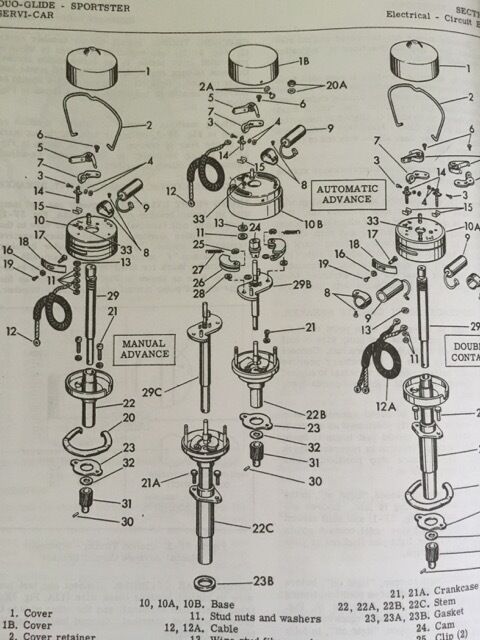

Covers engine, transmission, electrical system including comprehensive wiring diagrams for all years and models listed, carburetion, chassis, forks, etc.  If you own a late Panhead you need this book to keep your bike on the road and to save you money on repairs.  Covers Linkert M-Series carburetors and two brush generators including radio generators.  Also covers the different timers used: single point manual advance, dual point, and single point auto advance.  Covers Delco-Remy voltage regulator specs and identification, and so many other things lost to time on these bikes!

  • 1959-1965 EL, FL & FLH Hydra-Glide 74” OHV Panhead
This is an Antique Cycle Supply re-print of the original factory H-D manual.  The reproduction quality is excellent on this and photo reproduction is good as well.  All content is as original, nothing has been omitted.

Will ship via postal priority with insurance to domestic and foreign destinations or first class, your choice.  Please feel free to contact me with questions.

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small, select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.  Our offerings are selected based on accuracy of the part to the original as well as durability and craftsmanship.
