Harley DL RL W WL WLD 45" Solo Rear Fender Mounting Hardware Kit 1929-40
- Product Code: 351957777082
- Availability: In Stock
-
$65.95

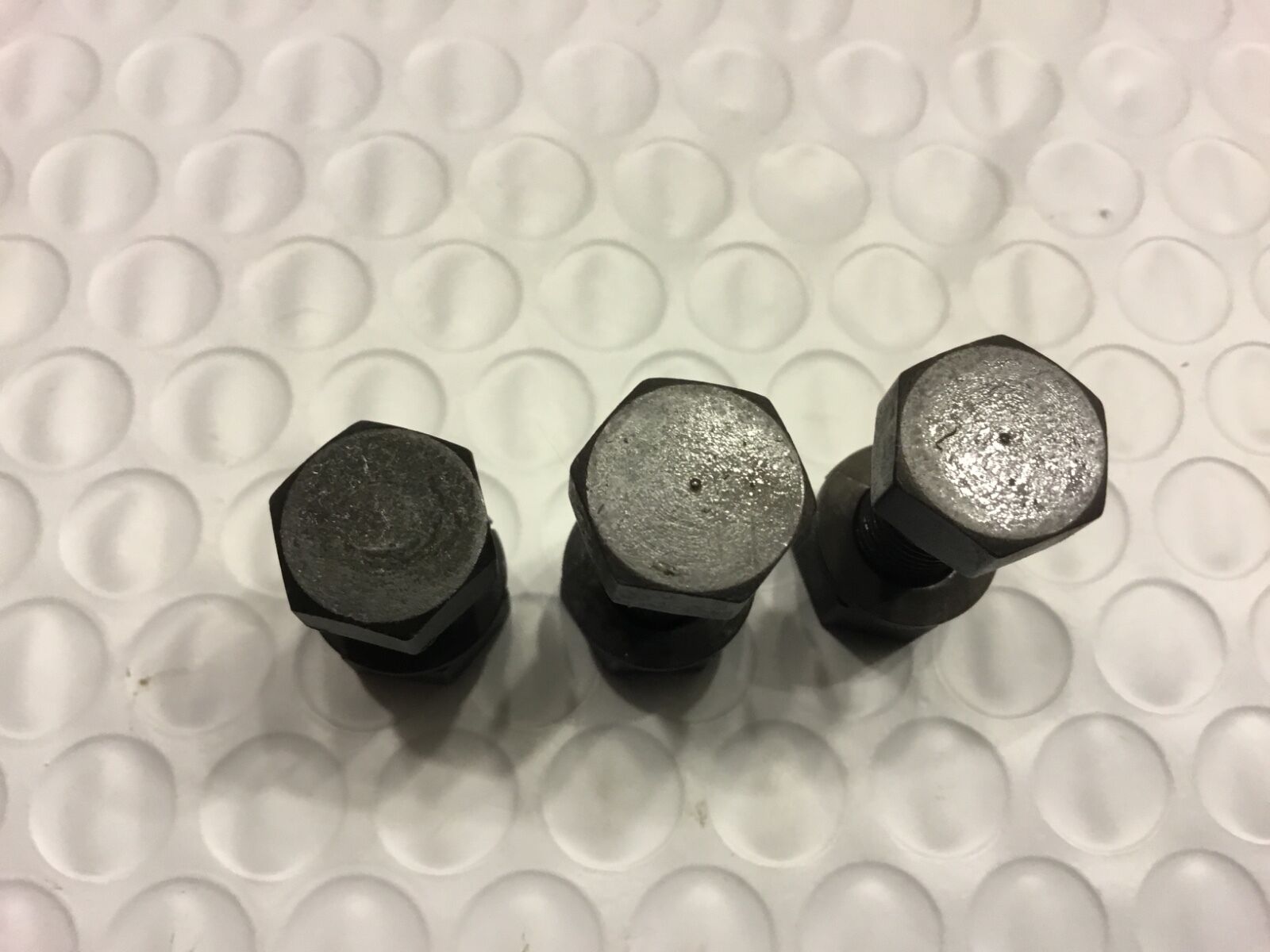

You are buying a 45" solo twin rear fender mounting kit detail-correct specifically for for 1929 to 1940 models, though I’m aware all of this hardware can be used on later 45" models and some may have been used on single models and VL models. Includes all pieces shown. The reason this is detail correct for 1929 to 1940 is that all hex bolts are plain head and this kit also utilizes the correct flat machined 3743-23 rear clip bolts.
The 061 bolt in this kit is a known NOS OEM bolt cut in H-D's own screw shop. The rest of the hardware is all USA Made using the exact same metallurgy and machining practices H-D used for durability and exact appearance.

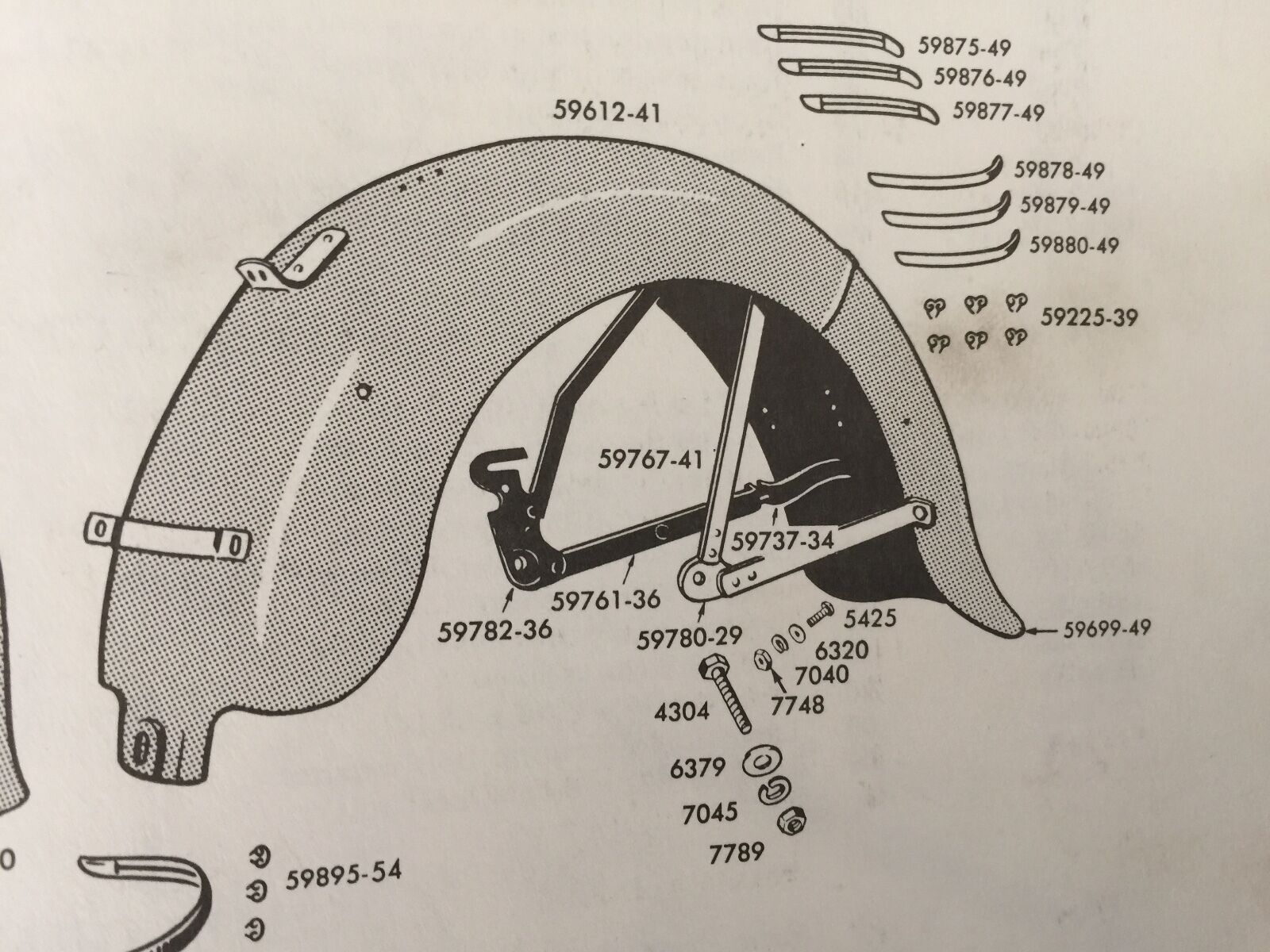

Please consult your own parts or service manual for proper reference.
All USA made parts.
Detail correct for the following:
- 1948-1952 W, WL, WLD, WLDR, WLA, WLC

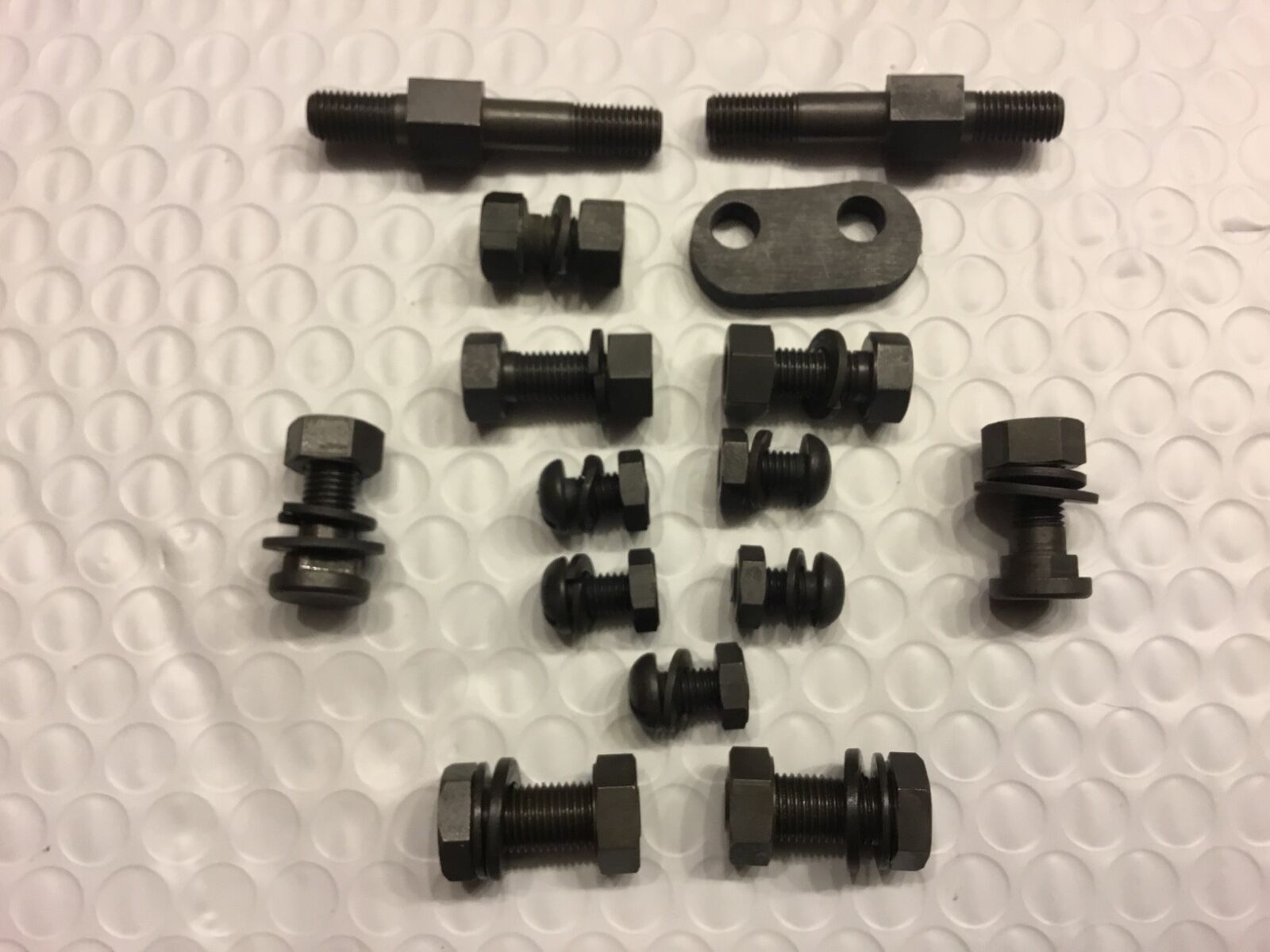

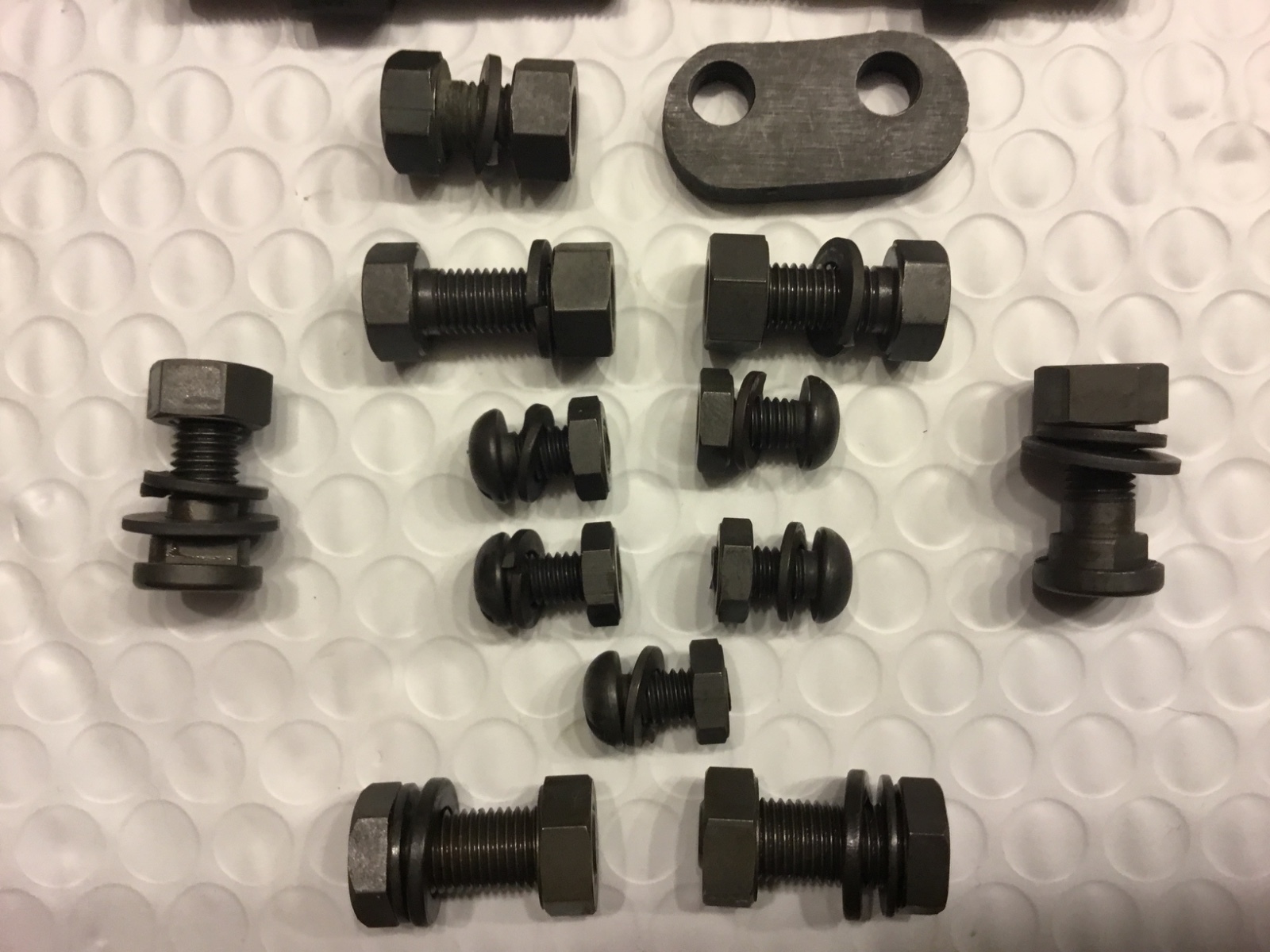

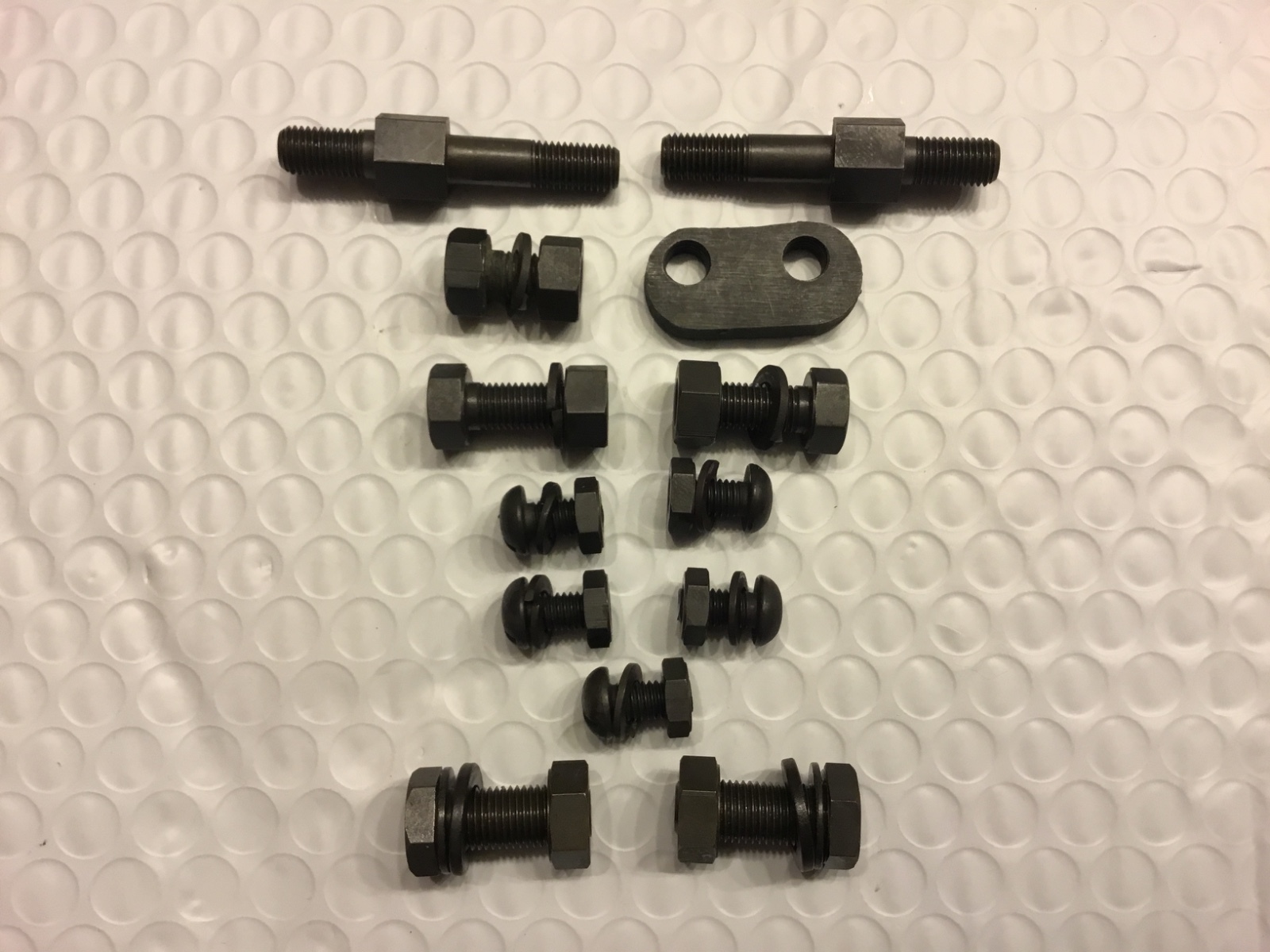

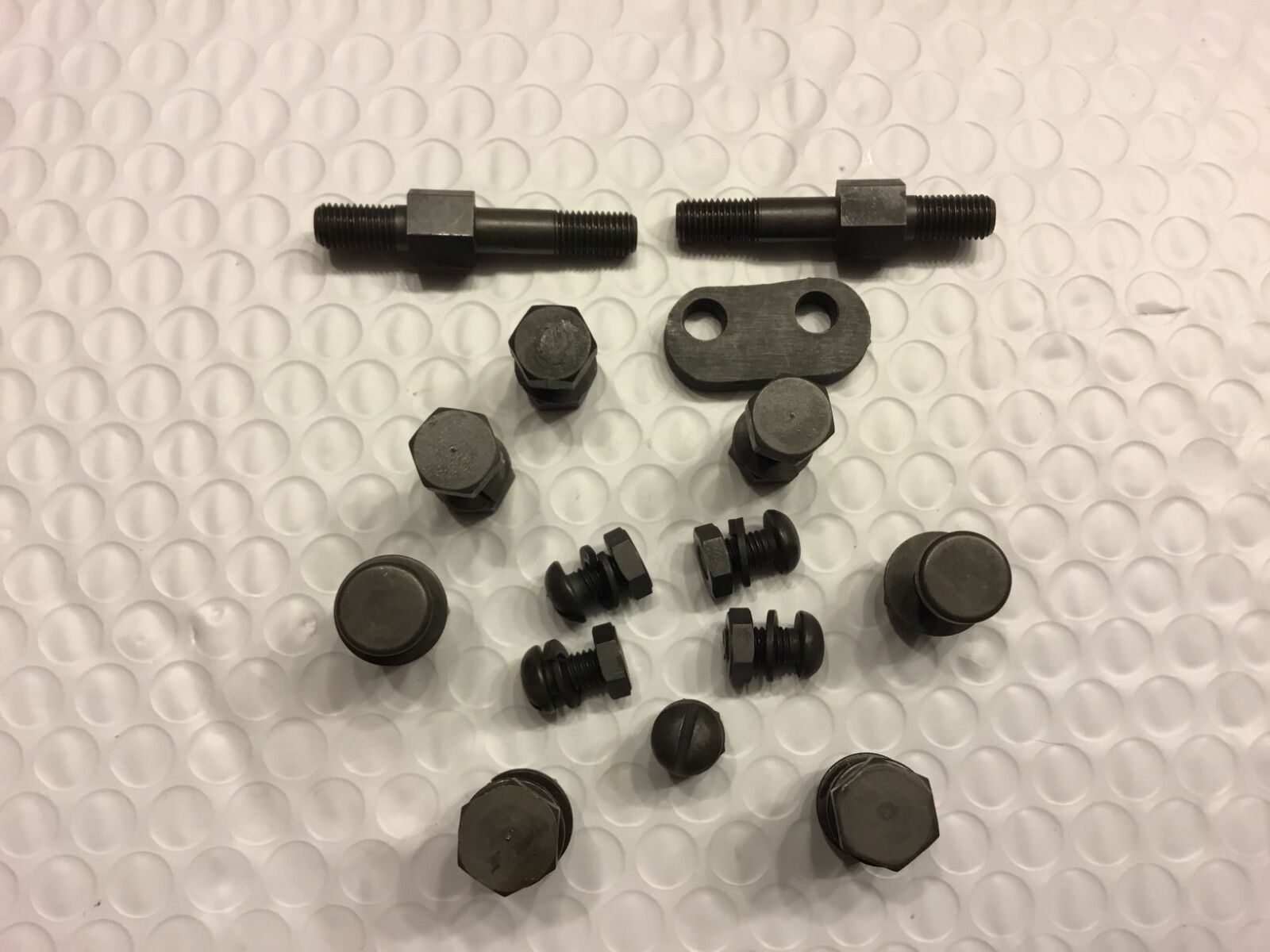

You get the following in this kit:
- 2 ea. 4304 (early 2823-26), Rear fender brace bolt, 3/8”-24 N.F. x 29/32"
- 2 ea. 7789, (early 0129) Rear fender brace nut, 3/8”-24 N.F. x 1/4” x 9/16"
- 2 ea. 6379, (early 0226) Rear fender brace flat washer, 3/8” x 5/8” x 3/64"
- 2 ea. 7045, (early 0261)Rear fender brace split lock washer, 3/8” x 5/8” x 1/16"
- 2 ea. 5425, (early 3743-23) Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 7748, (early 0111) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 4 ea. 6320, (early 0214) Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 2 ea. 3974 (early 064), Rear lower bolt, 5/16-24 N.F. x 3/4” x 1/2" CP-1038 stamped
- 1 ea. 3953 (early 061), Rear lower bolt, 5/16-24 N.F. x 1/2” x 1/2" CP-1038 stamped
- 3 ea. 7752, (early 0117) Nuts, 5/16”-24 N.F. x 17/64” x 1/2”
- 3 ea. 7040, (early 0259) Split lockwasher 5/16”

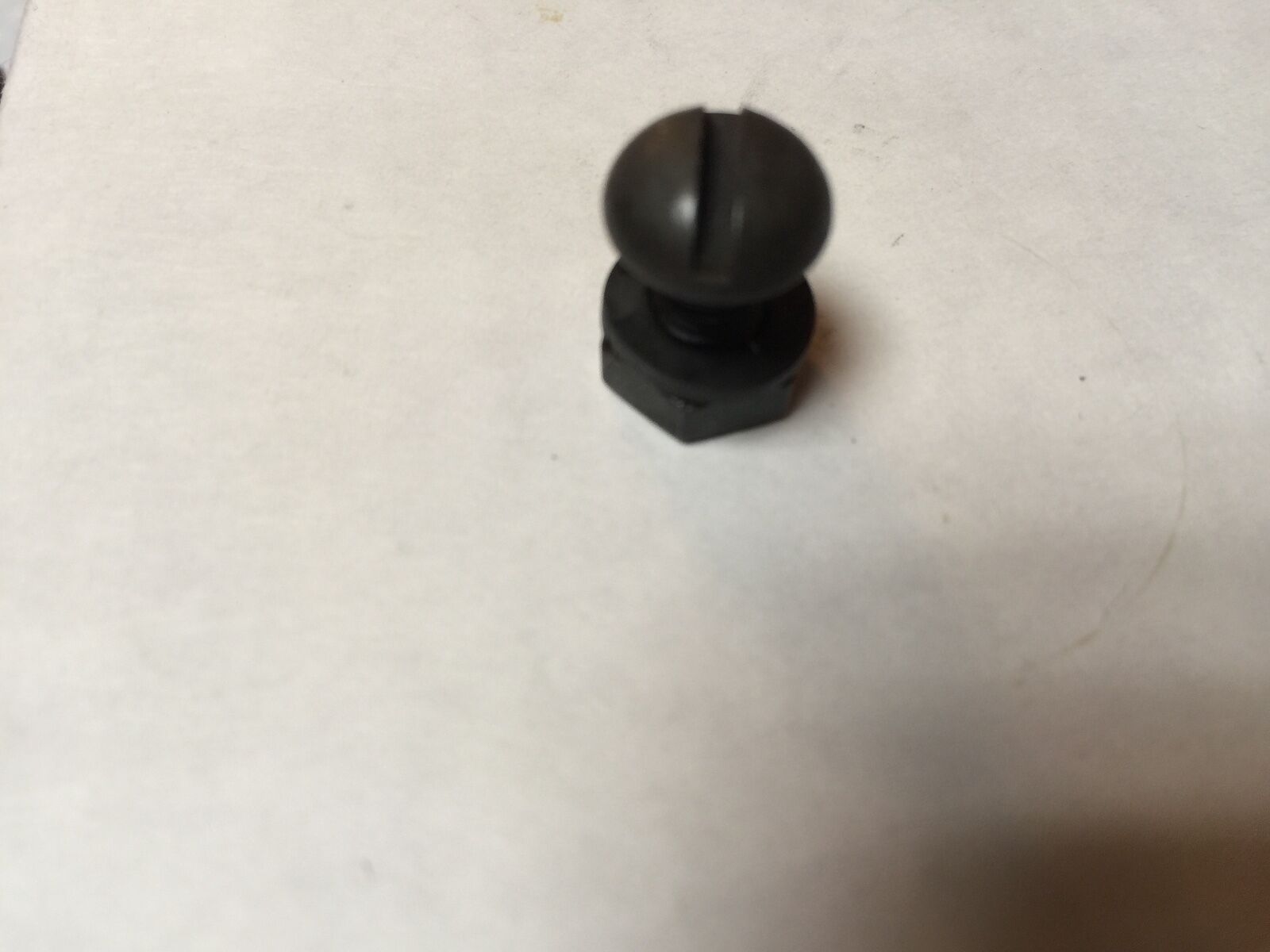

- 5 ea. 2762, (early 051) Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head (two included for 1939-1946 Beehive tag bracket)
- 5 ea. 7035, (early 0256) Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 7691, (early 0108) Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
