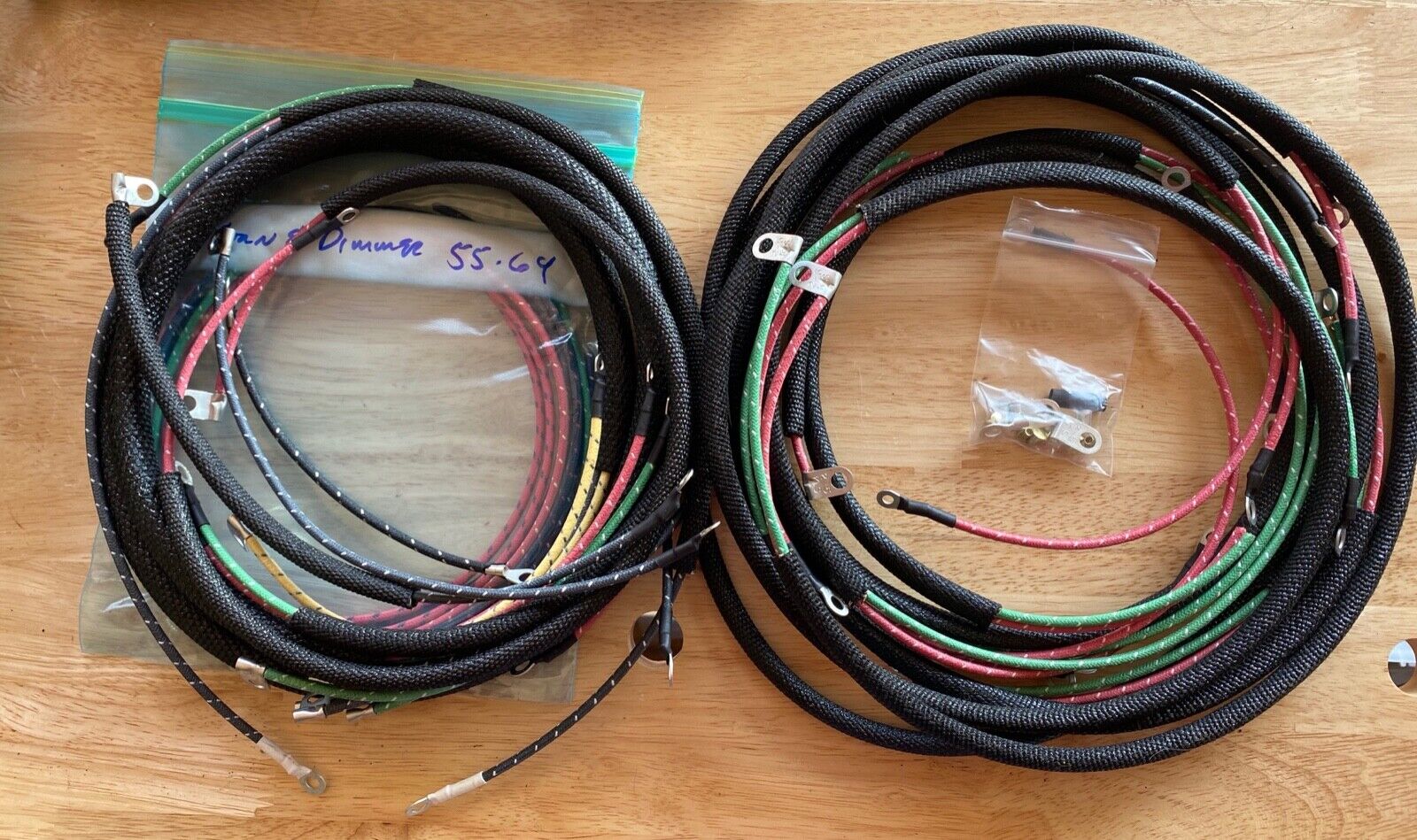

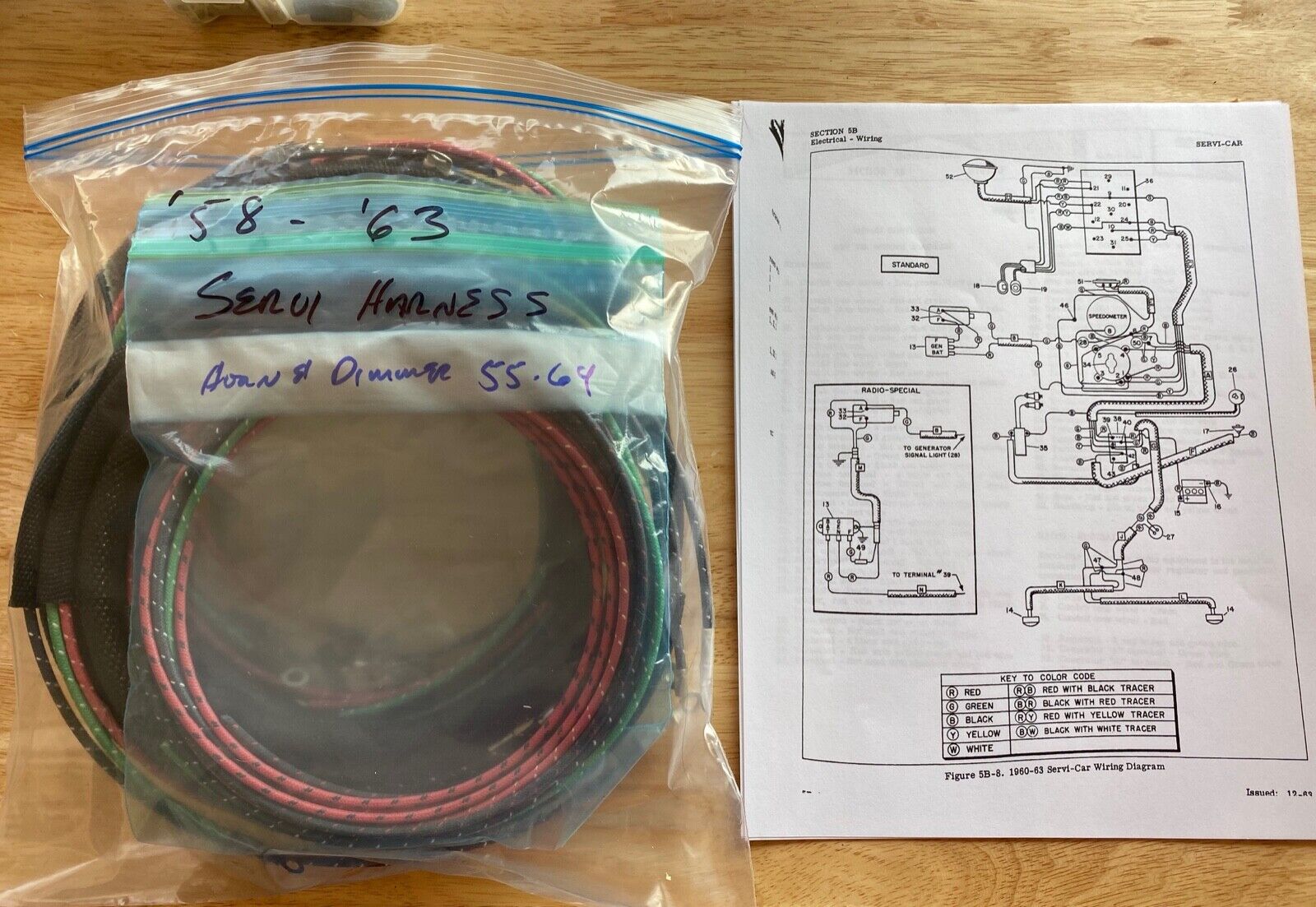

You are purchasing one new USA Made wiring harness kit for 1958 through 1963 twin model Harley-Davidson Servicars. This harness is correct for the last of the kick start years before H-D changed over to a starter in 1964. This is for use with a standard three relay voltage regulator. It does have the bare handlebar and tail lamp wires and terminals.

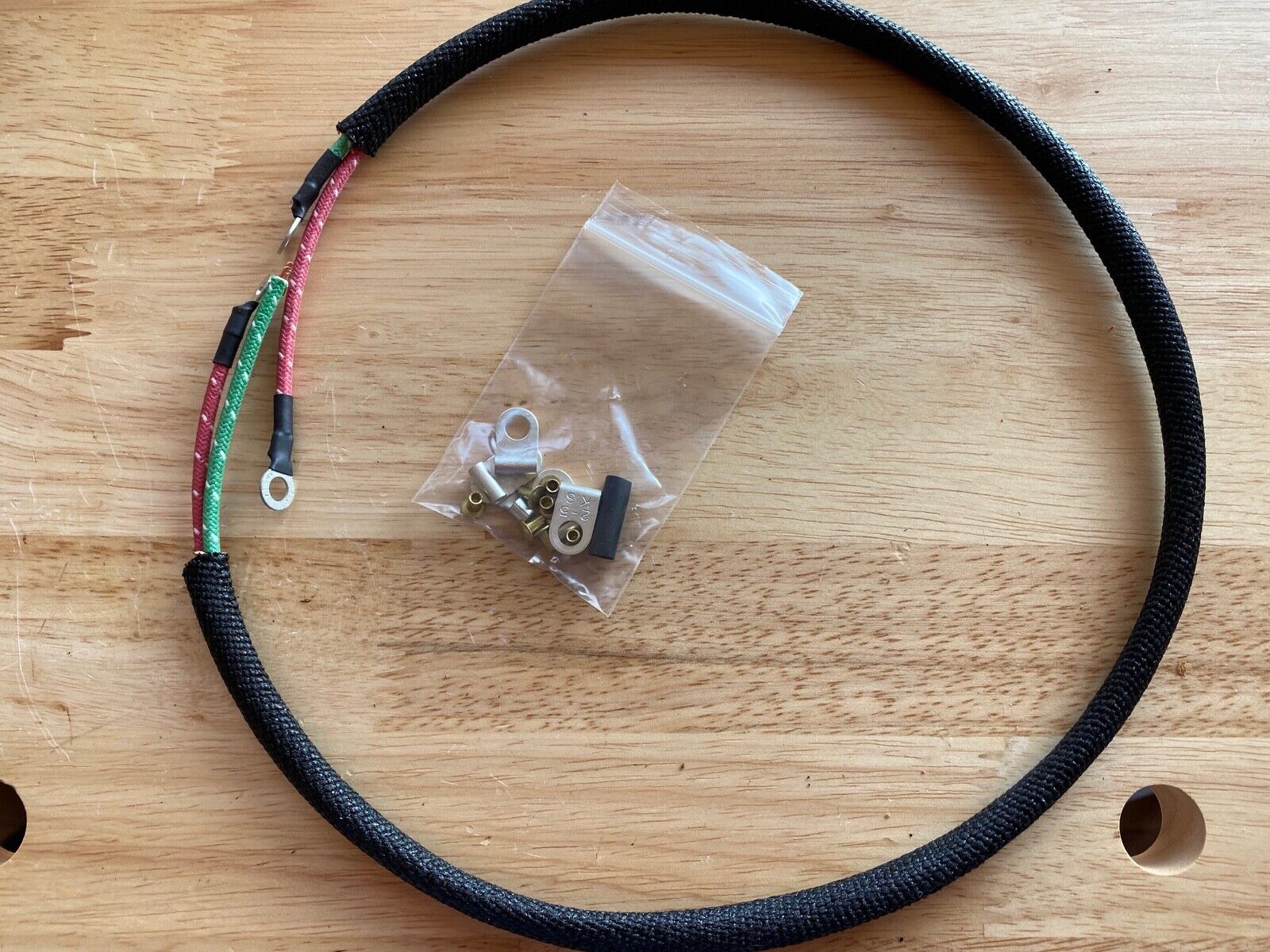

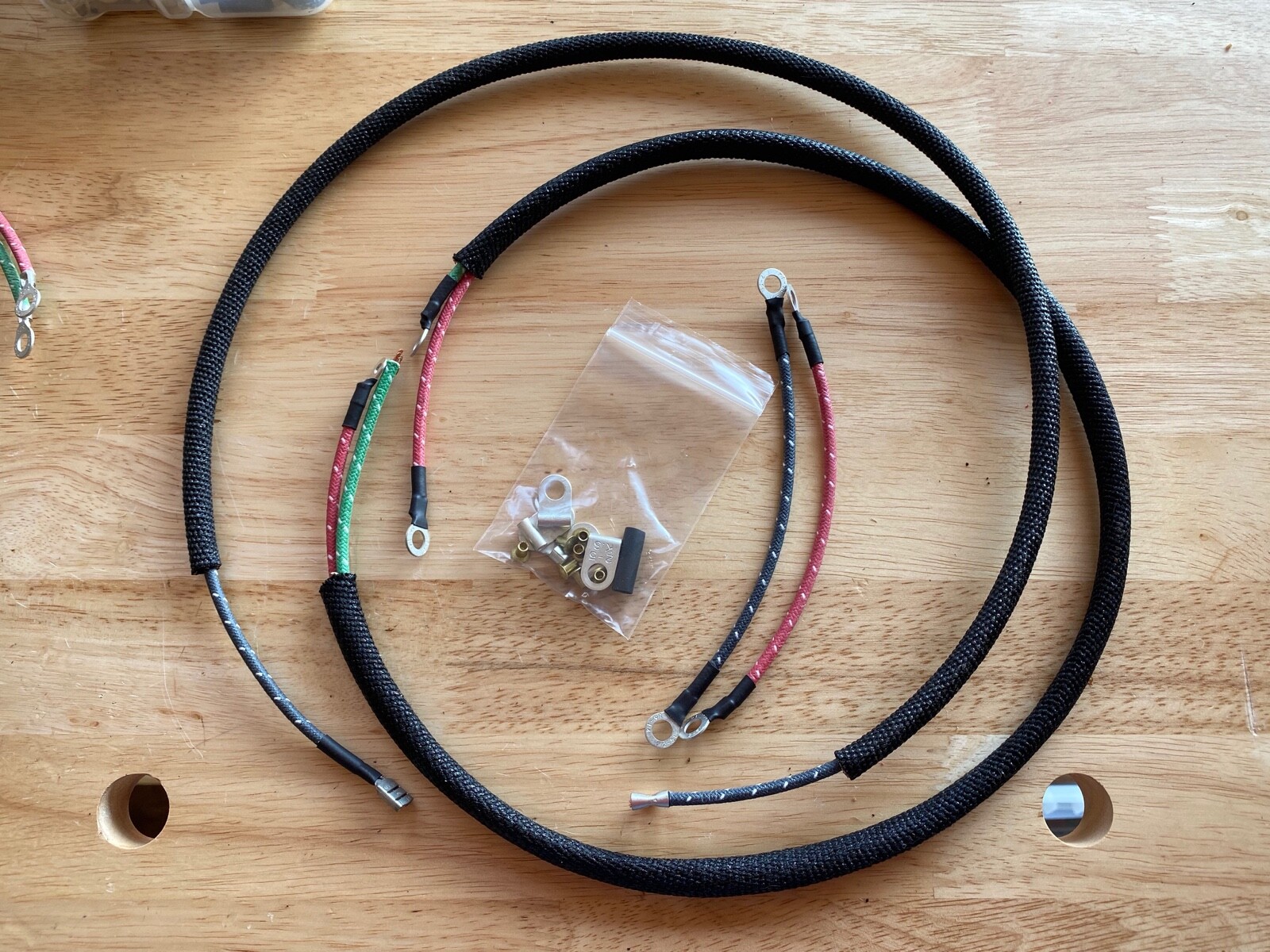

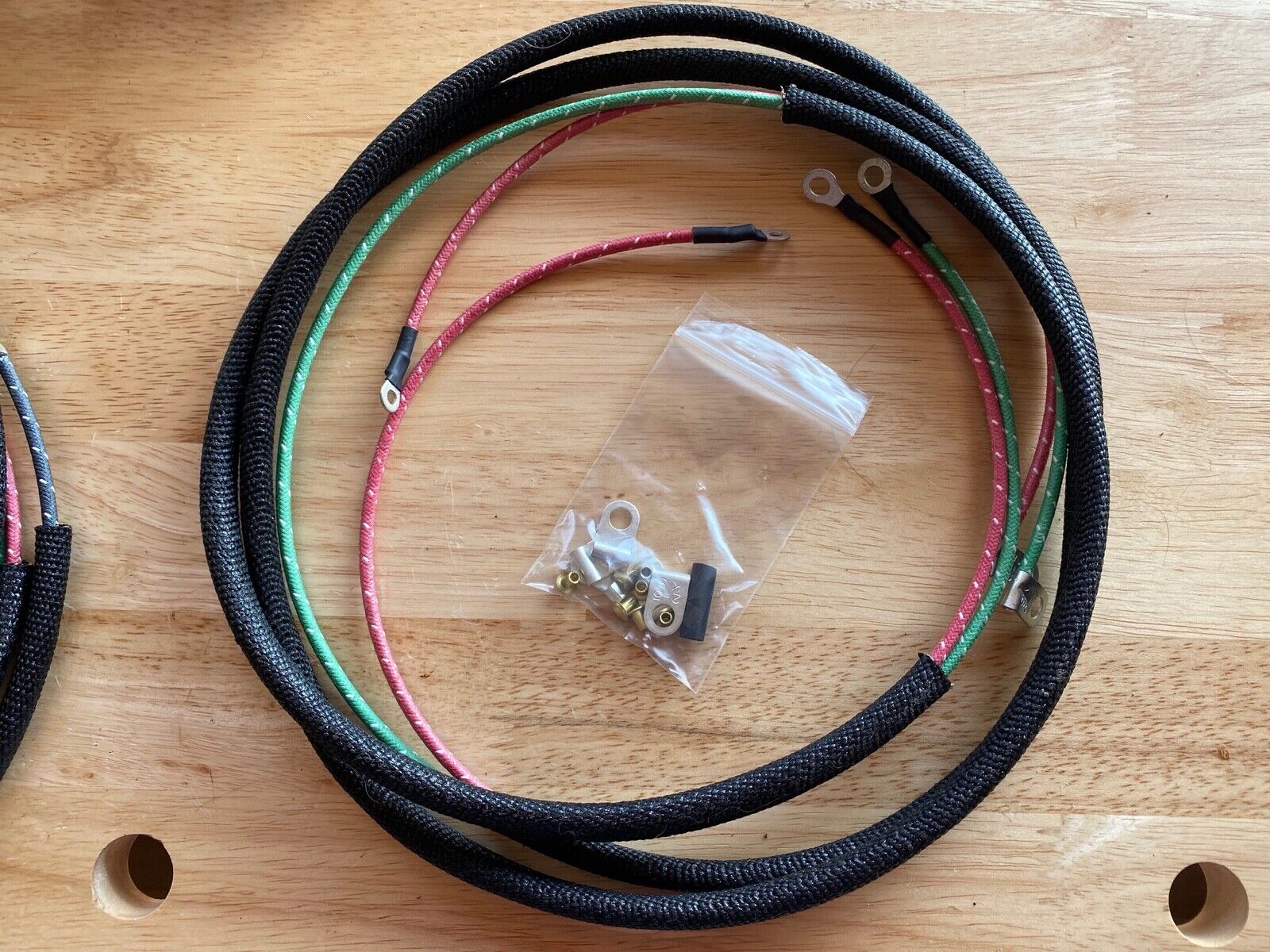

This kit is not a re-worked Duo-Glide kit, this is made specifically for the unique details on Servicars and includes a complete tail and brake light harness set which is pre-cut with the correct wires, looms, and terminal ends in addition to the correct oil pressure wire, ground, correct length horn to dash cable, etc. It also includes voltage regulator wires for generator-mounted regulators and coil mount as well. This does not have a shielded generator to regulator cable for radio use. Does not include headlamp block wires, does include button terminals for your generator and oil pressure sockets in the dash.
If you don't want to mess with more soldering or crimping, we can sell this kit with a set of pre-wired switches and pre-wired tail lamp sockets. We can also provide the wire clips necessary.
We also sell the main harness by itself, the dimmer and horn switches, as well as complete wiring clip kits to finish out your installation. We will be adding kits complete with the clips in the near future. If you don't see them, just ask.
We are now carrying wiring harnesses for most USA produced H-D models from 1926-1969 including all Servicar models through 1970.
Used on the following models:
- 1958-1963 G 45" Servicar equipped with two brush generator and three unit voltage regulator.
