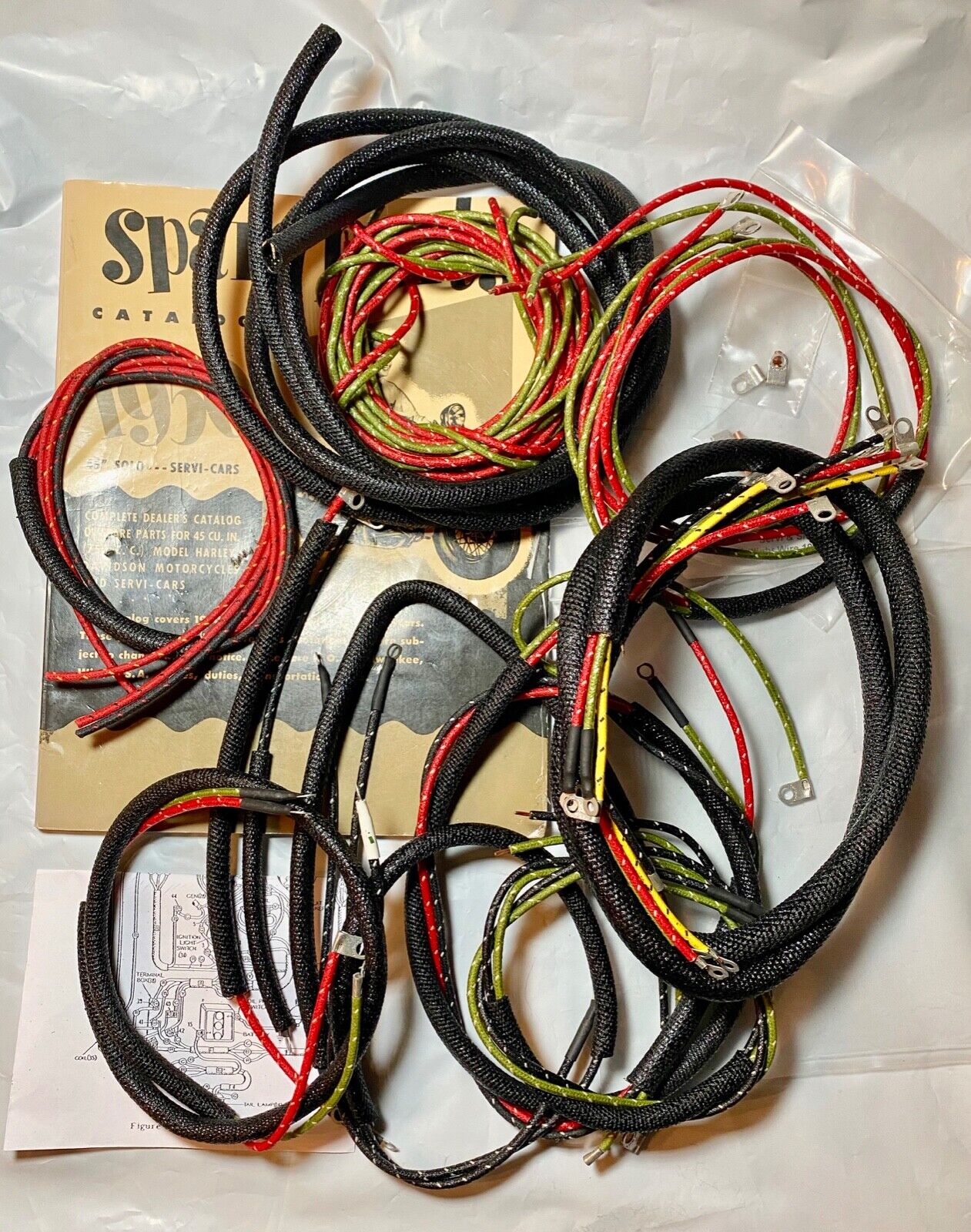

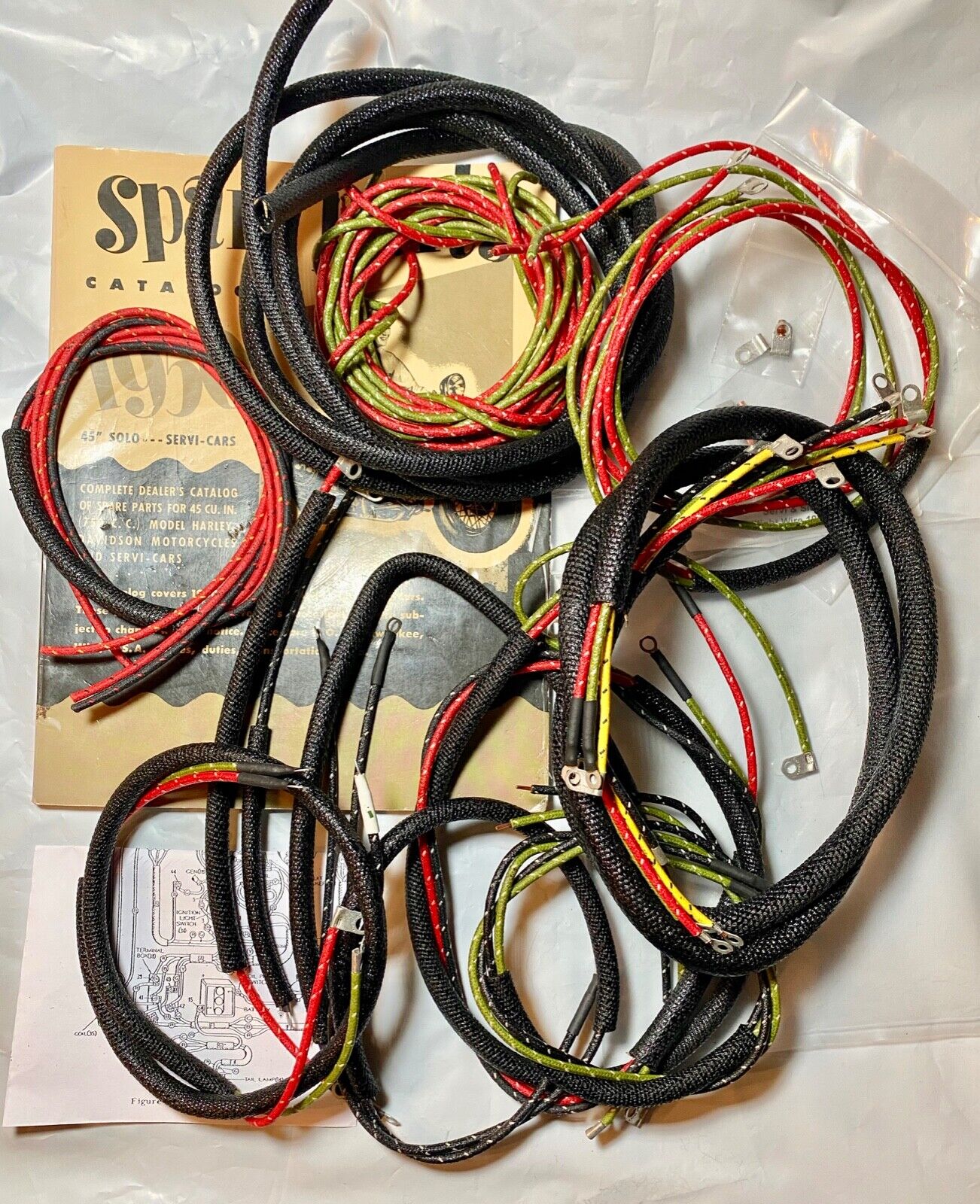

You are purchasing one new USA Made wiring harness kit for 1951-1957 twin model Harley-Davidson Servicars. This harness is correct for use with the new seat post terminal box introduced in 1948 with spring forks, and hydraulic rear end. It does have the bare handlebar wires and terminals and a full tail lamp kit with pre-soldered socket wires. If you don't want to mess with more soldering or crimping, we can sell this kit with a set of pre-wired switches and pre-wired tail lamp sockets. We can also provide the wire clips necessary.

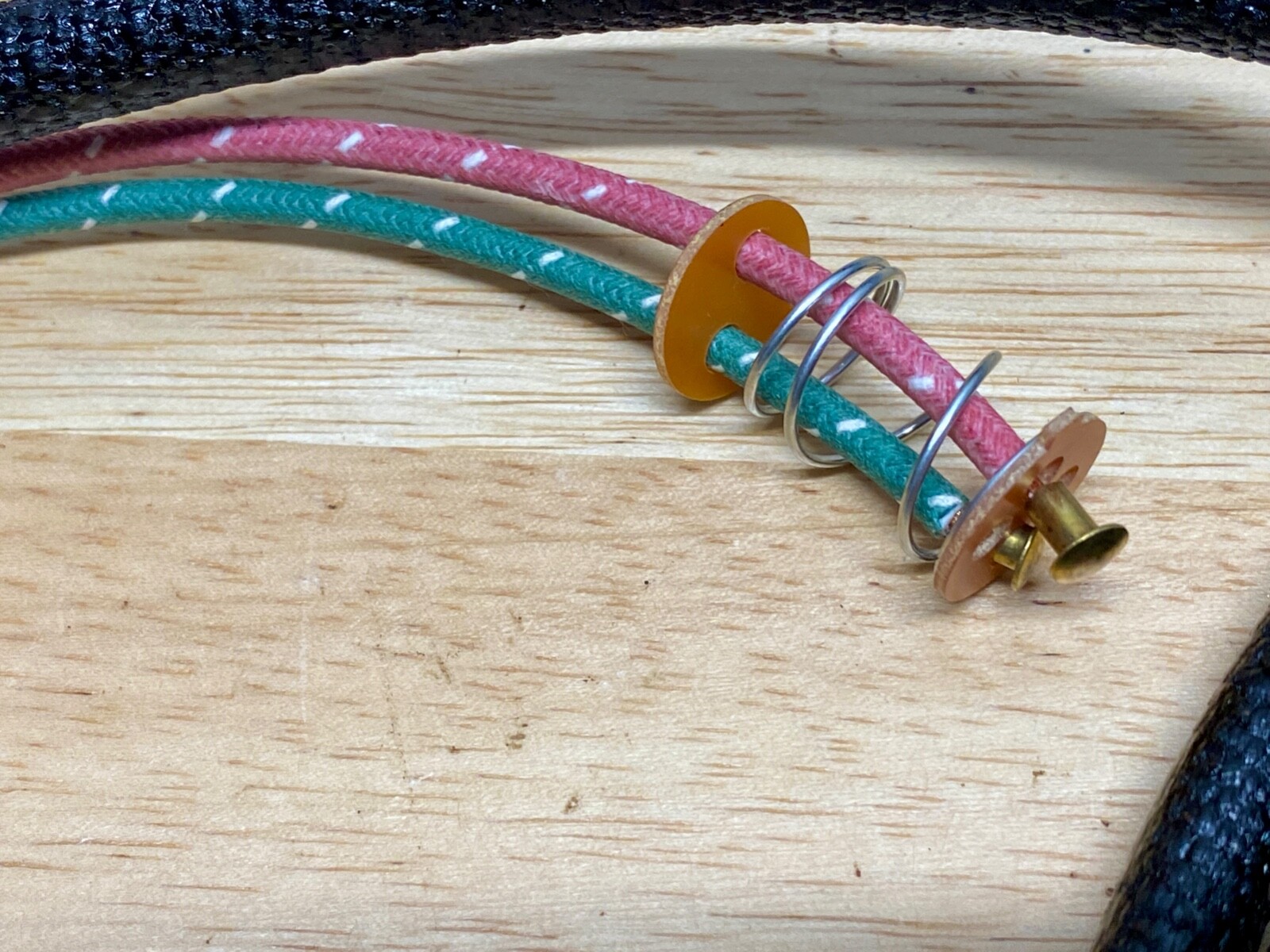

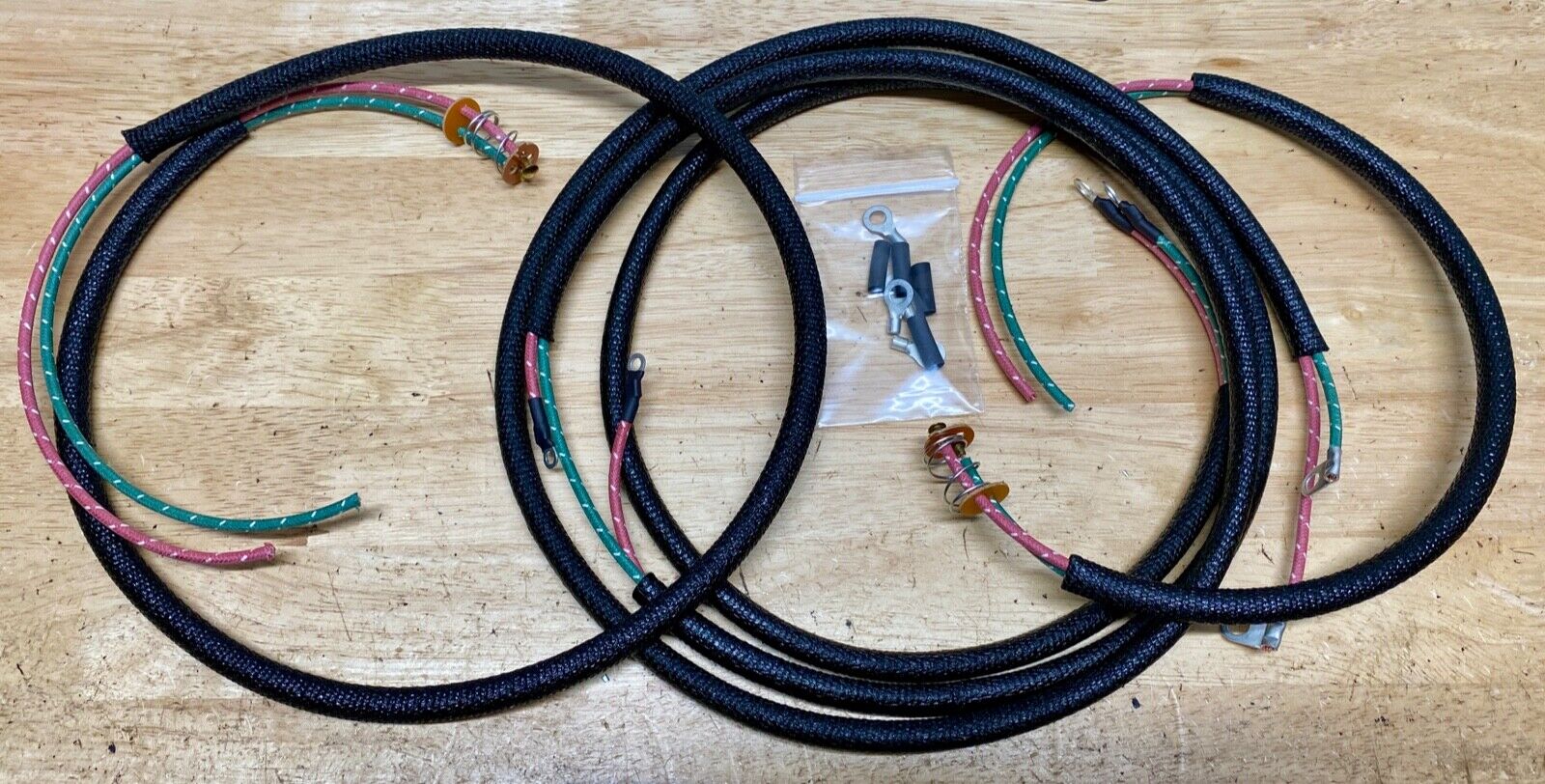

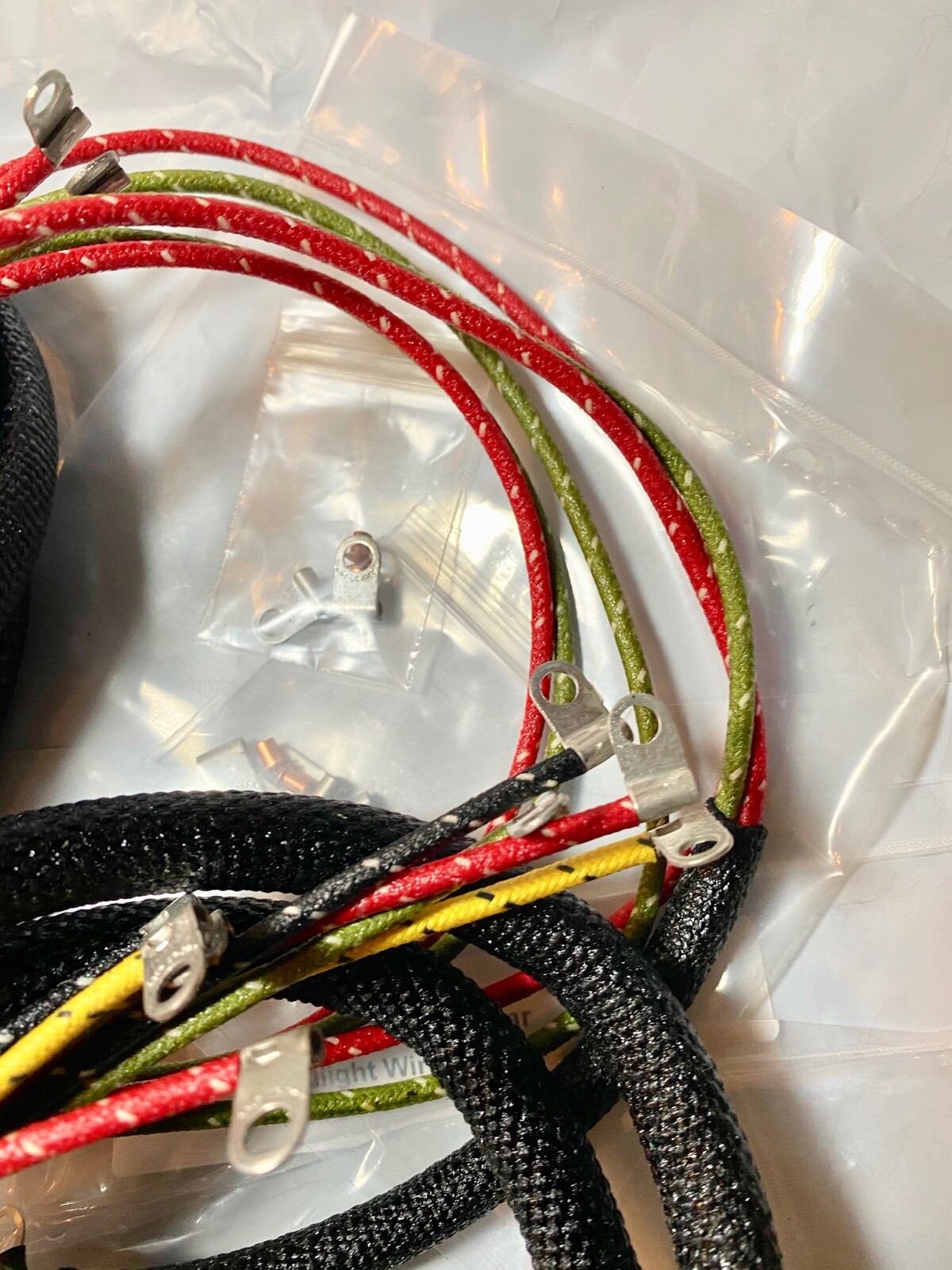

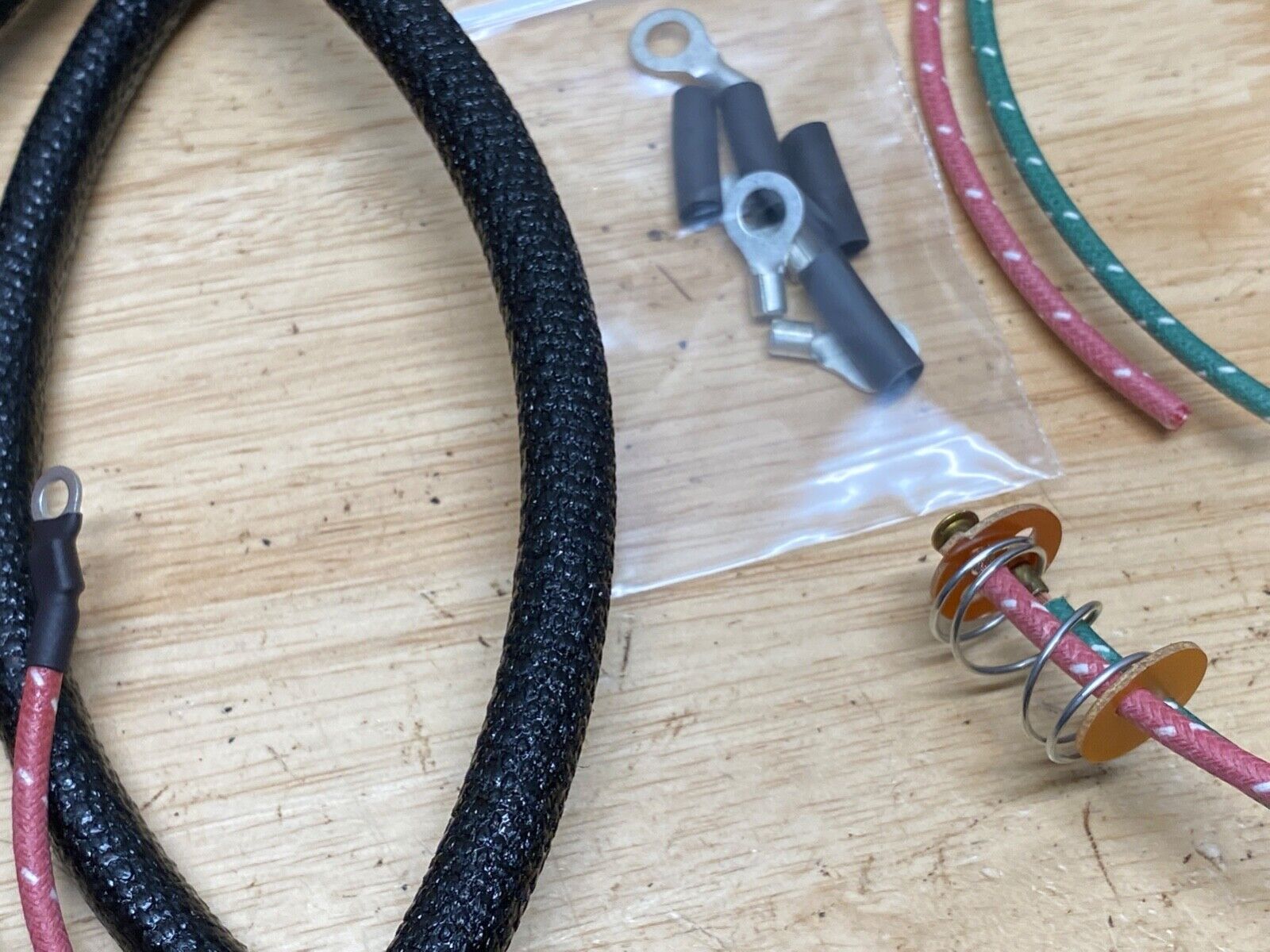

This kit includes a correctly laid-out complete tail lamp harness with tail lamp socket springs and bakelite plates soldered in place. You will just finish out four crimped terminals. The handlebar wires have terminals already affixed. You will need to de-solder your old wires from your dimmer and horn switches and then sweat in your new wires. If you are not comfortable with that, we can gladly sell you the kit with a pre-wired dimmer switch and horn button. Just ask.
If you need a harness for your 1948-1957 for a three pole voltage regulator that mounts over the coil on the left side of the bike, contact us, we can make the correct kit utilizing regulator wires from our 1958-1963 kit.
We also sell the harness by itself, the dimmer and horn switches, as well as complete wiring clip kits to finish out your installation. We will be adding kits complete with the clips in the near future. We also sell a complete tail lamp wire kit by itself. If you don't see them, just ask.
Includes everything you need to wire up your H-D from nose to tail.
We are now carrying wiring harnesses for most USA produced H-D models from 1926-1969.
Used on the following models:
- 1951-1957 G 45" Servicar equipped with three brush generator and cut out relay. This does NOT have wiring for a radio generator or two brush regulator type system. Tail lamp wires are correct for hydraulic brake rear ends.
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.
