Harley CP-1038 W WL WLA WLC 45" Solo Rear Fender Mounting Hardware Kit 1948-52
- Product Code: 351590976012
- Availability: In Stock
-
$60.95

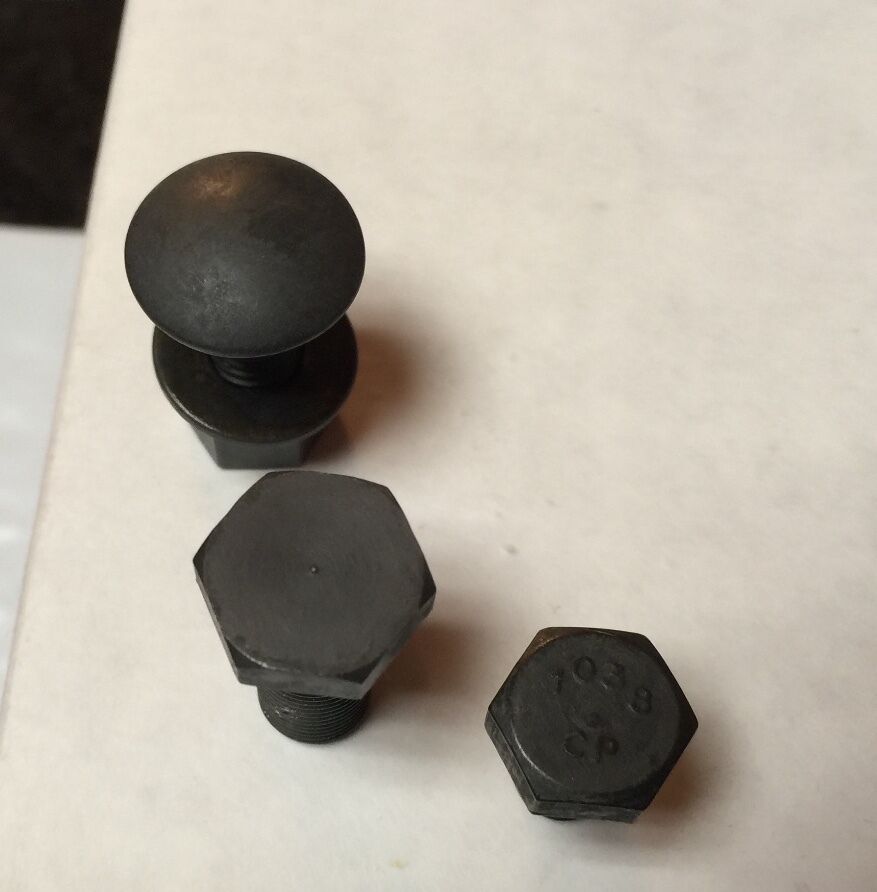

You are buying a 45" solo twin rear fender mounting kit detail-correct specifically for for 1948 to 1952 45 models, though I’m aware much of this hardware was used on earlier model 45’s and possibly solos. Includes all pieces shown. The reason this is detail correct for 1948 to 1952 is the three 5/16" hex head bolts are all stamped with CP-1038 heads. CP-1038 bolts start showing up in late 1947 or early 1948. Prior to this CP-1035 bolts were used from early WW-II to 1948. We also carry a kit specific to 1929 to 1940 models with plain head bolts.
Please consult your own parts or service manual for proper reference.
All USA made parts.
Detail correct for the following:
- 1948-1952 W, WL, WLD, WLDR, WLA, WLC

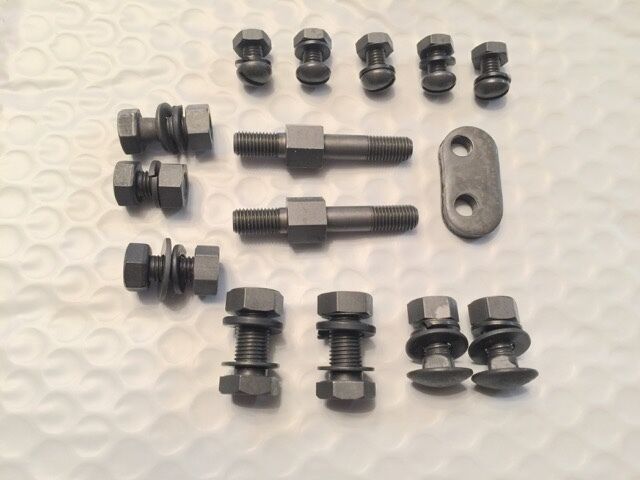

You get the following in this kit:

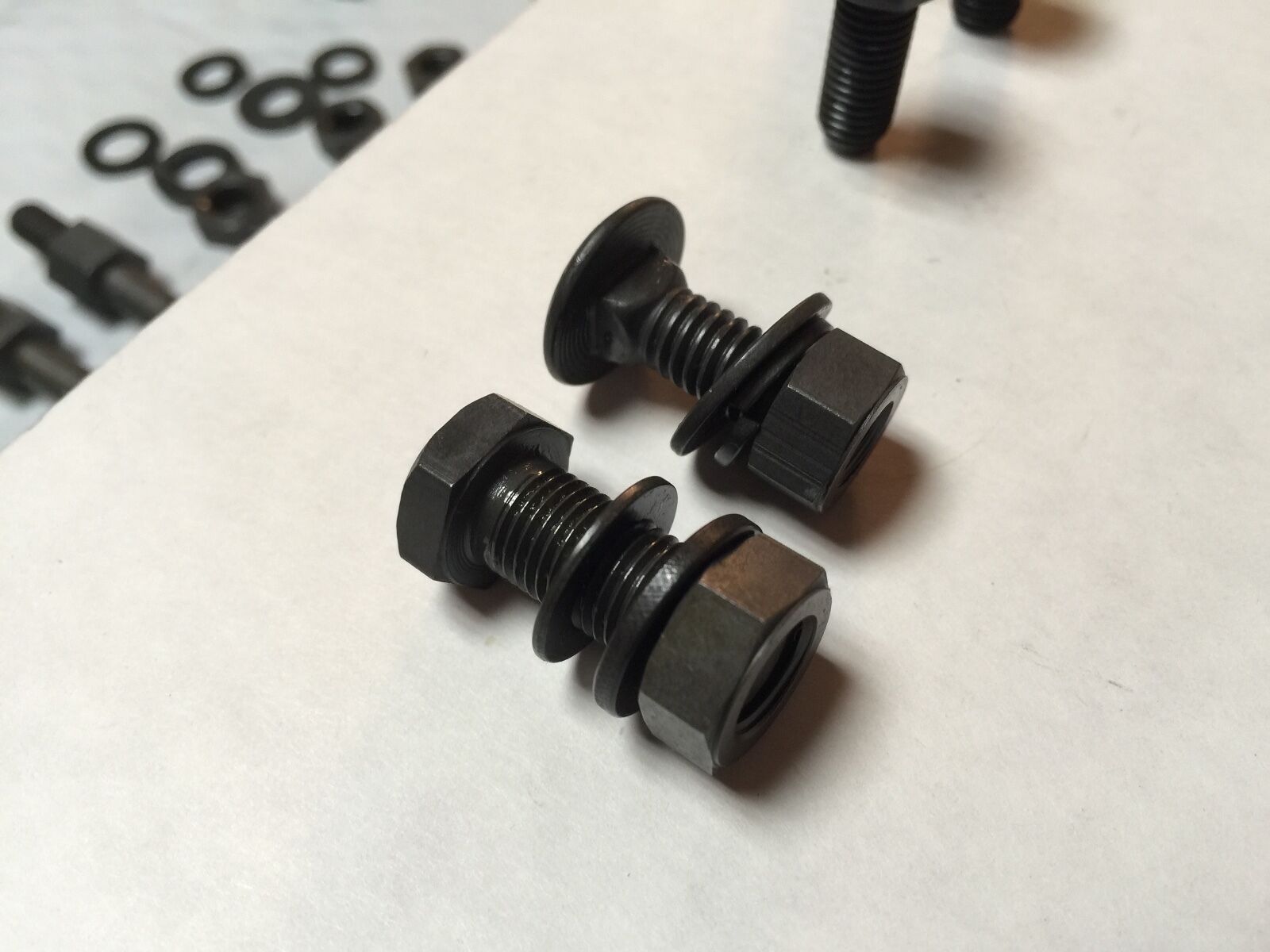

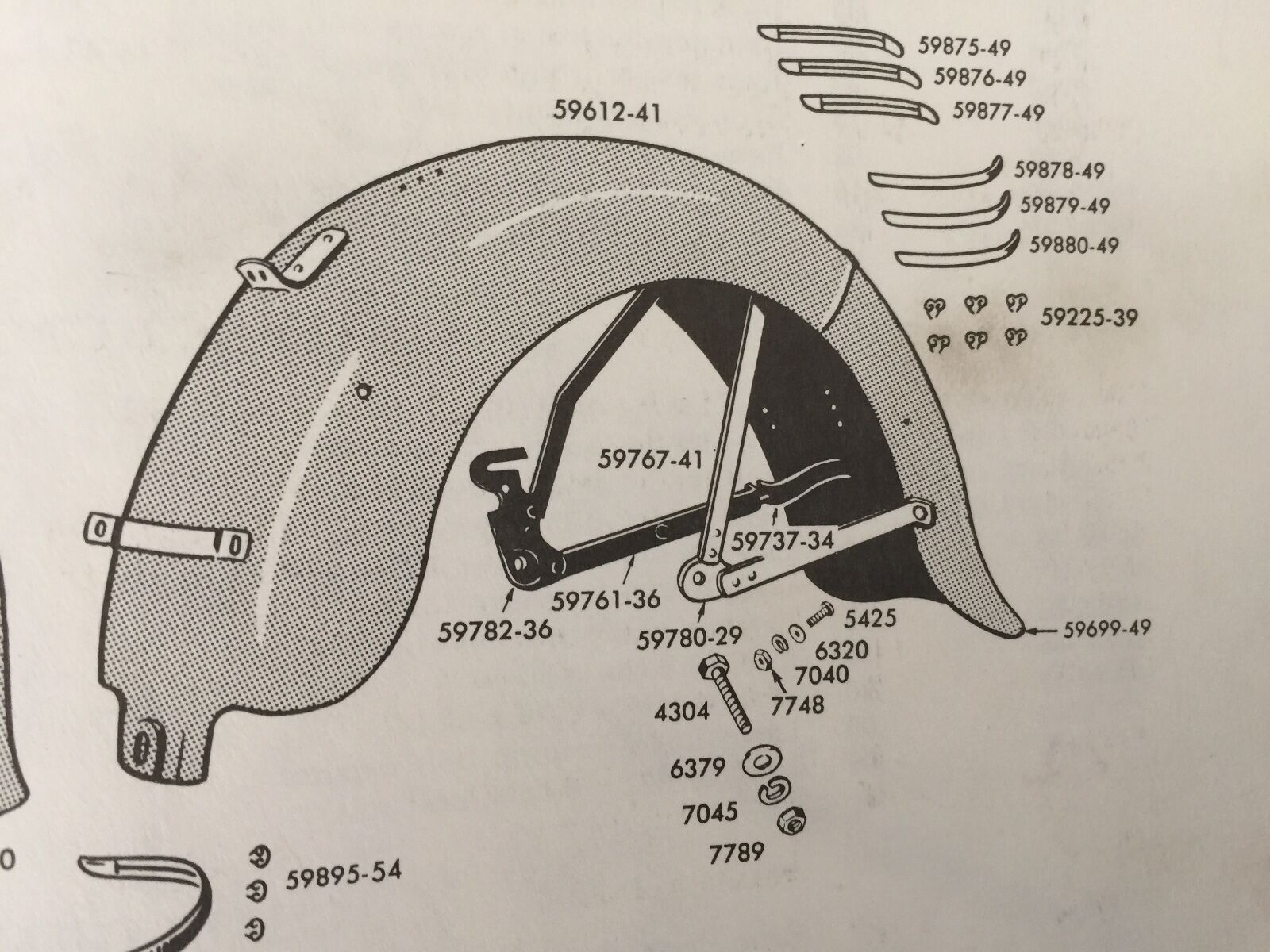

- 2 ea. 4304 (early 2823-26), Rear fender brace bolt, 3/8”-24 N.F. x 29/32"

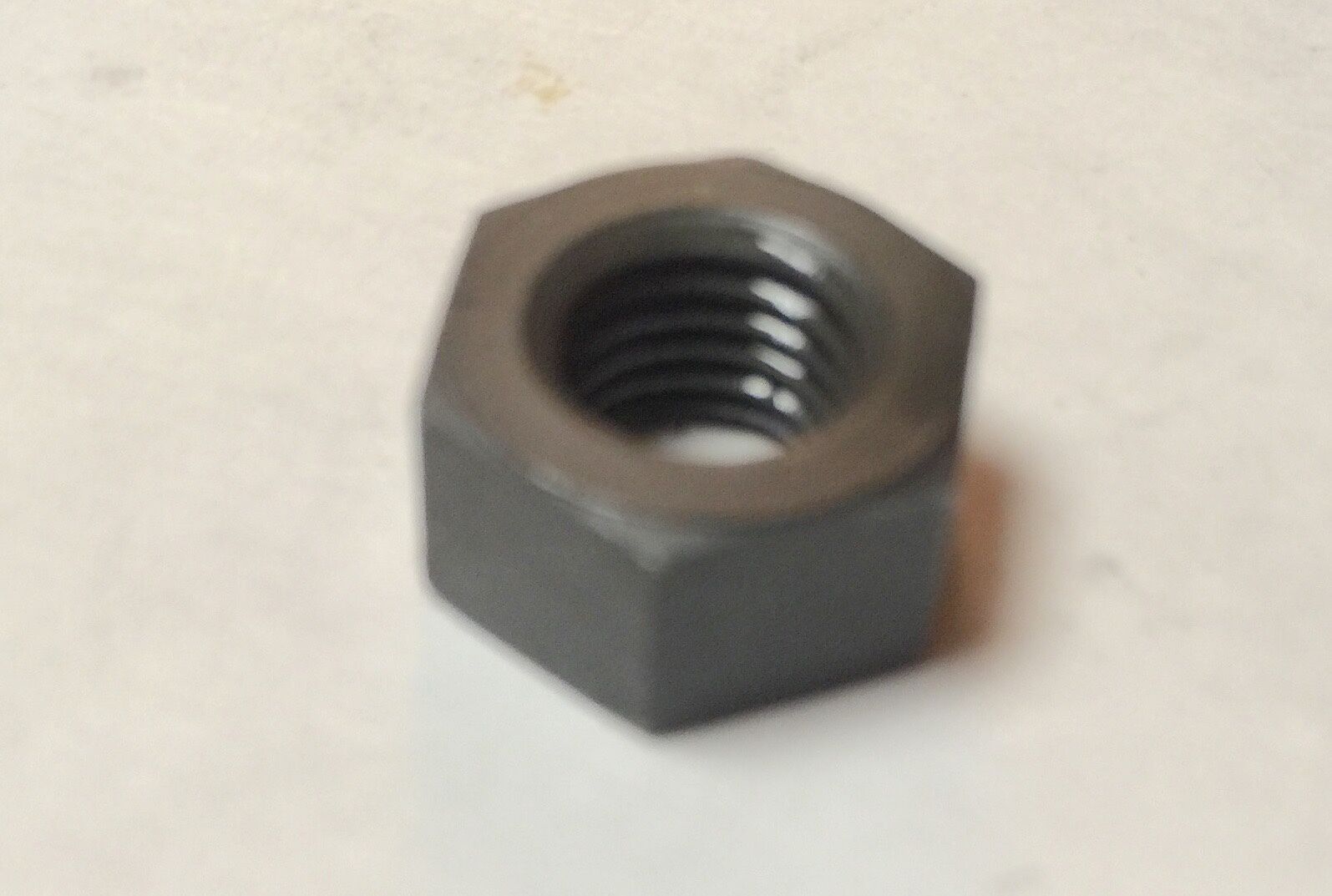

- 2 ea. 7789, (early 0129) Rear fender brace nut, 3/8”-24 N.F. x 1/4” x 9/16"
- 2 ea. 6379, (early 0226) Rear fender brace flat washer, 3/8” x 5/8” x 3/64"
- 2 ea. 7045, (early 0261)Rear fender brace split lock washer, 3/8” x 5/8” x 1/16"

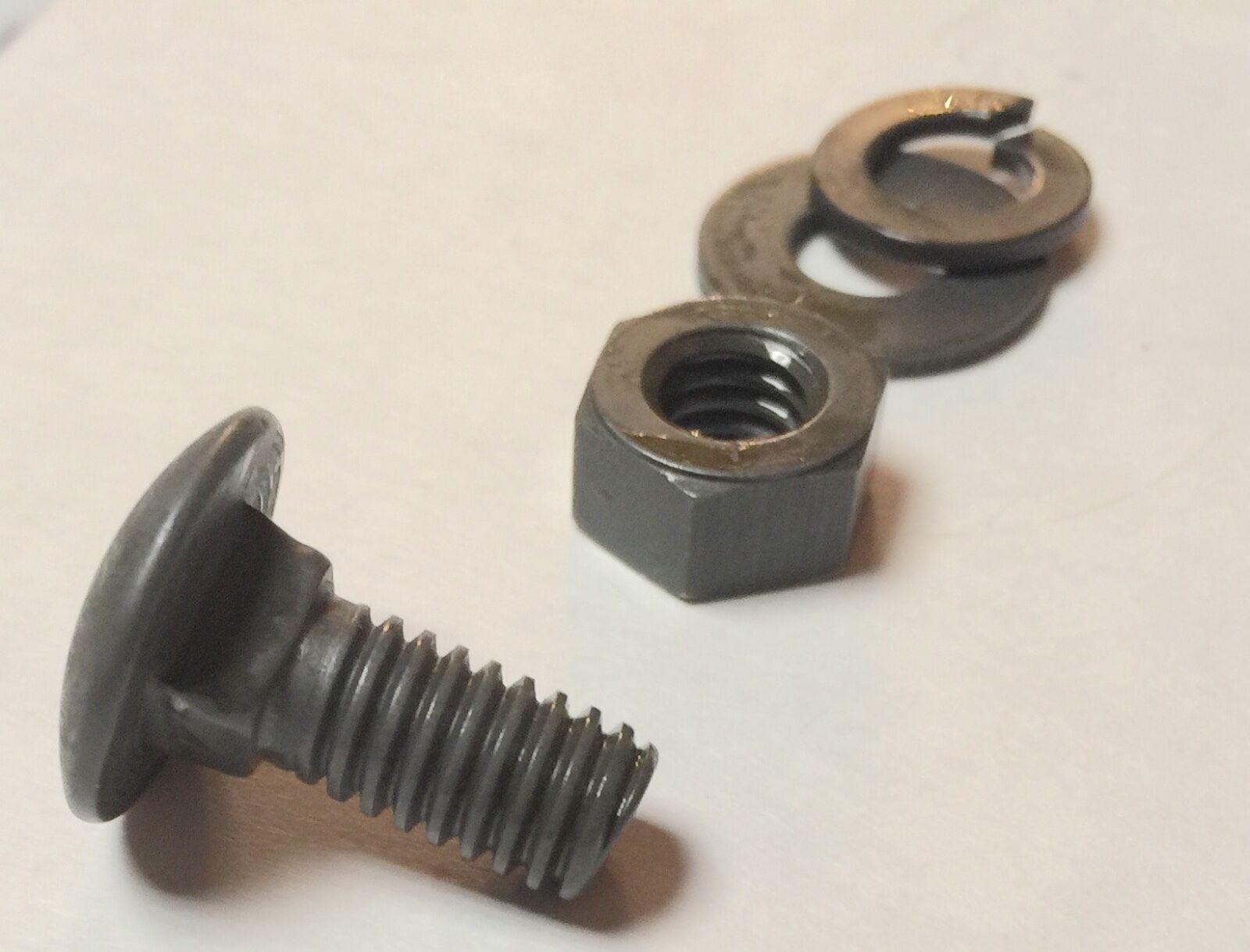

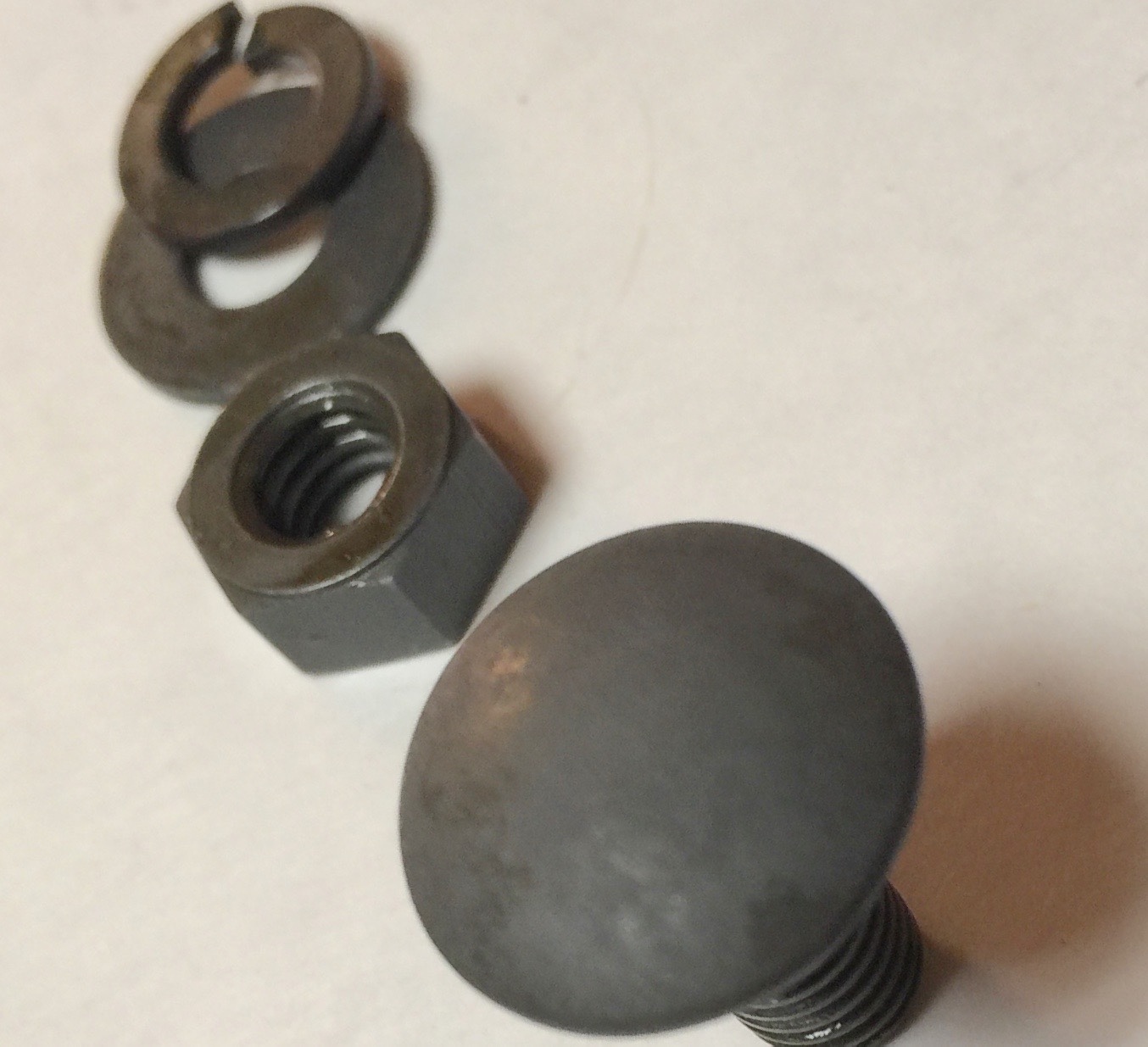

- 2 ea. 5425, (early 3743-23) Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 7748, (early 0111) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 4 ea. 6320, (early 0214) Brace bracket flat washer 5/16” x 11/16” x 1/16”

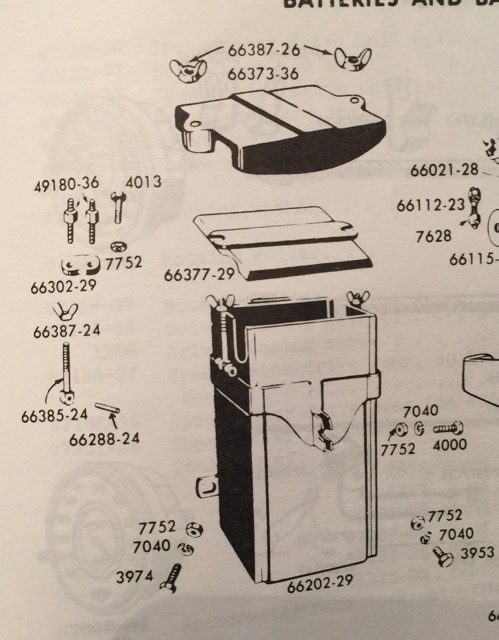

- 2 ea. 3974 (early 064), Rear lower bolt, 5/16-24 N.F. x 3/4” x 1/2" CP-1038 stamped
- 1 ea. 3953 (early 061), Rear lower bolt, 5/16-24 N.F. x 1/2” x 1/2" CP-1038 stamped
- 3 ea. 7752, (early 0117) Nuts, 5/16”-24 N.F. x 17/64” x 1/2”
- 3 ea. 7040, (early 0259) Split lockwasher 5/16”

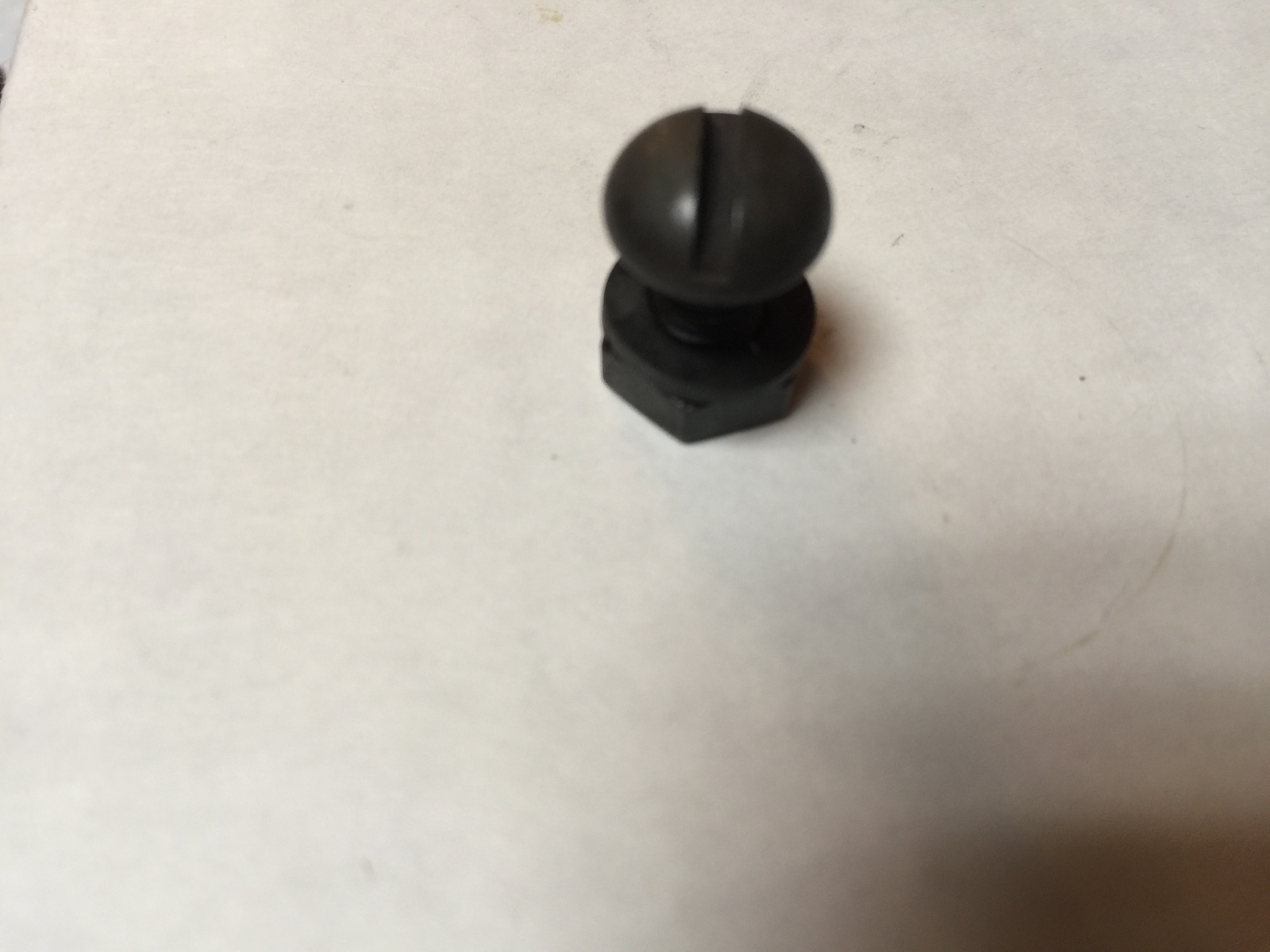

- 5 ea. 2762, (early 051) Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head (two included for 1939-1946 Beehive tag bracket)
- 5 ea. 7035, (early 0256) Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 7691, (early 0108) Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.
