Harley CP-1038 Lower Engine Mounting Kit Panhead Shovelhead 58-69

Harley CP1038 Lower Engine Mounting Kit Panhead Shovelhead 5869
  • Product Code: 292330030233
  • Availability: In Stock

  • $43.95


0 reviews / Write a review

Engine lower mounting hardware kit for Panhead and Shovelhead engines used from 1958 to 1969 on Duo-Glide and Electra-Glide big twins.  As the bolts are CP-1038, they would be "correct" from roughly 1949 to 1969.  This is the style kit with four castelated nuts to secure the four mount bolts.  They quit using the special nut and locks under the generator starting in 1958.

I do have the same kit for 36 to 57 models and 37 to 47 big twin flatheads available as well as the upper mount kit by itself.  Please see the "Vintage Hardware Pre-1980" section of my eBay store for different motor mount options as well as other CP-1038 and CP-1035 hardware kits.

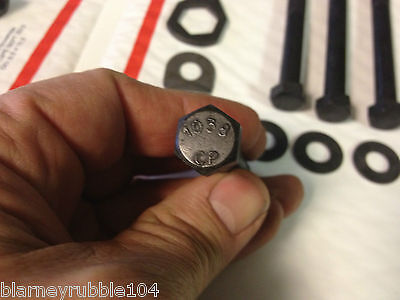

There seems to be some misinformation on CP bolts and "reproductions".  Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. Top mount bolt and all nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them.  Spacers and washers are produced just like the ones H-D did back in the day.  Parkerizing is same finish as how these came from the factory in the 1950's.  I've also got other hardware kits listed in my store under "pre 1980's hardware" including a CP-1038 gas tank and oil tank mounting kit which would go great with this.

Used on the following:
  • 1958 to 1965 Panhead FL and FLH Duo-Glide & Electra-Glide models
  • 1966 to 1969 Shovelhead FL and FLH Electra-Glide

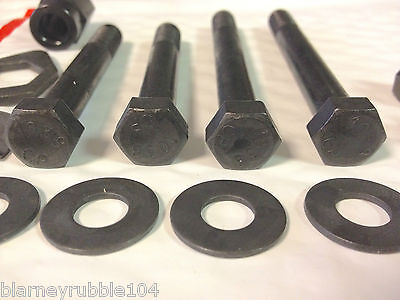

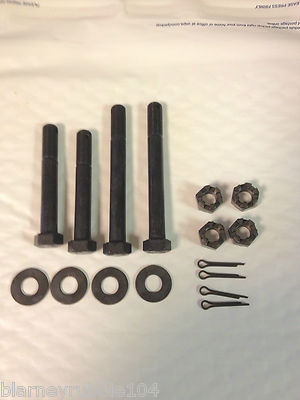

Includes the following parts by OEM part number:
  • 24791-36, front bolt with drilled tip for cotter key (qty 2);
  • 24794-36, rear bolt (qty 2)
  • 7809, 3/8-24 castellated hex head nut (qty 4)
  • 528, cotter key (qty 4)
  • 6395, flat washer (qty 4)
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small, select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.  Our offerings are selected based on accuracy of the part to the original as well as durability and craftsmanship.
