Harley CP-1038 Engine Mounting Motor Mount Kit Knucklehead Panhead 36-57

  • Product Code: 291043572806
  • Availability: In Stock
  • $57.95

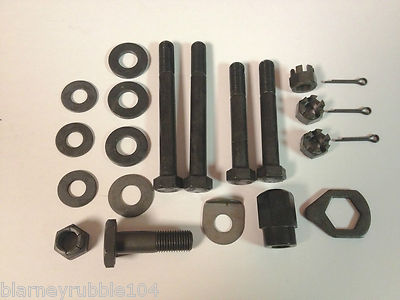

Complete upper and lower engine mounting hardware kit for OHV engines used from 1936 to 1957 on rigid frame springer and Hydra-Glide big twins- this is what we call our “generic” 36-57 rigid kit.  As the bolts are CP-1038, they would be "correct" from roughly 1948 to 1957, but will certainly work for any '36 to '57 big twin.  This kit includes the special motor mount nut, lock, and lock washer used under the generator land area from 1936 to 1957. The top motor mount bolt is machined exactly as Harley machined them on their own screw equipment leaving a small tit at the center of the bolt head. Flex-lock nut on top mount bolt is commonly associated with 1948 to 1951 models.

If you aren’t hung up on bolt head details, this is your kit.  If you are aiming for the most authentic restoration as possible, here are our other options we offer exclusively:

We also now stock motor mount kits with correct top motor mount bolt and markings for the following 1936-1969 OHV Big Twins:
  • 1936 EL 61” Knucklehead (Plain head lower mount bolts and 1930-1936 top motor mount arrangement)
  • 1937-1947 EL & FL 61” & 74” Knucklehead (Plain head lower mount bolts)
  • 1948-1951 EL & FL 61” & 74” Panhead (CP-1038 lower mount bolts)
  • 1952-1957 EL, FL, FLH 61” & 74” Panhead (CP-1038 lower mount bolts)
  • 1958-1969 FL, FLH 74” Panhead & Shovelhead (CP-1038 lower mount bolts)
Please see the "Vintage Hardware Pre-1980" section of my eBay store for different motor mount options as well as other plain head, CP-1038, and CP-1035 hardware kits and bolt sets. I also have motor mount kits for U, UL, ULH and 45 solo and Servicar.

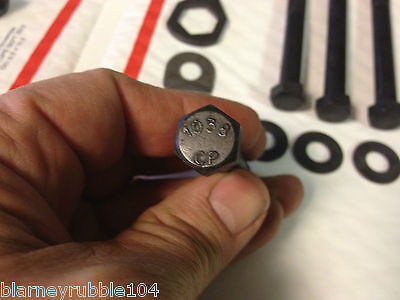

There seems to be some misinformation on CP bolts and "reproductions".  Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. Top mount bolt and all nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them.  Spacers and washers are produced just like the ones H-D did back in the day.  Parkerizing is same finish as how these came from the factory in the 1950's.  I've also got other hardware kits listed in my store under "pre 1980's hardware" including a CP-1038 gas tank and oil tank mounting kit which would go great with this.

Used on the following:

  • 1936 to 1947 Knucklehead E, EL, F, FL, ELA, ELC OHV 61 & 74"
  • 1948 to 1957 Panhead EL, FL, FLH OHV 61 & 74"
Includes the following parts by OEM part number:

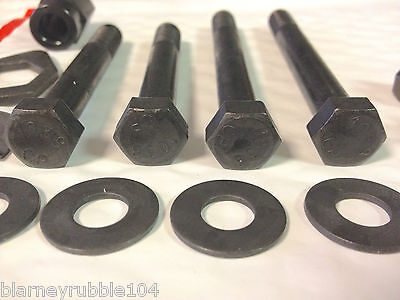

  • 24791-36, front bolt with drilled tip for cotter key (qty 2);
  • 24794-36, rear bolt (qty 2),

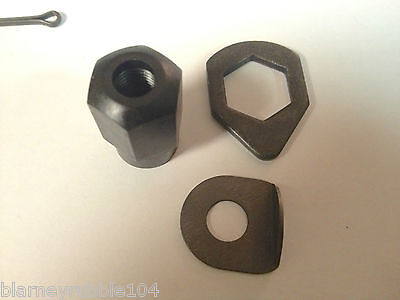

  • 24797-36, special nut for right front mount bolt with plate  (qty 1)
  • 24800-36 special lock washer (qty 1)
  • 7809, 3/8-24 castellated hex head nut (qty 3)
  • 528, cotter key (qty 3)
  • 6395, flat washer (qty 3)

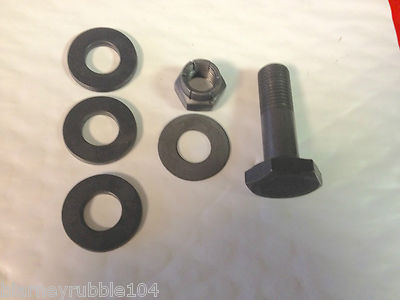

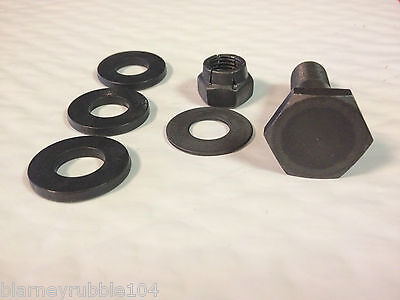

  • 4660, top mount bolt (qty 1)
  • 6520, flat washer thin (qty 1)
  • 6524, flat washer thick (qty 3)
  • 7825, flexlock nut (qty 1)
