Harley CP-1035 WLA WLC Rear Fender Mount Mounting Hardware Kit 1942-45 Luggage
- Product Code: 292030425768
- Availability: In Stock
-
$84.95
You are buying a USA Made 45" solo twin rear fender mounting kit for Harley-Davidson 45" WLA and WLC WWII solo models which is detail-correct for WWII era and slightly later 45" solo civilian twins using the 2818-26 luggage rack. Hardware detail should be correct for roughly 1942 to 1948 models, though I’m aware all of this hardware can be used up to 1952 on 45 solo models using the luggage rack. Includes all pieces shown. Please consult your own parts or service manual for proper reference.
This is detail correct for late 1942 or early 1943 military contract WLA, WLC, and civilian WL models as the 5/16" bolts are CP-1035.
Chandler Products CP-1035 bolts first appear in 1942 or early 1943 and could be found on Harleys to 1949. CP-1038 seems to have first appeared in 1947 or 1948 so a mix of bolt heads on common hardware would be expected in the late 1940's.
We do carry plain head, CP-1035, and CP-1038 fender kits without the luggage carrier studs in our store if you are not using a luggage carrier.
All USA made parts.
Detail-correct for the following:
- 1942-1948 W, WL, WLD, WLDR, WR, WLA, WLC using 2818-26 luggage carrier

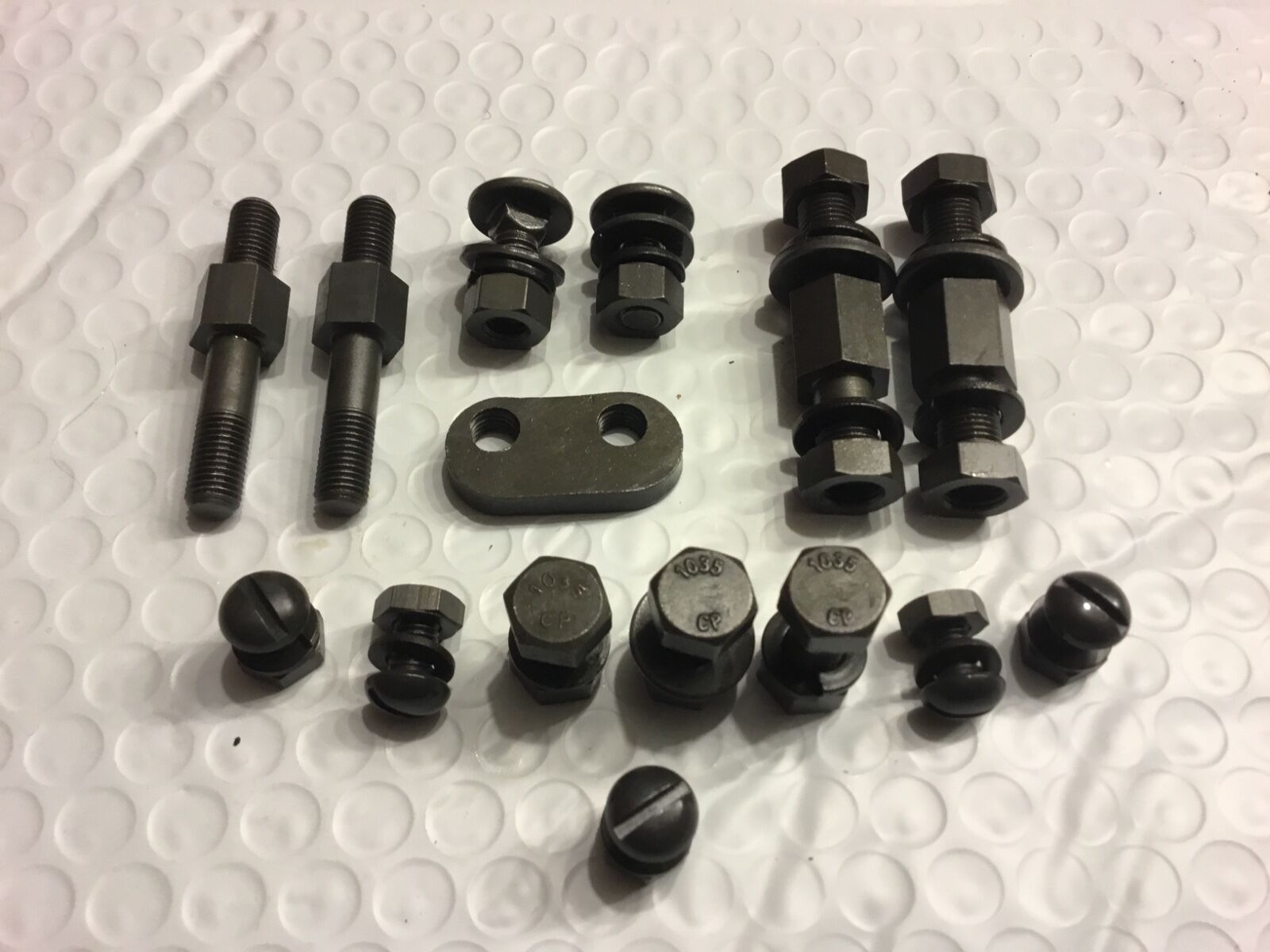

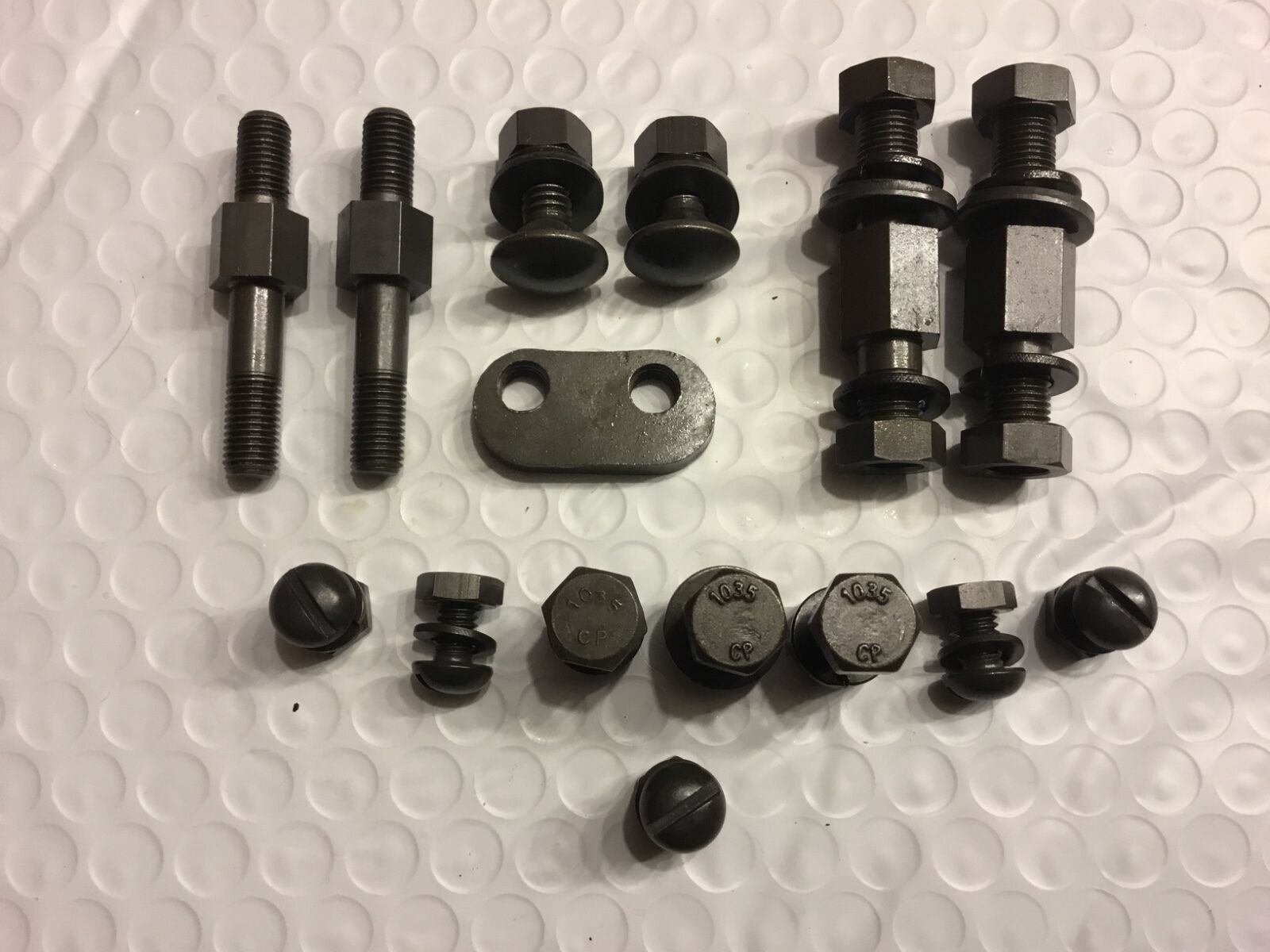

You get the following in this kit:

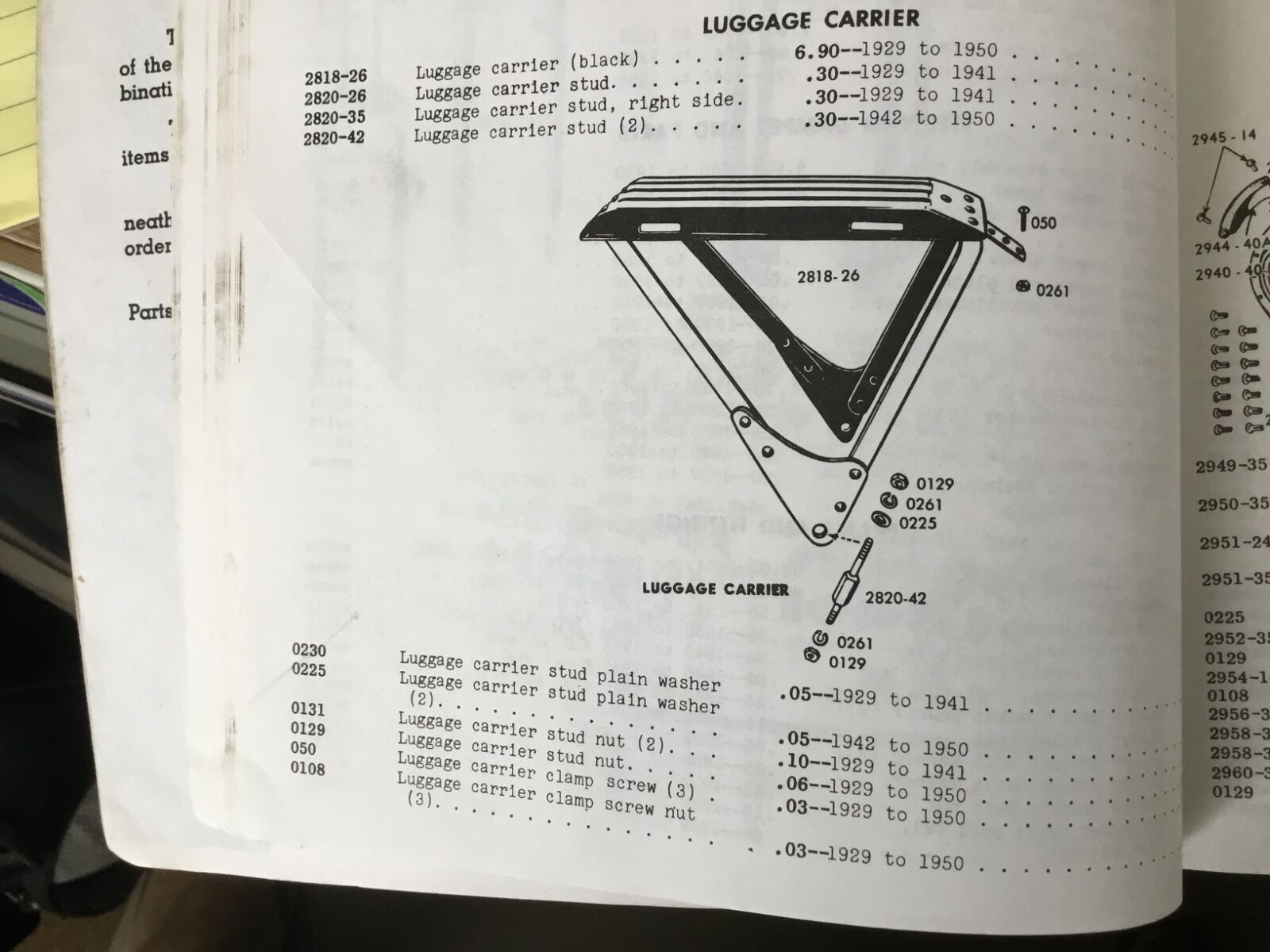

- 2 ea. 53433-42 (early 2820-42) Luggage carrier stud, 3/8”-24 N.F.

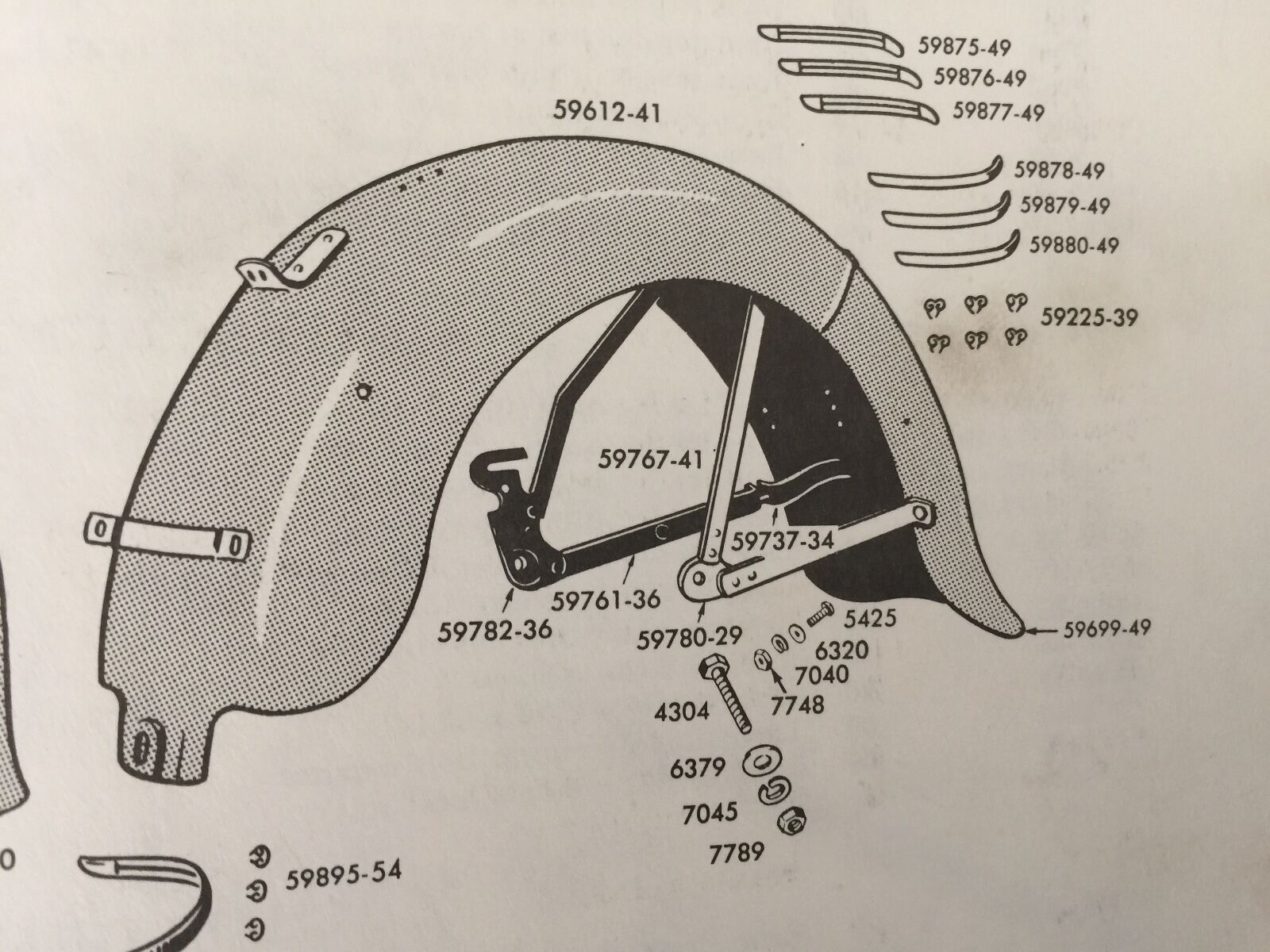

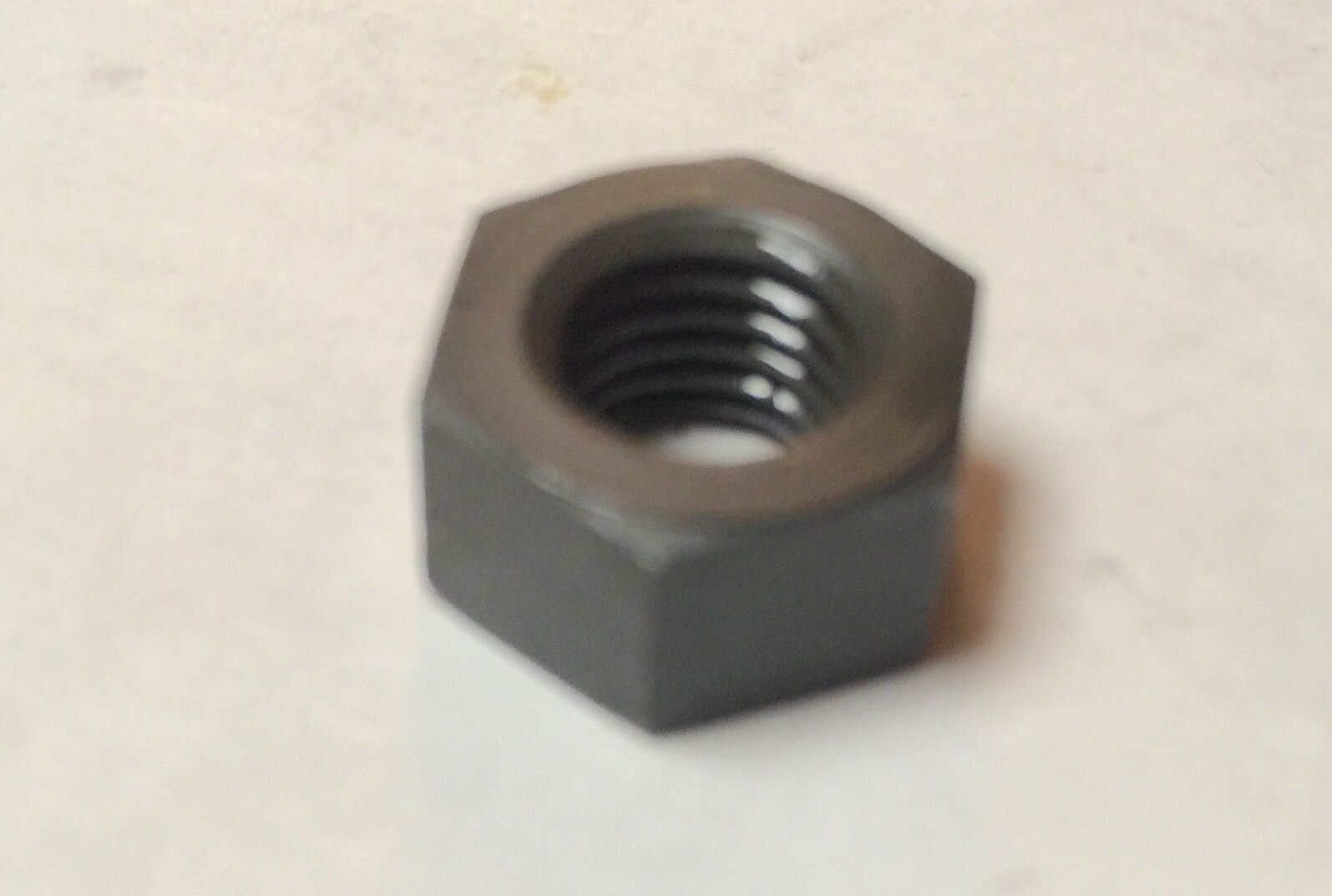

- 4 ea. 7789, (early 0129) Rear fender brace nut, 3/8”-24 N.F. x 1/4” x 9/16"
- 2 ea. 6400, (early 0225) Rear fender brace flat washer, 3/8” x 7/16" x 7/64"
- 4 ea. 7045, (early 0261)Rear fender brace split lock washer, 3/8” x 5/8” x 1/16"

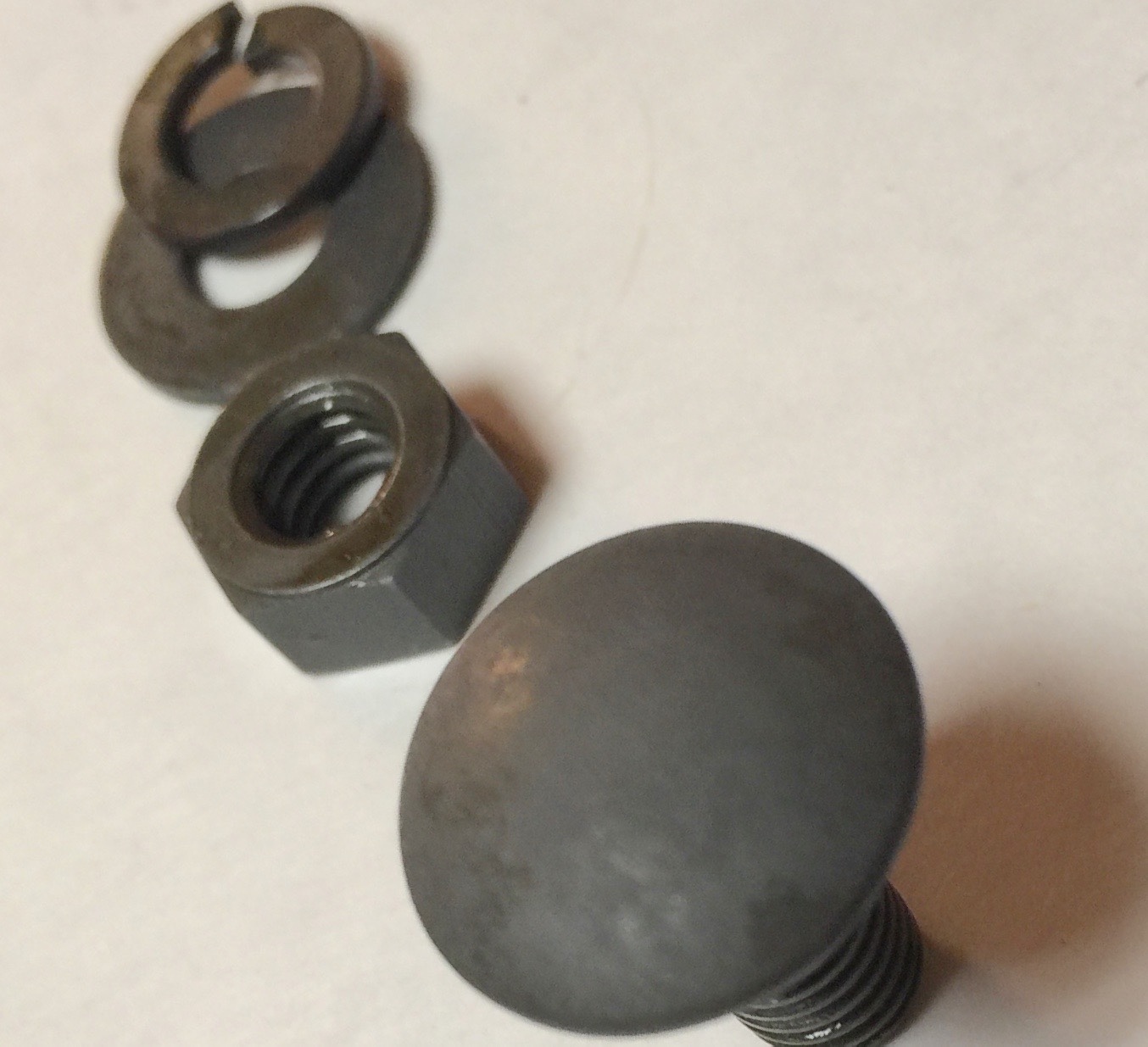

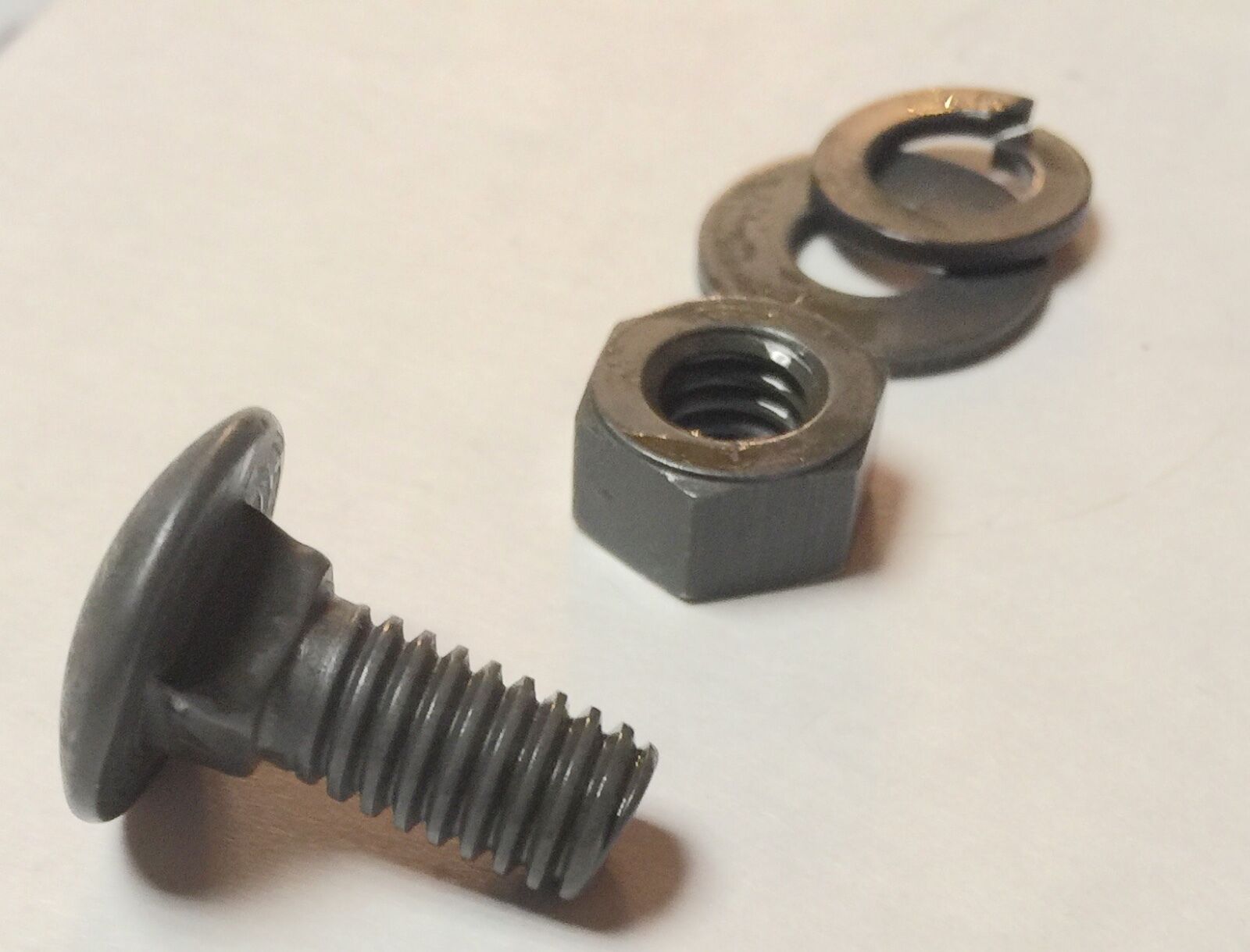

- 2 ea. 5425, (early 3743-23) Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
- 2 ea. 7748, (early 0111) Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
- 2 ea. 6320, (early 0214) Brace bracket flat washer 5/16” x 11/16” x 1/16”
- 2 ea. 3974 (early 064), Rear lower bolt, 5/16-24 N.F. x 3/4” x 1/2" Stamped CP-1035
- 1 ea. 3953 (early 061), Rear lower bolt, 5/16-24 N.F. x 1/2” x 1/2" Stamped CP-1035
- 3 ea. 7752, (early 0117) Nuts, 5/16”-24 N.F. x 17/64” x 1/2”
- 3 ea. 7040, (early 0259) Split lockwasher 5/16”

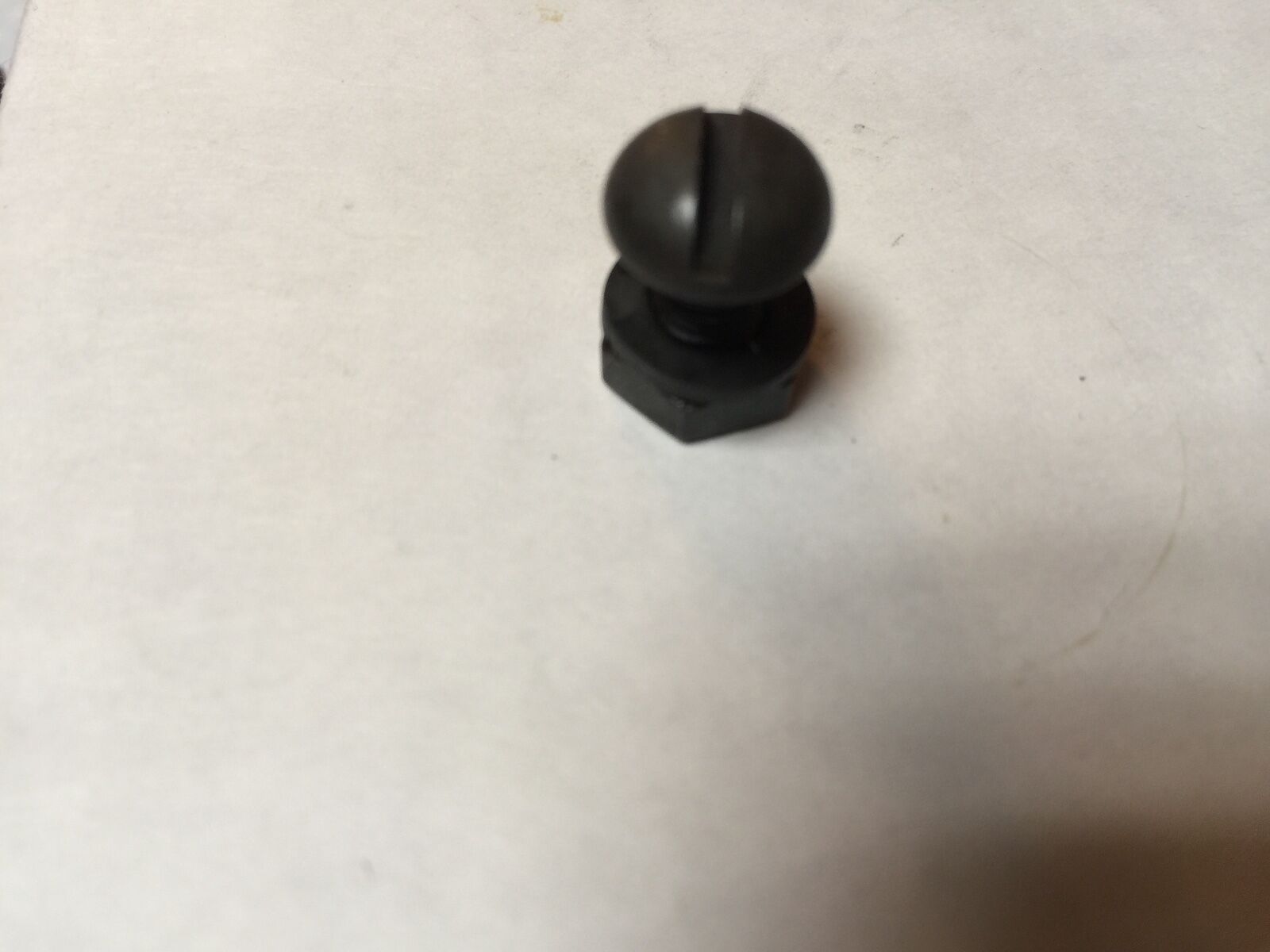

- 3 ea. 2756, (early 050) Screw, luggage rack front tab to fender 1/4-24 N.S. x 7/16" round head
- 2 ea. 2762, (early 043A) Round head screw, rear stand catch 1/4-24 N.S. X 1/2"
- 5 ea. 7035, (early 0256) Split lock washer, 1/4” x 1/2” x 1/16"
- 5 ea. 7691, (early 0108) Nut, 1/4”-24 N.S. x 5/32” x 7/16"
Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.
