Harley CP-1035 Knucklehead Panhead UL Rear Fender Mounting Hardware Kit 1942-48

Harley CP1035 Knucklehead Panhead UL Rear Fender Mounting Hardware Kit 194248
  • Product Code: 292330006726
  • Availability: In Stock

  • $49.95


0 reviews / Write a review

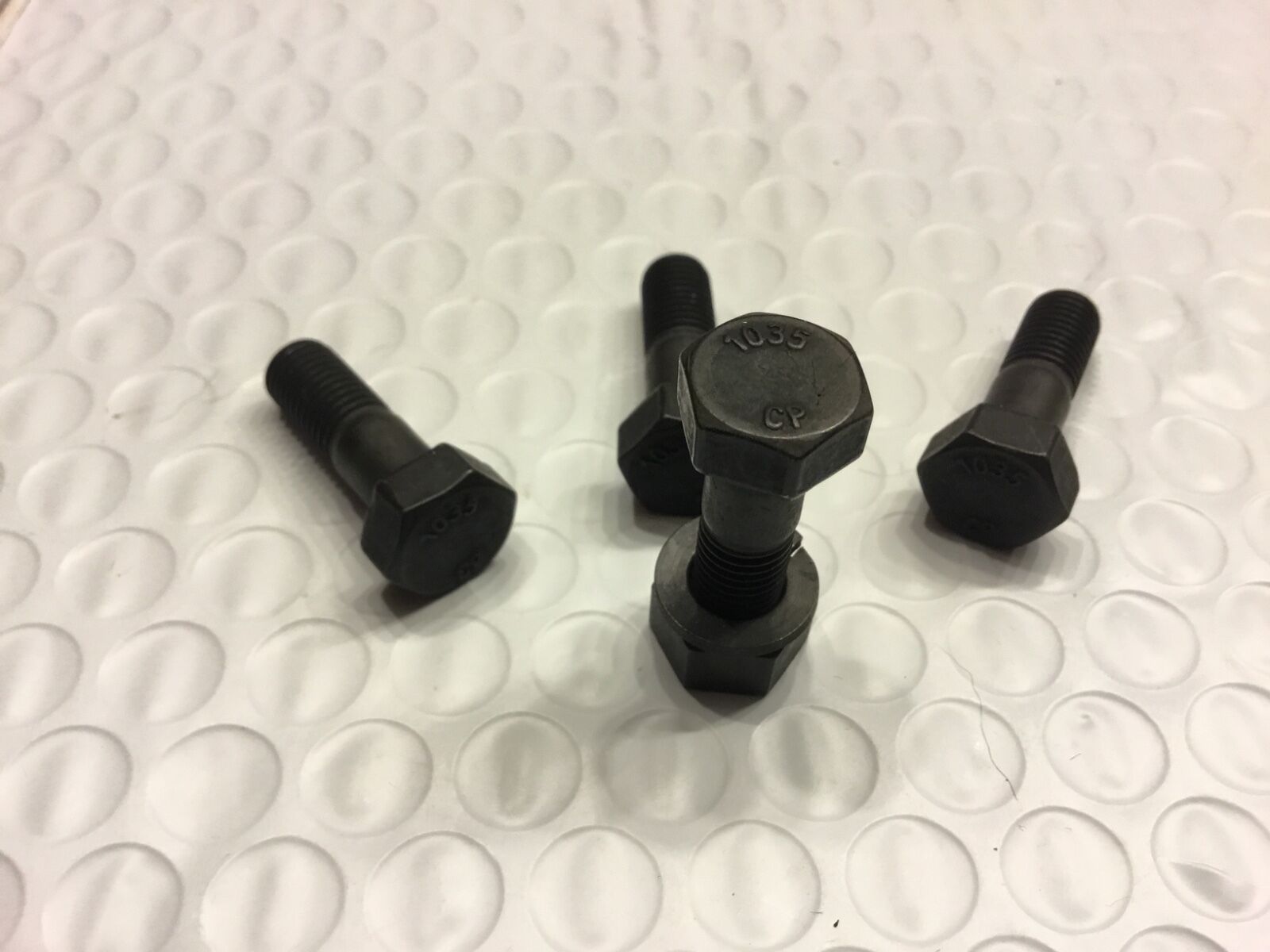

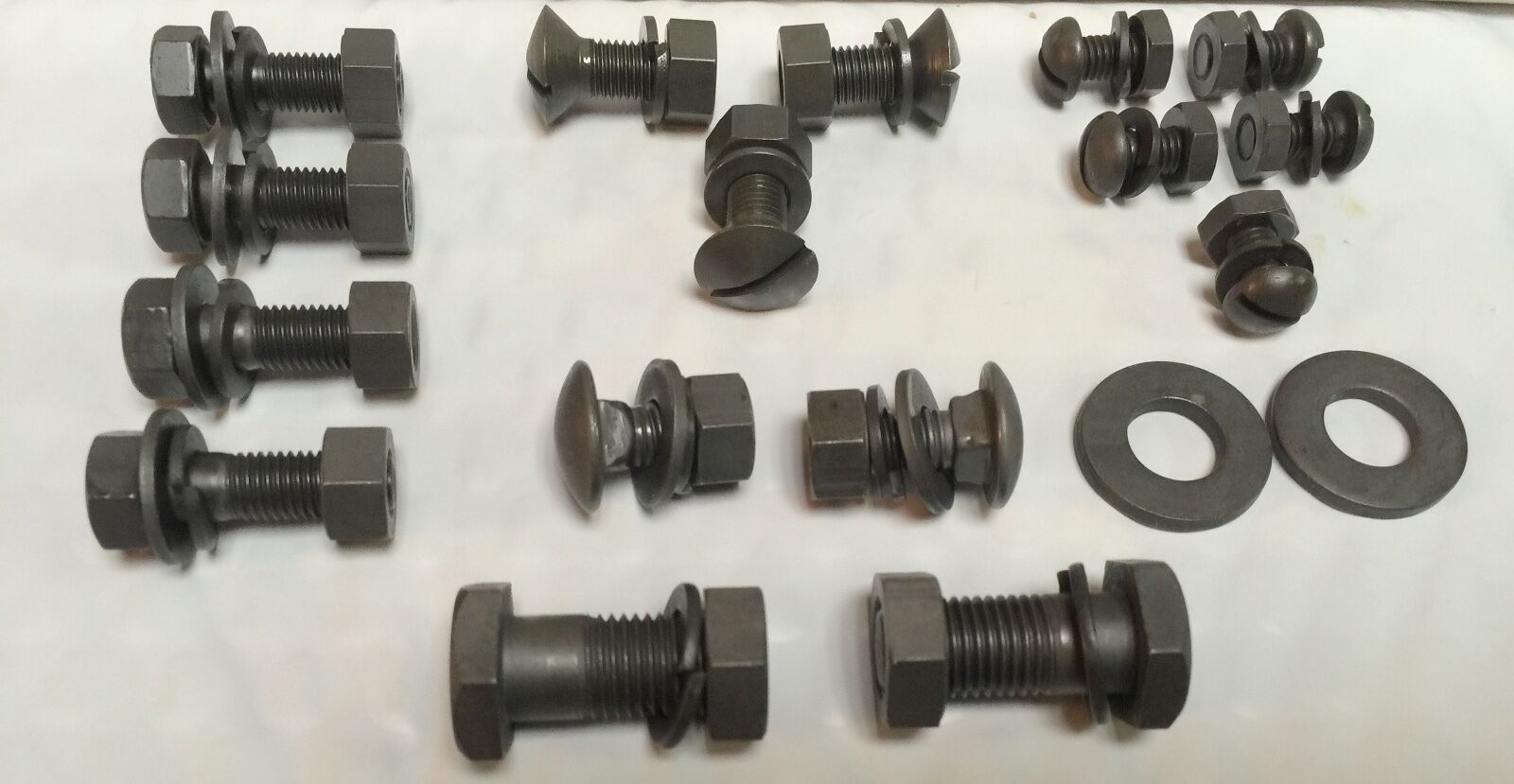

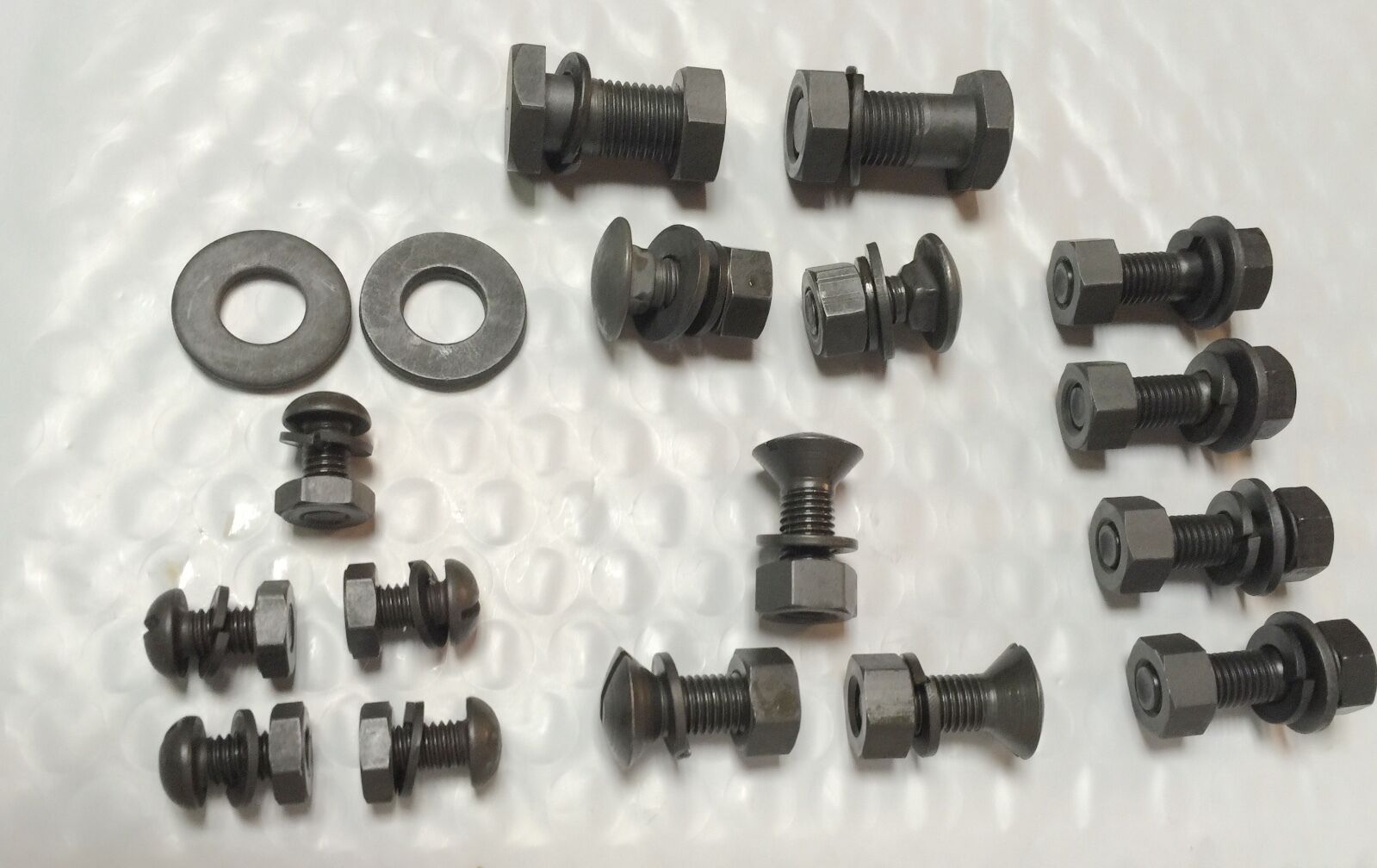

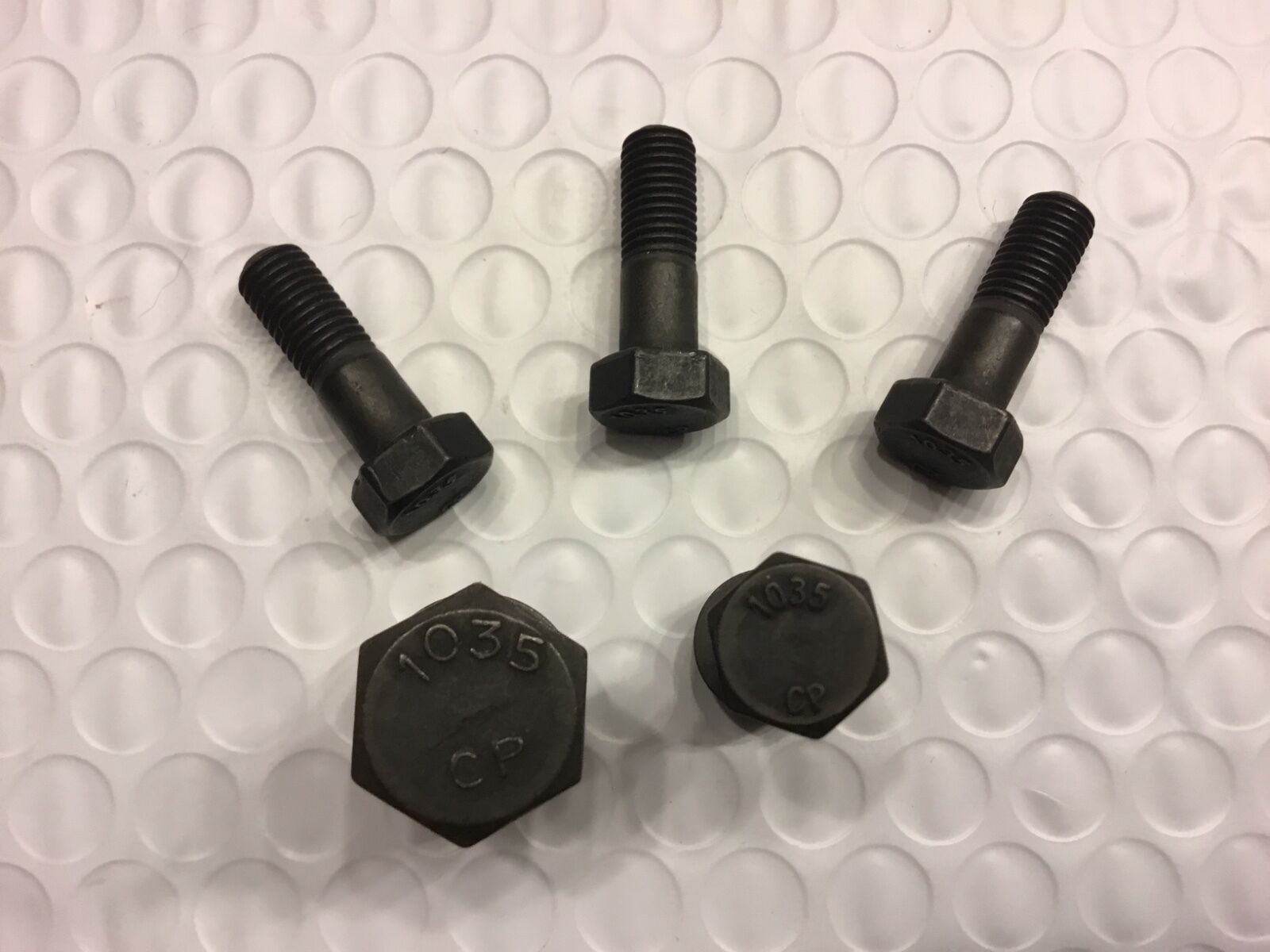

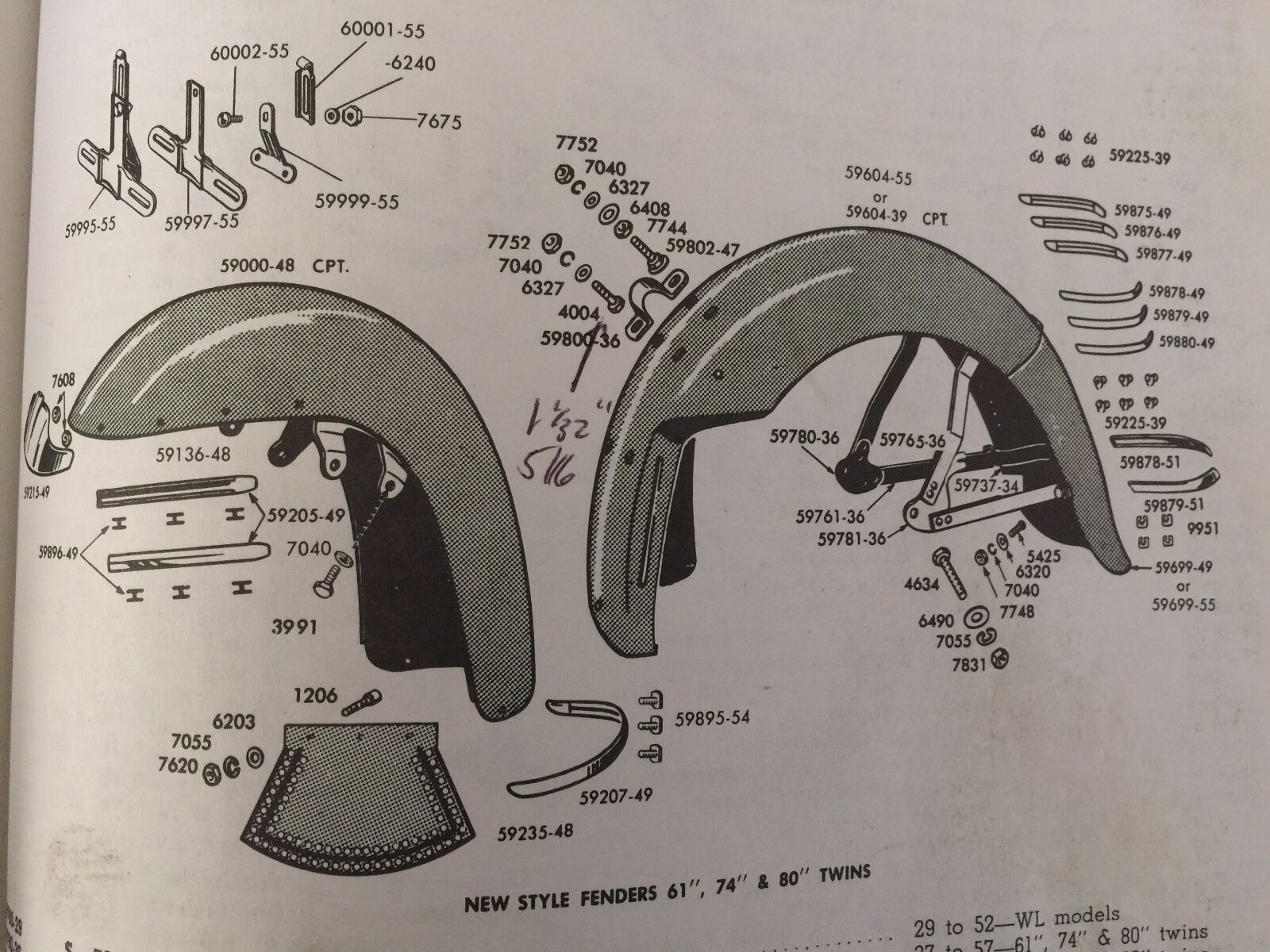

You are buying a big twin rear fender mounting kit which is detail correct for roughly 1942 to 1948 for rigid frame Harleys, includes Knucklehead, Panhead, and UL models. Includes all pieces shown. Please consult your own parts or service manual for proper reference.  All hex head bolts are cold-stamped CP-1035 bolts.

As this uses all CP-1035 bolts, this kit is considered correct for 1942 or 1943 to 1948.  We do have plain head kits for 1936 to 1940 and 1941-1942 as well as 1949-1957 big twins with CP-1038 bolts on another listing and we offer this kit with the rear fender mount straps.

All USA made parts.

Used on the following:
  • 1936-1947 E, EL, ELA, ELC, F, FL 61” & 74” OHV Knucklehead (detail-correct for 1942-1947)
  • 1937-1948 U, UL, UH, ULH, UA 74” & 80” BT SV Flathead (detail-correct for 1942-1948)
  • 1948-1957 EL, FL, FLH 61” & 74” OHV Panhead & Hydra-Glide (detail-correct for 1948 and possibly 1949)
You get the following in this kit:
  • 2 ea. 4634, Rear fender brace bolt, 7/16”-20 N.F. x 1 5/16” (stamped CP-1035)
  • 2 ea. 7831, Rear fender brace nut, 7/16”-20 N.F. x 1/4” x 5/8"
  • 2 ea. 6490, Rear fender brace flat washer 7/16” x 15/16” x 1/8"
  • 2 ea. 7055, Rear fender brace split lock washer, 7/16” x 11/16” x 1/16"

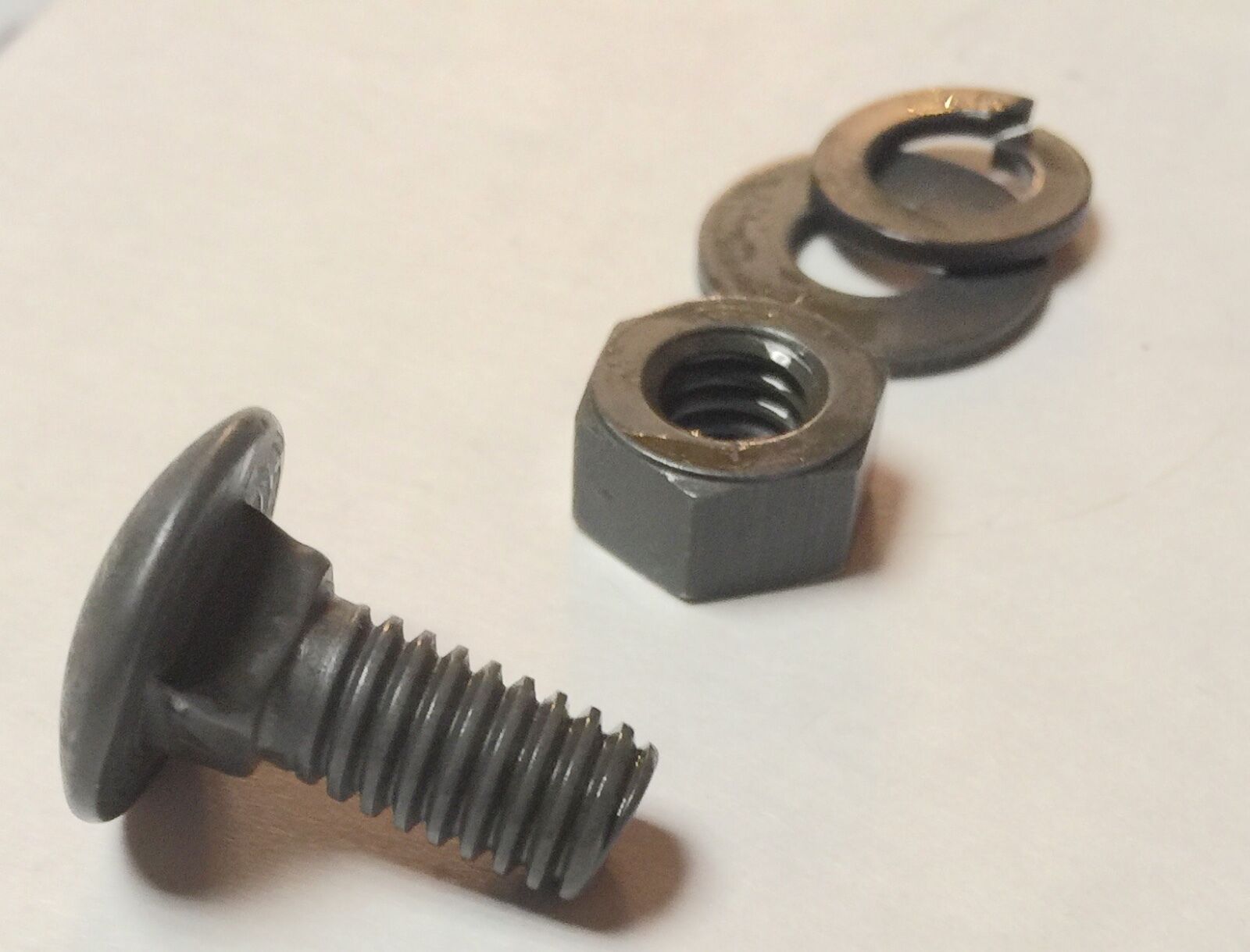

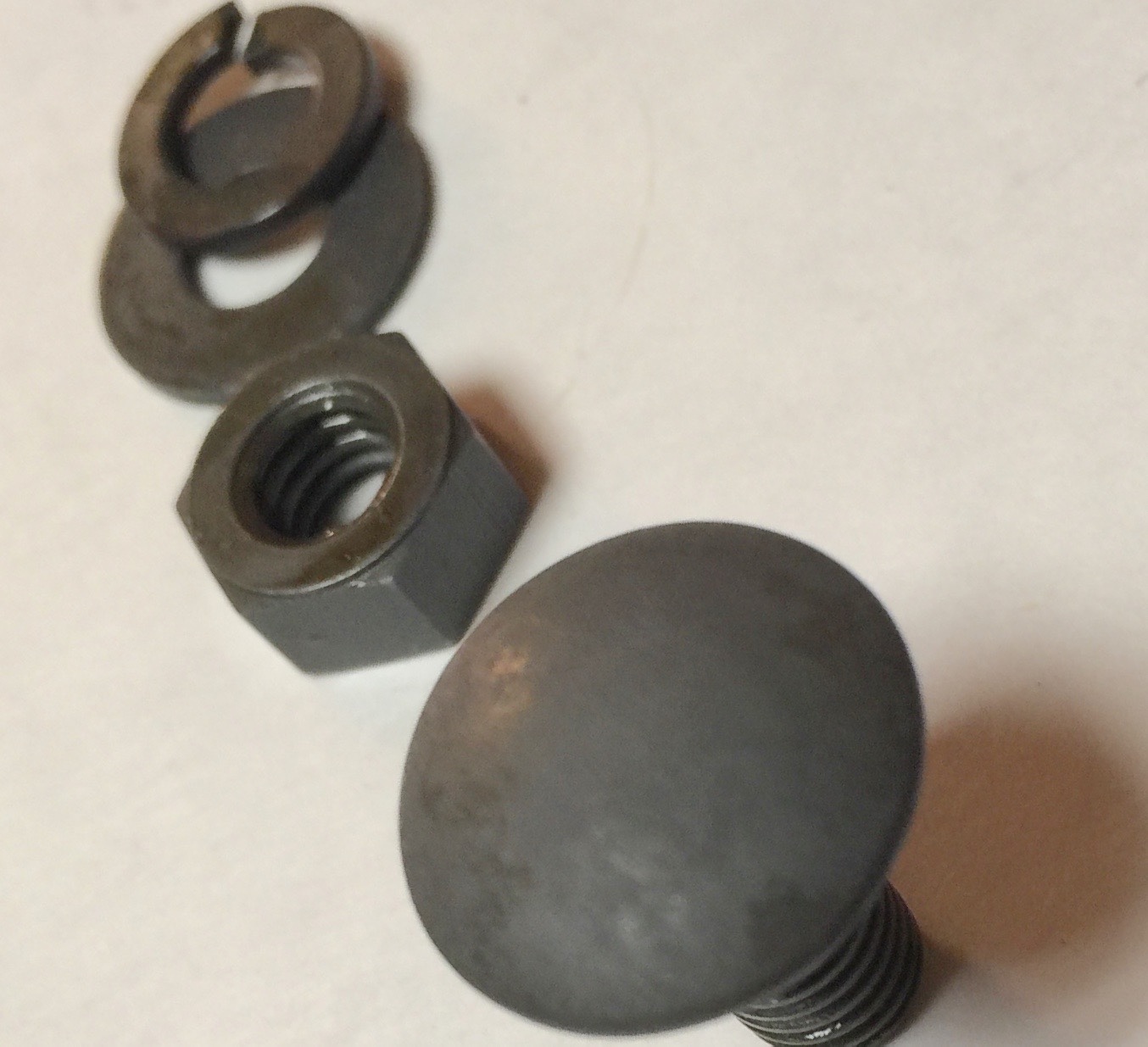

  • 2 ea. 5425, Brace bracket carriage bolt 5/16”-18 N.C. x 3/4” carriage bolt
  • 2 ea. 7748, Brace bracket nut, 5/16”-18 N.C. x 17/64 x 1/2"
  • 2 ea. 6320, Brace bracket flat washer 5/16” x 11/16” x 1/16"
  • 9 ea. 7040, 5/16” split lock washer, 5/16” x 9/16” x 1/16"
  • 4 ea. 4000, Fender frame clamp bolts, 5/16”-24 N.F. x 1 1/32" (stamped CP-1035)
  • 4 ea. 6408, Fender clamp flat washers 25/64” x 1” x 1/8"
  • 7 ea. 7752, Nuts, 5/16”-24 N.F. x 17/64” x 1/2"

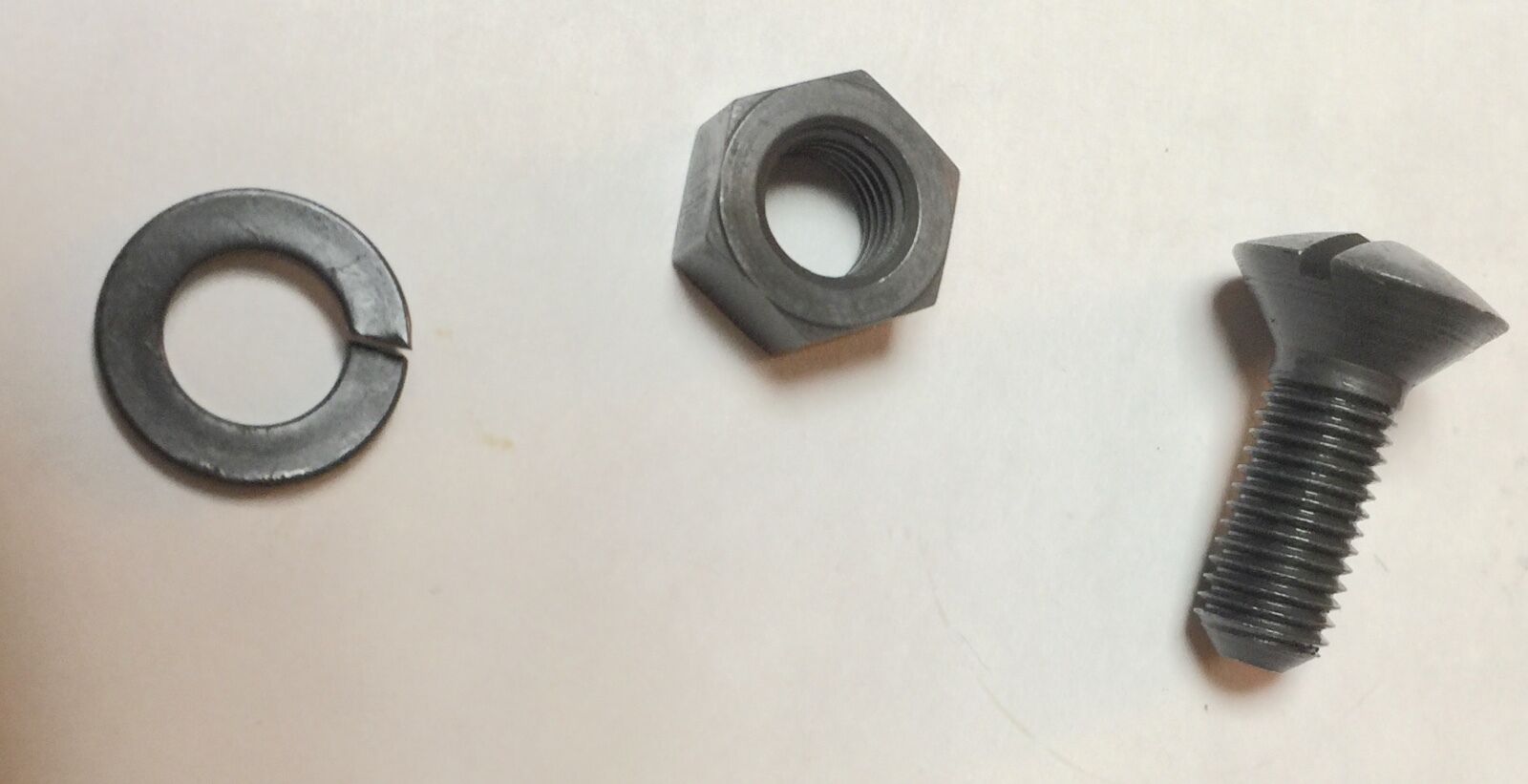

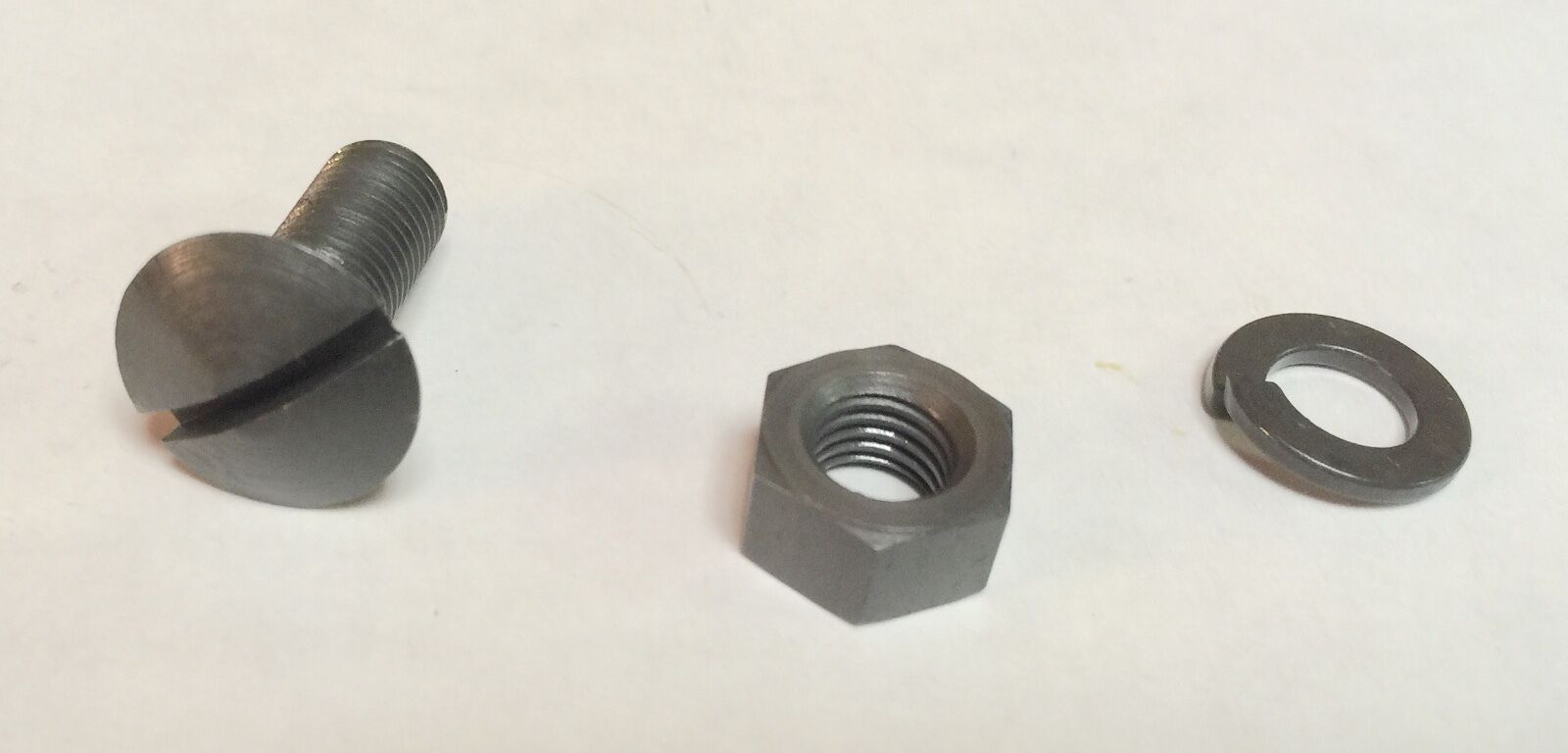

  • 3 ea. 2404, Countersunk lower front fender mount screws (one mounts to frame two to rear oil tank bracket) 5/16”-24 N.F. x 27/32” Oval head countersunk screw
  • 5 ea. 2762, Screw, spring yoke to fender 1/4-24 N.S. x 1/2” round head
  • 5 ea. 7035, Split lock washer, 1/4” x 1/2” x 1/16"
  • 5 ea. 7691, Nut, 1/4”-24 N.S. x 5/32” x 7/16"

Take your chances from someone who has 100,000+ listings of items they don’t understand or buy with confidence from someone who has owned and restored classic Knuckleheads, Panheads, BT Flatheads, and 45 civilian and military models and will stand behind the products they sell with a no hassle return policy.

PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:

If you would like to take advantage of our combined shipping discounts or shipping promotions, please first add all your items to your shopping cart then proceed to check out and pay for all items at once.  Your shipping discount will be automatically figured.  Should you need to add an item, we will combine it with your other purchases and issue an appropriate refund to your PayPal account.

We work with a small, select group of vendors and dedicated craftsmen to bring you the very best restoration and repair parts for 1915 to 1984 Harley-Davidson motorcycles.  We also offer a huge collection of restoration quality plain head, CP-1038, & CP-1035 bolts; fillister head & round head screws; correctly machined nuts & washers; fuel & oil lines; wiring harnesses; handlebar switches; air cooled spark plugs; clips, clamps, and ties in cadmium, parkerized, zinc, chrome, and raw finishes.  Our offerings are selected based on accuracy of the part to the original as well as durability and craftsmanship.
