Harley Air Snoot Mount Screws Knucklehead EL VL RL 1935-36 Air Cleaner Horn USA

  • Product Code: 293497655751
  • Availability: Out Of Stock
  • $8.95

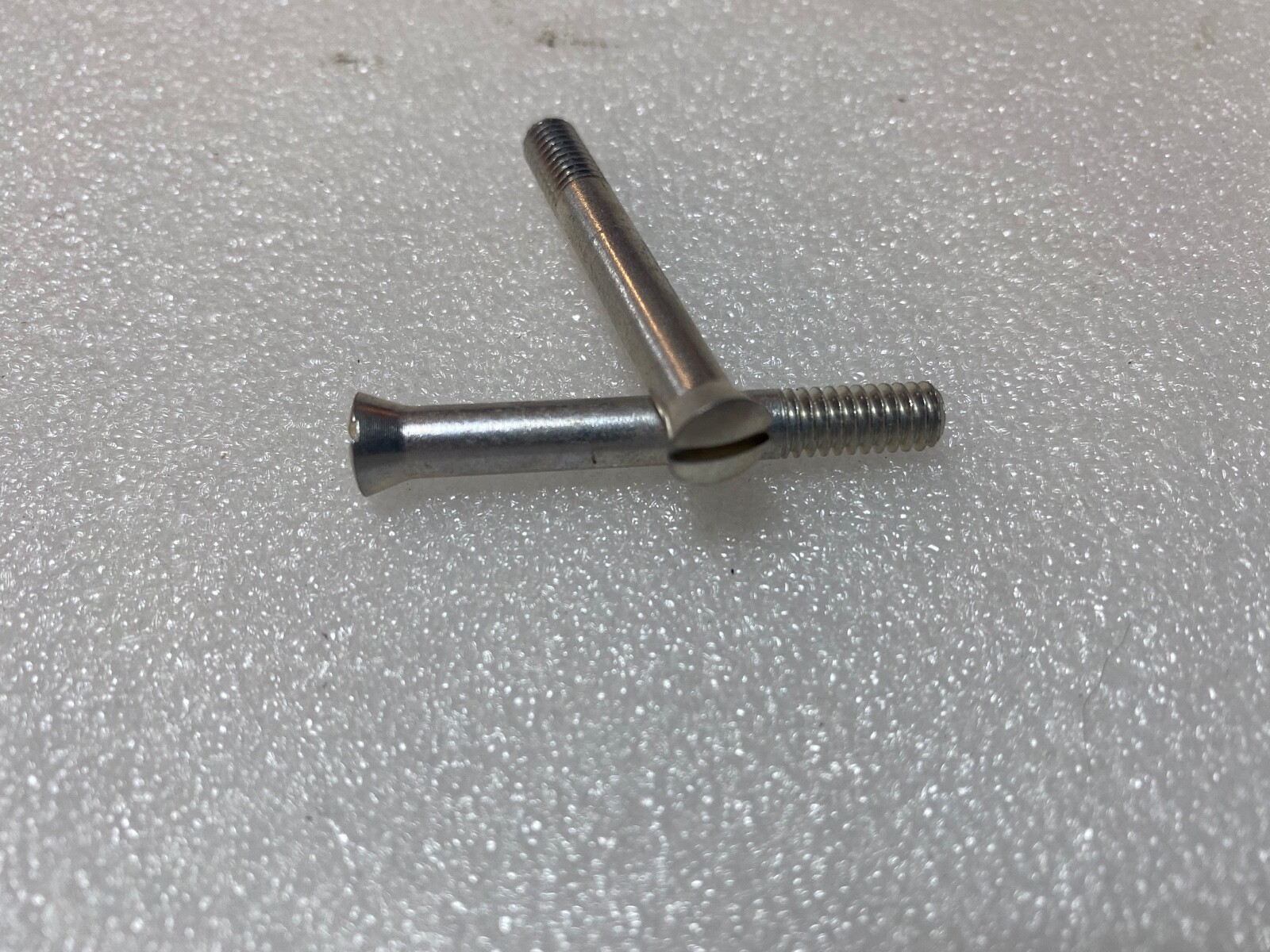

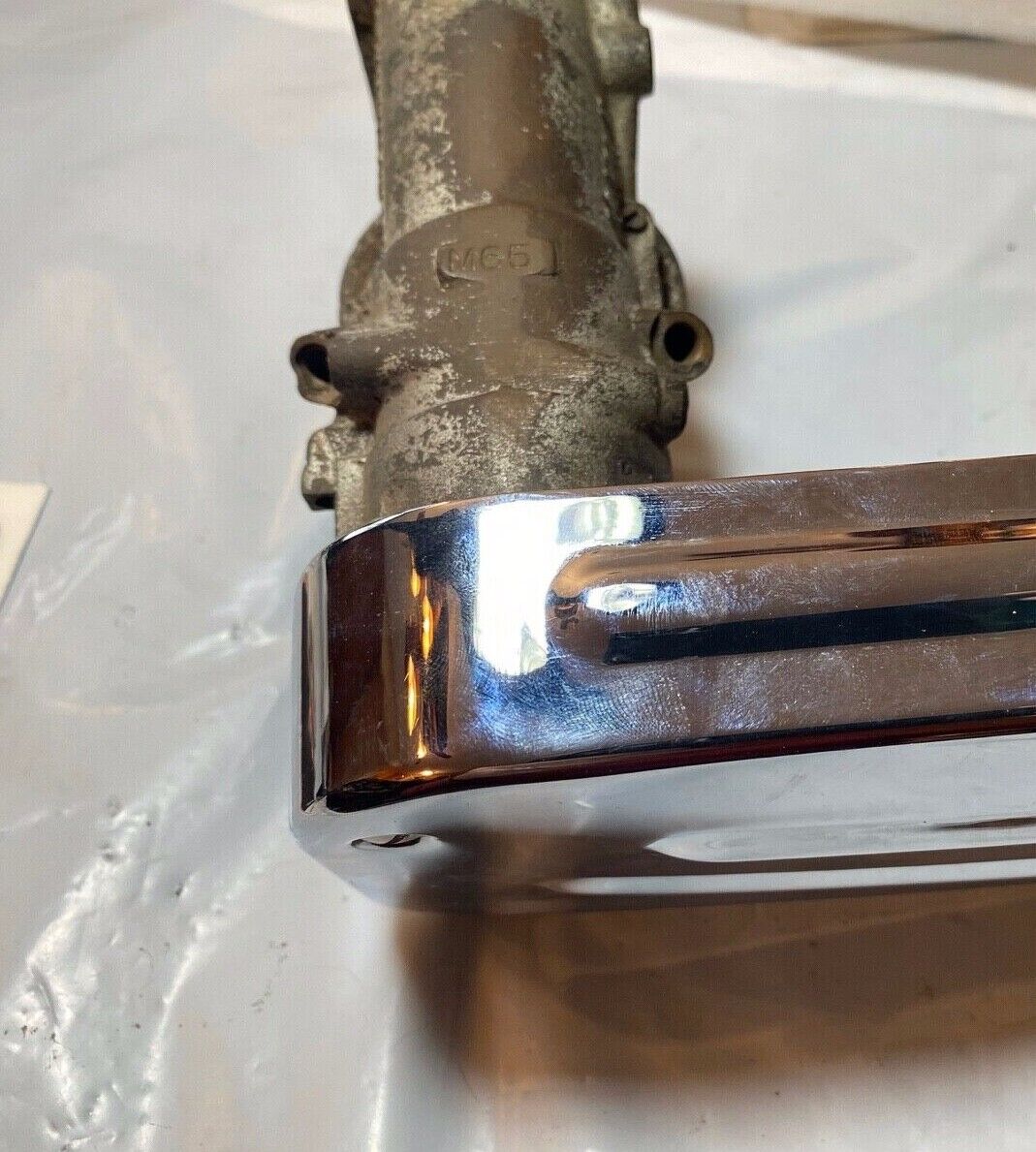

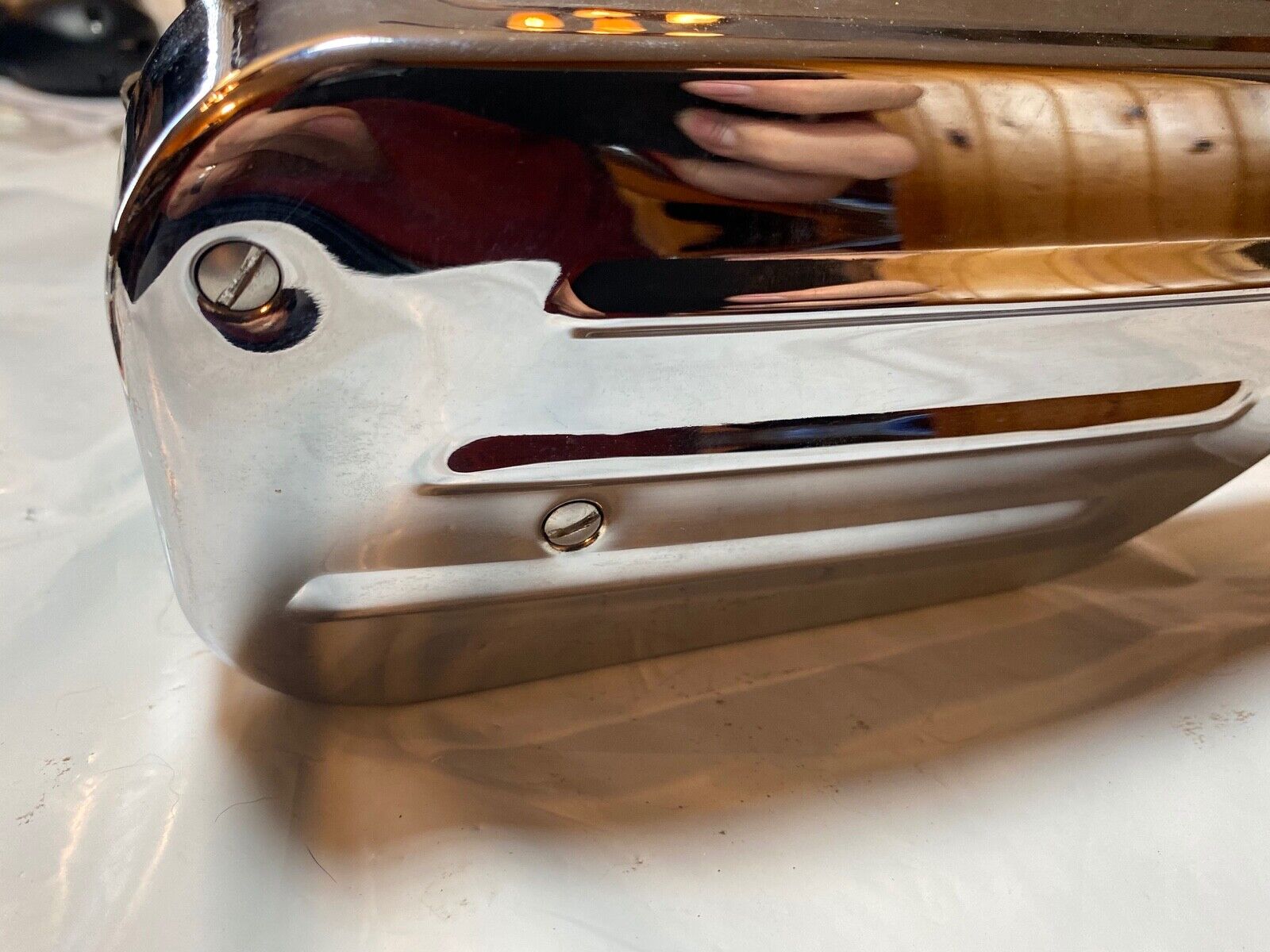

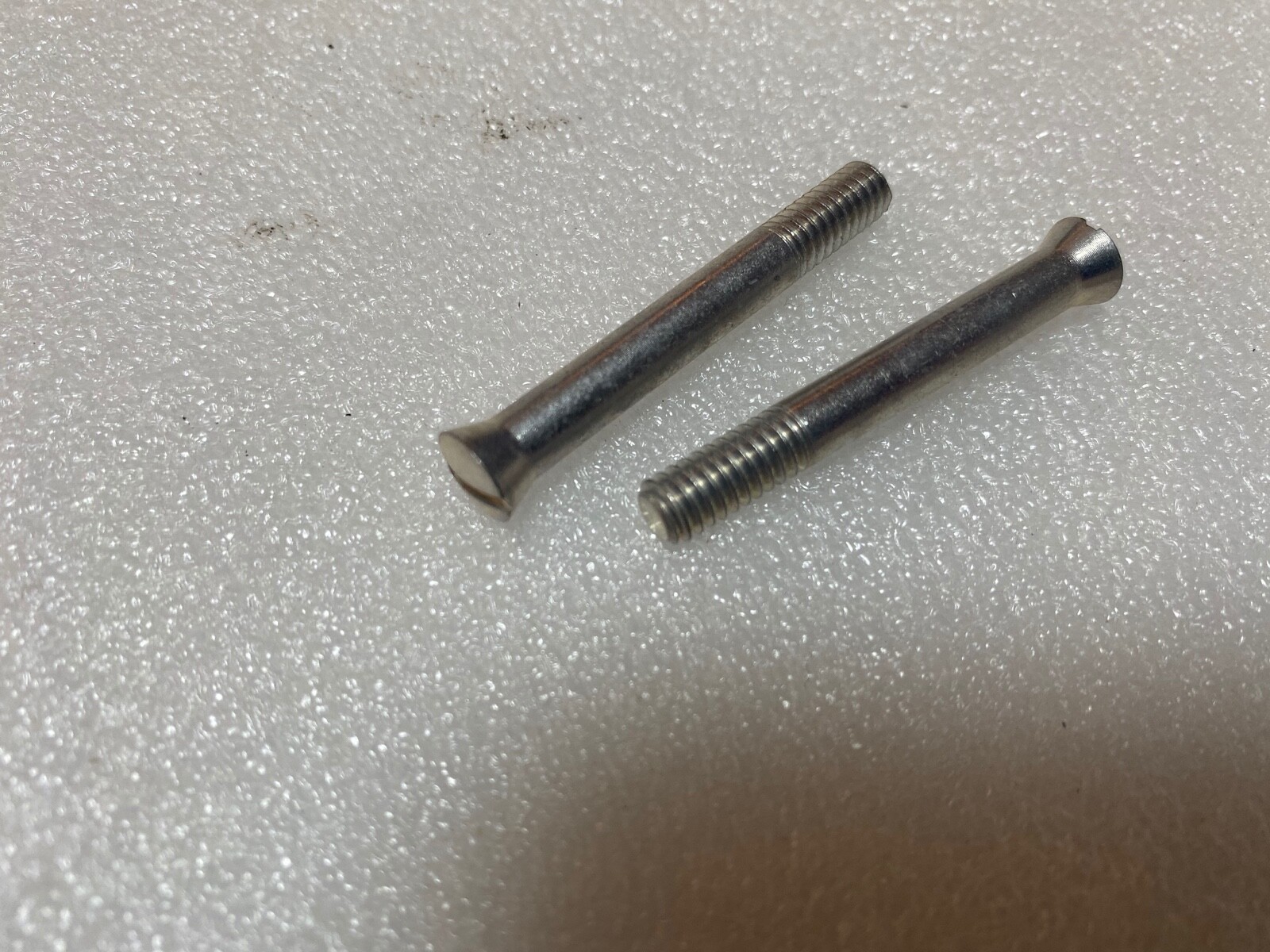

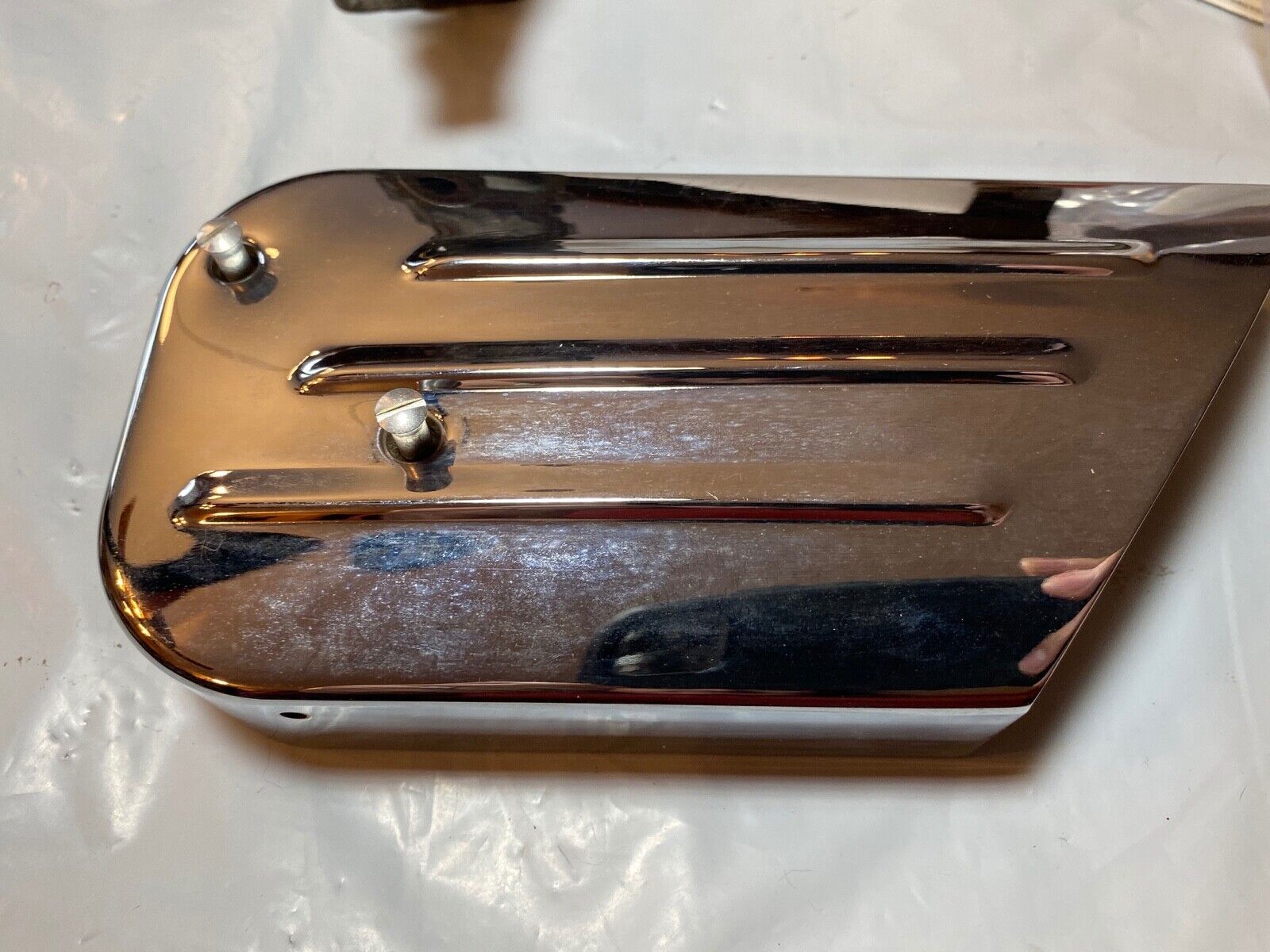

You are purchasing one new USA-Made reproduction screws for mounting the slant style carburetor air snoot or "bird catcher" on 1935 and 1936 SV and OHV models which were equipped with the slant style snoot.  The VL and RL style is illustrated in photos three through five.  You DO not get an air snoot with your order, this is for the screws only.  These are a countersunk oval head screw as original.  These will fit the 1931-1934 style snoot but does leave about 1/4" of material hanging off the carburetor side.

These are a beautiful reproduction which are a match for the originals.

Screws are approximately 1 5/8" long and 2" long and are threaded 12-24 which was the standard air inlet side screw size for Schebler D and Linkert M series carburetors.

We probably have one of the largest on-line hardware selections anywhere today for vintage Harleys with authentic machine cut bolts, Filister and round head screws, special H-D fasteners like axle adjusters and filler plugs.  We also stock nearly every fuel and oil line available for 1915-1964 Harleys, wire harnesses, lighting for JD, VL, Knucklehead, and Panhead, saddles, saddlebags, engine and transmission parts.  If you don't see what you need here or cimarroncycleworks, just email and ask.

Located at and ships from Cimarron Cycle Works in beautiful Cimarron, New Mexico, USA!
  • Fits the following (can be used on any year H-D with this style snoot and a Linkert M-series carburetor, should fit Schebler as well.

    • 1935 to 1936 VL, VLD, VLH, VH, VLDD, VLE, etc, 74" & 80" big twin flathead
    • 1935 to 1936 R, RL, RLD, RLE 45" solo
    • 1936 E, EL, F, FL Knucklehead 61” & 74” OHV
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.
