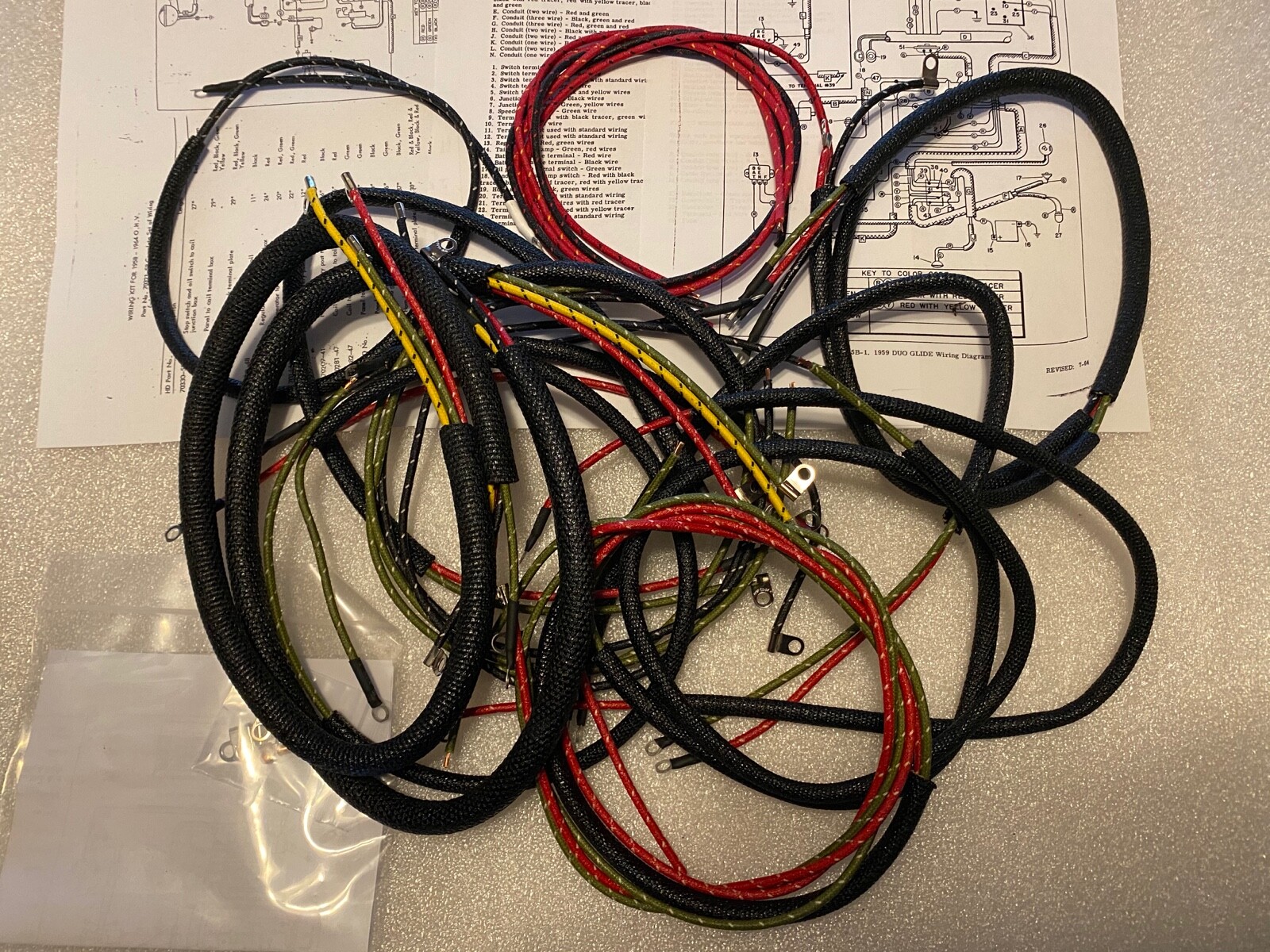

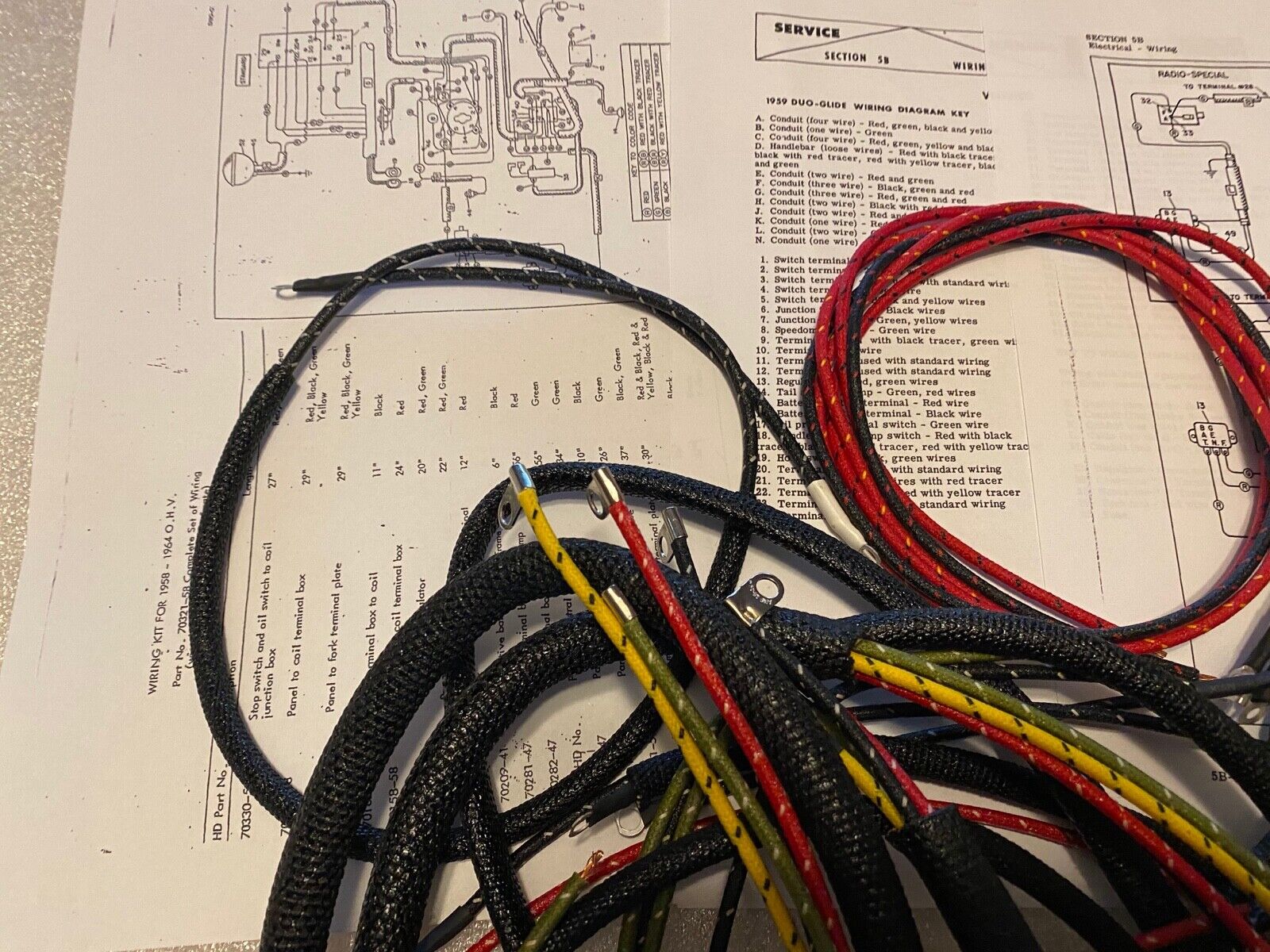

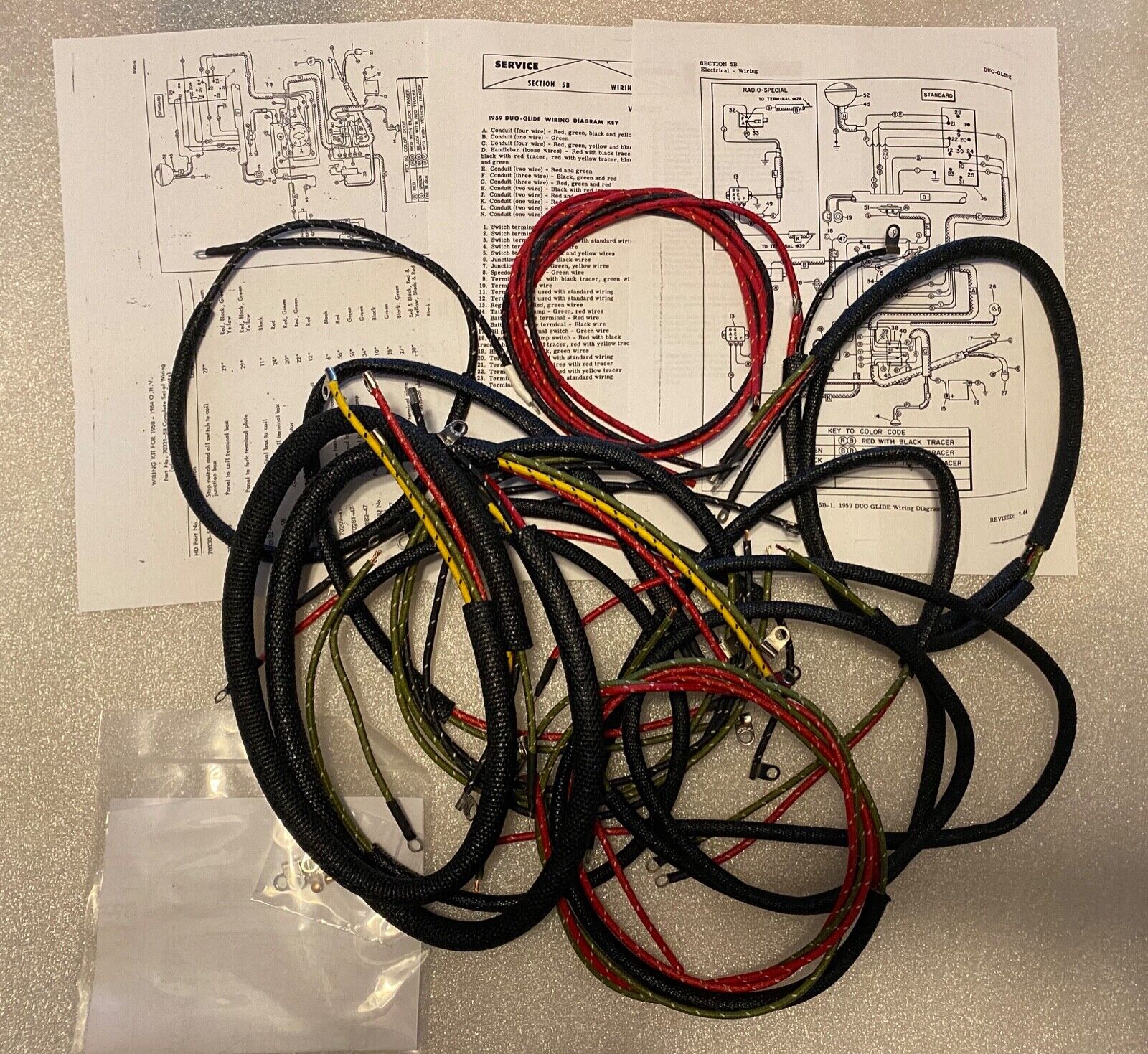

You are purchasing one new USA Made wiring harness kit for 1958-1960 Harley-Davidson Panhead Duo-Glide which includes basically all the wires you need to wire up your early Duo-Glide. This harness requires some soldering skills as you will need to de-solder your dimmer and horn switches as well as your tail lamp contacts. Includes handlebar horn and dimmer wires for two wire horn button, tail and stop lamp harness, dash to front terminal plate, dash to rear terminal board, coil to timer, battery positive and negative, oil pressure, stop lamp, generator to dash and relay, etc. Does NOT include the headlamp three prong harness nor any wires for that wiring block and does not include your panel bulb wires (oil, gen and neutral for '59-up). You will also get plenty of instructions to help you do the job correctly.
This harness differs from the 1958 one in that there is no neutral switch wire used in 1958. It differs from 1961-1964 as this is for single point ignitions and coils. This will come with the neutral wire with the correct cup or cap type terminal for the neutral switch.
This harness will wire up any Duo-Glide using a single point ignition with a single spark coil. This set up was "detail-correct" for 1959-1960. We carry kits for 1961-1964 also in addition to about any American built Harley model from 1926-1969.
If you don't care to do any soldering, look for one of our kits with completely wired dimmer and horn switches as well as headlamp and tail lamp pre-wired assemblies.
We will be adding kits complete with the clips in the near future. If you don't see them, just ask.
Includes everything you need to wire up your H-D from nose to tail.
Used on the following:
- 1959-1960 FL, FLH Panhead Duo-Glide 74" OHV
