Harley 56502-54 Panhead K Sportster Cotton Weave Spark & Throttle Cables 1954-74
- Product Code: 296110436048
- Availability: In Stock
-
$109.95
You are purchasing two new European made restoration-correct reproduction cloth covered spark and throttle control cables or control coils specifically for 1954 to 1974 Panhead, Shovelhead, and Servicar twins as well as lightweight models I believe from 1954-1959 or 1960. This has the approximate 5/8" OD plug, Casing length is about 42" from end to end, overall length of the inner wire is roughly 60" long. Casing and cable are typically trimmed for final fit on your bike which is best done with a set of side cutters and a sharp blade. These are hand-made in small batches for perfect accuracy and are a Cimarron Cycle Works exclusive.
These use a solid piano wire and they are intended for internally-routed cables through the bars for "push" type carburetors like the Linkert M and DC series. Please double check to make sure you need a push type cable. We can sell these with a stranded pull type cable as well. Just let us know your needs.
Cloth weave was used until 1959 or 1960. Please consult your own reference material. These have a very heavy laquer to give them a more correct factory type finish.
Please double check what length you need prior to ordering, these are 42" long.
Note that there are no end ferrules, those were used only on brake cables, not throttle and spark coils. We do have these for 1954-1974 models as well and are trying to see if we can come up with the same quality on 1949-1953 models.

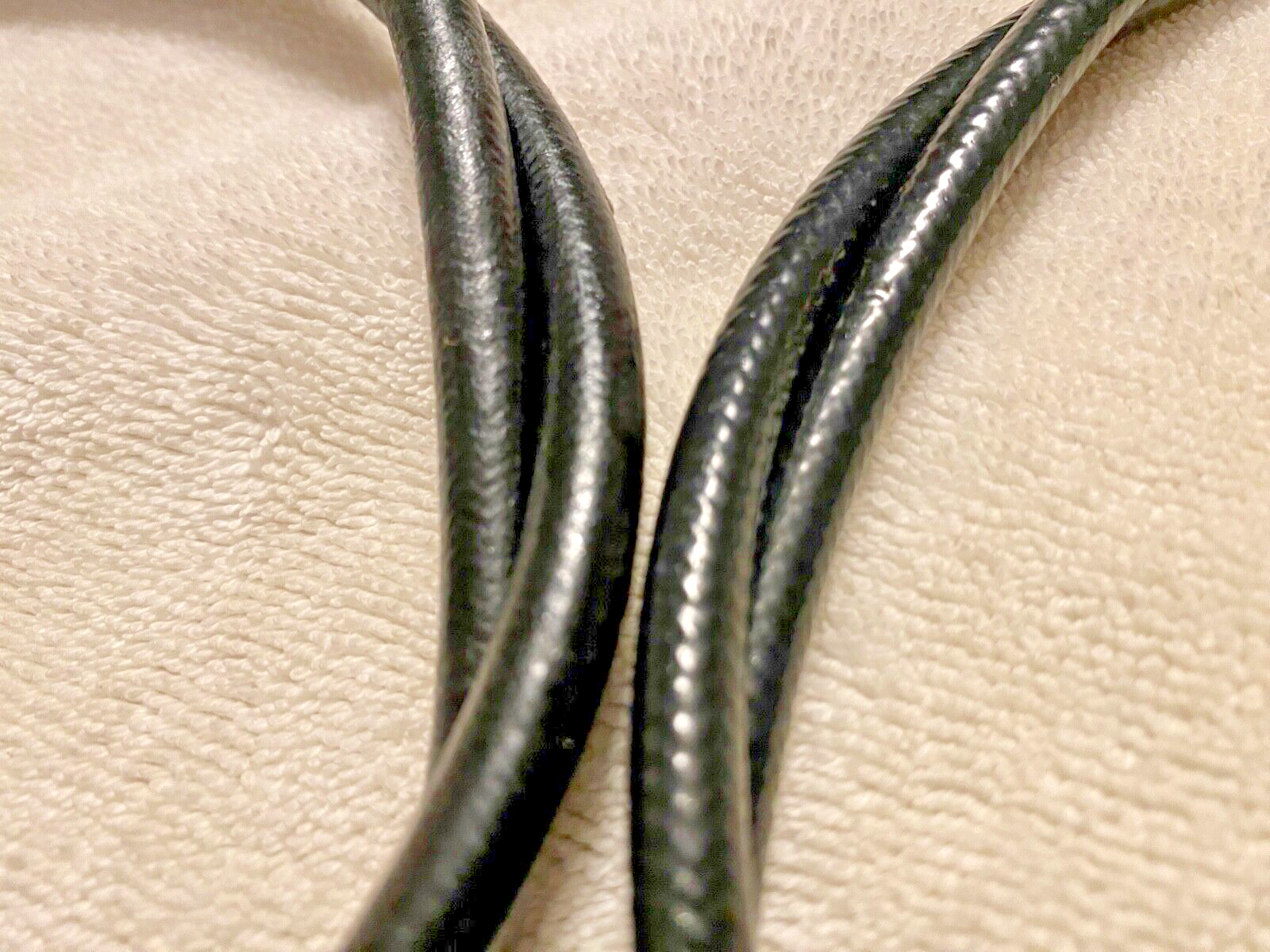

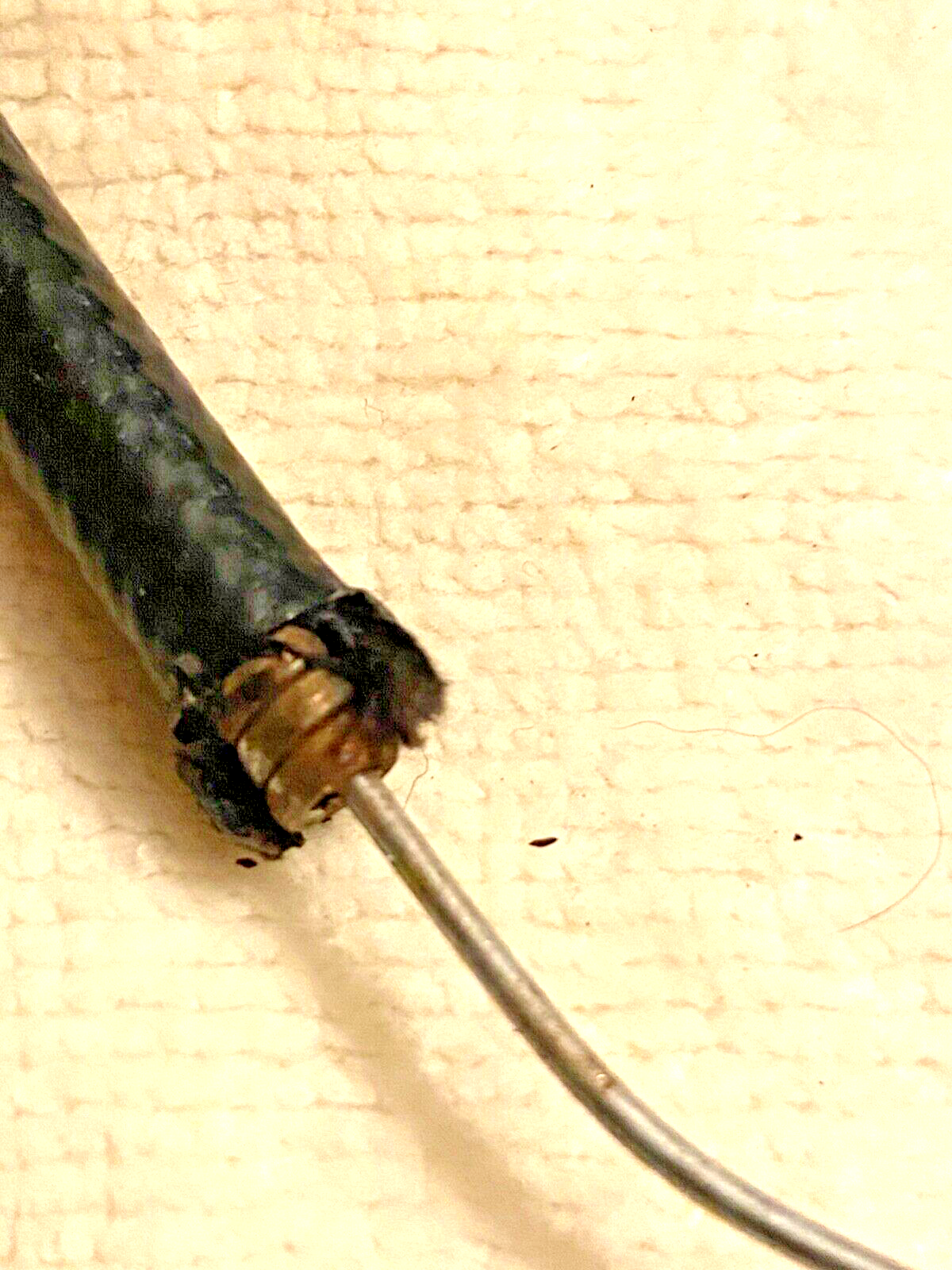

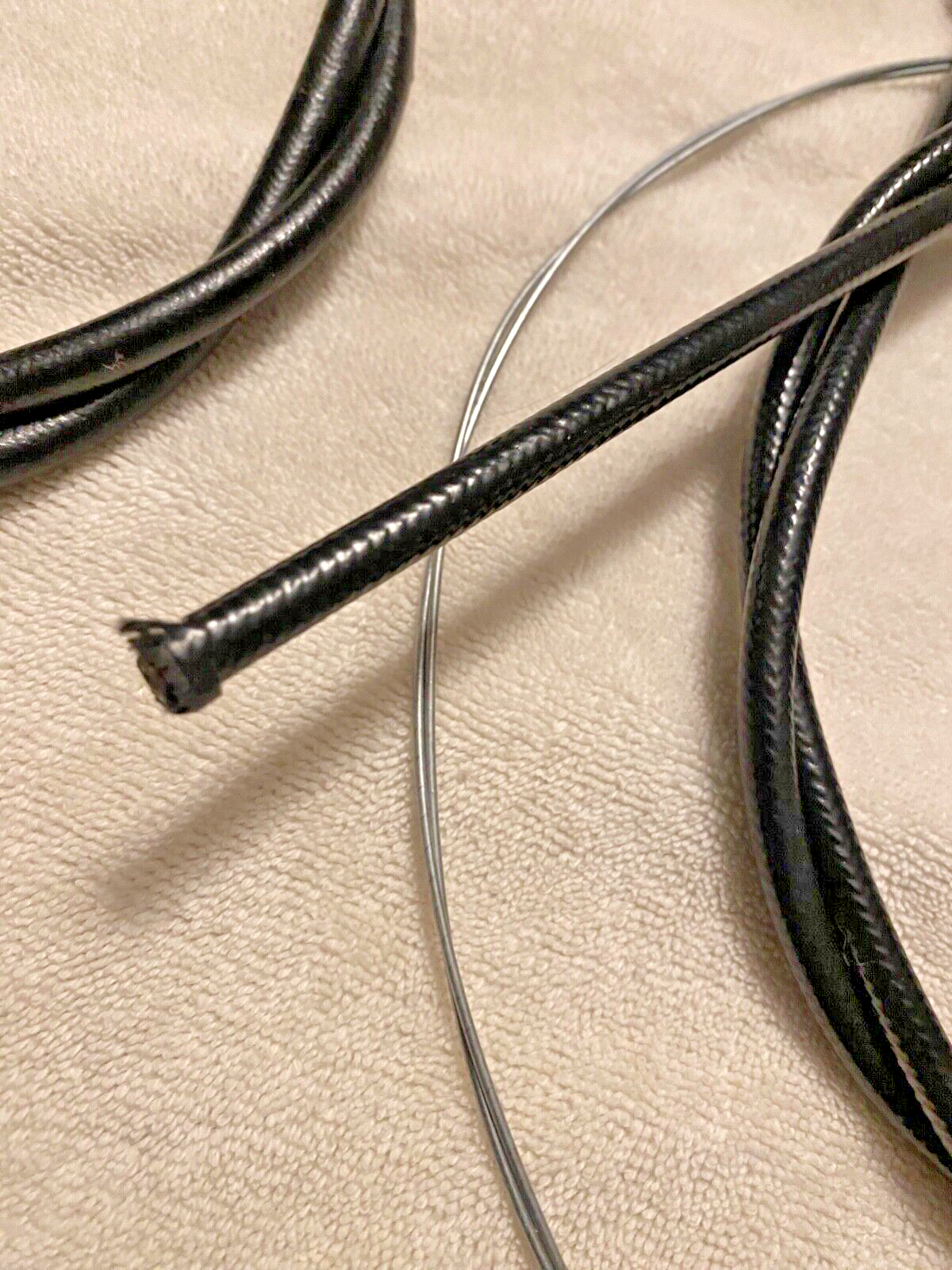

Please look closely at the photo showing the casing on this one and the casing on an NOS brake coil we have in our archives in photo 2 and 3. You will be hard pressed to find a more accurate outer casing. When we got these, they were so smooth we thought they were vinyl and our vendor asked that we trim them back to see the cloth.

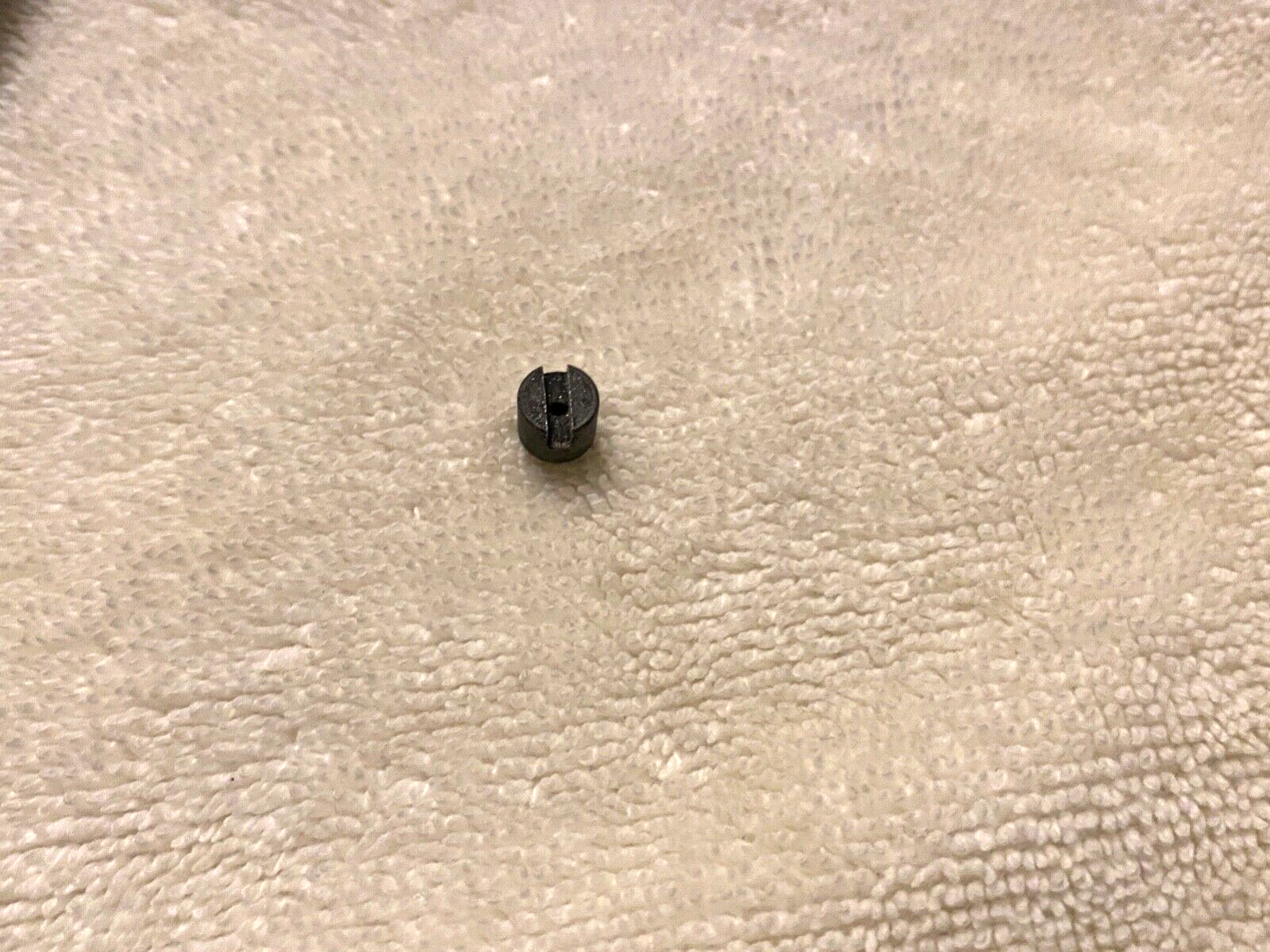

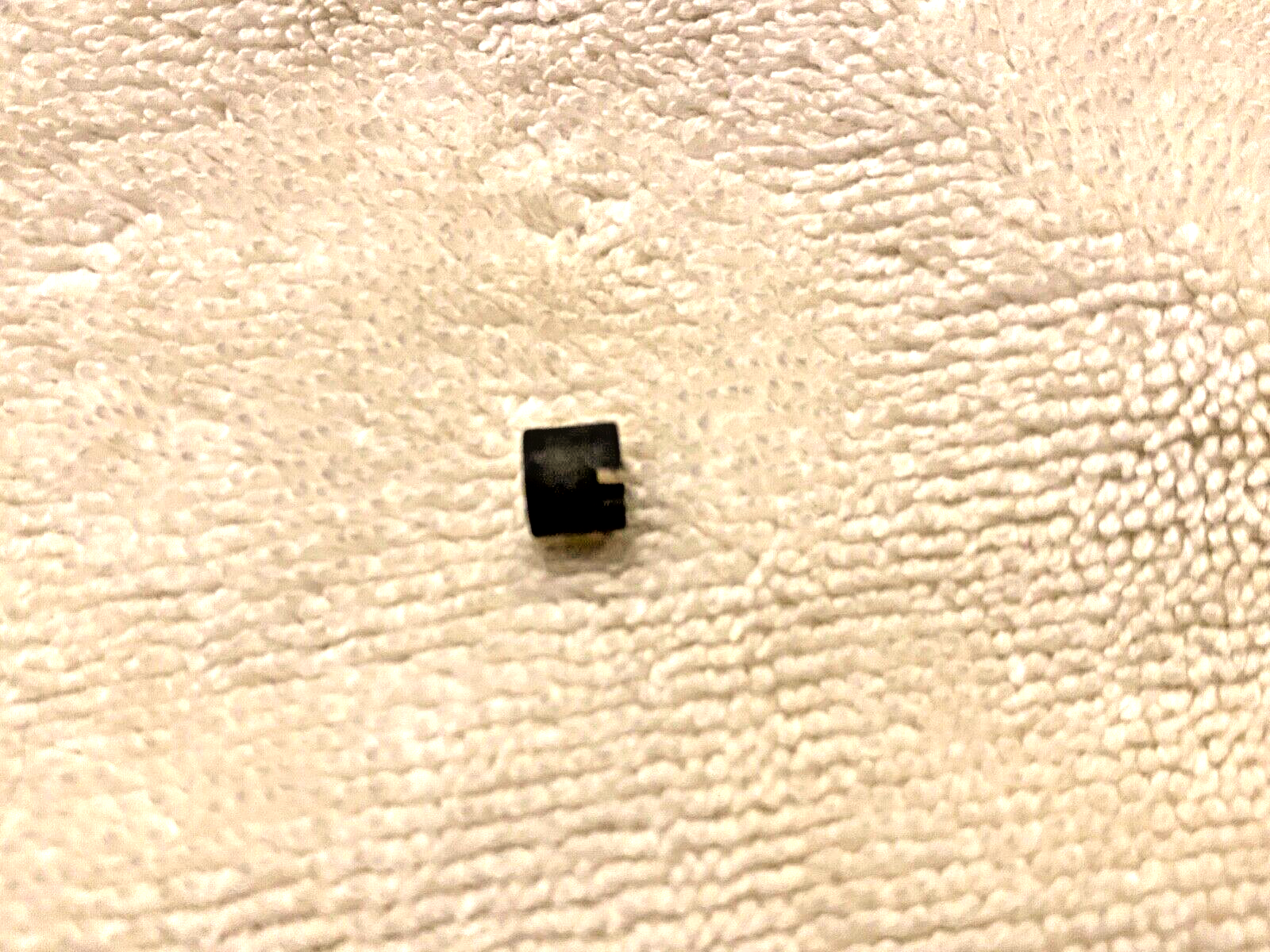

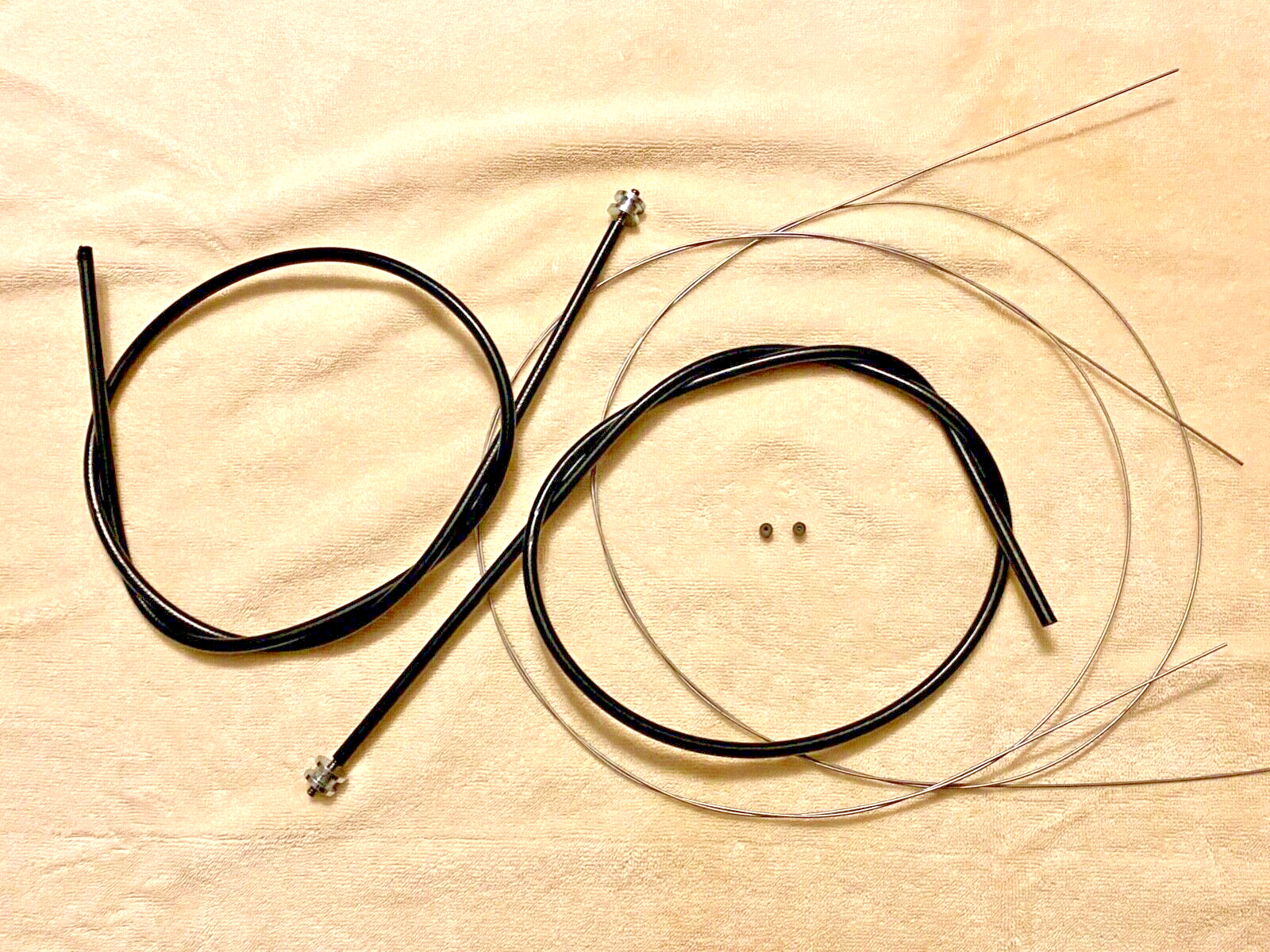

You will get two outer cables or "coils", two piano wire type push/pull wires, as well as the two end slugs you will need to solder or otherwise secure.
Note: This is for the stock "push-pull" type throttle and spark advance. We do sell these individually as well.
We also stock cloth covered brake and clutch cables for Panheads and cloth covered throttle and timer control coils for all years into the 1960's. We also manufacture the most highly detailed wiring harness kits for 1926-1969 Harley-Davidsons including Hummers, Knuckleheads, military bikes, VL, JD, etc. We have a huge stock of very hard to find hardware for models from these years as well in addition to wire clips and clamps, transmission, clutch, and engine parts, Schebler and Linkert parts, very well detailed tail lamps and headlamps for your authentic restoration.
Used on the following:
- 1958-1960 G Servicar with second generation Hydra-Giide handlebars. These will not work with the springer style 1949-1953 or later bars.
- 1954-1964 FL, FLE, FLH 74" OHV twin Panhead (Cotton weave would be correct to about 1959 or 1960, and you only need one cable for big twins from 1965-1974)
- 1954-1974 K, KH, KHK, XLH, XLCH K-model and Sportster Models (only one needed on auto advance and CH models)
Do note that we do offer one of the largest selections of reproduction hardware and electrical parts for your 1915-1984 Harley-Davidson motorcycle. Our offerings keep growing on a weekly basis, please email if you need something you don't see in our eBay store. We are also trying to increase our offerings for K-model and early Sportster owners.
PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate. Your shipping price does include insurance to the destination.
