Harley 45 WL WLA WLC Servicar CP-1035 Motor Mount Kit Parkerized Engine

  • Product Code: 352785160749
  • Availability: In Stock
  • $49.94


When ordering from the US, parcels may be subject to import tax and duty charges, which the buyer is responsible to pay.

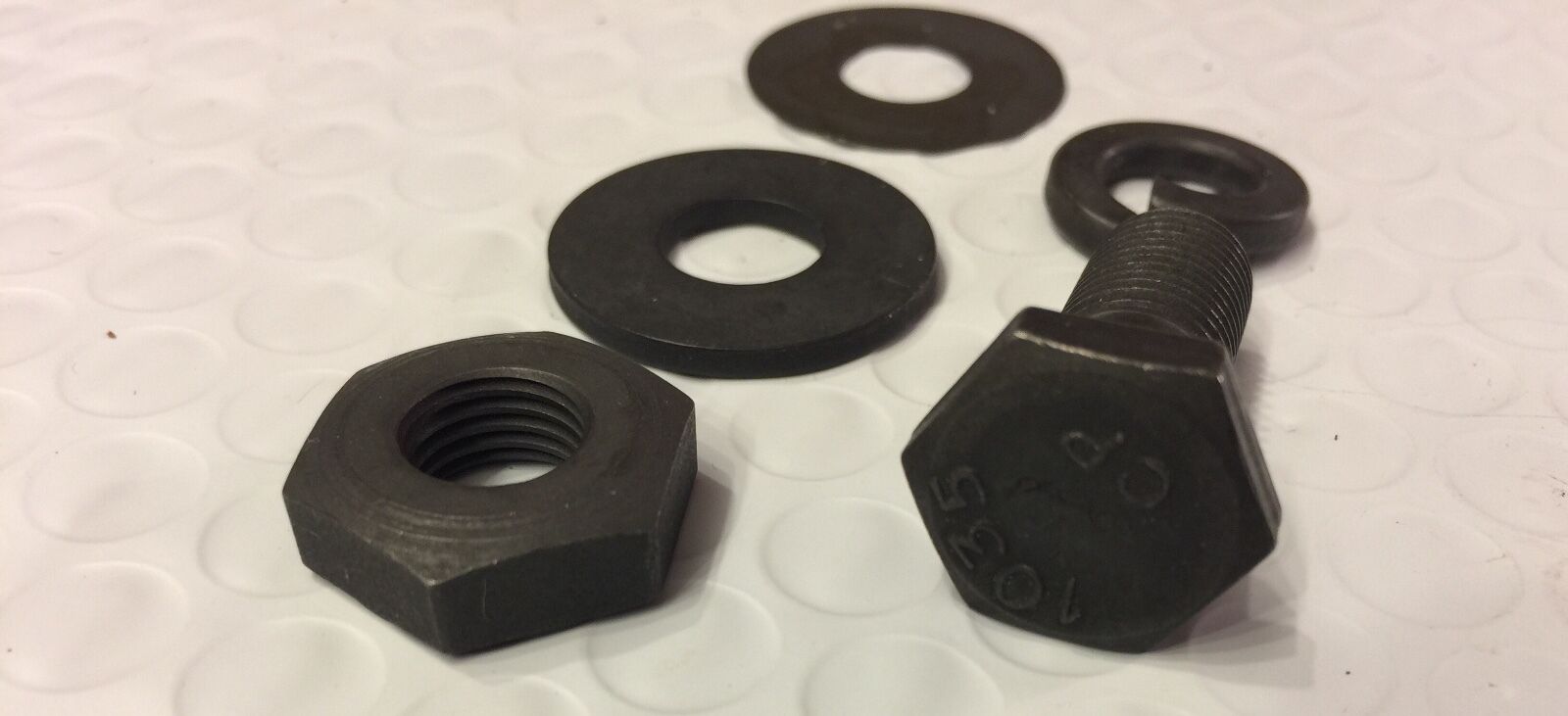

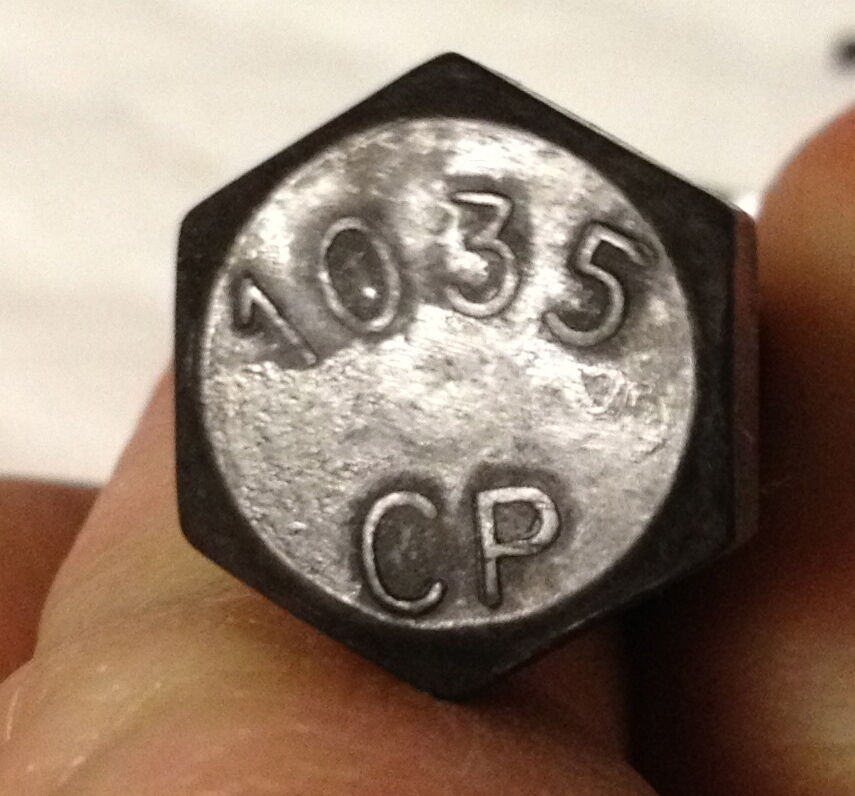

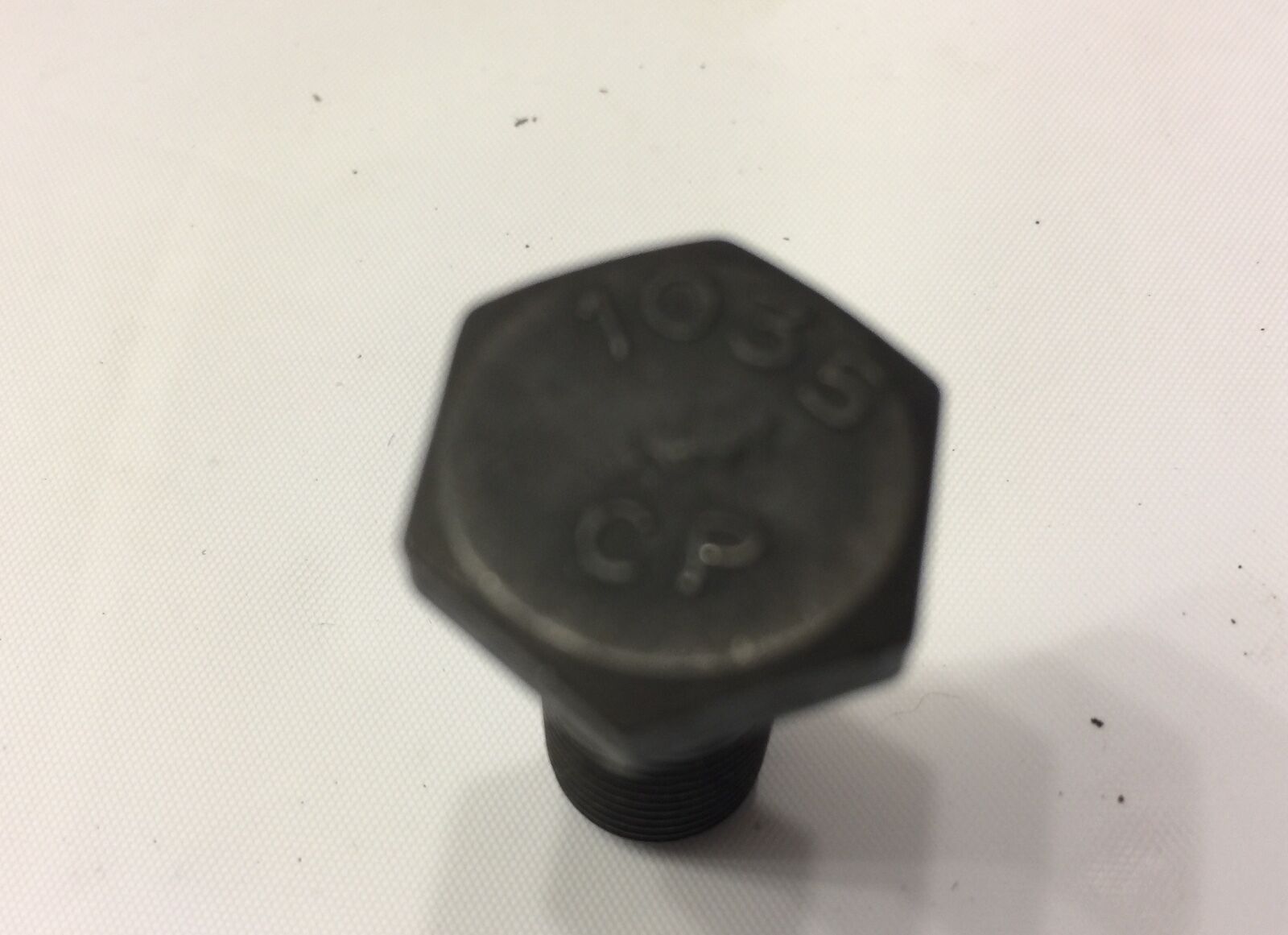

You are purchasing a complete motor mount kit for 1932 to 1973 45 solo and Servicar models. The bottom mount bolts, according to information I have, suggests these are also used on 1929 to 1931 45 models as well as 1930 to 1936 VL models.  All bolts, including the top motor mount bolt are parkerized and are marked CP-1035 which makes them "correct" for mid WWII until the late 1940's or so.  The parkerized finish would be "correct" up through the end of Servicar production in 1973, I believe.

I have these available as lower and top mount kits if you don't need the combined kit.  Please see the "Vintage Hardware Pre-1980" section of my eBay store for different motor mount options as well as other CP-1038 and CP-1035 hardware kits. I also have motor mount kits for U, UL, ULH and big twin from 1936 to 1979.

There seems to be some misinformation on CP bolts and "reproductions".  Chandler Products has always been willing to produce these bolts with large minimum quantity orders. There's either early production or current production. They changed head dies as they wore out and had multiple dies. Top mount bolt and all nuts are USA made using the same process Harley used when they operated their own screw and nut equipment with the flat lands on them.  Spacers and washers are produced just like the ones H-D did back in the day.  Parkerizing is same finish as how these came from the factory in the 1950's.  I've also got other hardware kits listed in my store under "pre 1980's hardware" including a CP-1038 gas tank and oil tank mounting kit which would go great with this.

Used on the following for certain:

  • 1937 to 1952 45" W, WL, WLA, WLC, WLD, WR, WLDR side valve or flathead
  • 1932 to 1973 45" G, GE, Servicar

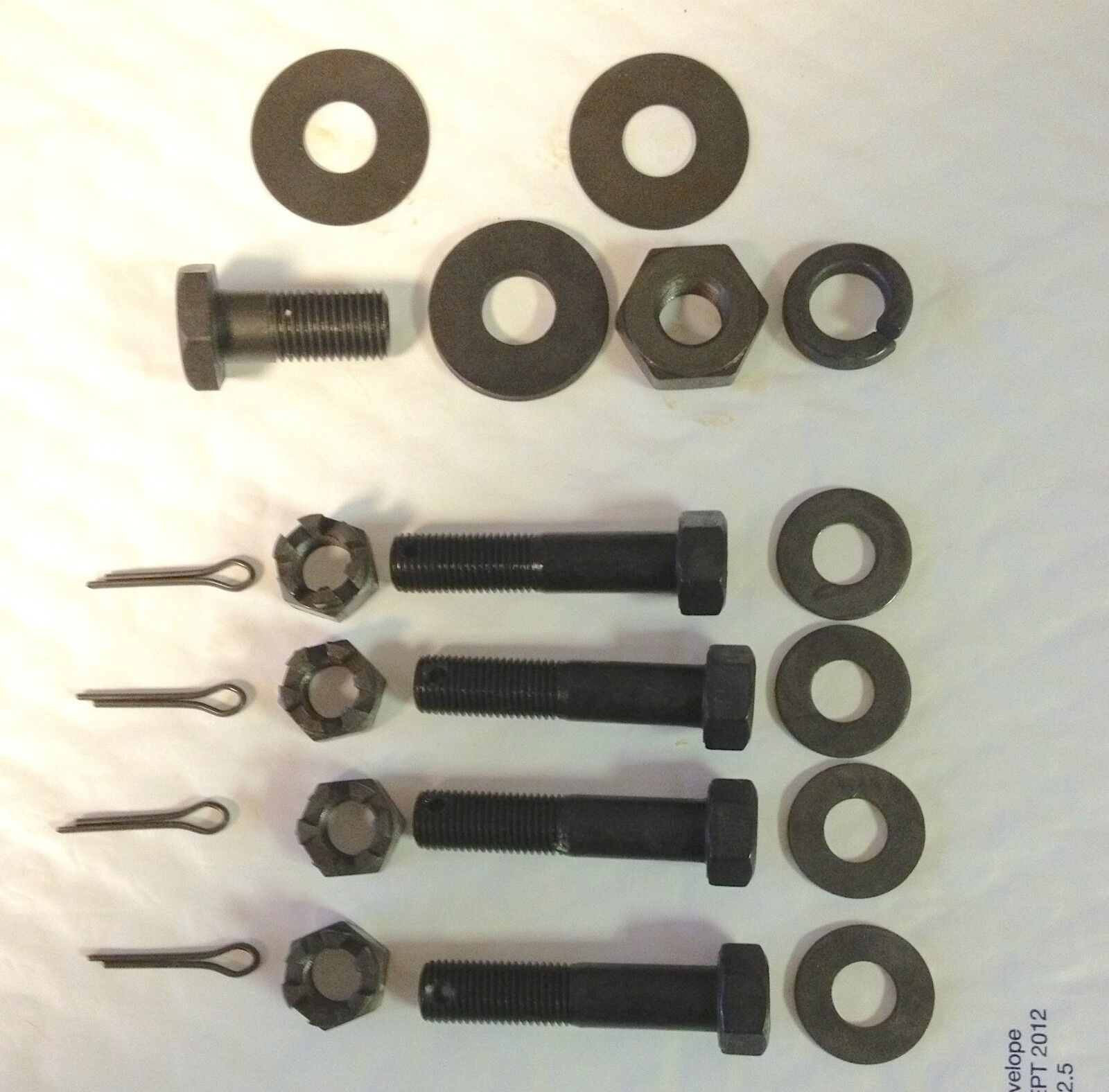

Includes the following parts by OEM part number:

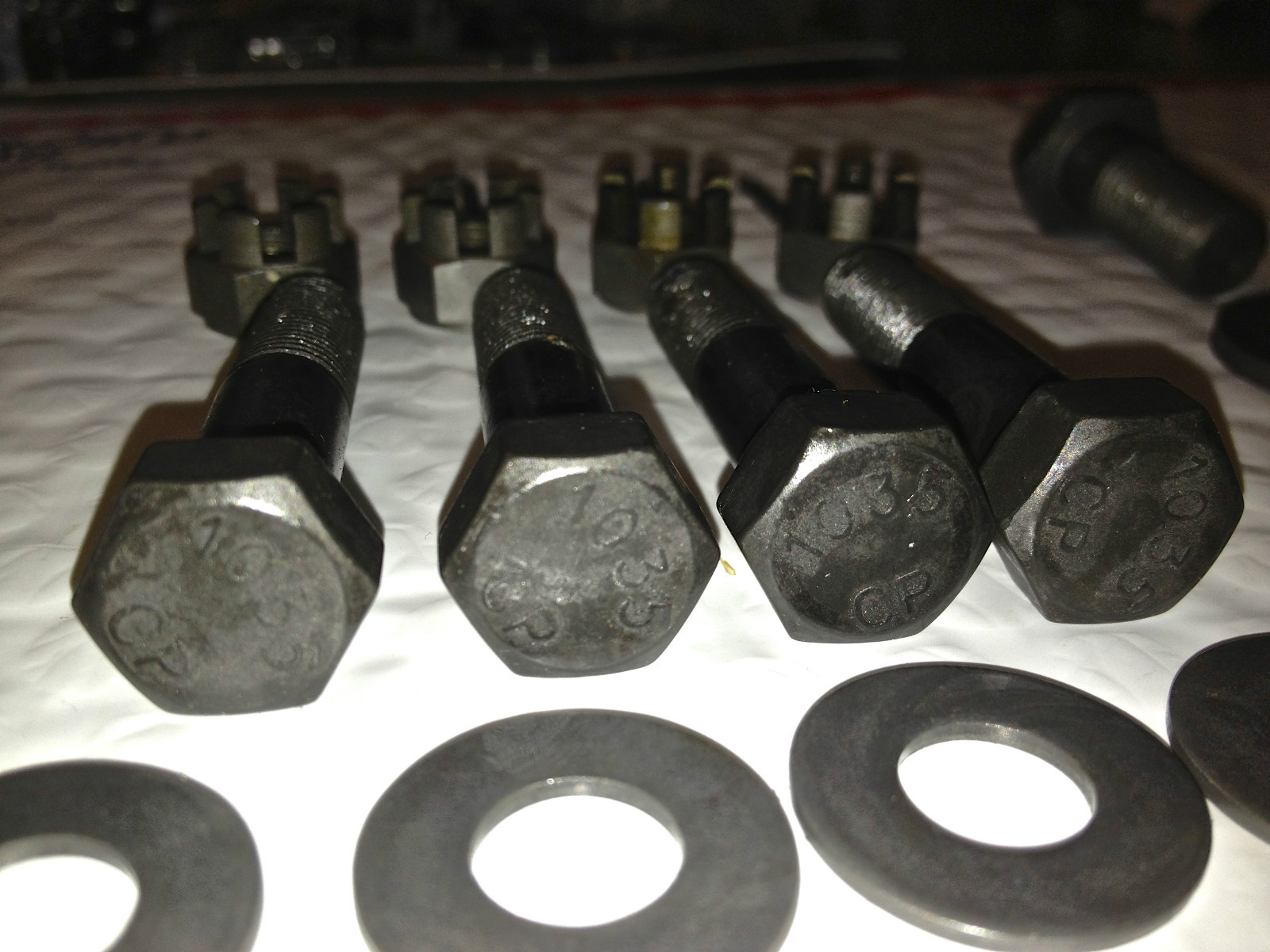

  • 4379, (early# 437-26) bolt with drilled tip for cotter key (qty 4)
  • 7809, (early# 0128) 3/8-24 castellated hex head nut (qty 4)
  • 528, cotter key (qty 4)
  • 6395, flat washer (qty 4)

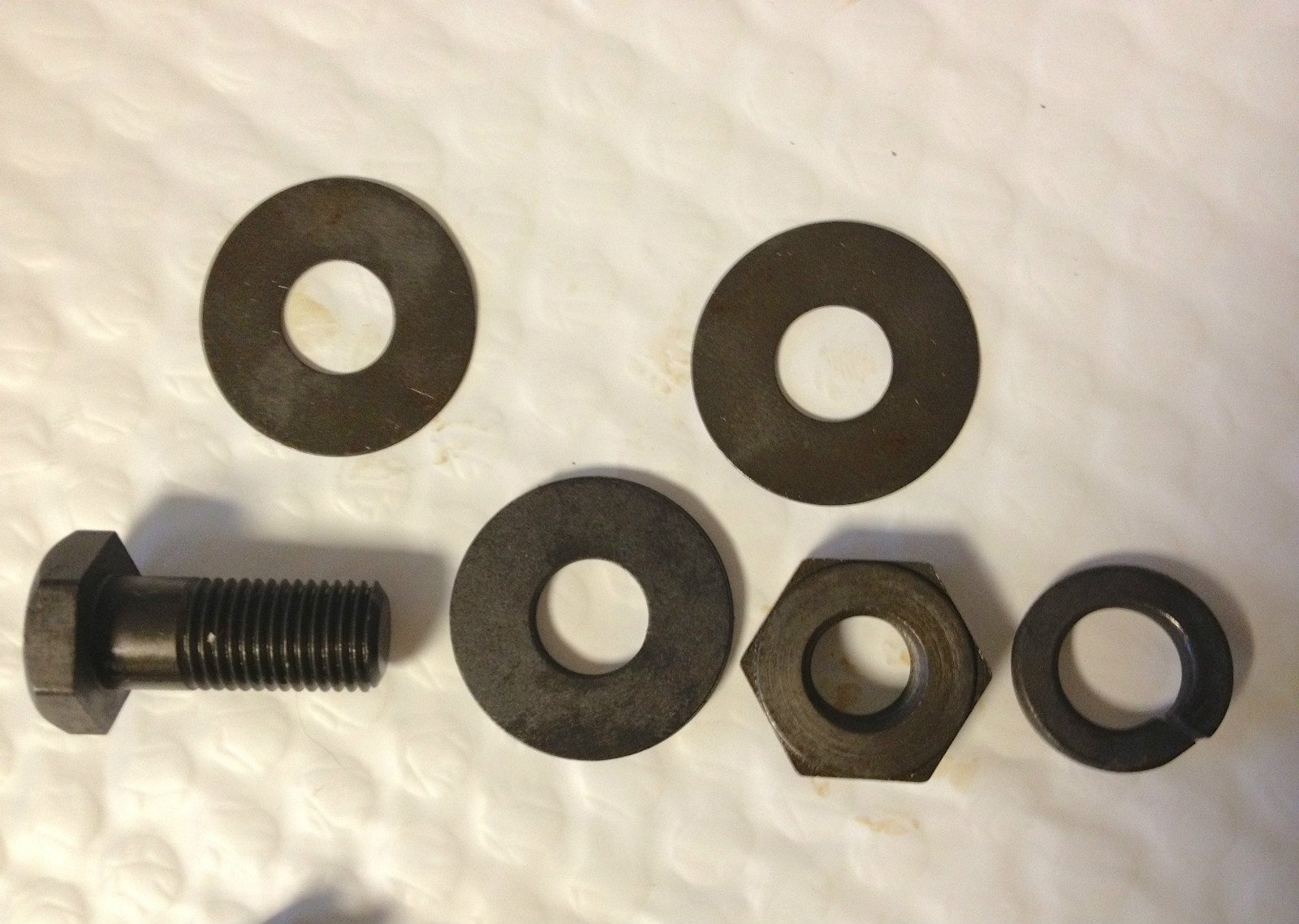

  • 7859, top mount bolt (qty 1)
  • 6520, flat washer thin (qty 2)
  • 6524, flat washer thick (qty 1)
  • 4620 nut (qty 1)
  • 7055 lock washer (qty 1)

PLEASE NOTE: When it's practical, I will gladly combine all your purchases into one shipment for a discounted rate.

A note on shipping:


Please understand sellers on eBay do not set the shipping rates.  Please also understand that sellers are charged a final value fee on the amount of shipping you are charged over and above the fees they pay on the sale and the Paypal transaction.  In addition to that, sellers have the expense of labels, shipping materials, padded mailers, etc.  I do charge a handling fee on some items, but I also offer several shipping options whenever possible to give you more affordable shipping choices.  If you ever think the shipping fee charged is too high, please let me know before leaving a low rating on shipping charges.  It’s rare that I receive such feedback, but I work hard to keep my customers happy.  I’d rather know if someone is unhappy before they leave a low rating.  That’s the only way I can solve a problem.  I don’t ever want a customer to go away unhappy!


Know who you are buying from! We are not a drop-ship operation, each and every part we sell is carefully inspected to assure you get the quality part described in the listing.  We have a no-hassle return policy, and we stand behind the parts we sell because we know what we are selling and shipping to our customers.  Before you make a purchasing decision compare our feedback vs. others.

We are aware eBay’s shipping calculator is not working correctly on combining shipping for some of our listings.  If the shipping amount eBay is trying to charge you seems high, please contact us immediately or simply click “request total from seller” and we will promptly manually calculate your shipping.  We always combine shipping on multiple item orders and will find the least expensive method which falls in line with how quickly you need your items.  Thank you!
Warranty No
Country of Manufacture United States
Brand Cimarron Cycle Works
Surface Finish Parkerized
Manufacturer Part Number 4379, 7809, 528, 6395, 7859, 6520, 7055, 4620
