Harley 4129-28 JD DL RL WL Single Front Brake Shackle 1928-39 SF-834 T Casting

  • Product Code: 292936542683
  • Availability: In Stock
  • $129.95

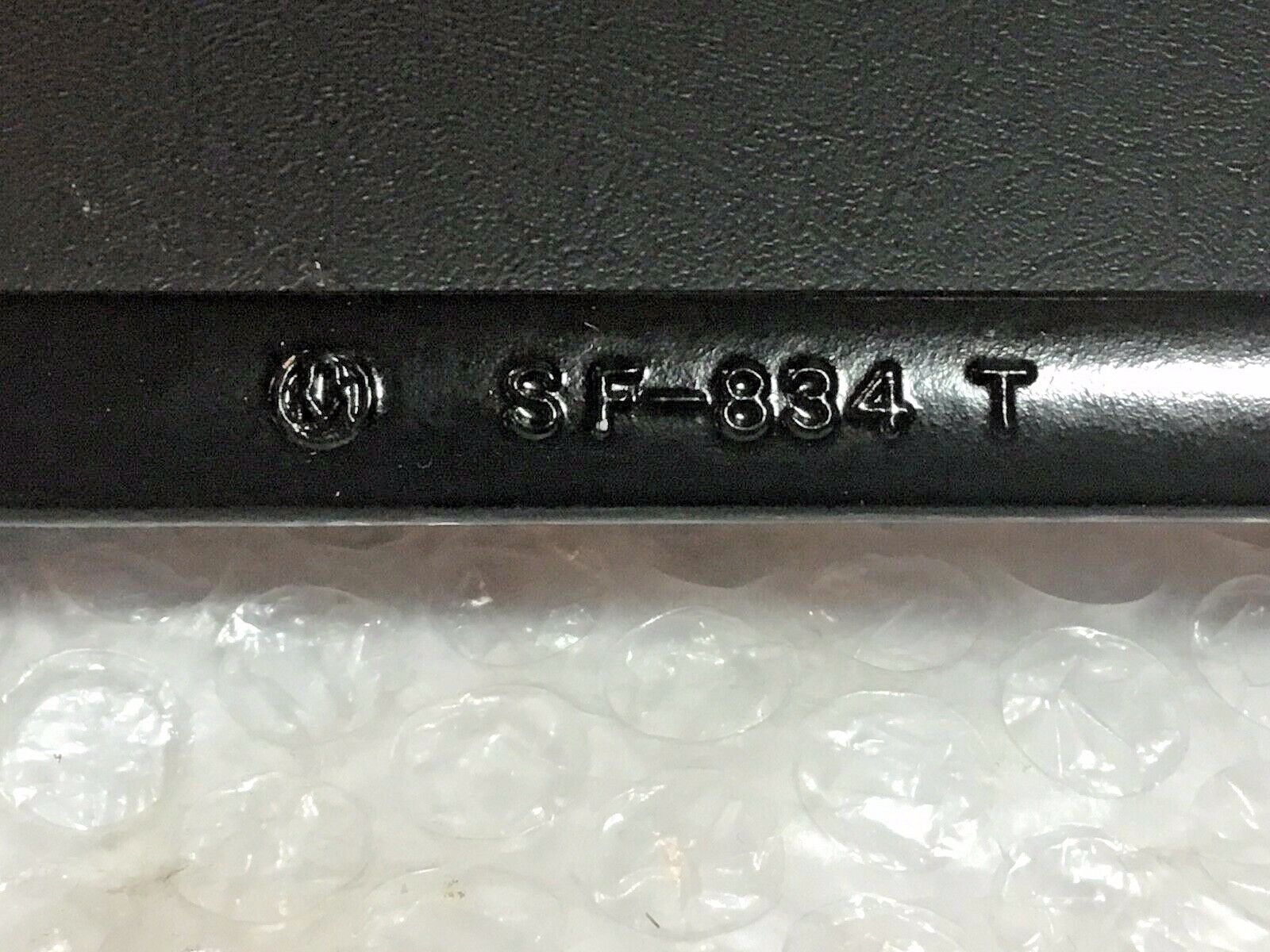

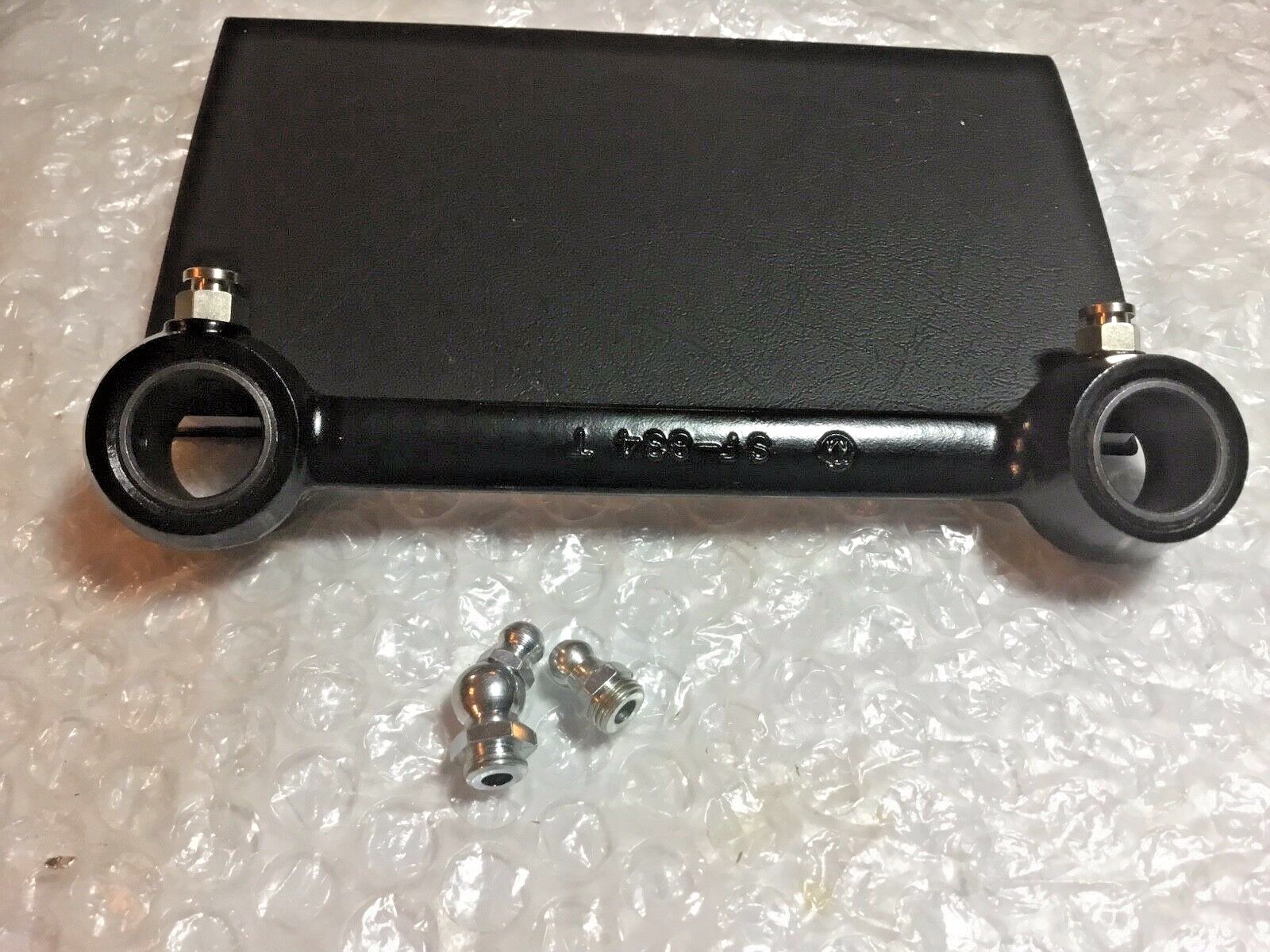

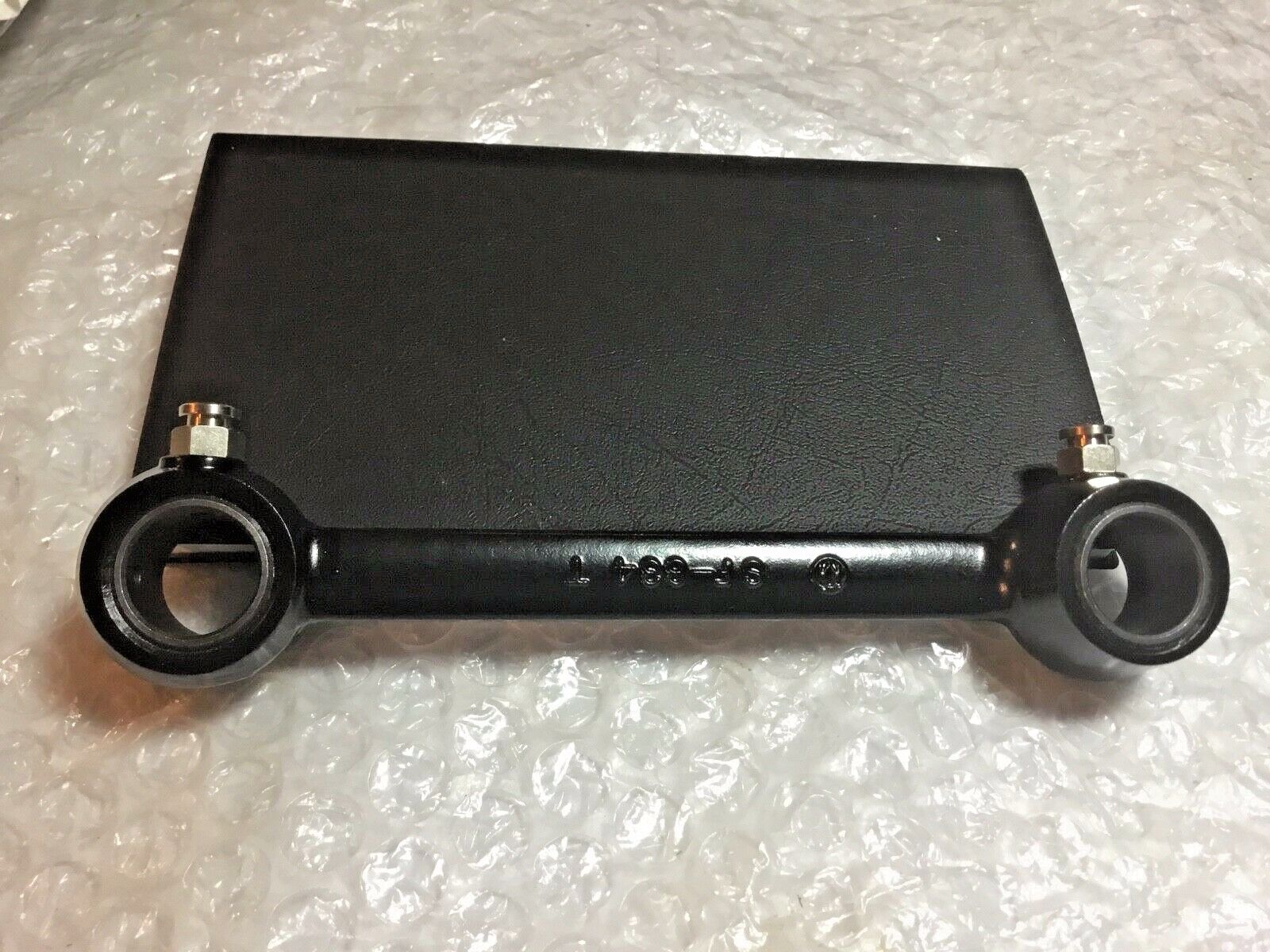

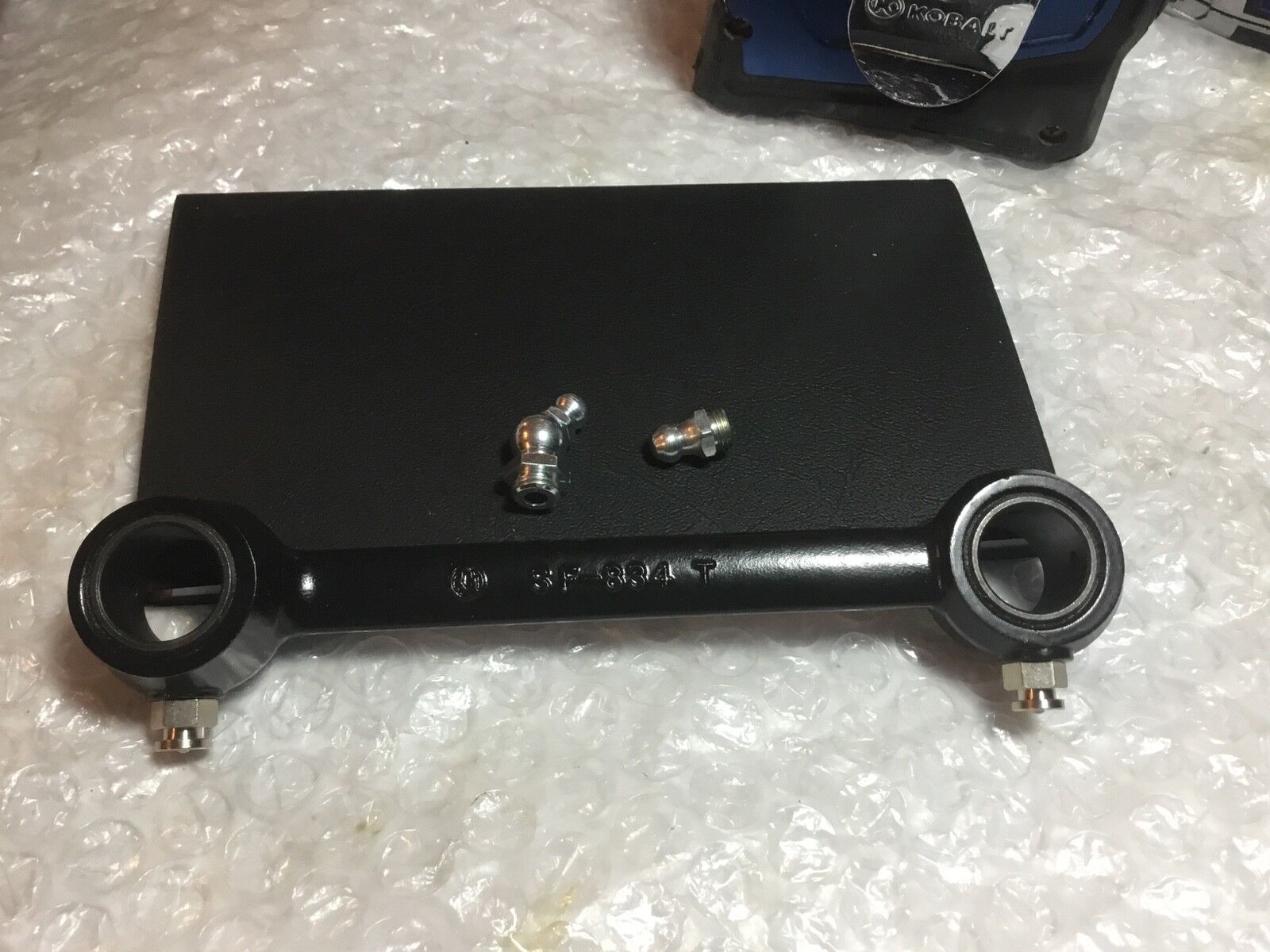

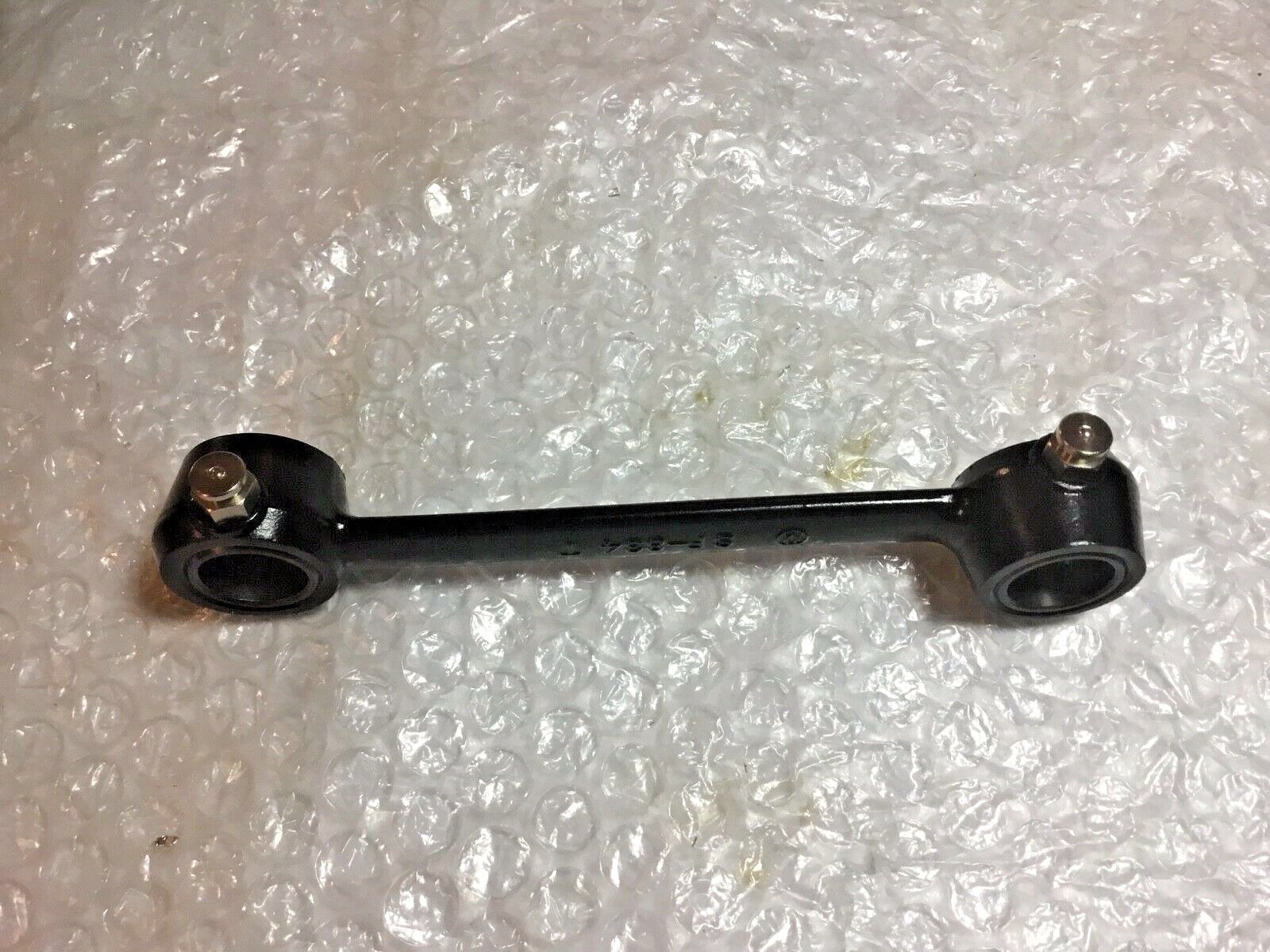

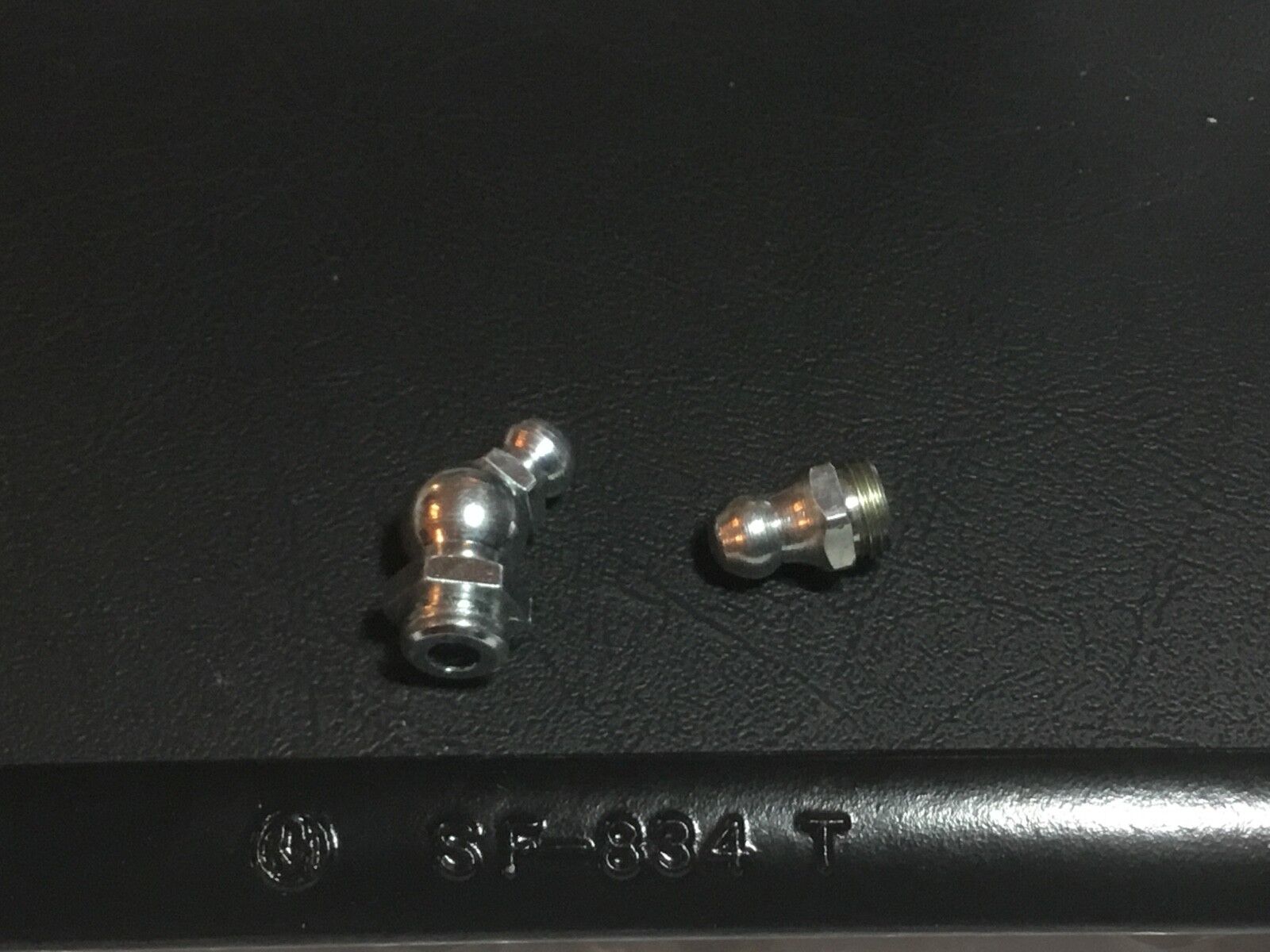

You are purchasing one reproduction front brake shackle for Harley-Davidson models from 1928-1929.  These are an excellent reproduction right down to the casting number of SF-834 T and the casting hallmark to the left side.  These come with nickel plated alemite and standard grease zerks if you prefer the utility of later grease zerks.

I'm a bit confused about the application as the 1928 & 1929 JD as well as early DL and singles shackle has similar dimensions, here are the dimensions of this shackle:

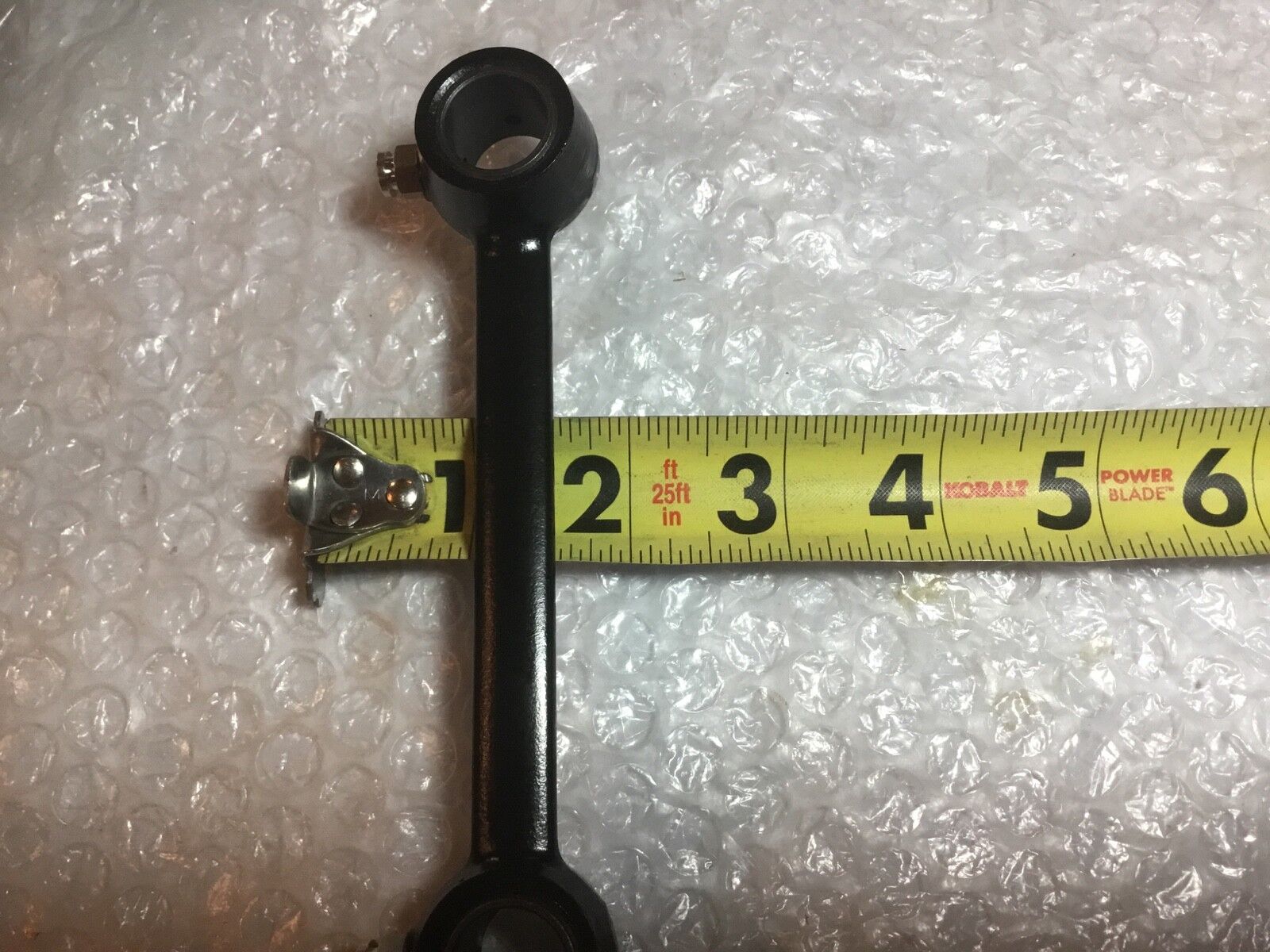

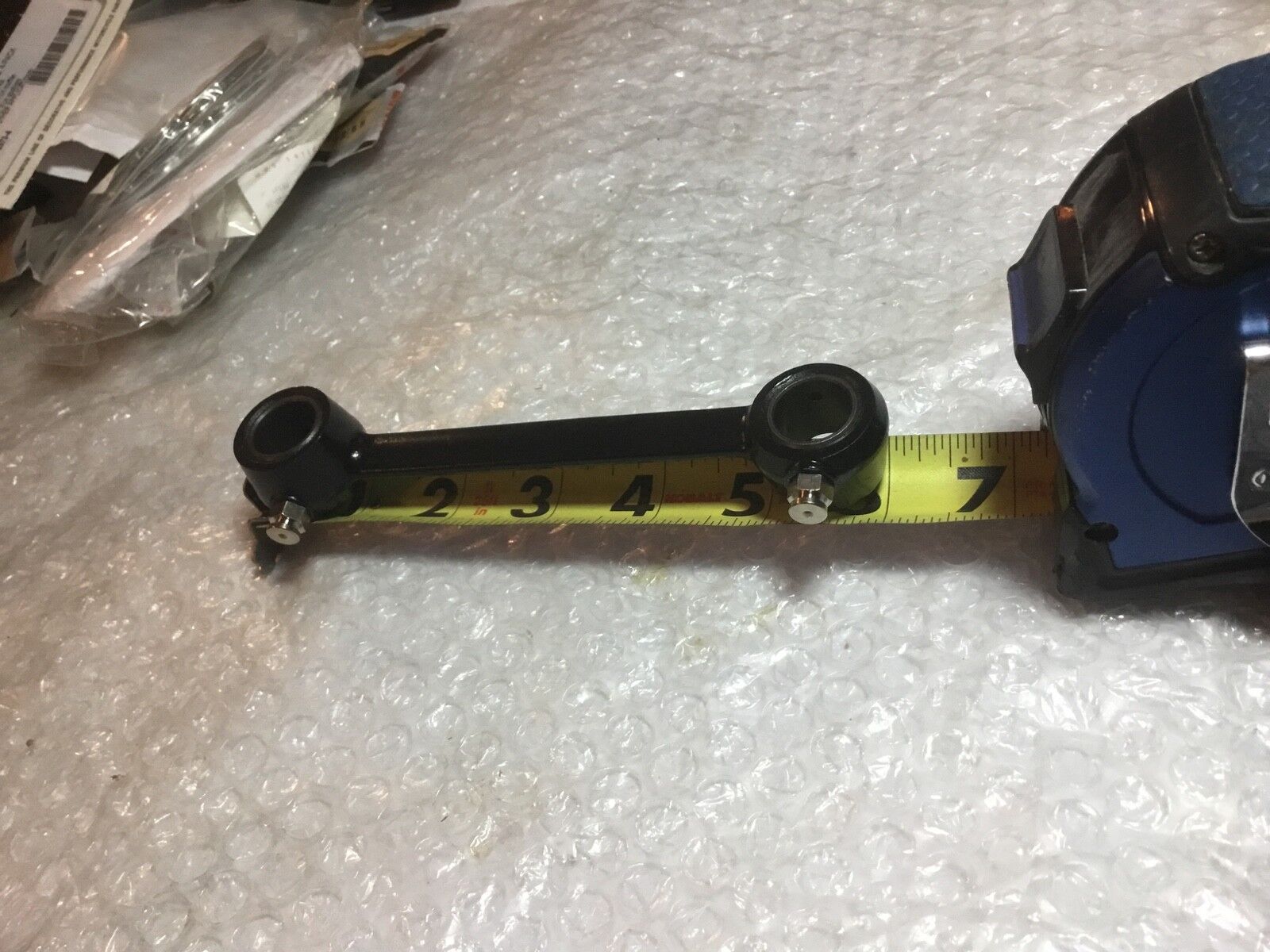

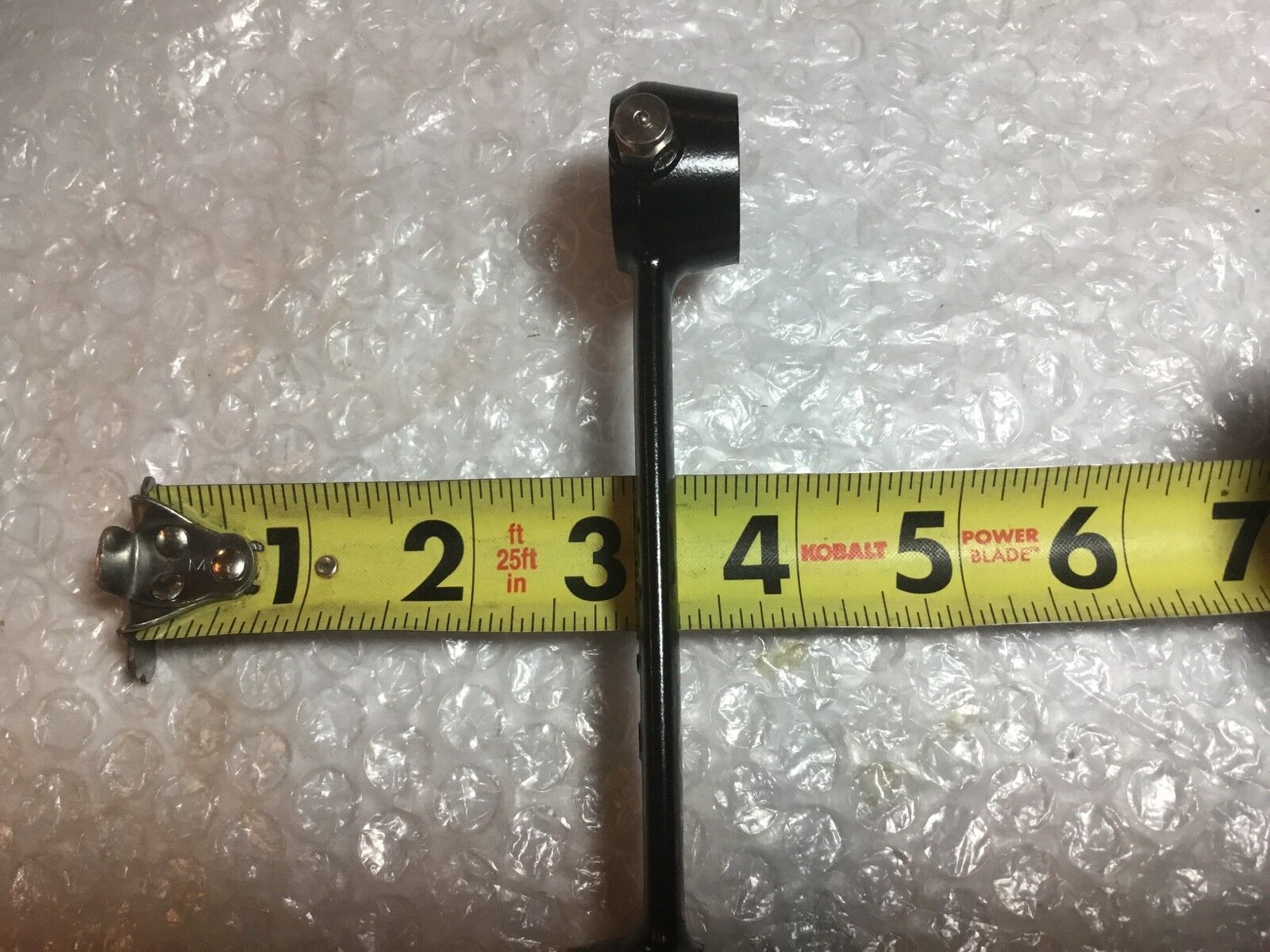

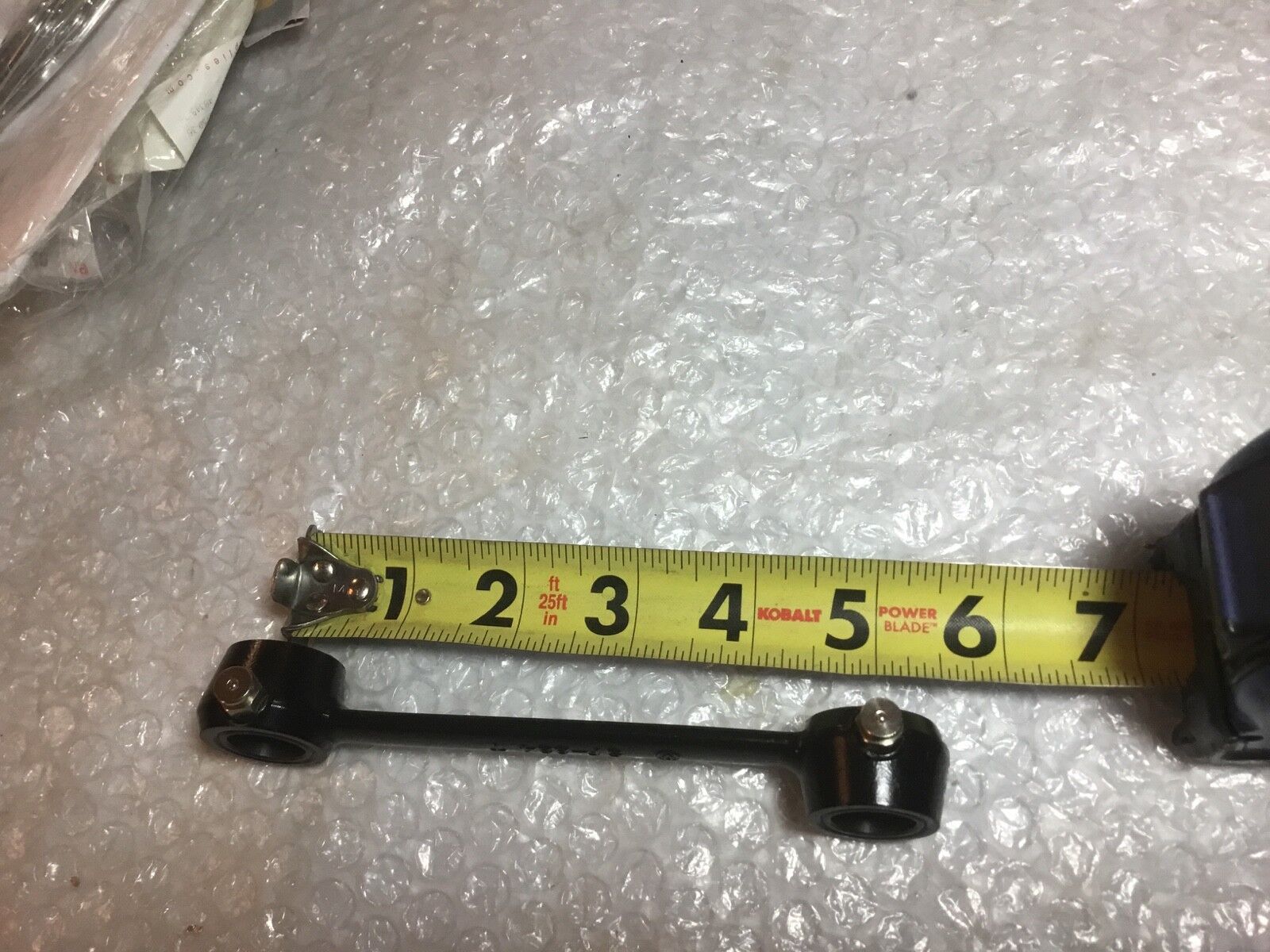

6" overall length
Approx 4 7/8" center to center on the bushing holes
11/16" wide bushings
1/2" deep on the middle of the bar
1/4" bar cross section
5/8" bushing ID (roughly)

The 45 and single shackles were either 5" or 5 1/4" centers, I have no idea how this 1/4" may or may not affect your braking effect and geometry.  Please check your own reference material prior to purchasing.  Bruce Palmer's updated "How To Restore..." says the 1930-39 shackle is 5.25" center to center but I have seen claimed originals from this era with a 5" center.
  • 1928-1929 JD, and JDH models 61" &  74" IOE.
Please be sure to check our store for more JD & VL era parts such as oil lines, fuel lines, exhaust clamps, brake rods, clevises, and a full selection of plain head, machine cut bolts that are exacting duplicates of the original H-D hardware.  We have fuel tank mount kits, exhaust kits, etc.  Please drop us an email if you don’t see what you are looking for in our eBay store.  We have literally hundreds of parts for 1915-1984 H-D we have not had time to list on eBay as of yet.
